Iluv i159 User manual
International
USB Power Adapter
Instruction Manual
i159
Please read this manual carefully before
operating and save it for future reference.
Have a question?
Please visit www.i-Luv.com
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
1
-
GETTING STARTED
Thank you for purchasing the i159. Unpack the unit making sure
all accessories are put aside so they will not get lost.
Power your iPod or iPhone when you’re on
the go
Whether you’re out in your car or out of the country, you can
power your Samsung MP3 player, iPod, iPhone or other device
with these USB adapters. If you feel powerless without your music,
these adapters come to the rescue. The USB car adapter works
with the cigarette lighters of most cars. The USB power adapter
comes with AC plug adapters that help you power-up in many
countries around the world. If your device has a USB connector,
bring it with you whether you’re going across the country or across
the globe.
International USB power adapter
•Power your Samsung MP3 player, iPod, iPhone or other device
with a USB connector
•Supports 4 different AC plug types
oBuilt-in flat parallel blades for North America and Japan
oAC plug adapter with three-prong blades for UK and Hong
Kong (included)
oAC plug adapter with flat angled blades for Australia and
New Zealand (included)
oAC plug adapter with round thin pins for Continental
Europe (included)
•Supports the 100V – 240V power input
•Simple and easy to use
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
2
-
GETTING STARTED
USB car adapter
•Power your Samsung MP3 player, iPod, iPhone or other device
with a USB connector
•A blue light on a black body gives it a stylish look at night
•The integrated fuse protects your MP3 player against a sudden
voltage surge
•Supports the 12V – 24V power
input*
•Simple and easy to use
What’s included
•USB power adapter with flat parallel
blades
•USB to 30 pin charge cable
•3 different AC plug adapters
oAC plug adapter with three-prong blades
oAC plug adapter with flat angled blades
oAC plug adapter with round thin pins
•USB car adapter
•Pouch
Note: The i159 delivers power to an attached device only through
the USB connector.
* There are some variations with the output of the cigarette lighter
jack which depend on the make, model and manufacture date of
your car. This voltage range may be covered by 9V – 24V.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
3
-
OPERATIONAL INSTRUCTIONS

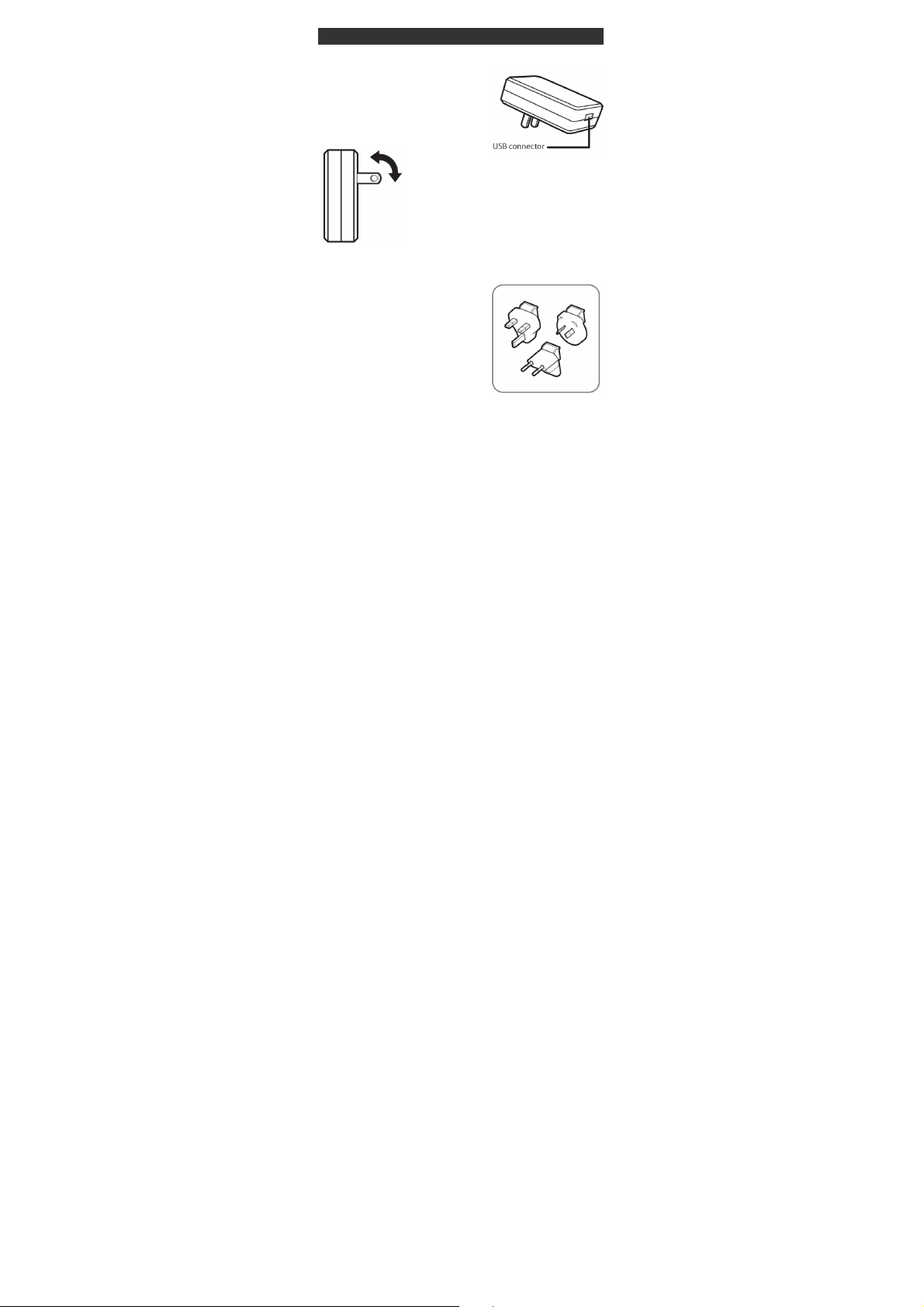

Connecting the USB power adapter
The supplied USB power adapter
comes with three different plug
adapters. With these exchangeable
plug adapters, you could charge and
power your MP3 players anywhere.
For use in USA and Japan, it is not
necessary to install the included plug
adapters. Just pull out the built-in parallel
blades from its cradle for immediate use.
OR
For use in other countries, select the correct plug adapter.
AC plug adapter with three-prong
blades for UK and Hong Kong
AC plug adapter with flat angled
blades for Australia and New
Zealand
AC plug adapter with round thin
pins for Continental Europe
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
4
-
OPERATIONAL INSTRUCTIONS
Connecting the USB power adapter – Cont.
Install the selected plug adapter on the
USB power adapter as shown right.
Make sure to insert it to the end.
Note: The built-in blades must be
placed in its cradle before inserting the
plug adapter.
Insert one end of the USB cable
(included) to the USB power
adapter and the other end to your
iPod/iPhone.
Insert the USB power adapter into the power supply (AC power
outlet).
Important Notes: To avoid electric shock or injury, do not use this
unit with wet hands. For your safety, this unit is not recommended
for use in wet places or near water.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
5
-
USB power
output
OPERATIONAL INSTRUCTIONS
Connecting the USB car adapter
The supplied USB car adapter features a
stylish blue light along the top rim. This light
lets the user know when the car adapter is
connected and charging.
The USB power output jack
is located on the side of the
car adapter and shown in the image to
the right.
Simply insert
one end of the
USB cable
(included) to the
USB car adapter and the other end
to your iPod or iPhone. Insert the
USB car adapter into the cigarette
lighter in your car.*
The blue light will begin to glow and your iPod or iPhone is now
being powered through the USB car adapter.
*The removable coil plug in the cigarette lighter (typically marked
by an illustration of a cigarette and smoke), must be removed in
order to insert the USB car adapter.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
6
-
OPERATIONAL INSTRUCTIONS
Additional Features with USB Car Adapter
The supplied USB car adapter also features a removable,
replaceable fuse to extend the life of the adapter; and a 90 degree
rotating head to adjust for the best connection to the USB power
output.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
7
-
USER SAFETY GUIDE
Important Safety Precautions
INSTRUCTIONS FOR ENVIRONMENTAL
PROTECTION
Do not dispose of this product in the usual
household garbage at the end of its life cycle;
bring it to a collection point for the recycling of
electrical and electronic appliances. This symbol
on the product means the instructions for use or the packing will
inform about the methods for disposal. The materials are
recyclable as mentioned in its marking. By recycling, material
recycling, or other forms of re-utilization of old appliances, you
make an important contribution to protect the environment.
Please inquire at your local community administration for the
authorized disposal location.
Important Safety Warnings
1. To prevent fire or electric shock, do not expose the unit to
water, rain, or moisture.
2. Never attempt to open the unit. Always refer servicing to a
qualified technician.
3. Keep this unit away from children.
Note: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
8
-
USER SAFETY GUIDE
Important Safety Instructions
1. READ INSTRUCTIONS – All safety and operating
instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS – The safety and operating
instructions should be retained in a secure place for future
reference.
3. HEED WARNINGS – All warnings on the appliance and in
the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS – All operating and use
instructions should be followed.
5. WATER AND MOISTURE – The appliance should not be
used near water. For example: near a bathtub, kitchen sink,
laundry tub, and/or swimming pool.
6. VENTILATION – The appliance should be situated so that its
location and position does not interfere with its proper
ventilation.
7. HEAT – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
8. POWER SOURCES – The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
9. CLEANING – The appliance should only be cleaned with a
dry cloth.
10. OBJECT AND LIQUID ENTRY – Care should be taken so
that objects do not fall and liquids are not spilled into the
device’s openings.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
9
-
USER SAFETY GUIDE
Important Safety Instructions-Continued
11. DAMAGE REQUIRING SERVICE – The appliance should be
serviced by a qualified service professional when:
a. Objects have fallen into, or liquid has been spilled into
the appliances apertures.
b. The appliance has been exposed to rain.
c. The appliance has been dropped and suffered
damage.
d. The appliance does not appear to operate normally, or
exhibits a change in performance.
12. SERVICING – The user should not attempt to service the
appliance beyond what is described in the operating
instructions. All other servicing should be referred to a
qualified service professional.
13. LEAD AND MERCURY – This product may contain lead
and/or mercury. Disposal of these materials may be regulated
by your local authorities due to environmental considerations.
For detailed disposal or recycling information, contact your
local agencies or the EIA (Electronic Industries Alliance) –
http://www.eiae.org.
FCC Notice (USA)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
USB Power Adapter V12M12_IM_EN_06182008
www.i-Luv.com
-
10
-
MAINTENANCE & SPECIFICATIONS
Maintenance
•When not in use, keep this device in a safe place where it will
not be bent or crushed.
•Clean the unit with a soft cloth. Do not use strong cleaning
agents, such as Benzine, thinner or similar materials. They can
damage the surface of the unit.
Specifications
•USB power adapter
oType: Class II
oPower Input: 100V – 240V, 50Hz/60Hz, 22W
oPower Output: DC 5V, 2A (max)
•USB car adapter
oInput: DC 12V – 24V
oOutput: DC 5V, 1.5A (max.)
oFuse: 2A
•USB Cable
oLength: 0.8m
oInput Connector: USB
oOutput Connector: iPod 30pin
iLuv is a trademark of jWIN Electronics Corp. iPod is a trademark of Apple,
Inc. Samsung is a trademark of Samsung Corporation in the United States
and other countries. All logos and brands are property of their respective
owners. iPod and/or MP3 players are not included in this package. Features
and specifications are subject to change without prior notification.
©2008 jWIN Electronics Corp. All rights reserved. No portion of this printed
material or product enclosed herewith including design, shape and graphics,
may be reproduced or transmitted in any form without the prior written
consent of jWIN Electronics Corp. by any means, electronic or mechanical,
including photocopying, recording or use of an information storage and
retrieval system. Any unauthorized reproduction of this printed material or
product, or any portion thereof, will be prosecuted to the fullest possible
extent of the law.
Printed in China.
TEL: 516-626-7188
FAX: 516-626-7105
www.i-Luv.com
