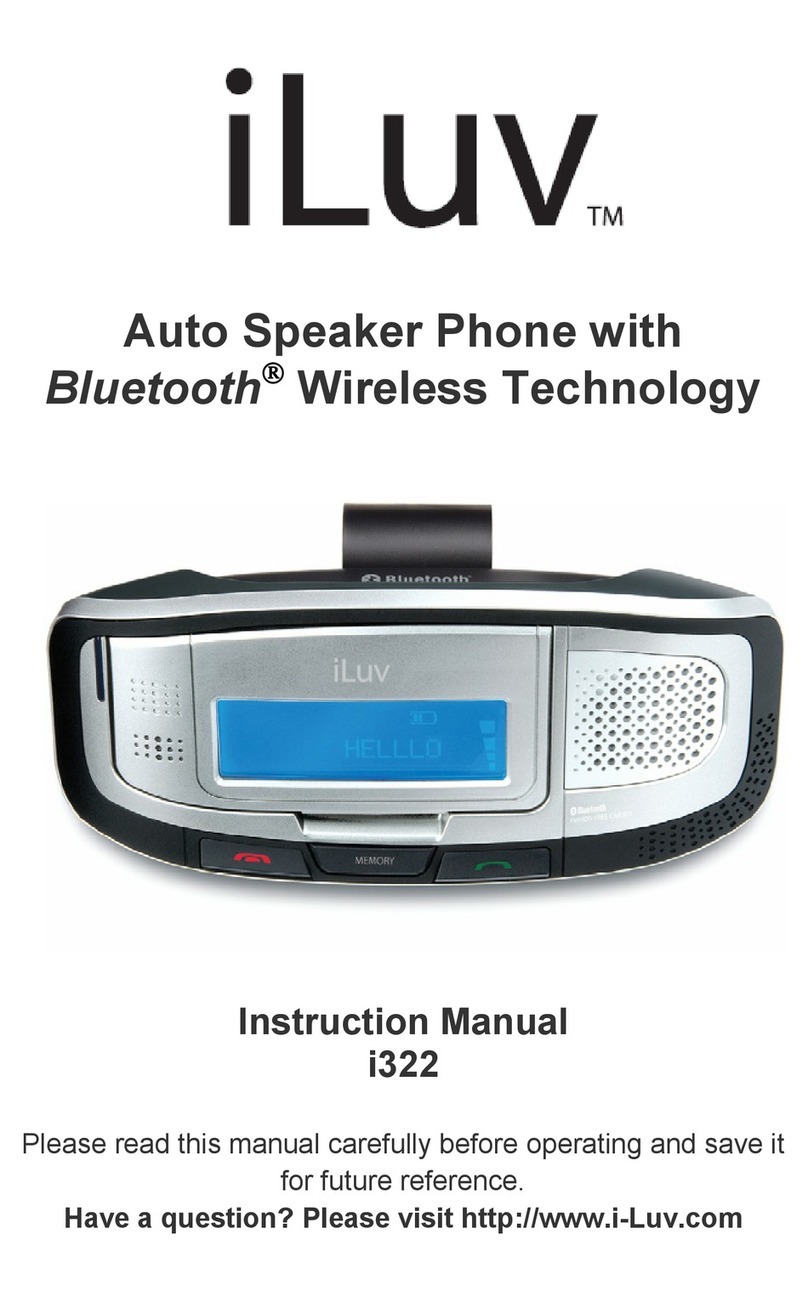

Iluv ii322 User manual

Auto Speaker Phone with
Bluetooth®Wireless Technology
Instruction Manual
i322
Please read this manual carefully before operating and save it
for future reference.
Have a question? Please visit http://www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 1 -
USER SAFETY GUIDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at
the end of its life cycle; bring it to a collection point for the
recycling of electrical and electronic appliances.
This symbol on the product means the instructions
for use or the packaging will inform about the
methods of disposal. The materials are recyclable
as mentioned in its marking. By recycling, material
recycling, and other forms of re-utilization of old appliances, you
make an important contribution to the protection of the
environment. Please inquire at your local community
administration for an authorized disposal location.
Important Safety Instructions
1. Read instructions – All safety and operating instructions
should be read before the appliance is operated.
2. Retain instructions – The safety and operating instructions
should be retained in a secure place for future reference.
3. Heed warnings – All warnings on the appliance and in the
operating instructions should be observed.
4. Follow instructions – All operating and use instructions
should be followed.
5. Water and moisture – The appliance should not be used
near water (bathtub, kitchen sink, laundry tub, pool, etc.).
6. Heat – The appliance should be situated away from heat

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 2 -
USER SAFETY GUIDE
Important Safety Instructions-Continued
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. Power sources – The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Cleaning – The appliance should be cleaned with a dry cloth.
9. Objects and liquids entry – Care should be taken so that
objects do not fall and liquids are not spilled into the device’s
openings.
10.Servicing – The user should not attempt to service the
appliance beyond that described in the user's operating
instructions. All other servicing should be referred to qualified
service professional.
FCC Notice (USA)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 3 -
USER SAFETY GUIDE
FCC Notice (USA)-Continued
communications, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment. Refer to 47 CFR Sec.
15.21.
Industry Canada Notice to Canadian Users
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device. Refer to IC
RSS 210 Sec. 5.11. The term “IC” before the certification or
registration number only means that the registration was
performed based on a Declaration of Conformity and that
Industry Canada technical specifications were met. It does not
imply that Industry Canada (IC) approved this equipment. Refer
to Self-Marking 6(f) and RSP 100 Sec. 4.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 4 -
USER SAFETY GUIDE
Additional Safety Instructions
•When not in use, keep your device in a safe place where it
will not be bent or crushed.
•Keep this device away from children. Some small and
detachable parts might be swallowed by children and result in
harm to them.
•This unit contains magnets. Keep magnets away from
computers, discs, video tapes, color TV sets, and wallets or
purses containing credit cards.
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the
exposure limit for radio frequency energy, which is set by the
Federal Communications Commission of the U.S government.
The term “EMI” is short for the electromagnetic interference
caused by the electromagnetic field generated by electronic
devices. In fact, most electrical appliances and devices emit
electric and magnetic fields, and most of modern electronic
devices are susceptible to the EMI if they are inadequately
shielded or designed.
•If you use any personal medical device, such as a pacemaker,
please consult the manufacture of your medical device to
determine if it is adequately shielded from EMI. Your
physician might assist you in obtaining this information.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 5 -
USER SAFETY GUIDE
IMPORTANT NOTES ON HEARING
Your hearing is very important to you and to us. We strongly
recommend you to follow the guideline below in order to prevent
possible damage to or loss of hearing.
Hearing experts caution that listening to loud sounds can
damage hearing over time. With continuous listening to loud
sounds, hearing adapts and will give the impression that volume
has reduced. What seems normal may, in fact, be harmful. To
guard against this before hearing adapts, set the volume at a low
level and slowly increase the volume level until sound can be
heard comfortably and clearly without distortion. Damage to
hearing is accumulative and is irreversible. Ringing or discomfort
in the ears indicates that the volume is too loud. Once a
comfortable listening level has been established, do not increase
the volume level further.
Cautions
•If you experience a ringing sound in your ear, lower the
volume or discontinue the use of this product.
•Although this product allows hands-free operation, talking on
the phone while driving can be distracting. Do not play the
speaker at high volume as warning signals such as a car
horn may not be heard, resulting in an accident. Avoid
emotionally-charged phone conversations and pay close
attention to traffic signals and signs as well as other vehicles
on the road.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 6 -
TABLE OF CONTENTS
GETTING STARTED
Introduction. …..………..……………………………………
…
7
What’s Included in the Package…………………………..… 8
What is Bluetooth wireless technology? ............................. 8
Location of Controls…………………………………………
…
9
Reading the LCD Screen… …………………………………
…
10
Charging the Speaker Phone Unit…………………………
…
11
Turning on the Speaker Phone……………………………… 11
Pairing the Speaker Phone…………………………………
…
12
OPERATING INSTRUCTIONS
Menu Mode……………………………………………………
.
13
Setting the Ring Tone………………………………………
…
13
Storing Numbers in the Phone Book………………………
…
14
Downloading the Phone Book…………………………........ 15
Storing Numbers in the Hotline……………………………
…
17
Deleting Numbers from the Hotline………………………… 17
Closing the Menu Mode……………………………………
…
17
Making a Call…………………………………………………
…
18
Receiving a Call………………………………………………
…
19
Adjusting a Volume…………………………………………
…
19
Muting the Microphone………………………………………. 20
Ending / Rejecting a Call……………………………………
…
20
Transferring a Call……………………………….…………… 20
Call Waiting………………………………………..…………
…
20
Turning off the Speaker Phone……………………………
…
20
TROUBLESHOOTING GUIDE
Questions and answers about the product………………
…
21
SPECIFICATIONS
Technical information about the product…………………
…
22

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 7 -
GETTING STARTED
Auto Speaker Phone with Bluetooth Wireless
Technology
Thank you for purchasing the i322 from iLuv. This speaker
phone has been designed for mobile phone connection using
Bluetooth wireless technology. Please keep this manual in a
safe place for future reference.
•Digital Signal Processor (DSP)
•Answer mobile phone calls hands free
•Phonebook function
•Caller ID display
•Hotline function
•Adjustable LCD
•Supports the headset (HSP), hands-free (HFP), and object
push profiles
•Standby time up to 200 hours
•Continuous talking time up to 8 hours
•Communication range up to 33ft
•Compliant with Bluetooth wireless technology V2.0

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 8 -
GETTING STARTED
What’s included in the package?
•Speaker Phone unit
•Clamp
•Car Charger
•Instruction
manual
•Warranty card
What is Bluetooth wireless technology?
Bluetooth wireless technology is a short-range wireless
communication technology intended to replace the cables
connecting electronic devices while maintaining the high level of
security. With Bluetooth wireless technology, two devices can be
connected at the same time without the need to face each other
or the concern of interference from other wireless communication
within its optimum range of 33 feet.
Through a process called “Pairing,” two or more devices with
Bluetooth wireless technology can interact with each other
without interference from other wireless platforms nearby,
including other Bluetooth wireless communications between
unrelated devices.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 9 -
Front view
Bottom view
GETTING STARTED
LOCATION OF CONTROLS
1. Clamp 2. Speaker
3. TALK button 4. END button
5. HOTLINE button 6. LCD display
7. Microphone 8. Earphone jack
9. JOG button 10. Mini USB Charging Port

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 10 -
1234
567
GETTING STARTED
Reading the LCD Screen
1. Bluetooth Indicator 2. MIC Mute Indicator
3. Call Activation Indicator 4. Battery Status Indicator
5. Received Signal Strength Indicator (RSSI)
6. Status Display 7. Volume Level Indicator

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 11 -
GETTING STARTED
Charging the Speaker Phone Unit
Fully charge the
speaker phone unit
by connecting the car
charger to the mini-
USB port on the
bottom right side of
the i322.
Turning on the Speaker Phone
The LCD screen is on a hinge allowing it to fold in and out.
1. Fold out the LCD display
screen to turn the unit on.
2. The i322 will automatically
enter Pairing mode when
turned on and will remain in
Pairing mode for 60
seconds.
3. To Pair the unit with a
mobile phone, follow the instructions for “Pairing the
Speaker Phone” in this manual.
4. To turn off Pairing mode (to Pair later or
if phone has already paired), either wait
60 for Pairing mode to end automatically,
or push the END ( ) button once.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 12 -
GETTING STARTED
Pairing the Speaker Phone
The i322 will enter Pairing mode immediately after the unit is
turned on and will remain in Pairing mode for 60 seconds.
1. If the 60 second period when the i322 is automatically in
Pairing mode or if the Pairing mode manually ended, press
and hold the END ( ) button for three (3) seconds to
enter (re-enter) the Pairing mode.
2. If your mobile phone is equipped with
Bluetooth wireless technology, follow the
directions on your mobile phone to set it
to SEARCH mode.
3. Your phone will find the i322 and will
identify it on the LCD screen. To confirm,
press YES or OK.
4. When asked for a PIN code or number,
enter “0000,” (four zeros) and press YES
or OK to confirm.
5. Your mobile phone is now successfully
paired with i322.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 13 -
OPERATIONAL INSTRUCTIONS
Menu Mode
Please ensure that
the unit is unpaired
while using the
MENU MODE.
1. Press and hold the
JOG (+/-) button
until MENU MODE appears on the LCD screen.
2. Move the JOG (+/-) button left and right to find the desired
finction (RING TONE, PHONE BOOK, HOTLINE).
Setting the Ring Tone
1. In Menu mode,
move the JOG (+/-)
button left of right
until RING TONE
appears on the LCD
screen.
2. Press down the
JOG (+/-) center button to enter the Ring Tone menu.
3. There are three ring tones available (numbered 0-2). Ring
tone will sound with each move of the JOG (+/-) button.
4. Press and hold the JOG (+/-) center button for approximately
two (2) seconds to select and exit the Ring Tone menu.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 14 -
OPERATIONAL INSTRUCTIONS
Storing Numbers in the Phone Book
1. In the Menu Mode,
move the JOG (+/-)
button left or right
until PHONE BOOK
appears on the LCD
screen.
2. Once the Phone
Book is located, press down the JOG (+/-) center button.
3. INSERT NUM. will appear briefly on the LCD screen followed
by a blinking cursor.
4. Move the JOG (+/-) left of right to find the first digit of the
phone number you wish to enter.
5. Press down the JOG (+/-) center button to save the first digit.
A tone will sound and the cursor will advance to the second
digit.
6. Repeat this procedure for each digit.
7. When the complete phone number has been entered, press
and hold the JOG (+/-) center button. A tone will sound and
the words SAVED
NUMBER will
appear on the LCD
screen. Followed by
a blinking cursor.
8. Move the JOG (+/-)
left or right to choose
the letters of the name you wish to enter.
9. Save each letter the same way as digits are saved when
entering a phone number.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 15 -
OPERATIONAL INSTRUCTIONS
Storing Numbers in the Phone Book-Cont.
10.Once the name is
chosen, press and
hold the JOG (+/-)
until the words
SAVED NAME
appear briefly on
the LCD screen.
11.You will automatically exit the Phone Book menu once a
number and name have been saved.
Downloading to the Phone Book
If your mobile phone supports Object Push Profile, phone
numbers can be transferred from the mobile phone to the i322 by
following these instructions:
1. Open the LCD folder while the END ( ) button is pressed.
2. The words OBJECT
PUSH will display
on the LCD screen.
3. While i322 is
unpaired with the
mobile phone, use
the mobile phones
instructions for sending numbers.
4. The PIN for i322 is “0000.”

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 16 -
OPERATING INSTRUCTIONS
Downloading to the Phone Book-Cont.
5. When the i322 has established connection with your mobile
phone, the word
CONNECTED will
appear on the LCD
screen.
6. The desired number will send automatically and the word
DOWNLOADING will
appear on the LCD
screen.
7. When the number has successfully transferred, the word
COMPLETED will
appear briefly on the
LCD screen, followed
by OBJECT PUSH.
8. After all desired numbers have been transferred, close the
LCD folder and follow the pairing instructions in this manual
under Pairing the Speaker Phone.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 17 -
OPERATING INSTRUCTIONS
Storing Numbers in the Hotline
The Hotline function is for numbers to dial in case of an
emergency (close relative or friend).
1. While in the Menu
mode, move the JOG
(+/-) left or right until
HOTLINE appears
on the LCD screen.
2. Follow the above
instructions for
Storing Numbers in the Phone Book.
3. The Hotline menu will close once all names and numbers
have been saved in the Hotline.
Deleting Numbers from the Hotline
1. Press the HOTLINE button for approximately three (3)
seconds.
2. The stored number appears on the LCD screen and the
cursor will blink on the last digit.
3. Press the TALK ( ) button to delete the digit.
4. Repeat this procedure for each digit.
5. To reset the Hotline number, follow the instructions on
Storing Numbers in the Hotline.
Closing the Menu Mode
1. To exit from each Menu mode item (RING TONE, PHONE
BOOK, HOTLINE), press the END ( ) button.
2. To exit the Menu mode, press the END ( ) button again.
Note: When using the Menu Mode, the unit should unpaired.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 18 -
OPERATING INSTRUCTIONS
Making a Call
•There are four (4) ways to make a call using the i322: Last
Number Redial; Number Dial (from Phone Book); Voice
Recognition Dial; and Hotline Dial.
Note: If the paired Bluetooth phone moves beyond connection
range (33 ft.), the i322 must be turned off and turned on again to
re-establish the Bluetooth connection.
1. Last Number Redial
a. Press the TALK ( ) button once immediately after
pairing with a mobile phone.
b. The most recently dialed number from the mobile phone
will be dialed out and displayed on the LCD screen.
2. Number Dial
a. Press the JOG (+/-) right button.
b. The last five (5) incoming calls can be displayed by sliding
the JOG (+/-) left and right buttons.
c. Numbers stored in the Phone Book can be displayed by
sliding the JOG (+/-) controller to the left.
d. When the desired phone number or name is displayed on
the LCD screen, press the TALK ( ) button to dial the
number.
3. Voice Recognition Dial
a. Press the TALK ( ) button for approximately three (3)
seconds until there is a beep.
b. Speak the name of the person you wish to call.
c. The number of that person will be dialed.

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007
www.i-Luv.com
- 19 -
OPERATING INSTRUCTIONS
Making a Call-Cont.
Note: The Voice Recognition Function on your mobile phone
must be activated to use this function on the i322. See the
instruction manual for your mobile phone for information about
voice recognition capability and activation.
4. Hotline Dial
•Press the HOTLINE button once to dial the stored Hotline
number.
Receiving a Call
1. The unit will ring to indicate that a call is incoming.
2. If the caller’s
information has been
stored in the Phone
book, his/her name
will appear on the
LCD screen.
3. If the caller’s name
has not been stored
in the Phone Book,
the telephone number
will appear on the
LCD screen.
4. Push the TALK ( ) button to answer the call.
Adjusting a Volume
zWhen on an active call, move the JOG (+/-) left and right
buttons to adjust the volume level.
