Image Fitness 2.0c User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
MonÐFri, 6 amÐ6 pm MST
Model No. IMEX30590
Serial No.
Patent Pending
¨
Visit our website at
www.imagefitness.com
New products, prizes,
fitness tips, and much more!

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE IMAGE¨2.0c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

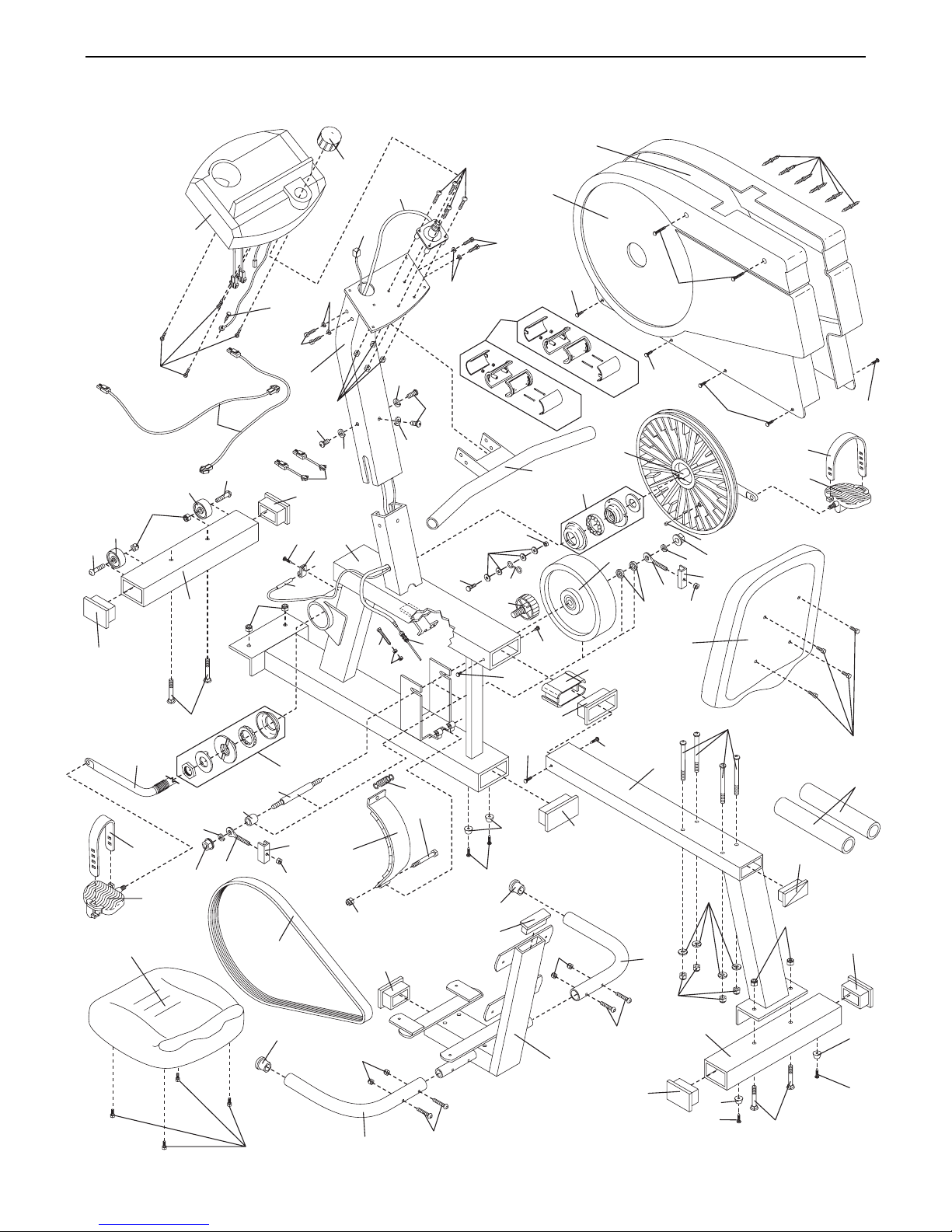

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the IMAGE¨2.0c.
1. Read all instructions in this manual before
using the 2.0c.
2. It is the responsibility of the owner to ensure
that all users of the 2.0c are adequately
informed of all precautions. Use the 2.0c
only as described in this manual.
3. Use the 2.0c indoors on a level surface.
Keep the 2.0c away from moisture and dust.
Place a mat under the 2.0c to protect the
floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the 2.0c at all times.
6. The 2.0c should not be used by persons
weighing more than 250 pounds.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the 2.0c. Always wear
athletic shoes when using the 2.0c.
8. Always keep your back straight when using
the 2.0c. Do not arch your back.
9. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
10. The 2.0c is intended for in-home use only.
Do not use the 2.0c in a commercial, rental,
or institutional setting.

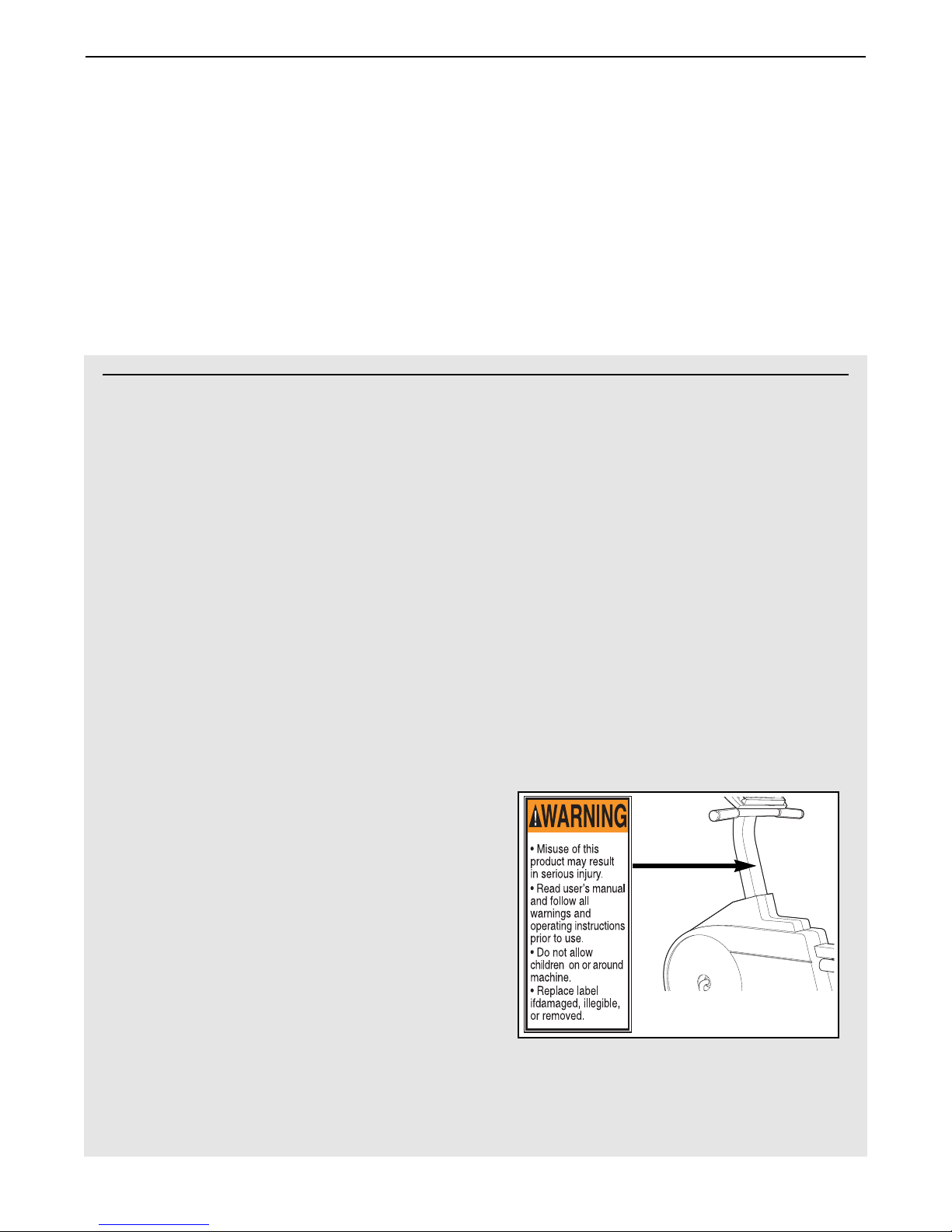

11. CAUTION DECAL PLACEMENT: The decal
shown below has been placed on the 2.0c. If
the decal is missing, or if it is not legible,
please call our Customer Service Department
toll-free at 1-800-999-3756 to order a free
replacement decal. Apply the decal in the
location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. ICON assumes no responsibility for personal injury or property dam-
age sustained by or through the use of this product.
Warning decal shown at
80% of actual size.

3
BEFORE YOU BEGIN
Thank you for selecting the innovative IMAGE¨2.0c.
The IMAGE¨2.0c offers a unique form of low-impact
exercise that offers greater cardiovascular benefits
and increased muscle toning. The 2.0c features
adjustable resistance to let you tailor your exercise to
the level thatÕs perfect for you. And when youÕre not
exercising, the 2.0c can be folded for
compact storage.
For your benefit, read this manual carefully before
you use the IMAGE¨2.0c. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number and serial number
when calling. The model number is IMEX30590. The
serial number can be found on a decal attached to the
2.0c (see the front cover of this manual for the loca-
tion of the decal).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
PFEX9757
Seat Handle
Handlebar with
Pulse Sensor
FRONT
BACK
Seat
Seat Frame
Backrest
Pedal
Pedal
Strap
Console
LEFT SIDE

4
ASSEMBLY
Place all parts of the IMAGE¨2.0c in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and phillips screw-
driver .
PART CHART
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part. The second number refers to the quantity used in assembly.
Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check
to see if it has been pre-assembled.
M10 x 105mm Button Head Bolt (70)Ð4
M10 x 58mm Carriage Bolt (74)Ð4
M6 Split
Washer (67)Ð4
M10 Split
Washer (26)Ð3
M10 Flat
Washer (71)Ð4
M6 Nylon
Locknut (66)Ð4
M10 Nylon
Locknut (72)Ð8
M4 x 16mm
Screw (34)Ñ1
#8 x 5/8Ó
Screw (22)Ð4
M6 x 38mm Button
Head Bolt (18)Ð4
M6 x 16mm Hex
Head Screw (24)Ð4
M6 x 25mm Hex
Head Screw (14)Ð4
M10 x 25mm Button
Head Screw (25)Ð3

5
68
1
3
72
72
72
76
75
1
Wheels
74
1

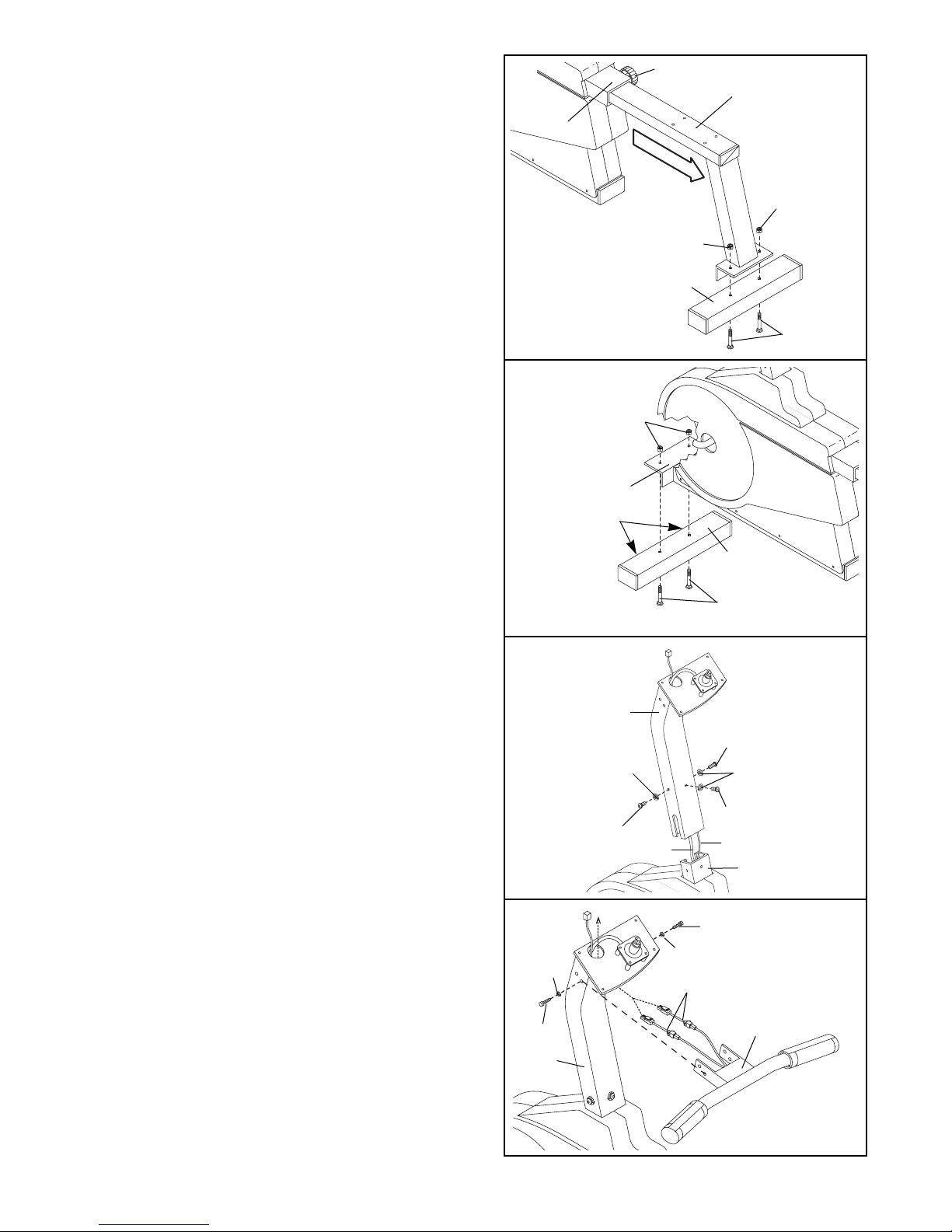

1. Loosen the Lock Knob (68) on the right side of the
Frame (1). Slide the Seat Frame (3) out until it
stops. Tighten the Lock Knob.
Identify the Rear Stabilizer (76), which has no
wheels. Attach the Rear Stabilizer to the Seat Frame
(3) with two M10 x 58mm Carriage Bolts (74) and
two M10 Nylon Locknuts (72).
2. Identify the Front Stabilizer (75), which has wheels.
Attach the Front Stabilizer (75) to the Frame (1) with
two M10 x 58mm Carriage Bolts (74) and two M10
Nylon Locknuts (72).
3. Attach the Upright (2) to the Frame (1) with three
M10 x 25mm Button Head Screws (25) and three
M10 Split Washers (26). Be careful not to pinch
the Reed Switch Wire (13) or the Resistance
Cable (10).
4. Route both Adapters (73) up through the Upright (2)
as shown.
Attach the Handlebar (4) to the Upright (2) with two
M6 x 25mm Hex Head Screws (14) and two M6 Split
Washers (67), but do not tighten the Screws yet.
Make sure that the Screws are threaded into the
indicated holes. Note: Two additional Screws will
be attached in step 6.
3
2
26
26
25
25
25
1
10 13
4
73
2
14
14
67
67
4
2
74

6
6. Finish attaching the Handlebar (4) to the Upright (2)
with two more M6 x 25mm Hex Head Screws (14)
and two more M6 Split Washers (67). Tighten all
four Hex Head Screws.
7. Attach the Seat Bracket (69) to the Seat Frame (3)
with four M10 x 105mm Button Head Bolts (70), four
M10 Flat Washers (71), and four M10 Nylon
Locknuts (72).
8. Attach the Seat (16) to the Seat Bracket (69) with
four M6 x 16mm Hex Head Screws (24).
71
71
69
69
3
72
70
24
16
14
14
2
4
6
7
8
67
67
5. Connect the Reed Switch Wire (13) and the two
Adapters (73) to the corresponding wires on the
Console (8).
If your Console (8) has a ground wire, attach it to
the Upright (2) with an M4 x 16mm Screw (34).
Next, attach the Console (8) to the Upright (2) with
four #8 x 5/8Ó Screws (22).
Press the Resistance Knob (9) onto the Resistance
Control (10). Be sure that the mark on the Knob is
correctly aligned.
Console
Wires
Ground
Wire
10
89
13 34
2
73
22
22
5

10. Attach the Backrest (15) to the Seat Bracket (69)
with four M6 x 16mm Hex Head Screws (24).
7
11. Identify the Left Pedal (45) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, tighten the Left Pedal counterclockwise into
the left arm of the Crank (29).
Tighten the Right Pedal (not shown) clockwise into
the right arm of the Crank (29).
Adjust the Pedal Strap (27) on the Left Pedal (45) to
the desired position. Press the Pedal Strap onto the
adjustment tab on the Left Pedal.
Adjust the Pedal Strap on the Right Pedal (not
shown) in the same manner.
15
24
69
29
27
45
Tab
10
11
9. Attach a Seat Handle (17) to the Seat Bracket (69)
with two M6 x 38mm Button Head Bolts (18) and
two M6 Nylon Locknuts (66).
Attach the other Seat Handle (17) to the Seat
Bracket (69) in the same manner.
69
17
18
66
17
9
12. The Console (8) requires either two or three ÒAAÓ
batteries (not included); alkaline batteries are
recommended. Open the battery cover (not shown)
on the back of the Console. Press the batteries into
the battery clip. Make sure that the negative (Ð)
ends of the batteries are touching the springs.
Close the battery cover. Note: If the battery clip
holds three batteries, you must insert three batteries.
8
Batteries
Battery
Clip
12
13. Make sure that all parts are properly tightened before you use the IMAGE ¨2.0c. Note: There may be
some hardware left over after assembly is completed.

8
HOW TO USE THE IMAGE¨2.0c
HOW TO ADJUST THE POSITION OF THE SEAT
FRAME
The Seat Frame (3) can be adjusted to the position
that is the most comfortable for you. To adjust the
Seat Frame, first loosen the Lock Knob (68) on the
right side of the Frame (1). Slide the Seat Frame for-
ward or backward to the desired position. Tighten the
Lock Knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust each Pedal Strap (27), first pull the end of
the Pedal Strap off the adjustment tab on the Pedal
(45). Align a different hole in the Pedal Strap with the
adjustment tab. Press the Pedal Strap onto the
adjustment tab.
HOW TO ADJUST THE PEDALING RESISTANCE
The pedaling
resistance can
be adjusted
with the
Resistance
Knob (9) locat-
ed on the
Console (8). To
increase the
resistance, turn
the Resistance Knob clockwise; to decrease the resis-
tance, turn the Resistance Knob counterclockwise.
27
45
8
9
Adjustment Tab
68
3
1

9
DESCRIPTION OF THE CONSOLE
The console is designed to help you get the most
from your workouts. As you exercise, you can watch
your progress around the LED track, while the
display provides continuous exercise feedback. You
can even measure your heart rate using the built-in
pulse sensor. The modes of the display are described
below.
SpeedÑThis mode displays your pedaling speed, in
miles per hour.
TimeÑThis mode displays the elapsed time. Note: If
you stop exercising, the time mode will pause.
DistanceÑThis mode displays the total distance you
have pedaled, in miles.
LapsÑThis mode displays the number of 1/4-mile
laps you have completed around the LED track.
CalorieÑThis mode displays the approximate number
of Calories you have burned.
ScanÑThis mode displays the speed, time, distance,
laps and calorie modes, for 5 seconds each, in a
repeating cycle.
PulseÑThis mode displays your heart rate when the
pulse sensor is used (see page 10).
BATTERY INSTALLATION
Before the console can be operated, two ÒAAÓ batteries
must be installed (see assembly step 12 on page 7).
HOW TO OPERATE THE CONSOLE
If there is a thin sheet of clear plastic on the face of
the console, remove it.
1. To turn on the power, press the on/reset button or
simply begin pedaling. When the power is turned
on, one LED indicator will light in the LED track,
and the entire display will appear for two seconds.
The console will then be ready for operation.
2. Select one of the modes:
Scan modeÑWhen
the power is turned
on, the scan mode
will automatically
be selected. One
mode indicator will
show that the scan
mode is selected,
and a flashing mode indicator will show which
mode is currently displayed. Note: If a different
mode is selected, you can select the scan mode
again by repeatedly pressing the mode button.
Speed, time,
distance, laps
or calorie modeÑ
To select one of
these modes for
continuous
display, press the
mode button repeatedly. The mode indicators will
show which mode is selected. (Make sure that the
scan mode is not selected.)
Pulse modeÑTo use the pulse mode, see page 10.
3. The LED track represents a distance of 1/4 mile.
As you exercise, the indicators around the track
will light one at a time until you have completed 1/4
mile. A new lap will then begin.
4. To reset the display, press the on/reset button.
5. To turn off the power, simply wait for about four
minutes. The console has an Òauto-offÓ feature.
If the pedals are not moved and the console
buttons are not pressed for four minutes, the
power will turn off automatically in order to
conserve the batteries.
LED Track Mode Indicators

10
The convenient pulse sensor allows you to measure
your heart rate periodically. You can measure your
heart rate before you begin exercising, during your
workout, and again when you finish.
Note: Before
you can use the
pulse sensor,
you must peel
the protective
vinyl covering
off the metal
contacts on the
front and rear
of each pulse
grip.
To use the pulse
sensor, first make sure that the power is turned on.
Stop exercising, rest both feet on the floor, and place
your hands on the metal contacts. Your palms must be
resting on the inner contacts and your fingers must be
touching the outer contacts. Avoid moving your
hands. When your pulse is detected, the pulse indica-
tor will flash each time your heart beats, a ÒPÓ and
three dashes (Ð Ð Ð) will appear in the display and your
heart rate will be shown. Continue to hold the contacts
for about 15 seconds for the most accurate heart rate
reading.
HAND PULSE SENSOR TROUBLE-SHOOTING
¥ Avoid moving your hands while using the pulse sen-
sor. Excessive movement may interfere with heart
rate readings. If the hand pulse sensor is not used
correctly, your heart rate will not be shown.
¥ Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
¥ Do not move your hands while you hold the metal
contacts; your muscle movement may interfere with
heart rate readings.
¥ For the most accurate heart rate reading, wait for
about 15 seconds.
¥ For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft clothÑnever use alcohol,
abrasives, or chemicals.
HOW TO USE THE PULSE SENSOR
Metal
Contacts

11
Inspect and tighten all parts of the IMAGE¨2.0c regu-
larly. The 2.0c can be cleaned with a soft, damp cloth.
To prevent damage to the console, keep liquids away
and keep the console out of direct sunlight.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. To replace the batteries, refer to
assembly step 12 on page 7.
CRANK ADJUSTMENT
If the arms of the
Crank (29)
become loose,
they should be
tightened in
order to prevent
excessive wear.
Loosen the
crank nut on the
left arm of the
Crank. Place the
end of a stan-
dard screwdriver
in one of the slots in the slotted bearing nut. Lightly
tap the screwdriver with a hammer to turn the slotted
bearing nut counterclockwise until the arms are no
longer loose. Do not overtighten the slotted bear-
ing nut. When the slotted bearing nut is properly
tightened, tighten the crank nut.
HOW TO STORE THE IMAGE¨2.0c
When the
IMAGE¨2.0c is
not in use, it can
be folded for
compact storage.
Refer to the
drawing at the
right. Loosen the
Lock Knob (68)
on the right side
of the Frame (1).
Slide the Seat
Frame (3) as far
into the Frame
as it will go. Tighten the Lock Knob. Store the IMAGE¨
2.0c indoors, away from moisture and dust.
MAINTENANCE AND STORAGE
Crank
Nut
Slotted
Bearing
Nut
29
68
3
1

12
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
WHY EXERCISE?
Exercise has proven essential for good health and
general well-being. Regular participation in a well-
rounded exercise program results in a stronger and
more efficient heart, improved respiratory function,
increased stamina and endurance, better weight man-
agement and body fat control, increased ability to deal
with stress, and greater self-esteem and confidence.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important
to exercise with the proper intensity. The proper inten-
sity level can be found by using your heart rate as a
guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise.
This is known as your training zone. You can find
your training zone in the table below. Training zones
are listed according to age and physical condition.
During the first few months of your exercise program,
keep your heart rate near the low end of your training
zone as you exercise. After a few months of regular
exercise, your heart rate can be increased gradually
until it is near the middle of your training zone as you
exercise.

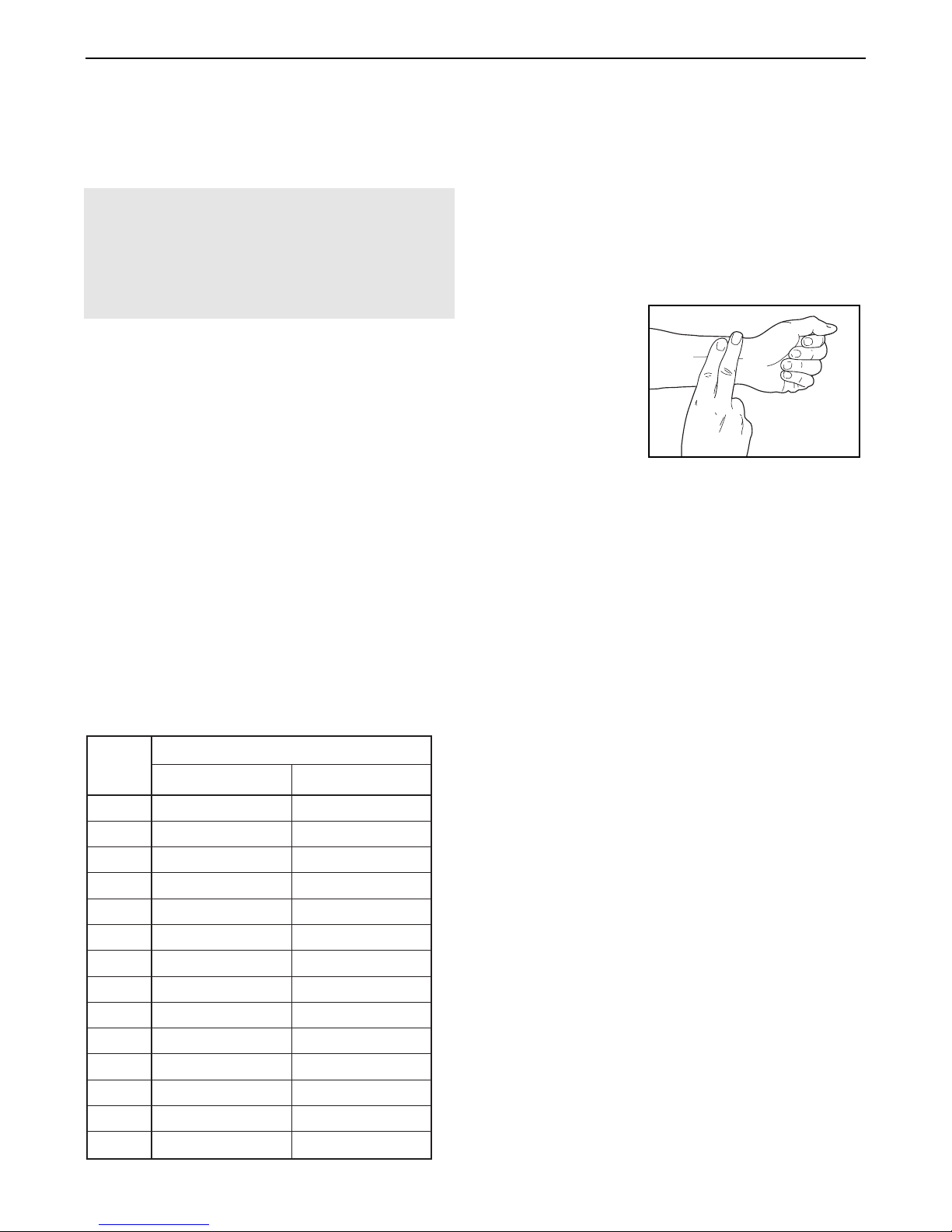

To measure your heart rate, use the pulse sensor in
the handlebar. You can also measure your heart rate
by placing two fin-
gers on your wrist.
Stop exercising
and take a six-sec-
ond heartbeat
count. Multiply the
result by ten to
find your heart
rate. (A six-second
count is used
because your
heart rate drops quickly when you stop exercising.) If
your heart rate is too high, decrease the intensity of
your exercise. If your heart rate is too low, increase
the intensity of your exercise.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
phases:
A warm-up phase, lasting 5 to 10 minutes. Begin with
slow, controlled stretches, and progress to more rhyth-
mic stretches. This will increase the body temperature,
heart rate, and circulation in preparation for strenuous
exercise.
A cardiovascular phase, including 20 to 30 minutes
of exercising with your heart rate in your training zone.
A cool-down phase, consisting of 5 to 10 minutes of
stretching. Thorough stretching offsets muscle con-
tractions and other problems caused when you stop
exercising suddenly. Stretching for increased flexibility
is often most effective during this phase. This phase
should leave you relaxed and comfortably tired.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Find the best time of day for your
workouts, and then stick with it.
Remember, the key to success is to make exercise a
regular and enjoyable part of your everyday life.
CONDITIONING GUIDELINES
TRAINING ZONE (BEATS/MIN.)
20
25
30
35
40
45
50
55
60
65
70
75
80
85
AGE CONDITIONEDUNCONDITIONED
133Ð162
132Ð160
130Ð158
129Ð156
127Ð155
125Ð153
124Ð150
122Ð149
121Ð147
119Ð145
118Ð144
117Ð142
115Ð140
114Ð139
138Ð167
136Ð166
135Ð164
134Ð162
132Ð161
131Ð159
129Ð156
127Ð155
126Ð153
125Ð151
123Ð150
122Ð147
120Ð146
118Ð144
WARNING: Before beginning this or any
exercise program, consult your physician.
This is especially important for individuals
over the age of 35 or individuals with pre-
existing health problems.

13

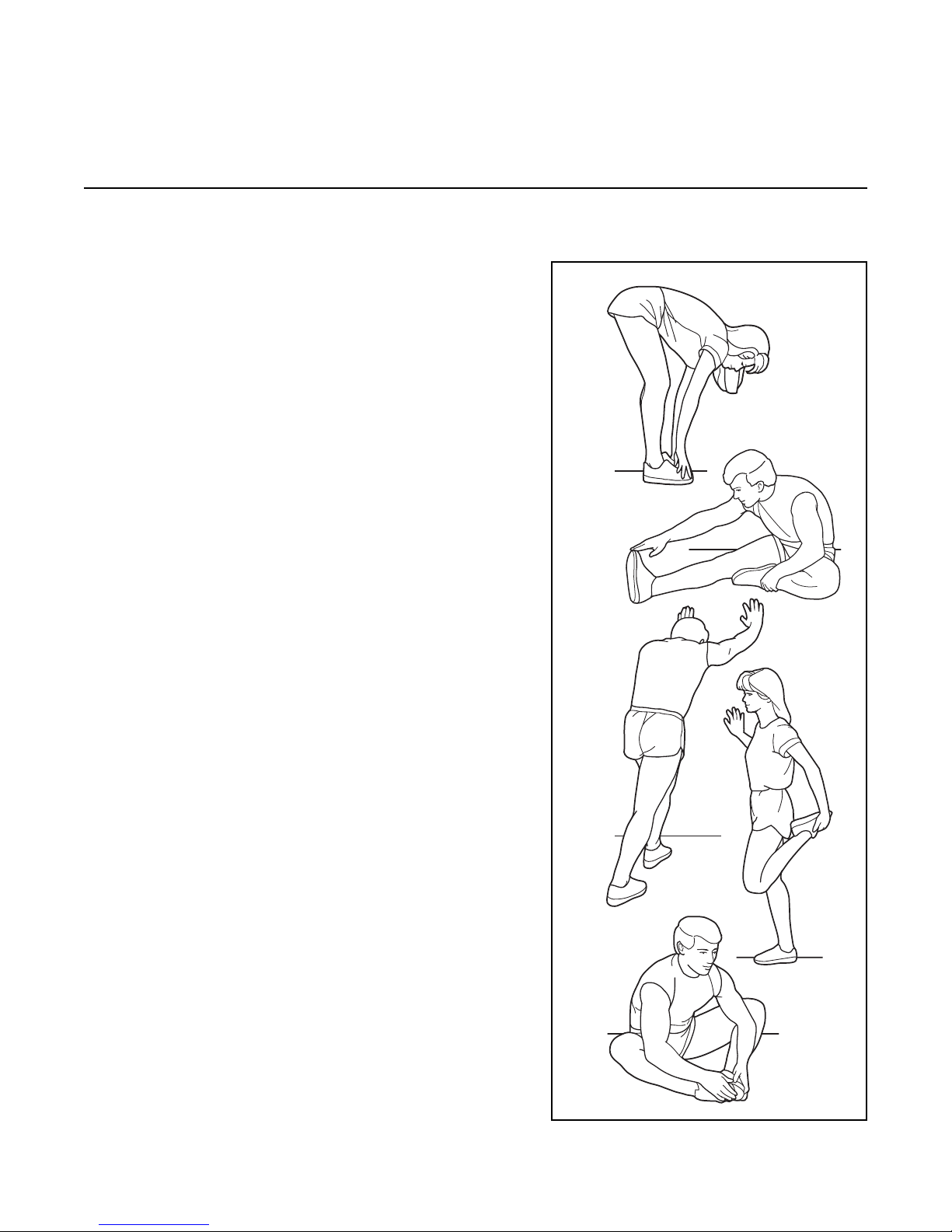

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees out-
ward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Caution: Be sure to progress at your own
pace and avoid overdoing it. Incorrect or excessive
training may result in injury to your health.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.

14
PART LISTÑModel No. IMEX30590 R0899B
1 1 Frame
2 1 Upright
3 1 Seat Frame
4 1 Handlebar
5 2 Pulse Grip
6 1 Left Side Shield
7 1 Right Side Shield
8 1 Console
9 1 Resistance Knob
10 1 Resistance Cable/Control
11 4 M5 x 30mm Screw
12 4 M5 Nut
13 1 Reed Switch/Wire
14 4 M6 x 25mm Hex Head Screw
15 1 Backrest
16 1 Seat
17 2 Seat Handle
18 4 M6 x 38mm Button Head Bolt
19 2 Foam Handle Grip
20 1 1Ó x 3Ó Endcap
21 6 Tree Fastener
22 19 #8 x 5/8Ó Screw
23 2 #8 x 3/8Ó Screw
24 8 M6 x 16mm Hex Head Screw
25 3 M10 x 25mm Button Head Screw
26 3 M10 Split Washer
27 1 Left Pedal Strap
28 1 Right Pedal
29 1 Crank/Pulley
30 1 Bearing Assembly
31 1 Right Pedal Strap
32 1 Magnet
33 2 M4 x32mm Screw
34 1 M4 x 16mm Screw
35 4 Rubber Bumper
36 2 M8 Flanged Hex Nut
37 2 M6 Eyebolt
38 2 Adjustment Bracket
39 4 M6 Nut
40 2 M10 Washer
41 2 Extension Wire
42 1 Flywheel
43 1 10mm x 13mm Spacer
44 1 Flywheel Axle
45 1 Left Pedal
46 2 M10 x 52mm Button Head Screw
47 2 Wheel
48 5 2Ó x 3Ó Endcap
49 1 1 1/2Ó x 3Ó Endcap
50 1 Cable Clamp
51 1 M6 x 56mm Bolt
52 2 M8 Split Washer
53 4 #8 Flat Washer
54 1 Clamp Bolt
55 1 Clamp Nut
56 1 Resistance Hook
57 1 Resistance Spring
58 1 Magnet Bracket
59 1 M8 x 65mm Hex Head Bolt
60 1 M8 Nylon Locknut
61 1 Drive Belt
62 2 1 1/4Ó Round Endcap
63 1 2Ó x 4Ó Endcap
64 1 Frame Bushing
65 1 Seat Frame Bushing
66 4 M6 Nylon Locknut
67 4 M6 Split Washer
68 1 Lock Knob
69 1 Seat Bracket
70 4 M10 x 105mm Button Head Bolt
71 4 M10 Flat Washer
72 10 M10 Nylon Locknut
73 2 Adapter
74 4 M10 x 58mm Carriage Bolt
75 1 Front Stabilizer
76 1 Rear Stabilizer
# 1 UserÕs Manual
# 1 4mm Allen Wrench
# 1 5.5mm Allen Wrench
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description

45
21
22
22
31
28
29
30
22
22
4
5
25
26
26
12
25
26
41
14
14
11
10
13
22
8
9
2250 1
51
39
54 56
53
55
40 39
38
37
36
23
23 65
64
15
24
20
62
19
22
22
3
66
66
18
49
18
62
58
57
59
63
60
44
43
39
38
37
36
30
47
46
27
29
46
47
48
61
16
17
24
48
48
6
7
2
17
42
68
70
71
72
69
10
13
52
52
67
67
22
35
22
35
48
34
33
32
73
35
22
48
74
72
75
74
72
76
72
EXPLODED DRAWINGÑModel No. IMEX30590 R0899B
15

Part No.156675 R0899B Printed in China © 1999 ICON Health & Fitness, Inc.
IMAGE¨is a registered trademark of ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information:
¥ The MODEL NUMBER of the product (IMEX30590)
¥ The NAME of the product (IMAGE¨2.0c)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14 of this manual).
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-
use, improper or abnormal usage or repairs not provided by an ICON authorized service center, products
used for commercial or rental purposes, or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
