HEALTH ONE HUB-700T User manual

For customer service
e-mail to [email protected].
www.ehealth-one.com
Before using this equipment,
please read all “Safety Instruction”
carefully to ensure safe and
correct operation.
FOR BETTER LIFE

Upright Bike HUB-700T / 700S
Recumbent Bike HRB-700T / 700S

1. 03


2. 04
3. 05
4. 06
5. 06
6. 07
7. 08
8. 09



9. 11
10. 12
11.
13


12. 
15
16
 17
18
1) Manual Workout
2) Target Workout
3) Program Workout
4) Profile Workout
13. 
22
23
24
1) Manual Workout
2) Cardio Workout
3) FAT BURN Workout
4) HR Goal Workout
5) Profile Workout
6) Target Workout
1. Without prior consent of Health-One, using or copying
the pictures and contents in this manual is not allowed.
2. Without prior notice to customer, product could be
changed for improvement purpose.


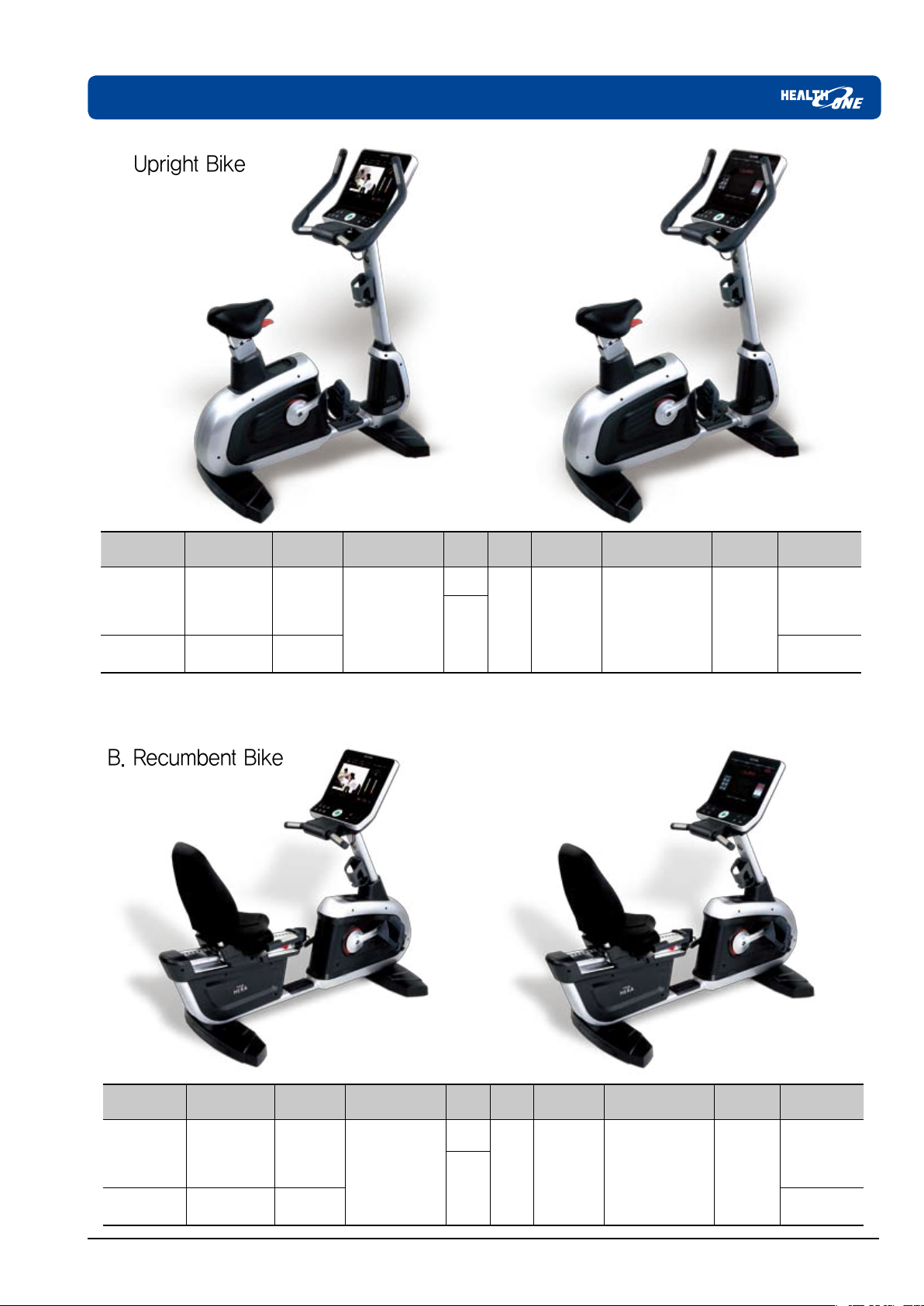

A. Upright Bike
B. Recumbent Bike





1. Specifications

Model Display Power Dimension Weight Max.
Load
Resistance
Level Program Heart Rate monitoring Option
 ·15 inch HD TV
·OSD function 110~220V 1230x640x1493
(WxDxHxmm)
75.9kg
180kg 1~20
3 cardio programs,
6 profile programs,
3 target programs
POLAR
contact
type
(Option:
Telemetry)
Bluetooth
Wireless
Headphone,
Smart Link
72.9kg
 FND Self-
Generator -

Model Display Power Dimension Weight Max.
Load
Resistance
Level Program Heart Rate monitoring Option
 ·15 inch HD TV
·OSD function 110~220V 1577x666x1385
(WxDxHxmm)
75.9kg
180kg 1~20
3 cardio programs,
6 profile programs,
3 target programs
POLAR
contact
type
(Option:
Telemetry)
Bluetooth
Wireless
Headphone,
Smart Link
72.9kg
 FND Self-
Generator -





3

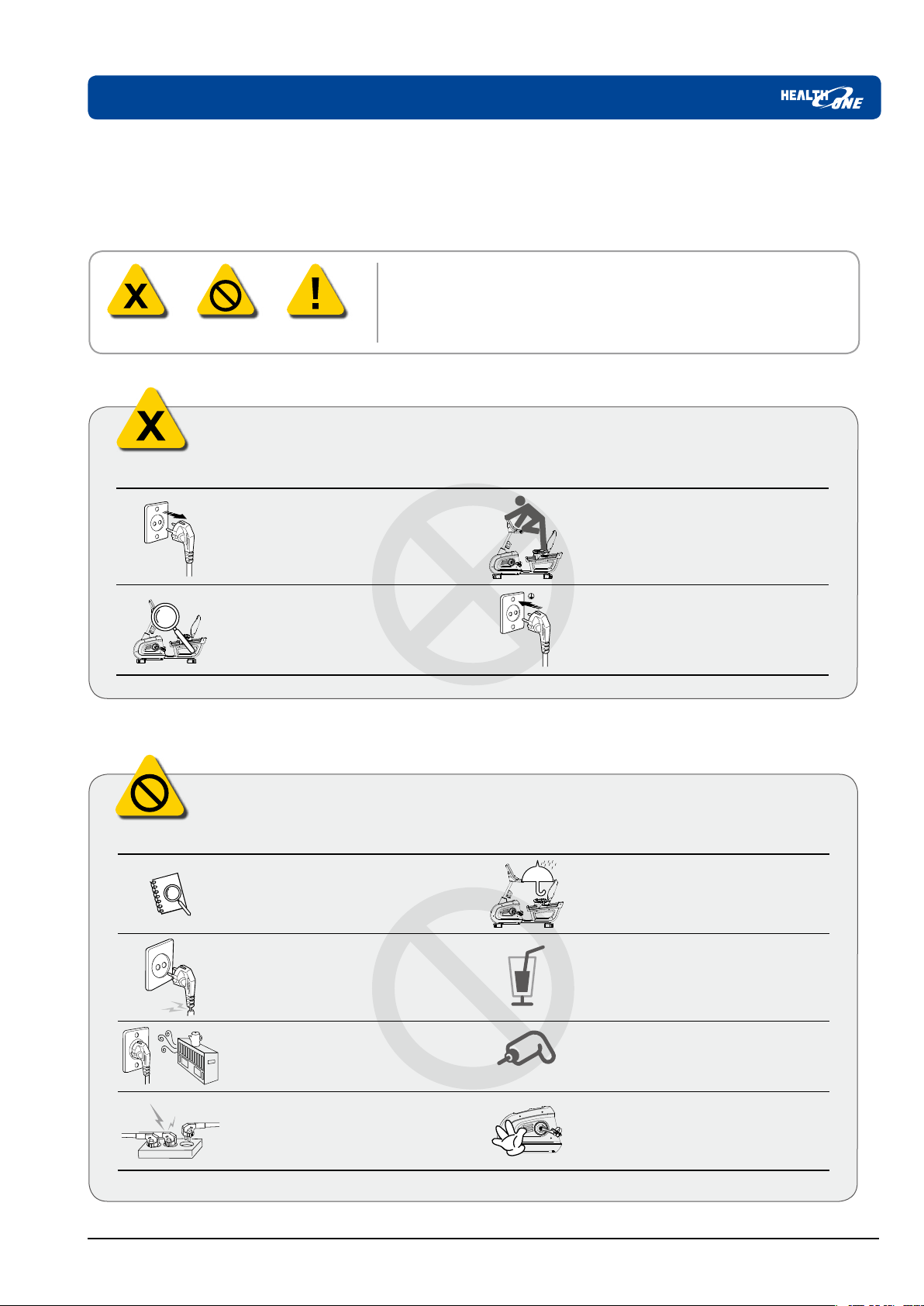

The following safety instructions are for correct and safe use of the bikes and should be followed for your safety and to prevent accident.
There are 3 types of safety marks PROBIHITION, WARNING, and CAUTION, according to the safety level.
This mark calls for your attention to a possible danger.
Read the accompanying instructions carefully to ensure safe use.
WARNING CAUTIONPROHIBITION
Failure to obey this prohibition can result in malfunction or safety accident.
Do not operate the bike in any other way
than stated in this manual.
Do not install the bike near water, in very dusty
or humid areas or on thick carpeting to avoid
damage.
Do not use the bike in case that the power cord
is damaged or the bike does not work normally.
Do not operate the bike if it is doused with water
or other liquid. Stop the machine and contact
customer service immediately.
Do not leave the power cord near the fire or
excessive heat (for bike with TV monitor).
Do not attempt to repair or modify the bike unless
a qualified engineer.
Do not use a multi-socket simultaneously for other
electrical equipment to avoid fire due to overload
(for bike with TV monitor).
Prevent foreign matters from getting into moving
parts. Prevent clothing or any part of your body
from touching moving parts.

Failure to obey this warning can result in injury or death.
Always unplug the power cord after use of the
bike or before cleaning or maintenance (only for
bike with TV monitor) to avoid electric shock.
Stepping on the display console or on the seat
may cause damage or accident.
Check for proper assembly before first use and
do not attach any accessory not recommended
by the manufacturer as it may be hazardous.
The bike uses power of AC 100V to AC 240V at
50/60HZ. To reduce danger of accident when it
breaks down, connect the power plug to a ground
socket as required by the law.

2. Safety Instruction
4

3. Safety Rules for workout
Power must be turned off and plug is removed
after use or when not in use for a long period.
For safety purpose, ensure that solid objects
should be about 1m away from the back of the
bike and 0.5m away from the side of the bike.
THINNERR
SOLVENT
Do not use any solvent, wax, thinner or other
petroleum product for cleaning. Use soft dry
cloth only.
The heart rate monitoring system is not a
medical equipment. Its figure could be different
depending on use environment.
- Just take the measured figure for workout program.
Failure to obey this caution can result in slight injury or product damage.
Failure to obey this prohibition can result in malfunction or safety accident.
LEVEL
Do not abruptly change the resistance level.
- Especially, abrupt start may cause some damage to
user body or product.
Be careful not to pinch your foot or cloth
between moving parts such as pedal spindle
and crank arm.
Do not allow children under age 10, the disabled,
the elderly or unfit persons or pets to use the
machine to avoid accident unless closely guide by
a guardian.


Failure to obey this caution can result in slight injury or product damage.
If you feel pain, difficulty in breathing or other
systems while workout, stop it immediately and
consult your doctor.
Always do workout following your workout ability.
Do not overwork.
Wear proper cloths and shoes for workout.
Consult your doctor or a specialist (trainer)
before starting workout. Especially if you have
high blood pressure, heart disease or other
symptoms or if you are over 35.

1m
Safety Instruction
5

· Please check if the ground surface is even and solid.
Otherwise, it may cause noise, vibration and tripping over.
· Please check if the location is indoors without humidity or dust.
Humidity or dust may cause breakdown of the bike.
· Please allow enough space from surrounding fixtures. For safety purpose, ensure that solid objects should
be about 1m away from the back of the bike and 0.5m away from the side of the bike.
· The installation location for bike with TV monitor should be within 1.5m from electrical socket to plug the
bike cord into the socket because power cord of 1.8m is provided. And in the installation location, antenna
cable should be offered.
· Please use standard plug and socket and make sure the electrical outlet is grounded (only for bike with TV monitor).
· When moving, please do it by two persons to avoid any waist injury. Injected plastic parts or pedal parts
could be broken when moving. Please hold steel part of the bike and move it.




· the most innovative design (Good Design awarded by Korean Government)
· built-in 15 inch LCD HD TV monitor and OSD(On Screen Display) function
· Control Board with Capacitive Soft Feeling button
· easy control and various functions
· smooth movement
· solid frame without wobbling
· bearing with outstanding durability
4. Product Introduction
5.Installation Location
6

HUB-700T/700S
  
7
6.Components of Upright Bike

Q
R
S

ADisplay & TV monitor
BControl Board
CJack Housing (only for bike with TV monitor)
DHandgrip
EHeart Rate Grip
FMobile Phone Rack
GConsole Post
HWater Bottle Holder
IFront Shroud
JRear Shroud
KCrank
LPedal
MSaddle (Seat)
NSeat Adjusting Lever
OFront Foot
PRear Foot
QLeveling Adjuster
RFoot Wheel
SElectrical Connection Assembly
(only for bike with TV)
A
B
C
D D
E
E
E
E
F
G
H
I
J
K
OP
Q
R
L
M
N

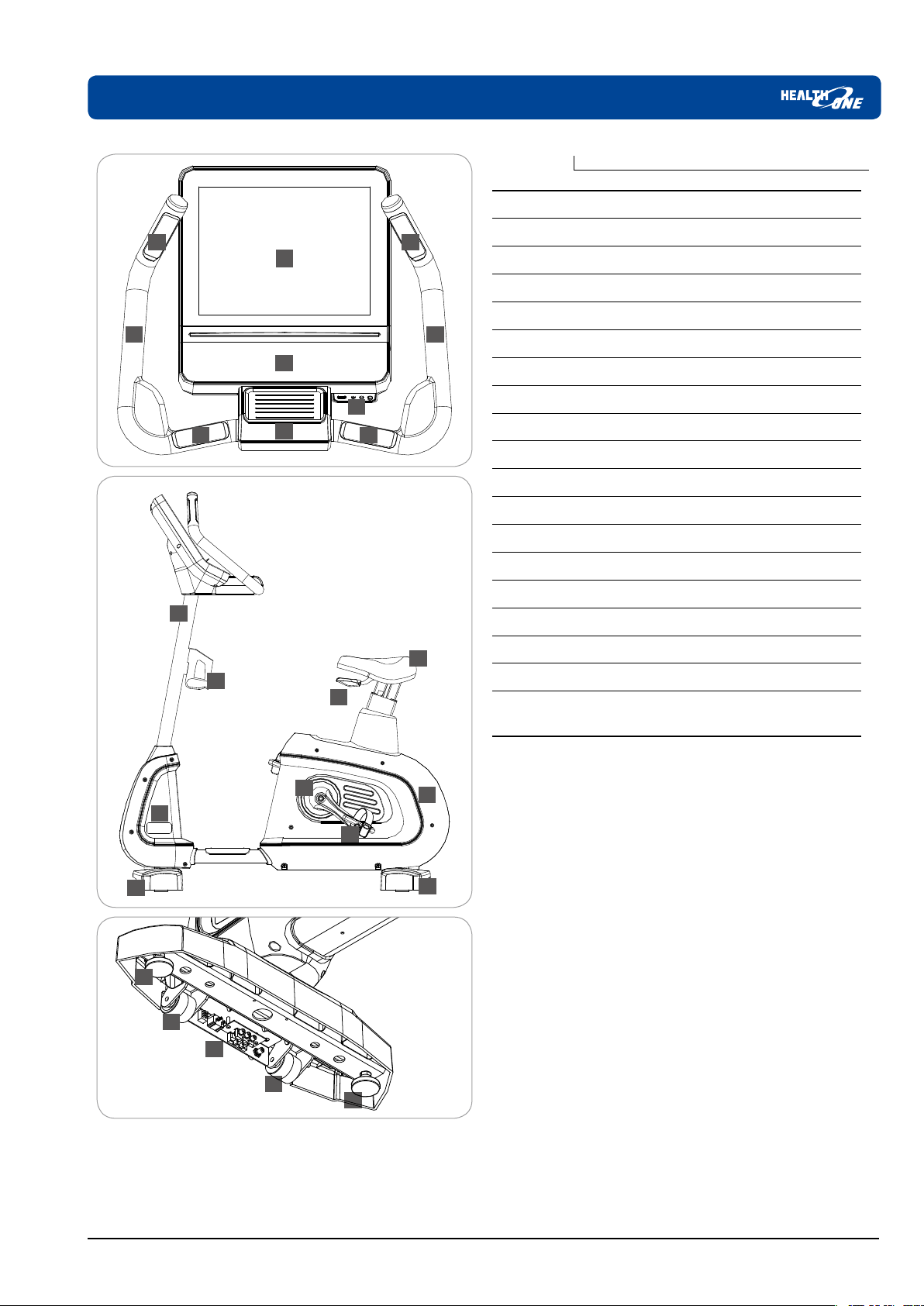

7. Part names of Upright Bike
8









A. 5mm metric hex key wrench
B. 4 pcs of M8 x 20 hex socket flat head cap bolt
C.
4 pcs of M8 x 60 hex socket flat head cap bolt
After unpacking all of the components,
assemble and install the bike as per the following procedure.
CAUTION
· Please plug bike cord into standard voltage socket
(only for the bike with TV monitor).
· Please install the bike on even floor and avoid any uneven surface.
· When installing, the bike with TV monitor should be plugged into electrical
socket which is grounded.
·Please remove dust or foreign materials from the bike before test operation.



Caution : Be careful not to cut cables when sliding the console post
into the body tube.
8.Assembly and setup of Upright Bike
9
1. Plug the display console power and other
cables into their mating connectors.
And slide the post of the display console
assembly into the tube of the main body
assembly.
2. Fix the post and the tube using hex
socket flat head cap bolts securely.

C
B
B




Assembly and setup of Upright Bike
1. Carefully pull the following cables out
of the display console post.
A : Communication Cable
B : Antenna Cable (only for bike with TV)
C : AV cable (only for bike with TV)
D : Power Cable (only for bike with TV)
2. Put the front shrouds onto
the body tube.
3. Fix the front shrouds using
5 pcs of Pan Head Screw.

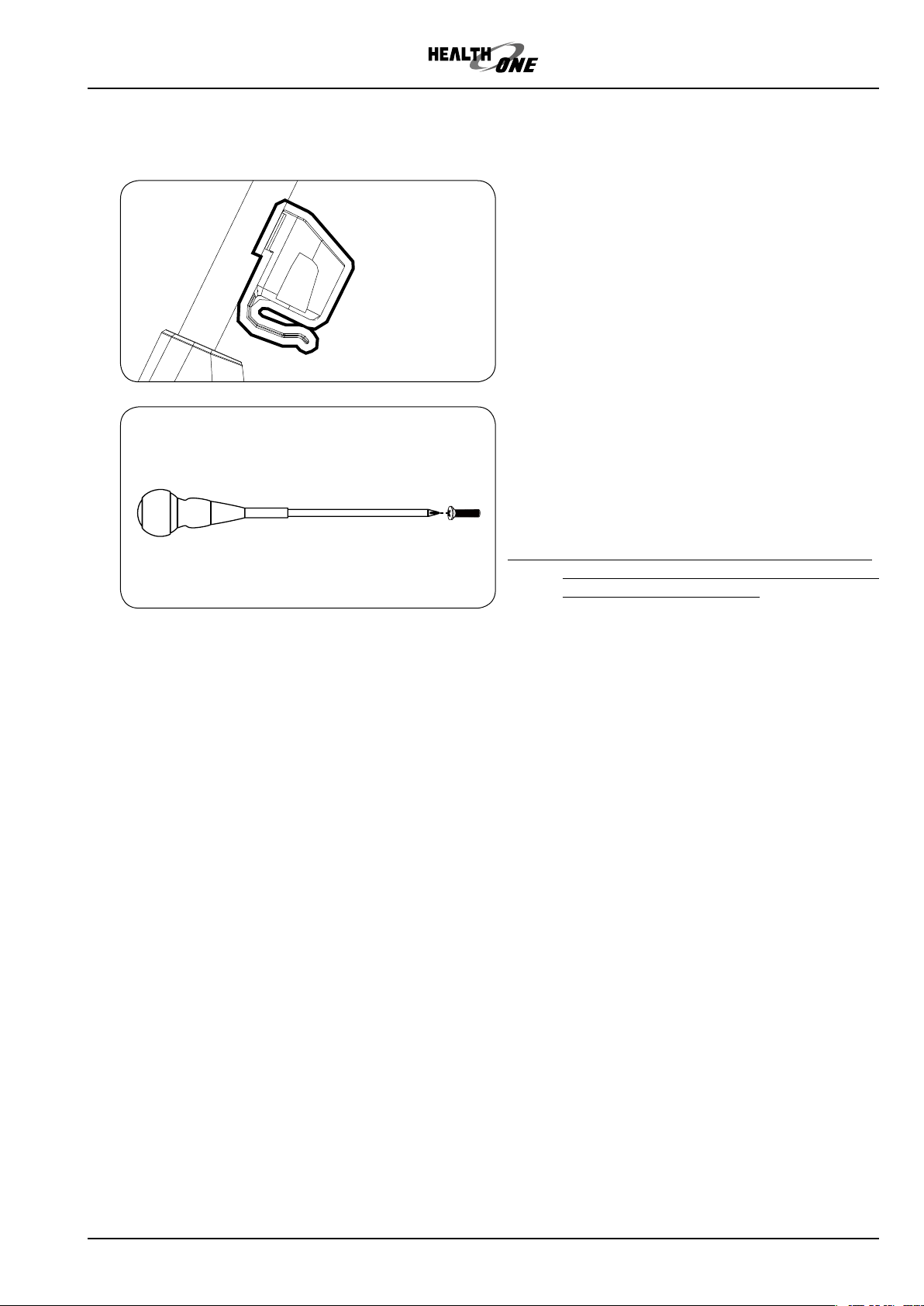

4. Slide the water bottle onto the fix
bracket located on the console post.

A : Phillips Screwdriver
B : Phillips Screwdriver



Caution : Be careful not to let the cable out of the front shroud
when assembling the front shrouds.
10





 

HRB-700T/700S
   
9.Components of Recumbent Bike
11

10. Part names of Recumbent Bike
12

ADisplay & TV monitor
BControl Board
CJack Housing (only for bike with TV monitor)
DFront Handgrip
EHeart Rate Grip
FMobile Phone Rack
GConsole Post
HWater Bottle Holder
IFront Shroud
JRear Shroud
KCrank
LPedal
MBack Seat
NSaddle (Seat)
OSide Handgrip
PSeat Position Adjusting Lever
QFront Foot
RRear Foot
SLeveling Adjuster
TFoot Wheel
U
Electrical Connection Assembly (only for bike with TV)
A
B
C
D D
E E
F
G
H
I
J
R Q
K
O
P
L
M
N
S
S
T
T
U



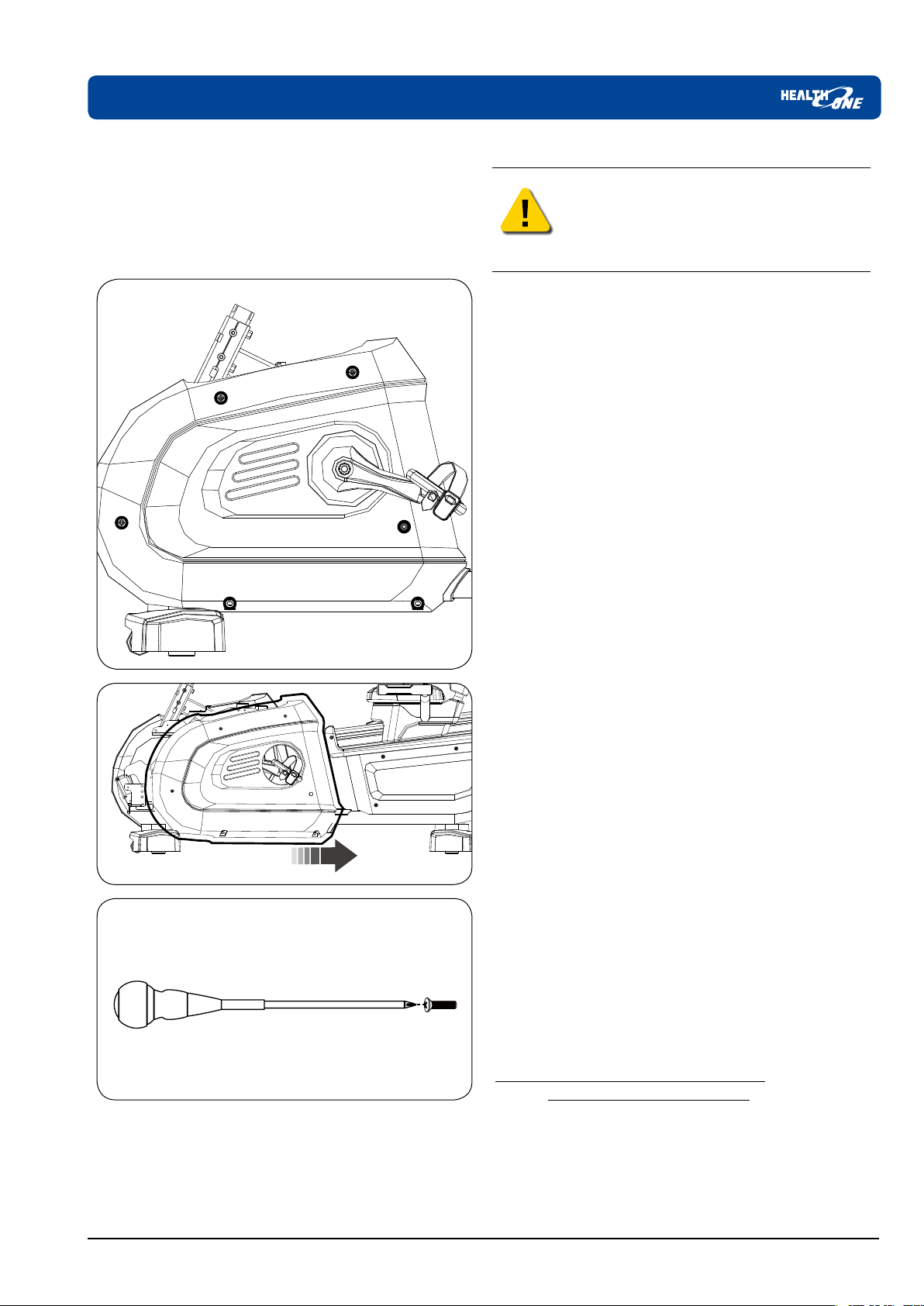

2. Detach the front shrouds pushing them
toward rear foot.
1. Unscrew 6 pcs of M5 x 10 Pan Head
Screw on the front shroud using a Phillips
Screwdriver.

11. Assembly and setup of Recumbent Bike
13


Caution : When disassembling the front shrouds,
be careful not to damage the pedal.

A : Phillips Screwdriver
B : 6 pcs of M5 x 10 Pan Head Screw


After unpacking all of the components,
assemble and install the bike as per the following procedure.
CAUTION
· Please plug bike cord into standard voltage socket
(only for the bike with TV monitor).
· Please install the bike on even floor and avoid any uneven surface.
· When installing, the bike with TV monitor should be plugged into electrical
socket which is grounded.
·Please remove dust or foreign materials from the bike before test operation.

Assembly and setup of Recumbent Bike
14


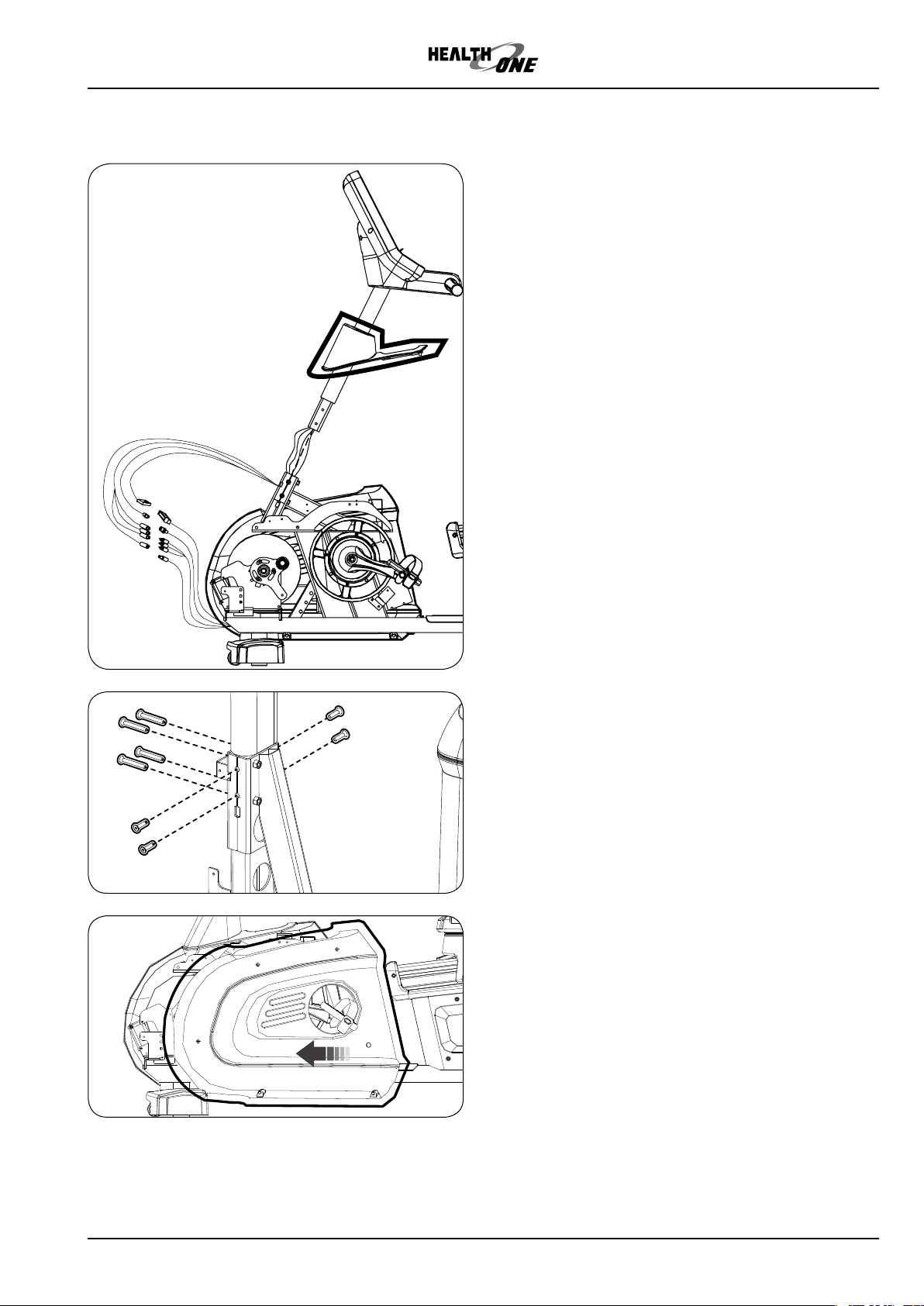

1. Insert Post Shroud to console post and
put cables into body post of body and take
them out underneath, then join console post
and body post.
2. Fix the post and the tube using hex socket
flat head cap bolts securely.


C
B
B




Carefully pull the following cables out of
body post.
A : Communication Cable
B : Antenna Cable (only for bike with TV)
C : AV cable (only for bike with TV)
D : Power Cable (only for bike with TV)

3. Assemble the Front Shroud in reverse order.

Assembly and setup of Recumbent Bike

4. Fit the Water Bottle Holder to the fix
bracket on the post.
15




A. Phillips Screwdriver
B. 6 pcs of M5 x 10 Pan Head Screw
Caution : When assembling the front shrouds, be careful not to
damage the pedal and assemble the Front Shrouds to
meet with the Post Shroud well.


Assembly and setup of Recumbent Bike
16


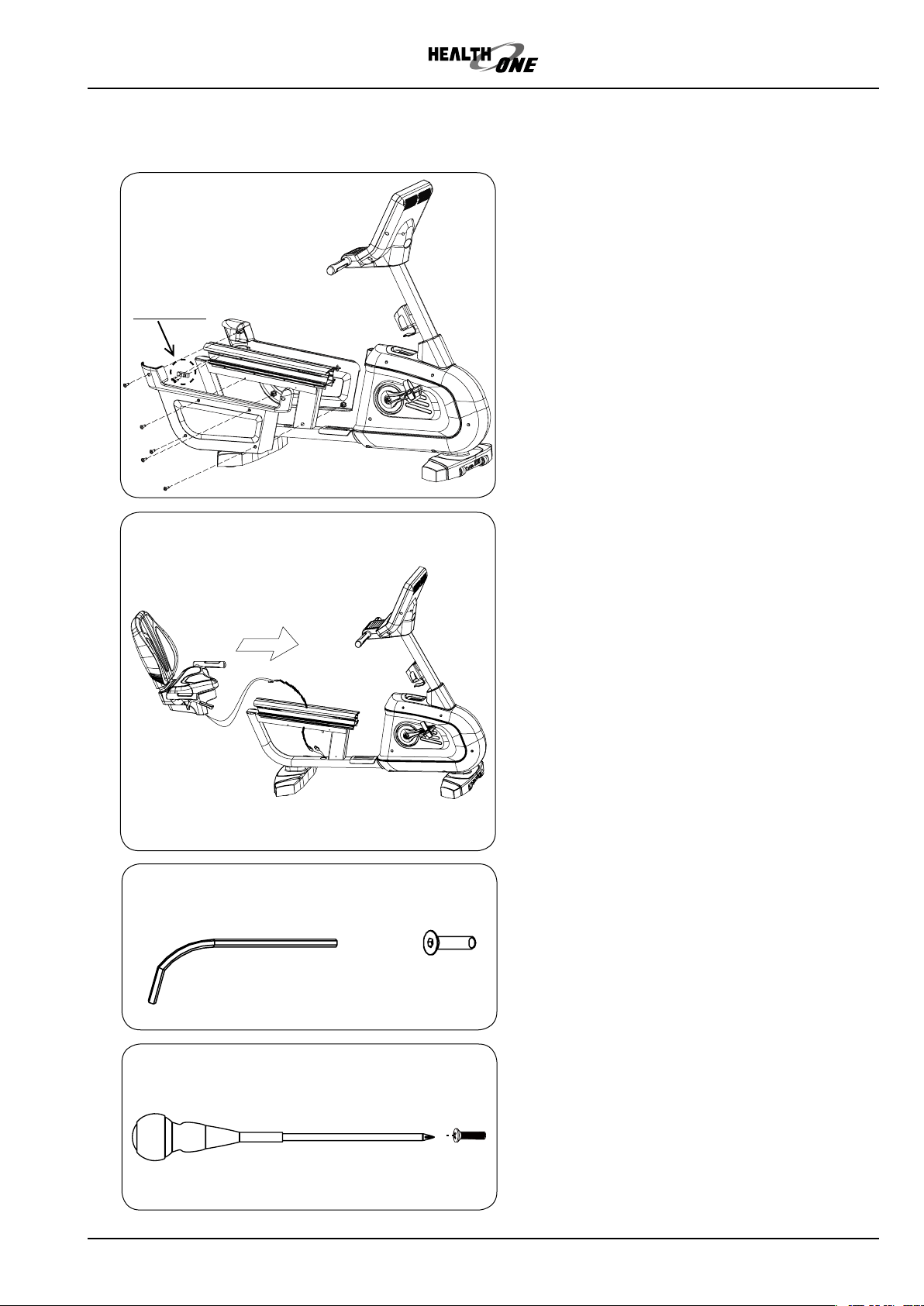

1. Take out Seat Stopper at right of aluminum slide
by using 3mm wrench.
Unfasten 5 bolts at rear shroud and take out rear
shroud.
2. Inset cable of heart rate sensor into hole on
aluminum slide.
Pull seat adjust lever and slowly insert seat
assembly
from the back of aluminum slide.
Connect cable of heart rate sensor to connector
from body.
Assemble rear shroud and seat stopper
in reverse order.








A. 3mm L-wrenches
B. M5*20 Hexagon head wrenche bolt

A. Phillips Screwdriver
B. 2pcs of M5*10 Pan Head Screw
3pcs of M5*20 Pan Head Screw


Seat Stopper

The Bike with built-in TV monitor has 4 screens to be selected by user.
Select program or start
A : Information
C : TV with information
B : TV & Information
D : TV without information
W A TT
W
WATT Window shows energy consumption volume by second.
Kcal
CALORIES Window shows user’s caloric expenditure in Kcal unit.
Km
DISTANCE
Distance Window shows the total number of kilometers user has ridden thus far.
PULSE
BPM
Heart Rate Window shows user’s current rate in beats-per-minute(BPM) while the heart rate
strap or grapping the heart rate grips.
RPM
RPM Window shows the current speed at which user is pedaling in revolutions-per-
minute.
min
TIME
Time Window shows the duration of user’s workout in minutes and seconds from minimum
1 minute up to maximum 99 minutes.
LEVEL
Level Window shows resistance intensity grade.
Select program or start
Message Window shows messages for users.
Screen Mode
Window shows the mode which the screen is set.
Target ARC
& DIAL Window
shows accomplishment rate of the workout target in program workout.
In manual workout, one block means movement of 9.15m.
12. Display Console for bike with built-in TV monitor
17
PULSE


QUICK START lets you begin your workout by simply pressing it.
Quick Start uses a default of 70Kg, a resistance Level of 1.
STOP lets you stop your workout.
PAUSE allows you to stop your workout for a short period and then continue.
+/- allows you to increase or decrease the resistance Level in 1 unit increments.
Minimum resistance level is 1 while maximum is 20.
TARGET allows you to select a workout target type (time, distance, calories).
PROGRAM
allows you to pre-program workout target, age and maximum resistance level.
It is designed to maintain your heart rate at a constant level by controlling
pedaling resistance and prompting you to pedal at a specified RPM. For this
program, user has to wear a heart rate strap.
PROFILE allows you to choose one of 6 preset profiles
and workout following the profile pattern.
INFORMATION allows to display only workout information on the screen.
TV &
INFORMATION allows to display TV and workout information on the screen.
TV
allows to display the TV on the screen.
In this mode, workout information by close caption on the TV screen displays
by rotation whenever user touches the screen.
MODE allows you to change the screen mode (TV, DVD and SMART).
ENTER allows to confirm the setting and data input.
TV VOL / CH allows user to adjust TV volume and channel.

A.
USB Port : is used to charge the Bluetooth headset or other
electrical goods.
B. Earphone inlet : is used for hearing sound from the bike TV
monitor.
C. Bluetooth Pairing Button : allows user to pair the Bluetooth
Transmitter in the bike with the Bluetooth headset receiver.
This is only for the bike with Bluetooth function.
18
A B B C

Display Console for bike with built-in TV monitor

1. Go into TV setting mode
1) Move to TV mode
2) Change to TV only mode
3) Press enter and and of CH simultaneously for 4 second
3. Select Auto search Start
Press + btton to select auto search start
4. Start search
Press enter to start search
5. Compeletion
After compeleting auto search, please turn off
and on the power.
2. Select Auto tuning
Press + button to select Auto tunning
19
2
3
4
Operation Instructions

1

1
2
3
4

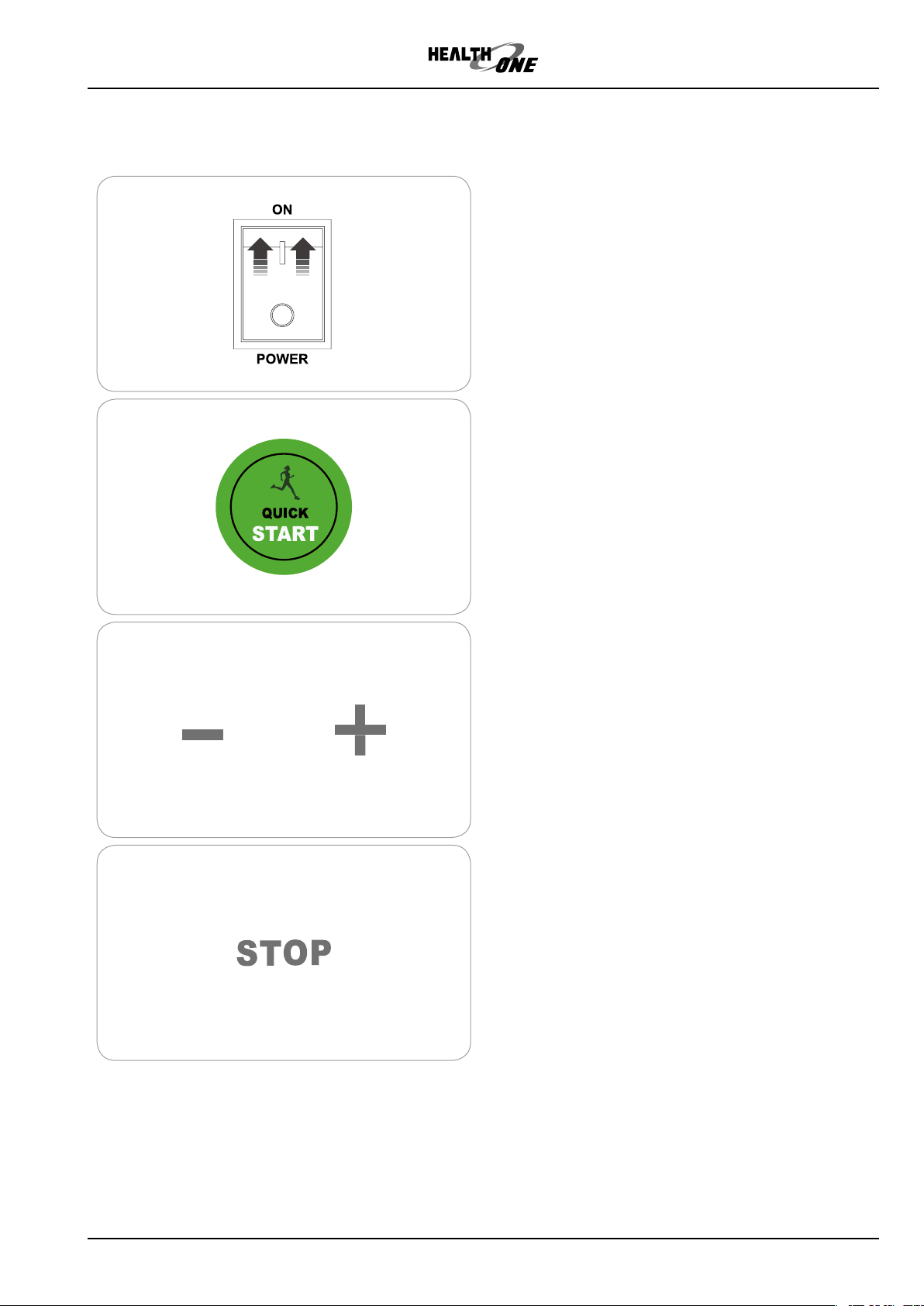

1. Turn the power ON.
4. Press the STOP button to stop your workout.
When you press the STOP button, the Message Window
shows “SUMMARY” and this message remains for 30 seconds.
If you press STOP button before 30 seconds, the SUMMARY
display disappears.
2. Press the START button to begin workout at resistance level of 1.
3. Adjust the resistance level using +/_ buttons during your workout.




20


Operation Instructions
