iMartine Vrillo J300 User manual

User Manual

Product Introduction
Key Function
Welcome to use
Thanks for choosing Smart Robot Vacuum Cleaner!
It is a high-end intelligent planning cleaning robot which combines high accuracy radar and various sensors can realize
collaboration through navigation algorithm, draw a room map in real time and plan the cleaning route and features
automatic cleaning and automatic charging without manual intervention. It has ultra-strong suction power, high-
capacity drawer type dust box, washable HEPA filter screen and split type mopping module and adopts an efficient
cleaning mode of first cleaning and then mopping.
You can download the Near App by smart phone to check the cleaning map and running status of the robot in real
time, define the cleaning area and schedule. You can control the robot remotely.
Sweep/ON &OFF
•Short press to start Sweep/Pause
•Long press for 3s for ON/OFF
•Long press for 15s for forced shutdown
under abnormal circumstances
Recharging/ local cleaning
•Short press Recharge/Pause
•Long press to start local cleaning
Indicator light
•Blue: Normal operation or charging
•Red: Abnormal condition or low battery
•Purple: Equipment is not connected to
the network
Reset Wi-Fi
•Press both buttons simultaneously for 3s
1

Product Introduction
Product Introduction
Parts List Parts List
Charging baseX1 Remote control X1 Duster clothX1
Fluffy main brush X 1 Silicone brush X 1
AdapterX1 HEPA filter+sponge filterX1 2 in 1 electric-controlled
water tank X 1
Multifunctional brush X 1 Rolling brush cover X 1
Suitable for Fluffy main brush + Silicone brush
Cleaning brush X 1 Left side brushX2
Right side brushX2
Hanging infiltration
type water tank X 1(optional)
Rolling brush cover (With steel wire) X
1 Suitable for Silicone brush
2 3

Product Introduction
Product Introduction

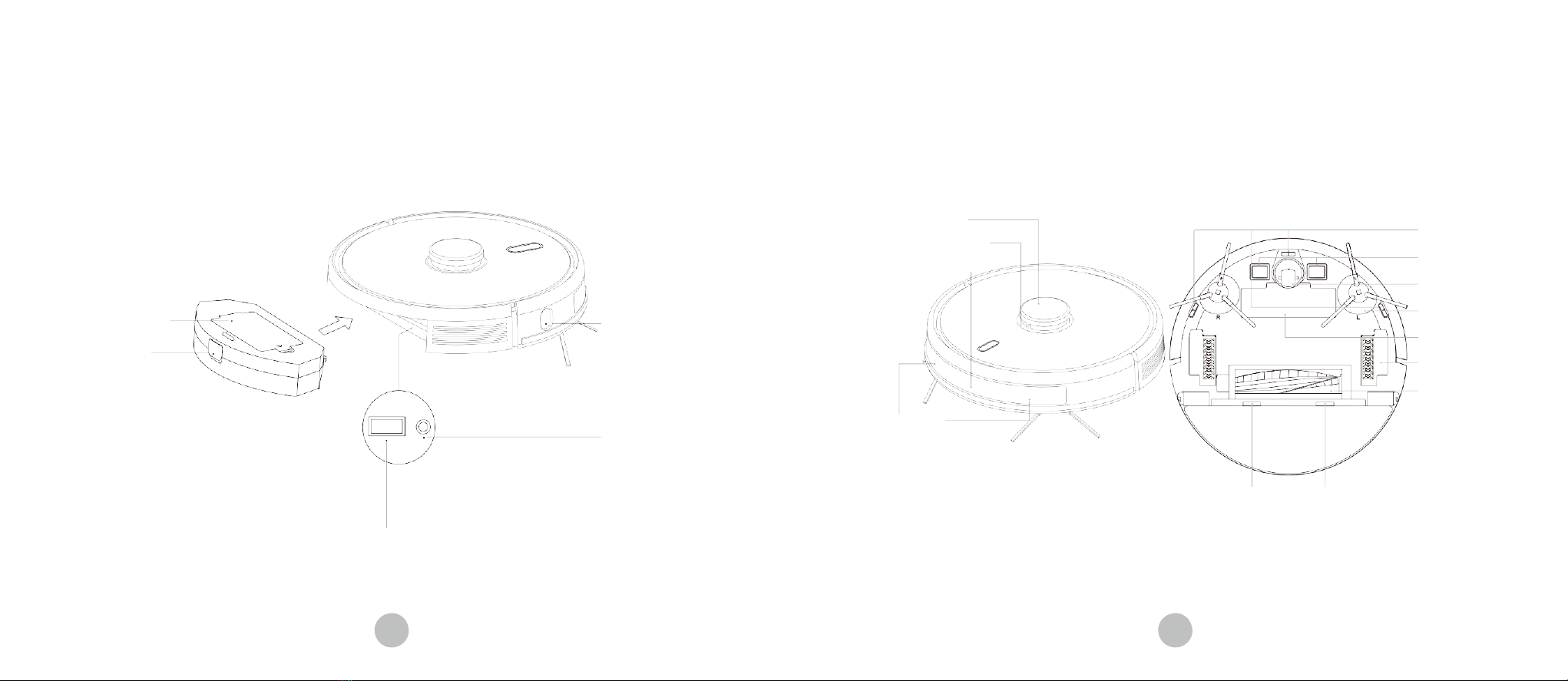

Robot
Filter screen cover
Dust bin button
Wall sensor
System reset button
System upgrade port
(This port is only for
professional use)
Sensor and Structure
LDS laser ranging sensor
Anti-collision sensor for radar
Infrared recharging sensor
Anti-collision sensor
Anti-fall sensor
Charging contact
Universal wheel
Side brush
Battery cover
Driving wheel
Rolling brush
Rolling brush cover buckle
4 5

Product Introduction
Product Introduction

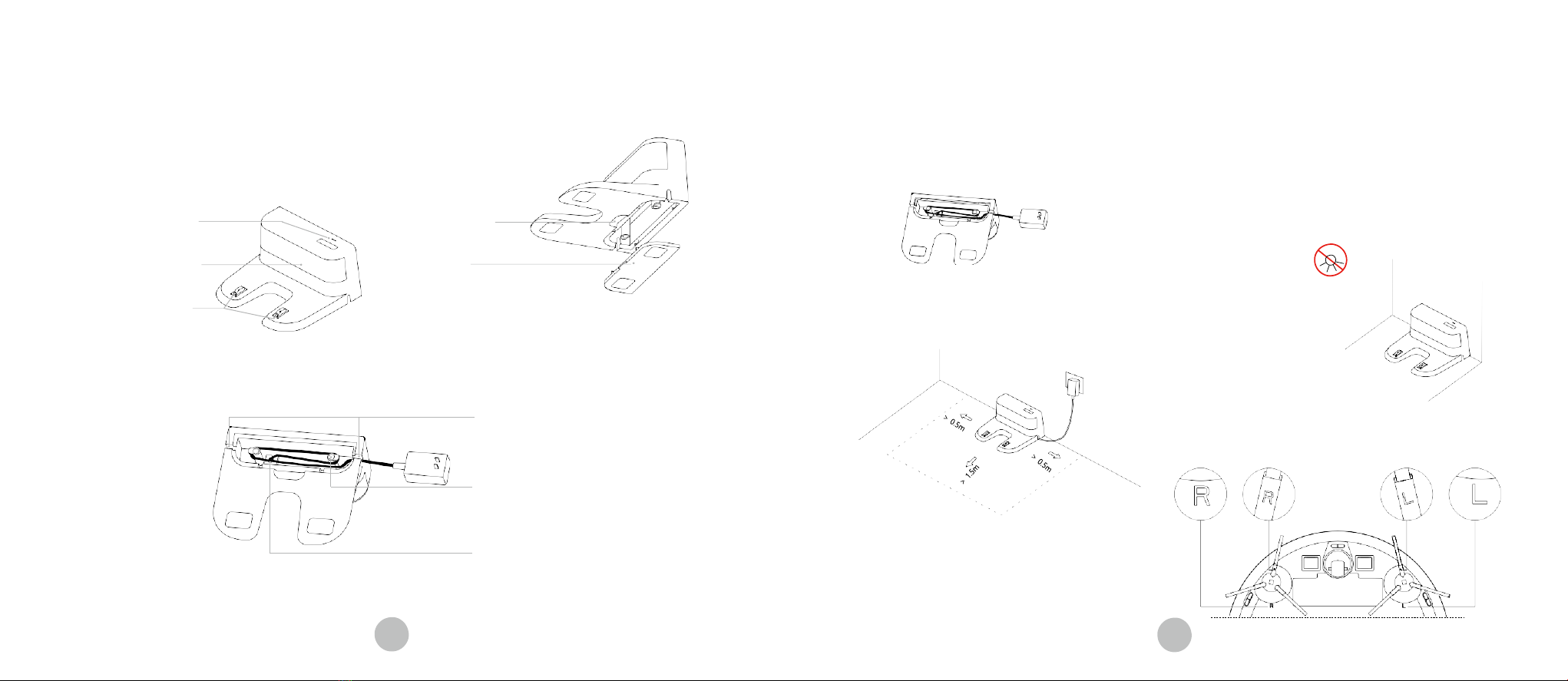

Charging Base
Power indicator light
Signal emission area
Catching groove
Cover plate
Installation
1.Connect power line and feed the excess wire into the slot。
3. Please do not move the charging base arbitrarily and keep
it out of direct sunlight。
Note：
•If the charging base is relocated, the host may fail in positioning
and lose the map. When restarted, the host will rebuild and
memorize the map and the rebuilt map may lose cleaning
information of forbidden areas and other areas。
•Direct sunlight will interfere with recharging signal and consequently
the host may be unable to return to the charging base。
Charging base pins
Wire slot
Wrapping post
Power adapter port
2.Place charging base against the wall and connect the power。
Note:
•Ensure a space of above 0.5m on both sides of the charging
base and a space of above 1.5m in the front。
•If the power line is vertical to the ground, it may be dragged by
the host and consequently the charging base may be powered
off 。
•The charging indicator is normally on when powered on and off
when charged。
4. Installation of
side brush.
Make the left side brush (L) and the right side brush (R) correspond
to L and R on the bottom casing, press L and R and the side brushes
are installed till you hear a “cracking” sound。
6 7

Product Introduction Installation
Installation
5. Starting up and charging。
Long pressto switch on the robot. Charge the robot on charging
base when the power indictor light is normally on.
Note: If the machine cannot be started due to low battery,
please charge the host on the charging base and the machine
will be started automatically. The machine can work normally
only when the battery level is ≥20%.
6.
Connect with the Near APP
(this step can be skipped)
Please refer to Wi-Fi connection guideline, then connect mobile
APP.
7. Start cleaning
After the robot is powered on, short press key on the robot
or use mobile APP to start cleaning. (press any button to
pause during using).
Note:
•The sweeping robot cannot be used to remove liquids.
•If the battery level is less than 20, the machine cannot work.
Please charge it.
•The machine will return to the charging base automatically if
the
battery level is less than 20% in use and will be powered off
and
start cleaning automatically after the battery level reaches
80%.
•Please clear various wires (including power line of charging base)
on the ground before use to avoid outage and damage of
objects or wires when wires are dragged by the host.

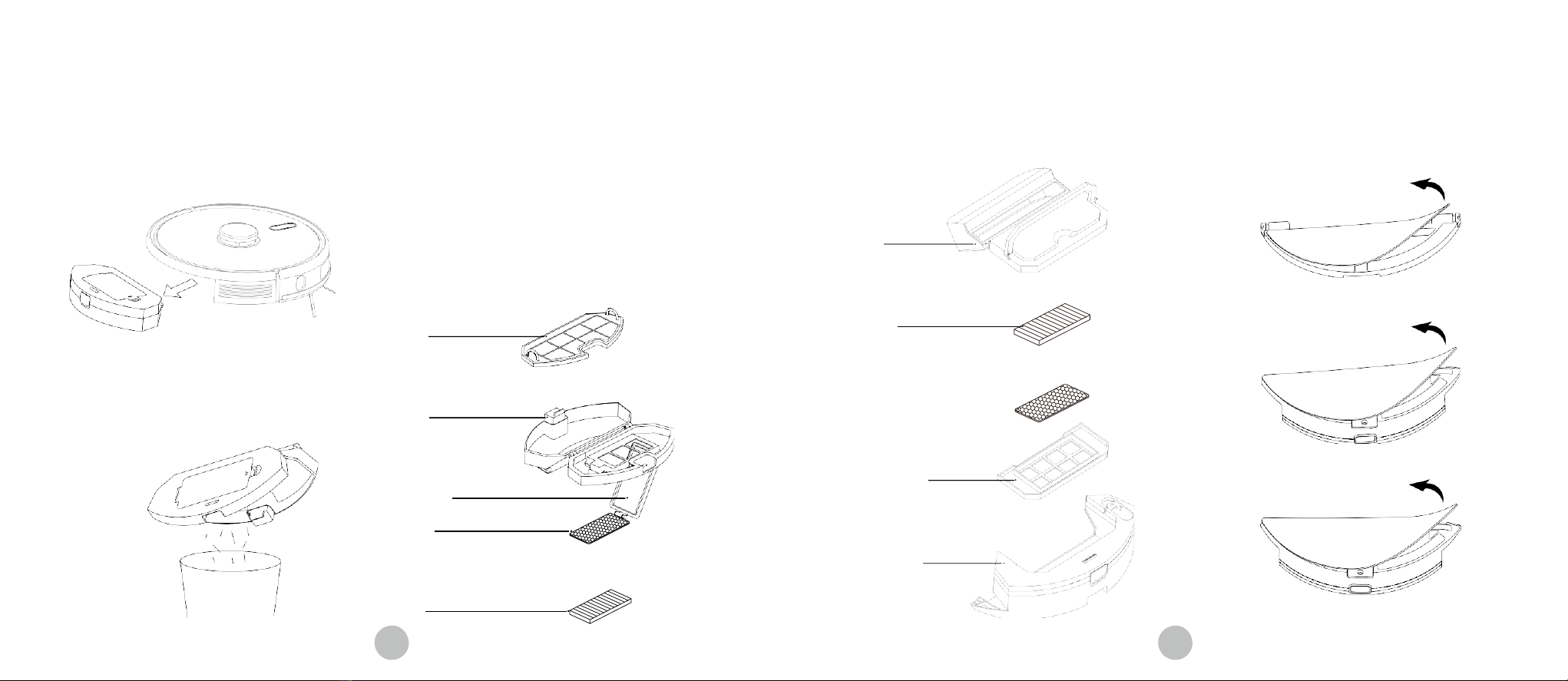

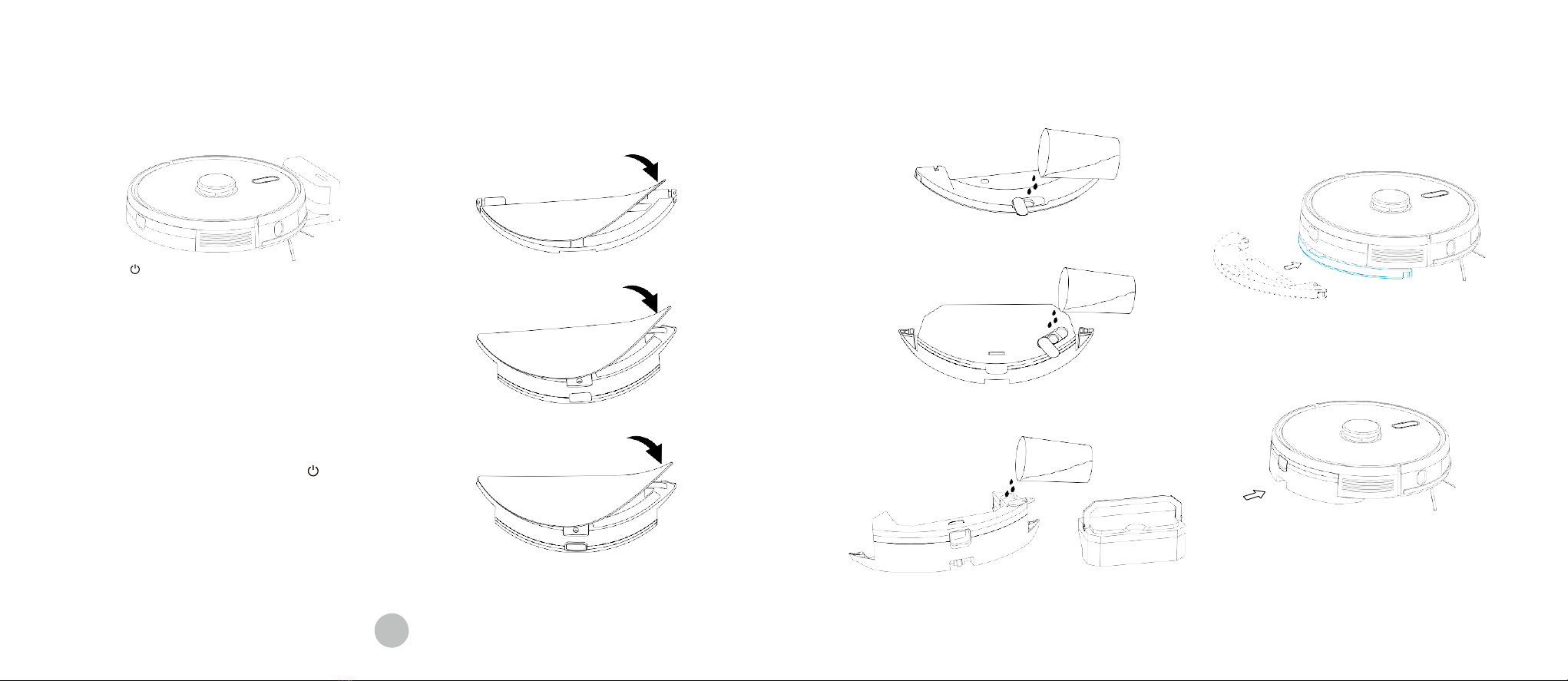

8. Installation of mopping module
① Installation of mopping cloth: paste the mopping cloth flatly to
the bottom of water tank.
(Hanging permeate type water tank)
(Electric-controlled water tank)
(2 in 1 electric-controlled water tank)
Note: please clean the mopping cloth after using to keep it in
good cleaning condition.
②Fill the water tank: uncap the cover and fill with water
(Hanging permeate type water tank)
(Electric-controlled water tank)
(2 in 1 electric-controlled water tank)
please take out the dustbin by handle before fill with water
③Install the module: push the module horizontally along
the rear part of the robot. The module is installed in place if
you hear a "click" sound.
(Hanging permeate type water tank)
(Electric-controlled water tank)

8 9

Installation Installation Installation
Please put the dustbin into the water tank and put the handle
in the slot.
Press and hold the button in the middle of the tank and push it
horizontally along the rear of the robot. The module is
installed in place if you hear “click”.
9.Remove the mopping module
When the robot is finished working, press the clasp on both
sides, remove the mopping module backwards, empty the
water in water tank, and clean the mopping cloth (do not move
or turn the robot over during cleaning).
(Hanging permeate type water tank)
When the robot is finished working, press the button in the
middle of the water tank to remove the mopping module
backwards, empty the water in the water tank and clean the
mopping cloth (do not move or turn the robot over during
cleaning) .
(Electric-controlled water tank)
When the robot is finished working, press the button in the
middle of the water tank to remove the mopping module
backwards, empty the water in the water tank and clean the
mopping cloth (do not move or turn the robot over during
cleaning).
(2 in 1 electric-controlled water tank)
10. Instructions for mopping module
①Please do not use the mopping module when it is left unused.
②For the sake of safety, please be sure to remove the mopping
module when it is being charged or left unused.
③Please do not mop the carpet. Set a forbidden area in APP to
prevent the machine from entering the carpet.
④To achieve a better mopping effect, the mopping module
should be installed after the floor is swept for three times.
⑤ To add water or clean the dust cloth when the machine works,
please pause it, and take out and reassemble the mopping module
according to steps 8 and 9. Please do not move or turn over
the host so as to avoid failing in positioning and losing the map.
⑥Mopping function of the machine is intended for wiping and is
conducive to deep cleaning. it cannot remove stubborn stain
effectively and replace labor force.
ON/OFF
Long press key for 3s, the indicator light is on and the
machine is started.
Long press key for 3s when the machine is under standby
mode, the indicator light is off and the machine shuts down.
NOTE: The machine cannot shut down when the host is being
charged.
Sweep/Pause
After the machine is started, short press key on the host or
start the machine using mobile APP.
(Press any key to pause in use)
Note:
•The cleaning robot cannot be used to remove liquids.
•If the battery level is less than 20, the machine cannot work.
Please charge it.
•The machine will return to the charging base automatically if
the battery level is less than 20% in use and will be powered off
and start cleaning automatically after the battery level reaches
80% Please clear various wires (including power line of charging
base) on the ground before use so as to avoid outage and
damage of objects or wires when wires are dragged by the robot.
Charging
Automatic mode: The robot will return to the charging
base automatically after work.
Manual mode: Under suspended state, short press key
to start recharging or when the recharging host is charged
under the control of mobile APP, The indicator light is under
breathing mode when the recharging host is charged.
Note: if the robot cannot find the charging base, it will automatically
return to the starting position. Please manually put the robot back
to the charging base for charging.
10 11

Area being cleaned
Area to be cleaned
2
Instructions Installation
Cleaning mode Spot cleaning
User-defined area cleaning Wi-Fi reset
After the robot is powered on, it will scan and generate
the map and divide it into areas intelligently. Then sweep
the areas one by one along the wall orderly, efficiently and
thoroughly and plan the cleaning route in a bow/S shape.
The robot will return to the charging base automatically after
cleaning.
When a local area needs a deep sweep, the user specifies a
point on the map on the APP, the machine will automatically
drive to the vicinity of the point, take the point as the center,
and clean within 1.5m x 1.5m.
Partial cleaning
When the robot cannot be controlled by the mobile APP,
please remove the robot to the place you want to clean. Long
press the button for 3 seconds, and the robot will clean
twice within the scope of 2mx2m centering on itself.
2
Use the mobile APP to set the size and location of the area
you want to clean. You can set one or more areas. The robot
would clean according to the areas you set.
Restricted area
Set one or more forbidden areas using mobile APP. The robot
will not sweep forbidden areas but other areas.
Note:
• The robot may intrude into the restricted area due to positioning
errors, abnormal sensors, and other reasons.
•The permanent closed zone may become invalid due to the
big change of the position of the charging seat and furniture.
Therefore, please try not to move or interfere with the robot
during cleaning.
•The permanent restricted area would be lost when the map
is rebuilt.
If the mobile phone cannot be connected to the machine due
to modification of router configuration and password or for
other reasons, please press key and key simultaneously
for 3s till a voice prompt “Wi-Fi has been reset” is given
and the indicator light turns purple and flickers slowly.
DND mode
The robot will neither sweep the floor nor issue a voice
automatically under DND mode. The available time of DND
mode can be startup or modified using mobile APP.
Adjustment of suction power
You can adjust the suction power to silent level, standard level
and high level by mobile APP.
Note:
Do not move the robot casually and frequently when it is
cleaning. After moving, please put the robot near the original
position. When it starts again, it will try to reposition itself. After
successful positioning, it would follow the planned path and
continue to work. If the positioning fails, the robot will abort
previous mission, make a map, and do the cleaning
again. Even it may not find the charging base.
12
Schedule cleaning
Schedule cleaning can be set by mobile APP. The robot will
start cleaning automatically at the appointed time and return
to the charging base after cleaning.
13
Adjustment of water flow
(only for electric-controlled water)
You can adjust the water flow to low level, standard level and
high level by mobile level.

Installation Daily maintenance

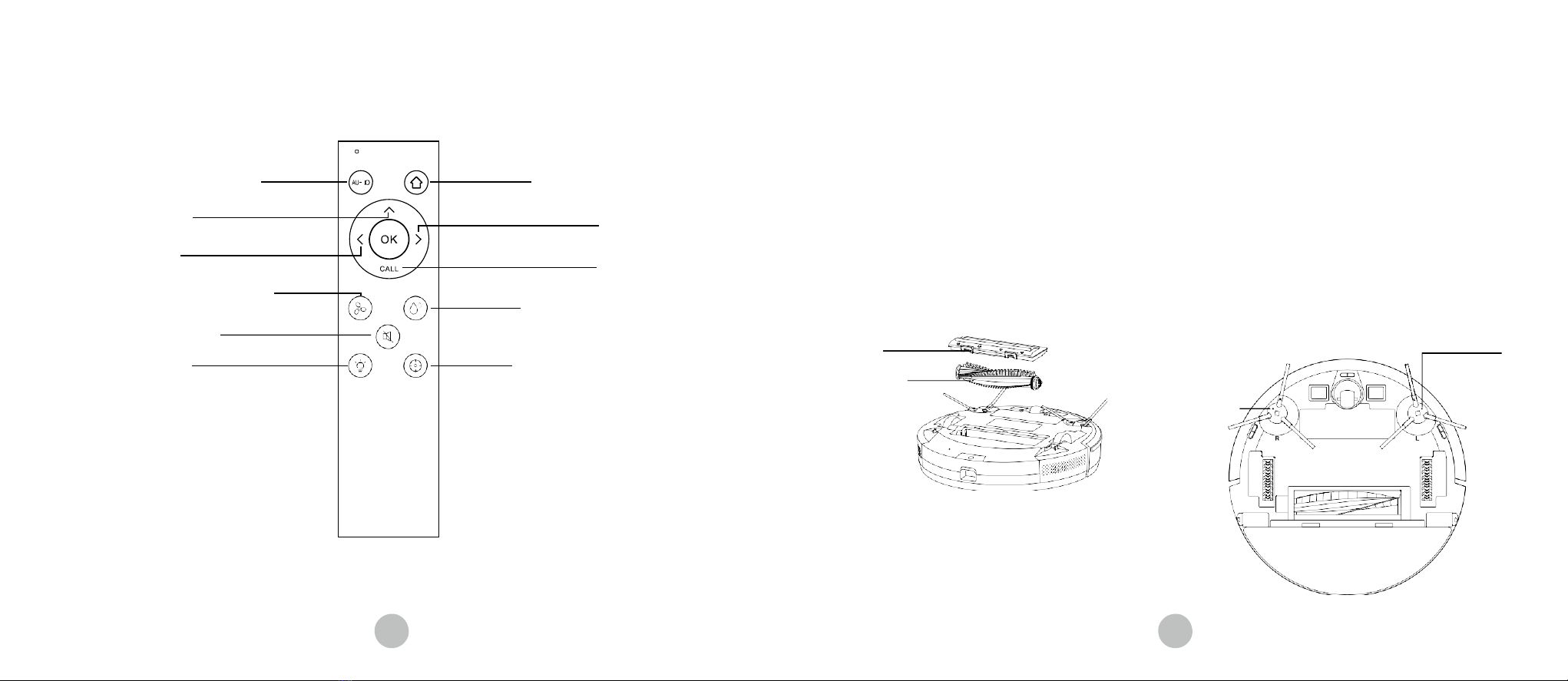

Rolling brush (clean it regularly) Side brush (clean it regularly)
Auto cleaning start/pause
Go forward
Turn left
Adjustment of suction power
Recharging start/pause
Turn right
Find robot
Adjustment of water flow
1. Turn over the machine and press the buckle on the Rolling
rush cover to take out the Rolling brush.
2. Remove dust outside and inside the Rolling brush using tiny
brush and clean the Rolling brush.
3. Reassemble the Rolling brush and press the Rolling brush
cover and clean the Rolling brush tightly to fix the buckle.
1.Turn over the machine and pull out the side brush upwards.
2.Remove hair and dirt and reassemble the side brush.
3.Make the left side brush (L) and the right- side brush
(R) correspond o L and R on the bottom casing, press L and
R to reinstall them.
DND mode on/off
Light on/off Partial cleaning start/pause
Buckle
Main brush
L(left side brush)
R(right side brush)
14 15

Daily Maintenance
Daily Maintenance
Dust box and filter screen (clean it regularly) Filter screen cleaning
(clean it regularly)
Clean filter
(clean it regularly)
Mopping module (cleaned it every time)
1.Press the button and pull out the dustbin backward.
2.Open and clean dustbin.
1.After a long usage, remove the filter gauze, sponge and HEPA.
2.Clean the removed filter gauze, sponge and HEPA under
water. 3.Shake off the water drops and dry it naturally, then use
it after
completely dried.
4.After dry, install it well in sequence, filter gauze - sponge -
HEPA.
Filter
gauze
Button
Dust
bin
HEPA
Sponge
1.Remove the mop, pure out the water from water tank.
(Hanging permeate type water tank)
Filter cover
Sponge
HEPA
16
Filter gauze
Water tank
(Electric-controlled water tank)
(2 in 1 electric-controlled water tank)
17

Daily Maintenance
Daily Maintenance
2.Clean the mop, dry the water tank and mop
(Electric-controlled water tank) (Hanging permeate type water tank)
Sensor (clean it regularly)
Clean the sensors by soft mop, include:
1.Clean the sensors along the wall on the right.
2.Three anti-dropping sensors at the bottom of the host.
3.Infrared avoidance sensor in the front of the host.
4.Radar avoidance sensor on the top of the host.
5.Electric shock protector and charging base shrapnel at the
bottom of the host (please cut of the power during cleaning).
6.Signal transmission area of charging base.
Anti-dropping sensor
Sensor (cleaned monthly)
LDS laser ranging sensor
Anti-collision sensor for radar
Anti-collision sensor
Infrared recharging sensor
(Fig.2)
Battery
Upgrade firmware using mobile APP. If new firmware is
detected, upgrade it according to prompt. The battery level
should be ≥50%during firmware upgrade, so the machine
should be placed on the charging base.
Firmware upgrade
Upgrade firmware using mobile APP. If new firmware is
detected, upgrade it according to prompt. The battery
level should be ≥50% during firmware upgrade, so the
machine should be placed on the charging base.
Signal emission
area Charging base
pins
System reset
Take down the dust box, open the rubber plug and press
Reset key (refer to page 4). Current map will be lost,
and timing, Wi-Fi and personalized settings will be
reserved after reset.
(2 in 1 electric-controlled water tank)
Pull out the dustbin then pure out the water from water tank
Charging contact
(Fig.1
(Fig.3)
18 19

Basic Parameters
Common Problems
Problem Solution
The robot cannot be started
•In case of a low battery level, please place the robot on the charging base and align it at the electrode
plate,the machine will be started automatically (if the robot is completely powered off,it can be started
automatically after charged for a while)
• If the environment temperature is lower than 0
o
C or higher than 50
o
C, please use it at a temperature of 0-40
o
C
The robot cannot be
charged
•Please move the robot away, check whether the indicator light of the charging base lights on and confirm
both ends of the power adapter of the charging base are connected well.
•In case of poor contact, please clear the charging base shrapnel and the charging contact on the robot or
push the side brush aside
The robot cannot be
recharged
The robot is too far away from the charging base, please put the robot near the charging base and make
another try
Abnormal behavior Shut down and restart the robot.
Abnormal noise in use
Main brush, side brush or wheel may be twined by foreign matters, please shut down the robot and remove
foreign matters.
Cleaning ability declines or
dust falls out
•The dust box is full, please clear it.
•The filter screen is blocked, please clear or replace it.
•The main brush is twined by foreign matters, please clear it
WiFi cannot be connected
•WiFi signal is bad, please ensure is covered by WiFi signal.
•WiFi is connected abnormally, please reset WiFi, download the latest APP and try to reconnect it
•Password is inputted incorrectly.
•The router is available for 5G frequency band, the cleaning robot is available for 2.4G frequency band only
Fixed-time cleaning fails
In case of a low battery level, fixed-time cleaning can be started only when the battery level is no less than
30%.
Whether the robot
consumes power if it is
always placed on the
charging base
The robot consumes a little power if it is always placed on the charging base and it enables the best
performance of battery.
Whether the robot needs to
be charged for 16h for the
first three times
The lithium battery can be used immediately after being charged and has no memory effect
Machine
Item Parameter
Model J300
Overall dimension 350X350X100mm
Product weight 3.8kg
Li-battery 5200mAh
Rated voltage 14.52V
Rated power 50W
Charging base
Item Parameter
Overall dimension 160X143X80mm
Rated power 24W
Rated output 24W
20 21

Troubleshooting
Troubleshooting
Prompt Tone Solution
Error 12: Please place me correctly! The robot is tilt
Error 13: Please check if my wheels have become blocked somewhere The driving wheel is stuck or twined
Error 14: Please check if the main brush has become stuck The main brush is twined or stuck
Error 15: Please check if the side brushes have become stuck The side brush is twined or stuck
Error 16: What's going on? Where is the docking station? The charging base cannot out found or is not plugged in.
Error 17: Oh dear! Program error, please restart me Abnormalities are caused by unknown breakdown, restart
the robot.
Error 18: Error encountered initiating shutdown The robot reminds the user and shuts down auomatically or
is recharged.
Error 19: Low battery, please recharge
When the battery level is too low and the robot is not on
the charging base, cleaning is triggered (the battery level is
lower than 10%)
Error 20: To shut me down, please place me away from the docking station The robot shuts down when charged on the charging base
Prompt Tone Solution
Error 1: Oh dear! I cannot find the dust collector Cleaning is triggered when the dust box is take out
Error 2: Please check if the radar on top has been covered or blocked The top radar is covered or placed in an open area
(there is not obstacle within an area of 6×6m2)
Error 3: Please place me in a new location and try again Pick the robot up or hang it in the air
Error 4: Please scrub the cliff sensor, and restart me from a new location The cliff sensor is covered or placed at height
Error5: please scrub the front sensor,and restart mefrom anew location The infrared avoidance sensor is dirty or covered.
Error 6: Please scrub the right-hand sensor,and restart me from a new location. The wall sensor is dirty or covered
Error 7: Please scrub the radar housing on top,and restart me from a new location. The radar avoidance sensor is dirty or covered
Error 8: Please check if the bumper has been blocked in some way. The edge or collision sensor is stuck
Error 9: Master, please clean the dust container and filter. The dust box is full or the filter screen needs to be
replaced.
Error 10: Dust container has been removed, please clean the container and filter. After error 9 is issued,user takes out the duct
chamber and error 10 is triggered
Error 11: I'm stuck, please help me! The robot is stuck
22 23

Content and Name of Hazardous Substances
Safety Information
Hazardous Substance Part Name
Plastic casing Circuit board Power line Battery Metal part Adapter
Lead (Pb)
O
X
X
X
O
X
Mercury (Hg)
O
O
O
O
O
O
Cadmium (Cd)
O
O
O
O
O
O
Chromium VI (Cr (VI) )
O
O
O
O
O
O
Polybrominated biphenyls(PBB )
O
O
O
O
O
O
Polybrominated diphenyl ethers (PBDE)
O
O
O
O
O
O
Environmental life of components: circuit board components: 10 years; power line: 10 years; battery 5 years. The environmental life
labeled on the product refers to the safe service life of the products in leakage of which hazardous and noxious substance will not be
caused under service conditions specified in the User Manual.
o
:means that the content of hazardous and noxious substances in the compent is less than the limit stipulated by SJ/T11363-2006
X:
means that the content of hazardous and noxious substances in at least the component exceeds the limit stipulated by SJ/T11363-2006
Usage Limitations
•The product is used for floor cleaning in a home environment only and cannot be used for outdoor (such as open terrace), non-ground
(such as sofa) and commercial or industrial environment.
•Please do not use the product in midair areas (such as penthouse, open terrace and furniture top) without protective fence.
•
Please do not use the product at a temperature of above 40 ℃ or below 0℃ or when there are liquids and sticky substances on the ground.
•Please hang cables on the ground before use so as to avoid being dragged by the host.
•Please clear fragile objects and impurities (such as vase and plastic bag, etc.) on the ground so as to avoid damaging valuables when
the host is stuck or impacted slightly.
•People with physical, spiritual or perceptual disorder (including children) are not allowed to use or operate the product.
•Children cannot use the product as a toy. Please keep children and pets away when the host is working.
•Please keep main brush and other cleaning tools out of reach of children.
•Please do not place objects (including children and pets) on a stationary or moving machine.
•Please keep hair, fingers and other parts of human body or pets away from the suction inlet when the machine is works.
•Please do not use the product to sweep burning objects (such as burning cigarette end).
Note:
The lead content of a few paster electronic components for special use (such as high voltage resistor,ceramic resistor and
diode,etc.)”X” in the table maybe greater than 0.1%. Core of bolt and the lead content of high-performance alloy contained in USB cable
also may be greater than 0.1% Such components comply with exemption clauses of EU ROHS. For technologies and componeents
which cannot be replaced due to restrictions of technological develoopment level,the lead content of external contact elements complies
with environmental protection requirements.
•Please do not use the product to clean long-haired carpet (some dark carpets may not be cleaned normally).
•Please prevent the host from suctioning hard or sharp objects (such as waste decorative materials, glass and iron nail, etc.).
•Please do not move the machine by holding the protective cover of laser distance sensor and collision bumper.
•Please clean or maintain the host and the charging base under shutdown or power-off state.
•Please do not wipe any part of the product using wet cloth or any liquid.
•Please use the product according to User Manual. User should be responsible for any damages and injuries caused by improper use.
•Please do not use mopping function for carpet and furniture top.
•Please be sure to remove the water tank when the machine is being charged.
24 25

Name Content Warranty Period
Host Host (including built-in lithium battery ) 1 year
Accessories Charging base, power line and water tank 1 year
Consumables Main brush, side brush, main brush cover, filter screen, main brush cleaning tool, duster cloth and dust box /
Safety Information
Battery and Charging
•Please do not use battery, charging base or charger provided by any third parties.
•Please do not dismantle, report or refit battery or charging base arbitrarily.
•Please keep the charging base away from heat source (such as heating plate).
•Please do not wipe or clean the charging base shrapnel using wet cloth or wet hand.
•Please do not abandon used batteries arbitrarily. Used batteries should be disposed of by professional recycling agency.
•If power line is damaged or broken, please disuse it immediately and replace it through official channels.
•Please ensure the host shuts down during transportation and the product should be transported in or iginal packaging.
•If the machine is left unused long, it should be fully charged and then placed in a cool and dry place. Charge the machine at.
least every 3 months so as to avoid damaging batteries due to excessive discharge.
Warranty Policy
Warranty Period
1. If the product has any performance failures set out in Product Performance Failure Table of Smart Robot Vacuum Cleaner within
7 days as of the date received and upon detection of Intelligent After-sales Center, free changing or refunding service will be
provided.
2. If the product has any performance failures set out in Product Performance Failure Table of Smart Robot Vacuum Cleaner within
8-15 days as of the date received and upon detection of Intelligent After-sales Center, free changing or maintenance service will
be provided.
3. If the product has any performance failures set out in Product Performance Failure Table ofSmart Robot Vacuum Cleaner within
12 months as of the date received and upon detection of Intelligent After-sales Center, free maintenance service will be provided.
Friendly reminder: To guarantee safety of packaging box during transportation, packing box should be reserved for at least 30day
as of the date received.
Warranty content
Laser Safety Information
•Laser distance sensor of the product complies with the standard for class1 laser products of IEC60825 and does not produce
dangerous laser radiation.
Note: Warranty service will not be provided for consumables attached to the machine.
26 27

Name Performance failure
Host
Functions set out in the Specification are invalid
The host cannot be started
The main brush, side brushes, draught fan and main wheel do not work
Adapter The charging base cannot be powered on
Charging base The host cannot be powered on
Warranty Policy
Non-warranty Clause
1.Unauthorized maintenance, misuse, collision, negligence, abuse, penetration of liquid , accident, alteration and incorrect use of other
accessories, or tearing up, altering label and false proof mark.
2.The validity period of “three guarantees” expires.
3.Damages caused by force majeure.
4.Other failures than performance failures set out in Product Performance Failure Table of Smart Robot Vacuum Cleaner.
5.Man-
made performance failures of the product and accessories set out in Product Performance Failure Table of Smart Robot
Vacuum Cleaner.
Three Guarantees
User Information
Name:
Tel:
Add:
Model:
Color:
Serial No:
e-mail: Order date:
Performance Failure Table of Wangjia Smart Robot Vacuum Cleaner.
Maintenance Record
No. Date Fault Phenomenon and Elimination Method Engineer
1
2
3
4
28 29

Experience Intelligent Technology and Enjoy a High-quality Life
