iMege B2210E User manual

www.i-mege.com Ingrasys Technology Inc.
B2210E Quick Installation Guide
Ver: v1.12a
1
A B C D
EG
Limited Hardware Warranty
Ingrasys TechnologyInc. warrants that iMege product from its authorized
distributor will meet the applicable product specifications and be free from
all defects in material and workmanship for a pre-defined period from the
date of original purchase. This warranty is given only to the original
purchaser of the product and is only valid and enforceable in the countries
where the product is sold.
During the period and term of the warranty, Ingrasys will, at its option,
either repair or provide replacement components/parts for the defective
product free of charge. This limited warranty does not extend to defect
or damage caused by negligence, accident, abuse, misuse, misapplication,
improper installation, unauthorized repair, alteration or modification.
THIS LIMITED WARRANTY STATES THE ENTIRE WARRANTY GIVEN
BY INGRASYS TO THE CUSTOMER.IN NO EVENT SHALL INGRASYS
BE LIABLE UNDER THIS LIMITED WARRANTY FOR LOSS OF PROFIT,
LOSS OF ANTICIPATED SAVINGS, LOSS OF DATA OR INDIRECT LOSS,
LOSS OF USE OF THE PRODUCT OR ANYASSOCIATED EQUIPMENT,
INCIDENTALOR CONSEQUENTAL LOSSES OR DAMAGES OF ANY
NATURE WHATSOEVERTO THE FULLEST EXTENT THAT THOSE
LOSSES OR DAMAGES CAN BE DISCLAIMED BY LAW.
Please note that warranty service availability and response times may vary
from country to country and Ingrasys reserves the right to add, delete or
amend the terms and conditions at any time without prior notice.
Ingrasys Technology Inc.
21F,207, Fu Hsing Rd., Taoyuan 33066, Taiwan
www.i-mege.com
B2210(E) Quick Installation Guide
www.i-mege.com
Ingrasys Technology Inc.
1
Physical Description & Connection
Front & Back Panels
72.2
70
Package Contents
AB2210(E) BFixed Lens C D
E F
Power Adapter
(Optional)
Quick Installation Guide Product CD Warranty Card
G
Camera Stand
LEDIndicator
LightSensor
Microphone
LimitedHardwareWarranty
IngrasysTechnologyInc.warrantsthat iMege product from its authorized
distributorwillmeettheapplicable product specifications and be free from
alldefectsinmaterialand workmanship for a pre-defined period from the
dateoforiginalpurchase.This warranty is given only to the original
purchaseroftheproductand is only valid and enforceable in the countries
wheretheproductissold.
Duringtheperiodandterm of the warranty, Ingrasys will, at its option,
eitherrepairorprovidereplacement components/parts for the defective
productfreeofcharge.This limited warranty does not extend to defect
ordamagecausedbynegligence, accident, abuse, misuse, misapplication,
improperinstallation,unauthorizedrepair,alteration or modification.
THISLIMITEDWARRANTYSTATESTHEENTIRE WARRANTY GIVEN
BYINGRASYSTOTHECUSTOMER.IN NO EVENT SHALL INGRASYS
BELIABLEUNDERTHISLIMITED WARRANTY FOR LOSS OF PROFIT,
LOSSOFANTICIPATEDSAVINGS,LOSSOF DATAOR INDIRECT LOSS,
LOSSOFUSEOFTHE PRODUCT OR ANY ASSOCIATEDEQUIPMENT,
INCIDENTALORCONSEQUENTALLOSSESORDAMAGES OF ANY
NATUREWHATSOEVERTOTHEFULLESTEXTENT THAT THOSE
LOSSESORDAMAGESCANBE DISCLAIMED BY LAW.
Pleasenotethatwarrantyservice availability and response times may vary
fromcountrytocountryand Ingrasys reserves the right to add, delete or
amendthetermsandconditions at any time without prior notice.
IngrasysTechnologyInc.
21F,207,FuHsingRd.,Taoyuan 33066, Taiwan
www.i-mege.com
AC-24V
(PoEmodel only)
AlarmI/O
RS-485 MICIn AudioOut
Reset
Button
DC-12V
RJ-45
BNC
B2210E Camera Stand Fixed Lens Power Adaper
(Optional)
Quick Installation Guide Product CD Warranty Card
Front & Back Panels
F
Quick Installation Guide
Package Contents
Physical Description & Connection
58
126.8
58
BNC
Dip Switch
RJ-45DC-12V
Alarm I/O
RS-485
MIC In Audio Out
Reset Button
AC-24V
72.2
70
LED Indicator
Light Sensor
Microphone

Ver: v1.12a
Ingrasys Technology Inc. www.i-mege.com
B2210E Quick Installation Guide
2

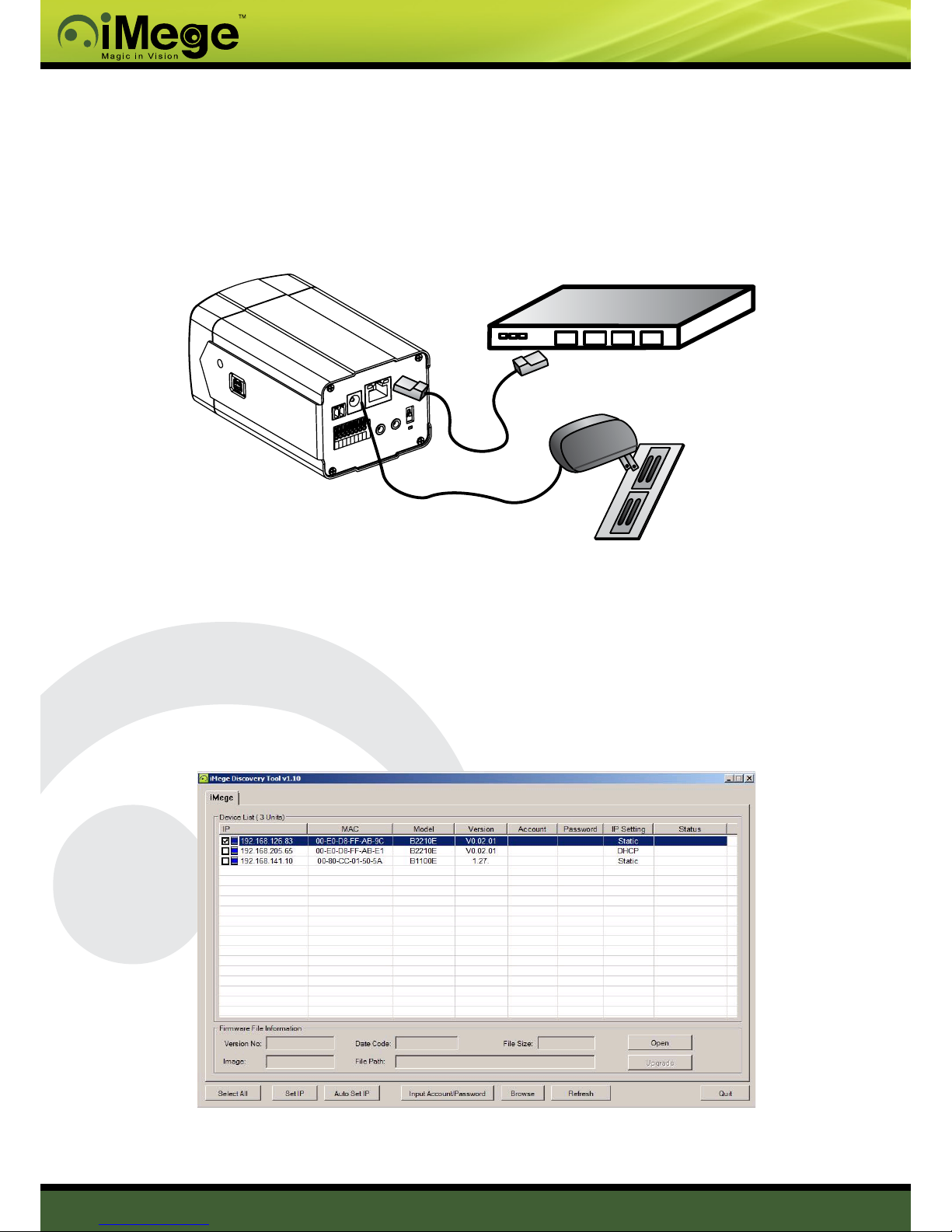

Connections
1. Connect the camera to a network switch / hub with an Ethernet cable.
2. Connect the power jack to the camera, and connect the adapter to a power outlet.
3. For PoE camera model, connect the camera to a PoE switch with an Ethernet cable;
no need to connect the power adapter to the camera.
1. Launch iMege Discovery Tool (iMegeDiscover.exe). The tool will start searching and
then displaying the cameras on the Device List after they are found.
Assigning IP address

www.i-mege.com Ingrasys Technology Inc.
B2210E Quick Installation Guide
Ver: v1.12a
3
2. Check the checkbox to select a camera device from the list.
3. The IP Camera may be assigned with a valid IP address via DHCP server. It can be
also manually given a static IP address. To do so, click on “Set IP”, and then input
the IP, Subnet Mask and Gateway. Input account info if the camera is password
protected.
4. Click on the “Browse” button to get access to the camera web page immediately.
1. Launch IE browser and input the IP address of the camera, or click on “Browse”
button on iMege Discovery Tool. The web page with video will then be shown as
below.
Accessing the camera

Ver: v1.12a
Ingrasys Technology Inc. www.i-mege.com
B2210E Quick Installation Guide
4
1. The live video of the camera can be played with a RTSP player, such as VLC or
QuickTime. The network URL is rtsp://Camera IP/stream1. The example given below
is that live video is displayed with QuickTime player.
1. The B2210E series cameras are bundled with a xed focal-length lens. To tune the
focus, adjust the focus controller in the range of "N ↔ ∞" shown on the lens.
focus controller
Tuning the camera focus
