Imperial Slim Line Series Installation guide

Slim Line—N1900
Select 10—1900-10
Installation Instructions
&
Warranty Information
DO NOT THROW AWAY,
PROPERTY OF THE HOME OWNER!
UNDRCAB/10.18

Imperial Cal Products, Inc.
Read Before Starting Installation!
Inspect your range hood prior to installing!
Any cosmetic defects must be reported to us prior to installation.
Once this hood is installed, ICP will NOT accept any responsibility
for any cosmetic blemishes, scratches or dents in the Canopy.
Save all original packaging if you wish to return for any reason!
FIRST:
Check your local building and electrical codes.
WARNING:
To reduce the risk of fire or electrical shock, Do Not use any two speed motor units with a Solid
State control devise.
CAUTION:
To reduce the risk of fire or personal injury and to properly exhaust air, be sure to duct air to the
outside. DO NOT vent exhaust air into spaces within wall, attics, ceilings, crawl spaces or
garages. When venting to the outside make duct run as short and straight as possible.
Avoid using elbows if at all possible as this will reduce your performance. Every elbow will
decrease the performance and we will not guarantee the effectiveness of the range hood.
No Performance Warranty when used above BBQ Style Grills.
DO NOT use duct pipe smaller than the outlet duct opening on the hood, this will reduce
performance and void the warranty. DO NOT use flex ducting. Also, use either a Roof Cap or
Wall Cap to end run. Be sure that all joints are taped securely in place. It is essential to have the
proper distance between the bottom of the range hood and the cooking surface below. In most
cases the cooking appliance manufacturers specifications will establish the fire safe minimum
distance required, although there are other factors to consider:
 Local Building Codes
 Cross directional air movements ie: open windows, air conditioning/heating outlets, cooling
fans, etc.
 Overall size of the cooking appliance and surrounding countertop surfaces.
 Range hood model selected.
For best performance distance between cooking surface and the bottom of the hood is 30” and
36”. Check local codes and appliance specifications. Keep in mind, increasing the distance will
decrease the performance.
THERMOSTAT: PS or BP Units ONLY. When cooking surface reaches 130 degrees, the unit will
automatically turn ON to the highest setting and won’t be able to be turned off until the area has
cooled down. For safety, it’s best to have unit on while cooking. (This thermostat will NOT prevent
fires. Fires are most often cause by excessive grease build up.)
DISCLAIMER
Imperial assumes no liability regarding the improper installation or misapplication of its products. It
is the installer’s responsibility to check for proper installation. Under no circumstances will Imperial
be liable for any labor charged or travel time incurred installation of its products. Damage caused
by improper installation is the installers responsibility and Imperial assumes no liability.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause
cancer or birth defects or other reproductive harm. For more information to go: www.P65WARNINGS.ca.gov.

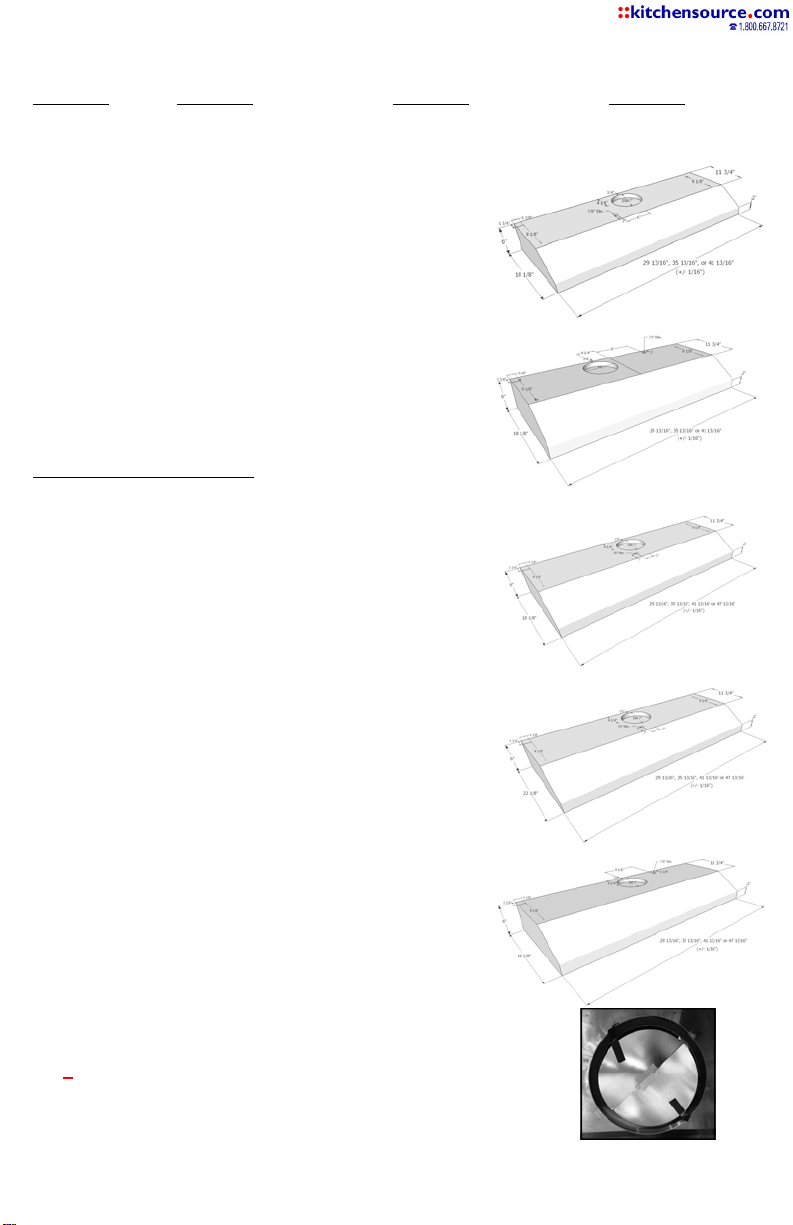

Slim Line Series Installation Details:
MODELS MODELS MODELS MODELS
N1900T N1900BP1 N1900BP N1900PS
N1900SD2
CABINET: Be sure that the cabinet bottom is level, side
to side and front to rear. BP & T: Cut an 8” x 8” hole in
the bottom of the cabinet, 3/4” in from the rear wall and
on center line.BP1: Cut an 8” x 8” wide hole that is 4.25”
off center in the bottom of the cabinet, 3/4” in from the
wall. Shelves and top to be cut to clear 7” round pipe to
line up with the bottom cabinet cut out. Also, cut holes
for electrical wires. The location of the cut out deter-
mined by the model you are installing.
ELECTRICAL: Stub enough wire into cabinet to reach in
front of vent pipe. Enter cabinet 2” left (facing hood) of
center and 1-1/8” from wall. Remove electrical box cover
before mounting. SD2 wire goes to the right rear.
Units are to be hard wired. It is not recommended to
add a power-cord. Adding a power cord can loosen
existing wires inside junction box causing electrical
failure.
MOUNTING: Remove black tape holding dampers
closed. *It is NOT recommended to use 2 dampers
during installation. You have the option to put a
external damper or use the existing damper already
on the unit. Insert canopy below the cabinet, being sure
your vent opening and electrical cut outs line up with
cabinet cut outs. Use the Key Hole mounting holes to
secure the canopy. After hood is mounted attach house
wires to leads in the hood. Secure locknut to conduit and
check wiring for compliance to local building codes.
FINISH: Replace electrical box cover. Connect duct and
tape all joints. Replace Filters.
NOTE: Blower on N1900T is offset to the right with a
center duct. (Majority of airflow will be on the right side)
NOTE: Blower on N1900BP1 is center and duct if offset
to the left.
WARNING: To reduce the risk of fire or electrical shock
DO NOT use the “SD2” series with any solid-state speed
control device.
Duct Sizes Indicated in Model # (Ex: N1942PS-8 )
** - 8 = 8” DUCT PIPE
Ex: N1942PS = 7” Round Duct Pipe
N1900T
N1900BP
N1900PS
N1900SD2
Black Tape on Damper
N1900BP1

Installation Instructions for 1900-10 ONLY
Wall Mounting application.
1. From bottom of hood, measure 10” up and draw a line.
2. Take “U” shape installation bracket and line the bottom of the bracket
up with the line (center bracket left to right) install bracket using #10 x
2-1/2” wood screws, if you have wood to screw in to. If not use the
3/16” x 3” toggle bolts.
3. Lift up hood and connect hood brackets to installation bracket using
4. (8) 10-32 Hex Keps nuts and (8) 10-32 x 3/4 screws. Make sure hood
is level before you tighten all screws.
5. Use (2) 3/16” x 3” toggle bolts or #10 x 2-1/2” wood screws and (2)
1-1/4” OD Fender washers to secure to back of wall.

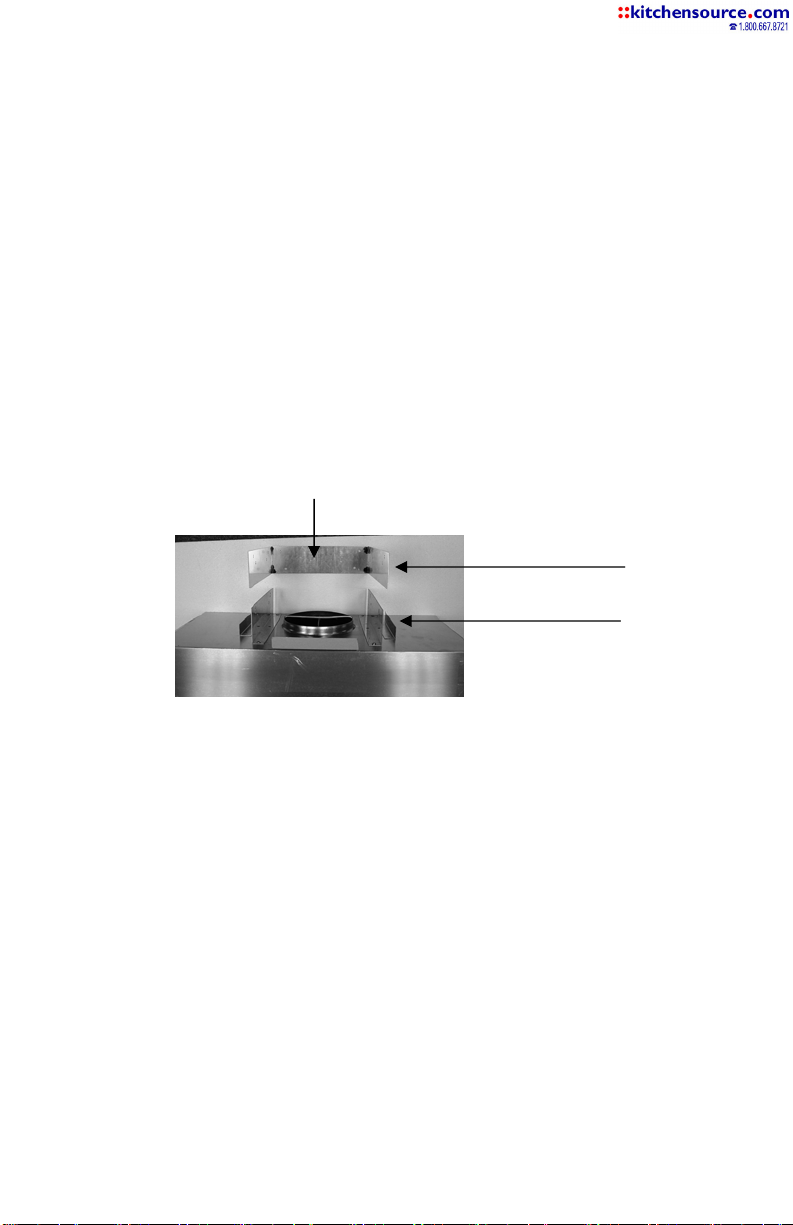

6. To install DUCT COVER—remove brown tape from brackets and line
up duct cover to the brackets on top of hood.
Brackets
Top

Imperial Cal Products, Inc.
To order replace parts or schedule service please call our office at [phone]
or use our website… www.imperialhoods.com.
PARTS:
When ordering Parts we need the following information:
 Model Number (not serial number) found on UL label inside hood.
 Exact dimensions (in the case of filters)
You can find the model number on the inside of your hood on our UL label. There will be a
several model numbers listed, your model number should have a colored dot or mark next to it
to indicate the exact model you have.
In the case of Filters, we will need the exact dimensions of the filter needed.
Indicate which side has the pull tabs on it. Filters are not a warranty replacement part. With
care your filters should last many years.
Payment on Parts is handled one of three ways: PrePaid (you send a check prior to our Ship-
ping), call with credit card information, VISA or MasterCard, COD or Cash if you decide to “Will
Call”.
SERVICE:
When calling in for Service we need the following information:
 Model Number (not serial number)
 Proof of Purchase
 Name of company you purchased the hood through.
 Name & Phone number of the person to contact to set up the service call.
 Full address of the location where service is to be done.
Warranty is Seven Years, Parts and Labor.

Maintenance & Warranty Information
RANGE HOOD CLEANING—When cleaning a painted hood, wash it with mild, soapy
water ONLY! Wipe the hood thoroughly with clean water and dry with soft cloth. When
cleaning Stainless Steel use a cleaner specifically for Stainless Steel. Always rub with the
grain using non-abrasive cleaning materials. AVOID detergents, disinfectants or cleaning
products in aerosol cans. NEVER use abrasive scouring powders on your hood! Some
cleaning chemicals may damage the hood finish!
BAFFLE FILTER CLEANING—To remove Baffle Filters, remove center panel by pulling
panel toward the front of the hood, lift up to remove. Move filters to the center of the hood,
pull baffle towards the front of the hood and lift out. To remove grease tray, slide tray to the
top of the hood and lift out. Grease will accumulate in grease tray. Clean with hot water and
polish with stainless steel cleaner.
SLIM BAFFLE & ALUMINUM MESH FILTER CLEANING
Clean filters often for the best performance. How often depends on cooking style. Use hot
water and a degreaser to clean. May be used in the dishwasher through the RINSE
cycle ONLY. Some detergents may discolor filters. For Slim Baffles polish baffle side
with stainless steel cleaner.
LIGHTING
 LED BULB—PAR 20 FLOOD LAMP—DIMMABLE
Warning: Do not use any bulbs that are not instructed by manufacturer. Do not use
Halogen bulbs in sockets not intended for their use! They are to be used only in the Front
Light and Center Light Panels.
Your Imperial Warranty: MUST show proof of original purchase date is
needed to obtain service under warranty.
Deluxe Units: Seven Year Limited Warranty, Parts and Labor in the Continental
USA. Parts only outside the United States.
For seven years from date of original purchase, we will provide parts and service labor in
your home to repair or replace any part of the hood that fails due to a manufacturing defect.
Call for service at [phone]
NOTE: Service companies will perform Warranty Service, Monday through Friday from
7 a.m.—4: p.m. The service company will call and schedule a date and time with a 4 hour
window. If the service company arrives at your location, during the scheduled date and
time, and no one is home, you will be charged a trip charge by the service company for a
return service call.
ITEMS IMPERIAL WILL NOT PAY FOR
1. Service calls to correct the installation of your appliance, to instruct you how to use your
appliance, to replace or repair house fuses or the correct housing wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or filters.
3. Repairs when your appliance is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes.
5. Replacement parts or repair costs for units operated outside the United States.
6. Pickup and delivery. This appliance is designed to be repaired in the home.
7. Repairs to parts or systems resulting from unauthorized modification made to the appliance.
8. Expenses for travel and transportation for product service in remote locations.
9. The removal and reinstallation of your appliance if it is installed in an inaccessible location or
is not installed in accordance the published installation instructions.
10. Replacement parts or repair labor costs when the appliance is used in a country other than
the country in which it was purchased.

SAFETY INSTRUCTIONS
Read and Save These Instructions
Warning: To reduce the risk of fire, electrical shock or injury to persons, observe the
following:
A. Use this unit only in the manner intended by the manufacturer. If you have any questions,
contact the manufacturer. Before servicing or cleaning unit, switch power off at service
panel and lock Service Disconnecting Means to prevent power from being switched on
accidentally. When the Service Disconnecting Means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Warning: To reduce the risk of a range top grease fire:
A. Never leave surface units unattended at high settings. Boil-overs cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when Flambéing foods (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fans or
filters.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
Warning: To reduce the risk of injury to persons in the event of a range top
grease fire, observe the following:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN - you may be badly burned.
C. DO NOT USE WATER, including wet dishcloths or towels, violent steam explosion will
result.
D. Use an extinguisher ONLY if:
 You know you have a Class ABC extinguisher and you already Know how to use it.
 The fire is small and contained in the area where it started.
 The fire department is being called.
 You can fight the fire with your back to an exit.
Warning: To reduce the risk of fire, electrical shock or injury to persons, observe the
following:
A. Installation work and electrical wiring must be done by a qualified person or persons in
accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue of
fuel burning equipment to prevent back drafting. Follow the heating equipment manufac-
turer’s guideline and safety standards such as those published by the National Fire Protec-
tion Association (NFPA), and the American society for Heating, Refrigeration & Air condi-
tioning Engineers (ASHRAE), and the local code authorities.
C. When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hid-
den
utilities.
D. Ducted fans must always be vented to the outdoors.
Warning: To reduce risk of fire, use only Smooth Metal Ducting!
