impulce 2 IT8017 Super Pullover User manual

I Super Pullover
Assembly Instructions
T8017

Table of contents
Important Safety Instructions--------------------------------- 1
Exploded View Diagram------------------------------------------ 2
Hardware List-------------------------------------------------- 3
Parts List----------------------------------------------------- 4
Assembly instructions------------------------------------------ 5
------
----------
--

Important Safety Instructions
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equip-
ment, basic precautions should always be taken, including the following:
* Read all instructions before using the .
arewrittentoensureyoursafetyandtoprotect
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended
by the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout---no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout imme-
diately and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that
all fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later
that you have to disassemble compontents and that you may have
damaged the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate
the unit a few feet from walls or furniture to provide easy access.
The Super Pullover is designed for your enjoyment. By
precautions and using common sense, you will have
pleasurable hours of healthfull exercise with the
Super Pullover These instruc-
tions the unit.
following these
many safe and
equipment.
Personal Safety During Assembly
1

2
I Super Pullover
Exploded View Diagram
T8017

3
Hardware List
0 100
10 20 30 40 50 60 70 80 90 110 120 130 140 150
Inches
0123456
/
12
/
14 /
34 / 34 / 34 / 34 / 34 / 34
/
14 / 14 / 14 / 14 / 14
/
12 / 12 / 12 / 12 / 12
Millimeters

4
Parts List
Item No. Description QTY Item No. Description QTY
Allen Bolt M12×40
Allen Bolt M10×100
Screw
Decal Warning
Decal
Allen Bolt M10×115
Allen Bolt M10×75
Allen Bolt M10×70
Allen Bolt M10×45
Allen Bolt M10×25
Shoulder Bolt M8×30
M4×20
Shoulder Bolt M10×60
Shoulder Bolt M10×55
Shoulder Bolt M10×50
Screw M8×20
Screw M5×10
Washer 13× 24×1.5
Washer 11× 20×1.5
Nylon Locknut M12
Nylon Locknut M10
Spring Washer 10
Spring Washer 8
Pulley Cover
Half-pulley Cover
Rubber Cap
4.5" Pulley
Plastic Washer
Bolt Cover
Split Pin
Bronze Bushing ID25.4
Aluminium Plug
Bronze Bushing ID12
Grip
Allen Bolt M10×20
Shoulder Bolt M10×35
Nylon Locknut M8
Decal Weight Numbers
Maintenance
Decal Pinch Points
Decal Tightening
Allen Wrench S=6
Allen Wrench S=3
Decal Note
Allen Wrench S=8
Plastic Cap
Screw M6×15
Spacer
ΦΦ
ΦΦ
Φ
Φ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
2
1
1
2
1
1
1
2
1
1
1
17
4
1
2
2
5
1
14
1
1
5
9
5
1
1
2
1
1
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
4
2
2
1
6
3
10
2
2
1
1
2
2
38
8
37
4
16
10
2
6
2
2
6
4
4
2
2
2
2
2
4
2
2
1
1
1
1
1
1
1
1
1
1
2
4
Main Upright
Low Cross
Seat Support
Upper Cross
"L" Cam
Arm
Cam
Handle
Seat Pad Support
StartUp Foot Frame
Flange
Weight Shroud
Washer 34×5
Washer 30×5
Rear Decal Plate
Front Decal Plate
Guide Rod
Short Spacer
Spacer
Pillow Block
Seat Pad
Back Pad
Spring
"D" End Cap
Front Side Cover
Rear Side Cover
Rear Low Cover
Plastic Block
Adj. Foot Plate
Counter Poise Block
Rubber Sleeve
Weight Rubber Bumper
RT50×100 Plug
Slide Sleeve
Button
Pop Pin
Key
5lbs Weight
10lbsWeight
15lbs Weight
Top Plate
Weight Pin
Bearing ID 25
Cable
Assistant Cable
Φ
Φ

5
Assembly instructions
Assembly of the takes professional installers
about 2 hours. If this is the first time you have assembled this
type of equipment, plan to spend more time. It is strongly recom
mended to assemble the equipment by professional installers.
You may find it quicker, safer, easier to assemble this equipment
with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you asse-
mble your product in a clean, clear, uncluttered area. This will
enable you to move around the product while you are fitting com-
onents and reduce the possibility of injury during assembly.
As with any assembled part, proper alignment and adjustment
is critical. While tightening the fasteners, be sure to leave room
for adjustments. Do not fully tighten the fasteners until instructed
to do so. Be careful to assemble the components in the sequence
presented in this guide.
Super Pullover
p
Note

6
Step1 Install the Adj. Foot Plates
Align the Adj. Foot Plates(#29) to the Main Upright(#1)
and the Seat Support(#3), then secure them by hands.
1

2
3
2
7
Step2 Assemble The Frame
1)Attach the Low Cross(#2) and the Upper Cross(#4)to
the Main Upright(#1) using:
2)Attach the Seat Support(#3) to the Upper Cross(#4)
and the Low Cross(#2) using:
two Allen Bolts(#47) M10×100
two Allen Bolts(#48) M10×115
four Nylon Locknuts(#63) M10
eight Washers(#61) 1.5
four Allen Bolt(#50) M10×70
eight Washers(#61) 1.5
four Nylon Locknuts(#63) M10
ΦΦ
ΦΦ
11× 20×
11× 20×

8
Step3 Assemble The Swivel Frame
1)Align the "L"Cam(#5) to the Upper Cross(#4) and sec-
ure it using:
2)Attach the Spring(#23) to the Upper Cross(#4) with
the Nylon Locknut (#63), next hook the "L" Cam(#5)
with it.
one Shoulder Bolt(#56) M10×55
two Pulley Covers(#66)
two Bronze Bushings ID 12(#75)
one Nylon Locknut(#63) M10

9
Step4 Assemble The Pillow Block
Attach the Pillow Block(#20) to the Main Upright(#1)
using:
two Allen Bolts(#46) M12×40
four Washers(#60) 13× 24×1.5
two Nylon Locknuts(#62) M12
two Spacers(#91)
ΦΦ
ΦΦ.16× 12 2×12.5

10
Step5 Assemble The Arm
1)Insert the Arm(#6) into the Main Upright(#1) and thro-
ugh the Pillow Block(#20).
2)Attach the Counter Poise(#30) to the Pivot Arm(#6)
using:
two Shoulder Bolts(#53) M8×30
two Spring Washers(#65) 8Φ

11
Step6 Assemble The Cam
Insert the Arm(#6) through the Main Upright(#1), the
Spacer(#19) and the Cam(#7),next, secure the Cam(#7)
to the Arm(#6) using the Key (#37).

12
Step7 Assemble The Pillow Block
1)Insert the Short Spacer(#18) onto the Arm(#6) as sho-
wn below.
2)Attach the Pillow Block(#20) to the Main Upright(#1)
using:
3)Secure the Arm(#6) to the Pillow Block(#20) using:
two Allen Bolt(#46) M12×40
two Nylon Locknuts(#62) M12
four Washers(#60) 13× 24×1.5
two Spacers
one Allen Bolt(#52) M10×25
one Spring Washer(#64) 10
one Washer(#61) 11× 20×1.5
one Washer(#13)
ΦΦ
ΦΦ
Φ
ΦΦ
(#91) 16× 12 2×12.5.

13
Step8 Assemble The Start Up
Foot Frame
Insert the Start Up Foot Frame(#10) into the Seat Sup-
port(#3) and secure it using:
one Allen Bolt(#52) M10×25
one Washers(#61) 11× 20×1.5
one Spring Washers(#64) 10
one Washer(#14)
ΦΦ
Φ

14
Step9 Assemble The Weight Plates
1)Insert both the Guide Rods(#17) into the Main Upright
(#1).
2)Slide the Weight Rubber Bumper(#32)down onto each
Guide Rod(#17).
3)Carefully begin sliding the Weight Plate one by one in
sequence:#40,#39,#38,#41
4)Align both top ends of the Guide Rods(#17) to the Main
Upright(#1) and secure them using:
two Allen Bolts(#50) M10×70
two Washers(#61) 11× 20×1.5
two Spring Washers(#64) 10
two Rubber Caps(#68)
ΦΦ
Φ
Note
Make sure that Washers(#61)and Spring Washers
(#64) are on the top side.

15
Step10 Route The Cables
1)Put the clip tied on the weight pin leash onto the Top
Plate(#41) as shown, next connect the Cable(#44) to
the Top Plate(#41).
2)Route the Cable(#41) up and over the two Pulleies A
(#69).then secure them to the Main Upright(#1) using
3)Insert the Cable(#44) through the Main Upright(#1),
next route it over the Pulley B(#69),then secure them
to the Main Upright(#1) using:
4)Connect the looped end of the Cable(#44) to the Cam
(#7),secure it using one Screw(#54) as shown below.
5)Connect the Assistant Cable(#45) to the "L" Cam(#5)
using:
6)Route the Assistant Cable(#45) up and over the Pulley
C(#69),and secure them to the Main Upright(#1) using
7)Route the Assistant Cable(#45) down and under the
Pulley D(#69), and secure them to the Main Upright
(#1) using:
8)Route the Assistant Cable(#45) around the Pulley E
(#69),and secure them to the Seat Support(#3) using
9)Connect the Assistant Cable(#45) to the Start Up Foot
Frame(#10) using:
10)Adjust the tension of the Cable (#44) using the Jam
Nut as shown.
11)Make sure that the cables are in grooves of all pull-
eies then fully tighten all bolts and nuts .
12)Select an approprate weight with the weight pin.
two Allen Bolts(#51) M10×45 four Washers(#61) 11× 20×1.5
two Nylon Locknuts(#63) M10
one Shoulder Bolt(#57) M10×50 two Half-pulley Covers(#67)
one Nylon Locknut(#63) M10
one Shoulder Bolt(#78) M8×35 one Nylon Locknut(#79) M8
one Allen Bolt(#51) M10×45 two Washers(#61) 11× 20×1.5
one Nylon Locknut(#63) M10
one Shoulder Bolt(#57) M10×50 two Pulley Covers(#66)
one Nylon Locknut(#63) M10
one Allen Bolt(#55) M10×60 two Pulley Covers(#66)
one Nylon Locknut(#63) M10
one Shoulder Bolt(#78) M8×35 one Nylon Locknut(#79) M8
ΦΦ
ΦΦ

A
B
1
2
C
D
E



16
ForStep10

15
17

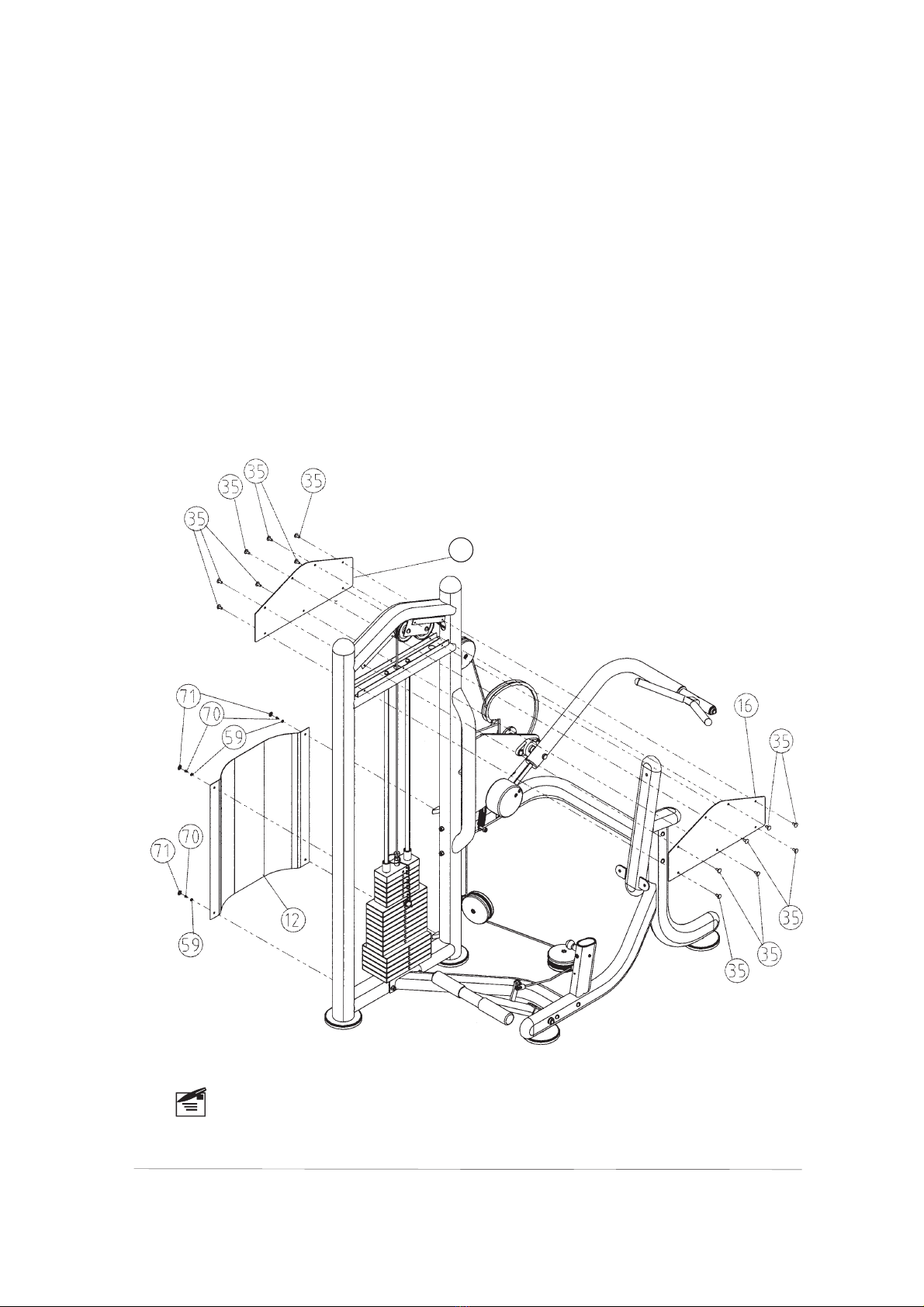

Step11 Assemble The Decal Plates
1)Attach the two Decal Plates(#15,#16) to the Main Up-
right(#1) using:
2)Attach the Weight Shroud (#12) to the Main Upright
(#1) using:
fourteen Butttons(#35)
four Bolt Covers(#71)
four Plastic Washers(#59)
four Chamfer Bolts(#70)
Note
The Front Decal Plate(#16) with the exercise instr-
uctions printed on it should be attached in the front
of the Main Upright(#1).

18
Note
Step12 Assemble The Pads
1)Attach the Seat Pad(#22) to the Seat Support(#3) using
2)Attach the Seat Pad(#21) to the Seat Pad Support(#9)
using:
3)Insert the Seat Pad Support(#9) into the Seat Support
(#3) and secure it into place with the Pop Pin(#36) and
the Screw(#58).
three Washers(#61) 11× 24×1.5
two Allen Bolts(#77) M10×30
one Allen Bolt(#49) M10×75
two Allen Bolts(#77) M10 30
two Washers(#61) 11× 20×1.5
ΦΦ
ΦΦ
×
the Main Upright
two Allen Bolts(#90) M6×15
5)Attach the Plastic Cap(#89)to (#1)Using:
For a safe exercise,you need make the unit steady
by adjusting the Adj.foot plates.
