Impuls Paramotor LT User manual
IMPULS LT
USER MANUAL
v.3 .01.07.2018
WELCOME
Thank you for choosing Impuls
frame.
All our products are made with the utmost care to ensure you the highest comfort and safety.

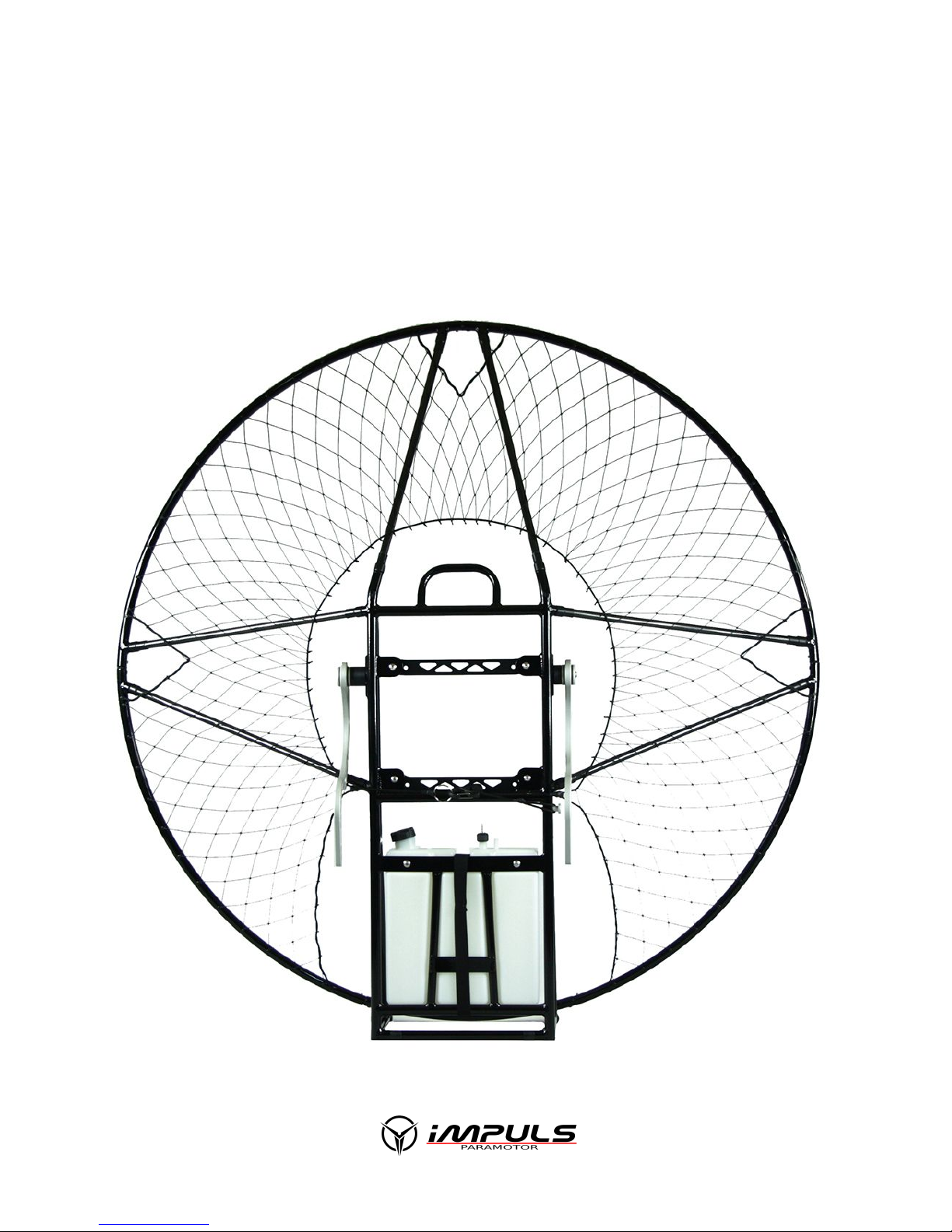

Impuls LT frame is designed to use on leg or paramotor trike starts. You can assemble many
different motors into frame - please do not use motors that are not recommended by the
manufacturer.
Please read this manual carefully to familiarize yourself with the equipment's operating
instructions. If you have any questions or concerns, please contact the manufacturer or
dealer.
We wish you safe and happy flying!
Impuls Paramotor Team
1
Please note that paragliding is an extreme sport, and it can cause injuries and even
death.
We inform you that IMPULS is not liable for damage caused by paragliding.
Failure to follow the instruction and use of the PPG / frame can be dangerous and may
lead to death in extreme cases!
Remember - all screws and metal elements were chosen for their strength and the
threads were secured with thread glue (f.e. Lock Tight).
Using components with incorrect parameters and not securing threads may result in
death!
2
WELCOME 1
Assembly of the frame before the start 4
Balancing the frame 7
Adjustment of pilot weight 7
Additional mounting places 8
Swing arm strap mounting and adjusting 8
Assembly of harnesses 10
Before the flight 12
Remember 12
Warranty Card 13
3
Assembly of the frame before the start
IMPULS LT frame is equipped
with sticks of 2 different lengths.
Please use them according to the
instructions. Incorrect length
selection can result in lack of
stiffness and damage to the
basket.

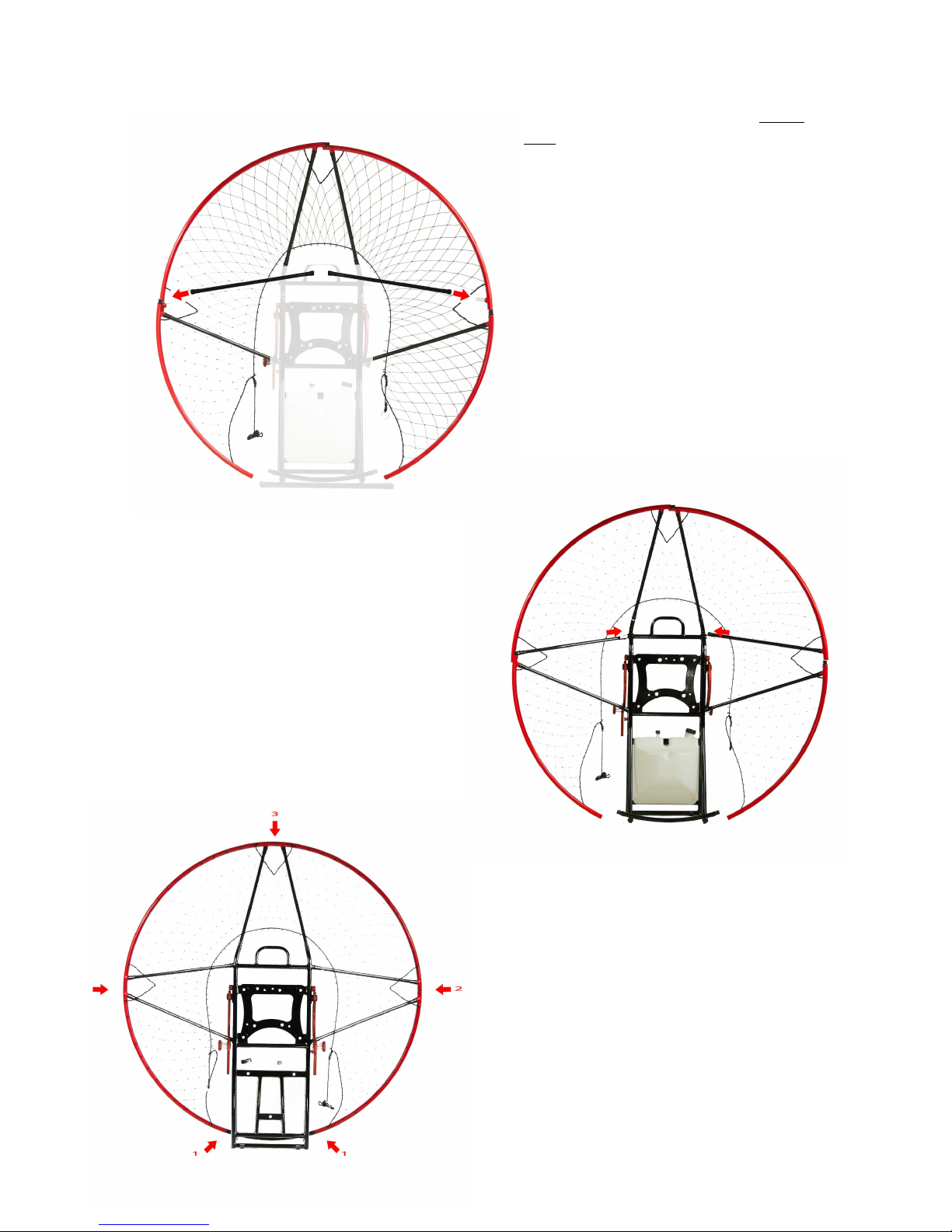

1. Install the upper (short) and
lower (long) sticks
.
2. Mount the ring parts in the order
shown in the picture.
4
3. Instal middle (short) sticks to the
ring.
3. After mounting the sticks in the ring,
tighten them gently and mount them in the
stool.
4. Connect the parts of the frame using “click
system” is sequence: bottom, middle and top.
5
5. Connect net using metal eye fastener
and then tighten the line.
The lines should pass from the side of
the harness. Placing it on the side of the
tank may cause it to contact the motor
and burn out
6. Secure the net by pulling it
against the safety pin.
Placing a frame in a different order or skipping one of the stages can make it difficult
or impossible to connect correctly. In addition, it may cause frame damage.
Be sure to check the frame when you connect all parts!
6
Balancing the frame
Before the first flight, be sure to adjust the bar to suit your weight. Balancing should be done
in a safe place under the supervision of an experienced instructor. Due to many factors, it is
possible that the harness will require additional adjustment for the first few flights to ensure
optimum comfort.
Adjustment of pilot weight
The values given below are indicative and informative. Be sure to adjust the frame by
hanging before the first flight! Bypassing this can result in discomfort during flight
and even lead to life-threatening situations!
Pilot weight up to 75 kg. Pilot weight 75-85 kg.
Pilot weight 85-100 kg. Pilot weight 100-120 kg.
Pilot weight above 120 kg.
7

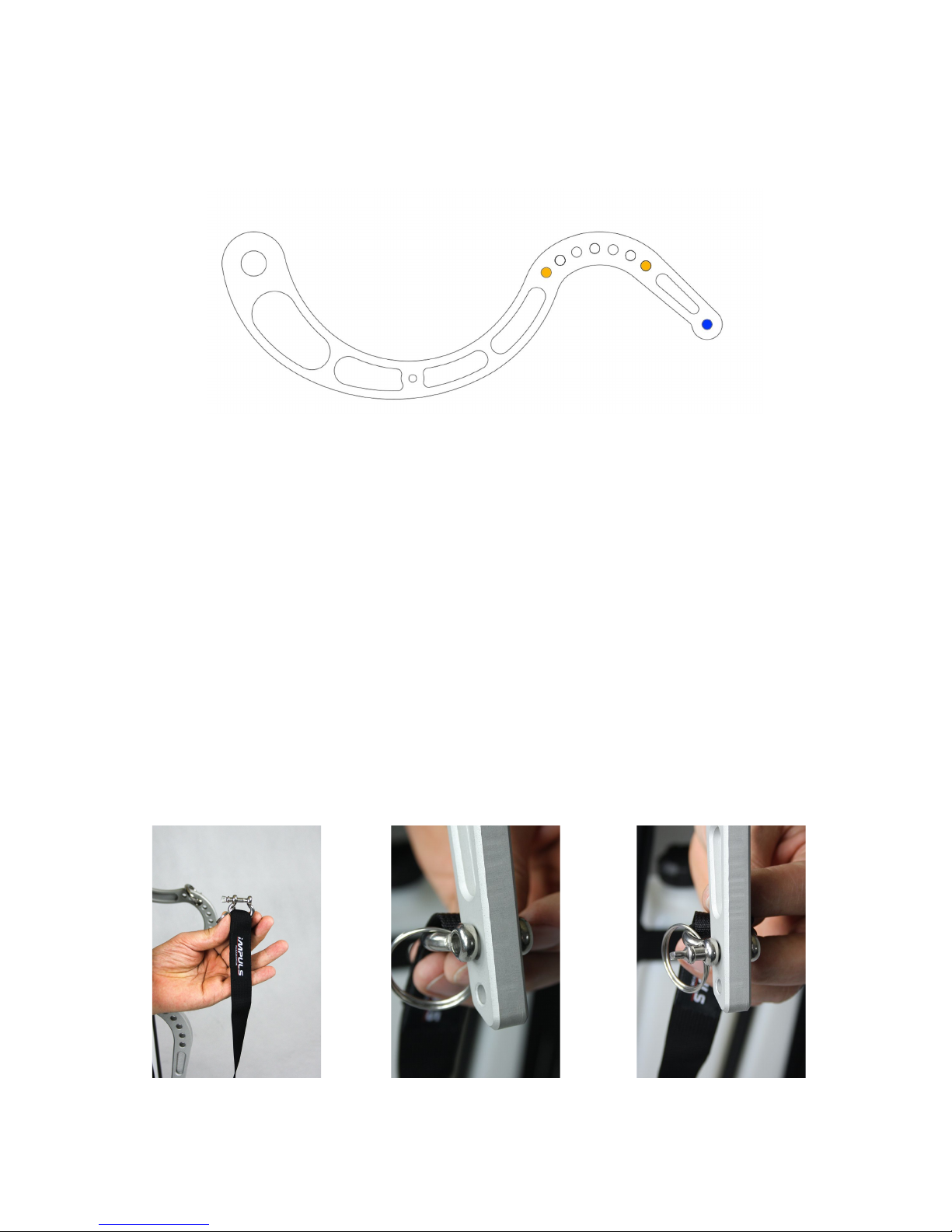

Additional mounting places
Orange - additional adjustment points
Blue - harness and swing arm adjusting belts mounting

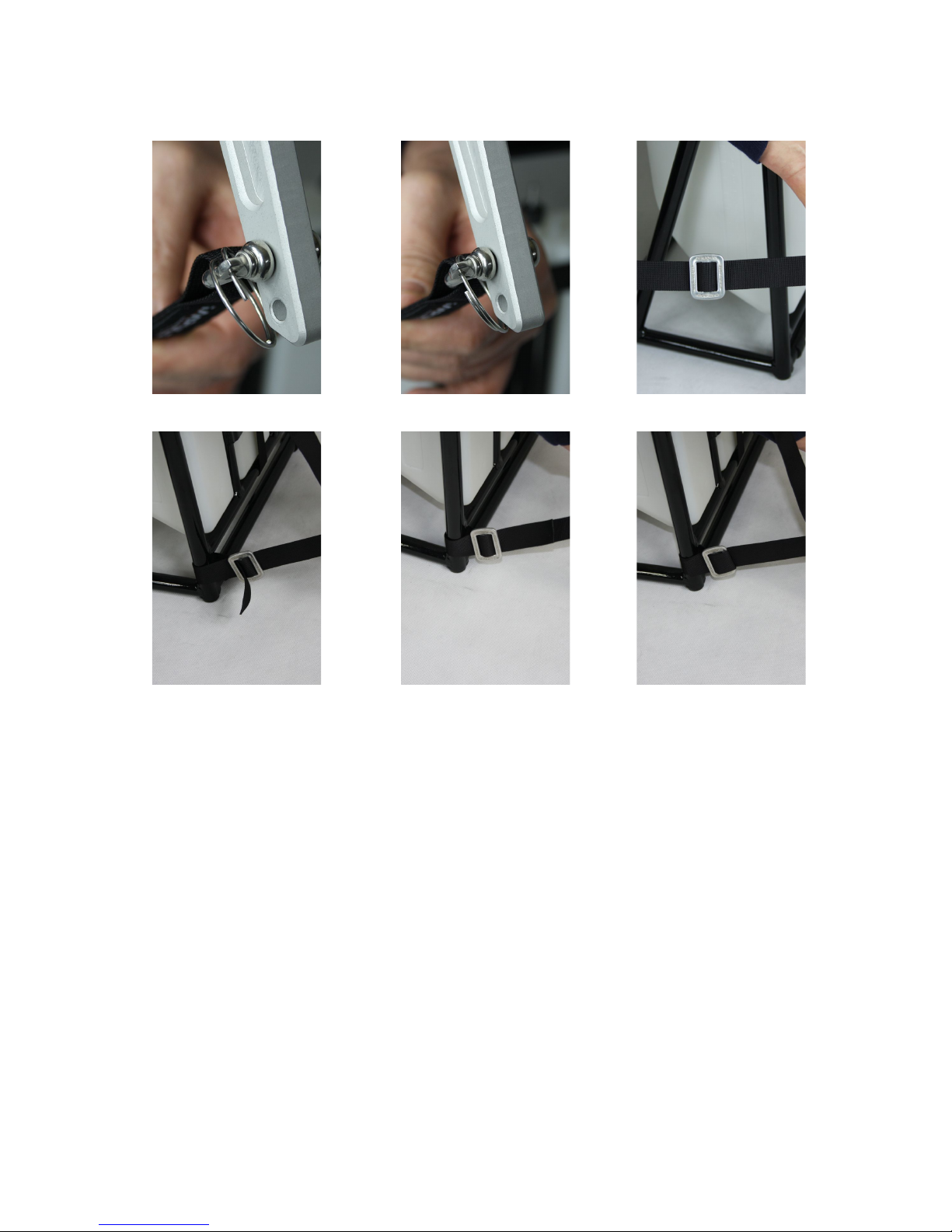

Swing arm strap mounting and adjusting
Thanks to using a straps to adjust the swing arms you can adjust it perfectly to your
preferences.
The basic setting of the swing of the buoyancy is 5-15 degrees up (from the level parallel to
the ground)
In case of any doubts regarding adjustment, contact your dealer or the manufacturer
8
9
Assembly of harnesses
The harness assembly is supplied with the harness by the manufacturer. Here is example of
assembling Impuls Air PD
10
11
Before the flight
- check all bolts and nuts: especially mounting of swing arms, security straps and
engine
- check that the frame is properly assembled and that all "clicks" are fastened
- check the rigidity of the net and whether it is secured properly
- check all points of connecting the harness to the PPG
- check that the throttle is working properly
- before you start the engine: make sure it does not threaten to anyone and warn
everyone in the area
Remember
- Shackles (elements fastening the harness) should have a minimum strength of
1500kN
- All threads (also those in shackles) should be secured with threads glue (f.e. Lock
tight)
- Always in case of any doubts contact your dealer or the manufacturer for help
At the end, thank you again for choosing our products and for reading the manual! We
wish you wonderful moments in the air. Have fun flying!
Impuls Paramotor Team
12
Warranty Card
Model…………………………………………………………………………….
Serial number………. ……………………………………………….…………
Seller……...……………………………………………………………….…….
Customer………………………………………………………………………..
Date of purchase.………………………………………………………………
Date Signature of the seller
13
IMPULS
ul. Narutowicza 3
37-450 Stalowa Wola
TEL. +48 502121631
