IMV VP-420 User manual

－1－
VP-420 Specifications
Rev4.2
Specifications and Instruction Manuals
Direct Output Vibration Pick-up
(4-20mA Velocity Type)
Model: VP-420
Manufacture: IMV CORPORATION
Specification No.: TVE-5-5676
Total Page: 8
Revision Date: 20th Dec, 2018

－2－
VP-420 Specifications
Rev4.2
INDEX
1. Outline..................................................................................................................................................3
2. Feature .................................................................................................................................................3
3. Typical Applications...........................................................................................................................3
4. Specifications.......................................................................................................................................4
5. Outline Dimensional Drawing............................................................................................................5
6. Vibration Pickup Mounting Studs.....................................................................................................6
7. Frequency Response ...........................................................................................................................6
8. Outline View of Connector Cable......................................................................................................7
9. Connection Method / Instruction Manual........................................................................................8
10. Warranty............................................................................................................................................8

－3－
VP-420 Specifications
Rev4.2
1. Outline
This product has 4-20mA DC Output which is proportional to the vibration level and the
capability of interfacing direct into PLC, BMS or 4-20mA input module.
2. Feature
(1) Velocity measurements based on ISO10816 which defines the vibration severity is possible by
this product.
(2) Output is 4-20mA DC which is proportional to the vibration level.
(3) This product has the capability of interfacing direct into PLC, BMS or 4-20mA input module.
3. Typical Applications
(1) Vibration Sensors of Vibration Monitoring systems for manufacturing plants or machine tools.
(2) Built-in vibration sensors for fans, motors, Compressors, etc.

－4－
VP-420 Specifications
Rev4.2
4. Specifications
Model
VP-420
Acceleration Ranges
(RMS)
□
0 - 10mm/sec
□0 - 20mm/sec
□0 - 25mm/sec
□0 - 50mm/sec
□0 - 100mm/sec
(Nominal 80Hz at 22°C ±10%)
Frequency Response
10 to 1,000Hz ±5% - ISO10816
Transverse Sensitivity
Less than 5%
Output Current
4-20mA DC proportional to RMS Velocity “mm/sec”
Supply Voltage
15 to 30VDC (for 4-20mA)
Power Consumption
1W Approx. (Using 24VDC)
Settling Time
2 seconds
Ambient Temperature
-25 to 90°C
Sealing
□
Drip-proof Direct-connect Type: IP65 (Dust-proof, Drip-proof)
□Water-proof Connector Type: IP67 (Dust-proof, Water-proof)
□Water Resistant Type: IP68 (Dust-proof, Water Resistant)
Submersible Depth: max 100m, 10bar
Maximum Shock
49,000m/s2
Output Impedance
Loop Resistance 600Ω max at 24VDC
Case Isolation
above 100MΩat 500VDC
Dimensions
□
Drip-Proof Direct-Connect Type: φ27.5×45mm (Excluding Protrusions)
□Water-Proof Connector Type: φ27.5×56mm (Excluding Protrusions)
□Water-Resistant Type: φ27.5×69mm (Excluding Protrusions)
Detail Reference
：
”5. Outline Dimensional Drawing”
Weight
□
Drip-Proof Direct-Connect Type: 135g (Excluding Cables)
□Water-Proof Connector Type: 150g (Excluding Cables)
□
Water-Resistant Type: 140g (Excluding Cables)
Case Material
Stainless Steel (SUS303)
Output Cable
□
Drip-Proof Direct-Connect Type: 2 Core Shielded Cable, 5m
Standard Accessory
Sheath：Stainless Mesh
□Water-Proof Connector Type: 2 Core Shielded Cable
Available Accessory
M12-4Pin Connector to the pick-up
Detail Reference: “8. Outline View of Connector Cable”
□Water-Resistant Type: 2 Core Shielded Cable, 5m
Standard Accessory
Sheath
：
Blue Silicon Screened
Producible Length of
Output Cable
□
Drip-Proof Direct-Connect Type: 5 to 200m (5m step)
□Water-Proof Connector Type: 5 to 100m (5m step)
□
Water-Resistant Type: 5 to 200m (5m step)
Maximum Laying
Length of Output Cable
1,000m
Mounting Studs
□
Quick Fit: Glue face
□Quick Fit: M8 Male
□Quick Fit: M6 Male
□Quick Fit: φ25.4mm Pole Piece Pot Magnet
Detail Reference: “6. Vibration Pick-up Mounting Studs”

－5－
VP-420 Specifications
Rev4.2
5. Outline Dimensional Drawing
(Detail Reference: “4. Specifications”)
□Drip-Proof Direct-Connect Type
□Water-Proof Connector Type
□Water-Resistant Type
φ27.5
HEX 28
56
66.5
W5/8 depth 6mm
Sensor Body
Cable
White：15 to 30VDC
Black：0V
Silver
Sensor Body
Connector Shape
Pin1：no-connection
Pin2：15 to 30VDC (White)
Pin3：no-connection
Pin4
：
0V (Black)
Sensor Body
Cable
White：15 to 30VDC
Black：0V
Silver
φ27.5
45
HEX 28 W5/8 depth 6mm
φ27.5
HEX 28
69
44
φ5.2
W5/8 depth 6mm

－6－
VP-420 Specifications
Rev4.2

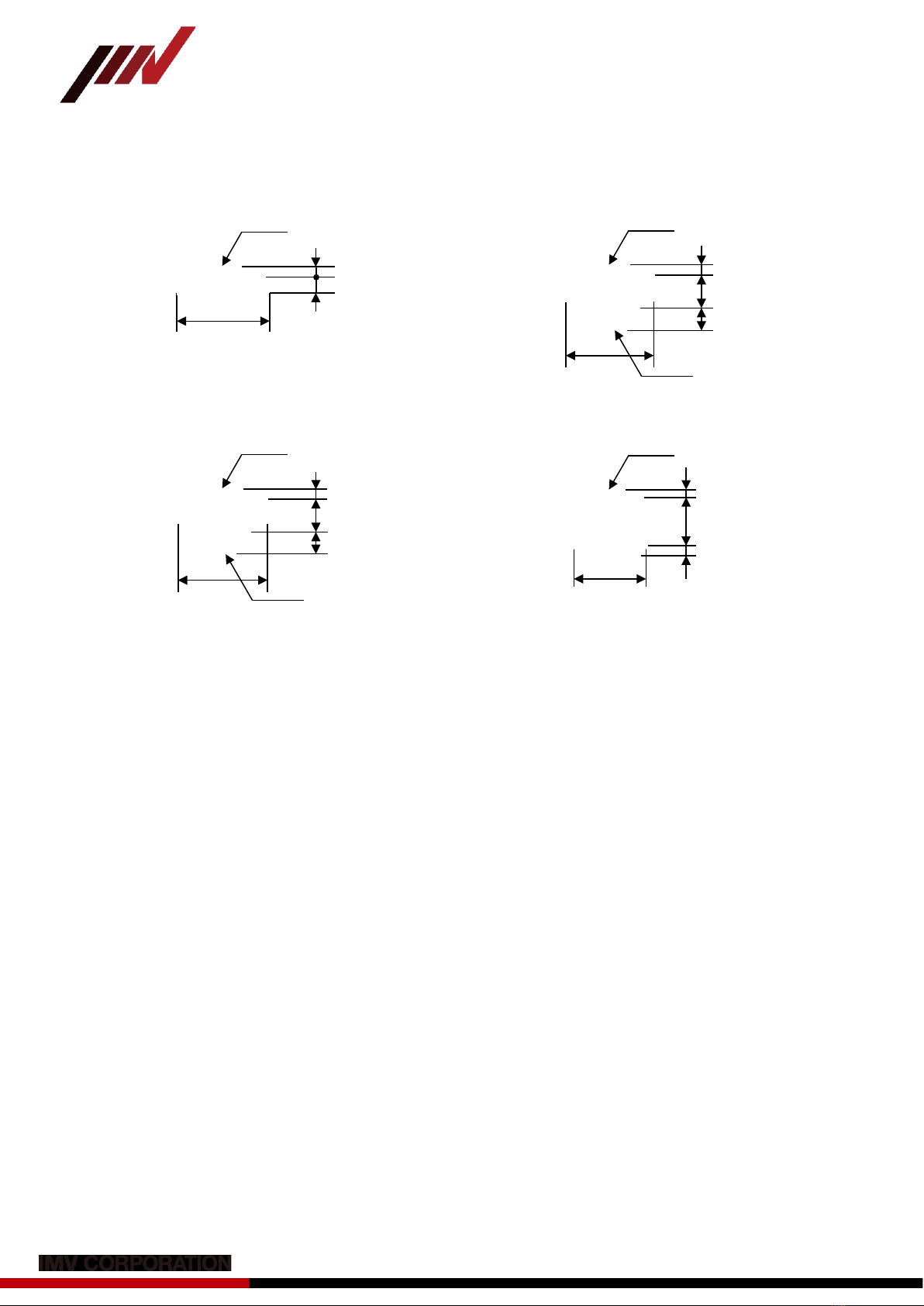

6. Vibration Pickup Mounting Studs
□Quick Fit: Glue face □Quick Fit: M8 Male
□Quick Fit：M6 Male □Quick Fit: φ25.4mm Pole Piece Pot Magnet
(Unit: mm)
7. Frequency Response
Frequency (Hz)
Frequency Response
(dB)
24
W5/8
5.5
3.5
6
24
8.5
3.5
W5/8
M8
6
24
8.5
3.5
M6
W5/8
25.5
3
19
3.5
W5/8

－7－
VP-420 Specifications
Rev4.2

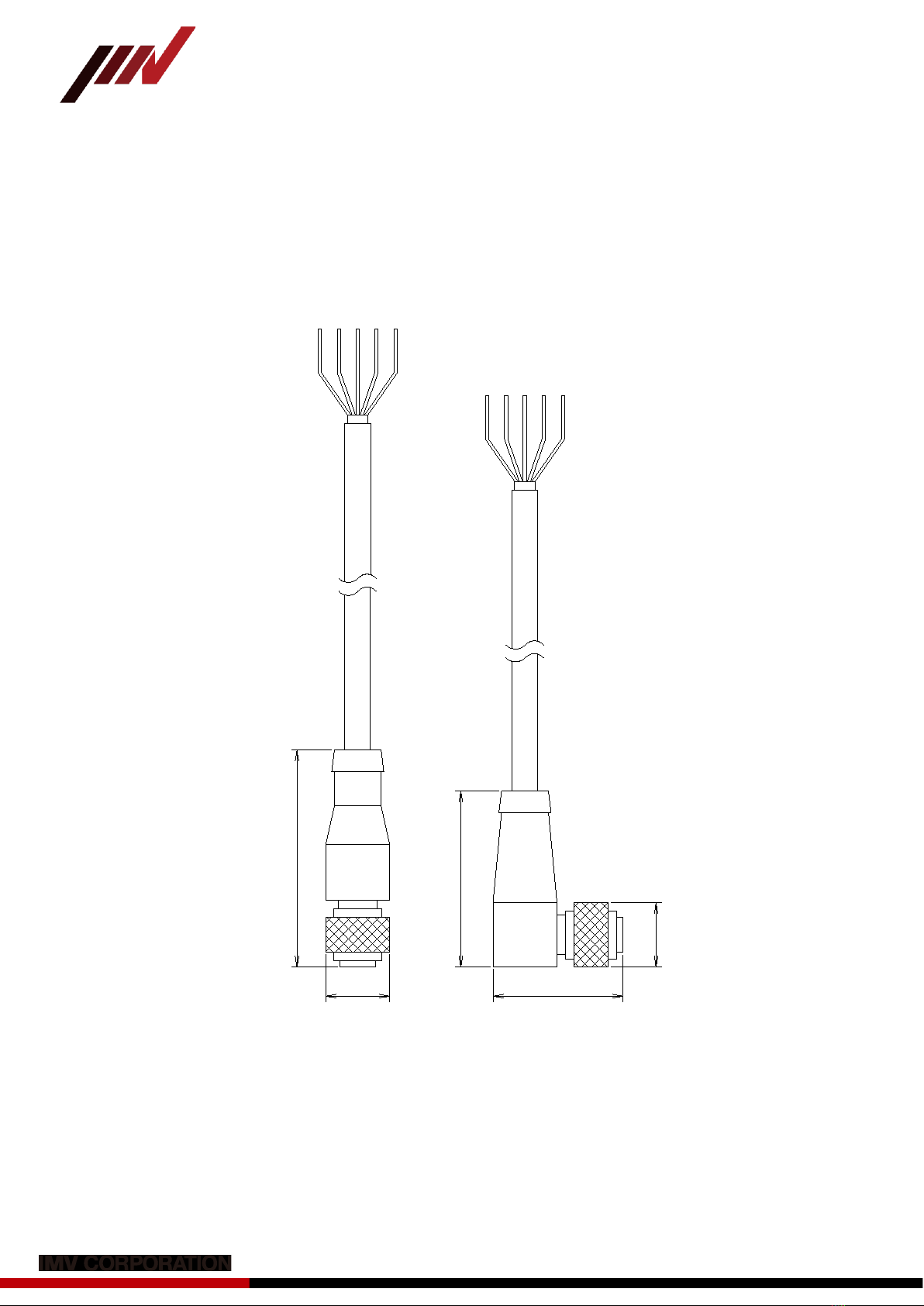

8. Outline View of Connector Cable
Brown
White
Silver (Shield)
Blue (No use) Black
Brown
White
Silver (Shield)
Blue (No use) Black
MS-AC010
Straight Connector
MS-AC011
Angle Connector
φ15
φ15
28
46
46

－8－
VP-420 Specifications
Rev4.2
9. Connection Method / Instruction Manual
Operation for Direct Output Vibration Pick-up is as below figure 1.
Fig.1 Example of Connection method
Caution on cable connection and instruction
(1) Confirm “+” and “–” polarity first. If the polarity is opposite, sensor cannot operate.
(2) Do not supply power voltage more than the specification. It will cause breakdown on sensor.
(3) Shield wire (Silver) connect on minus side of power supply.
(4) In case of using any receiver such as logger with 1-5V, connect 250Ω resistance with it in
parallel.
(5) When relaying cables, be sure to use cable junction box. Also, take measures to prevent
disturbance noise from entering. If noise countermeasures are not implemented, correct
measurement results may not be obtained.
10. Warranty
If there is any breakdown caused by producing error, material fault, or obviously our fault, we
repair or exchange with no charge. This condition is valid only in warranty term and the term is for 1
year after delivered. However, even if it is under warranty, it will occur some charge on exchanging.
(A) Any damage and breakdown caused by natural disaster such as fire, earthquake, flood,
lightning damage.
(B) Any transporting, moving, or dropping which does not related us after finishing our
delivery.
(C) Any error operation, unusual power supply input, and the fault caused by
disassembling/repairing/modifying by customer.
Power Supply
15 to 30VDC
＋
4-20mA Logger
Black
White
Silver
PLC/DCS etc.
－
－
＋
VP-420
<Case of 4-20mA Logger>
Power Supply
15 to 30VDC
＋
1-5V Logger
Black
White
Silver
PLC/DCS etc.
－
－
＋
250Ω
<Case of 1-5V Logger>
