Inalsa Magnum User manual

Magnum
Instruction Manual
Vacuum
Cleaner

Dear Customer,
Congratulations on the purchase of your INALSA Vacuum Cleaner! This has been designed
to include many superior features that permit you the fullest expression of your cleaning skill
and enthusiasm. You are now on the threshold of a whole new world of cleaning pleasure.
At INALSA, we have a reputation of selling innovative, high quality appliances such as Food
Processors, Mixer Grinders, Juicer Mixer Grinders, Cooking Ranges, Juice Extractors,
Cooktops, Microwave Ovens, Oven Toaster Grillers, Hand Blenders, Electric Kettles, Rice
Cookers, and Electric Chimneys. Your newly acquired INALSA Vacuum Cleaner bears the
same distinctive hallmark of excellence.
It is all the result of vigorous quality consciousness in INALSA's design and development
where uncompromising standards are maintained and rigid quality control measures are
exercised on raw materials, components and finally, the finished product.
Your INALSA Vacuum Cleaner has a lot of thoughtful features built in to make your cleaning
convenient. Please read these instructions carefully, so that you may get the best out of the
power packed features in your INALSA Vacuum Cleaner.
Welcome to the INALSA world of cleaning pleasure!
1

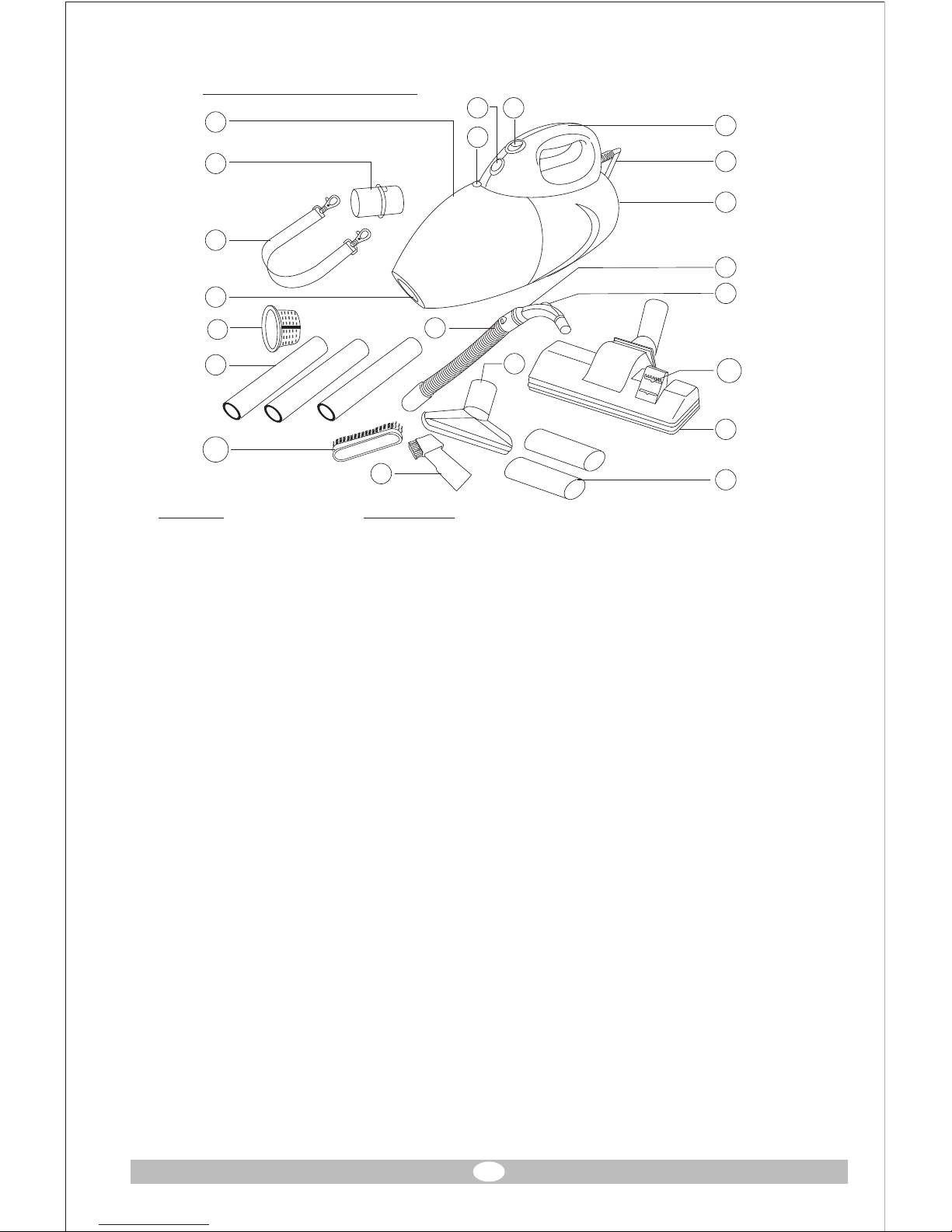

Parts Identification
Part No. Parts Name
1. Suction inlet
2. Dust container
3. Push button to release dust container
4. Hole to attach shoulder strap
5. On/Off switch
6. Handle
7. Blower outlet
8. Cord plug
9. Curved tube
9a. Pressure adjustment slider
10. Extension tube (3 nos.)
11. Crevice nozzle cum upholstery brush
12. Floor cum Carpet brush
12a. Adjustment switch for floor & carpet
13. Hose pipe
14. Shoulder strap
15. Dusting brush holder
15a. Dusting brush
16. Washable dust bag filter
17. Blower connection tube
18. Tube adaptor
2
1
6
8
7
9
10
12
12a
13
14
15
15a
17
18
9a
4
3 5
16
11
2

Technical Specifications*
Model Magnum
Wattage 1200W
Voltage 230-240V, 50Hz, AC
Cord Plug PVC cord, 5m length, 2 Pin plug
Dust Bag Capacity 0.6 L
* Due to continuous improvements in product, specifications are subject to change without prior notice.
Attachments
1. Hose Pipe : This pipe can be used for cleaning under tables, chairs, almirah, where access
of other attachments like PVC tubes is not possible. Long Hose Pipe is to be used with
curved tube.
2. Extension Tube : In conjunction with upholstery brush cum crevice nozzle, dusting brush
or floor cum carpet brush, it can be used for cleaning between corners, sofa sets, carpets,
floors and even the ceilings.
4. Dusting Brush : Together with extension tube or hose pipe, it can be used for cleaning sofa
sets, curtains and sofa covers.
5. Floor cum Carpet Brush : Together with extension tube or hose pipe, it can be used for
cleaning floor and carpet.
6. Crevice Nozzle cum Upholstery Brush : Together with extension or curved pipe, it can be
used for cleaning wall corners, sofa sets, curtains etc.
7. Curved Tube : This tube can be used for cleaning areas which are hard to reach using
normal extension pipe. It has pressure adjustment slider to adjust suction or blowing as per
requirement.
8. Shoulder Strap : This accessory allow the user for easy maneuverability during usage.
NOTE: All the attachments can be used for suction and blowing both.
3

How to Use

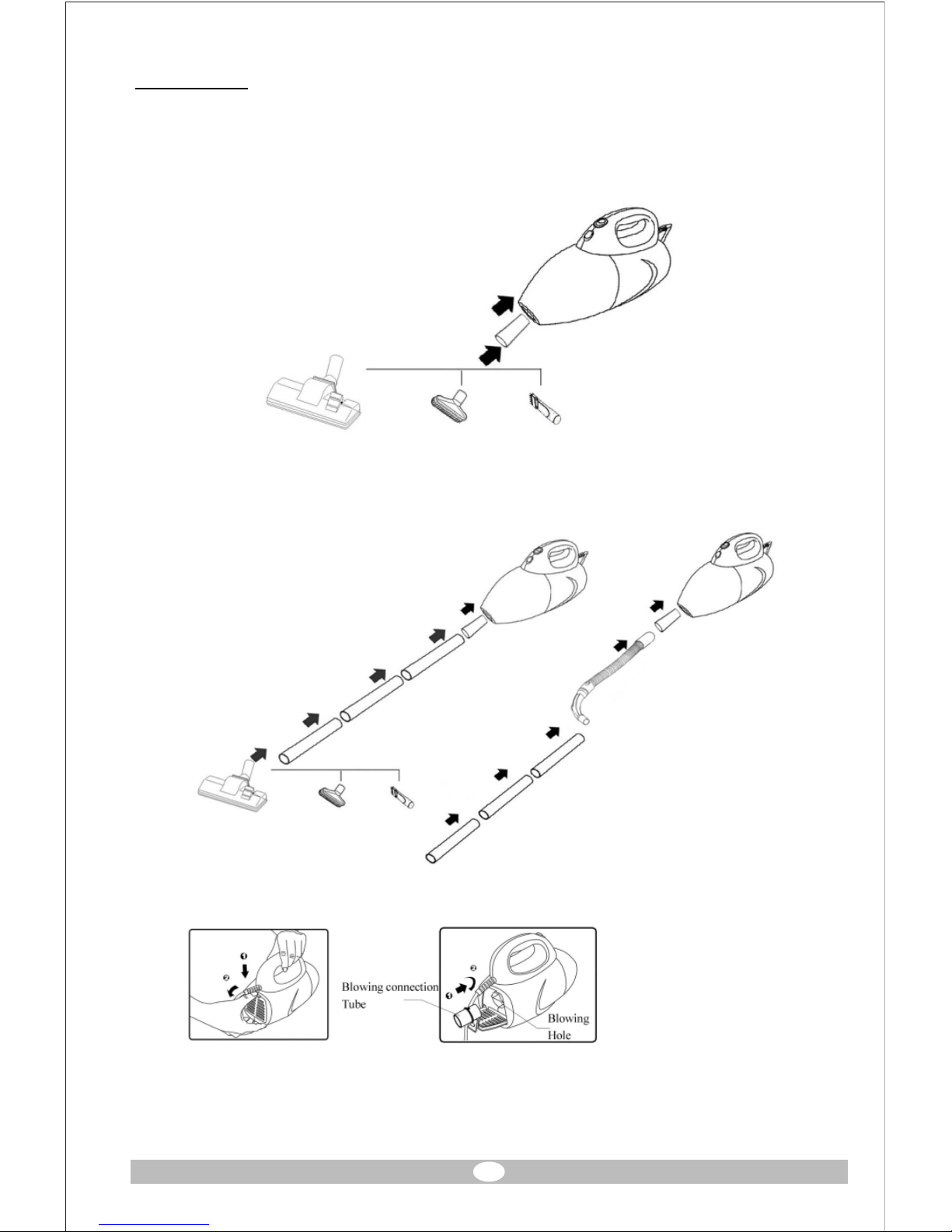

1. Suction:
Choose the suitable connection type with different condition.
a) Connect the floor cum carpet brush, crevice nozzle cum upholstery brush and dusting
brush with the main body.
b) You can also connect the extension tubes with each other to increase the operating radius.
Connect the connected extension tube, hose, crevice tool, dusting brush with the main body
to use.
2. Blower:
a) Press the release button and open the air outflow cover.
b) Plug the blower connection tube into the blowing hole and rotate it clockwise till it is
fixed well.
c) There are complete accessories to be used for different conditions.
4

The crevice tool can be used to blow the dust in the corner.
The dusting brush is usually used to blow the wastepaper and leaves on the ground.
Cleaning & Maintenance

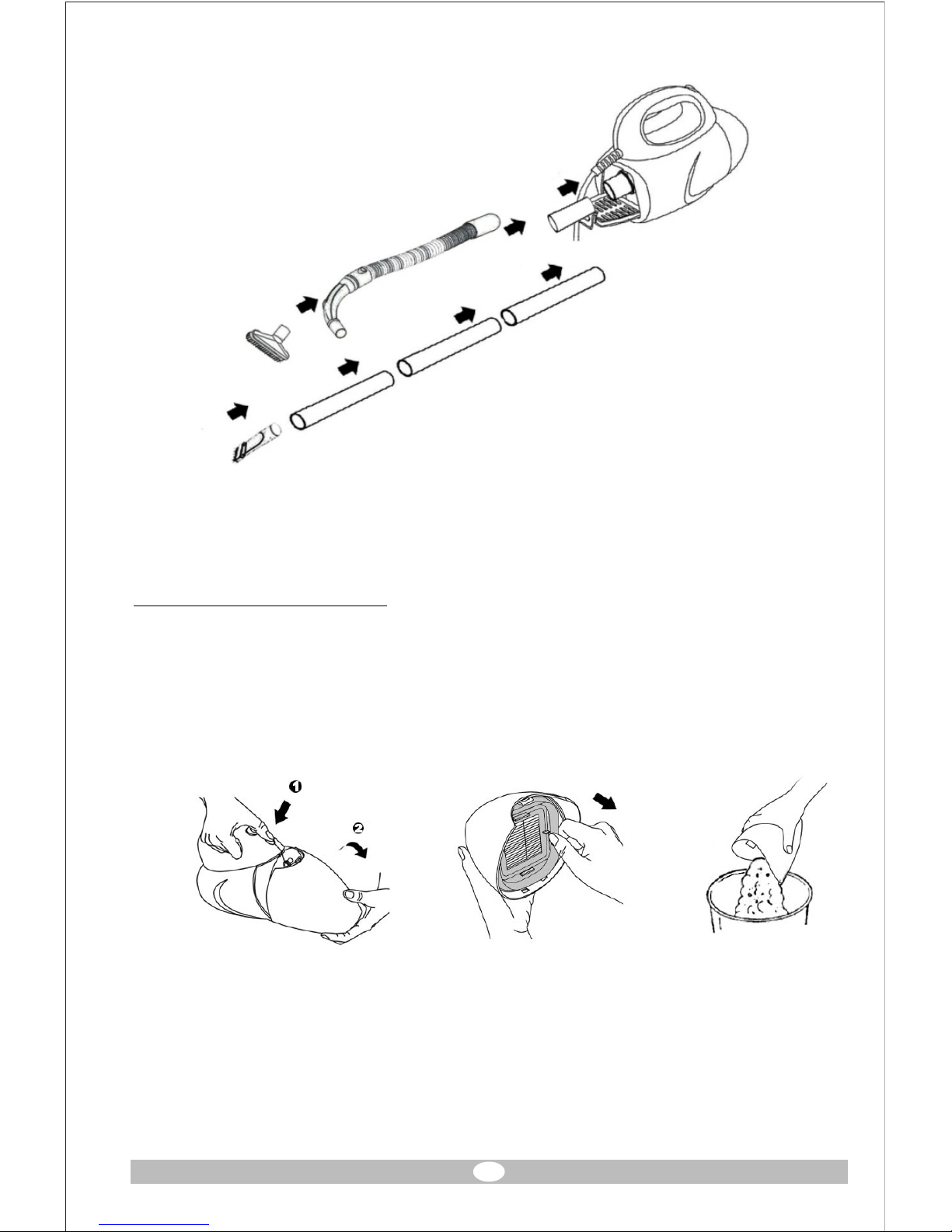

1. Clean the dust collection cover.
a) When the dust bag is full of dust press down the release button and remove the dust
container.
b) Remove the filter.
c) Empty the dust bag filter & dust container.

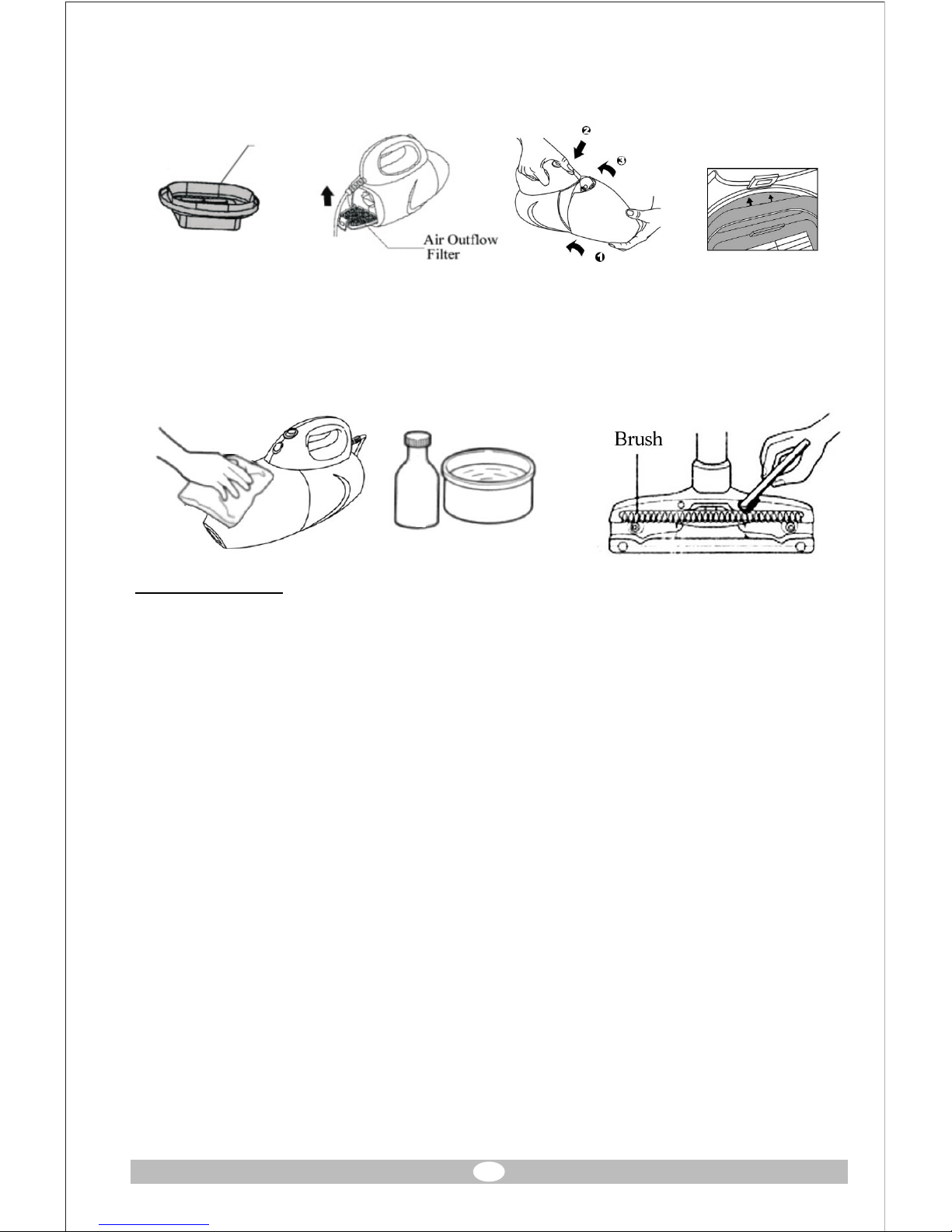

2. Clean the air inflow filter and the air outflow filter.
a) Remove the filters and clean them with the water when they are covered with a lot of
dust.
b) Dry it.
c) Replace it.
Replace the filters and then replace the fore cover.
5

1. Note:
The arrow on the dust bag filter must be upward when the filter is fit well.
3 Cleaning the appliance
Please wipe it with water or neutral detergent.
Note:
a) Do not clean the body of vacuum cleaner in petrol or oil-like liquid.
b) When you wipe the appliance please dry the soft cloth by screwing.
Safety Feature
This vacuum cleaner is provided with "Overload Protection". In case the motor gets
overheated, this protector will automatically stop the motor till the temperature is normal. In
such situation, switch off the unit and restart after 10 min.
For better performance, use this vacuum cleaner for 15 min and then give 3 min break so that the
motor does not heat up.
Warning : Vacuum and blower must be used one at a time and not together.
Read the following instructions carefully before using your vacuum
cleaner :
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before
opening the dust container.
2. Use only as described in this manual & use only recommended attachments.
3. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped in water. Please contact our authorized service center
in such a situations.
4. Do not run appliance over cord. Keep cord away from heated surfaces.
5. Do not handle plug or appliance with wet hands.
6. Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair and anything that may reduce air flow.
7. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
Dust bag filter
6

8. Use extra care when cleaning on stairs.
9. Do not use it to pick up flammable or combustible liquids such as gasoline or use in areas
where they may be present.
10. Do not use the vacuum cleaner without dust bag filter in place.
11. Always switch off the vacuum cleaner before changing the attachment.
12. Use ONLY on dry, indoor surfaces.
13. DO NOT use for commercial purposes.
14. This appliance is not intended for use by children without supervision.
TROUBLE SHOOTING GUIDE
PROBLEM PROBLEM SOLUTIONS
VACUUM CLEANER
NOT OPERATING
SUCTION OR BLOWER
FUNCTION IS WEAK
DUST ESCAPING FROM
VACUUM CLEANER
POSSIBLE CAUSES
1. Power cord not firmly
plugged into outlet.
2. No power in wall outlet.
3. Stop while working
1. Plug in unit firmly.
1. Dust bag filter is full.
2. Unit / Hose clogged.
3. Dust bag filter/sponge
needs cleaning or
replacement.
3. Puncture/hole in dust bag
or sponge
1. Dust bag filter is full or
sponge dirty.
2. Dust bag filter is not
installed correctly.
4. Contact service center.
3. Replace dust bag filter or
sponge.
4. Contact service center.
1. Empty dust bag filter or
clean sponge.
2. Review dust bag filter
instructions and install
again.
2. Check Power.
4. Contact service center.
2. Turn unit off and unplug
from wall outlet. Remove
dust bag filter and check
object (s) in air duct and
remove.
3. Clean or replace dust cup
filter or sponge.
3. Overheated, leave it for
10 minutes before
restarting.
4. Need servicing.
1. Empty dust bag filter.
7
