Inalto CLASSIQUE IUF92W User manual
USER MANUAL
V 1.0
MODEL
IUF92W
BAR FREEZER
92L
—
2
Congratulations on purchasing your new bar freezer. The InAlto brand
is proudly distributed within Australia by esidentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for
information regarding your product’s parts and labour warranty, or visit
us online at www.residentia.group
At esidentia Group, we are customer obsessed and our Support
Team are there to ensure you get the most out of your appliance.
Should you want to learn more about recommended temperatures,
the various features of your bar freezer, and importantly taking care
of your appliance when cleaning, our Support Team are here to help.
You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via
calling us on 1300 11 HELP (4357).
It is important that you read through the following use and care manual
thoroughly to familiarise yourself with the installation and operation
requirements of your appliance to ensure optimum performance.
Again, thank you for choosing an InAlto appliance and we look forward
to being of service to you.
Kind Regards,
The esidentia Team
Residentia Group
—
Head Office.
165 Barkly Avenue
Burnley, Victoria
Australia 3121
—
ACN.
600 546 656
—
Online.
residentia.group
WELCOME
—
3
CONTENTS
2Welcome
4Safety Instructions
5Your Bar Freezer
6Installation Instructions
7Operating your Unit
8Cleaning & Maintenance
10 Troubleshooting
12 Warranty
—
4
Safety Instructions
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for their
safety.
• Children should be supervised to ensure
that they do not play with the appliance.
• Ensure the appliance has adequate
ventilation, particularly when used in a
built-in application.
• If the supply cord is damaged in any way,
it must be replaced by the manufacturer,
its service agent or a qualified and
licensed electrician, before use.
• This appliance is intended to be used
within a domestic household environment.
• Never store explosive or flammable
substances (such as aerosol cans with a
flammable propellant) within or around
this appliance.
• The freezer is designed to operate on a
single phase power supply with a voltage
range of 220~240V/50Hz.
UNPACKING
• During transportation, protective
packaging was used to protect the
appliance against any damage. After
unpacking, please dispose of all elements
of packaging in a way that will not cause
damage to the environment. All materials
used for packaging the appliance are
environmentally friendly; they are 100%
recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packaging
materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
DISPOSAL OF THE APPLIANCE
• Old appliances should not simply be
disposed of with normal household waste,
but should be delivered to a collection
and recycling centre for electric and
electronic equipment. A symbol shown on
the product, the instruction manual or
the packaging shows that it is suitable for
recycling.
• Materials used inside the appliance
are recyclable and are labelled with
information concerning this. By recycling
materials or other parts from used devices
you are making a significant contribution
to the protection of our environment.
• Information on appropriate disposal
centres for used devices can be provided
by your local authority.
R600a ISO-BUTANT REFRIGERANT
• Hydrocarbon refrigerants have excellent
refrigerant properties and minimal low
global warming potential and no ozone
depletion potential.
• This appliance contains a small quantity
of flammable, nonsynthetic R600a
refrigerant:
• Hydrocarbon refrigerants cannot be
‘retrofitted’ to the appliance that has
not been designed and approved to use
that type of refrigerant.
• Ensure that the tubing of the refrigerant
circuit is not damaged during
transportation and installation.
• Leaking refrigerant may cause eye
injuries or could ignite.
• The room for installing the appliance
must be at least 1m3 per 8g of
refrigerant. The amount of refrigerant
in the appliance can be found on the
rating plate attached to the appliance.
RISK OF FIRE
• If the refrigerant circuit should become
damaged. Avoid open flames and sources
of ignition. Disconnect the appliance from
the mains power. Thoroughly ventilate the
room in which the appliance is situated for
several minutes.
—
5
Page:
5
User Manual:
Your Esatto Bar Freezer
Installation Instructions
BEFORE USING YOUR BAR FREEZER…
→ Remove the exterior and interior packing.
→ Before connecting the bar freezer to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
→ Clean the interior surface with lukewarm water using a soft cloth.
INSTALLATION LOCATION:
→ When selecting a position for your bar freezer you should make sure that the oor is
level, and that the room is well ventilated with an average room temperature of between
16° and 35°.
→ Always avoid locating your bar freezer near a heat source, such as a heater.
→ Also avoid direct sunlight as it may increase the electrical consumption.
→ Extreme cold ambient temperatures may also cause the unit not to perform properly. This
unit is not designed for use in a garage or outdoor installation.
→ Do not drape the unit with any covering.
→ When installing the unit, ensure that 20 cm of free space is left at both sides, 15 cm at the
rear and 20 cm at the top of the unit. This will allow cold air to circulate around the wine
cooler and improve the eciency of the cooling process.
→ The door can be hinged to open to the right or to the left, depending on what better suits
the location.
→ Please ensure there is adequate space for the door to fully open.
→ Adjust the two levelling feet to ensure that the bar freezer is horizontally and vertically
level.

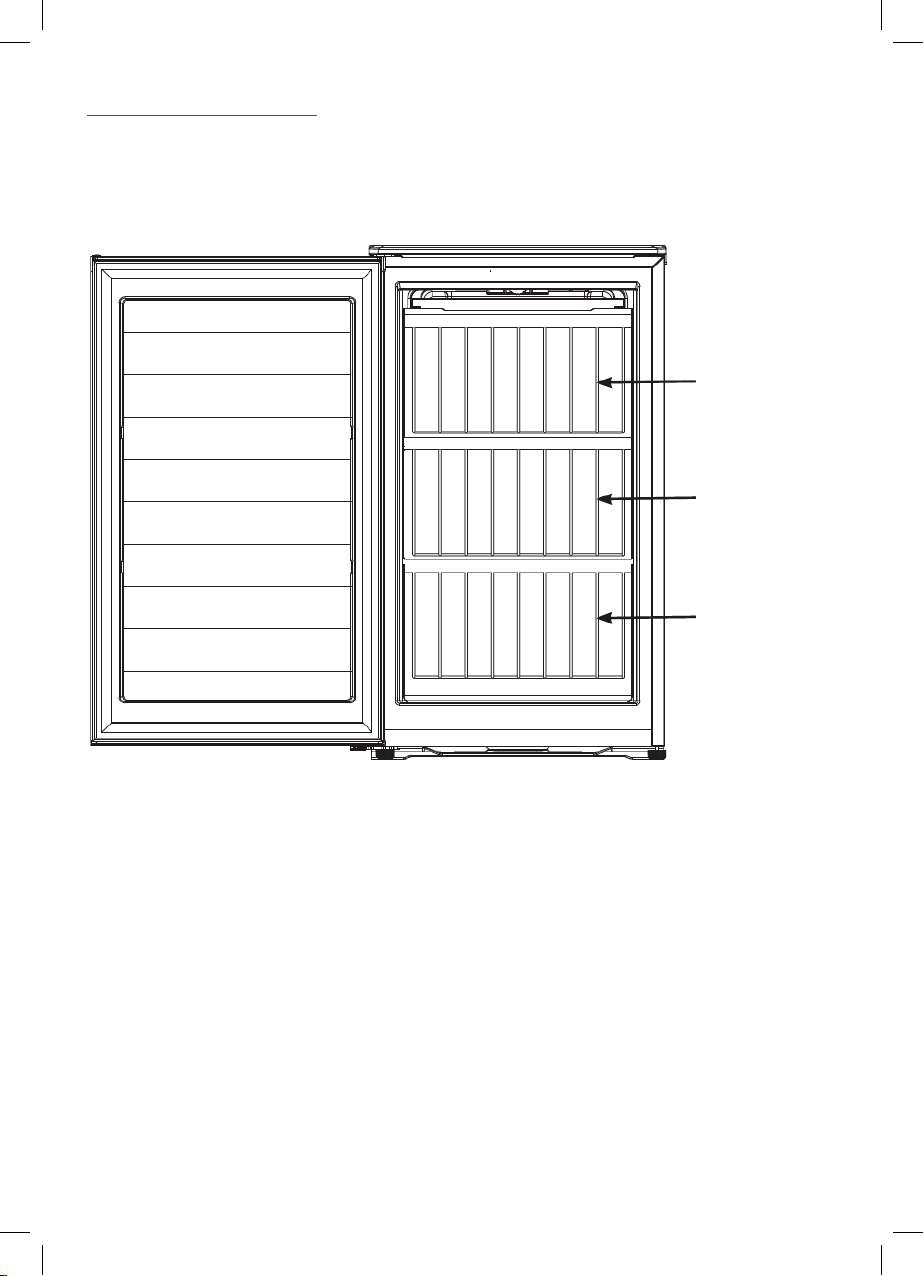

Storage Basket
Storage Basket
Storage Basket
Your Bar Freezer
—
6
Installation Instructions
BEFORE USING YOUR BAR FREEZER…
• Remove the exterior and interior packing.
• Before connecting the bar freezer to the
power source, let it stand upright for
approximately 2 hours. This will reduce
the possibility of a malfunction in the
cooling system from handling during
transportation.
• Clean the interior surface with lukewarm
water using a soft cloth.
INSTALLATION LOCATION:
• When selecting a position for your
bar freezer you should make sure that
the floor is level, and that the room is
well ventilated with an average room
temperature of between 16° and 35°.
• Always avoid locating your bar freezer near
a heat source, such as a heater.
• Also avoid direct sunlight as it may
increase the electrical consumption.
• Extreme cold ambient temperatures
may also cause the unit not to perform
properly. This unit is not designed for use in
a garage or outdoor installation.
• Do not drape the unit with any covering.
• When installing the unit, ensure that 20
cm of free space is left at both sides, 15
cm at the rear and 20 cm at the top of the
unit. This will allow cold air to circulate
around the wine cooler and improve the
efficiency of the cooling process.
• The door can be hinged to open to the
right or to the left, depending on what
better suits the location.
• Please ensure there is adequate space for
the door to fully open.
• Adjust the two levelling feet to ensure
that the bar freezer is horizontally and
vertically level.
REVERSING THE DOOR SWING:
Tools Required: Phillips head screwdriver, Flat
blade screwdriver and Hexagonal spanner.
• Start by ensuring the bar freezer is
unplugged and empty.
• Adjust the two levelling feet to their
highest position.
• To remove the door it is necessary to tilt
the bar freezer backwards. Rest the freezer
against something solid to prevent it from
slipping whilst removing the door.
• All parts that are removed will be used
when re-assembling the door hinge, so
ensure they are all kept safe .
• DO NOT lay the bar freezer on its back
or sides as this may damage the coolant
system.
• This is a two person proceedure.
1. Remove the plastic cover from the top
door hinge.
2. Unscrew the three screws from the bottom
bracket and remove the hinge bracket
from the opposite side and place aside.
3. Slide the freezer door down approximately
15cm and remove from the top hinge,
lifting the door away from the fridge.
4. Remove the two screws from the top
bracket and replace the bracket using the
same screws on to the opposite side.
Note: You will need to remove the plastic
cover caps from the opposite side first.
5. Slide the freezer door back into the top
hinge, ensuring that it is the correct way
up. Then screw the bottom hinge bracket
into place, securing the door in place.
6. Fit the plastic cover caps and ensure that
the door is aligned both vertically and
horizontally, before tightening the bottom
hinge. Re-adjust the levelling feet.
—
7
Operating your Unit
TEMPERATURE CONTROL
• Your fridge has one control for regulating
the temperature. The temperature control
is located at the rear, near the compressor.
• Depending on your room’s ambient
temperature, you may need to adjust
the temperature setting to achieve your
desired temperature.
• The number on the thermostat dial does
not directly represent the temperature.
Instead, the larger the number is, the
lower the freezer interior temperature will
be. Dial position 1-2 will set your freezer
to approximately -12°C, 3-4 will set your
freezer to approximately -15°C, and dial
position 5-6 will set it to approximately
-20°C.
Note: If the unit is unplugged, lost power,
or turned off; you must wait 3 to 5 minutes
before Restarting the unit.
• If you choose to change the thermostat
setting, adjust thermostat control by one
numerical increment at a time. Allow
several hours for temperature to stabilize
between adjustments. Your first use,
you should set the thermostat to the
maximum position of 6 for the first 24 to
48 hours, after which you can set it to the
setting that best suites your needs.
NOISE FROM YOUR BAR FREEZER
• You may notice that your bar fridge makes
some unusual noises from time to time.
Most of these are perfectly normal, but
you should be aware of them!
• These noises are caused by the circulation
of the refrigerant liquid in the cooling
system. This is not a fault and will not
affect the performance of your unit and is
common with all modern fridges.
DEFROSTING YOUR BAR FREEZER
• For the most efficient operation and
minimum energy consumption, defrost the
freezer when the frost on the freezer walls
is excessive or >5mm thick. To minimize
disruption, choose a time when the stock
of frozen food is low.
Important! Do not use boiling water because
it may damage the plastic parts. In addition,
never use a sharp or metallic instrument
to remove frost as it may damage the
cooling coils and will void the warranty.
We recommend using the plastic scraper
provided with your unit.
• Remove the frozen food from the freezer
and place it in a cooler to protect the food.
• Unplug the bar freezer.
• During defrosting, the ice melts into the
cabinet. You can also use a plastic scraper
carefully.
• Clean the interior of the fridge and freezer
and remove any water.
• Reset the thermostat to desired setting.
• Allow the cabinet to cool for one hour.
• Return food to the freezer.
Helpful Tip!
Defrosting usually takes a few hours. Leaving
the door open will help speed the process.
Also, pouring warm water (not boiling) on
the ice/frost will help speed melting. If you
must use a scraper- please use caution
- it is very easy to damage the freezer
compartment and void your warranty.
—
8
Cleaning & Maintenance
By ensuring proper cleaning and
maintenance of your Esatto Bar Fridge,
you can ensure that it will have a long and
fault free operation.
CLEANING YOUR BAR FREEZER
• Warning! To avoid an electric shock,
always unplug your bar freezer before
cleaning. Ignoring this warning may result
in death or serious injury.
Caution. Before using any cleaning products,
please read and follow the manufacturer’s
instructions and warnings to avoid any
damage to your Bar Fridge or personal injury.
• Upon installation of your new appliance,
it is recommended that it be cleaned
thoroughly.
• Remove all shelves and the salad bin.
Note: To remove the salid bin you must
remove the lower shelf first.
• Wash the inside with a damp warm cloth
containing a water and baking soda
solution. The solution should be about 2
tablespoons of baking soda to 2L of water.
• Wash the storage basket with a mild
detergent solution.
• Be sure to keep the door seal clean to keep
the unit running efficiently.
• The outside of the freezer should be
cleaned with mild detergent and warm
water.
• Dry the interior and exterior with a soft
cloth.
• The condenser coils should be carefully
vacuumed when they are dusty or dirty.
• It is recommended that the unit be
cleaned each time it is defrosted to help
keep the unit odour free and running
efficiently.
• Clean your door gasket seals every 3
months using the same warm water
solution described above.
VACATION TIME
• Remove all the food.
• Unplug the bar freezer.
• Clean the bar freezer using the
instructions above.
• Leave the door open slightly to avoid
possible formation of condensation,
mould, or odours.
• Use extreme caution in the case of
children. The unit should not be accessible
to children.
• Short vacations:
Leave the bar freezer operating during
vacations of less than three weeks.
• Long vacations:
If the bar freezer will not be used for
several months, remove all food and
unplug the power cord. Clean and dry the
interior thoroughly. To prevent odour and
mould growth, leave the door open slightly
blocking it open if necessary or have the
door removed.
MOVING YOUR BAR FREEZER
• Remove all the food.
• Securely tape down all loose items inside
your freezer.
• Remove the rollers to prevent damage.
• Tape the doors shut.
• Be sure the freezer stays in the upright
position during transportation.
—
9
CLEANING & MAINTENANCE CONT.
ENERGY SAVING TIPS
• The bar freezer should be located in the
coolest area of the room, away from heat
producing appliances or heating ducts,
and out of the direct sunlight.
• Let hot foods cool to room temperature
before placing in the bar freezer.
Overloading the freezer forces the
compressor to run longer.
• Be sure to wrap foods properly, and wipe
containers dry before placing them in the
bar freezer. This cuts down on frost build-
up inside the fridge/freezer.
• Liners interfere with cold air circulation,
making the freezer less efficient.
• Organize and label food to reduce door
openings and extended searches. Remove
as many items as needed at one time, and
close the door as soon as possible.
SERVICING
• Your bar freezer should only be serviced
by an authorised service agent of the
Residentia Group.
• Under no circumstances should you
attempt to repair or alter the appliance
yourself. Repairs carried out by
inexperienced persons may cause personal
injury or serious malfunction.
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
• Switch off the bar fridge at the thermostat
and then unplug the freezer at the power
outlet.
• Call the Residentia Support Team on:
1300 11 HELP (4357).
• Some minor faults can be fixed by
referring to the instructions given in the
Troubleshooting section below. There is
also a self-help section online at:
http://www.residentiagroup.com.au.
—
10
Page:
9
User Manual:
Troubleshooting
Fault
Possible Cause Solution
The Bar Freezer
doesn’t operate.
Not plugged in. Plug the Bar Fridge in.
The circuit breaker has tripped,
or a fuse blown.
Replace any blown fuses or reset tripped circuit
breakers.
The freezer temperature is set at
“0/OFF”.
Increase the freezer temperature setting.
The compressor turns on and o
frequently.
The room temperature is hotter than normal. Try to bring the room temperature down.
A large amount of food has been added to the
freezer.
Give the Bar Freezer time to return back to your
desired temperature setting.
The door is left open too often. Try to minimise the door being opened for
sometime.
The door is not closed completely. Close the door completely and ensure a com-
plete seal.
The temperature control is not set properly.
Change the temperature control to your desired
setting.
The door gasket doesn’t seal properly. Try cleaning the door gasket seals with warm
soapy water. If this still doesn’t improve the seal,
you may need replacement gasket seals from
either a refrigeration specialist or Residentia
Group.
The freezer doesn’t have the correct clearances.
Ensure your Bar Freezer has been installed in an
appropriate space and has the correct clearanc
-
es (as per this instruction manual).
There has been a recent power outage. Give the freezer a few hours to return to the
desired temperature setting.
The temperature inside the Bar
Freezer is too warm.
The temperature control is set too warm. Turn the temperature control down to a cooler
setting and leave for several hours for the tem-
perature to stabilise.
The door is kept open too long is opened too
frequently.
Try to minimise the door being opened for
sometime.
The door gasket doesn’t seal properly. Try cleaning the door gasket seals with warm
soapy water. If this still doesn’t improve the seal,
you may need replacement gasket seals from
either a refrigeration specialist or Residentia
Group.
The bar freezer doesn’t have the correct
clearances.
Ensure your Bar Freezer has been installed in an
appropriate space and has the correct
clearances (as per this instruction manual).
There has been a recent power outage. Give the freezer a few hours to return to the
desired temperature setting.
The temperature inside the Bar
Freezer is too cold.
The temperature control is set too cold. Turn the temperature control to a warmer set-
ting and allow several hours for the temperature
to stabilise.
There is a popping or cracking
sound when the compressor
comes on.
Metal parts undergo expansion and contraction,
as in hot water pipes.
This is normal and the sound will level o or
disappear as the freezer continues to run.
There is a bubbling or gurgling
sound like water boiling.
The refrigerant (used to cool the freezer) is circu-
lating throughout the system.
This is normal.
Troubleshooting
—
11
This page
is intentionally
left blank
—
12
WARRANTY TERMS & CONDITIONS
REFRIGERATION APPLIANCES
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546 656
in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL
and includes a situation when an Appliance cannot
be repaired or it is uneconomic for Residentia Group,
at its discretion, to repair an Appliance during the
Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its
ASR will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and
subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Residentia
Group or its ASR may use remanufactured parts to
repair your Appliance. You agree that any replaced
Appliances or parts become the property of Residentia
Group. This warranty does not apply to light globes,
batteries, lters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia Group
are not covered by this warranty.
Warranty Information
—
13
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia Group
or its ASR. If you reside outside of the service area,
you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and
from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at
the owner’s cost and risk while in transit to and from
Residentia Group or its ASR.
6. Proof of purchase is required before you can make
a claim under this warranty.
7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts
or workmanship. Residentia Group is not liable in the
following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modied without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and the
relationship between you and Residentia Group are
governed by the law applicable where the Appliance
was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than as
contained in this document) including liability for any
loss or damage whether direct or indirect arising from
your purchase, use or non use of the Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled
to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and the
failure does not amount to a major failure. The benets
to you given by this warranty are in addition to your
other rights and remedies under a law in relation to the
Appliances or services to which the warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether repair,
replacement or refund will apply if an Appliance has a
valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please
follow these steps:
(a) carefully check the operating instructions, user manual
and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 12 have been followed.
→ Service: Please call 1300 11 HELP (4357)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The Australian Consumer Law requires the
inclusion of the following statement with
this warranty:
TEL. 1300 11 4357
SUPPORT@RESIDENTIAGROUP.COM.AU
WWW.RESIDENTIA.GROUP
AN INITIATIVE BY RESIDENTIA GROUP
Table of contents
Other Inalto Freezer manuals
