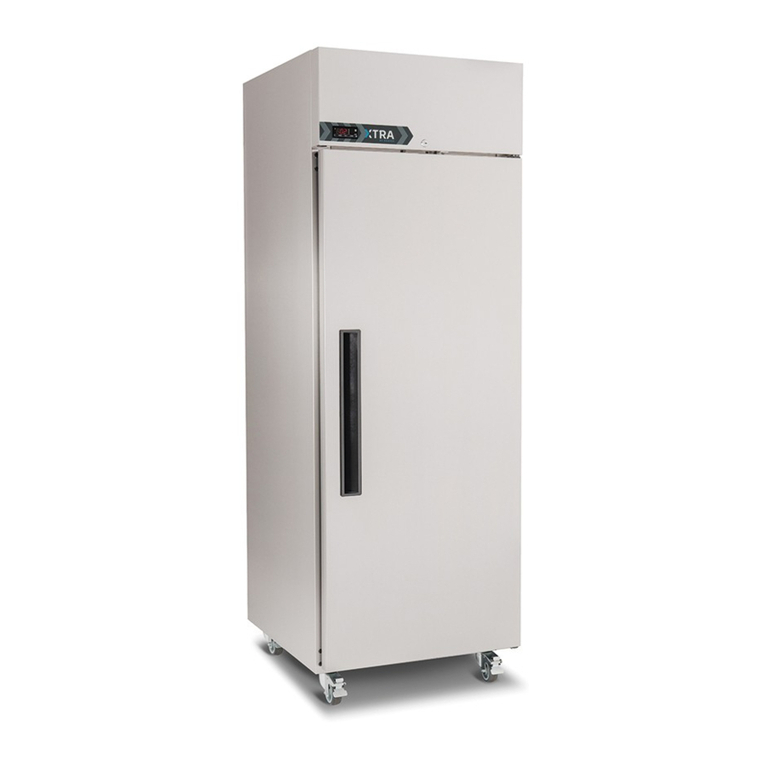

Foster XR600L User manual

User Manual
XR600H, XR600L, XR1300H, XR1300L.
Cabinets

2www.fosterrefrigerator.com
Four Steps
Getting to know your
new Foster appliance
to extend the life of your appliance
Installation
Using the appliance
Maintenance
1
2
3
4

3
Xtra Cabinets - User Manual
Getting to know your new
Foster appliance
All installations must conform to local and municipal regulations and directives. In case of doubt contact your
Foster authorised distributor or the Foster Technical Department.
The information contained in this manual is current at the time of publication and is subject to change
without notice.
CAREFUL – DANGER
Ignoring this sign and remarks may result in personal danger.
CAREFUL – DANGER
Ignoring this sign and remarks may result in damage to your appliance.
INFORMATION
Useful hints to make the best use of your appliance.
These instructions should be retained and made readily accessible
by personnel using the appliance. The instructions should be
read thoroughly prior to appliance installation. Failing to follow
the advice contained in this manual may result in damage to the
appliance and personal injury to the operator.
1

4www.fosterrefrigerator.com
Climate Class
Climate class indicated on the serial plate shows the ambient temperature & humidity at which this appliance
has been tested, for the purposes of establishing values in line with European standards.
Electrical Safety
This equipment shall be connected to an electrical supply protected by a Residual Current Device (RCD). This
may include a residual current circuit breaker (RCCB) type socket, or through a Residual Current Circuit Breaker
with overload protection (RCBO) supplied circuit.
Should it be necessary to replace the fuse, the replacement fuse must be of the value stated on the serial label
for the appliance.
General Safety
- Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
- Keep all ventilation openings in the appliance or in the structure of a built in unit clear of any obstructions.
- Do not use electrical appliances inside the storage compartment.
- Do not use steam cleaners, pressure washers or other jets/sprays of water on or around the appliance.
- The appliance is air tight when the door is closed therefore under no circumstances should any living
body be stored or‘locked in’the appliance.
- This appliance is heavy. When moving the appliance care should be taken and correct safe practices
followed. The appliance should not be moved over uneven surfaces.
- The emitted sound level of this appliance is not greater than 70dB(A).
- To ensure stability the appliance should be located on a at, level surface, correctly loaded.
- Do not use mechanical devices to accelerate the defrost process.
- Care should be taken not to damage the refrigeration circuit and/or system.
- If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or similarly
qualied persons in order to avoid hazards.
- Care should be taken to avoid prolonged contact with cold surfaces with unprotected body parts, correct
PPE to be used at all time.
Climate Class Temperature Relative humidity
430˚C 55%
540˚C 40%

5
Xtra Cabinets - User Manual
Disposal Requirements
This appliance contains components and materials which can be harmful to the
environment if not disposed of correctly. Disposal of this appliance should be
carried out by a suitably licensed waste contractor in accordance with national
laws and regulations which may be in force at the time.

6www.fosterrefrigerator.com
Installation
2
Removal of packaging
Prior to carrying out this operation please ensure that these instructions have been read, understood and that
the necessary personnel and tools are available to ensure that these instructions are complied with. It is also
recommended that a full assessment of the installation conditions and requirements be conducted prior to
commencing this operation.
Tools required: A sharp retractable knife or scissors
Pliers or cutters suitable to cut hard plastic
Single door appliances weigh up to 150kg when empty and requires at least 2 people to carry out
these instructions.
Double door appliances weight up to 230kg when empty and requires at least 4 people to carry out
these instructions.
Never lift more weight than you are comfortable with. Any lifting should be carried out using correct
lifting techniques.
Never stand directly in line or under the appliance when it is leaning at an angle while carrying out
these instructions.
The appliances are top heavy and care should be taken when manoeuvring on uneven or sloping
surfaces. Do not manoeuvre the appliance without assistance.
It is recommended that gloves are worn when carrying out these instructions.
Single Door Cabinet Double Door Cabinet
1Remove outer plastic and cardboard. Take care
not to damage the appliance with any sharp
objects used to remove the packaging.
2Position the pallet against a at surface of a
similar height to the pallet.
1Remove outer plastic and cardboard. Take care
not to damage the appliance with any sharp
objects used to remove the packaging.
2Position the pallet against a at surface of a
similar height to the pallet.

7
Xtra Cabinets - User Manual
3Ensure that the castors and appliance door are
locked.
4Support the appliance on the front/top of the
door and rear as the appliance is top heavy, cut
the support straps on both sides and unlock the
castors.
5Carefully slide the appliance o the pallet onto
the adjacent level surface.
6If the appliance is not being moved straight to it’s
nal location lock the castors once more.
7Ensure that all packaging is disposed of in
an appropriate way in accordance with any local
regulations for waste disposal.
3Ensure that the castors and appliance door are
locked.
4Support the appliance on the front/top of the
door and rear as the appliance is top heavy, cut
the support straps on both sides and unlock the
castors.
5Carefully slide the appliance o the pallet onto
the adjacent level surface.
6If the appliance is not being moved straight to
it’s nal location lock the castors once more.
7Ensure that all packaging is disposed of in
an appropriate way in accordance with any local
regulations for waste disposal.

8www.fosterrefrigerator.com
Start-Up and Test Sequence
After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for
60 minutes before turning on.
Ensure the appliance is situated on a rm, level surface,
away from both hot and cold air sources, as this will
aect its performance.
Place the appliance in a location so as not to exceed
the maximum rated ambient temperature.
The appliance produces warm air when operating
normally and requires adequate ventilation. The
dimensions indicated are a minimum.
As the operating temperature has been pre-set no adjustments are required. Allow the appliance
to reach its normal operating temperature before loading with product.
Connect the appliance to a suitable power supply.
Do not connect or disconnect the appliance with wet
hands. The appliance will turn on automatically
displaying the actual internal temperature of the
appliance and ‘PF’. To cancel the alarm press button 1.
If this does not happen and the display shows ‘ - ‘ press
and hold button 1 for 3 seconds to turn on the
appliance.
100mm
50mm
50mm

9
Xtra Cabinets - User Manual
Display Icons and Buttons
Using the appliance
3
Standby
Pressing button 1 for 3 seconds will turn the unit on or into standby. When in standby the display will only
display ‘ - ‘. The remainder of the display will be blank. When operating normally, the display will show the
internal temperature of the cabinet.
Note - Icons a, b, c, d are only visible after pressing either buttons 1, 2, 3 or 4.
The appliance is designed for the storage of product at the appropriate temperature. It is not
designed to chill or freeze product from a higher temperature. Using the appliance in this manner
may result in malfunction, damage and invalidate the warranty.
>
>
C
º
Icon Button
aCompressor on / Alarm 1On / O / Standby
bEvaporator fans on 2Up / Increase value
cDefrost on 3Back / Exit
d2nd operating function on 4Down / Decrease value
e°C / User menu active
fKeypad locked / Service
function active
gDecimal point / Defrost active
Icon a
a
b
c
i
Icon b
Icon c
Icon d
Icon gIcon f
Icon e
Button 1
Button 3
Button 2
Button 4
!

10 www.fosterrefrigerator.com
Defrost
The appliance has an automatic defrost function and will defrost periodically each day
without any user intervention. This process is normal and does not aect product stored
in the appliance. During defrost the appliance can be used as normal.
To start a defrost manually press and hold button 1 for 5 seconds. This will turn o the
appliance. When this happens do not release the button and after 2 more seconds the
display will indicate a defrost has commenced (dEF is briey displayed) and the button
can be released. The appliance set point temperature will be displayed during defrost
and icon ‘g’ will ash to indicate a defrost is in progress.
The defrost will operate for it’s full duration, it is not possible to cancel a defrost when it
has started.
Keypad Sounds
If the user does not require the keypad to indicate with a sound when a button is pressed
this can be turned o. Press and hold button 2 for 3 seconds until the display shows ‘SP’.
Press button 2 until the display shows ‘biP’. Press button 1 to display the current value.
‘Yes’ indicates keypad sounds are active and ‘no’ indicates keypad sounds are not active.
Select the value required and press button 1 to save the new value. If button 1 is not
pressed the new value will not be stored. Exit with button 3.
Keypad Security Settings
The keypad can be locked to prevent unauthorised adjustment of the appliance and it’s operating tempera-
ture.
When the keypad is locked no adjustments can be made using the keypad and icon ‘f’will be displayed.
To lock or unlock the keypad press and release button 2 for 3 seconds and the display will show ‘SP’. Release
the button and then press button 2 once and the display will show ‘Loc’. Press button 1 to display the current
keypad lock status. Adjust using button 2 and button 4 to set the value to ‘Yes’to lock the keypad and ‘no’ to
unlock the keypad. Press button 1 to save the new value. If button 1 is not pressed the new value will not be
stored. The display will resume normal operation after 30 seconds or if button 3 is pressed.
Set Point
To display the appliance Set Point, with the display showing the temperature, press button 2 for 3 seconds and
the display will show ‘SP’. Then press button 1 once to display the current set point.
Adjust the set point using button 2 to increase and button 4 to decrease. Press button 1 to save the new value
and the display will show ‘Loc’. If button 1 is not pressed the new value will not be stored. Exit by pressing
button 3.
If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for
advice.
The display will resume normal operation after 30 seconds or if button 3 is pressed.

11
Xtra Cabinets - User Manual
Door Lock
To lock the door insert the key and turn 90°, turn in the opposite direction to unlock.
Alarms Notication
If an alarm condition occurs the appliance will indicate this with an audible signal, by illuminating
icon ‘a’and displaying a fault code from the list in the ‘Troubleshooting’ section of this manual. The
audible notication can be muted temporarily by pressing button 1. While the fault is still present
icon ‘a’will continue to be illuminated and the display will cycle between the fault code and the
appliance temperature.
40
KG
Shelves, Supports, Loading and Air Flow
The appliance is supplied with adjustable, removable trayslides and shelves.
Each shelf is capable of holding up to 40kg of product evenly distributed.
Do not block air vents with product. A minimum of 25mm should be maintained
between the top of the product and the shelf above.
Do not place product directly on the base of the appliance.
Always ensure air can circulate around/through the stored product. It is important that
for optimum energy and temperature performance that adequate airow is maintained
around the perimeter of the shelves, and around all stored products.

12 www.fosterrefrigerator.com
Cleaning and Maintenance
Cleaning should be carried out periodically or as required depending on application.
Switch o the appliance, disconnect from the power supply and remove all products, racking and shelves.
Care should be taken with the racking and shelves being inspected for any signs of damage resulting in sharp
edges. Ensure that body parts do not come into contact with cold surfaces.
When cleaning a freezer it is recommended that the internal temperature is allowed to increase to above
freezing prior to cleaning.
Wash all internal and external surfaces with a mild liquid detergent
diluted as per the manufacturer’s instructions. Rinse surfaces with clean
water and dry thoroughly.
Never use wire wool, other abrasive substances, cleaning agents with a high
acid or alkaline content (e.g. bleach acid or chlorine) or similar products as
they can damage the appliance.
When the appliance has been cleaned and dried, ret the racking and
shelves.
Re-connect the appliance to the power supply adhering to the previous
guidelines above. Switch the appliance on and allow it to reach it’s normal
operating temperature before re-loading product.
IMPORTANT: This appliance is heavy. When moving the appliance care should be
taken and correct safe practices followed. Prior to cleaning ensure that the correct
PPE is available and utilised and that the appliance is switched o and disconnected
from the power supply. Do not disconnect or connect the appliance from the power
supply with wet hands. Following cleaning, only when the appliance is dry should the
appliance be reconnected to the power supply and switched on.
Maintenance
4
Regular Maintenance
Where the regular cleaning regime previously described does not remove dirt
or grease deposits from the condenser, it should be cleaned by a competent
engineer. We recommend that an engineer services the appliance every 6 to
12 months to maintain your warranty and ensure optimal performance of your
appliance. We recommend that service is carried out by an authorised Foster
agent or by contacting the Foster Service team using the contact details in this
manual. 6-12 MONTHS

13
Xtra Cabinets - User Manual
Condenser
Regular cleaning of the condenser (located behind the front cover) increases energy eciency and prolongs
the life of your appliance.
Never use a wire brush, abrasive or corrosive materials to clean the condenser. This should be carried out
periodically, by a competent engineer as outlined in the Regular Maintenance section of this manual.
Gasket
All door gaskets should be inspected on a regular basis and replaced as necessary if damaged. To clean, wipe
with a warm damp soapy cloth followed by a clean damp cloth. Finally dry thoroughly.
Cleaning
Shelves and Trayslides
The shelves and trayslides in the appliance can be removed for cleaning. The shelves are dishwasher safe
however the vertical supports and trayslides should be cleaned with warm soapy water then rinsed and dried.

14 www.fosterrefrigerator.com
Troubleshooting
Alarms/Warnings:
During operation the current temperature inside the appliance will be
displayed. At certain times this will change to indicate a particular appliance
operation or fault. The indicators you may see are as follows:
hi - The internal temperature of the appliance is higher than it should be.
Ensure that the door is closed and that the air ow inside is not obstructed by excesive or poor loading of
product. The alarm will reset if the temperature falls to a normal level. If this does not happen please contact
your authorised dealer or Foster Service.
Lo - The internal temperature of the appliance is lower than it should be. Check to ensure that the appliance
has not been loaded with product at a lower temperature than the normal appliance operating
temperature. If this is not the case please call your authorised dealer or Foster Service.
do - The appliance door is open. Close the door to cancel the alarm.
tA - This indicates that the internal temperature probe has failed. Call your authorised dealer or Foster Service
to arrange for this to be replaced. During this time the appliance cannot maintain an accurate temperature
and all product should be removed and the appliance switched o.
tE - This indicates that the evaporator probe has failed. Call your authorised dealer or Foster Service to arrange
for this to be replaced.
PF - The mains power has been removed from the appliance for a period of time and has now been restored.
This may have resulted in a rise in appliance temperature. Caution should be taken when using products
stored within to ascertain whether these products are suitable for use. Upon restoration of the power supply
the appliance will resume normal operation and the PF can be cancelled by pressing button 1 once.
hC - The condenser temperature is higher than it should be. If the appliance is being subjected to particularly
high ambient temperatures steps should be taken to reduce this. If the ambient temperature is not high or
reducing the temperature does not rectify the fault please contact your authorised dealer or Foster Service.
Cnd - The condenser clean period has expired. Please contact your authorised dealer or Foster Service.
While in an alarm condition icon ‘a’ will also be illuminated. The audible alarm can be muted temporarily by
pressing button 1.
(Some indications are only visible periodically during specic appliance operations such as defrost or when activated
through use of the appliance).

15
Xtra Cabinets - User Manual
Before calling your supplier please make sure that:
CheckProblem Solution
If the reason for the malfunction cannot be identied, disconnect the electrical supply from the appliance and
contact your authorised dealer or Foster Service. When requesting a service call, please quote the model and
serial number which can be found on the inside of the appliance on the right hand wall and begins with ‘E’.
The appliance is not functioning Is the appliance plugged in and
the socket switched on?
If the appliance is plugged in
check that the socket is ‘live’by
plugging another appliance in to
see if that works.
Has the fuse blown? Check the fuse and if necessary
change it for a new one
The appliance is not cooling or
it is not reaching the required
temperature
Is the appliance switched on? Check that the temperature is
displayed. If the display shows‘-’
switch on the appliance as it is in
standby
Is the condenser blocked or dirty? Inspect and clean the condenser
if necessary as described in this
manual
Is the appliance positioned close
to a heat source?
Is the heat source aecting the
performance of the appliance. If
possible move the appliance away
from the heat source.
Is the appliance loaded correctly? Check the loading of the product
contained in the appliance is in
accordance with the guidelines in
this manual
There is something other than
the temperature displayed on the
controller
Is the display showing one of the
alarms/warnings above?
The display may show indications
shown in the ‘Alarms and
Warnings’ section of these
instructions. For anything else
contact your authorised dealer or
Foster Service.

16 www.fosterrefrigerator.com
For more information:
[phone]
[e-mail]
fosterrefrigerator.com
Document ID code: 00-570676v1
By Appointment to
Her Majesty Queen Elizabeth II
Suppliers of Commercial Refrigeration
Foster Refrigerator, King’s Lynn
For service and spares:
For service [phone]
[e-mail]
For parts [phone]
[e-mail]
Original Instructions
