Inalto IBBQBI4B User manual

MODEL CODE/S
IBBQBI4B
4 Burner
Built-in Grill
—
USER MANUAL INALTO.COM.AU
A HIGHER LEVEL OF COOKING

USER MANUAL
PAGE 02
Congratulations on purchasing your new BBQ. The InAlto brand is proudly distributed
within Australia by esidentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding
your product’s parts and labour warranty, or visit us online at www. residentia.group
At esidentia Group, we are customer obsessed and our Support Team are there
to ensure you get the most out of your appliance. Should you want to learn more
about recommended cooking temperatures, the various features of your BBQ,
and importantly taking care of your appliance when cleaning, our Support Team
are here to help. You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via calling us on
1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly to
familiarise yourself with the installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an InAlto appliance and we look forward to being of
service to you.
Kind Regards,
The esidentia Team
Residentia Group
—
Head Office.
118 Campbell Street
Collingwood, VIC
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group
Postage.
PO Box 341, Mt Eliza
Victoria Australia 3930
Telephone.
1300 11 4357
Email.
[e-mail]

08
YOUR INALTO BBQ
10
INSTALLATION IN-
STRUCTIONS
16
TECHNICAL DATA
02
WELCOME
04
SAFETY
INSTRUCTIONS
06
USE OUTDOORS
ONLY
17
CLEANING &
MAINTENANCE
18
TROUBLESHOOTING
19
PURCHASE
DETAILS
CONTENTS
20
WARRANTY
INFORMATION

USER MANUAL
PAGE 04
Your safety is of the utmost importance to us.
Please make sure that you read this instruction
booklet before attempting to install or use the appliance.
If you are unsure of any of the information contained
in this booklet, please contact the Retailer where
you purchased your unit from.
The appliance should only be installed and connected
by a suitably qualified and authorised person, strictly
in accordance with the manufacturer's instructions.
Please see the specific section of this user manual that
refers to installation.
IMPORTANT!
The gas supply to the cooktop must be cut off before
any adjustments or maintenance work is undertaken.
WARNING
When using this product, basic precautions should always
be taken including the following:
► The appliance is designed for domestic household
use and for the cooking and frying of domestic
foodstuffs.
► Care should be taken to ensure that the units and
work surfaces that you build the appliance into,
meet with the relevant standards.
► Do not spray aerosols in the vicinity of this
appliance while it is in operation.
► Do not use or store flammable materials in the
appliance storage drawer or near this appliance.
► Do not modify this appliance.
► Do not use this appliance as a space heater.
IMPORTANT!
The adjacent furniture and all materials used in the
installation must be able to withstand a minimum
temperature of 65°C above the ambient temperature
of the room it is located in, whilst in use.
► Certain types of vinyl or laminate kitchen cabinetry
are particularly prone to heat damage or discolouration
at temperatures above the guidelines given.
► Any damage caused by the cooktop being installed
in contravention of this temperature limit, will be the
liability of the owner.
► Your new cooktop is guaranteed against electrical or
mechanical defects, subject to certain exclusions that
are noted in the Warranty Terms and Conditions (at the
rear of this user manual). The foregoing does not affect
your statutory rights.
► The use of this cooktop for any other purpose or in
any other environment, without the express agreement
of Residentia Group, will invalidate any warranty or
liability claim.
► You should not use this appliance to store items on
or as a work surface.
► No modifications to the appliance are permitted by
Residentia Group.
► You should not store or place flammable or highly
flammable liquids/materials on top of or near the
appliance. Items made from aluminium, plastic
or plastic film should also be kept away from the
appliance, as they may fuse to the surface.
► Repairs may only be carried out by authorised
service agents.
► Your InAlto cooktop is not to be used by children or
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
► Any film or stickers that are present on the cooktop
when it is delivered should be removed before use.
► Care should be used when utilising the cooktop,
otherwise there is a risk of burns being caused.
► You should not allow the electrical connection cables
to come into contact with the cooktop surface when
it is hot or any hot cookware.
► If fat and oil overheats, then it can ignite extremely
quickly. For this reason, when cooking with fat and
oil the appliance should not be left unattended.
► Make sure that all of the cooking zones are switched
off after use.
► Cleaning of the cooktop should be carried out on
a regular basis, once the cooktop has cooled down.
► Great care should be taken whilst using this appliance
and when following the cleaning procedure.
► You should not use a steam jet or any other high
pressure cleaning equipment to clean the appliance.
Safety Instructions

INALTO.COM.AU
PAGE 05
DECLARATION OF CONFORMITY
This appliance complies with the following
European Directives and Australian Standards:
— 2006/95/CE General regulations / Low tension
— 2009/142/CE Concerning gas appliances
— 1935/2004/CE 90/128/EEC This appliance is suitable
to come in contact with food
— 2004/108/CE Electromagnetic compatibility
— AS4551, AS/NZS 5263.0, AS/NZS 5263.1.1: Domestic gas
cooking appliances
— Low voltage: 73/23
— Safety standards: EN 60335-1, EN30-1-1,
AS/NZS 3350-1,3350-2-6
The manufacturer declares that the cooktop is built using
certified materials and requires the appliance to be installed
in accordance with the standards currently in force. This
cooktop should only be used by a trained person and for
domestic purposes only.
UNPACKING
During transportation, protective packaging was used to
protect the appliance against any damage. After unpacking,
please dispose of all elements of packaging in a way that will
not cause damage to the environment. All materials used for
packaging the appliance are environmentally friendly; they
are 100% recyclable and are marked with the appropriate
symbol.
► During unpacking, the packaging materials (polythene
bags, polystyrene pieces, etc.) should be kept out of
reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with
normal household waste, but should be delivered to a
collection and recycling centre for electric and electronic
equipment. A symbol shown on the product, the instruction
manual or the packaging shows that it is suitable for
recycling.
Materials used inside the appliance are recyclable and are
labelled with information concerning this. By recycling
materials or other parts from used devices you are
making a significant contribution to the protection of our
environment.
Information on appropriate disposal centres for used
devices can be provided by your local authority.
FOR OUTDOOR USE ONLY
► PLEASE READ THE INSTUCTIONS CAREFULLY AND BE
SURE YOUR BARBECUE IS CORRECTLY
INSTALLED AND ASSEMBLED. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT
IN SERIOUS INJURY OR DAMAGE!
► PLEASE RETAIN THE MANUAL FOR FUTURE
REFERENCE.

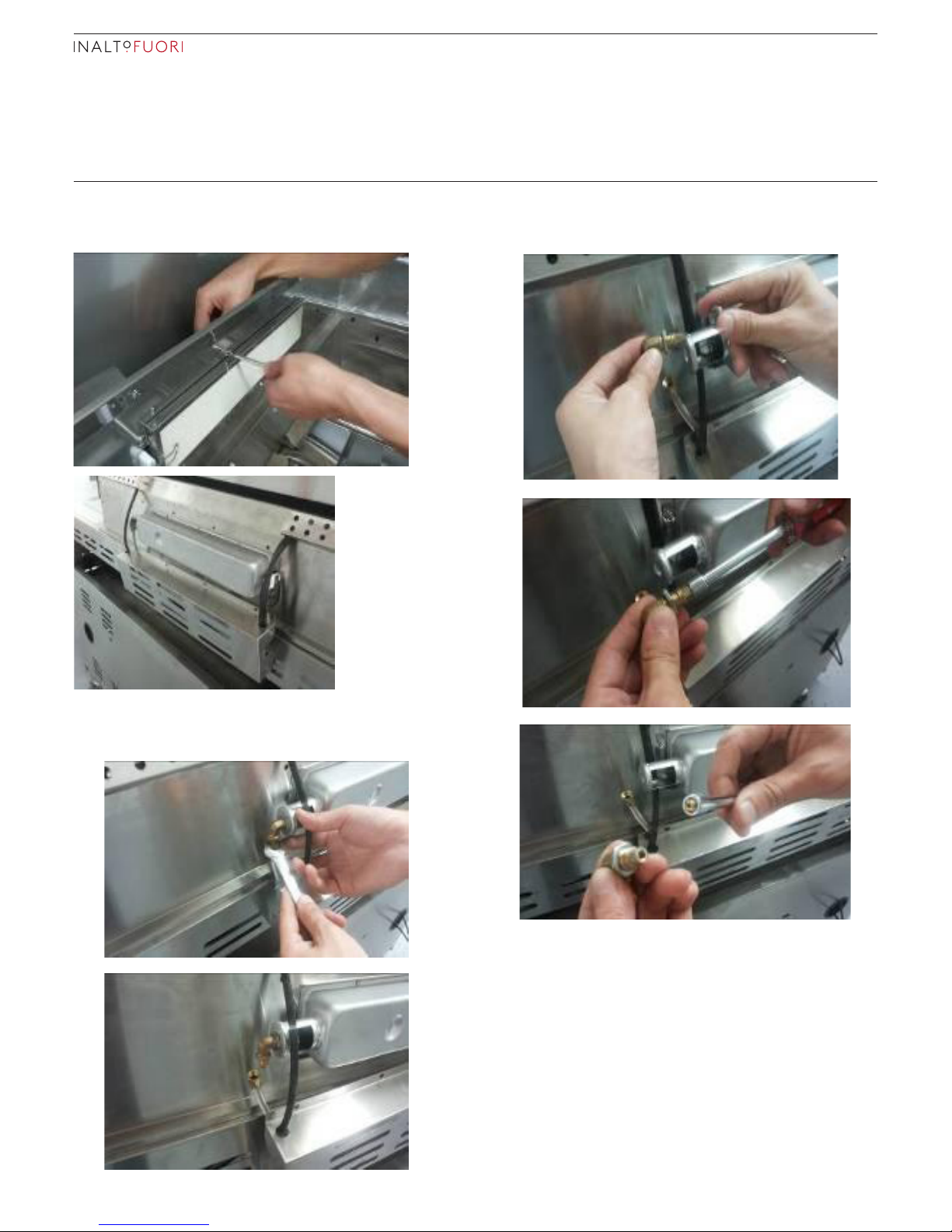

► CONVERSION TO NATURAL GAS SHOULD ONLY BE
CARRIED OUT BY AUTHORIZED PERSONS.
► PLEASE ENSURE THAT YOU REMOVE ALL PACKAGING
AND TRANSIT PACKING PRIOR TO USE.
► DO NOT SPRAY AERSOLS IN THE VICINITY OF THE
APPLIANCE WHILE IT IS IN OPERATION
► This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for
their safety.
► Children should be supervised to ensure that they do
not play with the appliance.
WARNING
This barbecue is designed for use outdoors, away from any
flammable materials.
It is important that there are no overhead obstructions and
that there is a minimum distance of 50mm from the side or
rear of the appliance.
The barbecue must be used on a level, stable, non-
flammable surface.
The appliance should be protected from direct draughts
and shall be positioned or protected against direct
penetration by any trickling water (e.g. rain).
Parts sealed by the manufacturer or his agent must not be
altered by the user.
No modifications should be made to any part of this
barbecue and repairs and maintenance should only be
carried out by a registered service engineer
DO NOT let children operate or play near grill.
DO NOT use charcoal or ceramic briquettes in a gas grill
DO NOT attempt to light burner with lid closed. A buildup
of non-ignited gas inside a closed grill is hazardous

USER MANUAL
PAGE 06
Use Outdoors Only
This appliance shall only be used in an above ground open-
air situation with natural ventilation, without stagnant
areas, where gas leakage and products of combustion are
rapidly dispersed by wind and natural convection.
Any outdoor enclosure in which the appliance is used shall
comply with one of the following:
► An enclosure with walls on all sides, but at least one
permanent opening at ground level and no overhead cover.
See
Figure 1.
► Within a partial enclosure that includes an overhead
cover and no more than two walls. See Figure 2 & 3.
► Within a partial enclosure that includes an overhead
cover and more than two walls, the following shall apply:
- At least 25% of the total wall area is completely open; and
- At least 30% of the remaining wall area is open and
unrestricted. See Figure 4 & 5.
► In the case of balconies, at least 20% of the total of the
side, back and front wall areas shall be and remain open
and unrestricted.
The following diagrams provide a diagrammatic
representation of outdoor areas. Rectangular areas have
been used in these figures - the same principles apply to any
other shaped area.
Figure 1 - Enclosure with walls on all sides but no
overhead cover
Figure 2 - Partial Enclosure with overhead cover and
no more than two walls
Figure 3 - Partial Enclosure with overhead cover and
no more than two walls
Figure 4 - Open side at least 25% of total wall area.30
% or more in total of the remaining wall area is open
and unrestricted.
Figure 5 - Open side at least 25% of total wall area. 30
percent or more in total of the remaining wall area is
open and unrestricted

INALTO.COM.AU
PAGE 07
GAS CYLINDER INFORMATION
This appliance is designed to be used with a gas cylinder
not exceeding (Australia 9KG)
► The gas cylinder supply valve must be turned off when
the appliance is not in use.
► Gas cylinders must be stored outdoors, out of reach
of children and must not be stored in a building,
garage or any other enclosed area.
► The gas cylinder used must incorporate a safety collar
to protect the valve assembly.
* Never store a spare cylinder under the barbecue
shelves or inside the trolley housing. Any
LPG cylinder not attached to the BBQ for use should be
stored outdoors and well away from this appliance.
IMPORTANT:
► When disconnecting and removing the gas cylinder
for the purpose of refilling, always observe the
following procedure.
► Ensure that all gas control valves on the appliance and
the gas cylinder are turned off before disconnecting
the regulator from the cylinder.
► Do not smoke or use a naked flame near the appliance
or gas cylinder while disconnecting the gas line
between the appliance and gas cylinder.
► Remove the gas cylinder from the enclosure before
disconnecting the regulator from the appliance.
► Tighten all connections before placing the gas cylinder
back in its enclosure.
► The gas leak testing procedure should be conducted
every time the gas cylinder is refilled and reconnected
to the appliance before using the appliance.
Regulator Connection
1. Check that all control knobs are in the ‘Off’ position.
2. Make sure the cylinder valve is off.
3. Remove the protective cap from the cylinder if present.
4. Leak test the connection with a soapy water solution.
Gas Leak Test Procedure
Never use a naked flame to check for gas leaks.
Always use the following procedure to check for gas leaks.
1. In a small container, mix up a solution of 1/2 water and
1/2 detergent or soap. Mix the solution well.
2. Make sure that the gas supply valve on the gas cylinder
is turned on.
3. Make sure that the gas control valves on the appliance
are all turned off.
4. Using a brush or spray bottle apply the solution to the
gas line and each join in the gas line.
5. Bubbling of the solution will indicate that there is a leak
present.
6. Re-tighten or re-seal any joints that are leaking.
7. If a leak persists then contact your distributor or the
manufacturer for assistance.
LIGHTING YOUR BARBECUE
1. Open the lid and make sure all the knobs are in the OFF
position.
2. Push down the knob and turn the knob anticlockwise
to HIGH position, then keep pressing the igniter for 2-3
seconds (a sound can be heard), thus the burner will
ignite. If the burner does not light, turn off the knob
and wait for 5 minutes then repeat this process.
3. Adjust the heat by turning the knob to the High /Low
position.
4. To light other burners, repeat the same process for
the adjacent burner and continue in sequence until all
the burners are lit.
5. To turn the barbecue OFF, turn the cylinder valve or
regulator switch to the “OFF” position and then turn
all of the control knobs on the barbecue clockwise to
the “OFF” position.
For Match- Lighting:
1. Follow above instruction step 1-3.
2. Place the match into match holder chain and fire the
match, then put the match into the burners
3. Push down and turn the knob anticlockwise to HIGH
position, then the burner can be lit. If the burner does not
light, turn off the gas tap and wait for 5 minutes then repeat
this step 2-3.
Before cooking for the first time, turn on all the main
burners and keep burning for 10 minutes with the lid closed
and knobs at LOW position. This will “heat clean” the
internal parts and dissipate odour from any painted finish.
The color of the cooking area may change a little. This is
normal for stainless steel when subject to high heat.
WARNING
While igniting main burners and infrared rear burner,
please make sure the lid for main burners is in open
position.
While cooking with the hood closed and with all the
burners on, please make sure all burners are set to LOW
position.
Use Outdoors Only

USER MANUAL
PAGE 08

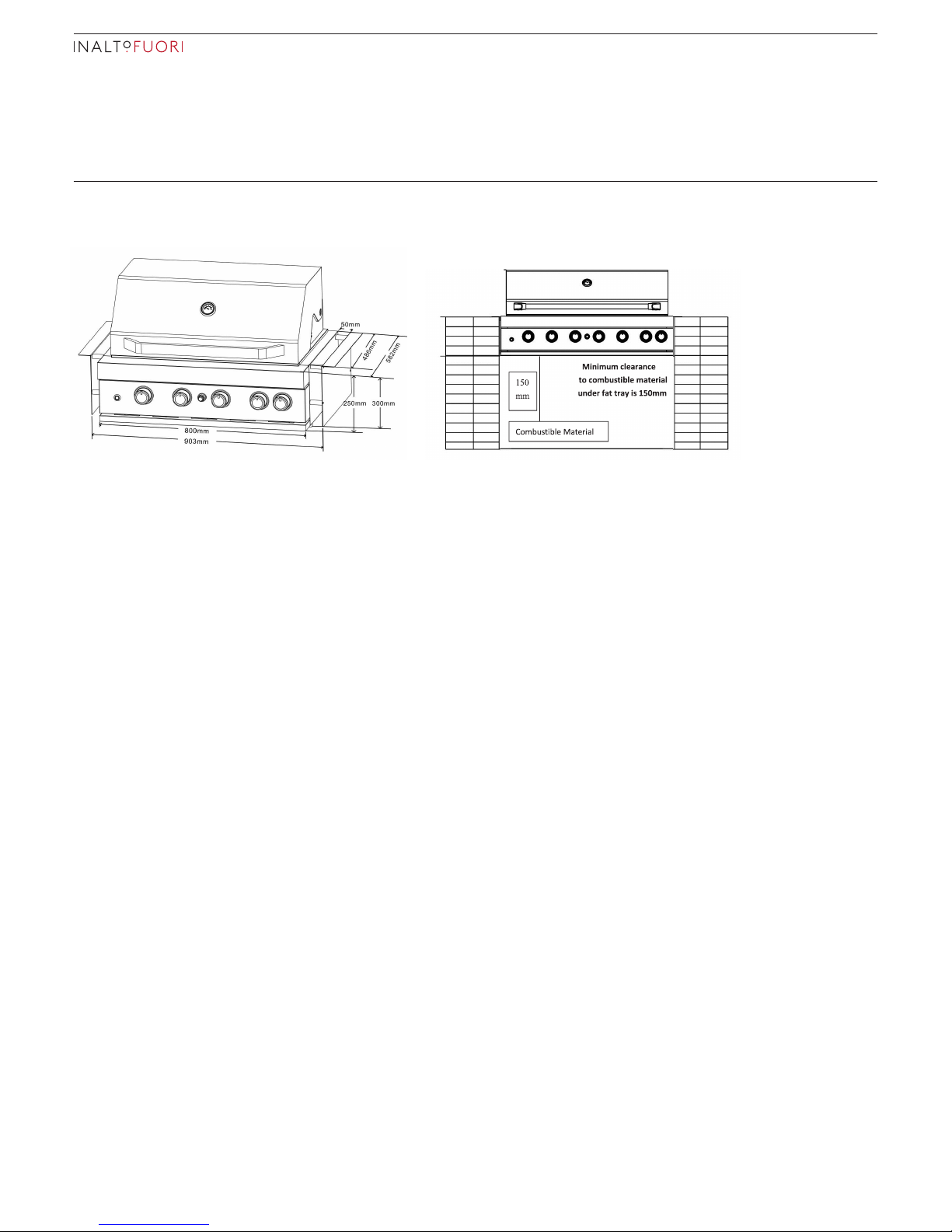

SPECIFICATIONS
BUILT IN INSTALLATION
WARNING
THE CONSTRUCTION OF THE ENCLOSURE AND INSTALLATION OF THE BBQ SHOULD BE CARRIED OUT ONLY BY
AUTHORISED PERSONS.
THE BARBECUE MUST ALSO BE SECURED TO THE ENCLOSURE TO PREVENT IT BEING PULLED OUT AND STRAINING
THE GAS CONNECTIONS.
► Please follow these instructions for installation. any other requirements of AS/NZS 5601.1, local authority, or relevant statutory
regulations, and ensure adequate ventilation (per page 2).
► e minimum clearance of the sides of the BBQ to walls needs to be 50mm.
► DO NOT block any ventilation slots of the BBQ below or behind.
► e enclosure material for the cutout must not be combustible.
► Do Not place gas cylinder underneath the barbeque, keep required clearance and ensure there is 'permanent separation', i.e. no line
of sight between the gas cylinder and combustion area. If the gas cylinder is enclosed, ensure adequate high and low ventilation (200
square cm each) as required by AS/NZS 5601.1.
► Ensure 150mm clearance to combustibles underneath barbecue fat tray.
Your InAlto BBQ
IBBQBI4B

INALTO.COM.AU
PAGE 09
SUITABLE PANS
Part
No
Description Qty Part
No
Description Qty
1 Warming Rack 1 13 Main burner 4
2Stainless steel cooking
grid
114 Ignition cable 4
3 Cast iron flat plate 1 15 Control Knob 7
4 Flame diffuser 4 16 Igniter ( 1 for 5) 1
5 Screws (M5) 4 17 Knob bezel with blue LED 7
6 Light cover 2 18 Light /LED Switch 1
7Screw 2 19 Grease tray 1
8 Light 2 20 Foot 4
9 Temperature gauge 1 21 Cable for light 1
10 Handle 1 22 Cable for LED 1
11 Hood 1 23 Transformer 1
12 Infrared rear burner 1 24 Built in supporting bracket-
L
1
25 Built in supporting bracket-
R
1

USER MANUAL
PAGE 010
ASSEMBLY INSTRUCTIONS
WARNING
Ensure all transit protection is removed prior to
assembly.
1 Foot ( No.20)Assembly
2 Built in supporting bracket Assembly ( No.24.25)
3 Flame tamer ( No.4)assembly
4 Cooking grid( No.2)/plate ( No.3) assembly
5 Warming rack (No.1) assembly
6 Grease tray( No.19)
Installation Instructions

INALTO.COM.AU
PAGE 011
7 Battery is require for ignition Battery
( Battery is not included)
* FOR ROTISSERIE KITS
8 Transformer (for BBQ lights / LED)
► AssemblyTransformer needs to be installed
and fixed where it is located well away
from high temperatures.
► The transformer must be always kept dry.

PAGE 12
USER MANUAL
NATURAL GAS CONVERSION
WARNING
1 Conversions only to be done by an
Authorized person
2 A restraining tether or bracket is required to be fixed
to the appliance and to the wall within 50mm of each
connection point. The length of the tether shall not
exceed 80% of the length of the natural gas hose
assembly.
TOOLS REQUIRED
1 Socket head screw driver (Included with the product)
2 Wrench
GAS PIPING
1A minimum pipe with diameter 15mm is required for
inlet piping. A lever operated shut-off valve should be
installed within 1 meter of the appliance for servicing the
appliance.
2Where it is not practical to install solid copper pipe to
AS/NZS 5601.1, hose assemblies certified to AS/NZS 1869
or limited flexibility connectors certified to AS 4631 may
be used.
The internal diameter of the hose must not be less than
10mm. The hose should be as short as practicable in
accordance with AS/NZS 5601.
3All gas pipe connections must be sealed with a gas pipe
compound resistant to natural gas. Remove LPG
hose and regulator and ensure the Natural Gas regulator
supplied with the appliance is used.
NOTE TO INSTALLERS
For main burner, the U-LPG jet is 0.98mm, the NG jet is
1.50mm
For back burner, the U-LPG jet is 0.98mm, the NG jet is
1.65mm
Both U-LPG injector and NG injector are installed together
like right photo shows. The BBQ is set for U-LPG by
manufacturer.
1 Test operation of appliance such as leak-tightness,
burner flames at high and low, and instruct user on safe
operation before leaving.
2 If the appliance cannot be adjusted to perform correctly
contact your
distributor or the manufacturer for assistance.
INSTRUCTIONS FOR CONVERTING THE MAIN BURNER
1. Unscrew and remove the rear panel pictured.
2. Unscrew the main burner securing screws
and remove the burner, sitting it alongside.
（1）
（2）
Jet for LPG
JET FOR NG

PAGE 13
INALTO.COM.AU
（3）
（4）
3. With the burner removed, you will see the brass gas jet
which is screwed into
the end of the valve. Using the socket driver supplied,
unscrew the end LPG jet while retaining the
inner (NG) jet.
4 . Reassemble the burner.
Note: Please make sure the gas valve is located well
inside the main burner tube when re-installing the
burners.
5. Repeat the above steps for the other main burners.

PAGE 14
USER MANUAL
INSTRUCTIONS FOR CONVERTING THE BACK BURNER
1. Remove the back burner cover
2. Remove the LPG jet from the elbow shaped brass
injector assembly.
(1)
(2)
(3)
(4)
(5)

PAGE 15
INALTO.COM.AU
3. Reassemble the plates as removed.
BARBECUE LIGHT & LED
WARNING
Always keep the plug in dry condition.
Instruction o replace the barbecue lights
1. Take off the light rear cover
2. Take off the light
3. disconnect the cable
4. Replace a new light and re-assemble
Instruction to replace the LED light
1. Take off the control knob and unscrew the knob bezel
2. Take off the unit and disconnect the cable
3. Replace a new one and re- assemble

PAGE 16
USER MANUAL
Technical Data
Model No.: IBBQBI4B
Gas Type Universal LP Gas & Natural Gas
Universal LP Gas Natural Gas
Test Point Pressure 2.75KPA 1.0KPA
Main Burner (injector size) 0.98mm 1.50mm
Back Burner ( Injector size) 0.98mm 1.65mm
Total Nominal Gas Consumption ( MJ/h) 64.5 57
Main Burner Nominal Gas Consumption ( MJ/h) 13X4 11X4
Back Burner Nominal Gas Consumption ( MJ/h) 12.5X1 13X1
AC Adaptor Input: 230-240VAC, 50Hz
Output: 12VAC 2000mA
Cord 250V, 10A
Note:
► For Use outdoors only
► Conversion to natural gas only to be done by authorized person
► The maximum cylinder size for use with this appliance is 9kgs
► The thread type of this appliance is G1/4B-19.
► Always keep the electrical components in dry condition

PAGE 17
INALTO.COM.AU
All cleaning and maintenance should be carried out when
the barbecue is cool and with the fuel supply turned OFF at
the gas cylinder after each use.
DO NOT mistake brown or black accumulation of grease
and smoke for paint. Interiors of gas grills are not painted at
the factory (and should NEVER be painted). Apply a strong
solution of detergent and water or use a grill
cleaner with brush on insides of grill lid and bottom. Rinse
and allow to completely air dry.
DO NOT apply a caustic grill / oven cleaner to painted
surfaces.
DO NOT use abrasive or flammable cleaners as it will
damage parts of the product and may start a fire.
Stainless steel surfaces: Stainless steel will corrode if
not maintained. To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy
water and wipe dry with a soft nonabrasive cloth after each
use. For further information, please refer to our website.
Cooking grid: Use a mild soapy water solution. Non-
abrasive scouring powder can be used on stubborn stains
then rinse with water.
Cleaning the burner assembly
Follow these instructions to clean parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LP Tank.
2. Remove cooking grates, grease tray and grease cup.
3. Remove screw and nuts at end of burner using a
spanner.
4. Carefully lift each burner up and away from valve
openings.
5. Wire brush entire outer surface of burner to remove
food
residue and dirt.
6. Clean any blocked ports with a stiff wire such as an
open paper clip.
7. Check burner for damage, due to normal wear and
corrosion some
holes may become enlarged. If any large cracks or holes are
found
replace burner.
8. Carefully refit burners.
9. Replace screw at the end of burner.
10. Replace grease tray and cooking grates.
Inspect burner for any damage (cracks or holes). If damage
is found, replace with a new burner. Reinstall the burner,
check to ensure that the gas valve orifices are correctly
positioned and secured inside the burner inlet.
MAINTENANCE SCHEDULE
No regular maintenance is required for the BBQ except
cleaning.
We suggest the following ways to clean the burner tubes.
(A) Bend a stiff wire into a small hook. Run the hook
through each burner tube and burner, several times.
(B) Use a narrow bottle brush with a flexible handle (DO
NOT use a brass wire brush), run the brush through each
burner tube and burner, several times.
(C) Wear eye protection: use an air hose to force air into the
burner tube and out the air ports. Check each port to make
sure air comes out each hole.
CAUTION
NATURAL HAZARD SPIDERS
FACT: sometimes spiders and other insects climb into
the grill tubes attached to the burners. The spiders spin
webs,build nests and lay eggs. The webs or nests can be
very small,but they are very strong and can block the
flow of gas.Clean burners prior to use after storing, at the
beginning of grilling season or after a period of one month
not being used.
Spider guards are on the air intakes in an effort to reduce
this problem,
but it will not eliminate it! An obstruction can result in a
“flashback”
(a fire in the burner tubes). The grill may still light, but the
obstruction
does not allow full gas flow to the burners.
Abnormal Operation:
Any of the following are considered to be abnormal
operation and may require service
► Yellow tipping of the yellow flame
► Shooting up of grill plates
► Burners not igniting properly
► Burners failing to remain alight
► Gas valves, which are difficult to turn
It is recommended the appliance is cleaned after each use,
and inspected yearly by a registered service engineer.
If the appliance cannot be adjusted to perform correctly
contact your distributor or the manufacturer for assistance.
Contact Number:
Cleaning & Maintenance

PAGE 18
USER MANUAL
Troubleshooting
Tips & Hints
Please read the issues below carefully and try all relevant steps.
If none of this helps, please contact us on 1300 11 4357 for further advice
or to schedule a technician to inspect your cooktop.
THE COOKTOP WON'T LIGHT
Please check...
That your cooktop is plugged in and there is
power to the wall socket.
That the gas supply valve is turned on and
the gas supply to your house is working.
Hint: If you listen closely, you should be able
to hear the gas coming out of a burner when
it is turned on. Due to flame failure safety, the
knob must be pressed down once it is turned
on— this initiates the ignition and allows the
gas to come out.
That the gas igniters are clean.
Hint: If in doubt, use a toothbrush and a
heavy duty cleaner or methylated spirits to
remove any potential build-up or blockage.
That the cooktop has been installed and
assembled correctly and the burner cap is
sitting flat.
THE BURNER FLAMES ARE
SLOW OR YELLOW TO START
Please check...
That the cooktop has been installed and
assembled correctly and the burner cap
is sitting flat.
The burner parts may be blocked with water
or another substance. Please contact our
Support Team on 1300 11 4357 for advice.
If connected to a gas bottle, this may be
running low. Check and refill if required.
The gas pressure may not be set at the correct
level. Please contact our Support Team on
1300 11 4357 for advice.
THE COOKTOP IS DIRTY
AFTER COOKING
Please note...
Once it has cooled down, your cooktop
should be cleaned after every use.
Typically you should only ever need to clean
your cooktop with warm soapy water, or light
cleaning products to assist with the removal
of fat or oil emulsions (such as general
cleaning sprays).
After cleaning the burners, you should ensure
they are dried properly before replacing on
the cooktop.
Avoid any harsh scourer pads or steel wool,
as these can scratch the stainless steel.
THE BURNER GOES OUT WHEN
THE KNOB IS RELEASED
Please note...
All InAlto cooktops are fitted with Flame
Failure safety. This cuts the gas when no heat
is detected, and may not have been activated.
Hint: Hold down the knob for five seconds
when lighting a burner to ensure it is properly
engaged.
ONE OF THE BURNERS
HAS AN UNEVEN FLAME
Please check...
That the cooktop has been installed and
assembled correctly and the burner cap is
sitting flat.
That the burners are clean.
Hint: Please ensure the burner parts are dried
properly before replacing on the cooktop.
OPERATION IN CASE
OF EMERGENCY
Please note, in the event of an emergency you
should:
► Switch off all cooktop controls.
► Switch the gas off at the isolation switch or
at the gas meter.
► Call our Support Team on 1300 11 4357.
Please note that if an engineer is asked to attend whilst the product is under warranty and finds that the problem
is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

PAGE 19
INALTO.COM.AU
Purchase Details
For future reference, please record the following
information which can be found on the rating plate and the
date of purchase which can be found on your sales invoice.
The rating plate of your hob is located on the underneath
of the appliance. Therefore please fit the duplicate data
plates or label on the outside of the cupboard to sure that
the label can be easily seen during operation.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
* Your serial number can be found on the underside of the cooktop.
RECEIPT

PAGE 20
USER MANUAL
WARRANTY TERMS & CONDITIONS
BBQ APPLIANCES
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 118 Campbell St, Collingwood VIC, ACN 600 546 656
in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL
and includes a situation when an Appliance cannot
be repaired or it is uneconomic for Residentia Group,
at its discretion, to repair an Appliance during the
Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any non-
excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its
ASR will, at no extra charge if your Appliance is readily
accessible for service, without special equipment
and subject to these terms and conditions, repair or
replace any parts which it considers to be defective.
Residentia Group or its ASR may use remanufactured
parts to repair your Appliance. You agree that any
replaced Appliances or parts become the property
of Residentia Group. This warranty does not apply
to light globes, batteries, filters or similar perishable
parts.
4. Parts and Appliances not supplied by Residentia Group
are not covered by this warranty.
Warranty Information
