Indesit KT6G2M User manual

Free Standing Gas Cooker
Instructions for installation and use
KT6G2W, KT6G2M

PAGE
Introduction 3
For Your Safety 4
Hotplate 6
Grill 8
Main Oven 11
Main Oven Cooking Chart 13
Care and Cleaning 15
Something Wrong with your cooker? 17
Installation Instructions 19
If it Still Won’t Work 27
Service Information Back Cover
2
Contents

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET
CAREFULLY.
Your new cooker is guaranteed and will give lasting service. The guarantee is only
applicable if the cooker has been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a
window or use an extractor fan) and that persons who may be sensitive to the odour
avoid any fumes. It is suggested that any pets be removed from the room until the
smell has ceased. This odour is due to any temporary finish and also any moisture
absorbed by the insulation.
3
Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.
This appliance conforms to the following EEC Directives:
Gas Appliances
90/396/EEC
Low Voltage Equipment
73/23/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC
Introduction

Please read the precautions below before using your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS place the removable heat shield in position at the bottom of the fascia
when using the grill.
ALWAYS after using the grill, allow the removable heat shield to cool down before
removing.
ALWAYS take care when removing items from the top oven/grill when the main
oven is on, as the contents may be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so that
the handles cannot accidentally be caught or knocked or become heated
by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can
cause a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before cleaning or replacing an oven lamp.
ALWAYS refer servicing to CORGI registered appliance service engineers.
4
For your Safety

NEVER . . .
NEVER leave children unsupervised where the cooker is installed as all surfaces will
get hot during and after use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing the
container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker, or in
cabinets immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3full of oil, and never use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or near to the hotplate or oven/grill
doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Always ensure that the kitchen is well
ventilated; keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
In particular when using the grill or more than one hotplate burner, open a window if
a mechanical ventilation device is not operating.
5
For your Safety

The hotplate lid is fitted with a safety device which cuts off the gas supply to the
hotplate burners unless the lid is fully open. Do not use the safety device as a means of
controlling the hotplate burners.
The hotplate has one high speed burner, two normal simmering burners and one small
simmering burner which will accommodate pans between 120mm (43/4") and 260mm
(101/4") diameter. All pans should be positioned centrally over the burners.
When using small pans over small or medium hotplate burners better stability can be
achieved by using the pan support trivet.
TO USE THE HOTPLATE
1. Remove any items or spillage from the top of the lid and then raise it to its
fully open position.
2. Press the ignition button and then push in and turn the control knob of the
chosen burner anti-clockwise to the large flame symbol. Continue to push in
the knob until the sparks light the gas.
3. Turn the control knob anti-clockwise to reduce the heat input.
Only turn the control knob between the large flame symbol and the small
flame symbol when adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol O.
DO NOT use the hotplate unless all pan supports are in position.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid lighting of
the burners every time they are used, the ignitors must be kept clean and dry. Remove

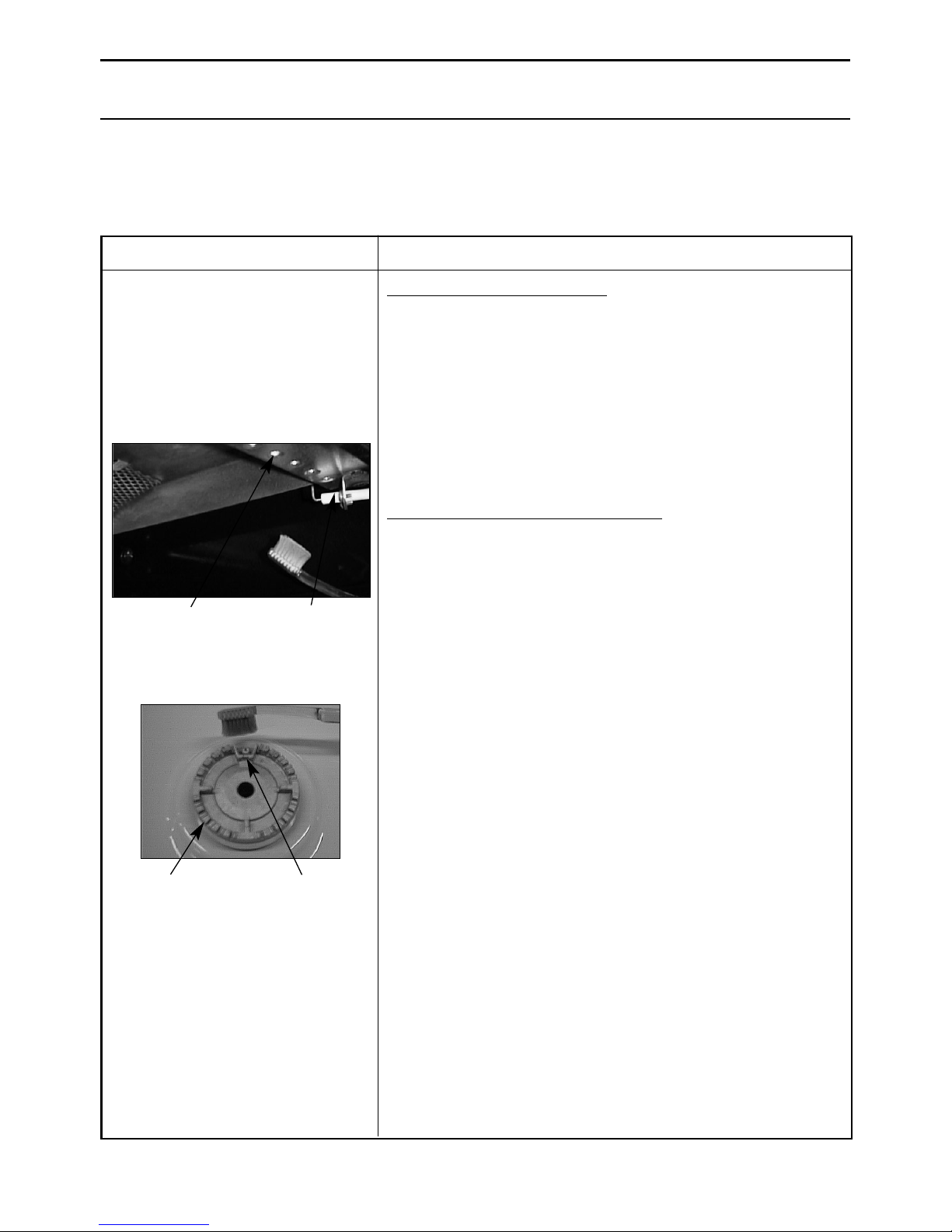

any food spillage or cleaning materials from the ignitor using a small nylon brush such
as a tooth brush. Access to the ignitor can be achieved by lifting off the loose burner
parts carefully when the burners are cool.
When the hotplate burner bodies and caps are removed for cleaning, be careful not to
drop any food particles or cleaning materials into the burner bases, to avoid the
possibility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit may appear on the top edge of the
pan support fingers. See ‘Care and Cleaning’ section for cleaning information.
6
Hotplate

7
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the hot oil
or fat. Frozen foods in particular will cause frothing and spitting if added too
quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the fire.
Do not use water or a fire extinguisher as the force of it may spread the
burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.
Hotplate

8
ABC
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
The grill is fitted with a safety device that will cut off the gas supply to the burner if the
flame is extinguished for any reason. Each time the grill is used, the safety device has
to be activated by pushing and holding in the control knob for 3 seconds after the gas
has lit.
GRILL PAN AND HANDLE

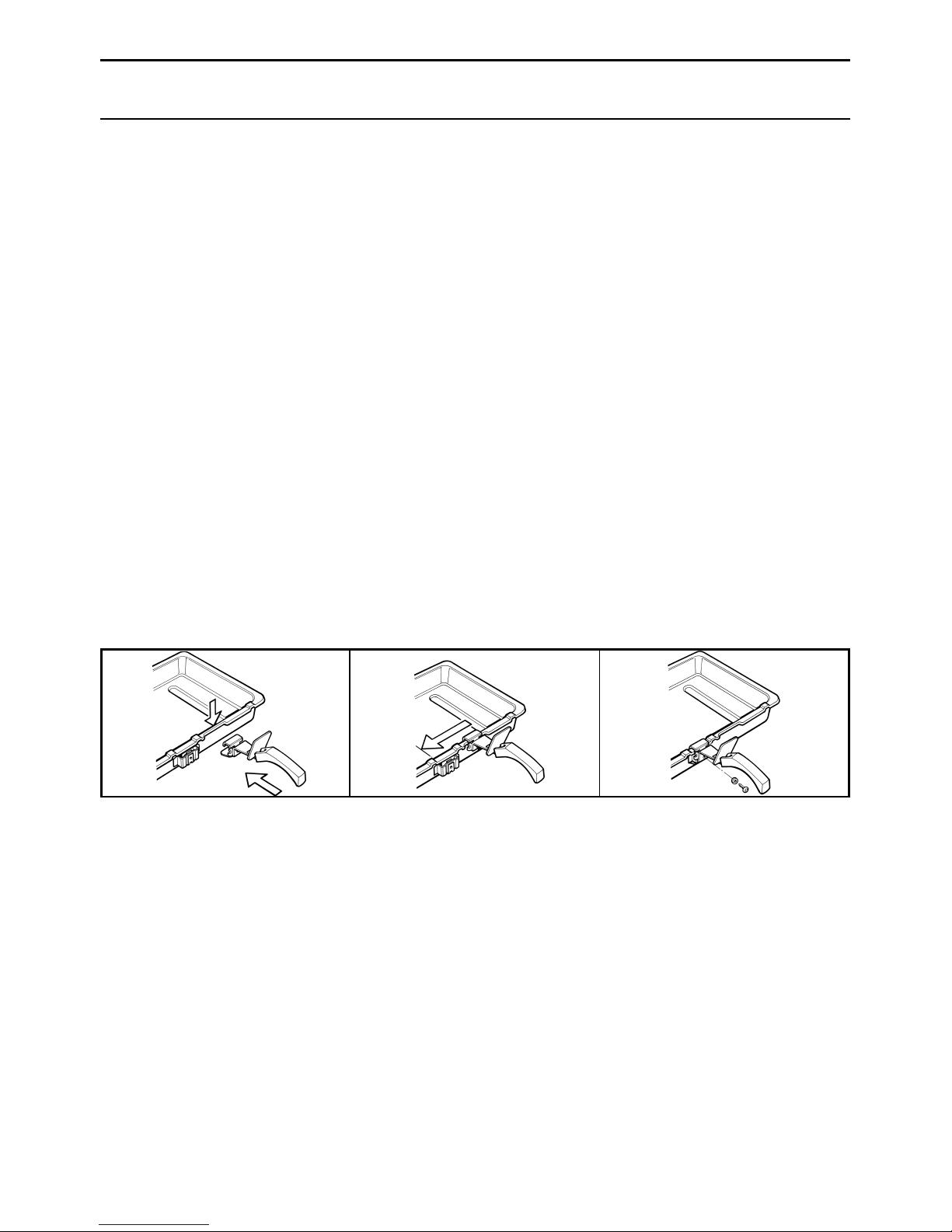

The grill pan handle is detachable from the pan to facilitate cleaning and storage. The
handle can be fixed as follows :
1. Remove the screw and washer from the grill pan bracket.
2. Tilt the handle over the recess. (A)
3. Slide the handle towards the centre of the pan. (B)
4. Locate the handle over the bracket. (C)
For a fixed handle, replace the screw and washer and ensure they are fully tightened.
If a detachable handle is required, do not replace the screw and washer.
Warning : Ensure when using the grill pan handle in the detachable manner it is centralised
and secure.
The grill pan can be stored by placing the grill pan on the base of the compartment.
Grill

9
IMPORTANT: When using the grill, the oven door must be left open. Position the
deflector (B) between the control panel and deflector (A), to prevent the cooker knobs
from overheating.
TO USE THE GRILL
1. Fit deflector (B) as above.
2. Place the grill pan in the appropriate position.
3. Press the ignition button and then push in and turn the control knob to the large
flame symbol. Continue to push in the control knob for at least a further 3 seconds
after the gas has lit, to allow time for the safety device to operate. If the burner
extinguishes when the control knob is released, repeat the procedure ensuring the
control knob is fully depressed and allowing more time for the safety device to
operate.
4. Slide the grill pan towards the rear of the grill compartment until it stops.
5. Turn the control knob to reduce the heat input. Only turn the control knob
between the large flame symbol and the small flame symbol when adjusting the
setting.
6. To turn off, turn the control knob clockwise to the symbol O.
If for any reason the grill burner has not lit after 15 seconds, turn the control knob to
the off position, leave the grill door open and wait for at least a minute before
attempting to light the burner again.
An odour may be noticed when first using the grill – this should cease after a short
period of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat, intensify
the heat and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
(A)
(B)
Grill

Grilling can be started from cold but for best results preheat for approximately two
minutes. Most cooking is done with the heat on full, but it may be desirable to reduce
it for thicker pieces of meat or for keeping food warm.
For au gratin dishes eg. Macaroni Cheese and meringue toppings eg. Baked Alaska,
place the dish on the floor of the grill compartment. The base of the grill pan can be
used for warming fruit garnishes on the reduced setting.
Always ensure that the grill pan handle is correctly fitted to the grill pan.
If necessary tighten any loose screws with a screwdriver.
NOTE: Strong detergents used in dishwashers may damage the grill pan grid finish;
clean in soapy water as described in CARE AND CLEANING section.
10
Grill

The main oven is fitted with a safety device that will cut off the gas supply to the burner
if the flame is extinguished for any reason. Each time the oven is used the safety device
has to be activated by pushing and holding in the control knob for 3 seconds after the
gas has lit.
The oven has different heat zones – the thermostat settings refer to the temperature
on the middle shelf position; above this shelf it is hotter and below it is cooler. Two
shelves provide five possible cooking levels enabling full use of the different
temperatures inside the oven.
Each shelf has a safety stop to prevent if from being pulled out too far when attending
to food. Shelves are removed from the oven by pulling them out to the stop and then
lifting them at the front to withdraw.
The maximum size of baking tray that should be used is 325mm x 350mm (13” x 14”).
TO USE THE MAIN OVEN
1. Place the oven shelves in the appropriate positions (refer to cooking charts).
2. Push in and turn the control knob fully anti-clockwise. Continue to push in the
control knob for at least a further 3 seconds after the gas has lit to allow the
safety device to operate. If the burner extinguishes when the control knob is
released, repeat the procedure ensuring that the control knob is fully depressed
and allowing more time for the safety device to operate.
3. Turn the control knob clockwise to the required setting (refer to cooking chart).
4. To turn off, turn the control knob fully clockwise the the symbol O.
If for any reason the oven burner has not lit after 15 seconds, turn the control knob to
the OFF position. Leave the main oven door open and wait at least 1 minute before
attempting to light the burner again.
Never place dishes over the burner.
An odour may be noticed when first using the oven – this should cease after a short
period of use.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
11
Main Oven

COLD START COOKING
Anything requiring long slow cooking such as casseroles and rich fruit cakes can be
put into a cold oven. Satisfactory results can also be obtained with creamed mixture,
rich pastries or yeast mixtures, but for perfection we recommend preheating the oven
for about 15 minutes at the gas mark you require for cooking.
ROASTING OF LARGE POULTRY
The maximum weight of poultry that can be accommodated is 11.5kg (25 lbs) of
suitable shape.
It is important to check that the bird DOES NOT overhang the burner at the back of the
oven.
STORAGE AND RE-HEATING OF FOOD
It is vitally important to strictly adhere to the basic principles of food handling and
hygiene to prevent the possibility of bacterial growth.
1. If food is to be frozen or not served immediately, cool it in a clean container as
quickly as possible.
2. Completely thaw frozen food in the refrigerator before re-heating.
3. Re-heat food thoroughly and quickly either on the hotplate or in a hot oven, Mk. 6,
and then serve immediately.
4. Only re-heat food once.
‘COOK CHILL’ DISHES
These should always be placed in a pre-heated oven ideally on the first or second shelf
position. Follow the packet instructions for cooking time.
ALUMINIUM FOIL
If using Aluminium Foil:
1. Remember that it is important to increase the cooking time by one third.
2. Never allow the foil to touch the sides of the oven.
3. Never cover the oven interior with foil.
4. Never cover the oven shelves with foil.
12
Main Oven

The following times and setting are for guidance only. You may wish to alter the set-
ting to give a result more to your satisfaction. When a different setting to that shown
below is given in a recipe, the recipe instructions should be followed. Allow 15 minutes
preheat for best results.
Always turn the thermostat knob to Mark 9 first, before turning back to the required
Gas Mark.
Shelf position 1 is the highest.
13
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
STARTERS
Patés and Terrines 3 or 4 4 11/2- 2 hrs
FISH
Oily Fish (whole) 4 or 5 3
White Fish (fillets & steaks) 4 or 5 3 25 - 30 mins.
MEAT AND POULTRY
Veal 5 4 25 mins per lb (450g) + 25 mins
Beef 4 or 5 4 25 - 30 mins per lb (450g) + 25 mins
Ham 5 4
Lamb 5 4 30 - 35 mins per lb (450g) + 30 mins
Pork 5 4 40 mins per lb (450g) + 40 mins
Chicken 5 4 25 mins per lb (450g) + 25 mins
Duckling & gosling 5 4 25 mins per lb (450g) + 25 mins
Turkey 4 or 5 4 or 5 15 - 20 mins per lb (450g) + 20 mins
Game birds 6 4
Casseroles 3 3 or 4 11/2- 6 hrs. (depending on type of meat)
PUDDINGS
Milk Puddings 3 3 or 4
Baked Custard 3 3 or 4 45 mins in bain-marie
Baked sponges 4 3 40 - 50 mins
Baked Apples 3 4
Meringue puddings 1 4 or 5 15 mins or until 'tinged' with brown
Apple Pie 1x9" (230mm) 6 3 45 - 55 mins stand dish on a baking tray
Fruit crumbles 5 or 6 3 35 - 45 mins
25 mins - 1 hr, depending on recipe
and size of fish
40 mins per lb (450g) covered in foil
+ 40 mins per lb (450g) uncovered
50 mins. Remove bacon for last 15 mins.
Add extra 15 mins if roasting brace
21/4- 21/2hrs stand dish on a baking tray and
started with warm milk
30 - 45 mins depending on the size
and type of apples
Main Oven Cooking Chart

14
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small cakes - 2 trays 5 1 & 3 17 - 25 mins
- 1 tray 5 1 or 2 only "
Victoria sandwich 2x8" (205mm) 4 2 & 4 25 - 35 mins
5 2 20 - 25 mins. 2 tins side by side
Christmas cake 2 3 4 - 61/2hrs depending on recipe
Madeira cake 7" (180mm) 4 3 11/4- 11/2hrs
Rich Fruit cake 9" (230mm) 2 3 3 - 31/2hrs.
Shortcrust pastry 6 2 or 3 15 mins - 1 hr depending on recipe
Rich Shortcrust pastry - 1 tray 5 2 20 - 40 mins depending on recipe
Flaky & puff pastry - 2 trays 7 1 & 3 10 - 30 mins depending on recipe
- 1 tray 2 or 3 " " " "
Choux pastry - éclairs 1 tray 6 2 35 - 40 mins
Scones - 2 trays 7 1 & 3 10 - 15 mins
- 1 tray 2 or 3 "
Shortbread - 7" (180mm) round 2 2 or 3 55 - 1hr depending on thickness
Biscuits - 2 trays 4 1 and 3 15 - 20 mins depending on recipe
- 1 tray 2 or 3 " " " "
YEAST MIXTURES
Bread 7 or 8 3 45 - 50 mins
Rolls 7 or 8 2 or 3 15 - 20 mins
Chelsea buns 5 2 or 3 30 - 40 mins
MISCELLANEOUS
Yorkshire Pudding - large 7 2 45 - 50 mins
- individual 7 1 or 2 25 - 30 mins
Soufflés 4 3 30 mins
Meringues
Baked Potatoes 4 or 5 2 or 3 11/2- 3 hrs until soft, depending on size
2 - 5 hrs - turn when necessary.
Fatless sponge 2x7" (180mm) -
3 egg mix
5
When baking with two trays or tins on two levels, the top tray is removed first and the lower tray
moved up to the top position for a few minutes longer.
Soft Margarine – Use the oven settings recommended by the margarine manufacturer and not those
indicated on the cooking chart.
Slow Cook
Main Oven Cooking Chart

Switch off the electricity supply and allow to cool before cleaning the cooker.
Clean the cooker regularly and wipe up spills soon after they occur to prevent
them from becoming burnt on. Never use biological washing powder, caustic
cleaners, harsh abrasives, scouring pads, steam cleaners, aerosol cleaners or oven
chemical cleaners of any kind.
If it is necessary to remove the cooker for cleaning, ensure that it is cool and
beware that it is heavy (approximately 60 kg 132 lbs). To move the cooker forward,
open the top oven/grill door and with both hands positioned under the roof of the
compartment, lift and pull forward. Replace by pushing the cooker backwards. Check
that the cooker is level. Take care not to damage any floor covering.
REPLACEMENT OF OVEN LIGHT BULB
CAUTION: DISCONNECT THE APPLIANCE FROM THE ELECTRICITY SUPPLY BEFORE
REPLACING THE LAMP TO AVOID THE POSSIBILITY OF AN ELECTRIC SHOCK.
Light bulbs are not covered by the manufacturer’s guarantee.
A new 25W, 300˚C rated SES bulb can be obtained from your cooker supplier or any
major electrical retailer.
1. Remove the shelves from the oven.
2. Unscrew the lens using a thick cloth to protect your fingers in the unlikely event
of a lens fracture.
3. Unscrew bulb.
4. Fit new bulb and refit lens.
15
Care and Cleaning

16
COOKER FINISH CLEANING METHOD
Vitreous Enamel
Hotplate, pan supports,
burner caps, roasting dish,
grill pan, main oven base,
inside of grill compartment
Cloth wrung out in warm soapy water. Stubborn
stains can be removed with a cream paste,
liquid cleaner or by rubbing with fine steel wool
soap pads.
Check that the cleaning agent is approved by the
Vitreous Enamel Association.
Paint
Control panel, side panels,
lid front trim.
Wash with a cloth wrung out in warm soapy water
only.
DO NOT USE ABRASIVES.
Aluminium
Hotplate burner bodies,
lid rear trim.
Similar to paint cleaning above. Use a nylon brush to
remove any cleaning materials, water or dirt from
the hotplate burner bodies.
Glass As for enamel cleaning. Polish with a clean dry cloth
or kitchen roll.
Chromium Plating
Oven shelves, grill pan grid,
grill pan handle support
Wipe with a cloth wrung out in warm soapy water.
A fine steel wool soap pad e.g. Brillo, Ajax, or a
chrome or stainless steel cleaner may be used.
Plastic
Grill pan handle, control
knobs
Wipe with a cloth wrung out in warm soapy water.
Stainless Steel (Moonstone)
Control panel, hotplate
Wipe with a cloth wrung out in warm soapy water.
Polish with a clean dry cloth or kitchen towel. For
stubborn stains use a proprietary stainless steel
cleaner and follow the instructions on the container.
Care and Cleaning

17
PROBLEM
Before contacting your Service Centre or Installer, check the problem guide
below, there may be nothing wrong with your cooker.
CHECK
Burner will not light:
Burner ports Ignitor
Burner ports Ignitor
Grill burner
Hotplate burner
If all burners fail to ignite:
Check that sparks appear at the burners; a clicking
noise should be heard.
If not;
Check that the electricity supply is turned on.
If the electricity supply has failed, all burners can be
lit by a match.
If only one burner fails to ignite:
Check that the burner is dry and that spillage of food
or cleaning fluid remains are not affecting the ignitor
or burner ports.
Clean away any debris with a dry nylon brush such as
an old toothbrush. If a wire wool pad has been used
for cleaning around the burner ensure the ignitor is
free from any stray strands. Any water on the burner
should be dried with a cloth or kitchen towel.
On the hotplate make sure that all the burner parts
are correctly seated.
Something Wrong with your Cooker

Oven lamp does not work The oven lamp is not covered by the guarantee.
The part is easily changed (see the section on oven lamp
replacement). A new lamp may be obtained from our
Spare Parts department, see Key Contacts (back page).
18
PROBLEM CHECK
Slight odour or small
amount of smoke when
grill / oven used first
time
This is normal and should cease after a short period.
Oven cooks too fast or too
slow Check that the gas mark and shelf positions are as
recommended in the Oven Cooking Charts. However, it
may be necessary to increase or decrease the
recommended setting slightly to suit your taste.
Something Wrong with your Cooker

Prior to installation, ensure that the local distribution conditions (nature of the gas and
gas pressure) and the adjustment conditions are compatible. The adjustment
conditions for this appliance are stated on the data badge which is fitted on the back
panel.
This appliance is not designed to be connected to a combustion products evacuation
device. It must be installed and connected in accordance with current installation
regulations. particular attention should be given to the relevant requirements
regarding ventilation.
MODEL NUMBERS: KT6G2W,KT6G2M
Category II2H3+ (GB)
These models are set to burn NATURAL GAS (G20) at 20 mbar but can be converted for
use on BUTANE (G30) at 28-30mbar or PROPANE (G31) at 37mbar with the use of the
LPG conversion kit that can be obtained free of charge, if you contact our Genuine
Parts and Accessories department (see Key Contacts, back cover).
GAS SAFETY (INSTALLATION & USE) REGULATIONS
It is the law that all gas appliances are installed by competent persons in accordance
with the current edition of the above regulations. It is in your interest and that of
safety to ensure compliance with the law.
In the UK, CORGI registered installers work to safe standards of practice.
The cooker must also be installed in accordance with BS 6172.
Failure to install the cooker correctly could invalidate the warranty liability claims and
could lead to prosecution.
LOCATION
The cooker may be located in a kitchen, kitchen/diner or a bed-sitting room, but not in
a room containing a bath or shower. The cooker must not be installed in a bed-sitting
room of less than 20m3.
On those models adjusted for use with Butane (G30) or Propane (G31), the cooker
must not be installed in a room or internal space below ground level, e.g. in a basement.
PROVISION FOR VENTILATION
The room containing the cooker should have an air supply in accordance with
BS 5440: Part 2.
The room must have an opening window or equivalent; some rooms may also require
a permanent vent. If the room has a volume between 5 and 10m3, it will require an air
vent of 50cm2effective area unless it has a door which opens directly to outside. If the
room has a volume of less than 5m3, it will require an air vent of 100cm2effective area.
If there are other fuel burning appliances in the same room, BS 5440: Part 2 should be
consulted to determine air vent requirements.
19
Installation Instructions

TECHNICAL DATA
Gas connection Rp 1/2(1/2” BSP female)
Pressure test point Front left hotplate injector
Gas rate adjustment None
Aeration adjustment None
Electrical connection Flexible cord fitted with a 3 pin 13 amp plug
230/240V a.c. 50Hz. 13A fuse.
20
HEAT
INPUT
G20 at 20mbar G30 at 28-30mbar
G31 at 37mbar
BURNER
INJECTOR
2.6 kWGRILL 125
2.5 kWMAIN OVEN 115
3.0 kWHOTPLATE
Front left
116
2.0 kWHOTPLATE
Rear right and rear left
103
HEAT
INPUT INJECTOR
2.6 kW (190g/h) 80
2.3 kW (165g/h) 72
3.0 kW (220g/h) 86
2.0 kW (145g/h) 70
1.1 kWHOTPLATE
Front right 79 1.0 kW (70g/h) 50
Installation Instructions
