Indesit K6G210(X)/G User manual

Model type:
K6G210(X)/G
Commercial code:
F035979

mod.K6G210(X)/G page 2
General notes
Technical Documentation guidelines
----------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------
You can find herewith some generic information to simplify cunsulting of technical documentation:
1. Models of same range share the same exploded views, which report the richest set of spare parts:generally, a model does not
necessarly have a related spare part for each particular shown on exploded views.
2. Some spare parts can not be represented directly on the exploded views (instruction booklets, specific kit, etc...). You can find
those codes in the spare parts list with the same reference of particular where spares are installed or with references 099, 999.
Instruction booklets, once managed, appear with 000 reference.
3. On the higher right site of each exploded view there is a serial number which indicates the beginning of the production of
certain range:some models might have more than an exploded view for a given category, each distinguished by a different serial
no.and linked to another spare parts list, In this case, serial no. is required to supply the right spare part code. Exploded view to be
considered is the one with a more recent serial no. but previous than the one of the model that needs assistance.
4.Exploded views might require further updates even after publishing. Addition of new spares will go on following the already
existing numeration references. Revision number of an exploded view is shown into last four digits of serial number into upper
right hand corner.
5.The spare parts list associated to an exploded view shows related codes of spares managed for a certain model; for each spare
part other informations are available:
REF: reference no of spare into a table; SUBSTITUTE: list of spare(s) which can replace a code but that keeps same functional
characteristics
INDUSTRIAL CODE: list of variables of a model (shown into model label) where such spare is used; NOTICE: code of
information(s) to refer to complete technical intervention, track for changes or to find correct spare part code.
6. Some notices, into a same section are generic therefore cannot be directly linked to a spare part. In order to assist a model in
the best way as possible, it is helpful to pay attention to all notices and constantly verify documentation updates
7.Technical documentation cover shows model name and its commercial codes

mod.K6G210(X)/G page 3
4280170a Exploded views

mod.K6G210(X)/G page 4
4280170a Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
000 C00112528 instruction book gb
002 C00090210 box cover hinge
003 C00033532 reducing grid - pan grids
004 C00052929 burner ring - medium
005 C00052932 burner cap semi rapide
006 C00110497 double pan support
007 C00052931 burner cap rapide (large) black
008 C00052928 burner ring/flame splitter - large
009 C00073878 stainless steel acc.s2000
010 C00052926 burner cup - medium burner
011 C00057740 gas jet ng 106 - small burner
012 C00052940 gas jet 116 ng large burner
013 C00052960 burner fixing screw (stainless
015 C00052925 burner cup - large burner
016 C00110458 gas pipe 4 60x60 piro
017 C00116140 gas pipe - aluminium tube l=480
018 C00090205 bolt m5x15 te
018 C00264392 80302... bolt m4x17.8 tsp esagonale sabaf
019 C00031027 80301... bolt m4
019 C00031028 80301... fixing saddle - gas tap
019 C00088881 fixing saddle - gas tap
019 C00264393 80302... fixing saddle - gas tap sab.
020 C00090011 one way multigas tap 41 copreci
020 C00090013 one way multigas tap 30 copreci
022 C00064142 cross beam mounting plane c60
023 C00115185 side panel right inox 50x60x60
024 C00098794 back panel cooker 60x60 lodz
025 C00115186 side panel left inox 50x60x60
026 C00109682 1 x C00144542 2 ways oven thermostat with
027 C00082729 push in spring clip - thermostat
028 C00092816 1 x C00089624 oven gas pipe - aluminium tube
028 C00092817 oven gas pipe - aluminium tube
029 C00098784 40512... back strut rh/lh c60x60 lodz
029 C00308395 40513... back strut rh/lh c60x60 lodz
031 C00010506 sealing washer - gas elbow/pipe

mod.K6G210(X)/G page 5
4280170a Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
032 C00119341 spark generator + filter uk
033 C00004682 blanking tap 1/2 gas threading
033 C00039858 connection nut distributing pipe
034 C00052927 burner cup - small burner
035 C00066166 nat gas aux. burner nozzle rapido
036 C00052934 electrode clip
037 C00052951 ignition electrode (l=700)
037 C00118496 1 x C00052951 electrode l=520
039 C00064110 rear spacer
040 C00052930 burner base/flame splitter - small
041 C00052933 burner cap auxiliary (small) black
099 C00002478 1 x C00016138 washer 4,1x12x1
099 C00111155 jets kit gn g20 20mbar/g25
099 C00111156 jets kit lpg g30 29mbar/g31
099 C00640366 chain anchorage

mod.K6G210(X)/G page 6
4280230 Exploded views

mod.K6G210(X)/G page 7
4280230 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00118110 mains terminal block
003 C00094418 stop mains supply cable
004 C00082150 support for gas injector body
005 C00002864 injector unit nut
006 C00025772 nat gas grill jet
007 C00025312 injector body
008 C00082332 60508... oven burners complete safety l=
009 C00024387 60508... grill burner deflector
010 C00082400 60508... bracket for thermocouple grill
011 C00099266 60508... spark plugs grill c60x60 lodz
011 C00145040 60509... electrode grill new cast l=500
012 C00051435 60508... stop ring thermocouple
012 C00078735 60508... thermocouple l = 1000 mm
012 C00143490 60509... 1 x C00307855 oven & grill thermocouple
013 C00038802 60508... nut for thermocouple nut m8x1
014 C00099257 1 x C00270919 gas oven insulation mat 60x60
015 C00111305 cavity oven gas c60x60
016 C00011093 deflector washer
016 C00011549 self-tapping screw 8px12,7 tsp-
016 C00112370 knob heat deflector plate
017 C00098802 oven front panel c60x60 lodz
018 C00081579 oven door seal
019 C00098793 1 x C00297712 hinge roller support right 60x60
025 C00098787 base plate c60x60 lodz
025 C00098788 bracket for base plate c60x60 lodz
026 C00016119 1 x C00055585 foot
030 C00081578 oven grid
030 C00099837 dripping-pan grid hotpoint/creda
031 C00099836 1 x C00270220 enamelled grill pan black
032 C00082736 floor gas oven
033 C00082734 60508... 1 x C00143492 oven burner
033 C00143492 60509... 1 x C00307854 oven burners complete new cast
033 C00143493 60509... 1 x C00113993 clip oven burners complete new
034 C00048753 60508... 1 x C00027147 bracket for thermocouple
035 C00082735 60508... 1 x C00140606 electrode

mod.K6G210(X)/G page 8
4280230 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
035 C00143489 60509... spark ignition plug new cast l=520
036 C00028639 60508... thermocouple oven (l=1200mm)
036 C00051435 60508... stop ring thermocouple
036 C00143490 60509... 1 x C00307855 oven & grill thermocouple
037 C00026277 1 x C00259573 gas injector body
038 C00048751 gas jet oven (119) - natural
039 C00082733 holder for gas injector
040 C00098792 1 x C00297711 hinge roller support left 60x60
041 C00099265 heating element protection l=526.4
042 C00044801 1 x C00279613 three-pole cable + plug 2m 3x1 uk
044 C00099258 oven insulation mat - rear 60x60
045 C00076978 oven lamp 25w 220v
046 C00078426 lamp assembly 25 w 230 v
047 C00119339 rear cross beam new s2000
049 C00098800 chimney c60x60 lodz
053 C00099839 handle for drip tray hotpoint/creda
054 C00145041 60509... grill burner complete new cast

mod.K6G210(X)/G page 9

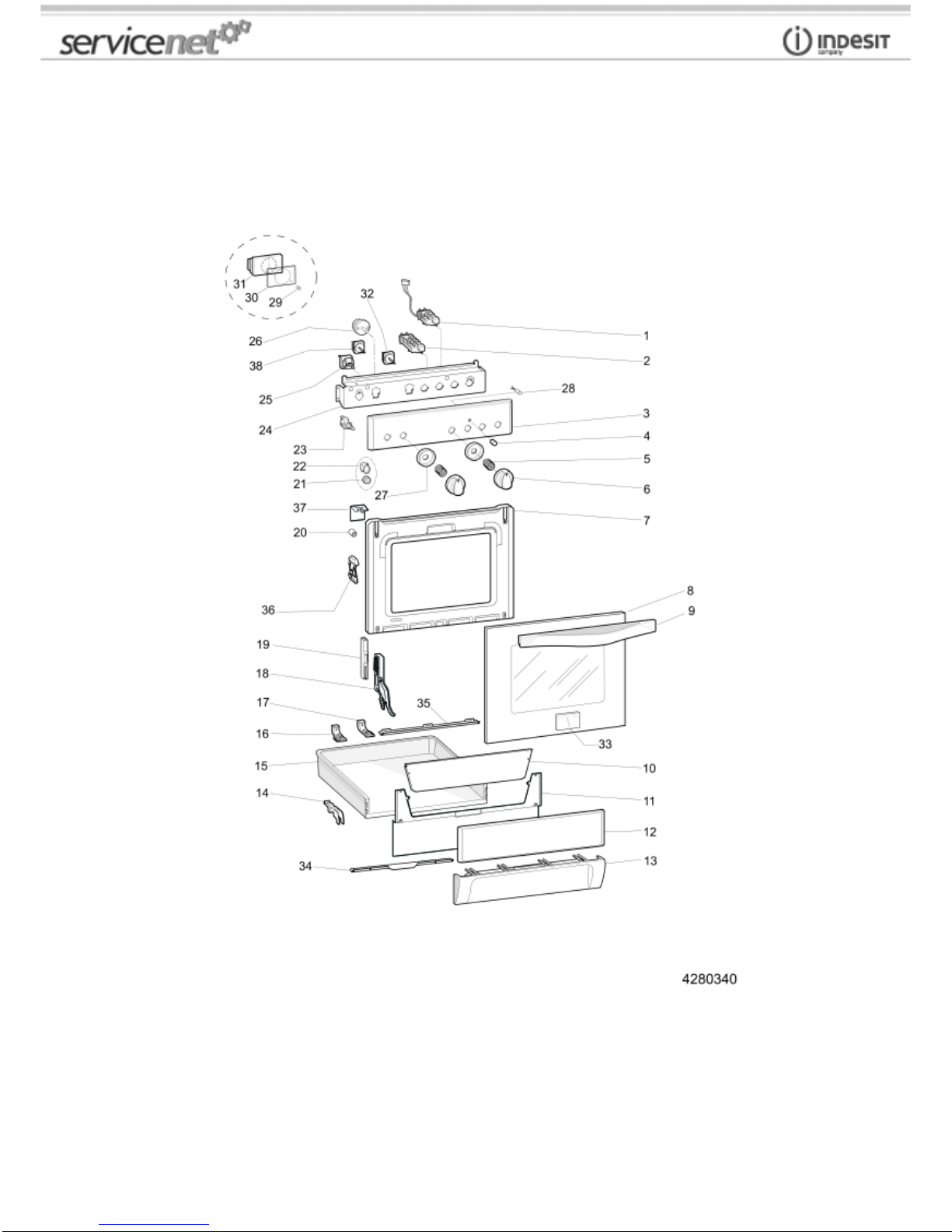

4280340 Exploded views

mod.K6G210(X)/G page 10
4280340 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
003 C00112546 control panel k6g21(x)/g
005 C00016035 control knob disc spring
006 C00111340 timer knob bk ind c60x60 lodz
006 C00111341 burner knob
007 C00099195 oven inner door + inner door
008 C00141520 1 x C00193236 inox oven door 60 ind glass +
009 C00109322 oven door handle black l=593
010 C00098782 20118... warming drawer front 60x60 lodz
011 C00112393 black dishwarmer door support
012 C00111347 dishwarmer door inox c60x60 ind
014 C00139979 front drawer support
015 C00139980 drawer sheet metal c60x60
016 C00098780 drawer support left 60x60
017 C00098779 drawer support right 60x60
018 C00098796 hinge for oven door normal
019 C00033337 hinge support
021 C00111339 cover (ignition switch) - black
022 C00040109 switch support black
023 C00033335 lamp switch (na)
023 C00045793 ignition switch
024 C00099267 controls mounting panel c60x60
026 C00052527 minute timer d = 6mm
027 C00111342 control knob disc - black
099 C00017240 self-tapping screw 8px9,52 t1/2t-

mod.K6G210(X)/G page 11
Notices
n0512g01: INTRODUCED NEW DRAWER
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
n1015156: INTRODUCTION OF CAST GRILL AND OVEN BURNER
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial no. 60509.0001 cookers produced in Lodz relevant to this note have been fitted with a new Cast grill burner and new
oven burner.
The modification involved the introduction of new components that are not individually interchangeable with the premodification
parts.
New parts:
- C00143492 = Cast gas oven burner
- C00143493 = clip for thermocouple / igniter
- C00143490 = thermocouple L=1300 (used for oven and grill)
- C00143489 = oven burner igniter (in models with ignition)
- C00145041 = Cast grill burner
- C00145040 = grill burner igniter (in models with ignition)
Premodification parts:
- C00082734 = gas oven burner
- C00048753 = thermocouple-igniter bracket
- C00028639 = oven burner thermocouple
- C00140606 (ex C00082735) = oven burner igniter (in models with ignition)
- C00082332 = grill burner
- C00024387 = grill burner deflector
- C00082400 = grill igniter - thermocouple bracket
- C00099266 = grill igniter (in models with ignition)
- C00078735 = grill thermocouple

mod.K6G210(X)/G page 12

mod.K6G210(X)/G page 13
Electric schemes and links
Cod. 16001806400

mod.K6G210(X)/G page 14
Legend
Legend: 16001806400
AE Ignition transformer PE Plate electric (Normal and Rapid)
AT Ignition transformer PEL Wall socket
CF Oven commutator PIF Cooking programmer
CP Plate commutator(Normal end Rapid) POT Thermostated potentiometer
CT Plate commutator(Automatic) PT Termoprotector
DC DR Double Knob double crown burner control card PTC Thermostated sensor
EV Electro-Valve RCE Grill heating element ex- ternal
FC End of cooking programmer RCI Grill heating element internal
FRONT Daschboard RE Energy regulator
I/LF OVEN LIGHT SWITCH RF Oven lower heating element
I/LF-MG OVEN LIGHT SWITCH + ROTISSERIE RG Grill heating element
I/MG TURNSPIT SWITCH RG COM Grill heating element un- ion
IL Knobs' Lighting RV Heating element ventilated oven
ILG Lamp switch turnspit SA Boiler operating led
IT Thermostated switch SB Thermostated burner led
L Line (Feed) SF Warning light working
LF Oven light SO Probe temperature
LI Oven light SP Operating Indicator Light for the Plate
M Suction motor handle ST Warning light thermostat
MG Turnspit motor TH Thermostat fixed
MO Terminal board TH2 Thermostated burner cooling
MUFF Oven THR Adjustable thermostat
MV Fan motor TP Termoprotector
N Neutral (Feed) TRAV Support terminal board
PA Ignition push-button TRM Thermostated burner control card
