Introduction
PartI

2 - Multi Connectivity Box
Introduction
Introduction
The Multi Connectivity Box let's you turn on and check the status of up to four devices. Not only that, it will also enable you,
using KUARIO, to make those devices (or their services) authenticable and payable. So consider to leave those key and/or
coin services behind and enhance your device park with our Multi Connectivity Box!
Kind regards,
The inepro team

Installation
PartII

4 - Multi Connectivity Box
Installation
Hardware
Communication
The communication with the I/O Module uses 38400 BAUD 8n1, no parity. The address = 0x82.
In the I/O module DIP switch 1 is (and must be) set to ON.
In this example Output 1 &2 and Input 1 & 2 are connected.
Note: This application can only use a single I/O module, it can not be used in a chain with multiple I/O
modules!

5
Hardware

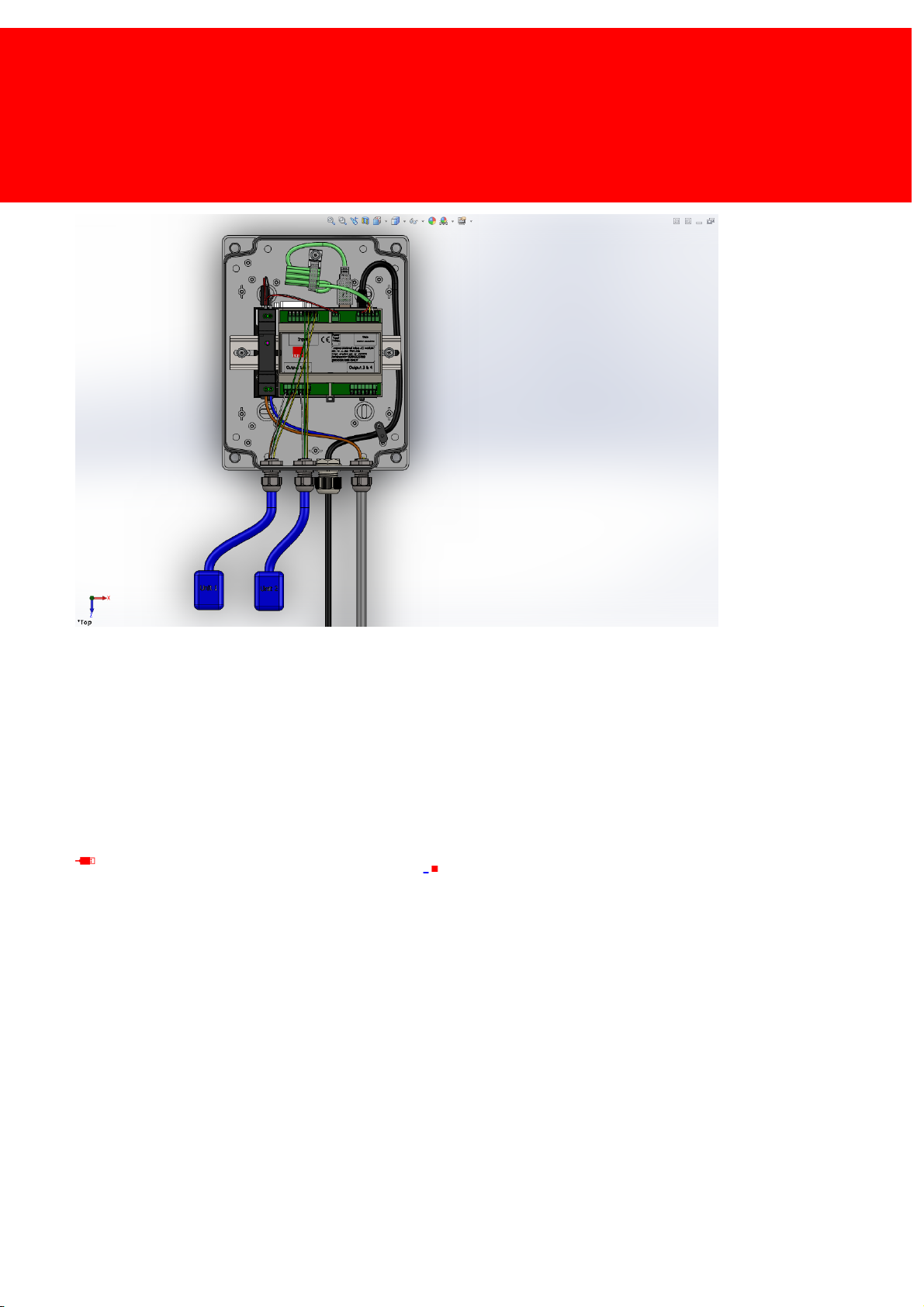

Customer uses the 4 glands that are together for the 4 inputs and outputs, each gland equals 1 relay + feedback.
Customer uses 1 gland (with big grey cable) in addition to the network cable (black cable) to supply the 220V voltage.
The input (green & Yellow wire) can be used (you must short the two wires) to indicate to the SmartConnector that the
device (for example the washing machine) is in use.
In that case usage is prevented and no pulse will be send.
The output (Brown and white wire) are connected in the lower-left corner. These signal the device with a pulse to start
running.
Read more about 'Connection to I/O modules' in this chapter:
Appendix I: Connection to I/O modules on page:

Appendices
PartIII

8 - Multi Connectivity Box
Appendices

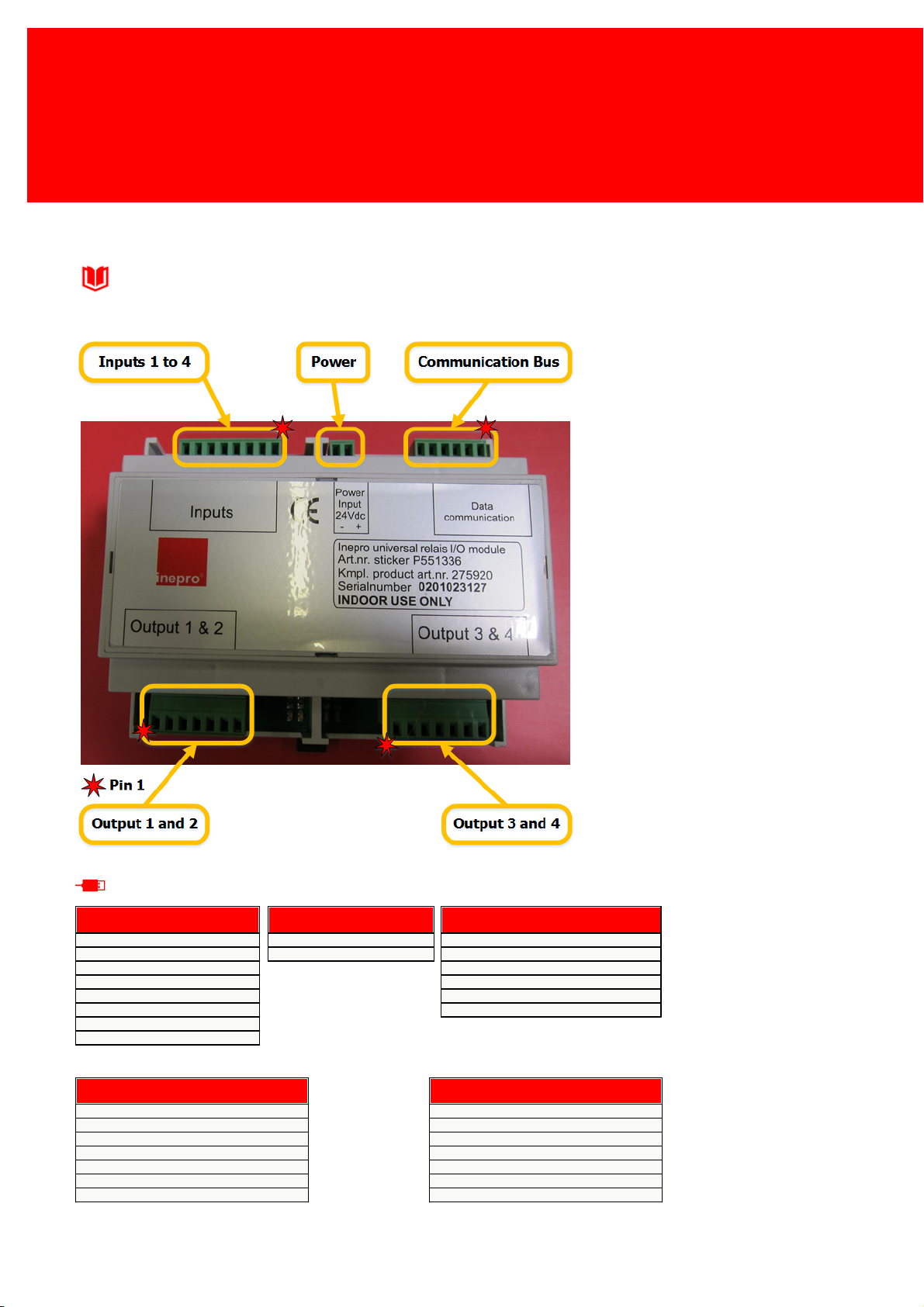

Appendix I: Connection to I/O modules
Pin assignment
Input 1 through 4
Sauro CT F0800T
Pin 1 = input 1 +
Pin 2 = input 1 -
Pin 3 = input 2 +
Pin 4 = input 2 -
Pin 5 = input 3 +
Pin 6 = input 3 -
Pin 7 = input 4 +
Pin 8 = input 4 -
Power
Sauro CT F02008
Pin 1 = + 12 - 36 V DC
Pin 2 = 0 V DC
Communication bus
Sauro CT F06008
Pin 1 = not connected
Pin 2 = Tx+
Pin 3 = Tx-
Pin 4 = Rx+
Pin 5 = Rx-
Pin 6 = bus ground (shield cable)
Output 1 and 2
Sauro CT F040M7
Pin 1 = relais 1 (3) Common
Pin 2 = not connected
Pin 3 = relais 1 (3) Normally Open
Pin 4 = not connected
Pin 5 = relais 2 (4) Common
Pin 6 = not connected
Pin 7 = relais 2 (4) Normally Open
Output 3 and 4
Sauro CT F040M7
Pin 1 = relais 1 (3) Common
Pin 2 = not connected
Pin 3 = relais 1 (3) Normally Open
Pin 4 = not connected
Pin 5 = relais 2 (4) Common
Pin 6 = not connected
Pin 7 = relais 2 (4) Normally Open

9
Appendix I: Connection to I/O modules
Inputs
How to use the inputs: By short-circuiting the input 1 +with the input 1 - the status of input 1 has been changed. The input
triggers when the current is or exceeds 0,6 mA. The maximum current can be 1,5 mA. The maximum resistance in a field
cable is 4 Kilo ohms. The open voltage on the pins is 5 Volts. Lengthy field cables are susceptible to interference. When long
cables are necessary, twisted pair cable is recommended.

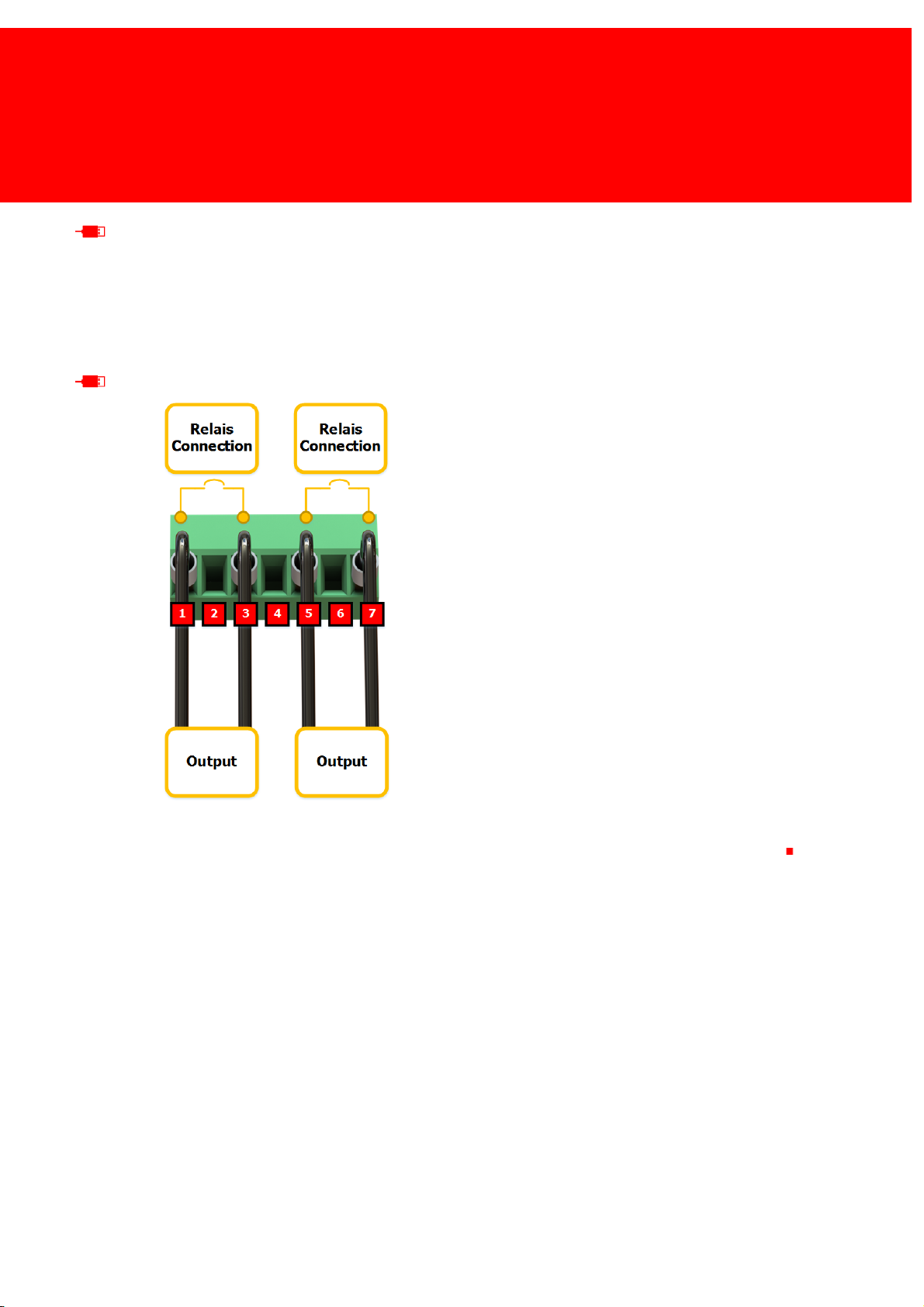

Outputs
The connections on the relay outputs. The relays will short-circuit the output when the relay is 'closed'. The relays are set to
give a pulse not a signal, that is the relay will close for a short while and open again (this a called a pulse)
