infaco L850B User manual

User instructions
The specific translations of these user manuals
Are available on www.infaco.com/downloads/user-manuals/
Li-ion battery L850B
Original user guide - US

Compatible tools
Precautions before use
Personal protection equipment
Protection of the environment
General product view
Specifications
User guide
Commissioning
User interface
Precautions for use and safety
Battery charging
Storage conditions
Safety instruction
Warranty conditions
Advice
Form to be returned on purchase of the tool
Technical information
CE declaration of conformity
4
5
5
5
6
8
9
10
11
13
14
16
17
19
20
21
23
24
contents

4
L856CC
L850B cable - 3 studs
Shears
F3005
F3010
F3015
Shear
poles
P8T120
P8T210
Olive
harvester
E50048
Powercoup
PW2
Powercoup
PW3
compatible tools

5
WARNING. Read all the safety warnings and all the instructions. Failure
to follow the warnings and instructions can lead to an electric shock, a fire and/
or serious injury.
Keep all the warnings and instructions for future use. The term “tools” in the warnings
refers to your battery powered electric tool (with power cord), or your tool operating on a
battery (without power cord).
Follow specific national regulations when disposing of waste.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling center.
>Ask the approved INFACO dealer for up-to-date information on the eco-
compatible elimination of waste.
Read the user instructions carefully and more particularly the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection, using cut-protection work gloves.
Foot protection using safety footwear.
Face protection using a face shield
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use near sources of
electricity or power lines.
IMPORTANT! Do not approach any part of the body to the blade. Do not remove the cut
material or hold the material to be cut when the blades are moving.
10m
PRECAUTIONS BEFORE USE
protection of the environment
Personal protection
equipment

6
140°F
-4°F
Case
2A charger
Mains power cord Manual
Vest Battery
Adjustable straps Battery attachments
Stomach straps
Connector
Interface
Serial
number
Clips
general product view

7
104°F
IP41
32°F
Light indicator Battery connector
Mains connector
Charger connector
>L852C1 (220Vac)
> L852C1 (220Vac)
> L852C1 (220Vac)
> L852C1 (220Vac)
> L852C2 (110Vac)
> L852C1 (220Vac)
> L852C2 (110Vac)
> 742FR (220Vac)
> 74AR (220Vac)
> 742AU (220Vac)
>742EN(220Vac)
>742JP(110Vac)
> 742KO (220Vac)
> 742US (110Vac)
Argentina
Australia
RU
Japan
North Korea
USA Canada Colombia Costa Rica
Mexico Peru Salvador
NZ
Cyprus
China

8
It is imperative to carefully read this user manual before handling the tool. And to strictly
follow the use and safety rules.
On first use, we strongly recommend asking for the assistance of your dealer who is
authorized yo give you all the advice for correct use and good output.
Reference L850B
Rated voltage 46.8V
Capacity 17.5Ah
Energy 820Wh
Battery pack only weight 4.1 Kg
Battery pack + vest weight 4.8 Kg
Charging time 10h at 2A
Charger power
voltage
L852C1 > 240VAC/50-60Hz
L852C2 > 100/240VAC/50-60Hz
Max charging voltage 54.6VDC
Max charge current 5A
specifications

9
Pass the straps
under the battery clip.
Fold the battery onto the vest
and clip the battery.
Then tighten the straps and fold
them onto the hook and loop.
Pull the straps and pass them
through the vest openings.
User guide

10
Before first use you must carry out a full battery charging cycle, see the “BATTERY
CHARGING” section on PAGE17
When the cable is connected, the battery becomes active, the interface lights and indicates
the remaining capacity and the battery status. After 4 hours without battery use (no
charging or discharging), the battery automatically switches to standby mode, the interface
turns off.
Read the INFACO manual for the tool being used before connecting the other end of the
accessory cable.
Battery connector
Accessory cable
Stomach strap
Adjustable strap
Adjustable strap
commissioning

11

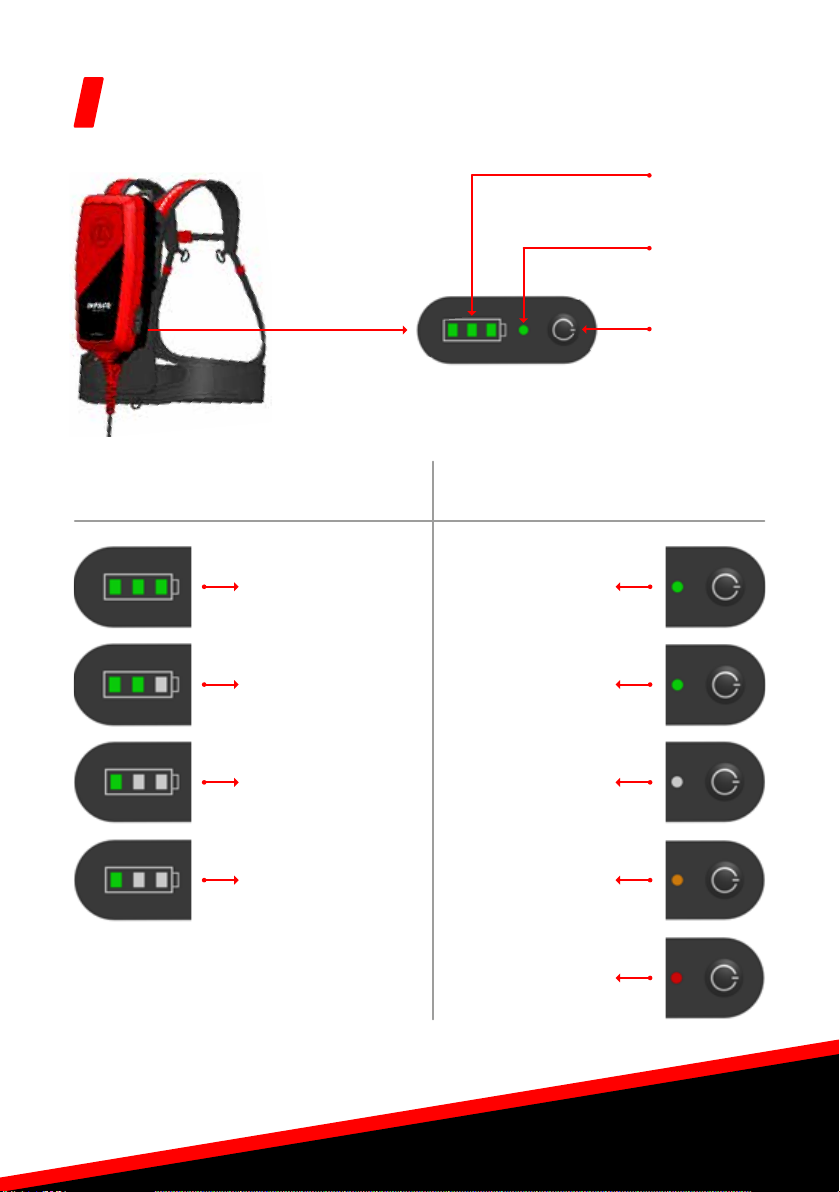

Activation
button
Status
indicator
Bar graph
Battery level
> 60%
Battery
in service
Battery level
< 60%
Battery
charging
Battery level
< 30%
Battery
in standby
mode
Battery level
Empty
Battery
in thermal
safety mode
Battery
fault or in
safety mode
flashing
flashing
BAR GRAPH STATUS INDICATOR
user interface

12

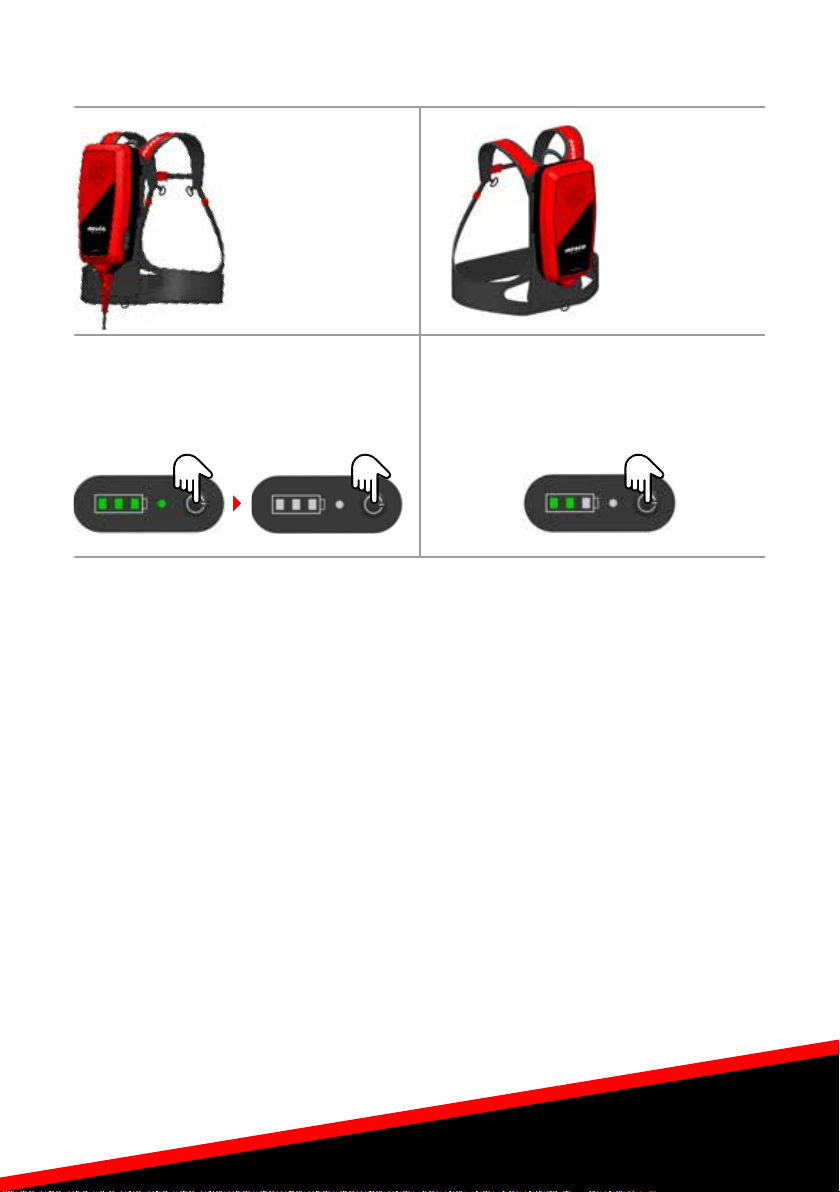

ACTIVATION BUTTON FUNCTION
When an
accessory cable
is connected.
When no
accessory cable
is connected.
A 1 second press:
- Activates the battery charge level display
for 5 seconds
A 1 second press:
- Re-commissions the battery after a
period without activity.
A 1 second press:
- Forces the battery to standby mode/stop.
* If the battery suffers a fault, the accessory cable must be disconnected from the battery
socket to reinitialize. If the fault is still visible after further use, it is imperative to stop using
the battery and contact an approved INFACO dealer.

13
The L850B battery is exclusively reserved for powering tools manufactured and marketed
by INFACO. The L850B battery is used to power the Powercoup range, the Electrocoup
F3005, F3010, F3015 shears and the shear poles, Electroliv 48V, Electroflor, the
A48v3 sharpening tool. Before using one of those tools, carefully read its user manual
and follow the use and safety instructions.
Before starting a day’s work, make sure your battery has charged for at least
8 hours.
Make sure the plastic battery protection box is not cracked and does not seem to have
suffered impacts or other aggressions.
During work, it is normal for the battery temperature to increase (as well as when charging).
Discharge limit operating temperature -4F to 140°F and charge from 32 to 104°F.
Use outside these temperature ranges can reduce battery service life or capacity. In
cases of excessive use a heat production threshold can block battery use. Wait for
the temperature to return within the normal use range to restart working
For any handling outside device operations, disconnect the accessory cable from
the battery. Keep the battery on the back for short operations, otherwise place the
battery away from impacts and the elements.
Do not leave the battery on the ground and do not expose it to the elements.
Precautions for use
and safety

14
104°F
IP41
32°F
The battery must only be charged using the Li-ion
charger supplied by INFACO, which must connected
as indicated below
The charger must be stored and only used indoors in a dry location protected from the
elements.
The battery can stay fixed to its vest during charging but make sure nothing prevents it
from cooling.
Do not wear the battery when it is connected to its charger.
Do not force the plugs to connect or disconnect them.
The status LED should flash when the battery is charging.
1
3
2
battery charging

15
10 HOURS
Orange indicator: battery charging
Capacity less than 90%
Yellow indicator: battery charging
Capacity greater than 90%
Green indicator: battery charged
Capacity at 100%
When the battery is charged, disconnect the charger plug from the battery. It is advisable
to disconnect the charger mains plug to avoid any damage due to possible overloading on
your grid.
If your charger indicators do not light, leave your battery connected and at the same time,
disconnect and reconnect your charger mains plug until the indicator lights.
LEAVING THE BATTERY TO CHARGE FOR MORE THAN 24 HOURS IS NOT
RECOMMENDED.

16

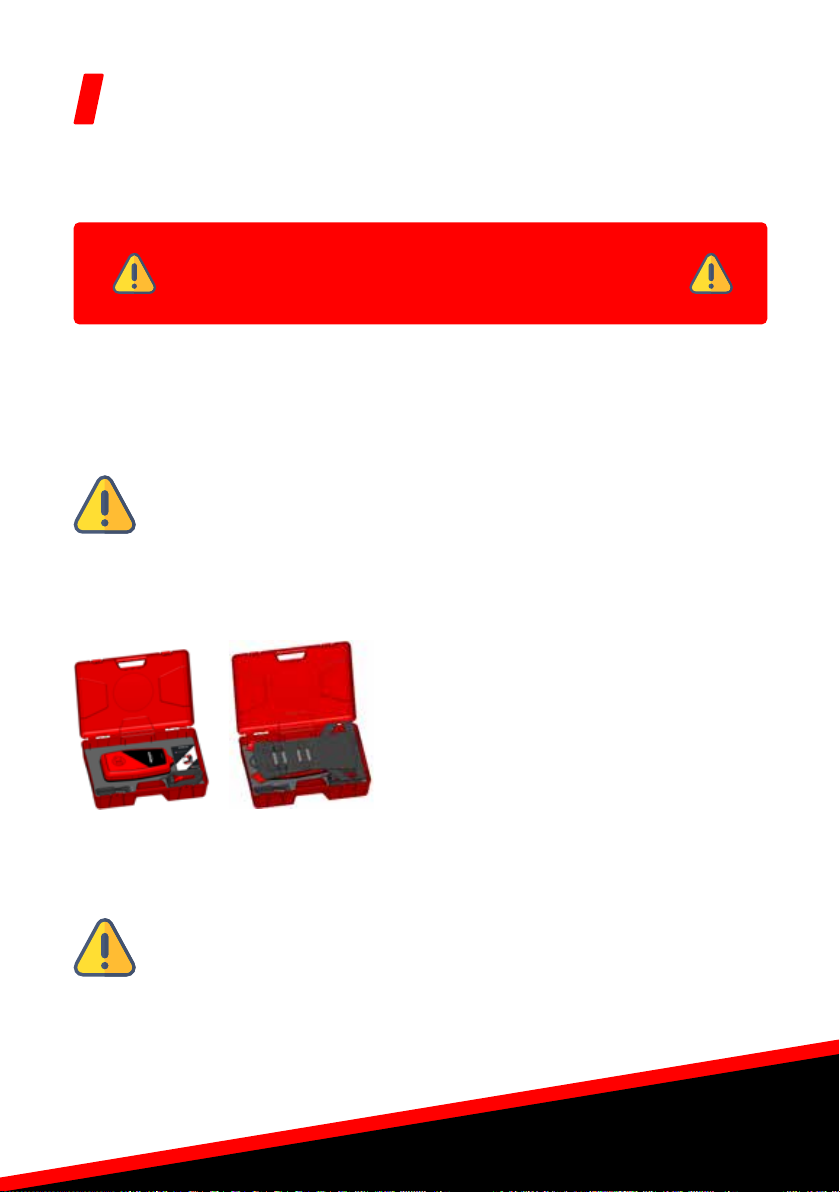

Store the battery and charger in a well ventilated location, away from flammable products,
ignition or heat sources and out of the reach of children.
OBLIGATION TO USE THIS PACKAGING FOR ALL RETURNS TO THE
FACTORY.
For factory returns, it is imperative to use the packaging as it was when it
came out of the INFACO factory:
You can request assistance from your dealer
who is authorized to give you all the proper
packaging advice.
Do not store batteries that are out of order, return them to your approved INFACO dealer
or directly to INFACO.
Do not store the battery with a connected cable.
Do not store the battery plugged into the mains.
Do not store the battery empty.
Charge the battery before inter-seasonal storage.
Do not store the battery for more than 1 year without recharging it.
The INFACO L850B battery is subject to specific transport regulations. For
returns to the customer service, refer to the mandatory UN3480 standard
rules.
storage instructions

17
WARNING. Read all the safety warnings and all the instructions. Failure to follow the
warnings and instructions can lead to an electric shock, a fire and/or serious injury.
Keep all the warnings and instructions for future use.
Never attempt to open the battery for any reason
Do not carry out mechanical alterations to the battery, the vest, the charger or the
connections
Never place the battery or charger in direct contact with water
Never wear the battery on the back when it is charging
Never expose the battery or charger to high temperatures (sun, heating, etc.) >140°F
Never charge the battery at temperatures below 32°F or higher than 113°F
Never charge the battery near flammable or explosive materials (fuel, gas, nitrogen fertilizer, etc.)
Do not leave to charge for extended periods without supervision
Do not attempt to power a tool other than those indicated in the use rules
Do not use the charger for batteries other than the Li-ion batteries marketed by INFACO.
Do not use another charger than the Li-ion charger supplied by INFACO to charge the
Li-ion battery.
Do not use or charge the battery if the plastic protection box is cracked, and/or warped,
and/or seems to have suffered an impact or any other aggression.
Do not use the battery or charger if abnormal smells or smoke are released.
Do not inhale the abnormal smells or smoke and immediately place the battery or charger
in a zone clear of any flammable materials (outside) and all persons must stay at a safety
distance of 3 meters from the defective tool.
Do not mishandle the cord. Never use the cord to carry, pull or disconnect the tool. Keep
the cord away from heat, lubricant, sharp edges or moving parts. Damaged or tangled
cords increase electric shock risks.
safety instructions

18
Never carry the charger by its cord and do not pull on it to disconnect it from the wall
outlet. Protect the cord from heat, oil and sharp edges.
If your charger’s or battery’s power cord is damaged, it is mandatory to have it replaced by
an original cord or unit from the INFACO factory or an approved INFACO dealer.
Do not leave the battery or charger in reach of children or visitors. Children should be
supervised to make sure they do not play with the tool.
The tool is not designed for use by people (including children) who have reduced physical,
sensory or mental capacities, or people without experience or knowledge, unless they have
benefited from prior instructions on the use of the tool or supervision by a person in charge
of their safety.

19
Your tool has a two year warranty for manufacturing defects or faults.
- damage due to incorrect or lack of maintenance,
- damage due to incorrect use,
- wear parts,
- tools that have been taken apart by unauthorized repairers,
- external factors (fire, flooding, lightning strikes, etc.),
- impacts and their consequences,
- tools used with a battery or charger other than those of the INFACO brand.
The warranty is only applicable when the warranty has been registered with
INFACO (warranty card or online declaration on www.infaco.com).
If the warranty declaration was not made when the tool was purchased, the
factory departure date will be used as the warranty start date.
The warranty covers factory labor but not necessarily dealer labor. The repair
or replacement during the warranty period does not extend or renew the initial
warranty.
- Tool still under warranty, send it to us carriage paid and we will pay the return.
- Tool no longer under warranty, send it to us carriage paid and the return will be
at your expense by cash on delivery. If the repair cost exceeds € 80 before tax,
you will be sent a quote.
The warranty applies to the normal use of the tool and does not cover:
To avoid disputes, please read the following procedure:
All failings regarding the storage and safety instructions will void the manufacturer’s
warranty.
The warranty cannot entitle to compensation for:
The possible immobilization of the tool during repairs.
All work carried out by a person other than approved INFACO agents will cancel the tool
warranty.
The repair or replacement during the warranty period does not extend or renew the initial
warranty.
We strongly recommend INFACO tool users to contact the dealer that sold them the tool in
the event of a failure.
warranty conditions

20
Keep your work zone tidy. Clutter in work zones increases accident risks.
Take into account the work zone. Do not expose power tools to rain. Do not use power
tools in damp or wet environments. Make sure the work area is properly lit. Do not use
power tools if there are flammable liquids or gases nearby.
Protect yourselves from electric shocks. Avoid bodily contact with grounded surfaces
such as the battery charger, electric multi-plugs, etc.
Keep children at a distance! Do not allow anyone else to touch the tool or power cord.
Keep people away from your work zone.
Store your tools in a safe location. Tools that are not in use must be stored in a dry,
closed location, in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose clothing or jewelry. It could get caught
up in the moving parts. When working outside, it is recommended to wear rubber gloves
and footwear with non-slip soles. If you have long hair, wear a hair covering.
Wear protective eye-wear. Also use a mask if the work generates dust.
Protect the power cable. Never carry the tool by its cord and do not pull on it to discon-
nect it from the socket. Protect the cord from heat, oil and sharp edges.
Service your tools carefully. Regularly check the condition of the plug and the power
cord and, if they are damaged, have them replaced by a recognized specialist. Keep your
tool dry and free of oil.
Remove the tool keys. Before starting up the tool, make sure the keys and adjustment
tools have been removed.
Check your tool for damage. Before reusing the tool, carefully check that the safety
systems are in perfect working order and check for slightly damaged parts.
Have your tool repaired by a specialist. This tool is compliant with applicable safety
rules. All repairs must be made by a specialist and only using original parts, otherwise users
can be exposed to serious safety risks.
Advice

Part to be kept by the dealer.
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON :
www.infaco.com, your warranty declaration or send this form filled out IN BLOCK CAPITALS AS
SOON AS THE TOOL IS PURCHASED.
Serial number > ................................................. Ref > ......................................................
Name > .............................................................................................................................
First name > ......................................................................................................................
Company name > .............................................................................................................
Full address > ....................................................................................................................
..........................................................................................................................................
City > ...............................................................................................................................
Zip code > ...........................................................
Phone number > .................................................
Purchase date > ............... / ............... / ..............
Remarks > ...........................................................
Name > .................................................. First name > ......................................................
Company name > .............................................................................................................
Full address > ....................................................................................................................
..........................................................................................................................................
City > .......................................................................... Zip code > ....................................
Phone number > ..............................................
Email > ............................................................
Purchase date > .............. / .............. / .............
Serial number Ref > .....................................
Remarks > ................................................
customer signature
Arboriculture
Oil production
Wine growing
Parks and gardens
Dealer's stamp
>
Dealer part
To be returned to infaco
