infaco POWERCOUP SC160 User manual

Assembly instructions SC160
All manuals and user guides at all-guides.com
all-guides.com

3
All manuals and user guides at all-guides.com

SAFETY INSTRUCTIONS ______________________________________________ 5
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 5
ENVIRONMENTAL PROTECTION ______________________________________ 5
GENERAL OVERVIEW ________________________________________________ 6
CHARACTERISTICS __________________________________________________ 6
VIEWS OF ACCESSORIES _____________________________________________ 6
USER’S MANUAL____________________________________________________ 7
INSTALLATION AND POWER CONNECTION ___________________________________________7
USING THE MACHINE _______________________________________________________ 7-8
USING WITH EXTENSION POLE _________________________________________________________ 9
CLEARANCE ADJUSTMENT _________________________________________________________ 10
WEEKLY GREASING ________________________________________________________________ 10
SAFETY PRECAUTIONS ______________________________________________________________ 11
CARE AND MAINTENANCE __________________________________________ 12
CARE – CHANGING THE BLADE ___________________________________________________ 13-14
CARE - BLADE ADJUSTMENT _________________________________________________________ 15
CARE – CLEANING AND GREASING ____________________________________________________ 16
SAFETY INSTRUCTIONS ____________________________________________ 17
WARRANTY CONDITIONS __________________________________________ 17

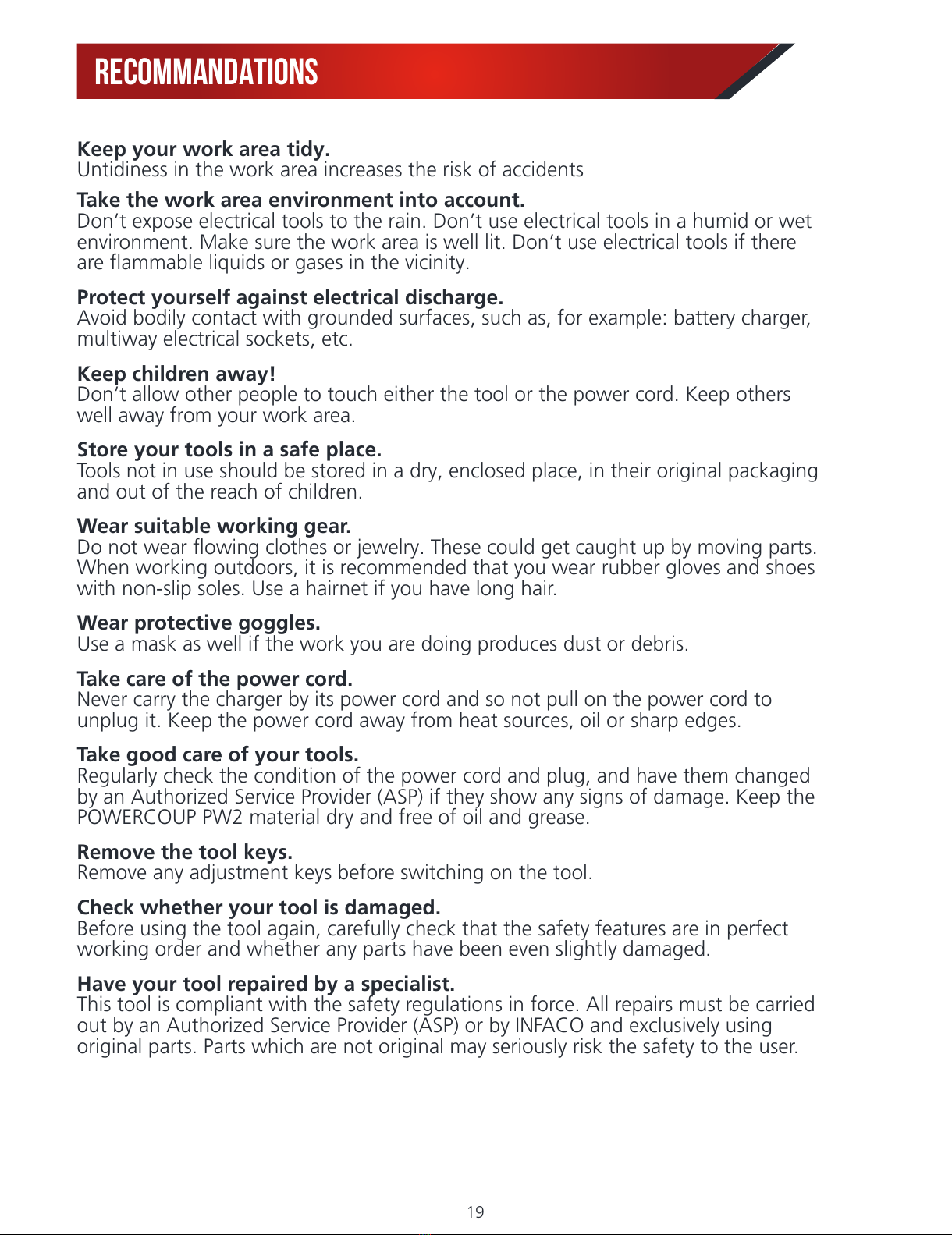

RECOMMANDATIONS ______________________________________________ 18

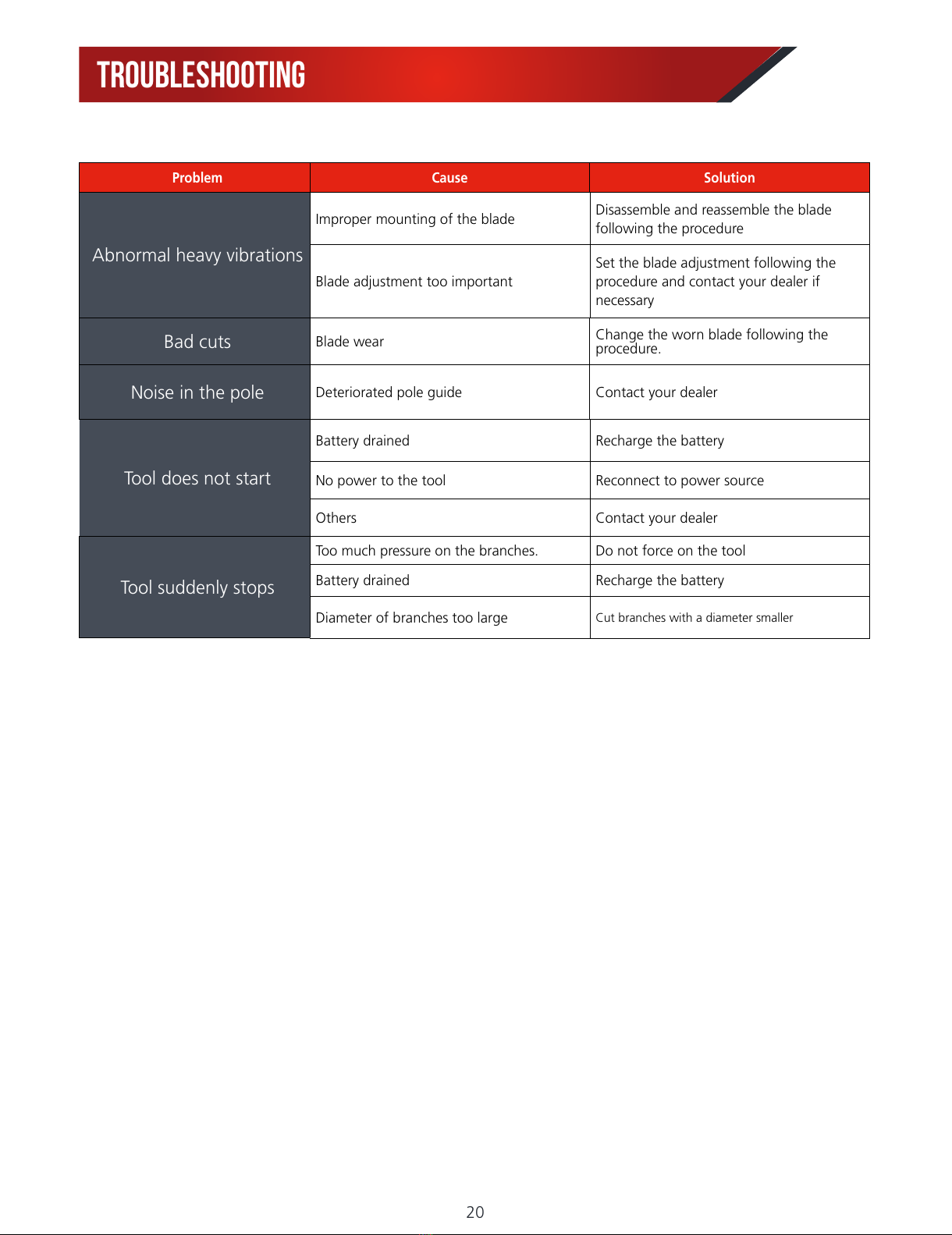

TROUBLESHOOTING________________________________________________ 19
WARRANTY CARD _________________________________________________ 20
EQUIPMENT MANUFACTURED IN FRANCE ____________________________ 25
DECLARATION OF CONFORMITY (CE) ________________________________ 26

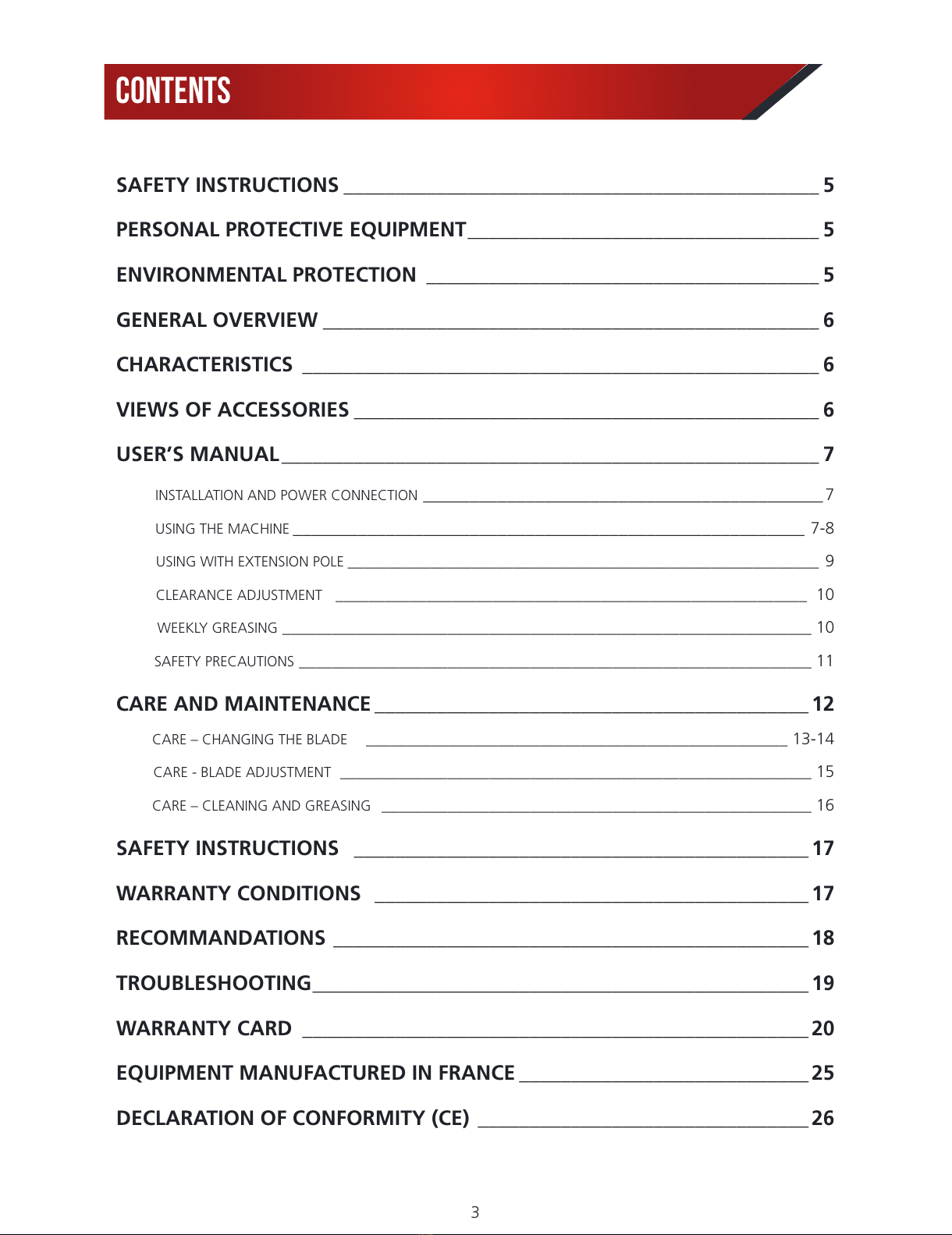

Contents
3
All manuals and user guides at all-guides.com

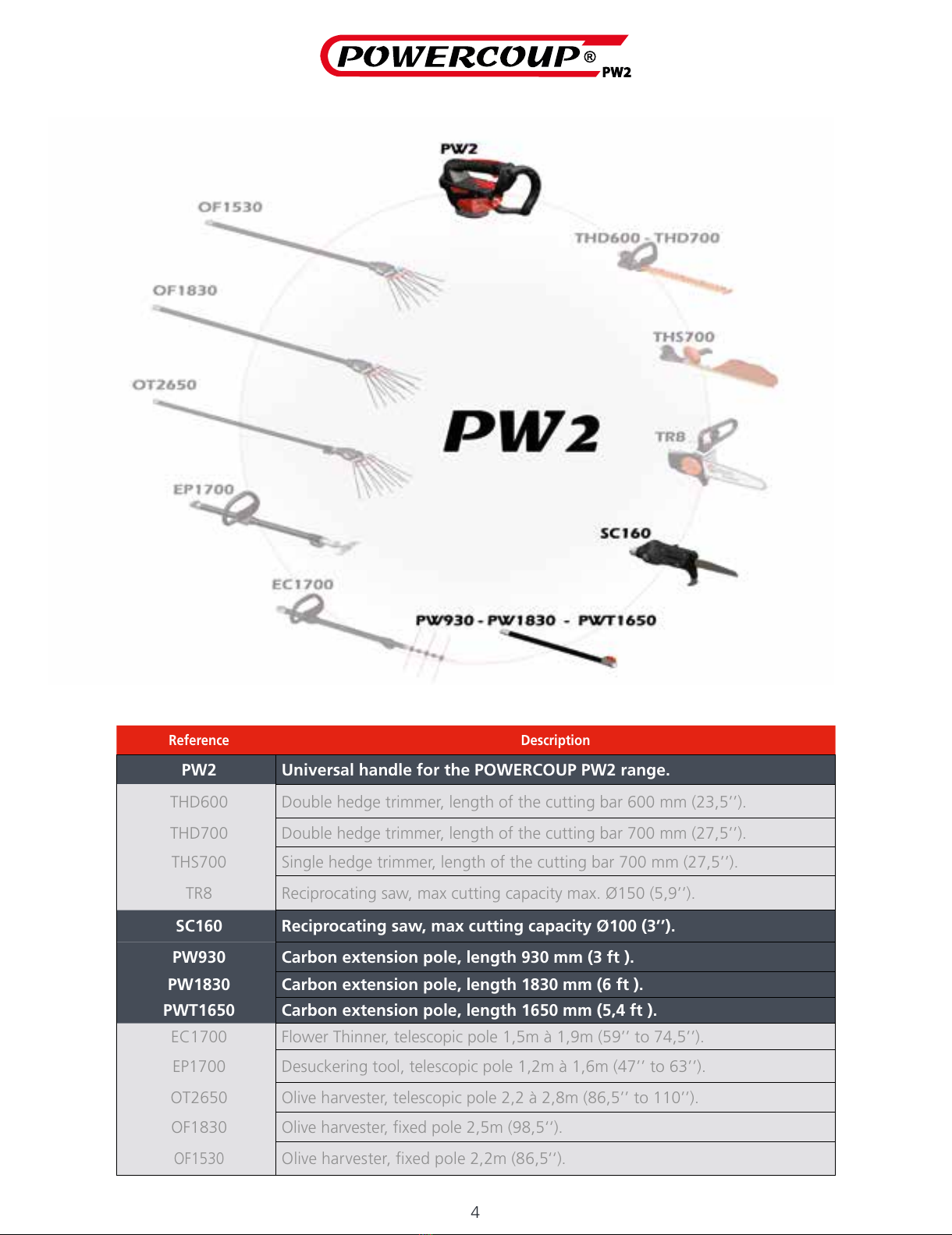

Reference Description
PW2 Universal handle for the POWERCOUP PW2 range.
THD600 Double hedge trimmer, length of the cutting bar 600 mm (23,5’’).
THD700 Double hedge trimmer, length of the cutting bar 700 mm (27,5’’).
THS700 Single hedge trimmer, length of the cutting bar 700 mm (27,5’’).
TR8 Reciprocating saw, max cutting capacity max. Ø150 (5,9’’).
SC160 Reciprocating saw, max cutting capacity Ø100 (3’’).
PW930 Carbon extension pole, length 930 mm (3 ft ).
PW1830 Carbon extension pole, length 1830 mm (6 ft ).
PWT1650 Carbon extension pole, length 1650 mm (5,4 ft ).
EC1700 Flower Thinner, telescopic pole 1,5m à 1,9m (59’’ to 74,5’’).
EP1700 Desuckering tool, telescopic pole 1,2m à 1,6m (47’’ to 63’’).
OT2650 Olive harvester, telescopic pole 2,2 à 2,8m (86,5’’ to 110’’).
OF1830 Olive harvester, fixed pole 2,5m (98,5‘‘).
OF1530 Olive harvester, fixed pole 2,2m (86,5‘‘).
4
5
All manuals and user guides at all-guides.com

Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).

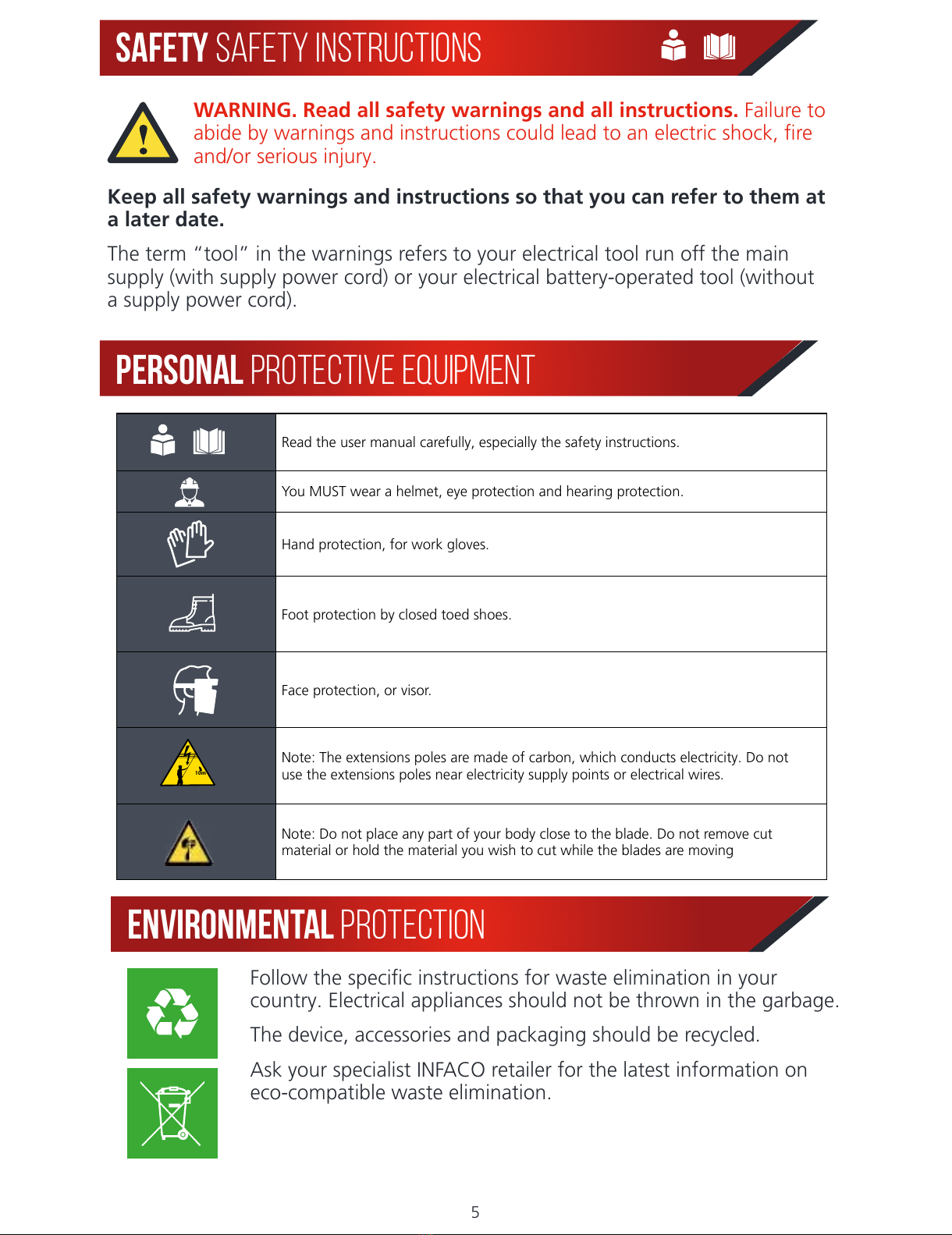

WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSONAL PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY SAFETY INSTRUCTIONS
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves.
Foot protection by closed toed shoes.
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not
use the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut
material or hold the material you wish to cut while the blades are moving
10m
4
5
All manuals and user guides at all-guides.com

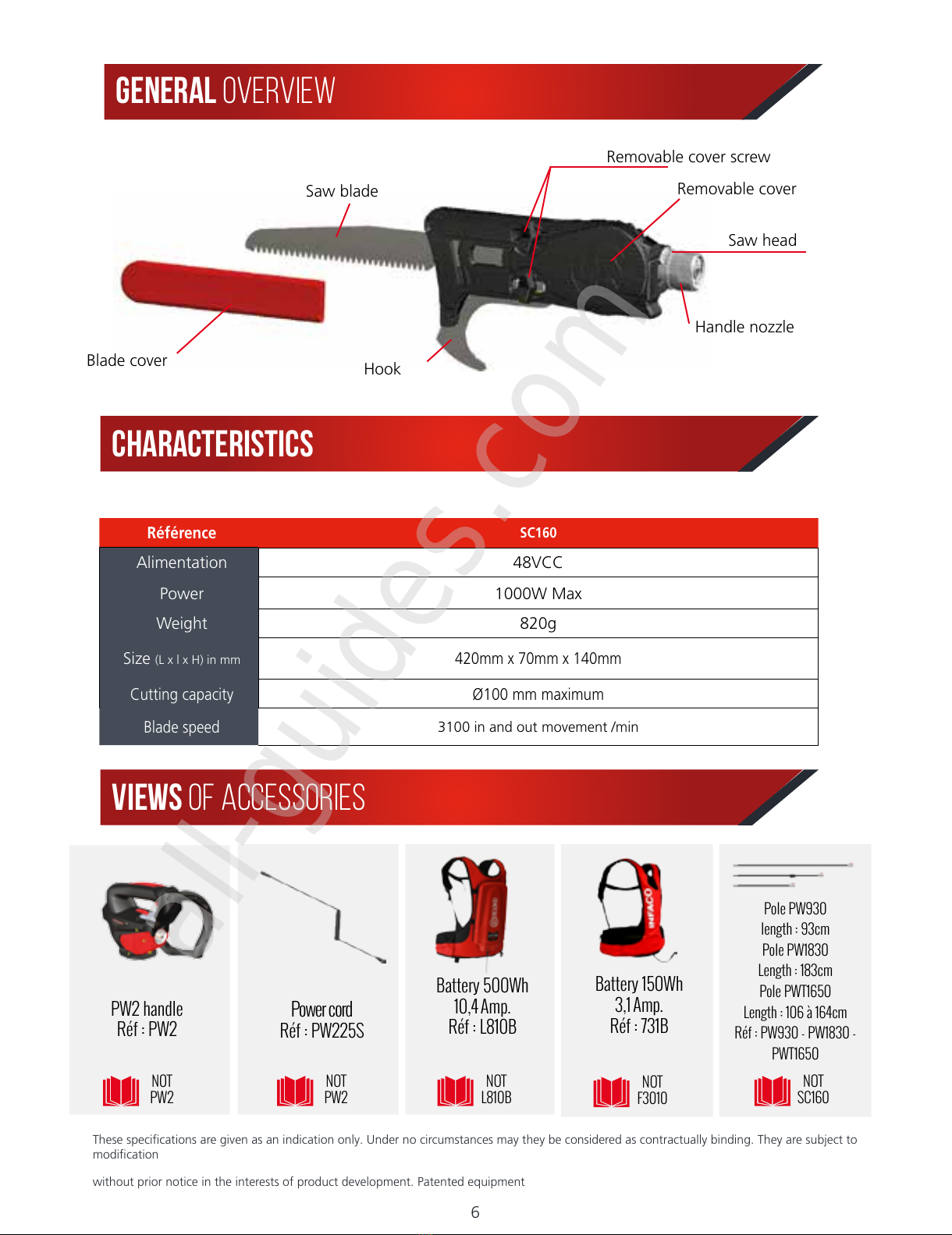

GENERAL OVERVIEW
CHARACTERISTICS
VIEWS OF ACCESSORIES
Référence SC160
Alimentation 48VCC
Power 1000W Max
Weight 820g
Size (L x l x H) in mm
420mm x 70mm x 140mm
Cutting capacity Ø100 mm maximum
Blade speed
3100 in and out movement /min
These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding. They are subject to
modification
without prior notice in the interests of product development. Patented equipment
Blade cover
Removable cover
Saw head
Removable cover screw
Saw blade
Hook
Handle nozzle
Battery 500Wh
10,4Amp.
Réf : L810B
Power cord
Réf : PW225S
PW2 handle
Réf : PW2
Battery 150Wh
3,1Amp.
Réf : 731B
Pole PW930
length : 93cm
Pole PW1830
Length : 183cm
Pole PWT1650
Length : 106 à 164cm
Réf : PW930 - PW1830 -
PWT1650
NOT
L810B
NOT
PW2
NOT
PW2
NOT
F3010
NOT
SC160
6
All manuals and user guides at all-guides.com
all-guides.com

Handle nozzle

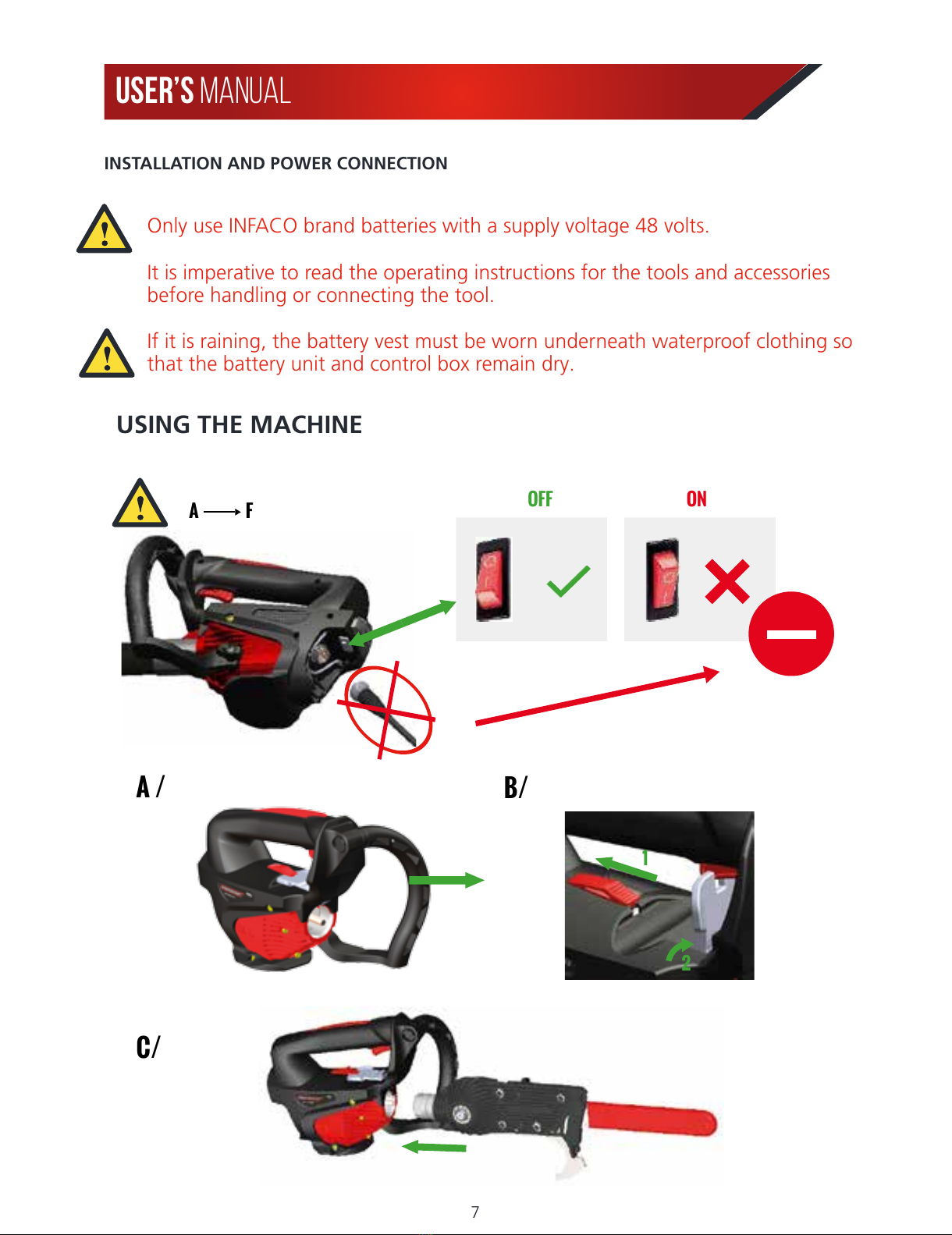

USER’S MANUAL
Only use INFACO brand batteries with a supply voltage 48 volts.
It is imperative to read the operating instructions for the tools and accessories
before handling or connecting the tool.
If it is raining, the battery vest must be worn underneath waterproof clothing so
that the battery unit and control box remain dry.
INSTALLATION AND POWER CONNECTION
AOFF ON F
USING THE MACHINE
2
1
A / B/
C/
6
7
All manuals and user guides at all-guides.com

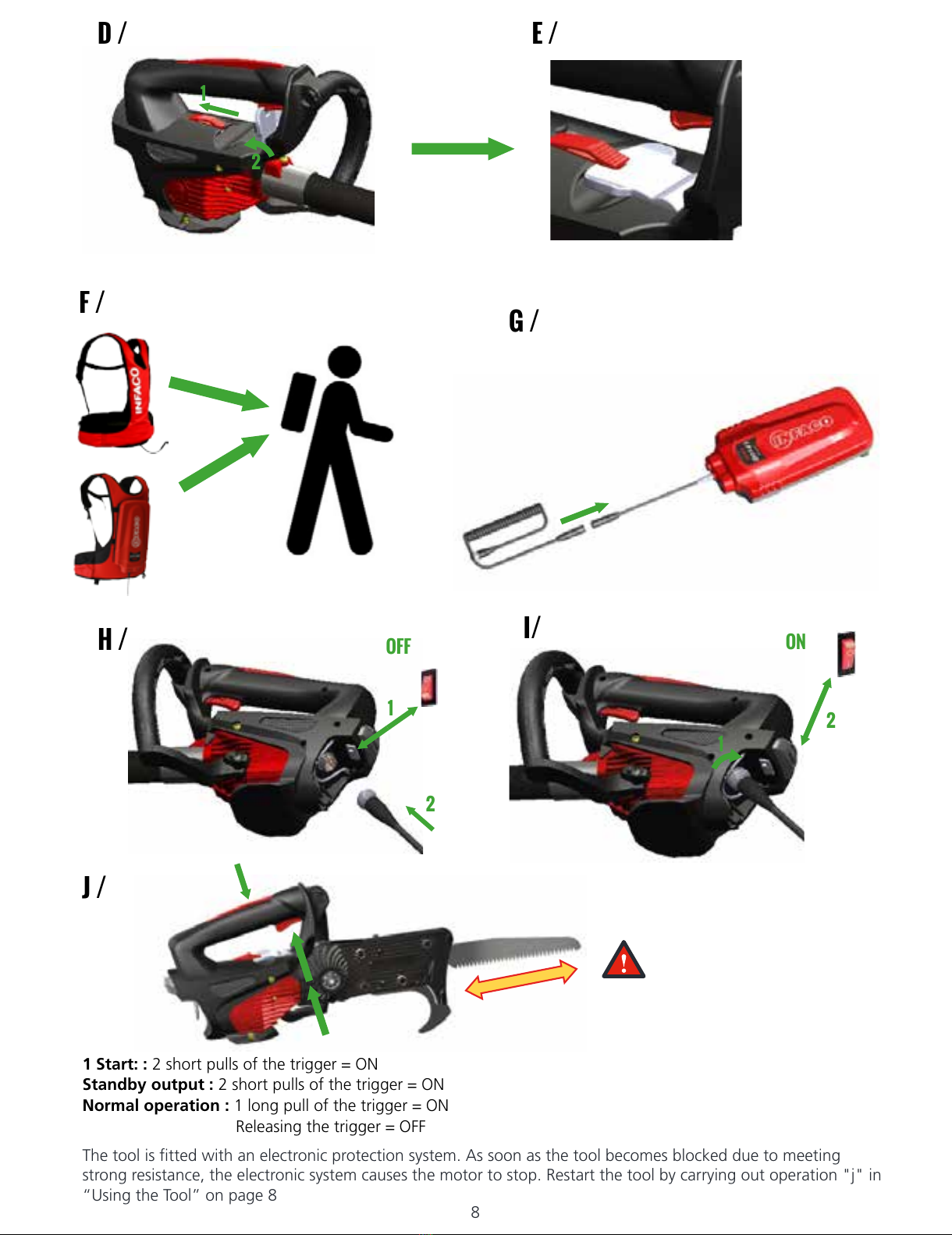

D / E /
H /
J /
I/
F / G /
1
1
1
2
2
2
1 Start: : 2 short pulls of the trigger = ON
Standby output : 2 short pulls of the trigger = ON
Normal operation : 1 long pull of the trigger = ON
Releasing the trigger = OFF
OFF ON
The tool is fitted with an electronic protection system. As soon as the tool becomes blocked due to meeting
strong resistance, the electronic system causes the motor to stop. Restart the tool by carrying out operation "j" in
“Using the Tool” on page 8 8
All manuals and user guides at all-guides.com

USING WITH EXTENSION POLE
WITH TELESCOPIC POLE
Imperatively unplug the machine.
1
2
3
1
2
8
9
All manuals and user guides at all-guides.com

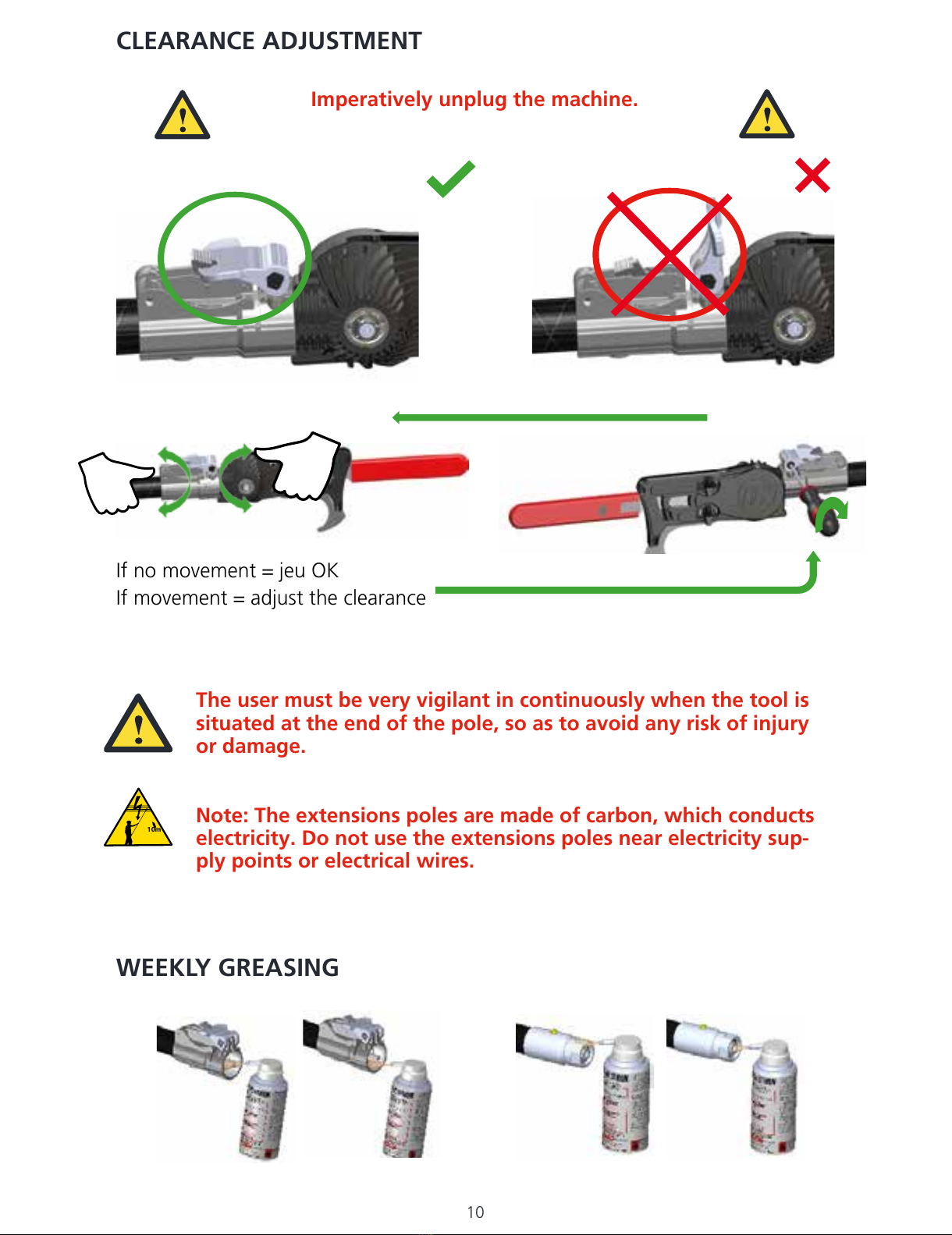

CLEARANCE ADJUSTMENT
WEEKLY GREASING
The user must be very vigilant in continuously when the tool is
situated at the end of the pole, so as to avoid any risk of injury
or damage.
Note: The extensions poles are made of carbon, which conducts
electricity. Do not use the extensions poles near electricity sup-
ply points or electrical wires.
10m
If no movement = jeu OK
If movement = adjust the clearance
Imperatively unplug the machine.
10
All manuals and user guides at all-guides.com

SAFETY PRECAUTIONS
Upon starting the tool, if an unusually large vibration is detected, stop the tool
immediately and check the blade adjustment.
If this unusual vibration persists, immediately turn off the tool and contact your
nearest dealer.
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool, you must unplug the tool.
Must keep both hands
1
o o
2
A / B /
C/
10
11
All manuals and user guides at all-guides.com
all-guides.com

Before starting work
At the end of work daily Each time the battery is changed
Monthly
Yearly
If faulty If damaged As required
Weekly
CARE AND MAINTENANCE
All maintenance operations must be per-
formed with the tool disconnected from all
power sources.
Maintenance of the tool depends on the
frequency of tool use.
Occasional use, space out intervals. Intensive
use, more frequent intervals. .
X X
X X
X X
X
X
X
X
X
X X
X
X X
X X
X X X
X X X X
X X X
X X
Complete tool
Visual inspection
Cleaning
Have checked by dealer
Accessories Cleaning and
greasing
Blade
adjustment
Check
Adjust
Saw blade
Visual inspection
Cleaning
Change
Saw head
Check the adjustment
Greasing
Have checked by dealer
Power cord Visual inspection
Battery Visual inspection
Vest Visual inspection
Handle Visual inspection
12
All manuals and user guides at all-guides.com

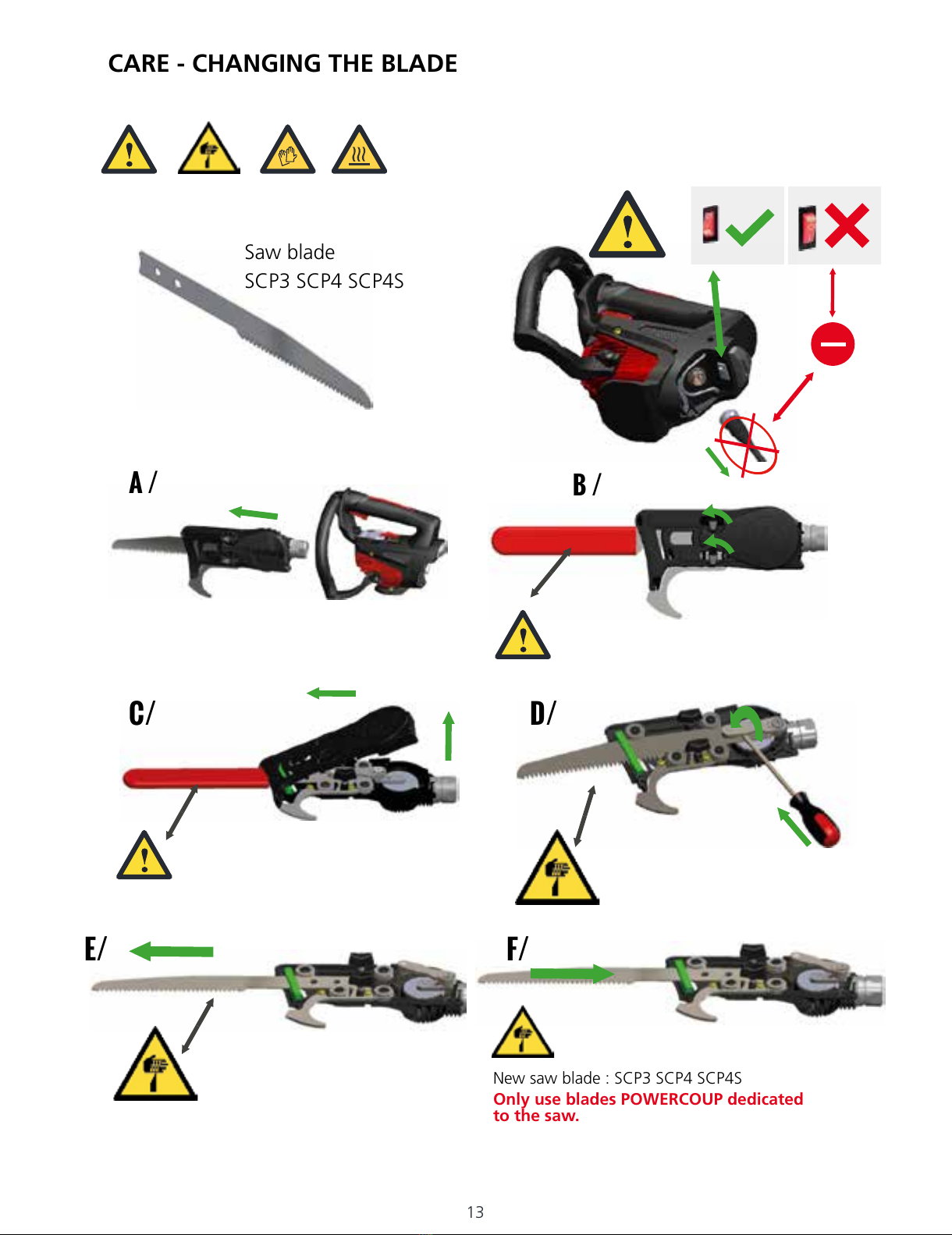

CARE - CHANGING THE BLADE
Saw blade
SCP3 SCP4 SCP4S
New saw blade : SCP3 SCP4 SCP4S
Only use blades POWERCOUP dedicated
to the saw.
A / B /
C/
E/ F/
D/
12
13
All manuals and user guides at all-guides.com

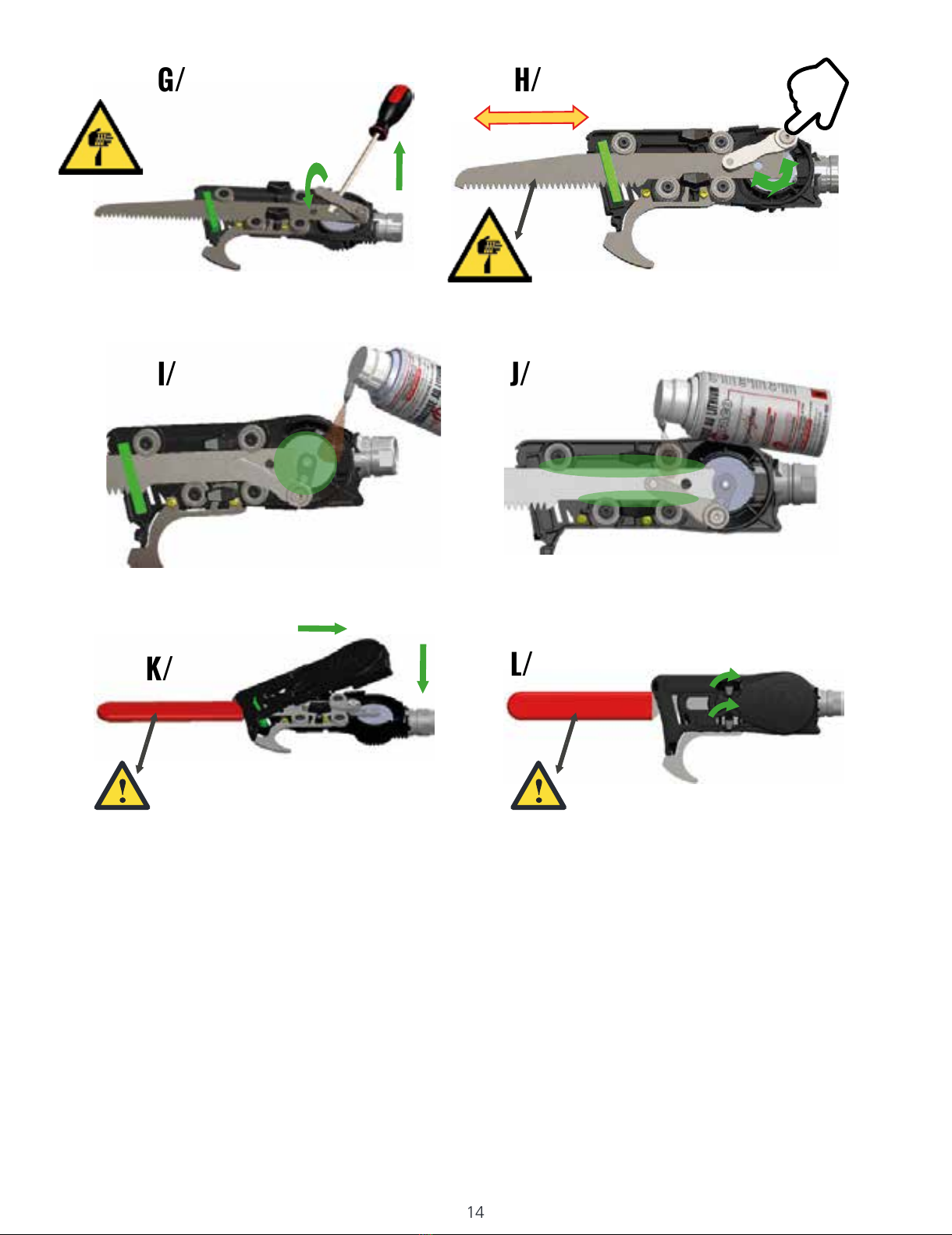

G/
I/ J/
L/
K/
H/
14
All manuals and user guides at all-guides.com

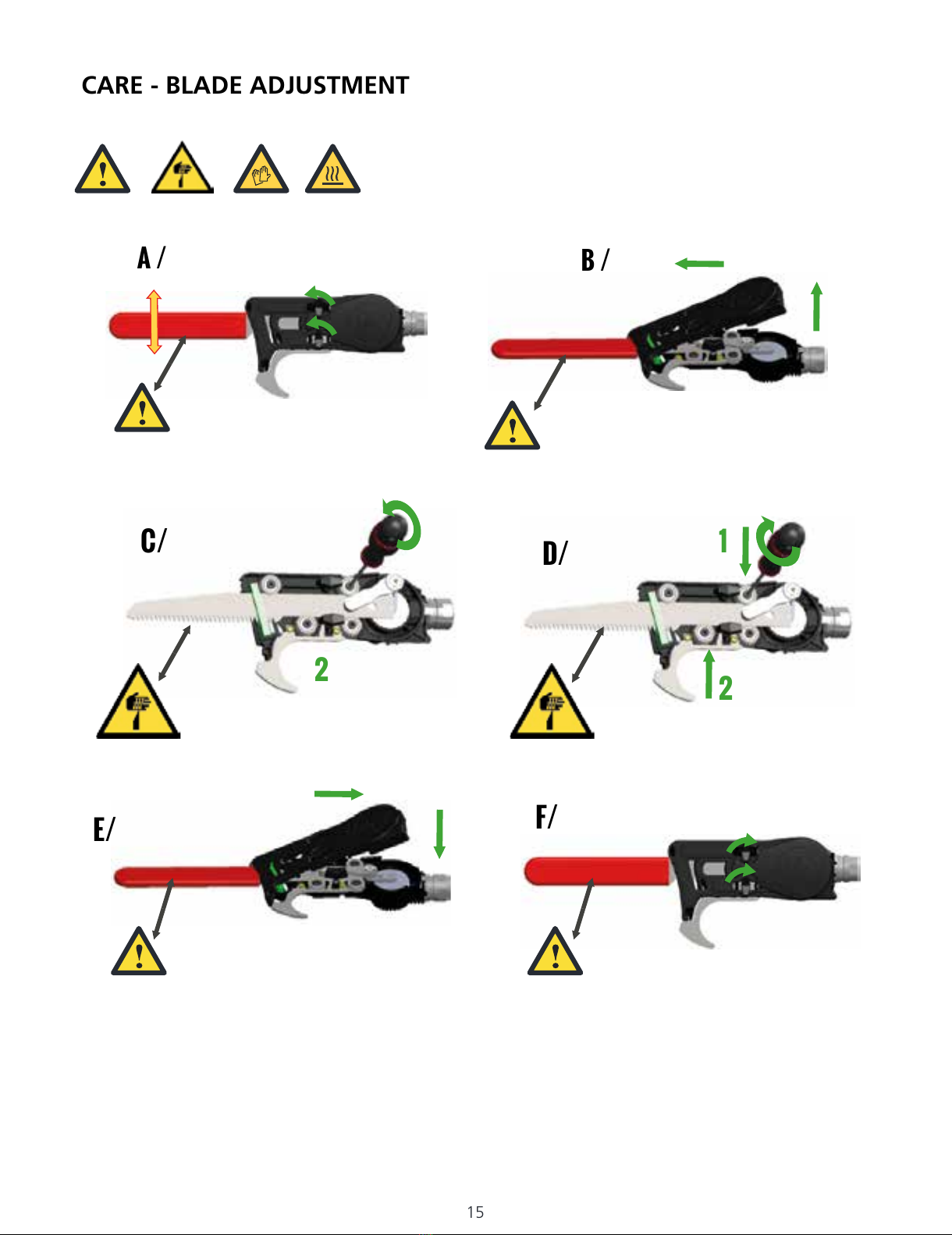

CARE - BLADE ADJUSTMENT
A / B /
C/
E/ F/
D/
2
2
1
14
15
All manuals and user guides at all-guides.com

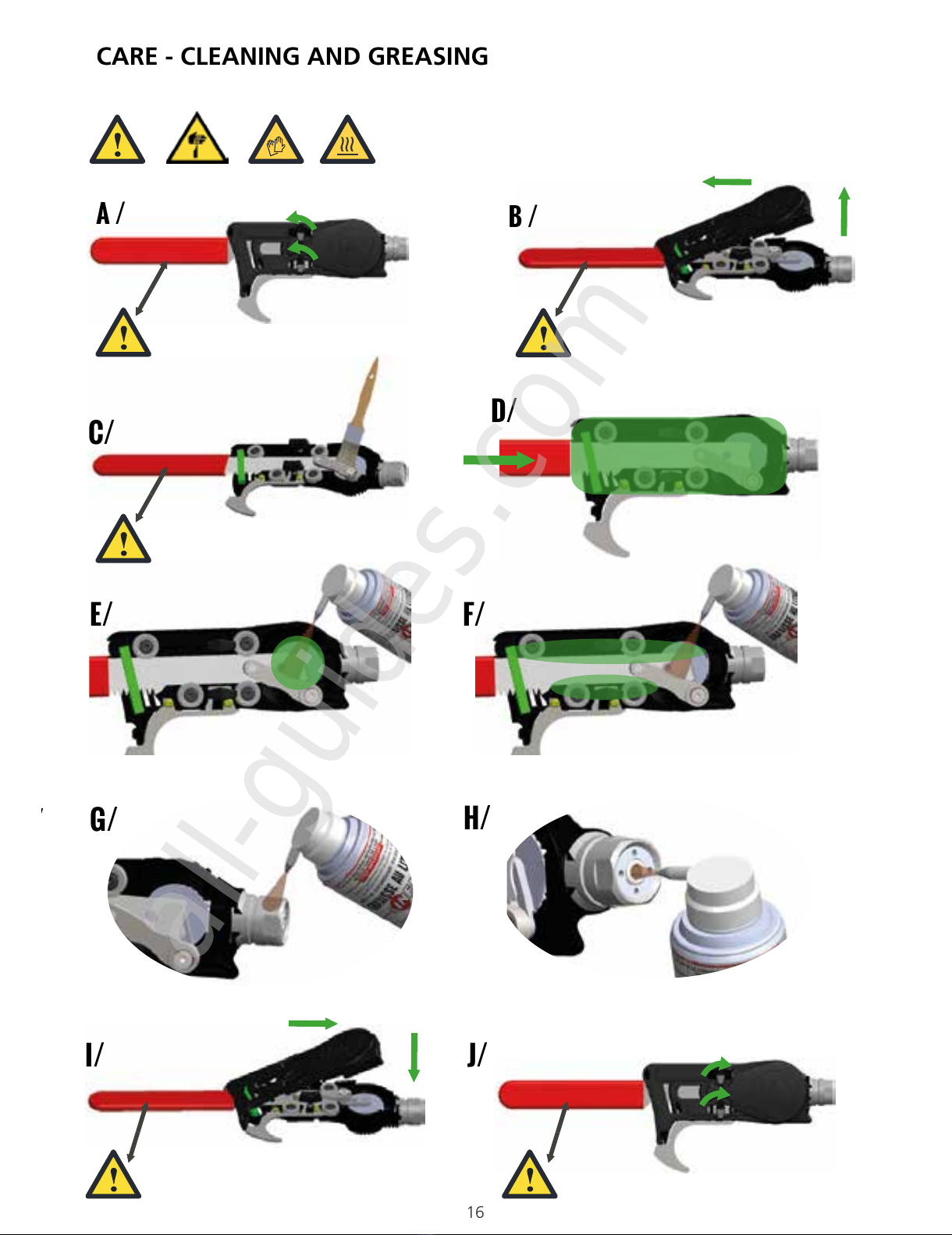

CARE - CLEANING AND GREASING
A / B /
C/
E/
F/
D/
E/
G/ H/
I/ J/
16
17
All manuals and user guides at all-guides.com
all-guides.com

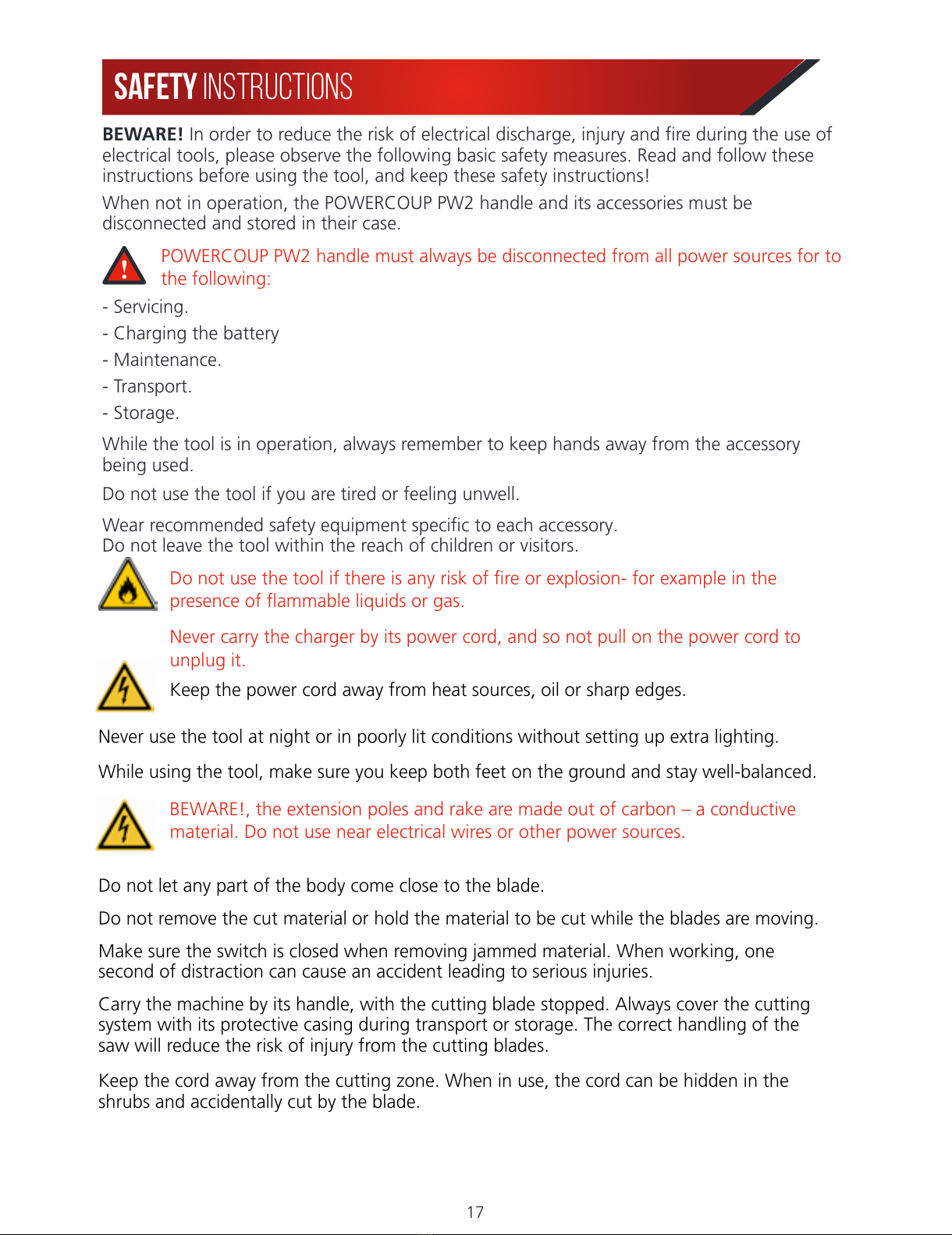

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during the use of
electrical tools, please observe the following basic safety measures. Read and follow these
instructions before using the tool, and keep these safety instructions!
When not in operation, the POWERCOUP PW2 handle and its accessories must be
disconnected and stored in their case.
- Servicing.
- Charging the battery
- Maintenance.
- Transport.
- Storage.
While the tool is in operation, always remember to keep hands away from the accessory
being used.
Do not use the tool if you are tired or feeling unwell.
Wear recommended safety equipment specific to each accessory.
Do not leave the tool within the reach of children or visitors.
SAFETY INSTRUCTIONS
POWERCOUP PW2 handle must always be disconnected from all power sources for to
the following:
Do not use the tool if there is any risk of fire or explosion- for example in the
presence of flammable liquids or gas.
Never use the tool at night or in poorly lit conditions without setting up extra lighting.
While using the tool, make sure you keep both feet on the ground and stay well-balanced.
Keep the power cord away from heat sources, oil or sharp edges.
BEWARE!, the extension poles and rake are made out of carbon – a conductive
material. Do not use near electrical wires or other power sources.
Do not let any part of the body come close to the blade.
Do not remove the cut material or hold the material to be cut while the blades are moving.
Make sure the switch is closed when removing jammed material. When working, one
second of distraction can cause an accident leading to serious injuries.
Carry the machine by its handle, with the cutting blade stopped. Always cover the cutting
system with its protective casing during transport or storage. The correct handling of the
saw will reduce the risk of injury from the cutting blades.
Keep the cord away from the cutting zone. When in use, the cord can be hidden in the
shrubs and accidentally cut by the blade.
Never carry the charger by its power cord, and so not pull on the power cord to
unplug it.
16
17
All manuals and user guides at all-guides.com

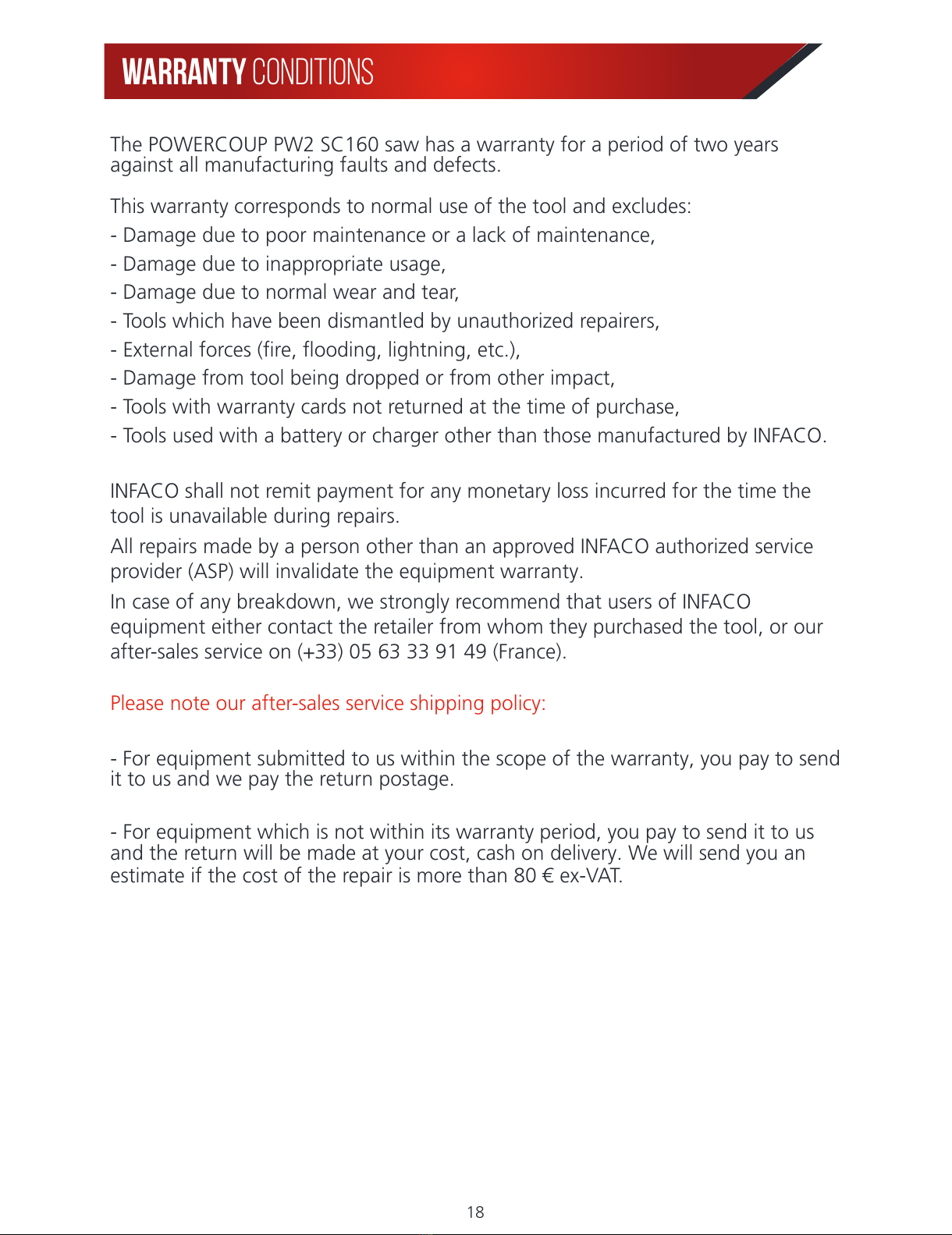

The POWERCOUP PW2 SC160 saw has a warranty for a period of two years
against all manufacturing faults and defects.
This warranty corresponds to normal use of the tool and excludes:
- Damage due to poor maintenance or a lack of maintenance,
- Damage due to inappropriate usage,
- Damage due to normal wear and tear,
- Tools which have been dismantled by unauthorized repairers,
- External forces (fire, flooding, lightning, etc.),
- Damage from tool being dropped or from other impact,
- Tools with warranty cards not returned at the time of purchase,
- Tools used with a battery or charger other than those manufactured by INFACO.
INFACO shall not remit payment for any monetary loss incurred for the time the
tool is unavailable during repairs.
All repairs made by a person other than an approved INFACO authorized service
provider (ASP) will invalidate the equipment warranty.
In case of any breakdown, we strongly recommend that users of INFACO
equipment either contact the retailer from whom they purchased the tool, or our
after-sales service on ([phone] (France).
Please note our after-sales service shipping policy:
- For equipment submitted to us within the scope of the warranty, you pay to send
it to us and we pay the return postage.
- For equipment which is not within its warranty period, you pay to send it to us
and the return will be made at your cost, cash on delivery. We will send you an
estimate if the cost of the repair is more than 80 € ex-VAT.
WARRANTY CONDITIONS
18
All manuals and user guides at all-guides.com

RECOMMANDATIONS
Keep your work area tidy.
Untidiness in the work area increases the risk of accidents
Take the work area environment into account.
Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet
environment. Make sure the work area is well lit. Don’t use electrical tools if there
are flammable liquids or gases in the vicinity.
Protect yourself against electrical discharge.
Avoid bodily contact with grounded surfaces, such as, for example: battery charger,
multiway electrical sockets, etc.
Keep children away!
Don’t allow other people to touch either the tool or the power cord. Keep others
well away from your work area.
Store your tools in a safe place.
Tools not in use should be stored in a dry, enclosed place, in their original packaging
and out of the reach of children.
Wear suitable working gear.
Do not wear flowing clothes or jewelry. These could get caught up by moving parts.
When working outdoors, it is recommended that you wear rubber gloves and shoes
with non-slip soles. Use a hairnet if you have long hair.
Wear protective goggles.
Use a mask as well if the work you are doing produces dust or debris.
Take care of the power cord.
Never carry the charger by its power cord and so not pull on the power cord to
unplug it. Keep the power cord away from heat sources, oil or sharp edges.
Take good care of your tools.
Regularly check the condition of the power cord and plug, and have them changed
by an Authorized Service Provider (ASP) if they show any signs of damage. Keep the
POWERCOUP PW2 material dry and free of oil and grease.
Remove the tool keys.
Remove any adjustment keys before switching on the tool.
Check whether your tool is damaged.
Before using the tool again, carefully check that the safety features are in perfect
working order and whether any parts have been even slightly damaged.
Have your tool repaired by a specialist.
This tool is compliant with the safety regulations in force. All repairs must be carried
out by an Authorized Service Provider (ASP) or by INFACO and exclusively using
original parts. Parts which are not original may seriously risk the safety to the user.
18
19
All manuals and user guides at all-guides.com

TROUBLESHOOTING
Problem Cause Solution
Abnormal heavy vibrations
Improper mounting of the blade Disassemble and reassemble the blade
following the procedure
Blade adjustment too important
Set the blade adjustment following the
procedure and contact your dealer if
necessary
Bad cuts Blade wear Change the worn blade following the
procedure.
Noise in the pole Deteriorated pole guide Contact your dealer
Tool does not start
Battery drained Recharge the battery
No power to the tool Reconnect to power source
Others Contact your dealer
Tool suddenly stops
Too much pressure on the branches. Do not force on the tool
Battery drained Recharge the battery
Diameter of branches too large Cut branches with a diameter smaller
20
21
All manuals and user guides at all-guides.com
