USER'S MANUAL
MANUAL DE USUARIO
MANUAL DE USUÁRIO
FGC-863BL
FGC-866NG
FGC-881GR

Structure illustration
Transport and handing
Installation
First use
Troubleshooting
TABLE OF CONTENTS
Important safety instructions
-39-
-40-
-40-
-41-
-48-
-34-
Cleaning and care
Helpful hints and tips
-52-
-53-
Storage of food
-46-

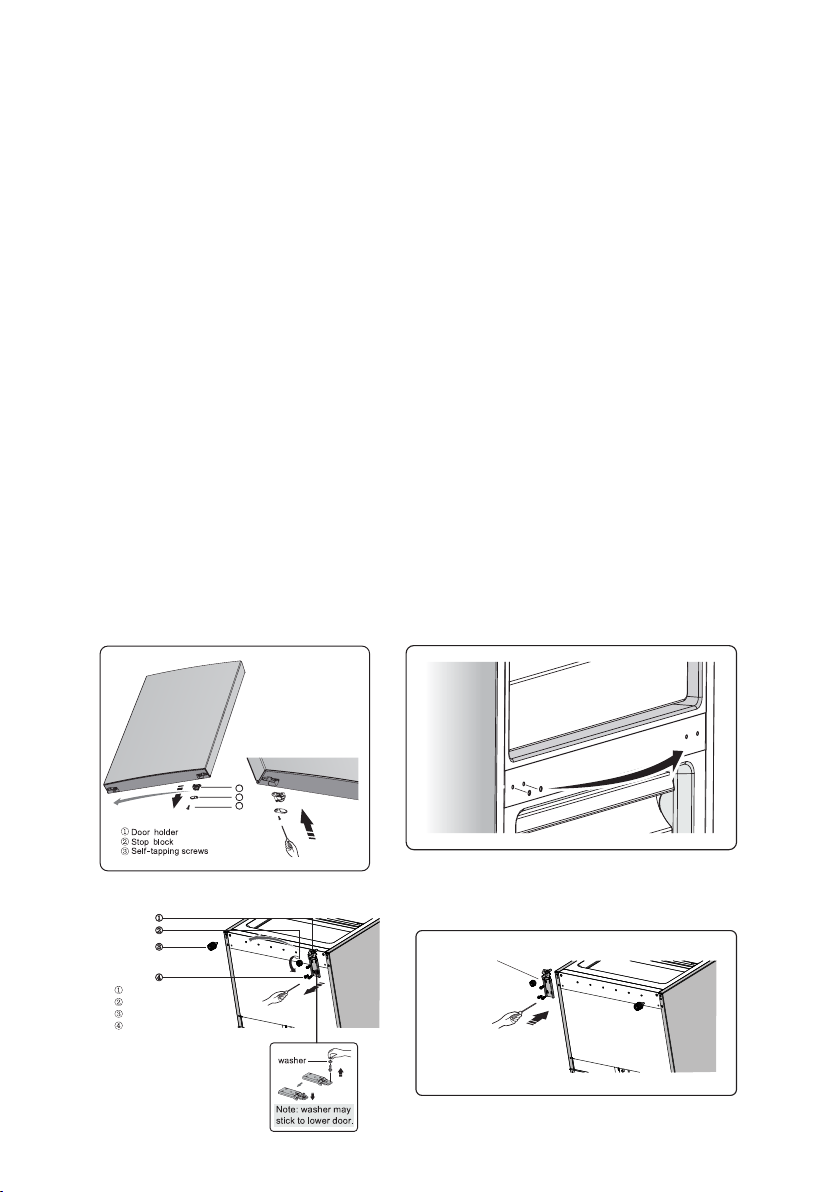

Door reverse
-55-
-58-
Display controls -42-
Technical specifications
Coldest zone in the refrigerator
-61-

THIS PRODUCT IS FOR HOUSEHOLD USE
ONLY!
Please read these instructions carefully
before the first use of this product and
save this manual for your future reference.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed,
including the following:
1. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
2. Do not use if supply cord is damaged. If
damaged, it must be replaced by the
manufacturer or a similarly qualified person
in order to avoid hazard.
3. In order to save power consumption,
keep the air circulation around the
appliance and dispose of food packages
before placing them in the appliance as
soon as possible.
-34-

4. Ensure the refrigerator is unplugged
before cleaning or if the product is not in
use.
5. To clean the appliance use only mild
detergents or glass cleaning products.
Never use harsh detergents or solvents.
6. It is not recommended to use this
refrigerator with an extension cord or power
board. Please ensure that the appliance is
plugged directly into the electrical outlet.
7. Do not place hot food or drink into the
refrigerator before it cools down to room
temperature.
8. Close the door immediately after
putting in any items so the inside
temperature will not rise dramatically.
9. Keep appliance away from any heat
source or direct sunlight.
10. To fix stably, the appliance must be
placed on a flat and solid surface. It should
not be laid on any soft material.
11. Do not place any other appliance on
top of the refrigerator, and do not wet it.
12. Do not store something like ether,
methanol, gasoline etc., which is easy to
evaporate burn or explode.
13. To avoid injury or death from electrical
shock do not operate the appliance with
wet hands, while standing on a wet surface
or while standing in water.
14. Do not use outdoors or in wet
conditions.
-35-

15. Never pull the cord to disconnect it
from the outlet. Grasp the plug and pull it
from the outlet.
16. Keep the cord away from heated
surfaces.
17. Do not move the appliance when it is
well filled of foods to avoid any tipping
over.
18. Check that the voltage of the power
supply in your home is the same as the
voltage shown on the rating label of this
product.
19. Connect your refrigerator to an
independent electrical socket and use a
safe ground wire.
20. When the frost in freezer is removed, or
when there is no electricity or when
refrigerator ceases to be used, it should be
cleaned in order to prevent it from smelling.
21. Defrost the freezer at least once a
month because too much frost may affect
refrigeration.
22. Do not touch the appliance with wet
hands or with naked feet on a wet floor.
23. Do not store explosive substances such
as aerosol cans with a flammable
propellant in this appliance.
24. Turn on electricity only 5 minutes later
after electricity goes off. Otherwise, the
compressor may be damaged.
25. Children should be supervised to
ensure that they do not play with the
appliance.
-36-

26. The appliance is not intended to be
operated by means of an external timer or
a separate remote –control system.
27. This appliance has been incorporated
with a grounded plug. Please ensure the
wall outlet in your house is well earthed.
28. It is recommended to check regularly
the supply cord for any sign of possible
deterioration, and the appliance should
not be used if the cable is damaged.
29. WARNING: Keep ventilation opening, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
30. WARNING: Do not use mechanical
devices or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
31. WARNING: Do not use electrical
appliances inside the food storage
compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
32. WARNING: Do not damage the
refrigerant circuit.
33. This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, offices and
other working environments;
- farm houses;
- by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments.
-37-

35. Regarding the information for
replacing of the lamps of the appliance,
thanks to refer to the below paragraph of
the manual.
36. Regarding the information pertaining
to the installation, handing, maintenance,
servicing and disposal of the appliance,
thanks to refer to the below paragraph of
the manual.
-38-

1. Cabinet
2. LED light
3. Glass shelf
4. Chiller box cover
5. Chiller box
6. Vegetable box cover
7. Vegetable box
8. Upper freeze drawer
9. Middle freeze drawer
10. Lower freeze drawer
11. Leg front(left)
12. Gasket refrigerator
13. Upper rack
14. Lower rack
15. Door refrigerator
16. Gasket freezer
17. Door Freezer
18. Leg front(right)
STRUCTURE ILLUSTRATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-39-

When transportation, hold the base and lift the
refrigerator carefully with an angle inferior at
45 degree. Never hold the door handle as
support. Never place it upside down nor
horizontally. Push refrigerator on its basis and
place it thanks to its roller feet.
To fix stably, the appliance must be placed on
a flat and solid surface. It should not be laid on
any soft material.
Choose a location where there is no heat
source. Keep the refrigerator away from direct
sunlight or other appliance producing heat.
Choose a dry and well-ventilated place where
there is no corrosive air.

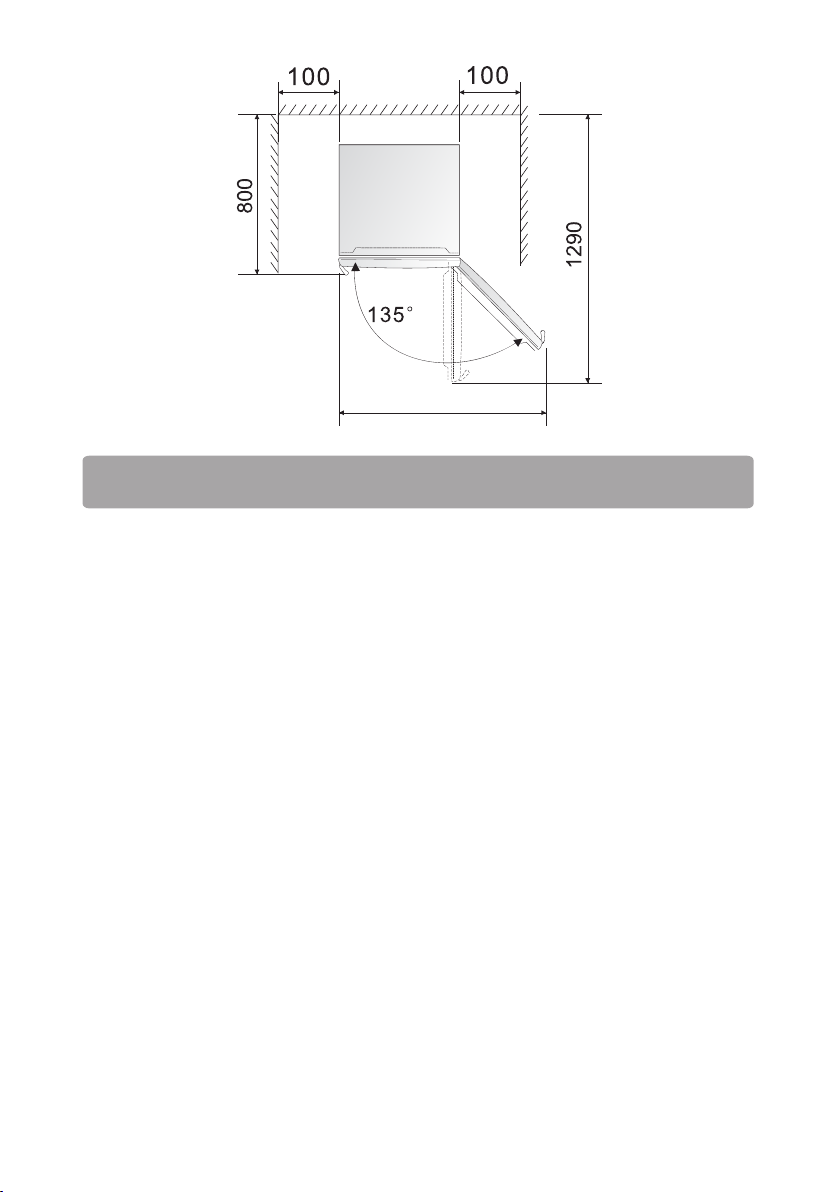

In order to improve efficiency of the cooling
system and save energy, it is necessary to
maintain good ventilation around the
appliance for the dissipation of heat. For this
reason, sufficient clear space should be
available around the refrigerator. Suggest: It is
advisable for there to be at least 75mm of
space from the back to the wall, at least
100mm from its top, at last 100mm from its side
to the wall and a clear space in front to allow
the doors to open 135°. As shown in following
diagrams.
TRANSPORT AND HANDING
INSTALLATION
-40-

FIRST USE
Before the use of the refrigerator, remove all the
packages, including bottom cushion and foam
pads and rubber belts in the refrigerator.
Adjust the feet and clear the outside and inside of
the refrigerator with warm cloth.
Do not start the refrigerator immediately after
vertical placement. Only start it after 2-6 hours
standing to ensure its proper operation.
To prevent damage to the power cord and any
consequence incidents, the power cord should
be not covered by the refrigerator or other
objects. Before switching on the refrigerator,
please check the voltage range of refrigerator
carefully if the same as that of the power supply.
When the refrigerator is first installed, allow it
stabilize at normal operating temperatures for 2-3
hours prior to filling it with fresh or frozen foods.
If operation is interrupted, waits 5 minutes before
restarting.
1034
-41-

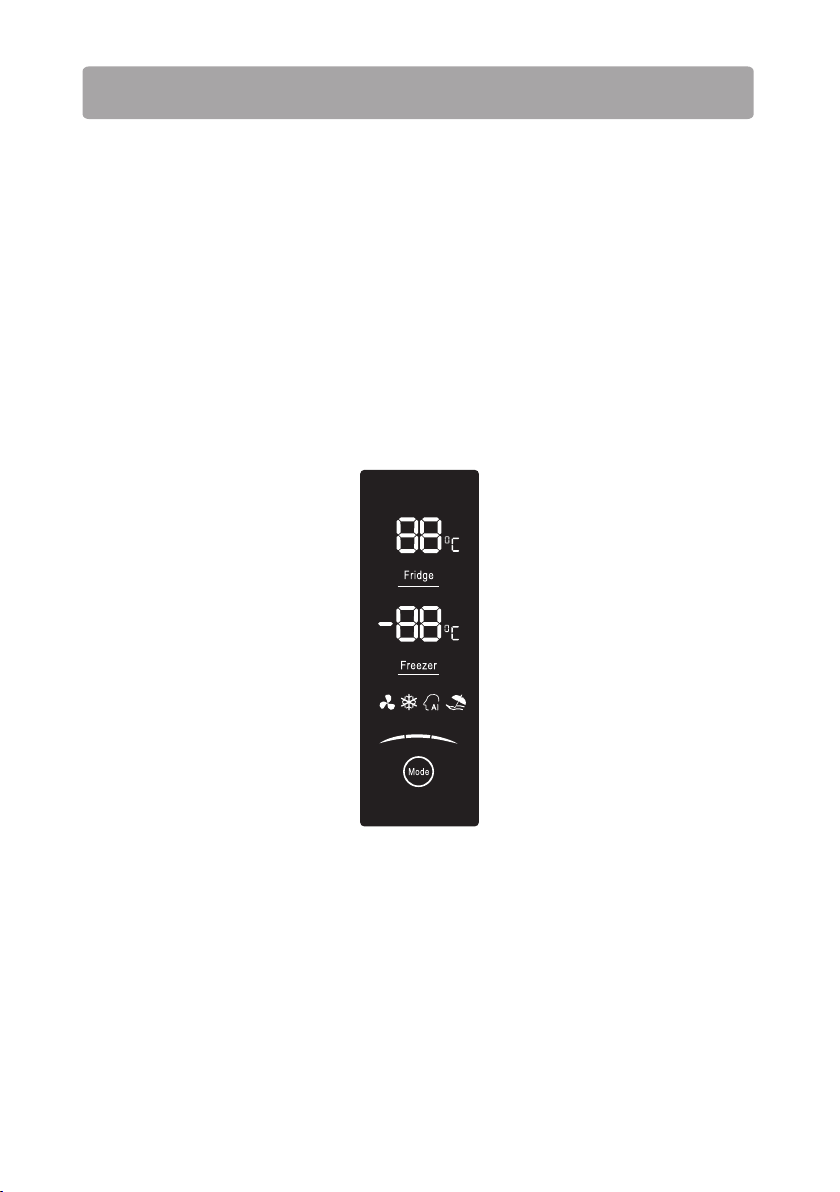

DISPLAY CONTROLS
Use your appliance according to the following
control regulations, your appliance has the
corresponding functions and modes as the
control panels showed in the pictures below.
When the appliance is powered on for the first
time, the backlight of the icons on display
panel starts working. If no buttons have been
pressed and the doors are closed, the
backlighting will turn off.
Hold 3 sec for unlock
Controlling the temperature
We recommend that when you start your
refrigerator for the first time, the temperature
for the refrigerator is set to 5°C and the freezer
to -18°C. If you want to change the
temperature, follow the instructions below.
-42-

Caution! When you set a temperature, you set
an average temperature for the whole
refrigerator cabinet. Temperatures inside each
compartment may vary from the temperature
values displayed on the panel, depending on
how much food you store and where you place
them. Ambient temperature may also affect
the actual temperature inside the appliance.

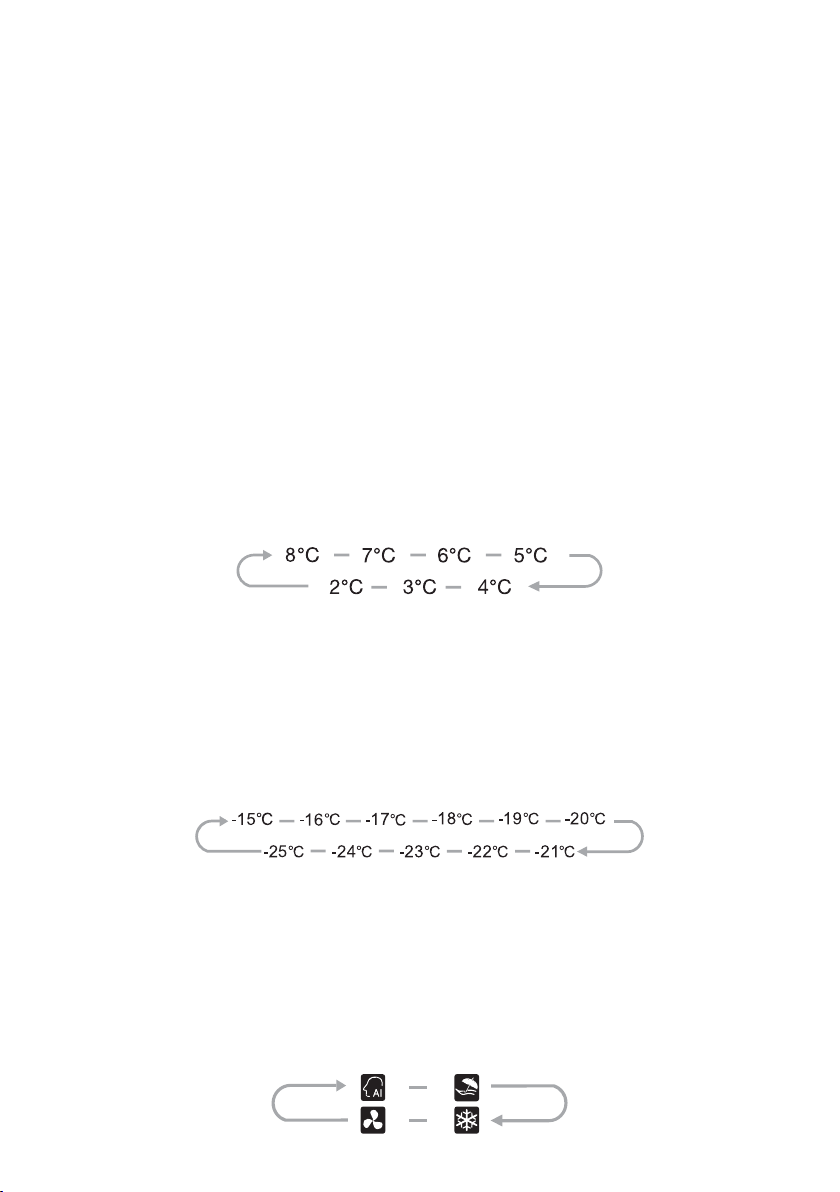

1. Fridge
Press “Fridge” to set fridge temperature
between 2°C and 8°C as needed, and control
panel will display corresponding values
according to the following sequence.
2. Freezer
Press “Freezer”to set freezer temperature
between -15°C and -25°C as needed, and
control panel will display corresponding values
according to the following sequence.
3. Mode choice
Press “Mode” to set function mode as needed,
and the control panel will display corresponding
value according to the following sequence with
light on.
-43-

Intelligence
In the mode, the refrigerator works in the most
beneficial food preservation and storage way.
The fridge temperature is set 5°C, and the
freezer temperature is -18°C in the mode.
Super cool
Super Cool can refrigerate your food much
faster, keeping food fresh for a longer period
Super cool automatically switches off after 6
hours and the refrigerator temperature setting
displays 2°C.
When super cool function is on you can switch it
off by pressing “Super Cool” or “Refrigerator”
button and the refrigerator temperature setting
will revert back to the previous setting.
Super freeze
Super Freeze will quickly lower the temperature
within the freezer so food will freeze vitamins
and nutrients of fresh food and keep food fresh
longer.
In case of the maximum amount of food to be
frozen, please wait about 24h.
Super freeze automatically switches off after 26
hours and the freezer temperature setting
displays -25°C.
When super freeze function is on you can switch
off super freeze function by pressing “Mode” or
“Freezer” button and the freezer temperature
setting will revert back to the previous setting.
-44-

Holiday
If you are going to be away for a long period of
time, you can activate this function by pressing
“Mode” button to set function
When the holiday function is activated, the
temperature of the refrigerator is automatically
switched to 15°C to minimize the energy
consumption.
Important! Do not store any food in the fridge
during this time.
When the holiday function is on, you can switch
it off by pressing “Model” or “Fridge” button
and the refrigerator temperature setting will
revert back to the previous setting.
Door Alarm
When the door of fridge or freezer is open for
over 2 minutes, the door alarm will sound. In
case of door alarm, buzzer will sound 1 times
e v e r y 1 m i n a n d w i l l s t o p a l a r m i n g
automatically after 10 minutes.
To save energy, please avoid keeping the door
open for a long time when using the appliance.
The door alarm can also be cleared by closing
the fridge door.
-45-

The side at which the door opens can be
changed, from the right side (as supplied) to
the left side, if the installation site requires.
Warning! When reversing the door, the
appliance must not be connected to the
mains. Ensure that the plug is removed from
the mains socket.
Tools and parts you will need are as below:
DOOR REVERSE
left upper hinge
cover
door block,
left ref
door holder,
left ref
Note: Before you start lay the refrigerator on its
back in order to gain access to the base, you
should rest it on soft foam packaging or similar
material to foam packaging or similar material
to avoid damaging the backboard of the
refrigerator. To reverse the door, the following
steps are generally recommended.
1.Stand the refrigerator upright. Open the
upper door to take out all door racks (to avoid
racks damaged)and then close the door.
2. Open part ① on top of the upper door and
then disconnect electrical connector. Take
down part ② and put it back to the plastic
bag.
Step 2
-48-

3. Remove part ① and the screws ②. Put them
back to the plastic bag.
Note: Please hold the upper door by hand
during step 3 to prevent door dropping.
1
2
3
1
2
3
Step 3 Step 4
4. Remove the upper door and place it on a
smooth surface with its panel upwards. Loose
screws ③, detach part ② and part ①, then
install part ① and another part ②(in the plastic
bag)to the left side with screws ③. Put part ②
just detached back to plastic bag.
5. Exchange wire from the right to left slot of
refrigerator body.
6. Loose screws used to fix the middle hinge
and remove middle hinge, Then remove the
lower door.
Step 5 Step 6
-49-

7. Place the lower door on a smooth surface
with its panel upwards. Loose screws ③,
detach part ② and part ①. Turn part ① by 180°
and then install part ① and part ② to
corresponding position on left side together
with screws ③.
8. Change screw hole covers on middle cover
plate from left to right(as shown in figure
below).
9. Place refrigeration flat, remove part ② and
then loose screws ④. Remove part ①and part
③.
10. Screw out lower hinge. Change it to the
near hole site, and then screw up and mount
washer.
11. Just remount to the step 9. Change part ①
and part ②to left and then fix them with
screws ④. Change part ③ to right, and install it.
1
2
3
Lower hinge part (right)
Leg front (right)
Leg front (left)
Self-tapping-screws
Step 7 Step 8
Step 9
Lower hinge part (left)
Step 11
-50-

12. Move the lower door and adjust its position
to align lower hole site and upper hinge axis.
Turn the middle hinge by 180°. Change the
washer on the axis to the upper side and
adjust the middle hinge to the appropriate
position and then install it.
13. Screw out the upper hinge axis, turn the
upper hinge over and fix axis on it. Then place
it at side for use.
Step 12 Step 13
14. Move the upper door to appropriate
position, adjust part ②and upper door. Move
the connecting wire ③in the slot of upper
hinge(left), and install part ① onto the upper
hinge, then fix part ② by screws ④. Finally
mount part ⑤. (Please hold upper door by
hand when installing.)
left upper hinge cover (which is in the plastic bag)
upper hinge part
connecting wire
Self-tapping-screws
top cover B
5
5Step 14
-51-

STORAGE OF FOOD
You appliance has the accessories as the “Description
of the appliance”showed in general, with this part
instruction you can have the right way to storage your
food.
Fridge compartment
The fridge compartment is mainly used to store foods
that are preserved for a short time.
It is suitable for storing fruits, vegetables, drinks and
other foods that will be eaten recently. It is suggested
to seal food and then put them into the refrigerator.
Suggested sections of fridge compartment for various
foods and variety name:
Glass shelves: wheaten foods, milk, etc. They can be
taken out to be cleaned and adjusted to achieve
different storage volume as you need.
Drawer: fruits, vegetables, etc.
15. Connect electrical connector ①in
accordance with step1.
16. Reverse part ① by 180° and install it onto
the right comer of upper door, then mount
part ②.(Both of which are taken down in step
1.)
Step 15
Step 16
-52-

Door rack: eggs, canned liquid, bottled drinks and
packed food, etc. Do not place too many heavy
things in the racks
Freezer compartment
The freezer compartment is used to freeze foods, store
deeply frozen foods and make ice cubes. It can
preserve foods for a long time.
It is suitable for retaining the freshness of foods for a
long time. When storing meat, it is suggested to cut
them into pieces which are easy to take out and mark
the freezing date to prevent foods from exceeding the
time limit.
It is used to store food which needs to be frozen,
including meat, fish, ice-cream, etc.
Helpful hints and tips
We recommend that you follow the tips below to save
energy.
·Try to avoid keeping the door open for long periods
in order to conserve energy.
·Ensure the appliance is away from any sources of
heat(Direct sunlight, electric oven or cooker etc)
·Don't set the temperature colder than necessary.
·Don't store warm food or evaporating liquid in the
appliance.
·Place the appliance in a well ventilated, humidity
free room. Please refer to Installing your new
appliance chapter.
·If the diagram shows the correct combination for
the drawers, crisper and shelves, do not adjust the
combination as this is designed to be the most energy
efficient configuration.
HELPFUL HINTS AND TIPS
-53-
