INFINITY PRIMUS® SPEAKERS
Owner's Guide
P142
P152
P162
P252
P362
PG250
PG350

INFINITY PRIMUS® SERIES
The Primus series of loudspeakers continues Infinity's longstanding
commitment to accurate sound reproduction. Our proprietary Metal
Matrix Diaphragm™ (MMD®) drivers, precision dividing networks, and
rigid, well-braced enclosures combine to deliver uncompromised
performance in any stereo or multichannel home theater system.
In addition, Primus series speakers are magnetically shielded for safe
placement adjacent to a television.
UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer.
Keep the shippi ng carton and packing materials for future use.
Home Theater
For front-channel use, place one speaker on the left and another on the
right, along either side of the television monitor. Since the speakers are
magnetically shielded, you can place them without worrying about the
field distorting the TV picture.
For surround use, place speakers alongside the listening position.
Final placement depends on room acoustics, availability of space,
and your listening preference (Figures 2 and 3).
The center channel speaker should be placed on top of or directly below
the television and aimed toward the listening area.
NOTE: An Infinity powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your Infinity dealer for recommenda-
tions on subwoofer models for your application.
0
~
eote
h
~
0
Left Right
Surround Surround
Channel Channel
PLACEMENT
Stereo
Before deciding where to place your Primus speakers, survey your room
and think about placement, keeping the following points in mind, using
Figure 1 as a guide:
• For best results, place the speakers 6'- 8' apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a
wall or corner.
• Refer to the "Home Theater" section if you also plan to use the speak-
ers for home theater reproduction.
F~Oen~ 0
Channel
Center
Channel
InfinitySubwoofer
(optional)
o
O
Right
Front
Channel
o
left
Channel
o
Right
Channel
Figure 2. This overhead view shows a typical home theater
plan. Left/right rear channels are for a 7-channel system.
Center rear channel is for a 6-channel system.
listening Position
Figure 1. Experiment with speaker placement to obtain the best
bass level and stereo imaging in your room.
0
Jnfinity~ubwoofer Right
(optional) 0 Front
W
Channel
Center
Channel
o
Left
Front
Channel
Left
Surround <>
Channel
Right
Surround
Channel
<>
CD INFINITY PRIMUS SPEAKERS
Figure 3. This figure shows an alternate layout, which may
be more suitable for some rooms. Left/right rear channels
are for a 7-channel system. Center rear channel is for a
6-channel system.

WALL-MOUNTING THE P142, P152 AND
PG250
The P142, P152 and PC250 are designed to mount directly to a wall.
Each speaker has two keyholes on the back, and will require (2) 1-1/2,11
#10 wood screws fastened to a wall stud. If a wall stud is unavailable,
install an anchor appropriate for a 1-1/2,11 #10 screw.
NOTE: The customer is responsible for the correct selection and use of
mounting hardware (available through hardware stores) that will ensure
the proper and safe wall-mounting of the speakers.
Figure 4.
~ Keyhole mounts
\\\S()@)~ ...... ---+..----- 1/4'~20Threaded insert
(P142 only)
o
Step 1.
Mark the positions on the wall where you would like to place the mounting
screws.
Step 2.
Fasten two 1-1/2,11 #10 wood screws to the wall using the markings
placed in Step 1 as your guide. Leave an 11/16
11
space between the wall
and screwhead. If a wall stud is not avai lable, use an appropriate anchor.
Step 3.
Place the speaker on the wall by aligning the keyholes on the back of the
speaker to the screwheads on the wall. Once positioned properly, the
speaker should slide down slightly and become secure.
The P142 also allows the use of thi rd-party wall brackets usi ng the
1/41~20 threaded insert located beneath the keyhole mount. Consult the
wall-bracket manufacturer for selection of proper bracket.
CHANGING THE P252 AND P362 FEET
The P252 and P362 feature attractive outboard feet, installed at the
factory. However, if you would like to replace them with the less visible
inboard feet (included), follow the instructions below.
1. Remove the four feet on the bottom of the speaker by looseni'ng the
screw in each foot. Keep the screws for later use.
o
2. Remove the rubber plug from each inner hole (and save for possible
future use).
3. Attach the black inboard feet to the inner holes from which you just
removed the rubber plugs, using the same screws you just removed.
4. Hand-tighten securely, using a handheld Phillips (+ tip) screwdriver.
Do not use a powered screwdriver of any type.
CAUTION: Floorstanding (tower) loudspeakers have a high center of
gravity and may become unstable and tip over during earthquakes, or
if rocked, tipped or improperly positioned. If this is a concern, these
speakers should be anchored to the wall behind them, using the same
procedures and hardware customary for anchoring bookcases and wall
units. The customer is responsible for proper installation and proper
selection of hardware.
INFINITY PRIMUS SPEAKERS CD

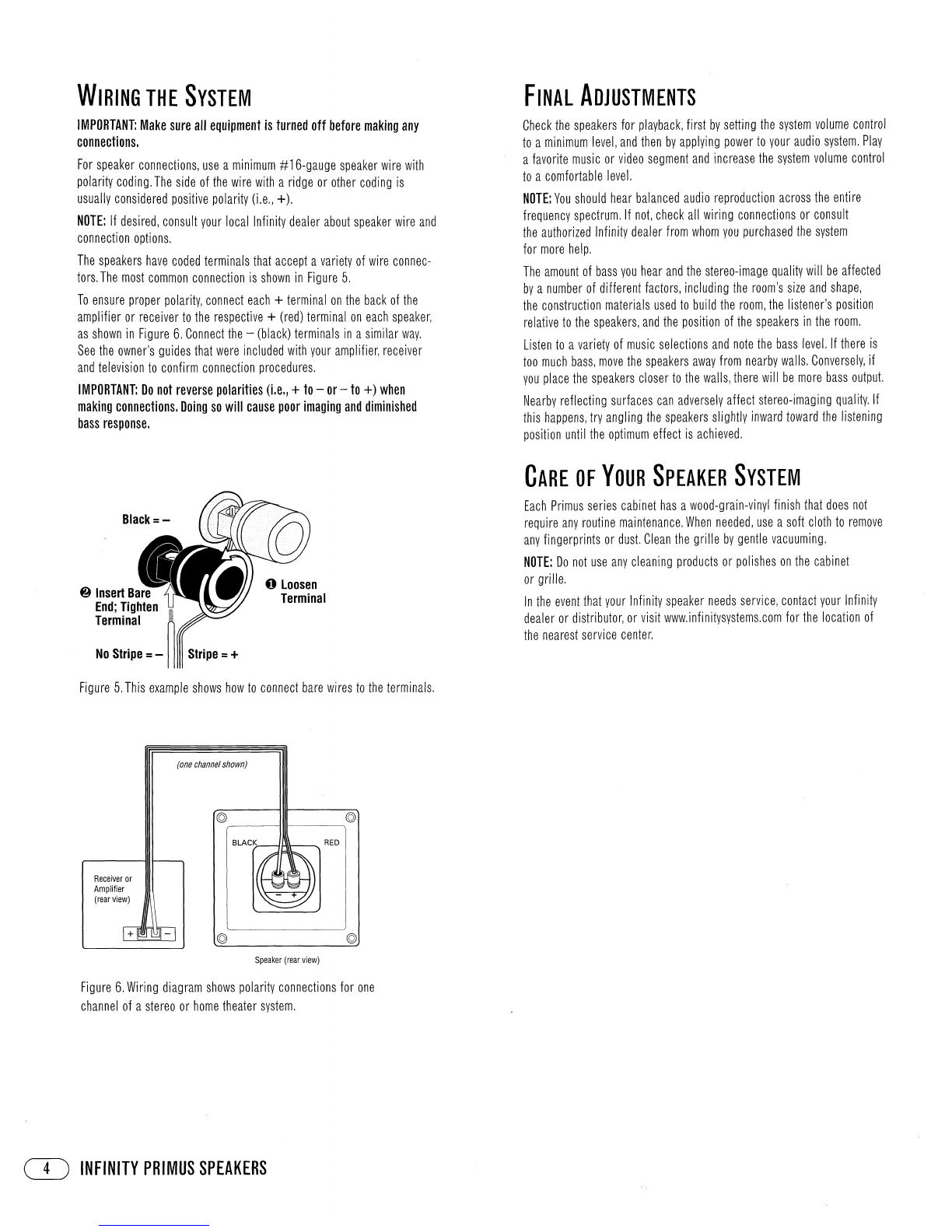

WIRING THE SYSTEM
IMPORTANT: Make sure all equipment is turned off before making any
connections.
For speaker connections, use a minimum #16-gauge speaker wire with
polarity coding. The side of the wire with a ridge or other coding is
usually considered positive polarity (i .e., +).
NOTE: If desi red, consult your local Infi nity dealer about speaker wi re and
connection options.
The speakers have coded terminals that accept a variety of wire connec-
tors. The most common connection is shown in Figure 5.
To ensure proper polarity, connect each + terminal on the back of the
ampl ifier or receiver to the respective + (red) terminal on each speaker,
as shown in Figure 6. Connect the - (black) terminals in a similar way.
See the owner's gu ides that were included with your ampl ifier, receiver
and television to confirm connection procedures.
IMPORTANT: Do not reverse polarities (i.e., + to - or - to +) when
making connections. Doing so will cause poor imaging and diminished
bass response.
Figure 5. This example shows how to connect bare wires to the terminals.
(one channel shown)
© ©
~--IIIII----~
FINAL ADJUSTMENTS
Check the speakers for playback, fi rst by setti ng the system vol ume control
to a minimum level, and then by applying power to your audio system. Play
a favorite music or video segment and increase the system volume control
to a comfortable level.
NOTE: You should hear balanced audio reproduction across the entire
frequency spectrum. If not, check all wiring connections or consult
the authorized Infinity dealer from whom you purchased the system
for more help.
The amount of bass you hear and the stereo-image quality will be affected
by a number of different factors, including the room's size and shape,
the construction materials used to build the room, the listener's position
relative to the speakers, and the position of the speakers in the room.
Listen to a variety of music selections and note the bass level. If there is
too much bass, move the speakers away from nearby walls. Conversely, if
you place the speakers closer to the walls, there will be more bass output.
Nearby reflecting surfaces can adversely affect stereo-imaging quality. If
this happens, try angling the speakers slightly inward toward the listening
position until the optimum effect is achieved.
CARE OF YOUR SPEAKER SYSTEM
Each Primus series cabinet has a wood-grain-vinyl finish that does not
require any routine maintenance. When needed, use a soft cloth to remove
any fingerprints or dust. Clean the grille by gentle vacuuming.
NOTE: Do not use any cleaning products or polishes on the cabinet
or grille.
In the event that you r I nfi n ity speaker needs servi ce
l
contact you r Infi n ity
dealer or distributor, or visit www.infinitysystems.com for the location of
the nearest service center.
Receiver or
Amplifier
(rear view)
©
>--~ 1-\\1..--_ RED
©
Speaker (rear view)
Figure 6. Wiring diagram shows polarity connections for one
channel of a stereo or home theater system.
CIJ INFINITY PRIMUS SPEAKERS

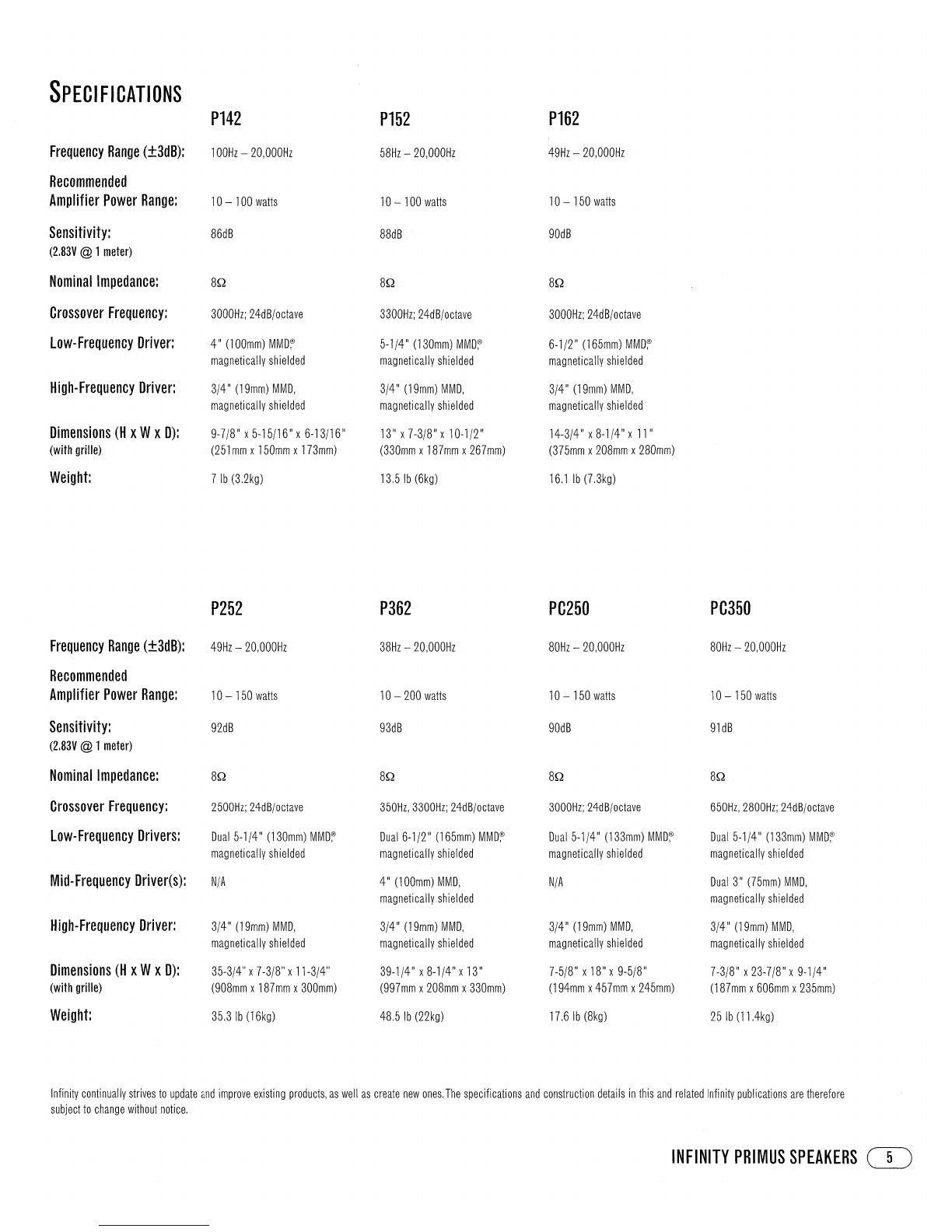

SPECI FICATIONS
P142 P152 P162
Frequency Range (±3dB):
100Hz - 20,OOOHz
58Hz - 20,OOOHz
49Hz - 20,OOOHz
Recommended
Amplifier Power Range:
10- 100 watts
10 -100 watts
10- 150 watts
Sensitivity:
86dB
88dB
90dB
(2,83V @1 meter)
Nominal Impedance: 8Q
8Q 8Q
Crossover Frequency:
3000Hz; 24dB/octave
3300Hz; 24dB/octave 3000Hz; 24dB/octave
Low- Frequency Driver:
4
11
(1 OOmm) MMD~
5-1/4
11
(130mm) MMD~ 6-1/2
11
(165mm) MMD~
magnetically shielded
magnetically shielded
magnetically shielded
High-Frequency Driver:
3/4
11
(19mm) MMD,
3/4
11
(19mm) MMD, 3/4
11
(19mm) MMD,
magnetically shielded
magnetically shielded magnetically shielded
Dimensions (H xWx D): 9-7/8
11
x 5-15/16
11
x 6-13/16 II
13 II x 7-3/8
11
X 10-1/2 II
14- 3/4 II x 8- 1/4 II x 11 II
(with grille)
(251 mm x 150mm x 173mm)
(330mm x 187mm x 267mm) (375mm x 208mm x 280mm)
Weight:
7 Ib (3,2kg)
13,5 Ib (6kg) 16.1 Ib (7,3kg)
P252
P362 PC250 PC350
Frequency Range (±3dB):
49Hz - 20,OOOHz
38Hz - 20,000Hz
80Hz - 20,OOOHz
80Hz - 20,OOOHz
Recommended
Amplifier Power Range:
10- 150 watts
10 - 200 watts
10- 150 watts 10- 150 watts
Sensitivity:
92dB 93dB 90dB 91dB
(2,83V @1 meter)
Nominal Impedance: 8Q 8Q
8Q 8Q
Crossover Frequency:
2500Hz; 24dB/octave 350Hz, 3300Hz; 24dB/octave 3000Hz; 24dB/octave 650Hz, 2800Hz; 24dB/octave
Low-Frequency Drivers:
Dual 5-1/4
11
(130mm) MMD~
Dual 6-1/2
11
(165mm) MMD~ Dual 5-1/4
11
(133mm) MMD~ Dual 5-1/4
11
(133mm) MMD~
magnetically shielded
magnetically shielded magnetically shielded magnetically shielded
Mid-Frequency Driver(s):
N/A
4
11
(100mm) MMD,
N/A
Dual 3
11
(75mm) MMD,
magnetically shielded magnetically shielded
High-Frequency Driver:
3/4
11
(19mm) MMD,
3/4
11
(19mm) MMD, 3/4
11
(19mm) MMD,
3/4
11
(19mm) MMD,
magnetically shielded magnetically shielded magnetically shielded
magnetically shielded
Dimensions (H xWx D):
35-3/4" x 7-3/8" X 11-3/4"
39-1/4
11
X 8-1/4
11
X 13
11
7-5/8
11
X 18
11
x 9-5/8
11
7-3/8
11
X 23-7/8
11
X 9-1/4
11
(with grille)
(908mm x 187mm x 300mm) (997mm x 208mm x 330mm)
(194mm x 457mm x 245mm)
(187mm x 606mm x 235mm)
Weight: 35,3 Ib (16kg)
48,5 Ib (22kg) 17.6 Ib (8kg)
25 Ib (ll.4kg)
Infinity continually strives to update and improve existing products, as well as create new ones, The specifications and construction details in this and related Infinity publications are therefore
subject to change without notice.
INFINITY PRIMUS SPEAKERS CIJ

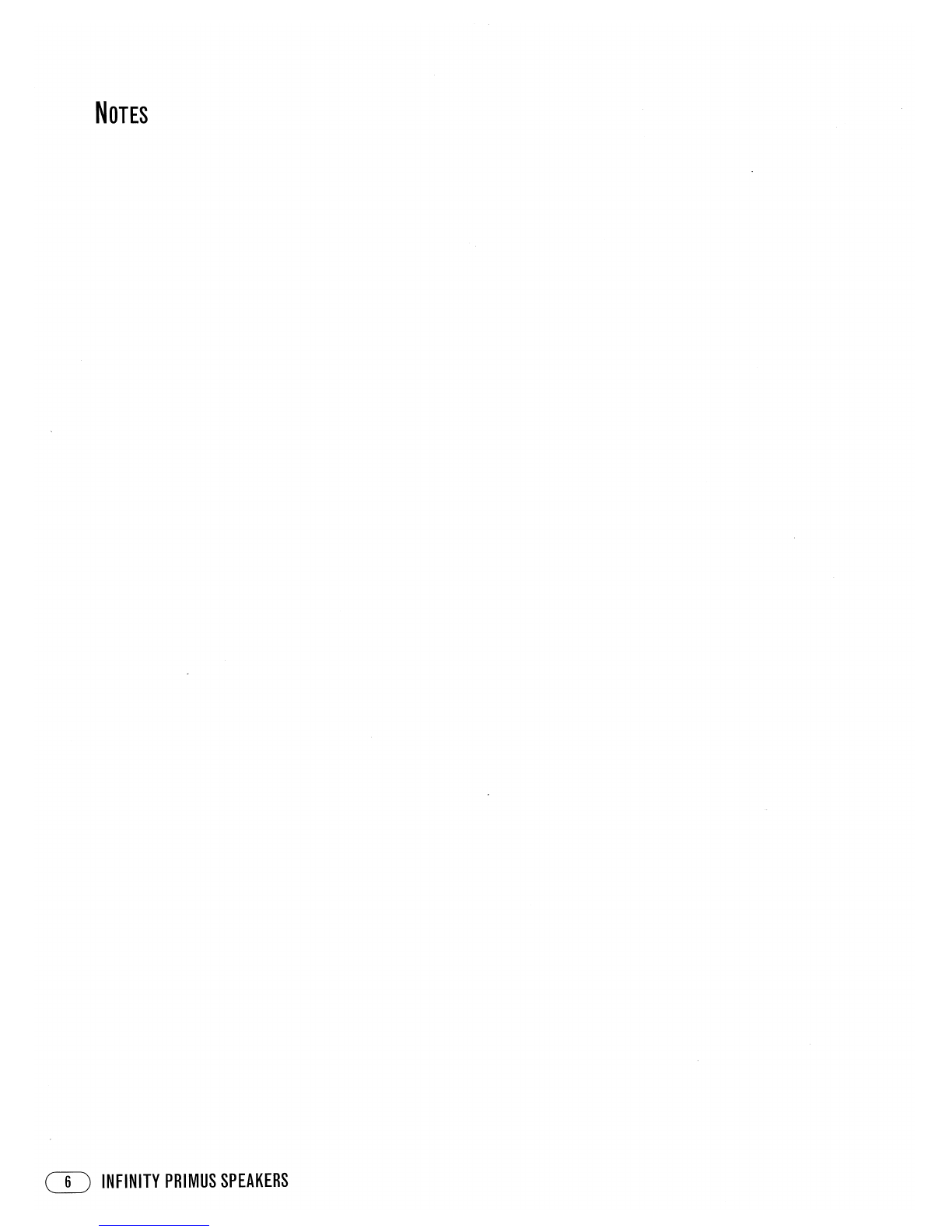

NOTES
CIJ INFINITY PRIMUS SPEAKERS

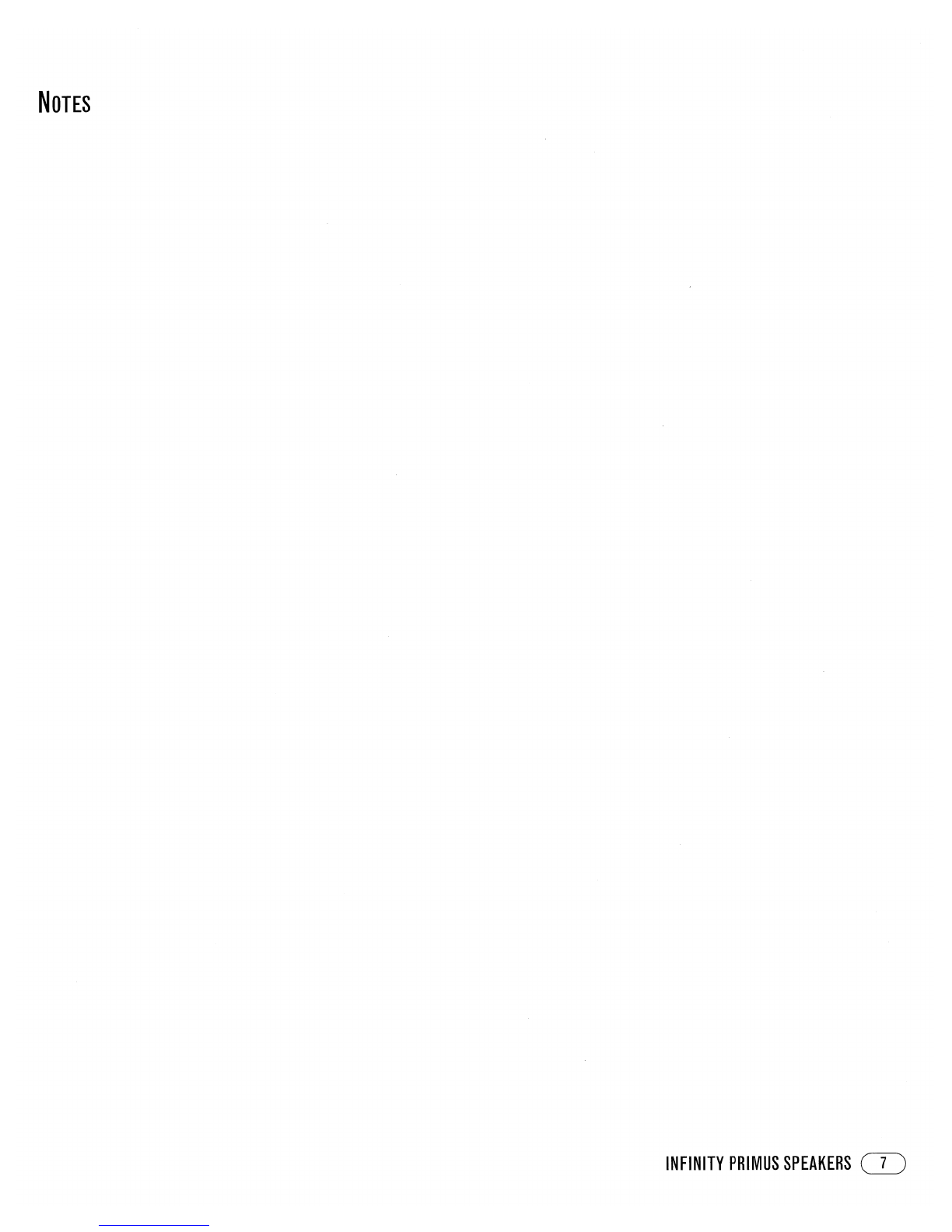

NOTES
INFINITY PRIMUS SPEAKERS CD

Declaration of Conformity
CE:
We, Harman Consumer Group International
2, route de Tours
72500 Chateau du Loir
France
declare in own responsibility that the products described
in this owner's manual are in compliance with technical
standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Laurent Rault
Harman Consumer Group International
Chateau du Loir, France 9/06
Int1nil){
TECHNOLOGY· PERFORMANCE· DESIGN
© 2006 Harman International Industries, Incorporated. All rights reserved.
Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4463 (USA only) www.infinitysystems.com
Infinity, Infinity Primus and MMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Metal Matrix Diaphragm is a trademark of Harman International Industries, Incorporated.
Part No. 406-000-05514-E 9/06
HAHarman International Company

t\<) Intfnit'i

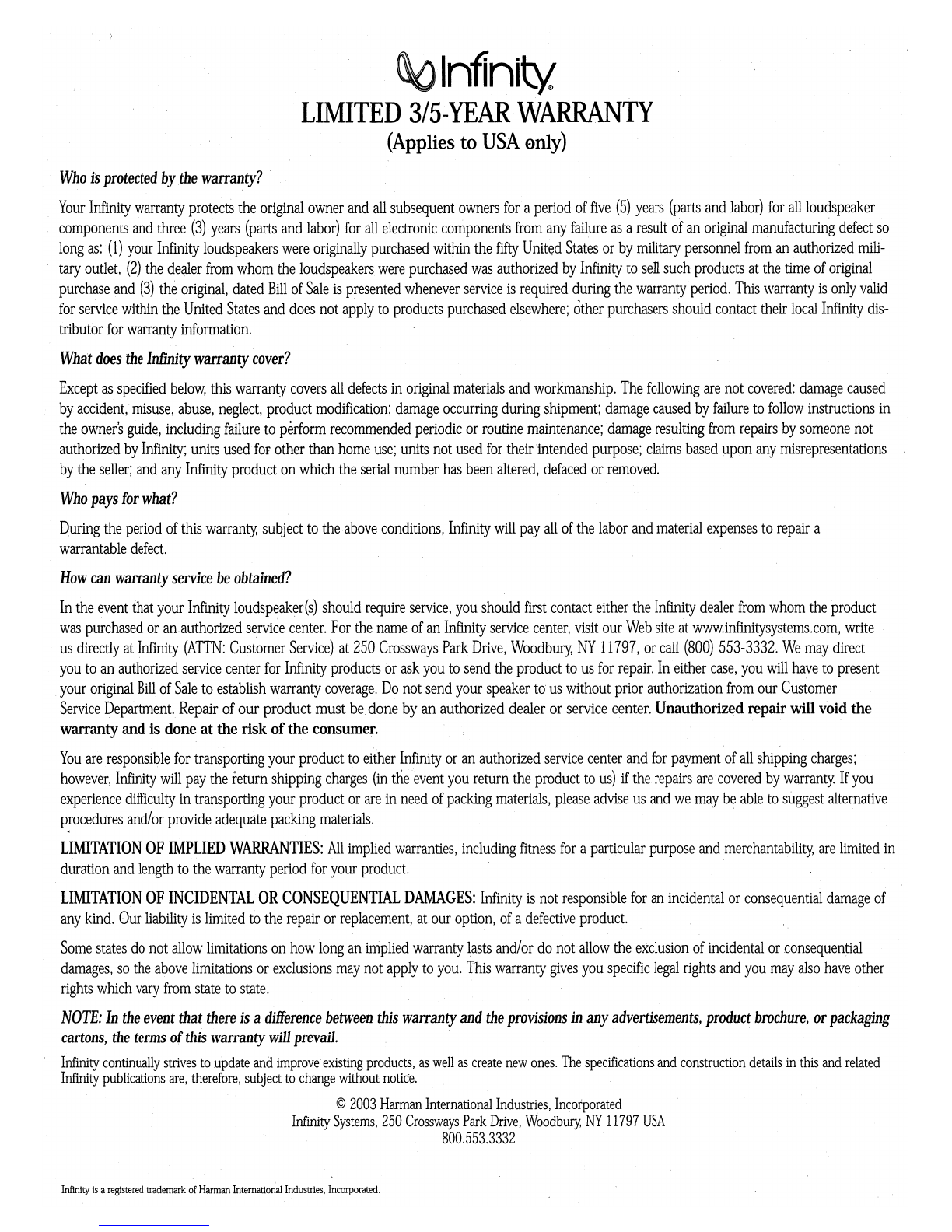

LIMITED 3/5-YEARWARRANTY
(Applies to USA enly)
Who is protected by the warranty?
Your Infinity warranty protects the original owner and all subsequent owners fora period of five (5) years (parts and labor) for all loudspeaker
components and three (3)· years (parts and labor) for all electronic components from any failure as. a result of an original manufacturing defect so
long as: (1) your Infinity loudspeakers were originally purchased within the fifty Unit~d States or by military personnel from an authorized mili-
tary outlet, (2) the dealer from whom the loudspeakers were purchased was authorized by Infinity to sell such products at the time of original
purchase and (3) the original, dated Bill of Sale is presented whenever service is required during the warranty period. This warranty is only valid
for service within the United States and does not apply to products purchased elsewhere; other purchasers should contact their local Infinity dis-
tributor for warranty information.
What does the Infmity warranty cover?
Except as specified below, this warranty covers all defects in original materials and workmanship. The follOWing are not covered: damage caused
by accident, misuse, abuse,. neglect, product modification; damage occurring during shipment; damage caused by failure to follow instructions in
the owners gUide, including failure to perform recommended periodic or routine maintenance; damage resulting from repairs by someone not
authorized by Infinity; units used fOf other than home use; units not used for their intended purpose; claims based upon any misrepresentations
by the seller; and any Infinity product on which the serial number has been altered, defaced or removed.
Who pays for what?
During the period of this warranty, subject to the above conditions, Infinity will pay all of the labor and material expenses to repair a
warrantable defect.
How can warranty service be obtained?
In the event that your Infinity loudspeaker(s) should require service, you should first contact either the Infinity dealer from whom the product
was purchased or an· authorized service center. For the name of an Infinity service center, visit our Web site at www.infinitysystems.com. write
us directly at Infinity (ATTN: Customer Service) at 250 Crossways Park Drive, Woodbury; NY 11797, or call [phone]-. We may direct
you to an authorized service center for Infinity products or ask you to send the product to us for repair. In either case, you will have to present
your original Bill of Sale to establish warranty coverage. Do not send your speaker to us without prior authorization from our Customer
Service I!epartment. Repair of our product must be done by an authorized dealer or service center. Unauthorized repair will void the
warranty and is done
at the risk of the consumer.
You are responsible for transporting your product to either Infinity or an authorized service center and for payment of all shipping charges;
however, Infinity will pay the return shipping charges (in the event you return the product to us) if the repairs are·covered"by warranty: If you
experience difficulty in transporting your product or are in need of packing materials, please advise us and we may b~ able to suggest alternative
procedures and/or provide adequate packing materials.
LIMITATION OF IMPLIED WARRANTIES: All implied warranties, including fitness for a particular purpose and merchantability; are limited in
duration and length to the warranty period for your product.
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES: Infinity is not responsible for an incidental or consequential damage of
any kind. Our liability is limited to the repair or replacement, at our option, of a defective product.
Some states do not allow limitations on how long an implied warranty lasts and! or do not· allow the exclusion of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
NOTE: In the event that there is a difference between this warranty and the provisions in any advertisements, product brochure, or packaging
cartons, the terms of this warranty will prevail.
Infinity continually strives to update and improve" existing products, as well as create new ones. The specifications and construction details in this and related
Infinity publications are, therefore, subject to change without notic·e.
© 2003 Harman International Industries, InGorporated
Infinity Systems, 250 Crossways Park Drive, Woodbury: NY 11797 USA
800.553.3332
Infinity is a registered trademark of Harman International Industries, Incorporated.
