Infinova V1405-7 Installation instructions

V1405 Series
Indoor/Outdoor Small Housing
Installation/Operation Instructions

Notice
Copyright Statement
This manual may not be reproduced in any form or by any means used to create any
derivative such as translation, transformation, or adaptation without the prior written
permission of Infinova.
Infinova reserves the right to change this manual and the specifications without prior notice.
The most recent product specifications and user documentation for all Infinova products are
available on our web site www.infinova.com
Trademarks
Infinova®is a trademark of Infinova.
Copyright © 1993-2012 Infinova. All rights reserved.
Contents are subject to change without prior notice. Infinova and its logo are registered
trademarks of Infinova. All other trademarks that may appear belong to their respective
proprietors.
FCC Warning
V1405 series Indoor/Outdoor Small Housing complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions.
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may cause
undesired operation.
The V1405 has been tested and found to comply with the limits for Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation.

Read this manual carefully before installation. This manual should be saved
for future use.
Important Safety Instructions and Warnings
zElectronic devices must be kept away from water, fire or high magnetic radiation.
zClean with a dry cloth.
zProvide adequate ventilation.
zUnplug the power supply when the device is not to be used for an extended period of
time.
zOnly use components and parts recommended by manufacturer.
zPosition power source and related wires to assure to be kept away from ground and
access way.
zRefer to qualified personnel for all service matters.
zSave product packaging to ensure availability of proper shipping containers for future
transportation.
Indicates that the un-insulated components within the product may carry a voltage
harmful to humans.
Indicates operations that should be conducted in strict compliance with instructions
and guidelines contained in this manual.
Warning: To avoid risk of fire and electric shock, keep the indoor product away
from rain and moisture!

Table of Contents
Chapter I General Description.......................................................................................1
1.1 Overview .............................................................................................................1
1.2 Models .................................................................................................................1
1.3 Features................................................................................................................1
1.4 Specifications ......................................................................................................1
1.5 Packing ................................................................................................................3
Chapter II Installation ....................................................................................................4
Chapter III Operation.....................................................................................................5

1
Chapter I General Description
1.1 Overview
V1405 series Indoor/Outdoor Small Housings are used with pan/tilt units or fixed mounts.
The housings are constructed of aluminum; you can install cameras with either fixed focal or
vari-focal lenses. V1405 series housings have adjustable camera sleds to accommodate
different sizes of cameras and lenses.
1.2 Models
V1405-7 Camera housing, indoor/outdoor, 7" internal
V1405-7S Camera housing, indoor/outdoor, 7" internal, w/ sun shield
V1405-7SH Camera housing, indoor/outdoor, 7" internal, w/ sun shield & heater
V1405-10 Camera housing, indoor/outdoor, 10" internal
V1405-10S Camera housing, indoor/outdoor, 10" internal, w/sun shield
V1405-10SH Camera housing, indoor/outdoor, 10" internal, w/ sun shield & heater
V1405-10SHB Camera housing, indoor/outdoor, 10" internal, w/ sun shield, heater &
blower
1.3 Features
zIndoor/outdoor installations
zSpring assisted forward opening lid
zRear lock connection
zAluminum construction, available in both 12.75″and 15.75″
zIP66 standard
zOptional heater and sun shield
zTemperature can be reduced by 5.4℉~9℉(3℃~5℃) with sun shield
zTwo cable entry glands on the bottom of housing
zCompact design and light weight
zEasy to install
1.4 Specifications
Electrical
Input Voltage: 24VAC/220VAC, 50/60Hz
Power Consumption: 25W (w/heater)
Mechanical
Construction: Aluminum, polyester coat
Environmental Standard: IP66
Maximum Size of Camera + Lens:

2
V1405-7 (L × W × H): 6.85" × 3.54" × 2.85" (174mm × 90mm × 72.5mm)
V1405-10 (L × W × H): 9.84" × 3.54" × 2.85" (250mm × 90mm × 72.5mm)
View Window Thickness: 0.16" (4 mm)
View Window Area (W×H): 2.64" × 2.24" (67mm × 57mm)
Cable Entry: Two PG13.5 compressed cable glands with the maximum
diameter of 0.48" (12mm) available on the bottom
Housing Lid Lock: Stainless steel
Weight
V1405-7: 4.19 lbs. (1.9 kg)
V1405-10: 5.73 lbs. (2.6 kg)
Dimensions
See Figure 1
Note: In (), the unit is mm, others is inch.
Model V1405-7 V1405-10
A
B
C
14.8 (376)
12.75 (324)
5.35 (136)
17.79 (452)
15.75 (400)
8.85 (174)
5.35
(136)
2.64
(67)
2.24
(57)
4.07
(103.5)
1.54
(39)
2.01
(51) 2-M6
Figure 1
Recommended Installation Mounts
Wall mount
V1571-W Wall Mount, H/V adjustable for housing (V1405),
33.07 lbs. (15 kg) load
V1572-W Wall Mount, Non-Adjustable for housing (V1405, V1406, V1407)
and V1614H pan/tilt, 120 lbs. (55 kg) load

3
V1573 Adapter, Adds H/V adjustability to V1572-W Wall Mount for
housing (V1405, V1406, V1407), 44 lbs. (20 kg) load
V1574A Pole Mount adapter for V1571-W
V1574B Pole Mount adapter for V1572-W
Note: V1572-W should work with V1573.
Specifications and appearance are subject to change without notice.
1.5 Packing
Name Quantity
Manual 1
Camera screw 1
M6×12 screw 2
Outlet 2

4
Chapter II Installation
The Installation steps are as follows:
1. Open the lid to keep the spring loosens.
2. Remove the housing, and you can mount the camera to either side of the sled.
3. Use the two attaching screws holding the camera. Note that the dimension of housing
when mounting with wide caliber lens.
4. There are two threaded mounting holes on the bottom of the housing and the size of the
holes cannot exceed 0.48"(12mm).
5. Install the sled and camera in the housing:
a. If the camera’s lens is adjustable, extend the lens to its maximum length.
b. Place the sled on the rail over the two attaching screws.
c. Tighten the four screws to secure the camera sled to the rail.
6. Lead the video cable out of camera output.

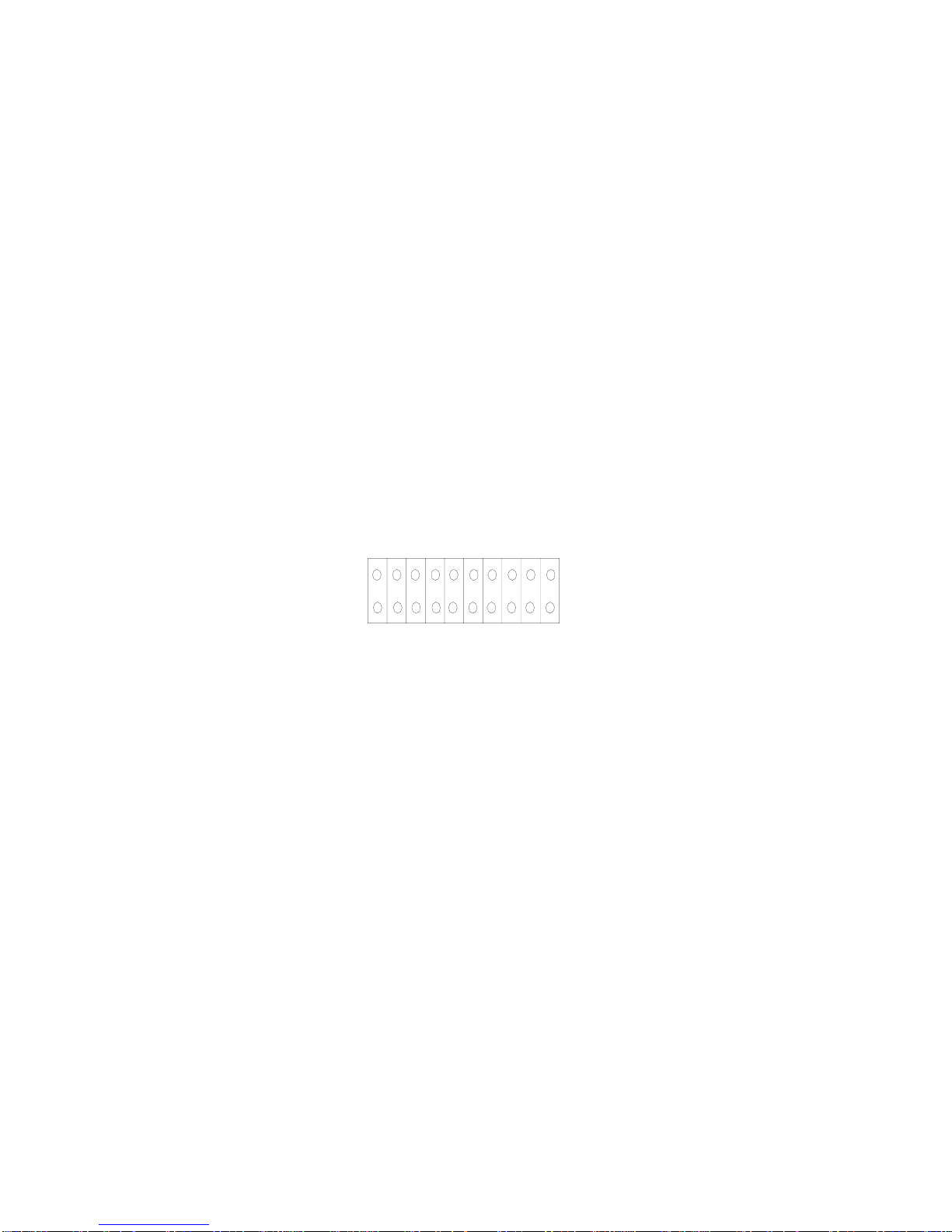

7. Connect the control cable and power cable of the camera to the connector, as shown in
Figure 2.
8. Connect the power cable of the housing, and lock the cable hole.
9. Adjust the camera focus and close the housing lid.
1. Camera power(+)
2. Camera power(-)
3. Lens com
4. Lens focus
10. Voltage: 24/220VAC5. Lens zoom
6. Lens iris
7. Not used
8. GND
9. Voltage: 24/220VAC
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
Figure 2

5
Chapter III Operation
If your housing has a heater, it can be auto activated:
Heater is automatically activated when temperature is 46 ±℉9℉(8 ±5 )℃℃;
Heater is automatically stopped when temperature is 68℉±9℉(20℃±5℃).

Infinova
51 Stouts Lane,
Monmouth Junction, NJ 08852, U.S.A.
Tel: [phone] (USA only)
1-732-355-9100
Fax: [phone]
[email protected]
V2.1 1211
