Air Impact Wrench
2934, 2940, 2945 and 2950 Series

2 04584835_ed5
4
75
32
1
9
6
11
48h
48h
PMAX
9
8h
24h
8
10
(Dwg. 47132600)
13
2
5
6
7
9
10
11
IR # - NPT IR # - BS inch (mm) NPT IR # IR # IR # cm3IR # cm3
C38341-810 C383D1-810 3/4 (19) 1/2 MSCF44 10 170-1lb 4 170-1lb 4

04584835_ed5 EN-1
EN
Product Safety Information
Intended Use:
These Air Impact Wrenches are designed to remove and install threaded fasteners.
For additional information refer to Air Impact Wrench Product Safety Information Manual
Form 04580916.
Manuals can be downloaded from www.ingersollrandproducts.com.
Product Specications
Models Style
Drive Impacts
per min.
Recommended Torque Range
Type Size Forward
ft-lb (Nm)
Reverse
ft-lb (Nm)
2934A2 Outside
Trigger Square 1” 750 500-1,100 (678-1,490)
500-1,100
(678-1,490)
2934B2
2934B2-EU
2934B2SP-EU
Inside
Trigger Square 1” 750 500 -1,100 (678 -1,490)
500-1,100
(678-1,490)
2934B9
2934B9-EU
Inside
Trigger
Square
at 90° 1” 780 500-660 (678-890)
500-660
(678-890)
2934P2
2934P2-EU Pistol Square 1” 825 500-1,100 (678-1,490)
500-1,100
(678-1,490)
2940A1 Outside
Trigger Spline No. 5 850 1,000-1,600 (1,360-2,170)
1,000-1,600
(1,360-2,170)
2940A2 Outside
Trigger Square 1” 850 1,000-1,600 (1,360-2,170)
1,000-1,600
(1,360-2,170)
2940B1 Inside
Trigger Spline No. 5 850 1,000-1,600 (1,360-2,170)
1,000-1,600
(1,360-2,170)
2940B2
2940B2SP-EU
Inside
Trigger Square 1” 850 1,000-1,600 (1,360-2,170)
1,000-1,600
(1,360-2,170)
2940P2 Pistol Square 1” 810 1,000-1,600
(1,360-2,170)
1,000-1,600
(1,360-2,170)
2945A1 Outside
Trigger Spline No. 5 650 1,400-1,800 (1,900-2,440)
1,400-1,800
(1,900-2,440)
2945A7 Outside
Trigger Square 1-1/2” 650 1,400-1,800 (1,900-2,440)
1,400-1,800
(1,900-2,440)
2945B1 Inside
Trigger Spline No. 5 650 1,400-1,800 (1,900-2,440)
1,400-1,800
(1,900-2,440)
2945B7 Inside
Trigger Square 1-1/2” 650 1,400-1,800 (1,900-2,440)
1,400-1,800
(1,900-2,440)
2950A7 Outside
Trigger Square 1-1/2” 650 1,600-2,500 (2,170-3,390)
1,600-2,500
(2,170-3,390)
2950B7
2950B7-EU
Inside
Trigger Square 1-1/2” 650 1,600-2,500 (2,170-3,390)
1,600-2,500
(2,170-3,390)

EN-2 04584835_ed5
EN
Models
Sound Level dB(A)
(ANSI S5.1-1971)
Vibration (m/s²)
(ISO28927)
Pressure Power
(ISO3744) Level *K
2934A2 97.9 108.9 18.8 3.7
2934B2, 2934B2-EU, 2934B2SP-EU 97.9 108.9 18.8 3.7
2934B9, 2934B9-EU 96.2 107.2 30.8 10.2
2934P2, 2934P2-EU 92.4 103.4 18.3 5.3
2940A1 97.8 108.8 17.8 3.4
2940A2 97.8 108.8 17.8 3.4
2940B1 97.8 108.8 17.8 3.4
2940B2, 2940B2SP-EU 97.8 108.8 17.8 3.4
2940P2 97.2 110.2 18.1 5.6
2945A1 96.3 107.3 18.1 5.6
2945A7 96.3 107.3 18.1 5.6
2945B1 96.3 107.3 18.1 5.6
2945B7 96.3 107.3 18.1 5.6
2950A7 97.4 108.4 18.1 5.6
2950B7, 2950B7-EU 97.4 108.4 18.1 5.6
* K = Measurement uncertanity vibration
Installation and Lubrication
Size air supply line to ensure tool’s maximum operating pressure (PMAX) at tool inlet. Drain
condensate from valve(s) at low point(s) of piping, air lter and compressor tank daily. Install
a properly sized Safety Air Fuse upstream of hose and use an anti-whip device across any
hose coupling without internal shut-o, to prevent hose whipping if a hose fails or coupling

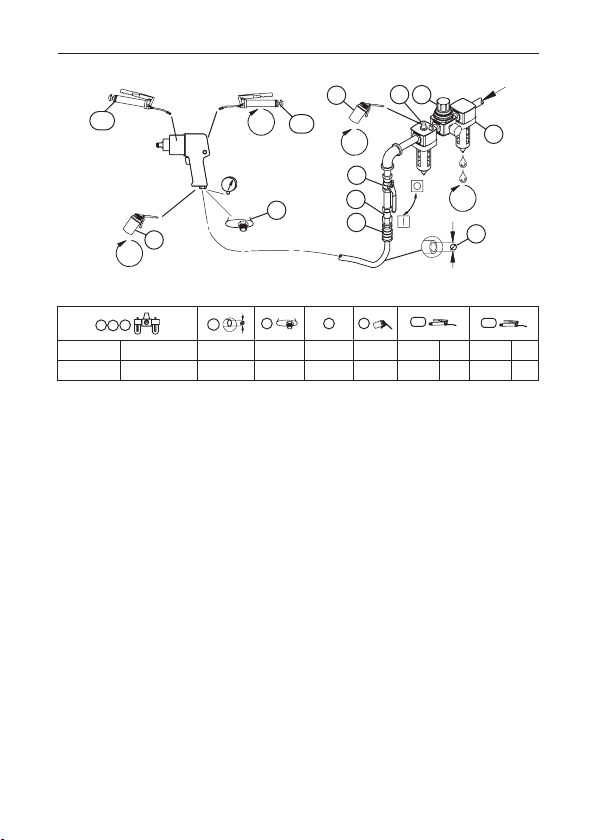

disconnects. See drawing 47132600 and table on page 2. Maintenance frequency is shown in a
circular arrow and dened as h=hours, d=days, and m=months of actual use. Items identied as:
1. Air lter 7. Coupling
2. Regulator 8. Safety Air Fuse
3. Lubricator 9. Oil
4. Emergency shut-o valve 10. Grease - during assembly
5. Hose diameter 11. Grease - through tting
6. Thread size
Parts and Maintenance
When the life of the tool has expired, it is recommended that the tool be disassembled,
degreased and parts be separated by material so that they can be recycled.
The original language of this manual is English.
Tool repair and maintenance should only be carried out by an authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Oce or Distributor.
