Ingersoll-Rand G110 User manual

Users guide and maintenance
manual for the generating sets
Réf. GPAO : 33501177101NE
Model
(
s
)
: G110
Control device: M150
Réf. constructeur : 33501177101
Doosan purchased Bobcat Company from Ingersoll-Rand Company in
2007. Any reference to Ingersoll-Rand Company or use of trademarks,
service marks, logos, or other proprietary identifying marks belonging
to Ingersoll-Rand Company in this manual is historical or nominative
in nature, and is not meant to suggest a current affiliation between
Ingersoll-Rand Company and Doosan Company or the products of
either.
Revised (10-12)

Users guide and maintenance
manual
All generating sets
General considerations
Safety instructions
Réf. constructeur : MUE-IR A Réf. GPAO : 33522051901
- 1 -

1. Preamble ................................................................................................................................ 4
1.1. Introduction ................................................................................................................... 4
1.1.1 General recommendations......................................................................................... 4
1.1.2. Structure of the reference material ........................................................................... 5
1.2. Pictograms and their meanings.................................................................................... 5
1.3. Safety instructions and regulations ............................................................................. 7
1.3.1 General advice........................................................................................................... 7
1.3.2 Risks related to feed gas (concerns gas sets)............................................................. 9
1.3.3 Risks related to exhaust gases and fuels.................................................................... 9
1.3.4 Risks related to toxic products ................................................................................ 10
1.3.5 Risk of fire, burns and explosion ............................................................................ 10
1.3.6 Risks related to electrical networks......................................................................... 11
1.3.7 Dangers presented by electric currents (first aid).................................................... 12
1.3.8 Risks related to moving the set ............................................................................... 12
1.3.9 Recommendation for the operator and environment............................................... 13

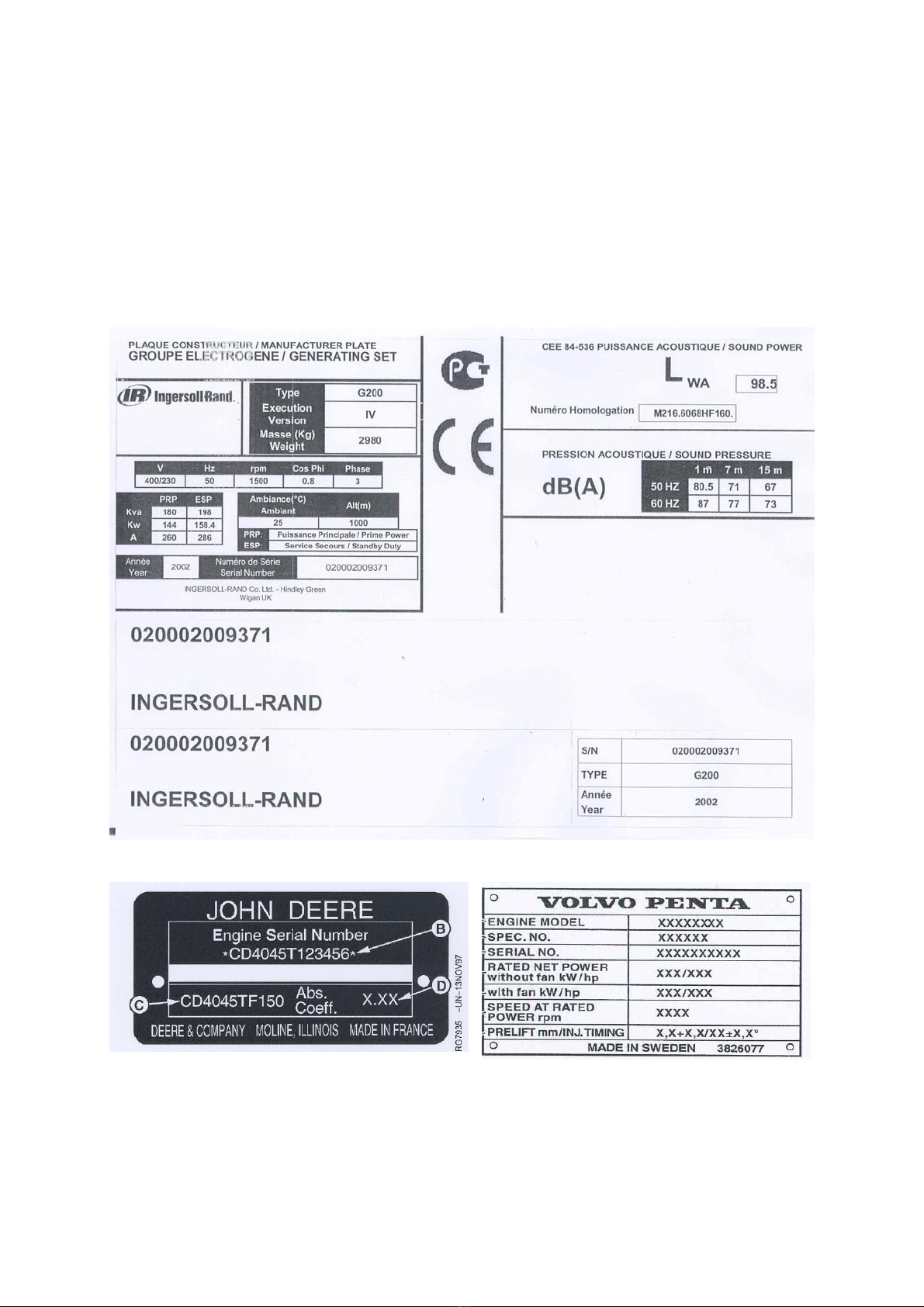

1.4. Identifying sets............................................................................................................. 14
2. Installation........................................................................................................................... 16
2.1. Unloading ..................................................................................................................... 16
2.1.1 Safety during unloading .......................................................................................... 16
2.1.2 Example of material ................................................................................................ 16
2.1.3 Instructions for unloading ....................................................................................... 16
2.1.3.1 Slings................................................................................................................ 16
2.1.3.2 Fork lift truck ................................................................................................... 17
3. Installation of mobile site sets.............................................................................................18
3.1 Specific arrangements.................................................................................................. 18
4. Road trailer .......................................................................................................................... 19
4.1 Trailer linkage .............................................................................................................. 19
4.2 Check before towing..................................................................................................... 20
4.3 Driving........................................................................................................................... 20
4.4 Unhitching the trailer................................................................................................... 20
4.5 Implementation for installation .................................................................................. 21
5. Battery maintenance............................................................................................................ 22
6. Fuel and consumables.........................................................................................................23
6.1 Circuit capacities – Mitsubishi engines ...................................................................... 23
6.2 Circuit capacities – john Deere engines...................................................................... 24
6.3 Circuit capacities – Volvo engines .............................................................................. 25
- 2 -

Attached documents
User manual for the control unit
User and maintenance manual for the engine
User and maintenance manual and spare parts catalogue for the alternator
Wiring diagrams (supplied with the electrical generating set)
Genset parts catalog.
- 3 -

1. PREAMBLE
1.1. Introduction
1.1.1 General recommendations
Thank you for choosing an electrical generating set from our company.
This manual has been designed to help you operate and maintain your electrical generating set
correctly.
Read the safety instructions carefully in order to prevent any accident, incident or damage.
These instructions must always be followed.
In order to obtain optimum efficiency and the longest possible life for the electrical generating
sets, maintenance operations must be carried out according to the periods indicated in the
attached preventative maintenance tables.
If the electrical generating set is used under dusty or unfavourable conditions, some of these
periods will be shorter.
Ensure that all adjustments and repairs are carried out by personnel who have received the
appropriate training. The dealers are suitably qualified and can answer all of your questions.
They can also supply you with spare parts and other services.
The left and right sides can be seen from the back of the electrical generating set (the radiator
is at the front).
Our electrical generating sets have been designed so that damaged or worn parts can be
replaced by new or reconditioned parts thereby reducing the out of action period to a
minimum.
For all parts replacement, contact your nearest dealer representing our company who will
have the necessary equipment and properly trained and informed staff to carry out
maintenance, parts replacement and even total reconditioning of generating sets.
Contact your local dealer for the available repair manuals and to make the necessary
arrangements for training personnel in implementation and maintenance.
IMPORTANT
Some user manuals and maintenance manuals for the engines fitted to the electrical
generator assemblies include information on the control units and detail the engine
starting and stopping procedures.
As the electric generator assemblies are fitted with assembly-specific test and
control panels, only the information in the documentation regarding the panels fitted
to the assemblies should be taken into consideration.
- 4 -

1.1.2. Structure of the reference material
The reference material delivered with the generating sets enables you to get to know the
equipment, operate it and maintain it, both on a daily basis and periodically.
The reference material for the engines and alternators fitted to the sets consists of engine user
and maintenance manuals (from the manufacturer) and alternator user and maintenance
manuals (from the manufacturer).
The reference material contains:
- the user and maintenance manual, containing among other things:
o general recommendations and safety regulations to be adhered to
o general recommendations for installing generating sets
o tables of capacities (lubricants and coolants) and fuel tanks of different engines
that may be fitted to the sets according to their configurations
o general reference material for maintaining starter batteries
- user and maintenance manual for the engine fitted to the set
- maintenance manual for the alternator fitted to the set
- user manual for the control panel
- wiring diagrams (these diagrams are delivered with the generating set)
1.2. Pictograms and their meanings
Warning danger
Publications delivered
with the generating set
must be referred to
Warning, risk of electric
shock
Protective clothing
must be worn
Warning, toxic materials Your eyes and ears
must be protected
Warning, pressurised
liquids
Periodic maintenance
must be carried out
Warning, high
temperature, risk of burns
Battery level must be
checked
- 5 -

Warning, rotating or
moving parts (risk of
getting caught in the
machinery)
Lifting point required
Warning, corrosive
product
Stacking point required
Warning, risk of explosion
Naked flames and
unprotected lights
prohibited.
No smoking
Entry prohibited to non-
authorised persons
Exctinction by water
prohibited
Power
When on a trailer,
earth the set before
starting it
Earth Emergency cut-out
Application of EU Machine Directive 98/37 of 22 June 1998 in relation to generating sets.
- access restricted to authorised personnel only according to the legislation in force
- live installation: possible automatic start-up.
- 6 -

1.3. Safety instructions and regulations
THESE SAFETY PRECAUTIONS ARE IMPORTANT
If you do not understand or have any questions about any point in this manual, contact your
dealer who will explain it to you or give you a demonstration. A list of risks and
precautionary measures to take follows. You should also refer to any local and national
regulations that apply in accordance with your own jurisdiction.
1.3.1 General advice
- Read and understand the manuals provided with the generating set in full.
- Do not wear loose clothing and do not go near the machines when operating. Note that
the fans are not clearly visible when the engine is running.
- Warn all people present to keep well back during operation.

- The generating set should always be controlled by an experienced person.
- Always test the generating set from the control panel.
- Follow the maintenance table and its directions.
- Never let anyone else use the generating set without having first given them the
necessary instructions.
- Do not run the engine without having refitted the protective covers.
- Engine with turbocharger: never start the engine without fitting the air filter. The
rotating compressor wheel in the turbocharger can cause severe physical injury.
Foreign objects in the intake duct can cause mechanical damage.
- Engine with air preheating (starter components): never use starter aerosol or similar
product as starter assistance.
When it comes into contact with the starter component, an explosion may occur in the
inlet manifold and lead to physical injury.
- Never let a child touch the generating set, even when not in use. Avoid using the
generating set in the presence of animals (can distress the animal).
- Never start the engine without an air filter or exhaust.
- Always follow current local regulations regarding generating sets and use of fuel
(petrol and gas) before using your generating set.
- Never use sea water or any other electrolitic or corrosive product in the coolant circuit.
- 7 -


- Disconnect the battery and pneumatic starter (if there is one) before carrying out any
repair, to prevent the engine from starting accidentally. Fit a panel over the controls to
prevent any attempt at starting.
- Do not modify the engine.
- Only use the correct techniques for turning the crankshaft to rotate the crankshaft
manually. Do not try to rotate the crankshaft by pulling or exerting force on the lever
on the fan. This method can cause serious physical or material harm or damage the fan
blade (s), leading to premature breakdown of the fan.
- Always use tools in good condition. Check that you have understood how to use them
before starting a procedure.
- Only fit original spare parts.
- Use tools that correspond to the work being carried out.
- Clean all traces of oil or coolant with a clean cloth.
- Never use petrol or other flammable substances to clean parts. Use only approved
cleaning solvents.
- Do not use a high-pressure cleaner for cleaning the engine and fittings. The radiator,
hoses, electrical components etc. could be damaged.
- Avoid accidental contact with parts that reach high temperatures (exhaust manifold,
exhaust)
- Engage the parking brake when the generating set on its trailer is installed on the
operating site.
- When setting on a slope; check that no-one is behind the trailer.
- Protective eyewear must be worn when handing during maintenance operations.
Operators should remove watches, chains, etc.
- 8 -

1.3.2 Risks related to feed gas (concerns gas sets)
WARNING – DANGER
The gas is explosive. It is forbidden to smoke, go near or create sparks when the tank is being
filled and near to the generating set.
- Request the user technical notes and LPG or NG safety data sheets from your gas
supplier.

- Gas installations must be installed, maintained and repaired by recognised specialists.
- Do not attempt to open, unseal or intervene in gas supply pressure relief valves and on
the gas line in general.

- Gas supply procedures must be carried out in fresh air (outside) in accordance with
local regulations, in an area well away from fire, people or animals.
1.3.3 Risks related to exhaust gases and fuels
WARNING - DANGER
generating sets should not be operated in unventilated areas.
- Always follow the local regulations in force regarding generating sets and use of fuel
(petrol, diesel and gas) before using your generating set.
- Fuel filling should be carried out when the engine is stopped (except for sets with an
automatic filling system)
- Engine exhaust gases are toxic: Do not operate the generating set in non ventilated
areas. When installed in a ventilated area, the additional requirements for protection
against fire and explosions must be observed.
- If a burnt gas exhaust leaks, the generating set may become more noisy. In order to be
sure of its efficiency, you should periodically examine the burnt gas exhaust.
- Pipes must be replaced as soon as their condition requires it.
- 9 -

1.3.4 Risks related to toxic products
WARNING – DANGER
The corrosion inhibitor contains alkali. This substance should not come into contact with the
eyes. Avoid any prolonged or repeated contact with skin. It should not be swallowed. In the
event of skin contact, wash thoroughly with water and soap. In the event of contact with eyes,
rinse immediately with plenty of water for at least 15 minutes. CALL A DOCTOR
IMMEDIATELY. KEEP THE PRODUCT OUT OF THE REACH OF CHILDREN.
The anti-rust product is toxic and dangerous if absorbed. Avoid any contact with skin or eyes.
Read the instructions on the packaging.
Glycol is a toxic product and dangerous if absorbed. Avoid any contact with skin or eyes.
Read the instructions on the packaging.
- Never expose the equipment to liquid splashes or rainfall, and do not place it on wet
ground.
- Always use the recommended fuels. Using low quality fuels risks damaging the engine
and altering performance
- The battery electrolyte is harmful to skin and especially eyes. If splashes get into eyes,
rinse immediately with running water and/or a 10% diluted boric acid solution.
- Wear protective eyewear and strong base resistant gloves for handling the electrolyte .
1.3.5 Risk of fire, burns and explosion
WARNING – DANGER
The engine should not be operated in areas containing explosive products. There is a risk of
sparks forming where all electrical and mechanical components are not shielded.
- Beware of creating sparks or flames and do not smoke near batteries as the electrolyte
gases are highly flammable (especially when the battery is being filled). Their acid is
also harmful to the skin and particularly the eyes.
- Never clean, lubricate or adjust an engine when it is in operation ( unless you are
qualified to do so, in which case extreme care must be taken to avoid accidents)
- Never make adjustments that you are not familiar with.
- Never cover the generating set with any material while it is working or just after it
stops (wait until the engine has cooled)
- Do not touch hot components such as the exhaust pipe and do not put combustible
material on them.
- Keep all flammable or explosive products (petrol, oil, cloth, etc.) well away when the
set is running.
- 10 -

- Good ventilation is required for your generating set to work properly. Without
ventilation, the engine will quickly reach an excessive temperature that could lead to
accidents or damage to the equipment and surrounding items.
- Do not take off the radiator cap when the engine is hot and the coolant is pressurised
due to risk of burns.
- Depressurise the air, oil and coolant circuits, before removing or disconnecting any
unions, ducts or connected components. Be aware of any possible pressure that might
be present when disconnecting a device from a pressurised system. Do not look for
pressure leaks manually. High pressure oil can cause physical accidents.
- Some preservative oils are flammable. Also, some are dangerous to inhale. Check that
ventilation is good. Use a protective mask.
- Hot oil causes burns. Avoid contact with hot oil. Check that the system is no longer
pressurised before carrying out any procedures. Never start or run the engine when
the oil filling cap is off as oil may be ejected.
- Never start or run the engine when the oil filling cap is off as oil may be ejected.
- Never cover the generating set with a fine layer of oil for anti-rust protection.
- Never fill up the oil or coolant when the generating set is running or when the engine
is hot.
1.3.6 Risks related to electrical networks
- The electrical equipment supplied with the generating set complies with standard
NF C15.100 or the standards of the relevant countries
- Read the manufacturer's identification plate carefully. The values for voltage, power,
current and frequency are shown. Check that these values match the supply use.
- Never accidentally touch naked wires or disconnected connections.
- Never handle a generating set with wet hands or feet.
- Maintain electrical wires and connections in good condition. Using equipment in poor
condition can lead to electrocution and damage to equipment.

- Any procedure on the equipment must be carried out voltage free.
- Electrical connections must be made in accordance with current standards and
regulations in the country.
- Do not use faulty, poorly insulated or provisionally connected wires.
- Do not invert the positive and negative terminals of batteries when connecting them.
Such an inversion can lead to severe damage to the electrical equipment. Follow the
wiring diagram supplied by the manufacturer.
- The generating set should not be connected to any other power sources, such as the
public distribution network. In specific cases where there is a reserve connection to
existing electrical networks, it must only be carried out by a qualified electrician, who
should take the operating differences of the equipment into account, according to
whether the public distribution network or generating set is being used.
- Protection against electric shocks is ensured by an assembly of specific equipment. If
this needs to be replaced, it should be by components with identical nominal values
and specifications.
- Due to strict mechanical specifications you should only use flexible resistant rubber
sleeved wires, in compliance with CEI 245-4 or equivalent wires.
- 11 -

1.3.7 Dangers presented by electric currents (first aid)
First aid
In the event of an electric shock, cut off the voltage immediately and activate the set's
emergency stop. If the voltage has not yet been cut off, move the victim out of contact with
the live conductor as quickly as possible. Avoid direct contact both with the live conductor
and the victim's body. Use a dry plank of wood, dry clothes or other non-conductive materials
to move the victim away. The live wire may be cut with an axe. Take extreme care to avoid
the electric arc that results from this.
Begin emergency procedures
Resuscitation
If breathing has stopped, begin artificial respiration at once in the same place the accident
took place unless the victim or operator's life could be endangered by this.
In the event of cardiac arrest, carry out cardiac massage.
1.3.8 Risks related to moving the set
- Use lifting units to lift the generating set. Always make sure that the lifting equipment
is in good condition and has a sufficient lifting capacity.
- In order to work in complete safety and prevent the components fitted to the top of the
engine from being damaged, the engine should be lifted with an adjustable boom. All
chains and cables should be parallel to one another and as perpendicular as possible to
the top of the set.
- If other equipment fitted to the generating set alters its centre of gravity, special lifting
devices may be required to maintain the correct balance for working in total safety.
- Never carry out work on a generating set that is suspended on a lifting device only.
- 12 -

1.3.9 Recommendation for the operator and environment
- Operating personnel should be aware of the safety and operating instructions. These
will be regularly updated.
- Operating should be monitored, directly or indirectly, by someone designated by the
operator who is familiar with the installation and dangers and problems regarding
products stored and used in the installation.

- Manufacturers' notes should be available to technical staff, on site if possible.
- Written operating instructions must be available for operations that involve dangerous
handling procedures and driving installations. In particular, these instructions
prescribe:
o Operating modes
o Frequency of testing for safety devices and devices for handling pollution and
other harmful substances generated by the installation
o Methods for maintenance, checking and use of adjustment equipment and
safety devices.
- The presence of dangerous or combustible materials on premises where combustion
apparatus is sheltered is limited to what is required for the operation.
- The installations must be operated under the constant supervision of a qualified
person. This person should periodically check that the safety devices are working
properly and ensure the correct fuel supply to the combustion apparatus.
- Apart from combustion apparatus, flames in any form are prohibited. This should be
displayed in bold on a sign.
- Residual water, mud and waste spray is prohibited.
- The fuels to be used should correspond to the ones in the declaration file and the
specifications prescribed by the combustion apparatus manufacturer.
- The fuel is considered as being in the physical state that is introduced into the
combustion chamber.
- Always protect your hands when detecting leaks. Pressurised fluids can enter body
tissues and cause severe harm. Risk of blood poisoning.
- Drain and discard engine oil in a designated container (the fuel distributors can collect
your used oil).
- 13 -

1.4. Identifying sets
generating sets and their components are identified by means of identification plates.
The precise rules for identifying each major component (engine, alternator etc.) are set out in
each manufacturer's documents contained in this manual.
Examples of identification plates
generating set
Engines
- 14 -

Alternator
- 15 -

2. INSTALLATION
2.1. Unloading
2.1.1 Safety during unloading
In order to unload generating sets from their transport mountings, under optimum conditions
of safety and efficiency, you should check that the following points are being followed
correctly.
- Suitable lifting vehicles or equipment for the work.
- Slings positioned in the rings provided for this procedure or lifting arms resting fully
underneath the frame cross beams.
- Suitable ground to accommodate the load of the set and lifting vehicle, without strain (if not,
put down sufficiently strong and stable boards).
Remove the set as close as possible to its place of use or transport, in a clear space with free
access.
2.1.2 Example of material
- crane, slings, lifting beam, safety hook, shackles.
- fork lift truck.
2.1.3 Instructions for unloading
2.1.3.1 Slings
- attach the lifting vehicle slings to the rings on the generating set designed for this procedure.
- hang the slings carefully.
- check that the slings are correctly attached and the equipment is solid.
- lift the generating set carefully.
- direct and stabilise the set towards the chosen position.
- carefully set down the equipment while continuing to position it.
- release the slings, then detach and remove the lifting rings.
- 16 -

2.1.3.2 Fork lift truck
- position the arms of the fork lift under the frame, making sure that only the cross beams are
resting on the arms.
- lift and handle the equipment carefully.
- set down the generating set in its unloading position.
It is recommended to use a fork lift truck with arms that are longer than the width of the frame
- 17 -

3. INSTALLATION OF MOBILE SITE SETS
3.1 Specific arrangements
An area will be reserved to install the generating set. Its should be flat and strong enough so
that the generator does not sink into it. It could be made of concrete or even large planks fitted
together.
It should be noted that a generating set that does not rest correctly on its base (frame or trailer)
will be subject to vibrations that could cause damage to all the equipment.
The location of the set on site should be chosen for ease of fuel supply and distribution of
current to the users.
Access to the set's doors should be available at all times for safety and maintenance reasons.
Ventilation of the generating set should not be affected if there are different objects close by.
It will cause abnormal heating and reduced power.
Burnt gas evacuation will take place in such a way that there is no reaspiration into the air
filter or cooling system.
The generating set's neutral speed must be used to protect people.
Earthing is carried out using a metal post buried deeply in the ground.
These sets are to be covered or protected from bad weather by a suitable construction (see
previous sections).

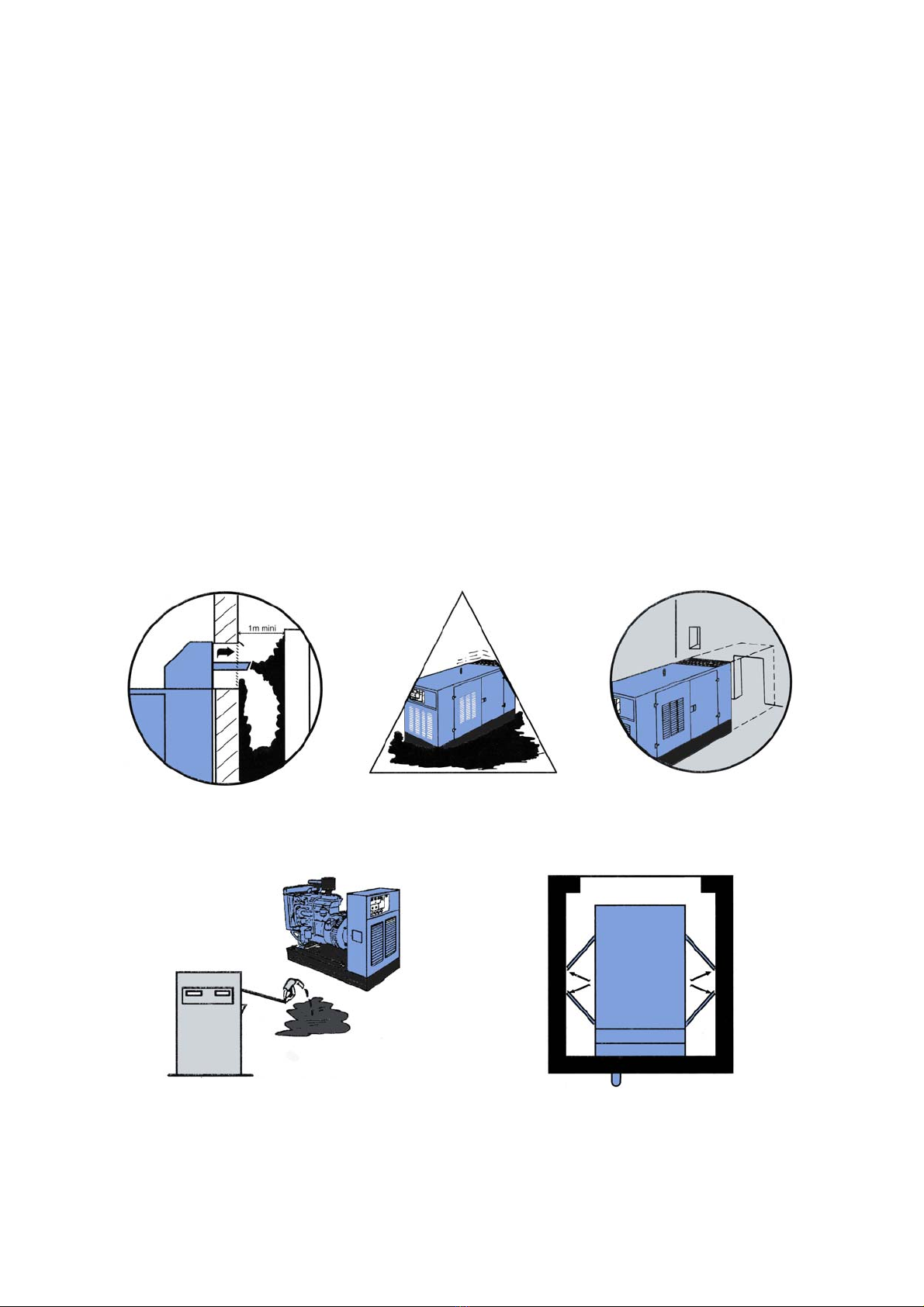

Examples of problems that may be encountered :
Incorrect exhaust and
ventilation
Ground too uneven or soft.
Set incorrectly positioned
Reduced access
Fuel filling impossible Opening cover doors impossible
- 18 -
