InMotion SCV R1 User manual

1 / 68
Content
1. Introduction..........................................................................................................................................................................7
1.1. About This Manual ........................................................................................................................................................7
1.2. The Risk of Injury..........................................................................................................................................................7
1.3. Before You Begin...........................................................................................................................................................7
1.4. Related User Materials...................................................................................................................................................8
1.5. Conventions...................................................................................................................................................................8
2. General Information.............................................................................................................................................................9
2.1. Product Dimensions.......................................................................................................................................................9
2.2. INMOTION SCV Serial Number.................................................................................................................................10
2.2.1. Specifications.....................................................................................................................................................10
2.3. How the INMOTION SCV Works...............................................................................................................................11
2.4. INMOTION SCV Components....................................................................................................................................13
2.5. Assembling the INMOTION SCV...............................................................................................................................14
2.5.1. Unpacking the box..............................................................................................................................................14
2.5.2. Assembling the INMOTION SCV .....................................................................................................................15
2.6. SmartKey .....................................................................................................................................................................17

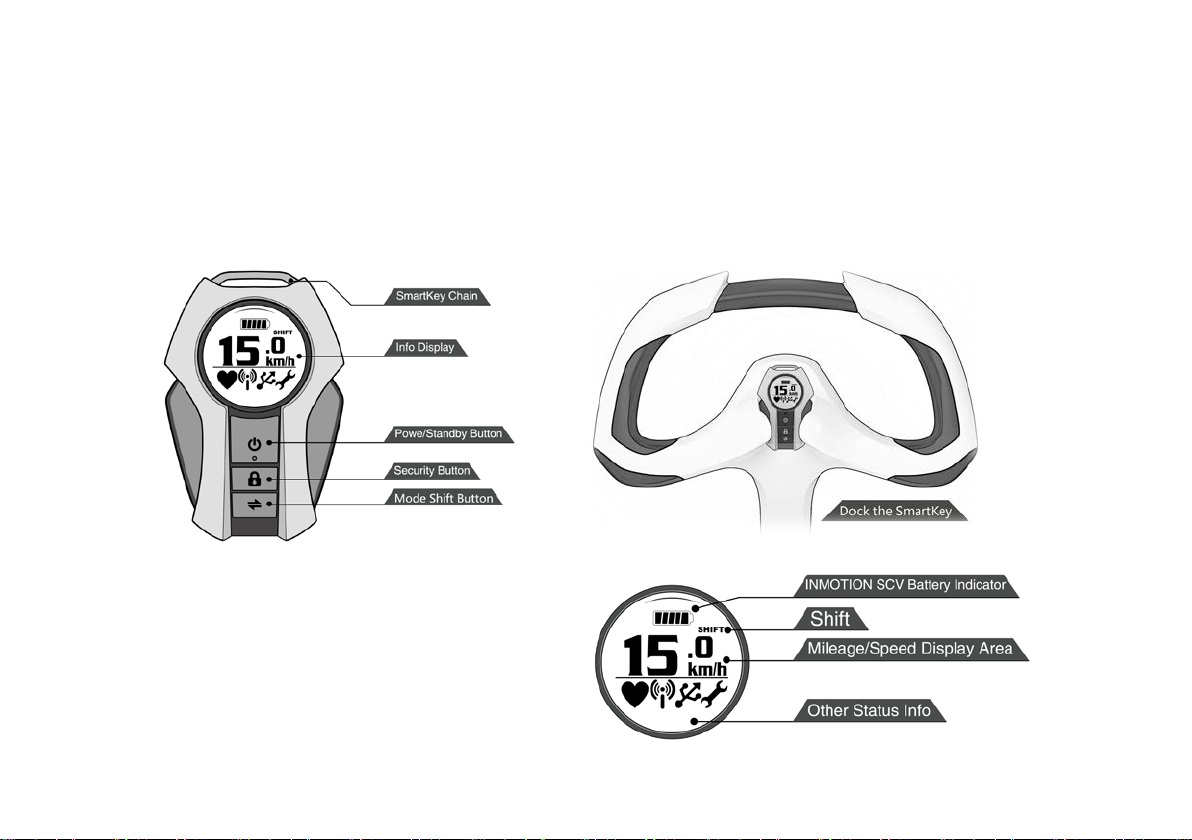

2.6.1. SmartKey Buttons and Display ..........................................................................................................................17

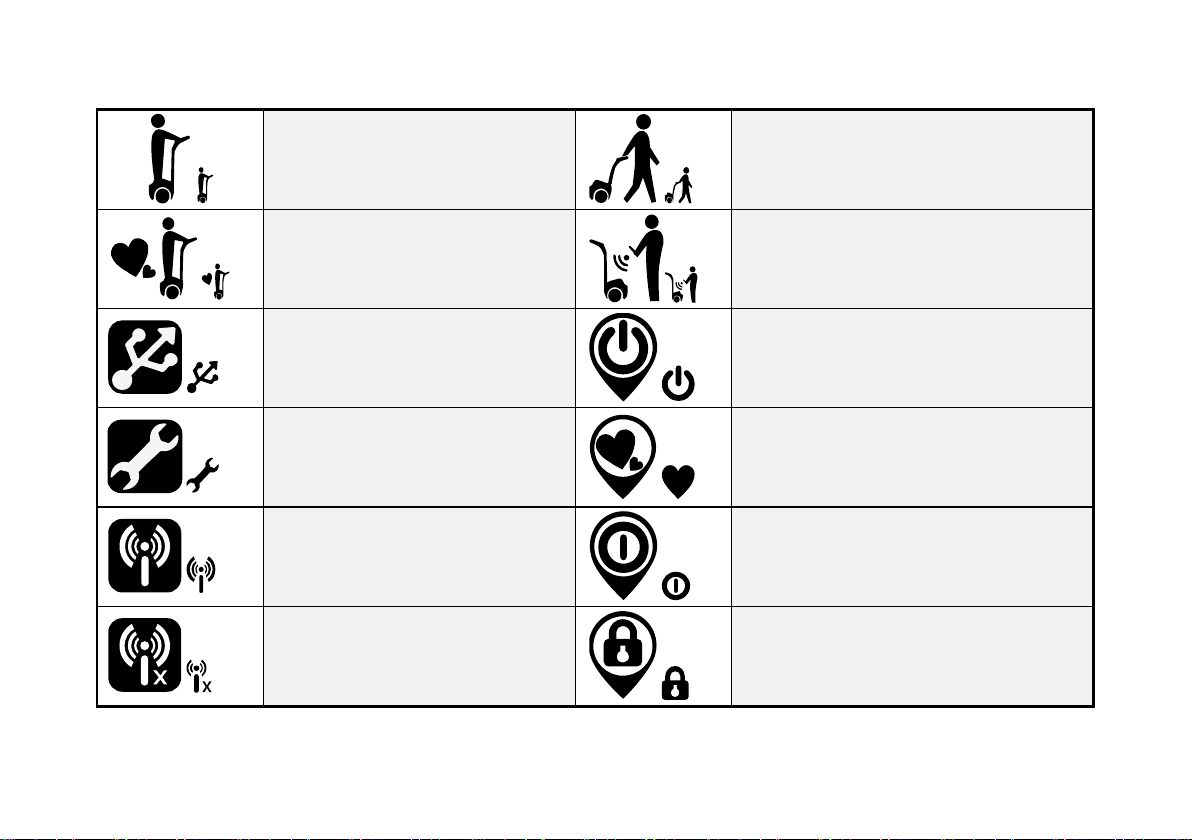

2.6.2. SmartKey Functions...........................................................................................................................................20
2.7. Info LED and Sound Prompt........................................................................................................................................23
2.7.1. Info LED ............................................................................................................................................................23
2.7.2. Sound Prompt.....................................................................................................................................................25

2 / 68
2.8. Working Mode .............................................................................................................................................................25
2.8.1. Introduction........................................................................................................................................................25
2.8.2. State Transition Diagram Among Working Modes.............................................................................................28
2.9. The Front Light and the Rear Light..............................................................................................................................29
2.10. The Driver Detect Sensors ...........................................................................................................................................29
2.11. Communication and Charge Port.................................................................................................................................30
2.11.1. WIFI Port ...........................................................................................................................................................30
2.11.2. GPRS & GPS .....................................................................................................................................................30
2.12. USB Charging Port ......................................................................................................................................................31
2.13. Smart phone APP.........................................................................................................................................................32
3. Driving Your INMOTION SCV.........................................................................................................................................33
3.1. Driving Guidelines.......................................................................................................................................................33
3.1.1. Safety Cautions ..................................................................................................................................................33
3.1.2. Prepare for Driving.............................................................................................................................................33
3.1.3. Powering On the INMOTION SCV ...................................................................................................................34
3.1.4. Stepping On........................................................................................................................................................35
3.1.5. Moving Forward and Backward.........................................................................................................................36
3.1.6. Stopping .............................................................................................................................................................37
3.1.7. Turning the INMOTION SCV............................................................................................................................38
3.1.8. Stepping Off.......................................................................................................................................................39
3.1.9. Securing Your INMOTION SCV .......................................................................................................................40
3.1.10. Powering Off the INMOTION SCV...................................................................................................................40

3 / 68
3.2. Practice Driving ...........................................................................................................................................................40
3.3. Training Mode and Speed Mode..................................................................................................................................41
3.4. Assist Mode .................................................................................................................................................................42
3.5. Remote Control Mode..................................................................................................................................................42
3.5.1. Remote Control..................................................................................................................................................42
3.5.2. Action Order.......................................................................................................................................................42
3.6. Self-examination Mode................................................................................................................................................43
3.7. Safety Alerts.................................................................................................................................................................44
3.7.1. Speed Limiter.....................................................................................................................................................44
3.7.2. Shaft Shake Warning..........................................................................................................................................46
3.7.3. Safety Shutdown ................................................................................................................................................47
3.8. Environmental Factors Affected the Vehicle’s Performance ........................................................................................47
3.8.1. Driving Distance.................................................................................................................................................47
3.8.2. Driving in Hot Temperatures..............................................................................................................................48
3.8.3. Driving in Cold Temperatures............................................................................................................................49
3.8.4. Climbing.............................................................................................................................................................49
3.8.5. Declining............................................................................................................................................................49
4. Using the Battery Pack.......................................................................................................................................................50
4.1. Battery Safety...............................................................................................................................................................50
4.2. Specifications for the Battery Pack ..............................................................................................................................52
4.3. Charging the INMOTION SCV...................................................................................................................................52
4.3.1. Charging Procedures ..........................................................................................................................................53

4 / 68
4.3.2. Charging Indicator..............................................................................................................................................53
4.4. Replacing the Battery Pack..........................................................................................................................................54
4.5. Transporting Battery Pack............................................................................................................................................55
5. Safe Driving.......................................................................................................................................................................56
5.1. Rules that You Must Follow.........................................................................................................................................56
5.2. Actions that You Must Avoid .......................................................................................................................................57
5.3. Safety Alerts.................................................................................................................................................................58
6. Operating and Maintaining Your INMOTION SCV..........................................................................................................60
6.1. Lifting Your INMOTION SCV....................................................................................................................................60
6.1.1. Lifting your INMOTION SCV by the Turning Shaft .........................................................................................60
6.1.2. Lifting your INMOTION SCV by the Metal Grip..............................................................................................60
6.2. Cleaning your INMOTION SCV.................................................................................................................................61
6.3. Storing Your INMOTION SCV ...................................................................................................................................61
6.4. Maintaining Your INMOTION SCV............................................................................................................................62
7. Troubleshooting the INMOTION SCV..............................................................................................................................63
7.1. Diagnosing Errors with SmartKey...............................................................................................................................63
7.2. The INMOTION SCV Will Not Power On..................................................................................................................65
7.3. The INMOTION SCV Will Not Enter Balance Mode .................................................................................................65
7.4. The INMOTION SCV is Prone to Shake.....................................................................................................................66
7.5. The Turning Shaft Slips or is Off-Centered..................................................................................................................66
7.6. The INMOTION SCV Will Not Power Off .................................................................................................................66
7.7. The INMOTION SCV Cannot Link to the APP...........................................................................................................67

5 / 68
8. Contact and Legal Information ..........................................................................................................................................68
8.1. Report a Problem .........................................................................................................................................................68
8.2. How to Reach Us .........................................................................................................................................................68
8.3. Obey All Laws and Regulations...................................................................................................................................68

6 / 68

7 / 68
1. Introduction
1.1. About This Manual
This User Manual is intended to help you set up and use your INMOTION SCV. You need to read this Manual carefully,
watch the Safety Videos and make sure to use your INMOTION SCV following the safety instructions.
It is important that you adhere to all safety warnings and cautions that appear throughout this User Manual.
This User Manual is suitable for INOMTION R1 and INMOTION R1S.
If you have questions or require more information beyond this User Manual, please contact an authorized INMOTION SCV
dealer or distributor in your area.
Whenever you drive the INMOTION SCV, you risk injury from loss of control, collisions, and falls. To reduce risk of injury,
you must read and follow all instructions in this User Manual and watch the Safety Videos.
1.2. The Risk of Injury
INMOTION SCV is a self-balancing sensor control vehicle. Balancing technology cannot prevent injury if you do not drive
the INMOTION SCV safely.
1.3. Before You Begin
Before you begin, it may be necessary to assemble your INMOTION SCV. The Battery Pack should be charged for 5 hours.
To assemble the INMOTION SCV and charge the Battery Pack for the first time, please refer to“2.5 Assembling the INMOTION

8 / 68
SCV” and “4.3 Charging the INMNOTION SCV” section in this Manual.
1.4. Related User Materials
INMOTION provides an electronic copy of the User Manual, the Safety Videos, and the help documents for your
convenience. You can download them as well as the applications for smart phones and tablets from www.imscv.com
1.5. Conventions
The following conventions are used throughout this manual:
Warns you about actions that may result in personal injury.
Cautions you about actions that may result in operational issues or
physical damage to the INMOTION SCV.
Identifies important points, helpful hints, special circumstances, or
alternative methods.

9 / 68
2. General Information
2.1. Product Dimensions


10 / 68
2.2. INMOTION SCV Serial Number
The serial number is unique to your INMOTION SCV. Please write it down and store it in a safe place. The serial number is
a 16-digit number along with the barcode printed on your INMOTION SCV.
The serial number is required when the customer claims after-sales service, warranty, insurance, or confirmation of loss.
Locations of INMOTION SCV Serial Number:
The packing;
Warranty Card;
Battery Slot (Pull out the Battery Pack and you will see the SN in the slot).
2.2.1. Specifications
Item
Value
Note
Model
INMOTION R1
①Max Speed can be adjusted through the application. You may
get a higher instant speed but will stabilize at the set speed.
②Distance per charge was acquired under the following test
conditions: 25℃, 70 Kg payload and smooth road. The cruising
distance is varied regarding different driving conditions.
③The Machine Weight is acquired with a 4 Ah Battery Pack.
Different models weigh differently because of different
materials applied. R1 is about 15.5 Kg, R1S is about 14 Kg.
④Dimensions were measured when the Turning Shaft is at its
longest.
Max. Speed
15 Km/h
①
Distance per charge
20 Km
②
Max Climbing Angle
15°
Machine Weight
15.5 Kg / 14 Kg
③
Load
25 ~ 100 Kg
Turning Radius
0 m
Dimensions (W * D * H)
460*490*1440 mm
④
Battery 72 V 4 Ah
Lithium Ion(Li-ion)
⑤

11 / 68
Power Requirements AC 110 ~ 240 V
50 ~ 60 Hz
⑤4 Ah battery is the standard configuration. You can also
choose a 6 Ah Battery Pack to get a longer cruising distance,
but it will increase the total weight.
⑥Charging time of SCV varies regarding different environment
temperature and capacity of the Battery Pack.
Full Charge Time
About 5 Hours
⑥
Tire Type
Tubeless Tires
Operating Temperature
Range
15 ~ 30
℃
For additional information about Maximum Payload (Driver Plus all Cargo), turn to later chapters.
For additional information about how to raise driving distance per change, turn to Chapter 3, “Environmental Factors Affected
the Vehicle’s Performance”.
2.3. How the INMOTION SCV Works
The INMOTION SCV works like the human body. When walking, if you lean forward, you take a step forward to keep your
balance. If you lean back, you step back. On an INMOTION SCV when you lean forward or back the machine powers the Wheels
in the direction that you lean.
The INMOTION SCV uses dynamic stabilization technology and applies many gyroscopes, sensors and Permanent Magnet
Synchronous Motor (PMSM) to maintain its balance and move forward or backward.
When you pivot the Turning Shaft left, the INMOTION SCV turns left. When you pivot the Turning Shaft right, the
INMOTION SCV turns right. To turn the INMOTION SCV, point the Turning Shaft in the direction you want to go, keeping the
Handlebar in line with your body. When the Turning Shaft is centered, the INMOTION SCV travels straight ahead.

12 / 68

13 / 68

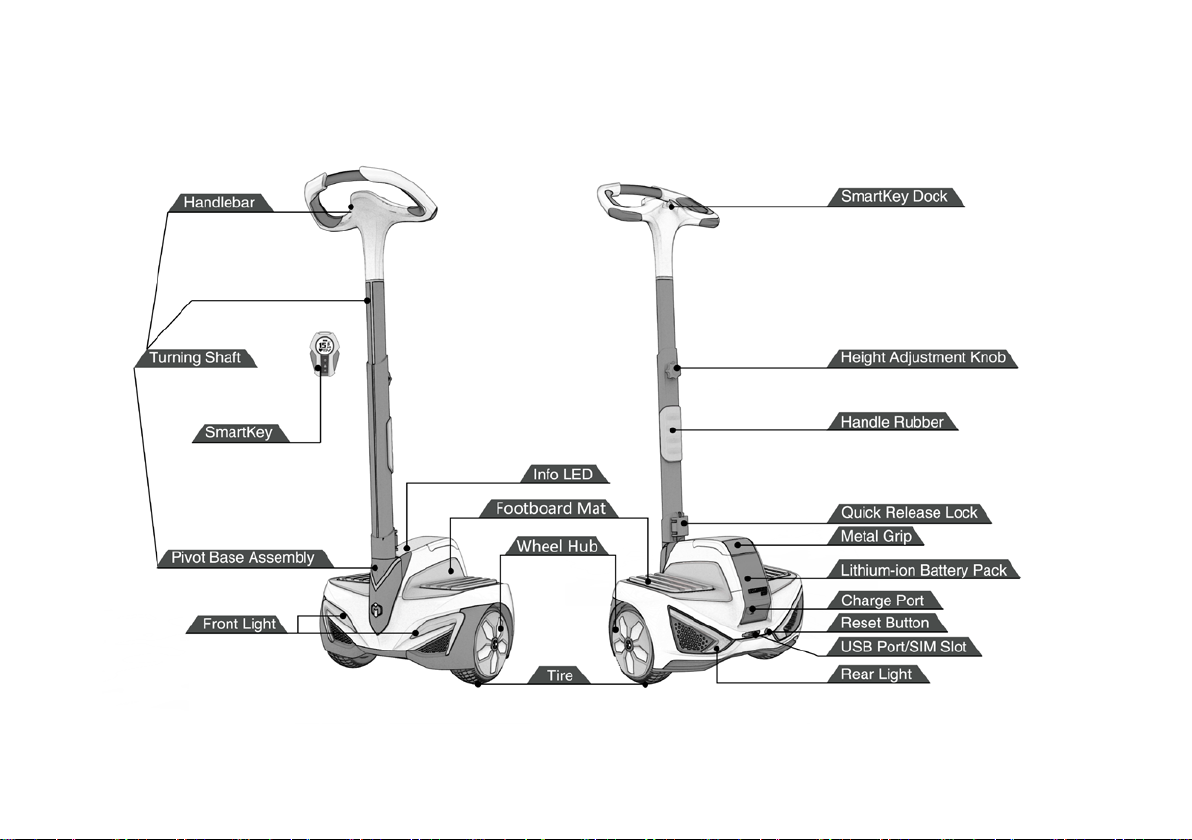

2.4. INMOTION SCV Components

14 / 68

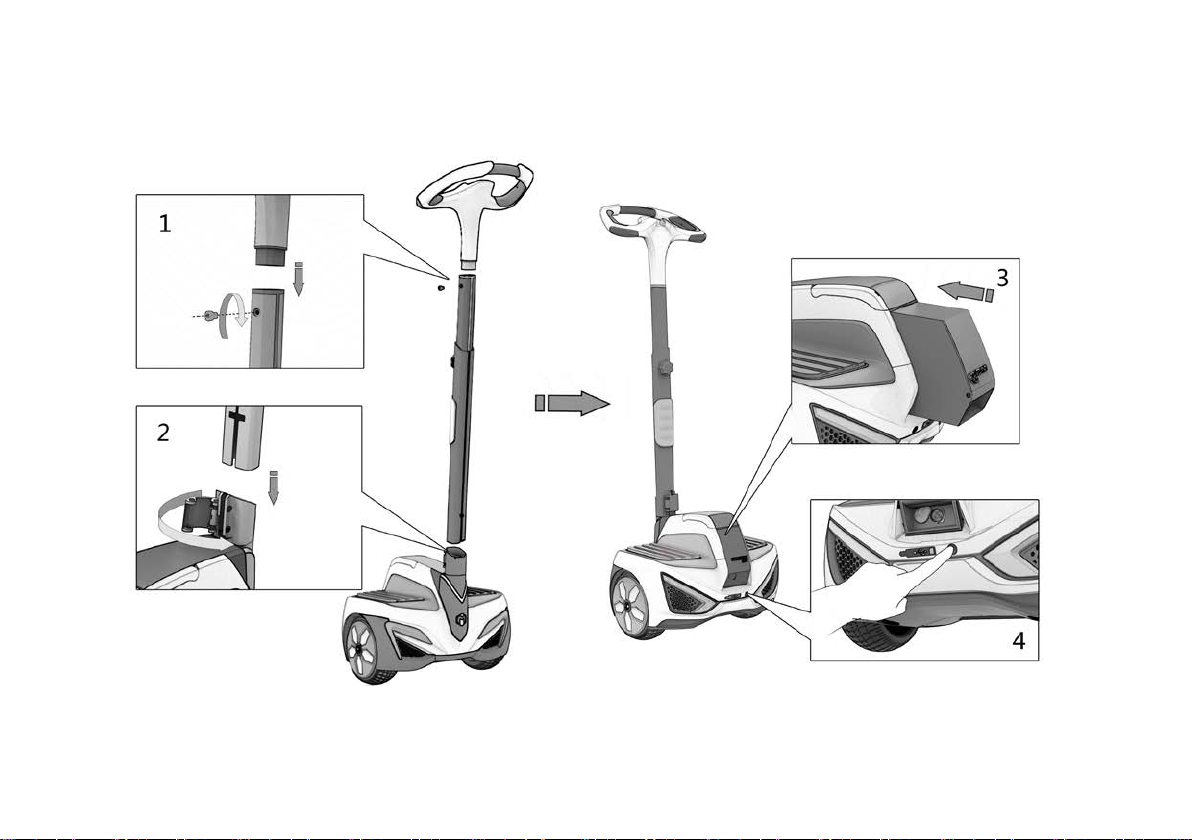

2.5. Assembling the INMOTION SCV
2.5.1. Unpacking the box
Any missing or visibly damaged parts should be reported to your dealer immediately.
1. INMOTION SCV body
5 .Installation Tool and a few Screws
2.Handlebar (R1 uses ABS plastic, R1S uses Carbon Fiber)
6. SmartKey and SmartKey Chain
3. Turning Shaft
7. User Manual, Warranty Card, Product Certification
and Useful Tips Card
4. Charger
8. 4 Ah Lithium Battery Pack (Separate package and a Useful Tips Card is included.)
All INMOTION SCV parts must be approved by INMOTION, and properly installed.
Never attempt to stand on an INMOTION SCV without the Turning Shaft properly attached.
Using your INMOTION SCV without all parts properly installed could damage your INMOTION SCV and result in serious
injury from loss of control, collisions, and falls.
Do not modify the INMOTION SCV. Modifications to the INMOTION SCV without the prior written approval of
INMOTION could interfere with the operation of the INMOTION SCV, could result in serious injury or damage.

15 / 68
2.5.2. Assembling the INMOTION SCV

16 / 68
To assemble an INMOTION SCV:
1. Insert the Handlebar into the top of the Turning Shaft (the slimmer part), and tighten it with the sockets (sockets and
installation tool are included in the box. Please pay attention to the front and back of the Handlebar.).
2. Unlock the Quick Release Lock, insert the Turning Shaft into Pivot Base Assembly to the bottom, and lock the Quick
Release Lock (If the Turning Shaft has not been inserted to the bottom, the Quick Release Lock cannot be locked properly). Now
assembling the Turning Shaft is finished, including the Handlebar, the Shaft and Pivot Base Assembly. If necessary, the Turning
Shaft can be removed from the SCV by unlocking the Quick Release Lock.
3. Take the Battery Pack out from the battery package, and put the Battery Pack into the Battery Slot with the other hand
holding the INMOTION SCV body. After hearing a clear clucking, try slightly pulling it out. If the Battery Pack cannot be pulled
out, then the Battery Pack is installed properly.
4. Press the Reset Button on the back of the SCV, and power on the INMOTION SCV with SmartKey.
If necessary, especially when you need to put the INMOTION SCV in the trunk of your car, the Turning Shaft and the
Handlebar can be quickly removed or assembled by unlocking the Quick Release Lock.
Please comfirm the Turning Shaft is installed properly because of the movable joint. You can try lifting the Turning Shaft with
both hands to check if it is loosen (If it is loosen, tighten the sockets.).
If you need to remove the Turning Shaft, hold it tight with one hand, unlock the Quick Release Lock with another hand, and
slightly shake it and pull it out.

17 / 68
2.6. SmartKey
The SmartKey is a chargeable and upgradable device with information display and remote control function. The INMOTION
SCV can be operated or monitored by remote control.
The SmartKey has three buttons and a display in the center, and its effective communication range is 5~10m (depends on
working environment and using methods).
2.6.1. SmartKey Buttons and Display
The display area shows the operational state of the
INMOTION SCV and some information (including speed,
distance, battery, etc.).

18 / 68
The following chart shows the function of buttons on the SmartKey:
Button Description
Power/Standby Button: Allows you to power the INMOTION SCV on and off.
Lock/Unlock Button: Allows you to lock or unlock the INMOTION SCV.
Shift Button:Allows you to shift among different modes.
The following chart shows the function of icons on the SmartKey:
Icon Description Icon Description
Battery icon: Indicates the amount of
power remaining in the INMOTION
SCV Battery Pack.
Speedometer icon: Indicates the mileage of the
INMOTION SCV, to an accuracy of 0.1 Km
Shift icon: Indicates the INMOTION
SCV is in Shift Mode.
Odometer icon: Indicates the speed of the
INMOTION SCV, to an accuracy of 0.1 Km/h
INMOTION Logo icon: Shows when
the SmartKey is powered on.
No Signal icon: Indicates the SmartKey has no
signal. Shows when the SmartKey is not
detected the INMOTION SCV.
INMOTION Logo icon: Shows when
the SmartKey is power off.
Unpair icon: Indicates the SmartKey is not
paired with any INMOTION SCV.

19 / 68
Manned Speed Mode icon: Indicates
the INMOTION SCV has detected a
driver, and it is in Speed Mode.
Assist Mode icon: Indicates the INMOTION
SCV is in Assist Mode.
Manned Training Mode icon: Indicates
the INMOTION SCV has detected a
driver, and it is in Training Mode.
Remote Control Mode icon: Indicates the
INMOTION SCV is in Remote Control Mode.
USB icon: Indicates the INMOTION
SCV is plugged in to USB.
Speed Mode icon: Indicates the INMOTION
SCV is in Speed Mode.
Wrench icon: Indicates a system fault
on the INMOTION SCV that requires
service.
Training Mode icon: Indicates the INMOTION
SCV is in Training Mode.
SmartKey Link Signal icon: Indicates
the SmartKey has detected the
INMOTION SCV.
Power Off icon: Indicates the INMOTION
SCV is power off.
SmartKey Unlink Signal icon: Indicates
the SmartKey has not detected the
INMOTION SCV.
Security icon: Indicates the security function is
activated.

20 / 68
Low Battery icon: Indicates the SmartKey battery needs to be charged for about 2 hours with a micro USB
cable.
2.6.2. SmartKey Functions
The SmartKey includes the following functions: power on/off the INMOTION SCV, lock/unlock the INMOTION SCV,
power on/off the SmartKey, pair, enter/exit Shift Mode, and enable LED backlighting. These functions are all triggered by 3
buttons on the SmartKey. Key combinations are used to activate/deactivate different functions. You can press, press and hold for 2
seconds, or combine the keys to activate different functions. Also, Shift Mode is designed to reduce the complexity of operating
the SmartKey, and some less frequently used functions are merged into Shift Mode. The same key combination indicates different
meanings in Shift Mode.
The following chart shows the function of buttons on the SmartKey:
Non-Shift Mode
Button State Unpair Power on Power off Standby
Press Power/Standby Button
Pair
Power on
Power off
N/A
Press Lock/Unlock Button N/A Lock/Unlock the INMOTION
SCV
Lock/Unlock the INMOTION
SCV
N/A
Press Shift button
N/A Switch between Training Mode,
Speed Mode and Assist Mode
Switch between Training Mode
and Speed Mode when Driver
Switch between Training Mode
and Speed Mode (it won't take
effect until the next time you log
on)
Power on
the
SmartKey
