Innova CEV+ Quick start guide

INSTALLATION, USE AND MAINTENANCE
WATER COOLER WITH CONDENSATION EVAPORATIVE CEV +

INDEX
1GENERALITY .............................................................................................................................................................................. 4
1.1.1 INTRODUCTION............................................................................................................................................................ 4
1.1.2 SAFETY RULES ...................................................................................................................................................... 4
1.1.3 SYMBOLOGY ................................................................................................................................................................ 5
1.1.4 WARNINGS .................................................................................................................................................................. 5
1.1.5 CONFORMITY ' ............................................................................................................................................................. 6
1.1.6 RANGE ......................................................................................................................................................................... 6
1.1.7 IDENTIFICATION ....................................................................................................................................................... 6
1.1.8 MAIN COMPONENTS OF 'UNITY' ................................................................................................................................... 7
1.1.9 PACKING AND TRANSPORT........................................................................................................................................... 8
1.1.10 RECEPTION CONTROL AND HANDLING ............................................................................................................... 8
1.1.11 REMOVAL AND DISPOSAL ................................................................................................................................... 8
2INSTALLATION ........................................................................................................................................................................... 9
2.1.1 INSTALLATION CONDITIONS ..................................................................................................................................... 9
2.1.2 POSITIONING UNIT ' ............................................................................................................................................... 9
3AREAULICI CONNECTIONS ....................................................................................................................................................... 12
3.1.1 GUIDELINES AREAULICI .......................................................................................................................................... 12
4CONNECTIONS hydraulic ......................................................................................................................................................... 13
4.1.1 GENERALITY' ........................................................................................................................................................ 13
4.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS................................................................................................... 14
4.1.3 HYDRAULIC SCHEME .................................................................................................................................................. 15
4.1.4 AUTOMATIC WASHING FUNCTION AND QUALITY 'WATER .......................................................................................... 16
4.1.5 CONNECTING THE EXHAUST PIPE ............................................................................................................................... 17
4.1.6 FILLING THE SYSTEM .................................................................................................................................................. 18
5ELECTRICAL CONNECTIONS...................................................................................................................................................... 19
5.1.1GENERALITY' ........................................................................................................................................................ 19
5.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS................................................................................................... 19

5.1.3 WIRING UNIT '............................................................................................................................................................ 20
5.1.4 ELECTRICAL CONNECTIONS ................................................................................................................................. 22
6COMMISSIONING AND METHOD 'FOR USE .............................................................................................................................. 26
6.1.1 PREPARING TO START UP ........................................................................................................................................... 26
6.1.2 FIRST TIME................................................................................................................................................................. 26
6.1.3 CONTROLS DURING AND AFTER THE FIRST TIME......................................................................................................... 27
6.1.4 OPERATION ELECTRONIC CONTROL UNIT '.................................................................................................................. 27
7MAINTENANCE........................................................................................................................................................................ 33
7.1.1 PERIODIC MAINTENANCE ........................................................................................................................................... 33
7.1.2 SHUTTING DOWN FOR LONG PERIODS ....................................................................................................................... 33
7.1.3 GENERAL CLEANING UNIT '......................................................................................................................................... 34
8ALARMS .................................................................................................................................................................................. 35
8.1.1 GENERALITY' .............................................................................................................................................................. 35
8.1.2 PROBLEMS WITHOUT ERROR INDICATION ON DISPLAY............................................................................................... 35
8.1.3 PROBLEMS WITH ERROR INDICATION ON DISPLAY ..................................................................................................... 36
9NOTES AND INFORMATION SERVICE........................................................................................................................................ 38
NOTE....................................................................................................................................................................................... 38

1GENERALITY
1.1.1 INTRODUCTION
This manual has been designed with the aim to make it as easy as possible the installation and management of your plant.
By reading and applying the tips in this manual, you can get the best performance of the product purchased.
We would like to thank you for your choice with the purchase of our product.
Please read this file before making any operation on 'units.
You should not install the unit, nor perform any intervention on it, if it has come to thoroughly read and understood this manual
all its parts. In particular, it must take all the precautions listed in the manual.
The with the documentation supplied must be delivered to the person responsible 'facility should keep it carefully (at least 10 years)
for future assistance, maintenance and repairs.
Installation of the unit must take into account both the purely technical requirements for the proper functioning, as well as any local
legislation
force that the requirements specifications.
Make sure that the delivery unit, there are no obvious signs of damage in transit. In this case, indicate on the delivery note.
This manual reflects the state of the art at the time of commercialization of the machine and can not be considered inadequate
because later updated according to new experiences. The Manufacturer reserves the right to update products and manuals, without
any obligation to the previous update, except in exceptional cases.
Contact the Sales Department of the manufacturer for further information or technical documentation updates and to suggest any
improvements in this manual. All reports received will be strictly scrutinized.
1.1.2 SAFETY RULES
Recall that the use of products that use electricity and water requires the observance of some fundamental safety rules:
•And 'it is forbidden to touch the appliance with bare feet and with equal of wet or damp body
•The use by children or the lost-it unable unassisted.
•It is forbidden to introduce objects and substances through the intake grilles and man-date air.
•E 'prohibited any operation of cleaning, before disconnecting the appliance from the power supply by placing the mains
switch in the off
•And 'it is forbidden to modify the safety or adjustment devices without authorization and instructions from the manufacturer
•And 'Do not pull, detach or twist the electrical cables coming from' unit, even when disconnected from the power network.
•E 'it is forbidden to introduce objects and substances through the intake grilles and air flow.
•E 'it is forbidden to open the doors of access to the internal parts of the appliance, without having first placed the main
switch of' plant on off.
•And 'it is forbidden to disperse and leave within reach of children of the' packing material as it can be potentially dangerous.
•Observe the safety distances between the machine and other equipment or structures to ensure a sufficient drive access
space for maintenance and service operations as described in this booklet.
•Power supply unit must take place with electrical cables with a suitable section of the 'power unit. The voltage and
frequency values must correspond to those indicated for the respective machines; All units must be earthed in compliance
with current legislation in the different countries.
•-Not enter R410A into atmosphere: R410A is' a fluorinated greenhouse gas, called in the kyoto protocol, with a global
warming potential (GWP) = 2088;

1.1.3 SYMBOLOGY
The symbols shown in the following file, allow to quickly provide information necessary for the proper use of the unit.
Symbols on safety
CAUTION
Only authorized personnel
It warns that the indicated operations are important to the operation of the machine
safety
DANGER
Risk of electric shock It warns that failure to observe the precaution may cause electric shock.
DANGER It warns that failure to observe the precaution may cause risk of injury to exposed
persons.
WARNING It warns that failure to observe the precaution may cause damage to the unit or system.
DANGER It warns that there is the presence of moving parts and involves a risk of damage to
exposed persons
1.1.4 WARNINGS
The installation of 'units must be performed by personnel qualified according to the regulations in the various countries.
If the installation is not performed could become a dangerous situation
Avoid installing the unit in wet rooms or in the presence of large amounts of heat.
On the electrical side to prevent any risk of electrocution, it is essential to disconnect the main switch before making
electrical connections and any maintenance operation.
In the case of all 'inside the unit water spills, place the main switch of' plant to "Off", turn off the taps dell '
water and contact technical service
It is recommended to use a dedicated power circuit; Never use a power supply in common with other devices.
It is recommended to install an earth leakage circuit breaker; failure to install this device may cause shock
electricity.
For the connection, use a cable of sufficient length to cover the entire distance, without any connection; do not use
extension cords and do not apply other loads on nutrition but use a dedicated power circuit.
After connecting the cables, ensure that the cables are placed so as not to exert excessive forces on the shell or on
electrical panels; any incomplete connection of the covers may cause overheating of the terminals.

Make sure that it meets the ground connection; not to ground the appliance on the distribution pipes.
Overcurrents high momentary intensity may damage the unit
Installations carried out outside of the warnings of this manual or use outside of the operating limits will void
instantly check the warranty.
In case of leakage of water, place the mains switch in the "off" position and close the water taps. Call, with concern, the
After Sales Service or a qualified technician and unable to be present on the device.
In case the device is connected in parallel to a boiler, during operation of the same, close the taps of the chiller. The
circulating water temperature in Inter-no chiller must not exceed 60 ° C
Move the main system switch to "off"
Close the water valves
If there is a risk of freezing, make sure that the system has been added with the antifreeze, otherwise empty the system.
Make sure that the first operation is carried out by authorized personnel from 'company (see form required initial startup)
1.1.5 CONFORMITY
The CE marking (present on every machine) attesting conformity with the following European standards:
•Low Voltage Directive 2014/35 / EC
•Electromagnetic Compatibility Directive 2014/30 / EC
1.1.6 RANGE
-1-
-2-
CEV
010
M
(1) Defines the size of power
From 7 to 15 kW
2) Construction type
M: Single-phase 230/1/50
T: Three-phase 400/3 + N / 50
1.1.7 IDENTIFICATION
-The unit is identifiable through the label on the front panel of the same lower.
-Sull 'package will be an additional nameplate with the unit's model and shipping references.
The plaque on 'Packaging has no significance for the traceability of the product in the years following the sale.
L 'excision, the deterioration and the illegibility of the nameplate on the unit, involves great problems in the identification of the
machine, in the availability of spare parts, and then in all its future maintenance.

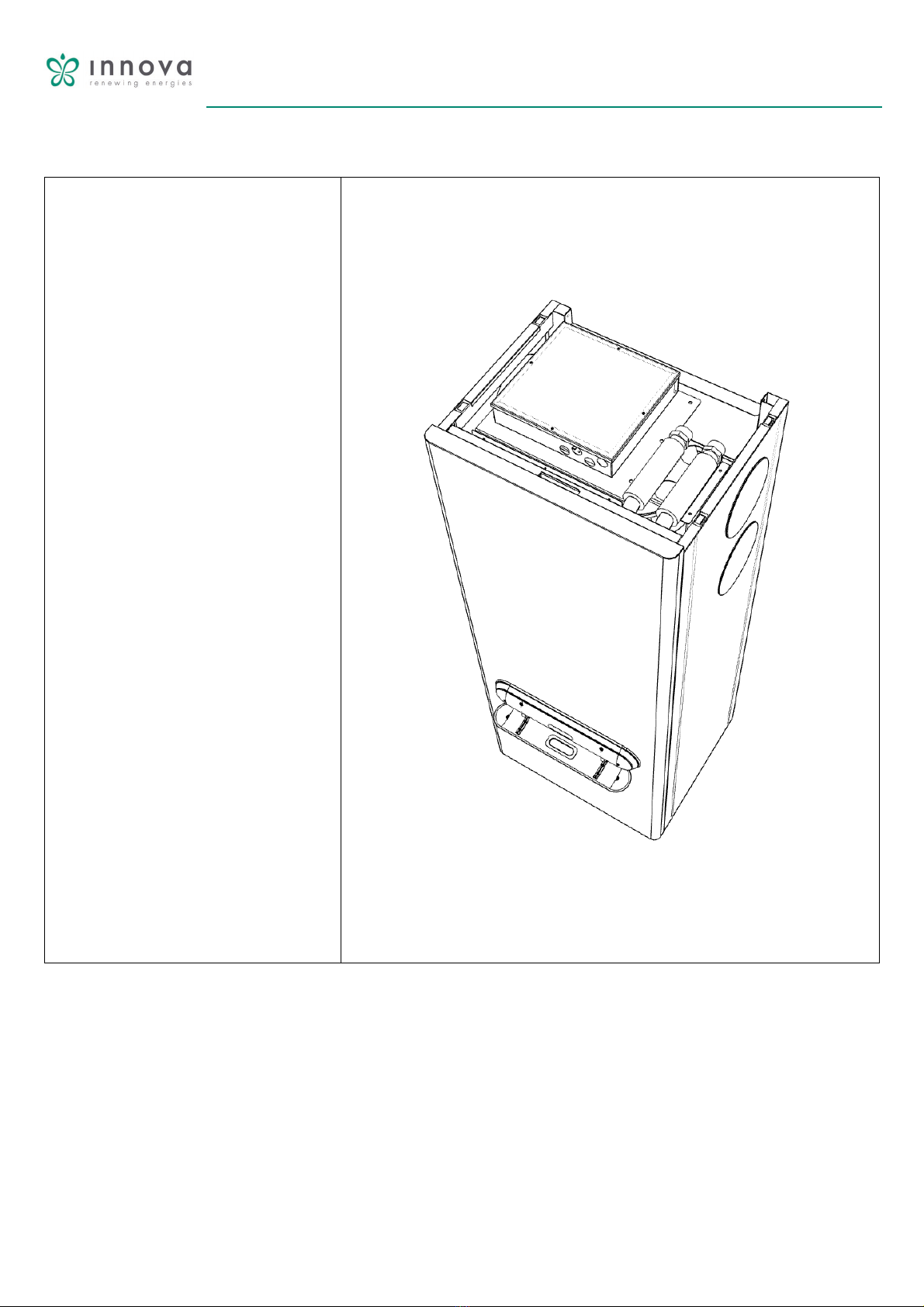

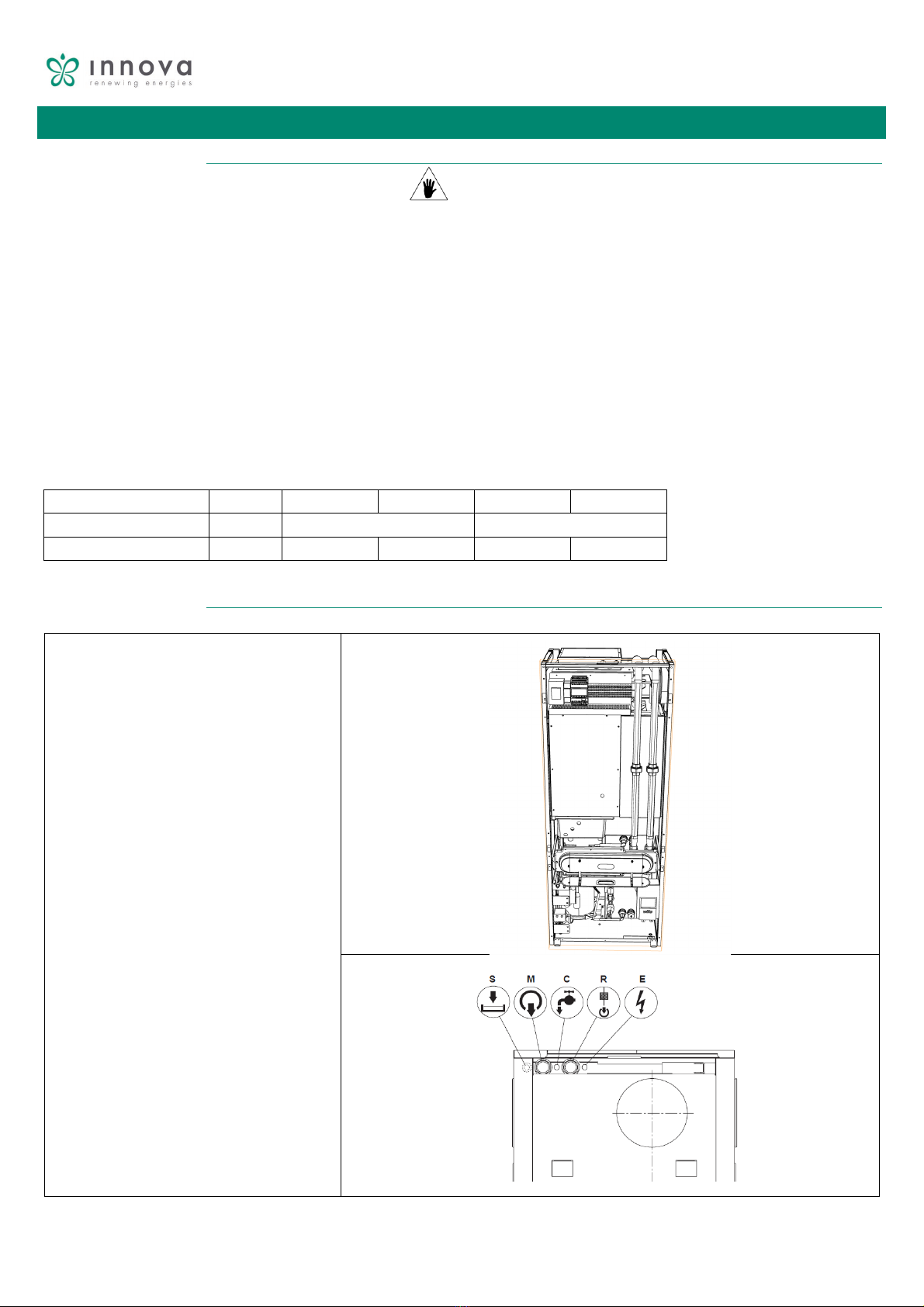

1.1.8 MAIN COMPONENTS OF 'UNITY'
1Condenser fan
2 Water coolers
3 Bath collection Floats
4 level
5 Compressor
6 Pump recirculation condensation
7 limescale washing pump
8 Safety valve
9 system drain tap
10, evaporative condenser fan
11 12 13 Group Flow internal accumulation,exchanger and
expansion vessel
14 Circulation pump
15Safety temperature sensor
16 Exhaust air
17 Intake air
18 Electrical panel
19 discharge water system pipe
20 water pressure gauge
21 summer / winter selector
22 Display Controller
23 Main switch
24 plastic control support
25 ballasts and capacitors Inverter
26 Air vent
27Load / Replenishing plant chilled water return pipe
28 waterworks supply valve
29 .impianto washing

1.1.9 PACKING AND TRANSPORT
The units are supplied to the transport fixed on a wooden pallet and inserted into cardboard boxes. To facilitate travel units are
equipped with a wooden pallet and the hooks on the base that allow the lifting and positioning on the site of installation. The unit
may be stored in a local protected against weathering at temperatures not lower than 0 ° C, up to a maximum of 40 ° C.
1.1.10 RECEPTION CONTROL AND HANDLING
The unit is shipped fully preloaded refrigerant gas in the circuits of brine and oil in the compressors. In no case may be water
present in the hydraulic circuits, because after testing the unit is carefully emptied. Upon arrival, the customer is required to inspect
the unit, even in inland areas to ensure that during transport has not been damaged; the unit left the factory in perfect condition.
Otherwise it must have recourse in detail immediately on the conveyor bringing bubble on the extent of damage, producing
photographic evidence of apparent damage and notifying any apparent damage to the carrier by registered rr. The manufacturer
assumes responsibility for transport damage even if he himself has arranged the shipment. Care should be taken in handling the unit
during unloading and positioning in work, so as to avoid damage to the casing and to the most sensitive internal components such
as compressors, heat exchangers, etc. Keep anyway the unit horizontally without tilting. All indications about the necessary
precautions in order not occur made damage to the unit and the indication of the weight of the same, are shown on the packaging.
The materials that make up the package can be of various nature such as wood, cardboard or polyethylene (plastic). It 'a good idea
to send the disposal or recycling through specialized companies to reduce their environmental impact. so as to avoid damage to the
casing and to the most sensitive internal components such as compressors, heat exchangers, etc. Keep anyway the unit horizontally
without tilting. All indications about the necessary precautions in order not occur made damage to the unit and the indication of the
weight of the same, are shown on the packaging. The materials that make up the package can be of various nature such as wood,
cardboard or polyethylene (plastic). It 'a good idea to send the disposal or recycling through specialized companies to reduce their
environmental impact. so as to avoid damage to the casing and to the most sensitive internal components such as compressors,
heat exchangers, etc. Keep anyway the unit horizontally without tilting. All indications about the necessary precautions in order not
occur made damage to the unit and the indication of the weight of the same, are shown on the packaging. The materials that make
up the package can be of various nature such as wood, cardboard or polyethylene (plastic). It 'a good idea to send the disposal or
recycling through specialized companies to reduce their environmental impact. They are shown on the packaging. The materials that
make up the package can be of various nature such as wood, cardboard or polyethylene (plastic). It 'a good idea to send the
disposal or recycling through specialized companies to reduce their environmental impact. They are shown on the packaging. The
materials that make up the package can be of various nature such as wood, cardboard or polyethylene (plastic). It 'a good idea to
send the disposal or recycling through specialized companies to reduce their environmental impact.
1.1.11 REMOVAL AND DISPOSAL
Do not disassemble or dispose of the product yourself. The disassembly, demolition, disposal of the product must be performed by
authorized personnel in accordance with local regulations.

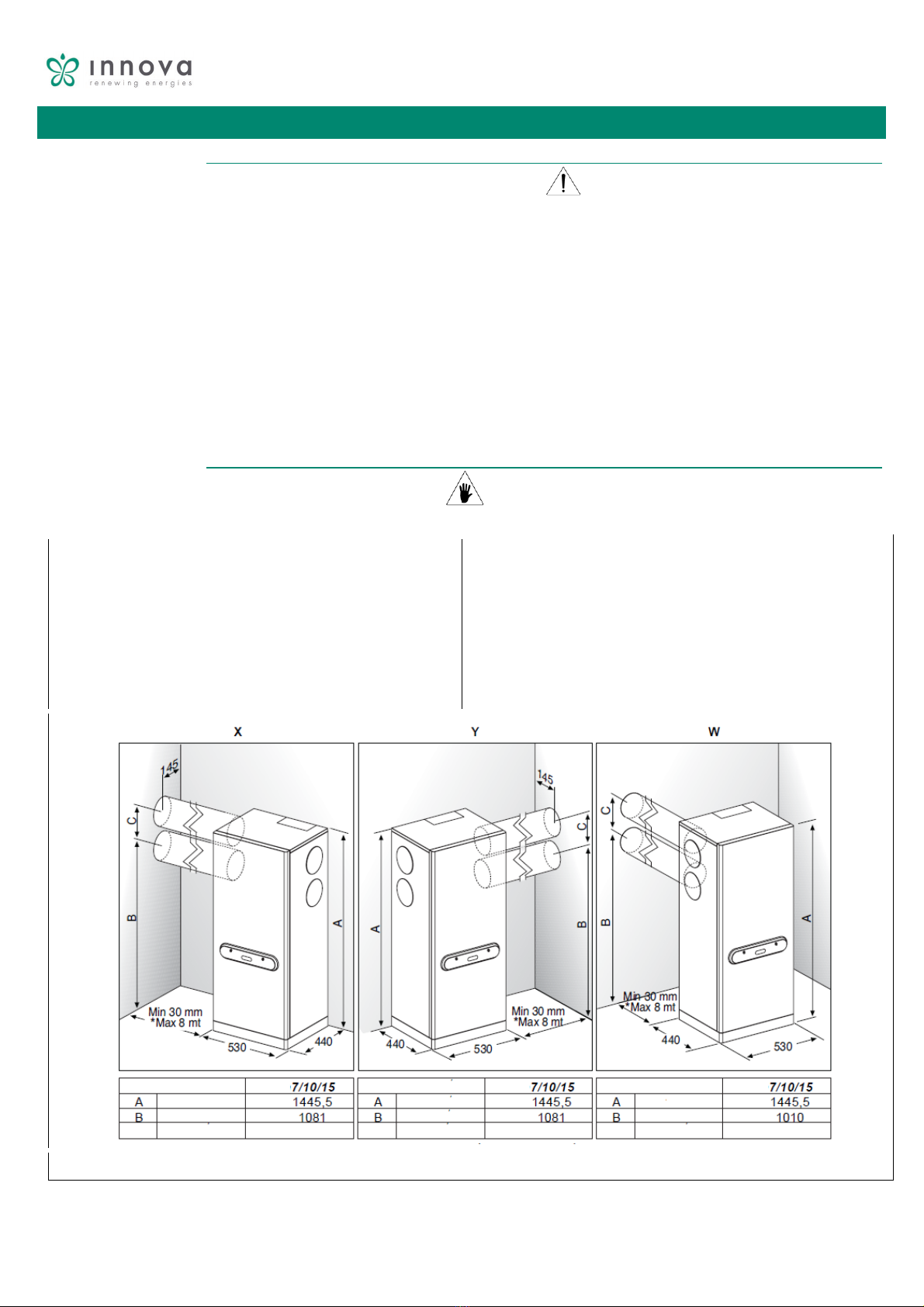

2INSTALLATION
2.1.1 INSTALLATION CONDITIONS
The unit must be installed according to national and local rules governing the use of electrical devices and according to the following
guidelines:
install the unit within residential buildings with ambient temperature between 0 ° C and 45 ° C;
avoid areas in close proximity to sources of heat, steam, flammable and / or explosive and particularly dusty areas;
choose an installation place where there is enough space around the unit for the air ducts and connections in order to perform
maintenance;
the consistency of the wall / floor where the unit will be installed must be adapted to the weight of the unit and does not cause
vibrations.
In the environment chosen for the installation must be present:
- connections of the air ducts; electrical connections; connection for the water discharge, connection for water filling, hydraulic
connections
2.1.2 POSITIONING UNIT
Floor mounting
First check that the plane on which you will have to
place the machine has the necessary characteristics of
structural solidity, also taking into account that the machine
It can transmit vibrations.
The machine is already equipped with anti-vibration adjustable
feet forthe support to the floor.
The hydraulic connections can be made either towards the
wall (thus hiding from view below the upper panel)
that upward by removing the pretranciata sheet metal part on
the panel.
X left side
Y right side
W rear side
Floor mounting

Wall mounting
The chiller, for its anchorage to the wall, is provided
of the fastening bracket.
It must be chosen for a sufficiently sturdy wall ensure the tightness of the anchoring
systems (dowels to expansion etc.) adapted to support the appliance and
prevent the
transmission of unwanted vibrations.
The weight of the device are shown in section Specifications.
Oversizing sufficiently to take into account the dowels of any small failure due to
vibration and possibly traction exerted by the tubes.
For securing the bracket must refer to mounting template.
For the location of the pipes and air hoses refer to fig. reported in the following
examples and the template Mounting supplied.
For the eventual hydraulic connection with attacks in part lower are available as two
flexible pipe fittings
X left side
Y right side
W rear side
Wall mounting
Wall mounting - Installation of the bottom cover
THE
In the case of wall installation in the
lower closure panel mounted.
To install the component:
-
remove the front inspection panel
-
engage the rear part of the closure panel in
the appliance base
-
secure it before with
3 screws
In supplied to the panel there are 2 plastic
caps and a nipple 3/8 "complete with locknut
and gasket. In case of instal
lation in
environments where the accidental dripping of
condensate
from the apparatus may damage the floor
recommends mounting the components and
connect the drain.
Once carried out the assembly operations of
the components perform a watertightness
verific
ation.

Positioning outside
The appliance must be installed
(Whether in a wall or stand) in a well
protected from rain and water splashes that
might invest. E 'advisable to avoid direct
exposure to the sun
especially in the area
on the control panel.
For this type of application must be kept in
mind that the plant should be introduced
the antifreeze liquid in a fair percentage of the
minimum outside temperatures reached
(recommended minimum 20% compared to
t
he content
total plant). Alternatively, the water must be
removed from the machine and from all the
pipes
placed outside before each winter season.
The discharge water from the cooler can be
made through the tap placed in the lower part
of the
inertial vase
Adjusting legs and mounting unit
For each type of installation it is critical to
keep the unit perfectly level to avoid
dangerous gradients and water spills;
For floor
installation, carefully adjust the feet
leading to the unit level;

3AREAULICI CONNECTIONS
3.1.1 GUIDELINES AREAULICI
The unit is provided on three sides (left, right and rear) of two spigots diameter 160mm, for external and eject hot and humid air air
inlet;
For the correct connection of the air ducts, refer to the following diagram and the places adhesives unit.
CONFIGURATION VERSION
The minimum diameter of the pipe and fittings must
be 160 mm (models 7/10) and 200mm (15 models).
The material constituting the pipe must be
thermoplastic or otherwise another material resistant
to air saturated with moisture.
The eventual rectangular ducts or square must take
into account a minimum diameter equal to 0.03 m2.
(7/10 models) and 0.05M2(15 models)
The maximum linear path of inlet pipes and exhaust
air for the condenser must not exceed 8 meters, path
linear;
It must take into account that:
- Each sharp bend equals 3,3 linear meters of
pipe.
- Each wide-radius turn (min. 300 mm) is equivalent
to 1.8 meters.
EXAMPLE If along the way
there and present a curve
elbow and one with a radius of
about 300 mm development
maximum of the pipe
It will be: 8-3,3-1,8 = 2.9 m.
Aerodynamic links
Inside the ejection pipe (upper inlet on the
machine) can condense, especially if the
pipeline itself through relatively cool
environments such as basements or
underground garages. For this reason it is
necessary that such a pipe is in constant
although slight slope towards the chillerto
ensure the return of condensation inside the
unit. Alternatively you must create drainage
points in the valley areas of the holes through
with relative drainage pipes to channel any
condensate into a drain. The junctions between
the various pipe sections and fittings must be
properly sealed to prevent water leakage.
The masking of the holes external must be
carried out only and exclusively with the dates
grids supplied. Other grids not specifically
designed may result in high pressure drops
resulting in the criminalization of the machine
returns. When used in winter seasons or with
temperature External below 20 ° C it is
necessary to protrude a stretch of pipe inclined
downwards to prevent that any drops of
condensation from falling on the wall wetting.
Gradient ejection pipes

4CONNECTIONS HYDRAULIC
4.1.1 GENERALITY
- The units are equipped;
-Make to respect the flows indicated on the plates: input (incoming water towards the unit), output (outgoing water from the unit)
-Make so that the weight of non-serious piping on the predisposed attacks
-provide shut-off valves on the flow and return pipes to the system
-All chilled water piping must be insulated in order to minimize unwanted exchanges of heat and the formation of condensation.
-First to perform the filling of the pipes, make sure that the same do not contain foreign materials such as sand, stones, flakes
rust, welding spatter, slag, etc. Otherwise carry out a washing of the hydraulic circuit by-passing the unit.
-Attention connecting the exhaust pipe of the unit which must provide for an adequate siphon;
-Avoid absolutely cavitation of the pump and the consequent presence of air in the hydraulic circuit.
Physical and chemical properties of 'plant chilled water;
not compatible chemical and physical characteristics could affect the integrity of the hydraulic part of the 'units.
Check water quality;
DESCRIPTION
Limit value
Hardness
<20 ° F
PH value
7.5 / 9
Oxygen
<2 mg / l
Conductivity
<500 uS / cm
Iron
<2 mg / l
Manganese
<1 mg / l
Nitrate
<70 mg / l
Sulphate
<70 mg / l
Chlorine Compounds
<300 mg / l
Carbon dioxide free radical
<10 mg / l
Ammonium
<20 mg / l

4.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS
The hydraulic connections are positioned in the
rear of the unit.
The wall must predisposition
follow the
instructions
:
M
flow 1 "(1" ¼ size 15)
R
return 1 "(1" ¼ size 15)
C
Load 1/2 "
S
exhaust
IS
power supply
The minimum nominal diameter of the
connection pipes must be of 1 "(1 1/4" size
15)
To allow the maintenance or repair is essential
that each connection
hydraulic both dota
to the relevant shut-off
valves
manuals.
The maximum pressure allowable losses are
those defined in section
Features
techniques.
It should be necessary prevalences
higher due to high system load losses will have
to add a pump
external with relative inertial vessel. The
chilled water distribution pipes
They must be adequately insulated with
polyethylene foam or
similar materials of a
thickness of at least 13 mm. Also the shut
-off
valves, curves and various fittings must be
adequately insulated.
To avoid air pockets inside the circuit strongly
we recommend that you put automatic or
manual venting devices at all po
ints
(Highest pipelines, siphons etc) where the air
can accumulate. Always check the
temperature difference between flow and
return lines
- which must be
between 4 ÷ 6 ° C
In accompanying this unit is present in a sieve
with mesh of 0.4 mm. Install it on
the water
inlet pipe of the appliance (return
plant).
If the mains pressure is greater than 3 bar,
install a pressure reducer on the load.
If the system is a boiler for heating in winter it
will be necessary to install an automatic or
manual 3
-way valve capable
to divert the flow of water from the cooler to
the boiler and vice versa or a non
-valve
return (available as an accessory).
The positioning of the free water drain must
remain below the upper wire unit.

S
) Of unloading the condenser water washes.
M
) From the machine water outlet
(Heating medium flow)
C
) Of water filling point
(Both for chilled water distribution system for
both capacitor plant washing).
R
) Water into the machine
(System return).
To install
water filter on
inlet pipe.
Failure to observe this
It can cause irreparable damage
evaporator plates.
IS
) Electrical connections
4.1.3 HYDRAULIC SCHEME
1
Pressure gauge system
2
The flexible connection
3
Shut-off valve
4
Mesh filter *
5
Flow
6
Plate heat exchanger
7
Chilled water system pump
8
Safety valve (3 bar)
9
Air vent
10
Expansion tank
11
Temperature probe
12
Load / refrig plant Replenishing water.
13
Tap exhaust system refrig water.
14
Differential pressure switch
15
accumulation of water chilled Vase
16
alimentaz.impianto Flushing valve
17
evaporative Condenser
18
Softener (to be fitted by the installer)
19
Check valve (to be installed
only in systems with several devices in
parallel)

4.1.4 AUTOMATIC WASHING FUNCTION AND QUALITY 'WATER
In order to avoid large formations
of limestone, which would decrease the
efficiency of
machine, the cooler is equipped with a pump
which, at time intervals between 30
minutes and 6 hours, depending on the water
hardness, stops the machine and performs a
washing
exchanger,
a water collection tank and piping.
The action of these washings, it restricts the
formation of limestone deposits and lengthens
considerably
the interval of time between maintenance and
the other.
The washing sequence involves the following
operation:
-
Stop the compressor;
-
discharge capacitor bath water
-
wash cycle;
-
restart the compressor.
During the wash cycle the system circulation
pump remains in operation.
All the sequences set forth above are carried
out automatically by the electronic
card;
In the first phase of start
-up, the service
technician will have to detect the water
replenishing reference values
with the
appropriate test kit.
If the total hardness is less than 20 ° F water
and reference values
are within the limits
stated:
-
Setting up through the installer menu to the
hardness value of the parameter PC76
controller;
PC76 =
Hardness (in French degrees)
From minimum 4 ° F to 20 ° F max;
A
value that will adjust the frequency of
washes during the operation of the unit;
of well water or groundwater are not from the
aqueduct should always be carefully analyzed
and in case conditioned with appropriate
treatment systems. In case of
installation of a
softener in addition to follow the prescriptions
of the manufacturer, to adjust the hardness of
the output is not below 5 ° F (performing also
test the pH and salinity) and verify the
concentration of chlorides in output after the
regeneration of the resins
make-up water setpoints
pH: 6.5 ÷ 7.8
Electrical conductivity: between 250 and 800 seY / cm
Total hardness: between 5 and 20 ° F
Total iron: less than 0.2 ppm
Manganese: less than 0.05 ppm
Chlorides: less than 250 ppm
Sulfur ions: Ions absent ammonia: absent

4.1.5 CONNECTING THE EXHAUST PIPE
In order to periodically expel the salt-rich
water contained in the bowl placed
under the evaporative condenser, the
apparatus is
It equipped with an exhaust system that
includes a pump and a pipe to be connected to
a drain.
This pipe is positioned inside the device
so that at least a part thereof is in the
upper part of the
machine, at a higher level with respect to
the bath water.
This arrangement serves to prevent the
continuous outflow of water in the case
that the connection of external exhaust is
lower than the level of the basin (which is
located approximately at half height
relative to the apparatus).
The diameter of the discharge fitting by pr
edisporre mm is equal to 22. In the case of
discharge into the sewage system, it is
recommended to provide a siphon to prevent
the return of unpleasant odors into the room.
The siphon curve must be lower than the tray
of at least 1.5 m. One must also take into
account that the water discharged may be
present
of solid residues (pieces of limestone or other
small sediments), therefore, the pipes must
not have inside them points where these
residues can stop.

4.1.6 FILLING THE SYSTEM
Once you terminated the hydraulic
connections necessary to proceed to the filling
plant
using the corresponding tap inside the front
panel;
Simultaneously with this it is necessary to
vent the air inside the piping and apparatus by
means of the hygroscopic valve
During all these operations the machine must
be disconnected from the mains
electricity.
If an external auxiliary pump is used the same
should be off.
The system operating pressure must not
exceed 1.5 BAR pump is switched off. In any
case, to check for any leaks in the system at
the time
testing is recommended to raise the test
pressure to be downloaded later to reach the
operating pressure
Once you terminated the electrical connections
and activated the circulation pump check
they are not yet present
residual air.
If this were to happen you have to stop
several times the pump and vent again. To
avoid dangerous cavitation that could damage
the pump and make it less
efficient the whole appliance, the suction
pressure, with the pump turned on,
measurable by the pressure gauge on the
appliance, it must not be less than 0.6 BAR.

5ELECTRICAL CONNECTIONS
5.1.1 GENERALITY'
-First starting any operation to make the electrical connection to make sure that the unit is not electrically supplied
-Perform electrical connections required exclusively by consulting the wiring diagram attached to this manual.
-Install a suitable interrupt and protection device to exclusive service differential unit.
-it is essential that the unit is connected to an earthed socket.
-Make that the electrical components selected for the installation (main switch, circuit breakers, cables and terminal section) are
suitable for installed unit electrical power and which take account of the compressor inrush currents as well as the maximum
attainable load. The related data are indicated on the wiring diagram and on the unit nameplate
-It is forbidden to enter the electrical wiring in the unit except where specified in this booklet.
-Use cables and electrical conductors of appropriate sections and comply with current regulations of the various countries.
-Avoid absolutely to pass the electric cables in direct contact with pipes or components within the unit
-Verify after the first moments of operation the tightening of the screws of the power terminals
Table for the dimensioning of the power line
007M
010M
010T
015T
Supply
V / Ph / Hz
230/1/50
400/3 + N / 50
Current consumption max
TO
18
26
9
18
5.1.2 POSITIONING AND PROCEDURES OF CONNECTIONS
The electrical connections are located with a
dedicated terminal in the top of the unit;
On the terminal connections are present in
terms of supply unit control;
IS
) Electrical connections

Page 20 - INSTALLATION, USE AND MAINTENANCE
5.1.3 WIRING UNIT
MODELS 007/010 PHASE
TERMINAL
