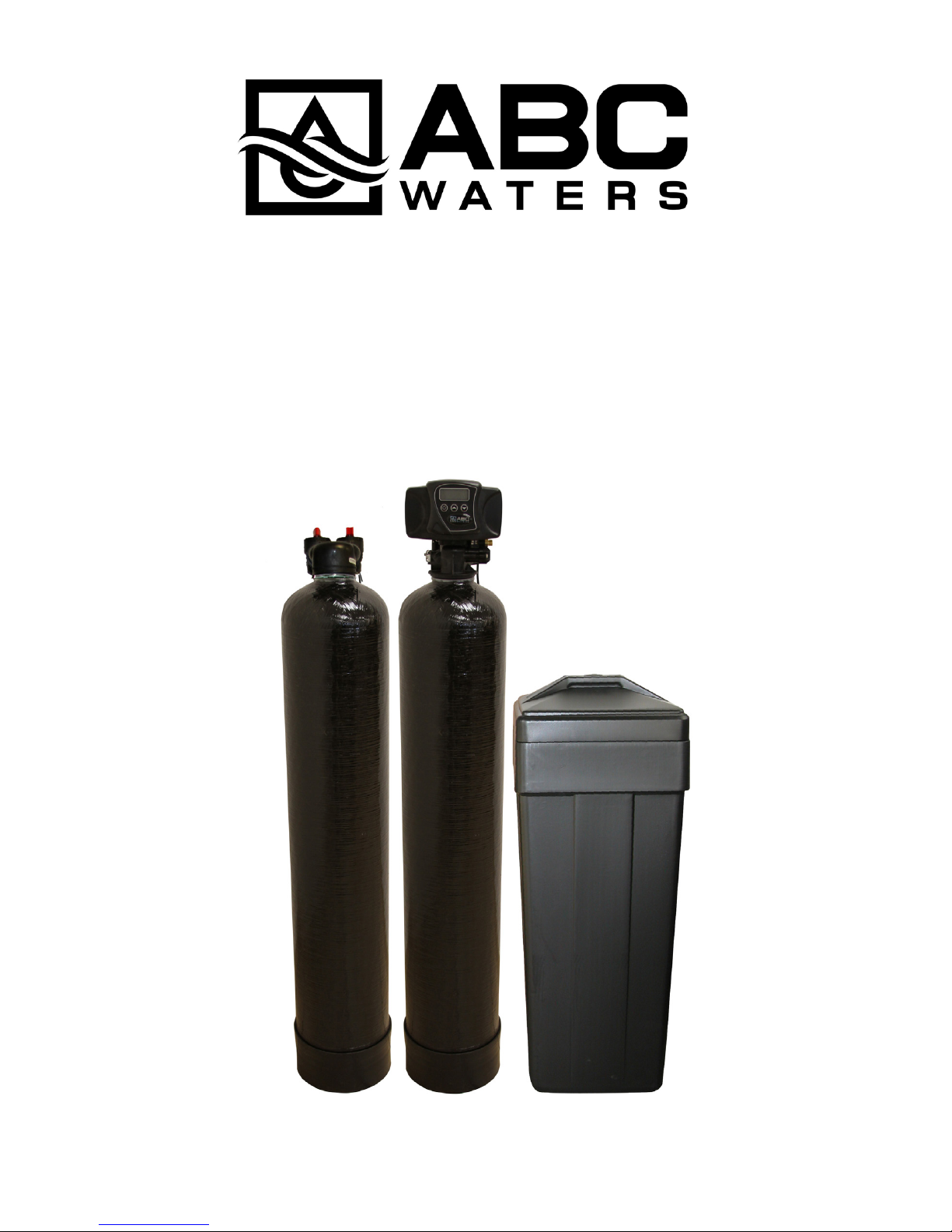

abc Fleck 5600SXT User manual

Written by 602abcWATER
Fleck 5600SXT
Water Softener with




-





https://www.youtube.com/watch?v=AKdENN_oSCo&feature=youtu.be



Phone: 






























-

















-










* Installers Tip: Once water looks clear, hold your hand under the flow-
ing water. Your hand will contrast against faint traces of sediment and
help you see when the water is fully rinsed.









-












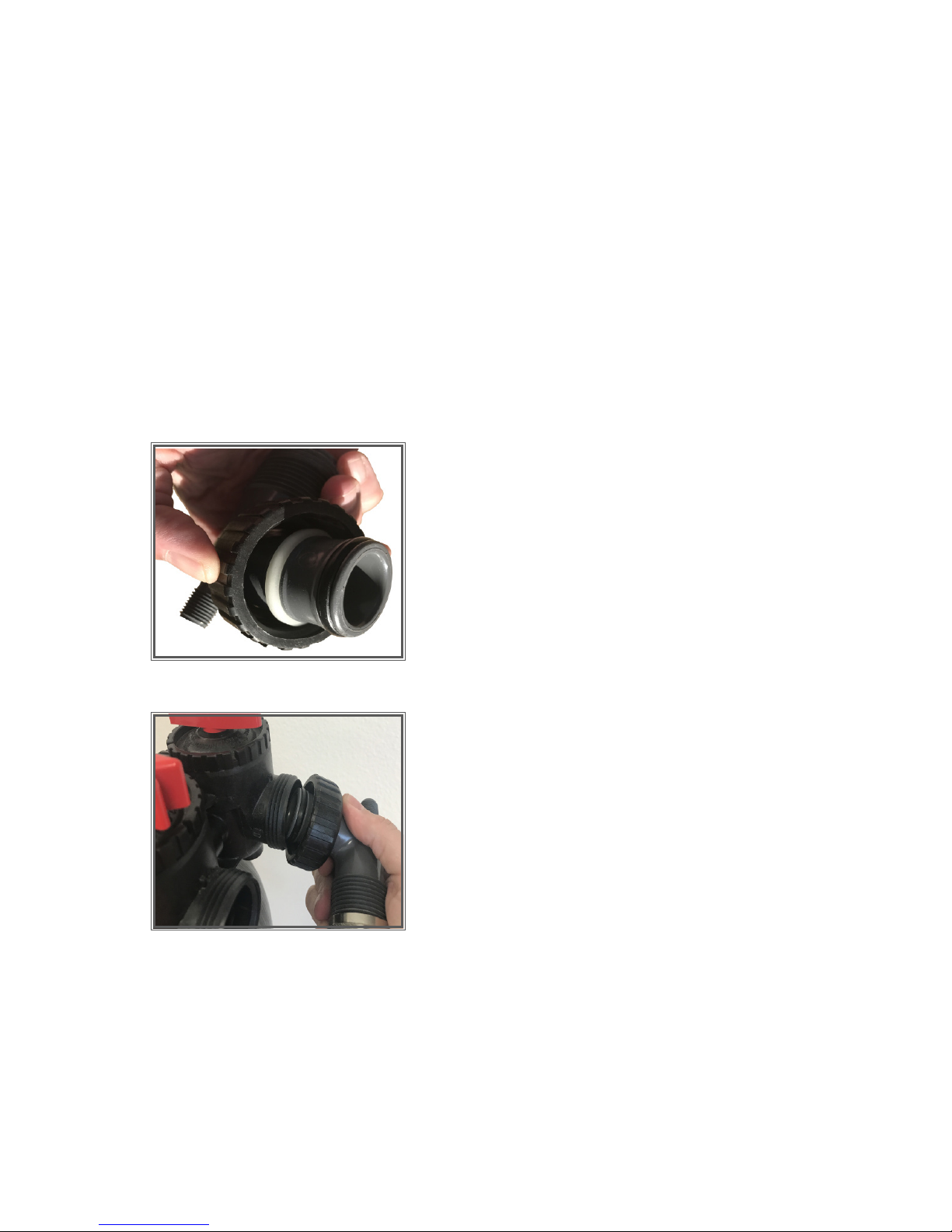

Note: The elbows are configured to
be used in any direction. Household
plumbing can be coming from below, the top or even the side.










-










-









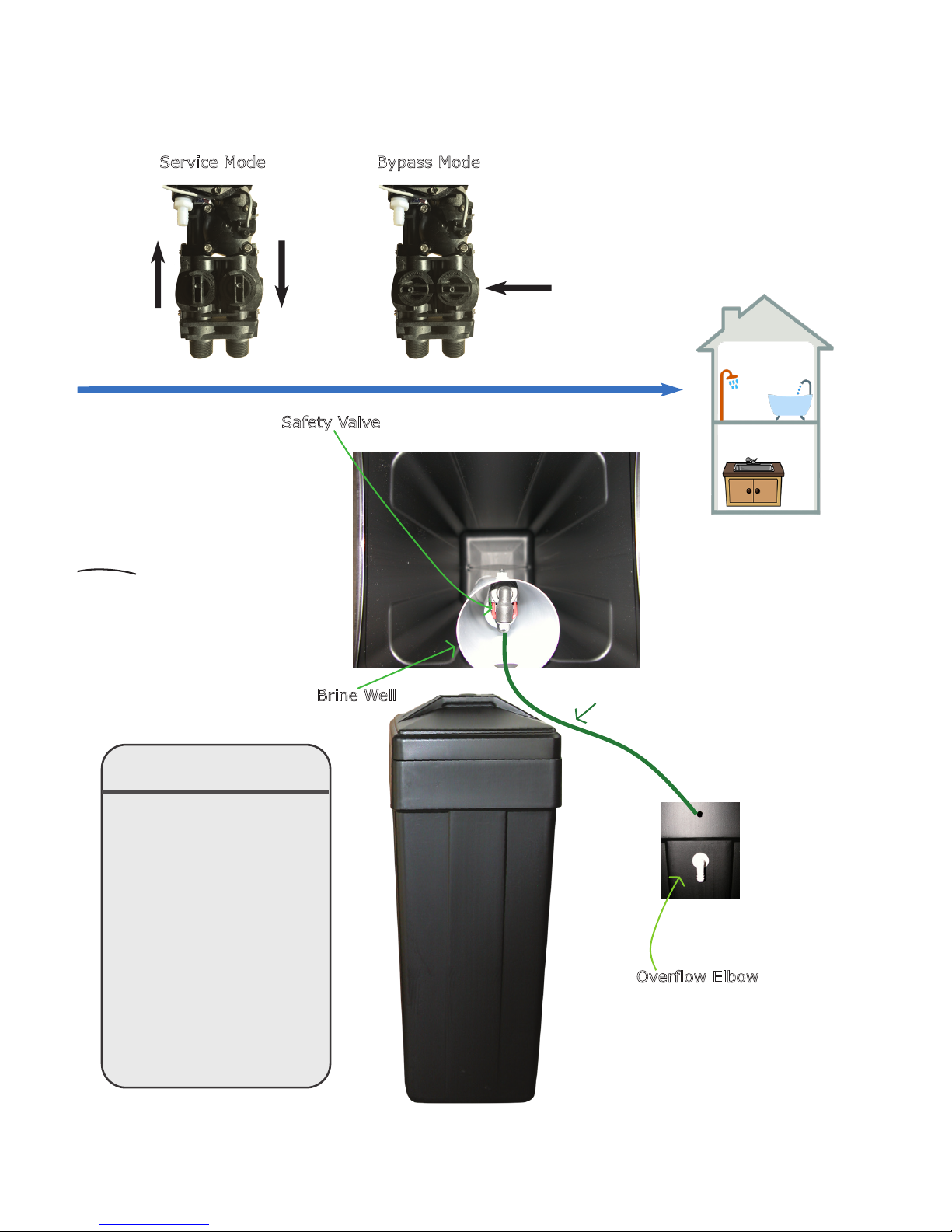

Overflow Elbow
(Connect to Drain)
Brine Line
(Top View)
(Side View)
Brine Well
Safety Valve
Flow Direction of Combination Softener System
Water Flow
Water Flow
Water Flow
Downflow
Inlet
Upflow
Inlet
(Top View)
CARBON TANK
Step 1. Water enters the
Upow Inlet and enters
the distributor tube to the
carbon in Carbon Tank.
The Carbon tank removes
the chlorine from the
water and discharges
from the Downow Inlet.
In having a Carbon tank
with your system not only
with it remove the
chlorine but it will exstend
the life of the Resin.
RESIN TANK
Step 2. Water enters the
Inlet and enters the the
distributor tube to the
resin in Resin Tank. The
Resins in the tank are used
to replace the magnesium
and calcium ions found in
hard water with sodium
ions. and discharges from
the Downow Inlet. Waste
water ows out of the
Drain Barb.
BRINE TANK
Step 3a. The Brine Tank
does its job depending on
how you program your
Fleck 5600sxt head. The
Brine Tank uses common
salt to create this brine
solution. In normal
operation, hard water
moves into the mineral
tank and the calcium and
magnesium ions move to
the beads, replacing
sodium ions.
Shut-Off
Valve

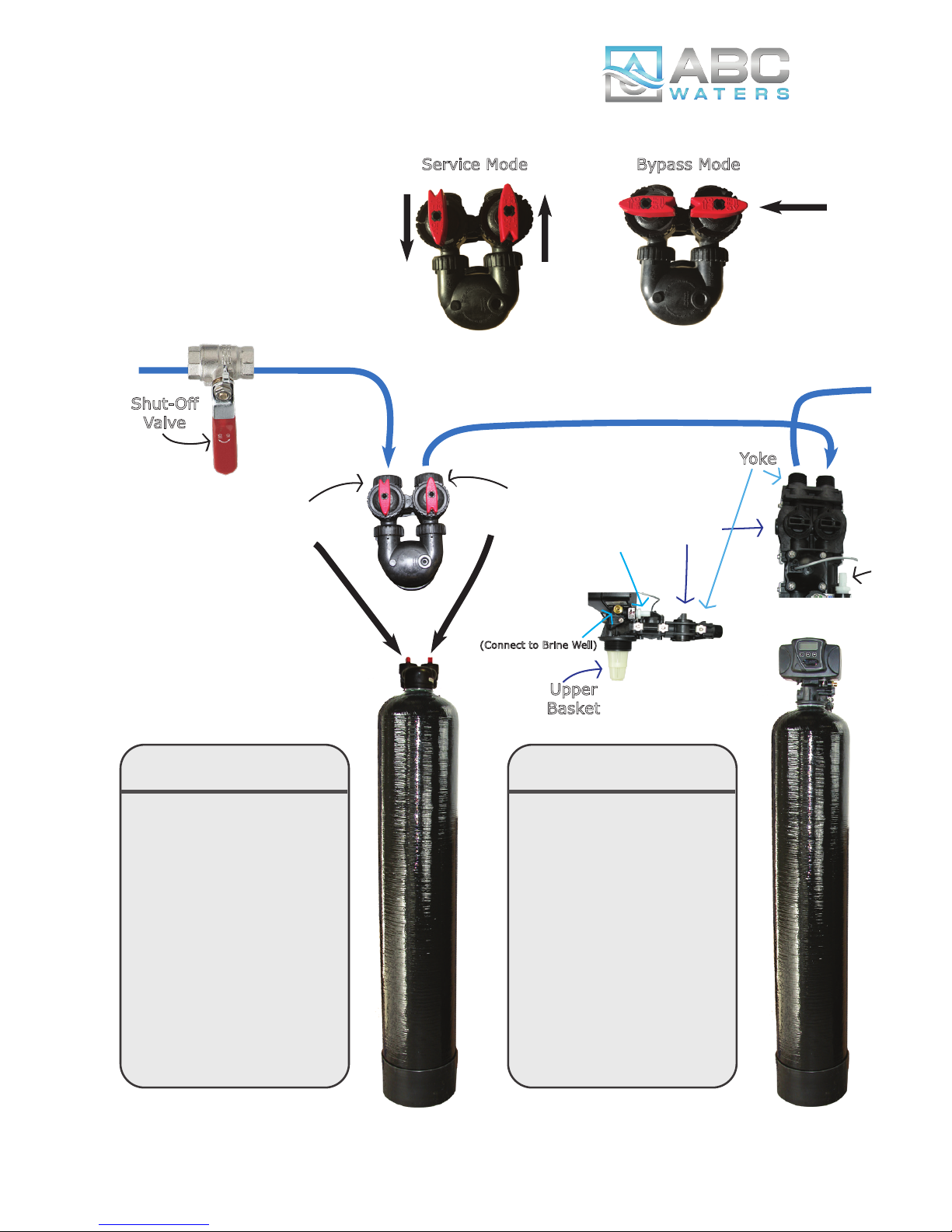

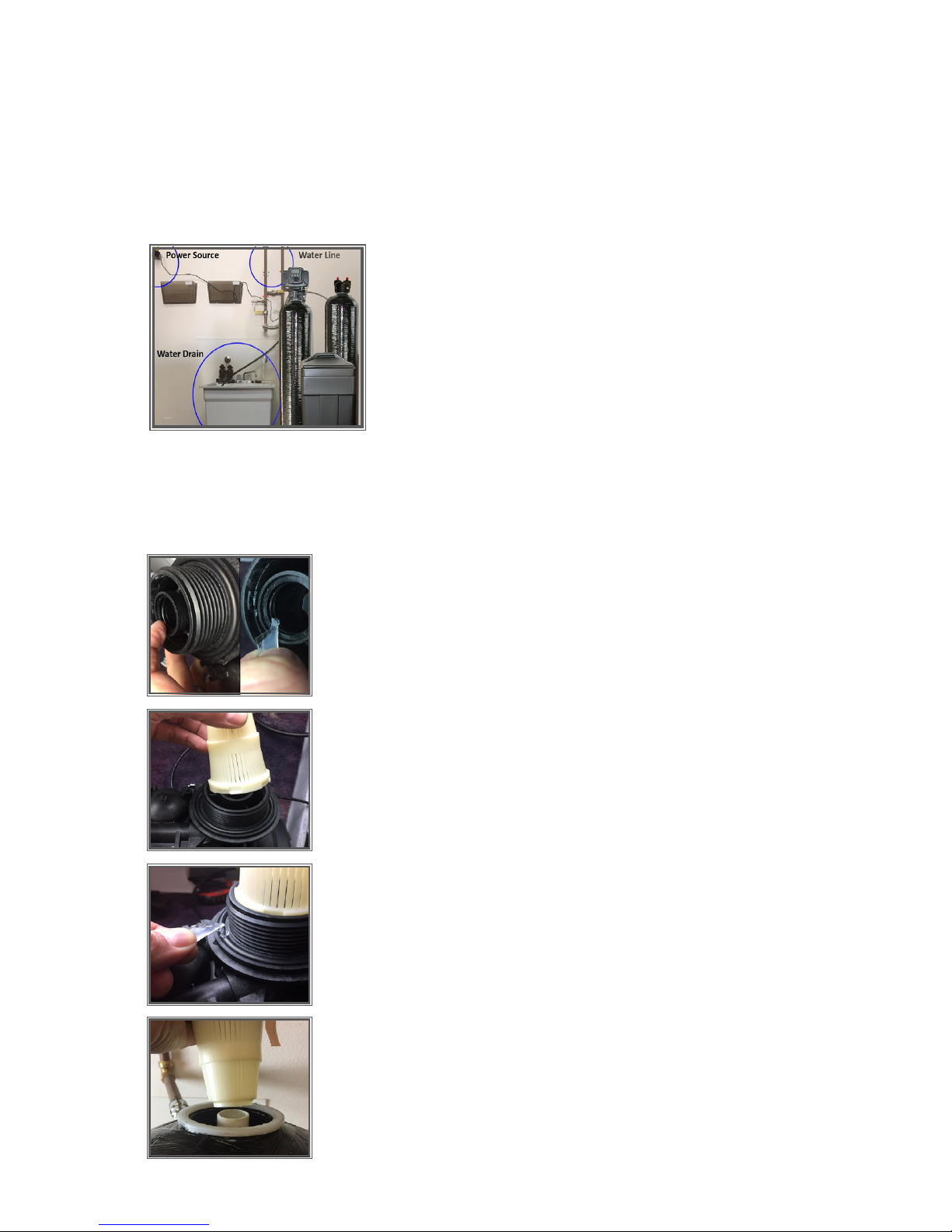

It is recommeded that you premeasure the location of your system before installation. This is a diagram to show the recommended way to setup
up your system. It as well explains the purpose of each tank. Follow all local codes.
ByPass
Valve
Yoke
(Top View)
(Side View)
Upper
Basket
Drain Barb
(Connect to Drain)
Drain Barb
(Connect to Drain)
Service Mode Bypass Mode
Service Mode Bypass Mode
(Connect to Brine Well)
If your Carbon or Resin
tank are not level. You
can bear hug it, lift it a few
inches and drop. Our bas-
es are able to be leveled
on uneven surfaces.

Overflow Elbow
(Connect to Drain)
Brine Line
(Top View)
(Side View)
Brine Well
Safety Valve
Flow Direction of Combination Softener System
Water Flow
Water Flow
Water Flow
Downflow
Inlet
Upflow
Inlet
(Top View)
CARBON TANK
Step 1. Water enters the
Upow Inlet and enters
the distributor tube to the
carbon in Carbon Tank.
The Carbon tank removes
the chlorine from the
water and discharges
from the Downow Inlet.
In having a Carbon tank
with your system not only
with it remove the
chlorine but it will exstend
the life of the Resin.
RESIN TANK
Step 2. Water enters the
Inlet and enters the the
distributor tube to the
resin in Resin Tank. The
Resins in the tank are used
to replace the magnesium
and calcium ions found in
hard water with sodium
ions. and discharges from
the Downow Inlet. Waste
water ows out of the
Drain Barb.
BRINE TANK
Step 3a. The Brine Tank
does its job depending on
how you program your
Fleck 5600sxt head. The
Brine Tank uses common
salt to create this brine
solution. In normal
operation, hard water
moves into the mineral
tank and the calcium and
magnesium ions move to
the beads, replacing
sodium ions.
Shut-Off
Valve
It is recommeded that you premeasure the location of your system before installation. This is a diagram to show the recommended way to setup
up your system. It as well explains the purpose of each tank. Follow all local codes.
ByPass
Valve
Yoke
(Top View)
(Side View)
Upper
Basket
Drain Barb
(Connect to Drain)
Drain Barb
(Connect to Drain)
Service Mode Bypass Mode
Service Mode Bypass Mode
(Connect to Brine Well)



-


-







-



-
















-


-



















-

-

