BRIO CLCTTL520 User guide

Counter-Top
Top-Load
Water Dispenser
Setup Manual
Model No.: CLCTTL520

2
Table of Contents
Safety Information .................................................................... 3
Intended Use ......................................................................... 4
Product Features ..................................................................... 4
Indicator Panel Description ..............................................................5
Product Dimensions ....................................................................5
Operational Specifications ...............................................................5
Installation ........................................................................... 5
Determine Installation Location...........................................................5
Install the Drip Tray and Grid .............................................................5
Install a Water Bottle ....................................................................6
Operation.............................................................................7
Turn the Dispenser On/O ...............................................................7
Dispense Cold Water ...................................................................7
Dispense Hot Water and Activate Child Safety Lock.........................................7
Change the Water Bottle ................................................................7
Troubleshooting ...................................................................... 8
Cleaning and Maintenance ............................................................. 9
Cleaning ..............................................................................9
Care and Maintenance ..................................................................9
Warranty.............................................................................10

3
Safety Information
WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling,
installing and operating the dispenser.
WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal
injury. When operating this dispenser, always exercise basic safety precautions, including the following:
•Prior to use, this dispenser must be properly assembled and installed in accordance with this
manual.
•For indoor use only. Keep the water dispenser in a dry place away from direct sunlight. Do NOT use
outdoors.
•Install and use only on a hard, flat and level surface.
•Do NOT place the water dispenser in an enclosed space or cabinet.
•Do NOT operate the dispenser in the presence of explosive fumes.
•Use only properly grounded outlets.
•Do not use an extension cord.
•Always grasp the plug and pull straight out from the outlet. Never unplug by pulling on the power
cord.
•Do NOT use the dispenser if the cord becomes frayed or otherwise damaged. If the supply cord is
damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•To protect against electric shock, do NOT immerse cord, plug, or any other part of the dispenser in
water or other liquids.
•Do not use this dispenser with water that is microbiologically unsafe or of unknown quality.
•Water dispenser is compatible with 3-gallon (12-liter) water bottles.
•Clean up all water spills after loading or unloading water bottles from the dispenser.
•Ensure the water dispenser is unplugged prior to cleaning.
•Never allow children to dispense hot water without proper and direct supervision. Unplug the unit to
prevent unsupervised use by children.
•Service should be performed only by a certified technician.
•The appliance must not be cleaned by a water jet and is not suitable for installation in an area where
a water jet could be used.
WARNING: Keep ventilation openings, in the dispenser enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
•This dispenser should work under environment of temperatures from 4°C~40°C (39°F~104°F) and
humidity ≤90%.
•Never turn the dispenser upside down or lean it more than 45°.
•After turning the dispenser o, allow the dispenser to sit idle for 3 minutes before turning on again.

4
Intended Use
This dispenser is intended to be used in household and similar applications such as:
•Sta kitchen areas in shops, oces and other working environments
•Farm houses
•Clients in hotels, motels and other residential type environments
•Bed and breakfast type environments
•Catering and similar non-retail applications
This dispenser is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Product Features
2
1
5
6
7
8
9
3
4
11
10
12
13
Part Description Part Description
1 Bottle support collar 8 Hot water tap
2 Cold water button 9 Drip tray
3 Room temperature water button 10 Condenser
4 Hot water button 11 Hot water switch
5 Indicator panel 12 Cold water switch
6 Cold water tap 13 Drain outlet
7 Room temperature water tap

5
Indicator Panel Description
1. Power indicator light – When illuminated, indicates that the dispenser
is on.
2. Hot water indicator light – When illuminated, indicates that the
dispenser is heating water.
3. Cold water indicator light – When illuminated, indicates that the
dispenser is cooling water.
Product Dimensions
Height Width Depth
61.5 cm (24.2 in.) 31.8 cm (12.5 in.) 39.7 cm (15.6 in.)
Operational Specifications
CAUTION: This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot
water. Keep children and pets away from unit while dispensing. Never allow children to dispense hot
water without proper and direct supervision. Unplug unit to prevent unsupervised use by children.
Temperature Tank Capacity Flow Rate
Dispensing
Cold Water 37°-50°F / 3°-10°C 3.6 L 35 mL per second /
1.5Lper hour
Dispensing
Hot Water 176°–198°F / 80°–92°C 1 L 35 mL per second /
4.5 L per hour
Installation
1. Determine Installation Location
A. Place the dispenser upright.
B. Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet.
NOTICE: Do NOT plug in the power cord until the entire installation
section is completed.
C. Position the back of the dispenser no closer than 20 cm (8 in.) from a
wall and permit free airow between the wall and water dispenser.

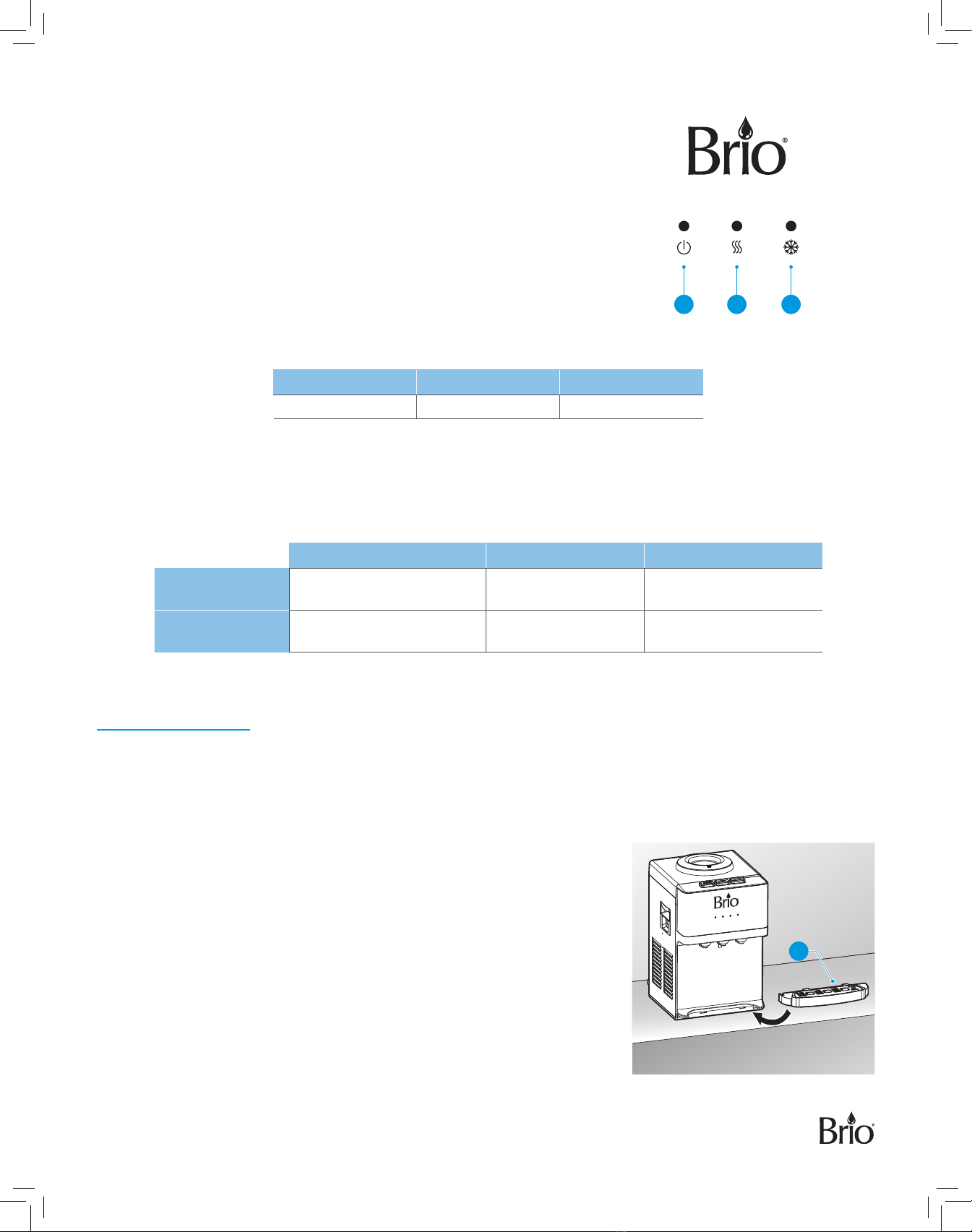

2. Install the Drip Tray and Grid
A. Unwrap the drip tray (9) from the packaging material and slide it onto
the dispenser until it is secure in place.
1 2 3
9

6
3. Install a Water Bottle
IMPORTANT: To prevent dry heating, do not turn on the heating and cooling switches until you complete the
steps in this procedure.
NOTE: This dispenser is compatible
with 3-gallon water bottles.
It is recommended that
you purchase water bottles
equipped with a 55-millimeter
push cap.
A. Remove the plastic seal on top of the
bottle, but do not remove the protective
cap from the water bottle.
B. Clean the bottle cap and neck with a
damp, warm cloth.

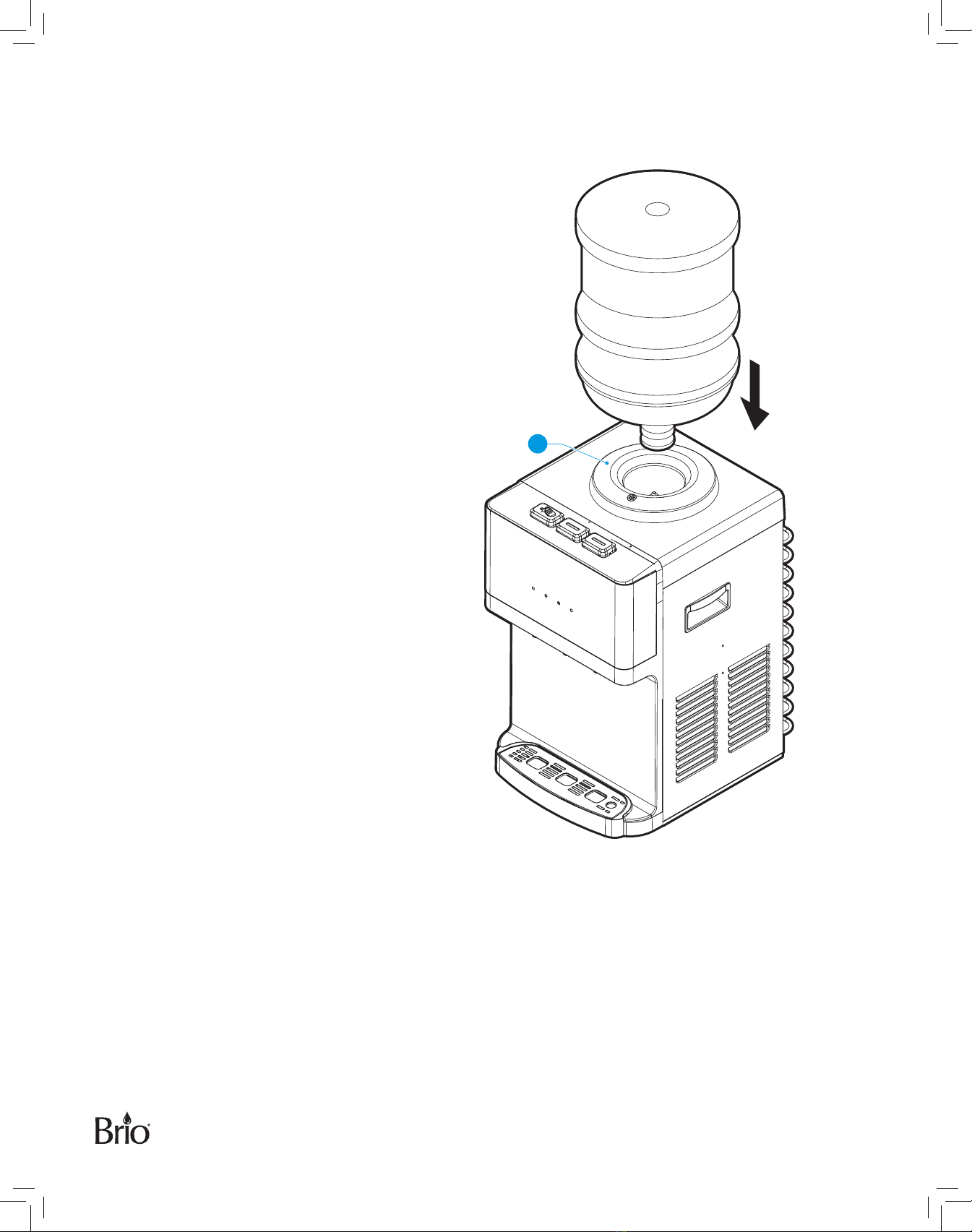

C. Lift and turn the bottle upside down and
place it securely on the bottle support
collar (1). The inside of the collar is
equipped with a probe that pierces the
water bottle cap in order to avoid spills
and bacteria entering the water.
D. Wait 5 minutes for the water tanks to ll
with water before attempting to use the
dispenser.
E. Remove air from the tanks by placing
a cup under each water tap and drain
at least 4 cups (1 liter) of water before
initial use.
1

7
Operation
IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and
odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water
prior to drinking any water.
Turn the Dispenser On/O
IMPORTANT: Before you turn the dispenser on and activate the hot and cold switches, ensure a bottle is
installed.
1. Plug in the dispenser and turn the On/Off switch to On.
2. Run water through the cold and hot water taps until water begins to dispense.
3. To power on the cooling system, ip the cooling switch to the On position.
4. To power on the heating system, ip the heating switch to the On position.
Dispense Cold Water
NOTE: Water will take approximately 1 hour after plugging in and turning on to become completely chilled. The
cooling light will turn o once the water has been fully chilled.
1. Press a drinking glass or container against the cold water faucet to dispense cold water.
2. Release when your container is full.
Dispense Hot Water and Activate Child Safety Lock
CAUTION: This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot
water. Keep children and pets away from the unit while dispensing. Never allow children to dispense
hot water without proper and direct supervision. Disable the heating feature by switching the heating
convenience switch to the O position.
NOTE: Water will take approximately 15-20 minutes after plugging in and turning on to reach its hottest
temperature. The heating light will turn o once the water has been fully heated.
1. This water dispenser is equipped with a child safety feature in order to prevent inadvertent dispensing. To
enable dispensing of hot water, press and hold the red lock button and then press your mug or container
against the paddle directly beneath the red lock button.
2. Release the paddle once your container is full.
Change the Water Bottle
CAUTION: Do not dispense hot, cool, or cold water with an empty bottle as you could empty the tanks and cause
the dispenser to overheat.
To change an empty water bottle, simply lift and remove the empty water bottle and then follow the steps in Installing
a Water Bottle.

8
Troubleshooting
Problem Solution
The cold water is not
cold.
•It takes up to one hour after setup to dispense cold water.
•Make sure the power cord is properly connected to a working
outlet.
•Make sure the back of the dispenser is at least 20 cm from a wall
and there is free airflow on all 20 cm sides of the dispenser.
•Make sure green power switch on back of dispenser is On.
•If water still isn’t cold, call customer service at [phone] for
assistance.
The hot water is not hot.
•It takes 15-20 minutes after setup to dispense hot water.
•Make sure the power cord is properly connected to a working
outlet.
•Make sure red power switch on back of dispenser is On.
The dispenser is noisy. •Ensure the dispenser is located on a level surface.
•The heating tube may be generating a slight noise. This is normal.
The bottle is leaking.
•Ensure the bottle is installed correctly.
•Check to see if the bottle is cracked or broken. If so, replace the
bottle.
The dispenser is not
dispensing water.
•Check to see if the bottle is empty and replace with a new bottle if
necessary.
•There may still be air in the tank. Press and hold the water taps to
remove air until water begins to flow.

9
Cleaning and Maintenance
Cleaning
For best taste, performance, and hygiene, clean the cold tank at least every 3 months and your cabinet, controls, and
spout each time you change your water bottle. Empty and clean the drip tray asneeded. To minimize mineral deposits,
use only high-quality purified bottled water.
Care and Maintenance
•Keep this dispenser in a dry and cool place and avoid direct sunshine.
•Ensure the back of the dispenser is at least 20 cm (8 in.) away from the wall.
•Never put the dispenser on paper or foam, which may store water and then cause creepage. Never put anything
flammable beside this machine.
•Do not use the dispenser outdoors or in a place that can be splashed by water.
•If the dispenser is not in use for longer than a 24-hour period, turn o the heating switch or the refrigerating
switch to save power and drain any remaining water.
•Clean your cabinet, controls, bottle probe and spout each time you change your water bottle. Use a clean soft
cloth and a food grade sanitizer or bleach.
•Empty and clean the drip tray, grid, and float as needed.

10
Warranty
Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person,
that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then
for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material
and workmanship. This Limited Warranty shall be limited to repair or replacement of parts, which prove defective
under normal use and service and which Vendor shall determine in its reasonable discretion upon examination to be
defective. To take advantage of this Limited Warranty, please follow these steps:
1. Please retain your sales slip or invoice, as Vendor may require reasonable proof of your date of purchase.
2. Contact Vendor’s Customer Service Department using the contact information listed below.
3. Return parts to Vendor, per Vendor’s instructions, at your cost and expense.
4. Upon receipt by Vendor, Vendor shall advise you in writing whether a defect covered by this Limited Warranty exists
in any returned part and whether your claim has been approved or denied.
5. Upon Vendor’s approval of your claim, Vendor will replace such defective part without charge to you.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Limited Warranty does not cover any failures or operating
diculties of the Product due to accident, abuse, misuse, alteration, misapplication, improper installation or improper
maintenance or service by you or any third party, or failure to perform normal and routine maintenance on the Product,
as set out in the User’s Manual. In addition, this Limited Warranty does not cover damages to the finish, such as
scratches, dents, discoloration or rust after purchase.
This Limited Warranty is the only express warranty given on the Product and is in lieu of all other express warranties.
Vendor disclaims all warranties for products that are purchased from seller other than authorized retailers or
distributors. THIS LIMITED WARRANTY RESTRICTS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, THE IMPIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE TO THE ONE (1) YEAR TERM OF THIS LIMITED WARRANTY. UPON THE EXPIRATION OF
THE ONE (1) YEAR TERM OF THIS LIMITED WARRANTY, VENDOR DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, THE PRODUCT BEING THUS SOLD AS-IS, WITH ALL FAULTS. FURTHER, VENDOR
SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT,
PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. OTHER THAN THIS LIMITED WARRANTY, THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. Vendor assumes no
responsibility for any defects caused by third parties. This Limited Warranty gives you specific legal rights, and you
may have other rights which vary from state to state. State law may also override statements in this Limited Warranty
regarding the restriction on the duration of implied warranties. Some jurisdictions do not allow exclusion or limitation of
special, incidental or consequential damages, or limitations on how long awarranty lasts, so the above exclusion and
limitations may not apply to you.

Contact Us
Call: [phone]
©2020 DTWUSA
