Innuos Zen User manual

ZEN / ZEN

ITH

Mk3

Quick Start Guide

Innuos ZEN / ZENith Mk3 Quick Start Guide (English)

Document version 2.0

Thank you for buying our Music Server.

This quick start guide will show you how to get started with your new

Music Server.

For more detailed information please visit our website

https://innuos.com/support/

Should you have problems please contact support@innuos.com

and we’ll be happy to assist you.

1

Contents

1ZEN/ZENith Mk3 Rear Panel Diagram �� 2

2Box Contents �� 3

3Connect Your System to Mains Power �� 4

4Connect Your System to Your Home Network �� 5

5Connect Network Audio Device to Streamer Port �� 6

6Using Your System as a Player �� 7

7Turn on Your System �� 8

8Accessing Your Innuos Device �� 9

9Update innuOS Software to the Latest Version �� 10

10 Adding Music to Your System �� 11

11 Streaming Services and Integrations �� 13

12 Turn Off Your System �� 14

2

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please re ad the manual bef ore use

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

LAN STREAMERSERVICE ONLY BACKUP DAC

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLY WHITH A

250VFUSE

4

5

6

7

2 3 8

1

1 ZEN/ZENith Mk3 Rear Panel Diagram

1 Mains Power Connector

2 Fuse Box

3 On/Off Switch

4 HDMI Output (Service Only)

5 USB for Backup Drive (USB 3)

6 USB DAC output (USB 2)

7 Ethernet Input from Router

8 Ethernet Streamer Port

3

1

23

EU

UKUSA / CAN

CHN / AUS

2 Box Contents

1 Innuos ZEN / ZENith Mk3 Music Server

2 Mains Cable

3 2m Ethernet Cable

4

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please read t he manual befor e use

RISKOF ELECTRIC SHOCK

DONOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

LAN STREAMERSERVICE ONLY BACKUP DAC

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLYWHITH A

250VFUSE

2

1

3

3 Connect Your System to Mains Power

5

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please read t he manual befor e use

RISKOF ELECTRIC SHOCK

DONOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

LAN STREAMERSERVICE ONLY BACKUP DAC

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLYWHITH A

250VFUSE

WAN

INTERNET

ETHERNET

STREAMER

1

2

LAN

option aWired to the Internet Router

4 Connect Your System to Your Home Network

6

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please read t he manual befo re use

RISKOF ELECTRIC SHOCK

DONOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

LAN STREAMERSERVICE ONLY BACKUP DAC

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLY WHITH A

250VFUSE

LAN

STREAMER

1

2

LAN

Ethernet Cable

note Optional - Not required for server operation

5 Connect Network Audio Device to Streamer Port

The Streamer Port provides a wired network connection for streamers, wireless speakers and

other network audio products.

7

R

TUNER

PHONO

IN IN IN IN IN OUT

AUX

CD/DAC

DIGITAL

USB

RECORDER

SPEAKERS

LINE IN

L

R

L

B

A

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please read t he manual befo re use

RISKOF ELECTRIC SHOCK

DONOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

LAN STREAMERSERVICE ONLY BACKUP DAC

EMPLOYER

UNIQUEMENT

AVECUNFUSIBLE

DE250V

USEONLYWHITH A

250VFUSE

USB

1

2

DAC

USB Male A

to Male B Cable

USB Male A

to Male B Cable

(TYPE B)

(TYPE A)

setup aConnect to a DAC/Amplifier via USB

6 Using Your System as a Player

Note: USB Cable not included. Requires DAC compatible with USB Audio Class 2.

8

STREAMER

LAN

BACKUP

DAC

SERVICE ONLY

AC IN ᴖᴗ Please read the manual before use

RISKOF ELECTRIC SHOCK

DONOT OPEN

Input Voltage:

AC 220-240V ~ 50/60Hz

Designed in the United Kingdom

Assembled In Portugal

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLY WHITH A

250VFUSE

1

2

30 s

On System

Ready

WHITE BLUE

PRESS

ONCE

7 Turn on Your System

Please press and release. Do not hold the front power button down.

9

8 Accessing Your Innuos Device

innuos sense

Android

GET IT ON

my.innuos.com

Desktop

innuos sense

Available on the

App Store

iPhone / iPad

10

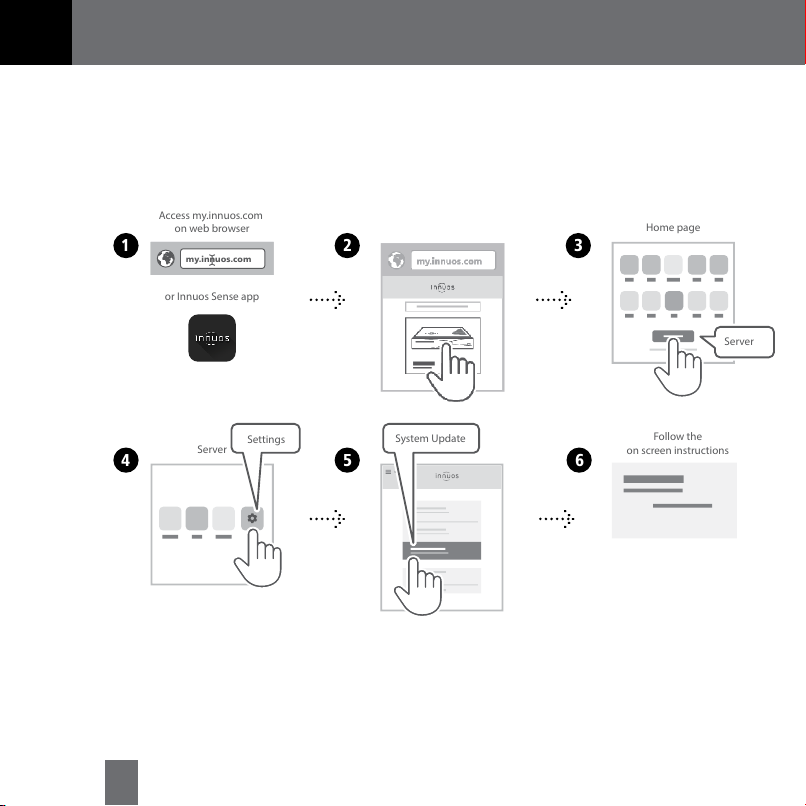

9 Update innuOS Software to the Latest Version

6

Follow the

on screen instructions

my.innuos.com

System Update

Home page

Server

Server Settings

12

45

3

my.innuos.com

Access my.innuos.com

on web browser

or Innuos Sense app

11

Insert

CD 3-5 m

Auto

Eject

option aRip CDs

10 Adding Music to Your System

Do not push the CD while it is being drawn in as this may cause it to jam or damage the

optical drive.

12

option bImport Digital Music

Home page

Server

45

12 3

my.innuos.com

Import

6

Select import method

my.innuos.com

Access my.innuos.com

on web browser

or Innuos Sense app

Follow the

on screen instructions

13

my.innuos.com

Access my.innuos.com

on web browser

or Innuos Sense app

IntegrationsStreaming Services

1

4

2

A B

Home page

Server

3

Server Settings

5

Follow the

on screen instructions

11 Streaming Services and Integrations

14

AC IN

ᵔᵕ

Designed in England

Manufactured in Portugal

Please r ead the manual be fore use

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Input Voltage: AC 220-240V ~ 50/60Hz

EMPLOYER

UNIQUEMENT

AVECUN FUSIBLE

DE250V

USEONLY WHITH A

250VFUSE

12

5 s

BLUE

System

Running

OFF

PRESS

ONCE

OPTIONALOPTIONAL

12 Turn Off Your System

Please press and release. Do not hold the front power button down.

15
