Inogen One G5 Operating and safety instructions

INOGENONEG5
PRODUCTOVERVIEW
JulienGineste

InogenOneG5Specifications
Dimensions: L/W/H:7.19in./3.26in./7.11in.
w/8‐cellbattery L/W/H:7.19in./3.26in./8.15in.
w/16‐cellbattery L/W/H:7.19in./3.26in./9.03in.
Weight: 4.7pounds(includessinglebattery)
Noise: 38dBAatsetting2
MaximumSoundPowerof60dBAandMaximum
SoundPressurelevelof50dBAperISO80601‐2‐69
Warmuptime: 2minutes
OxygenConcentration**: 90%‐ 3%/+6%atallsettings
FlowControlSettings: 6settings:1to6
MaximumOutletPressure <28.9PSI
Power:ACPowerSupply: ACInput:100to240VAC
50to60Hz
Auto‐Sensing:2.0‐1.0A
DCPowerCable: DCInput:13.5‐15.0VDC
RechargeableBattery: Voltage:12.0to16.8VDC(±0.5V)
BatteryDuration*: Upto6.5hourswithsinglebattery
Upto13hourswithdoublebattery
BatteryChargingTime: Upto3hoursforasinglebattery
Upto6hoursforadoublebattery
EnvironmentalRangesIntendedforUse: Temperature:41to104˚F(5to40˚C)
Humidity:0%to95%,non‐condensing
Altitude:0to10,000ft(0to3048meters)
EnvironmentalRangesIntendedfor Temperature:‐13to158˚F(‐25to70˚C)
ShippingandStorage: Humidity:0%to95%,non‐condensing
Storeinadryenvironment
Altitude:0to10,000ft(0to3048meters)
*Batterytimevarieswithflowsettingandenvironmentalconditions
**Basedonatmosphericpressureof14.7psi(101kPa)at70°F(21°C)

BluetoothAppCompatibility
(Notavailableyet)
•EMEAversionwillhaveBTdisabled.
•InthefutureBTcanbeactivatedinanAuthorizedInogenServiceCenterwhen
availableintheEMEAmarkets

G5SystemWeightandDimensions
Configuration Alone With Bag
Kg Lbs Kg Lbs
Concentrator 1.61 3.55 1.95 4.30
Concentrator w/ 8-cell 2.15 4.74 2.49 5.48
Concentrator w/ 16-cell 2.60 5.73 2.93 6.47
8-cell battery 0.54 1.19 n/a n/a
16-cell battery 0.99 2.18 n/a n/a
Bag 0.34 0.74 n/a n/a
Power Supply (with cord) 0.59 1.31 n/a n/a
Length Width Height
Cm In Cm In Cm In
Concentrator 18.26 7.19 8.31 3.26 18.06 7.11
w/ 8-cell battery 18.26 7.19 8.31 3.26 20.70 8.15
w/ 16-cell battery 18.26 7.19 8.31 3.26 22.94 9.03

G5PulseVolumesatFlowSettings
G5 Flow Setting
Breaths per Minute 123456
15 14 28 42 56 70 84
20 11 21 32 42 53 63
25 8 1725344250
30 7 1421283542
35 6 1218243036
40 5 1116212632
mL/breath +/- 15% per ISO 80601-2-67
Total Volume per Minute
(ml/min) 210 420 630 840 1050 1260
SameasG3andG4butwithonemoresetting

•NewLargerDisplayScreen
•DisplaysSymbolsandNumbersOnly
•NoText
(refertousermanualforallsymboldefinitions)
G5UserInterfacePanel
PowerOn/Off
FlowSettingControl
Buttons
VolumeControl
Button
AudibleAlert
Button
Display
IndicatorLights
AudibleSignals
Backlight
Contains Transmitter Module
IC: 2417C-BX31A
FCC ID: N7NBX31A
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Aremovablestaticclinglabelis
appliedoverthedisplayscreen
withthetextbelow,please
haveuserremoveuponsetup.

G5PowerSupplies
BA‐501ACPowerSupply
Input:100to240VAC,50to60Hz
Auto‐sensing:2.0‐1.0Aforworldwide
use
BA‐306DCPowerCable
Input:13.5‐15.0VDC

G5PowerPort
Powerportaccess

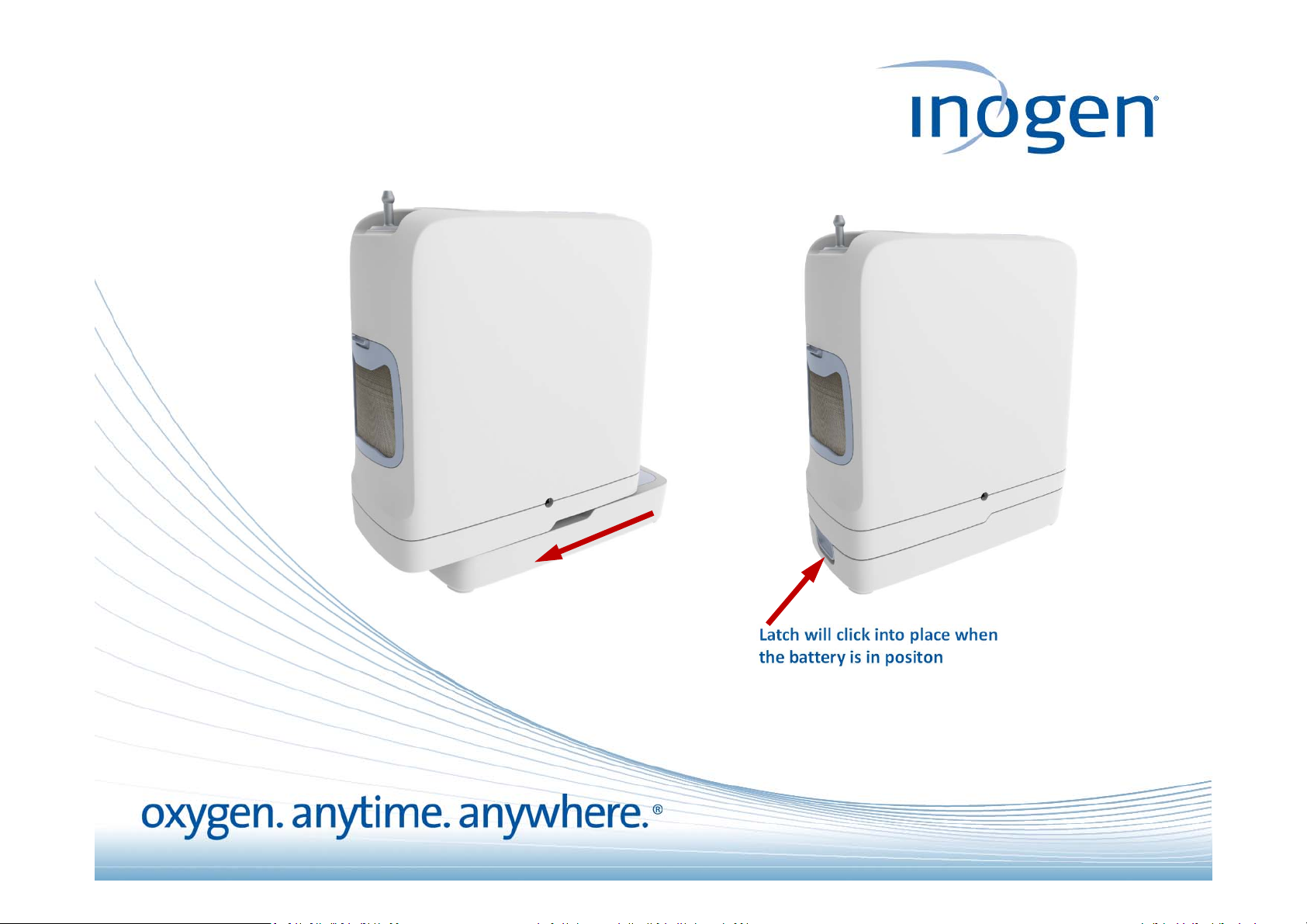

G5BatteryLocation
Latchwillclickintoplacewhen
thebatteryisinpositon
Slidebatteryon

G5BatteryOptions
Model#BA‐500
8CellBattery
~6.5HoursRunTime
Model#BA‐516
16CellBattery
~13HoursRunTime
BatteryIndicatorGauge

G5BatteryRunTimes
Power Consumption
(W)
8-cell run time
(hours:minutes)
Power Consumption
(W)
16-cell run time
(hours:minutes)
Setting 1.0 14.6 6:35 14.8 13:28
Setting 2.0 18.7 5:03 18.4 10:22
Setting 3.0 26.9 3:27 26.7 7:01
Setting 4.0 37.8 2:25 37.4 4:55
Setting 5.0 48.5 1:51 48.4 3:48
Setting 6.0 61.5 1:26 61.1 2:58

G5BatteryChargeTimes
8-cell charge time
(hours:minutes)
16-cell charge time
(hours:minutes)
Standby 2:46 3:48
Setting 1.0 2:49 3:53
Setting 2.0 2:47 3:53
Setting 3.0 2:46 3:50
Setting 4.0 2:45 3:49
Setting 5.0 2:43 4:43
Setting 6.0 3:09 5:40

AirIntakeandExhaustLocations
IntakeVents
GrossParticleFiltersshouldberemoved
andcleanedweekly– #RP‐500
ExhaustVent

G5Columns
#RP‐502
Accesscolumnsbyremovingbatteryand
slidinglatch,openwireringandpullcolumns
out.
RemoveDust
Capsbefore
installing
RemoveDust
Capsbefore
installing

InogenOneG5CarryBag
Model#CA‐500
G5intakeandexhaustventsshouldbevisiblethroughmesh,on
front,sidesandbottomofbag
Paddedfootingisdesignedfor
usewithbothsingleand
doublebattery.Bottommesh
isintendedtoallowairflow
forexhaustandbattery.
ExhaustVent IntakeVent IntakeVent

InogenOneG5CarryBag
Model#CA‐500continued
Velcrotopflap
toaccessdisplay
Smallfront
pouchforextra
cannulatubing
Smallpocketwith
zipperclosure
underfrontflap
GrabHandle
Pouchforinsertingonto
luggagehandleorcart
Perforatedmaterialatbackof
bagtoallowforairflowto
deviceandbattery
Cutoutforpower
portaccess
Cutangleintopofbagfor
properorientationof
devicetoaccesscannula
port

InogenOneG5CarryBag
Model#CA‐500,CarryStrapDetails
Carrystrapisadjustablefrom28”to53”
Includesaremoveableshoulderpadand
swivelfasteners
Removableshoulderpad
Swivelfasteners

OptionalAccessoryG5Backpack
Model#CA‐550
Cutangleintopfrontof
backpackforproper
orientationofdeviceto
accesscannulaport
G5intakeandexhaustventsshouldbevisiblethroughmesh,on
front,sidesandbottomfrontofbackpackforproperairflow
Frontpocket
w/zipperedclosure
Velcroloopstohold
cannulatubing
Grabhandleorforhanging
backpack
Sidepockets
Adjustableflapclosureto
accommodatesingleor
doublebattery
Clearplasticwindowto
viewdisplay

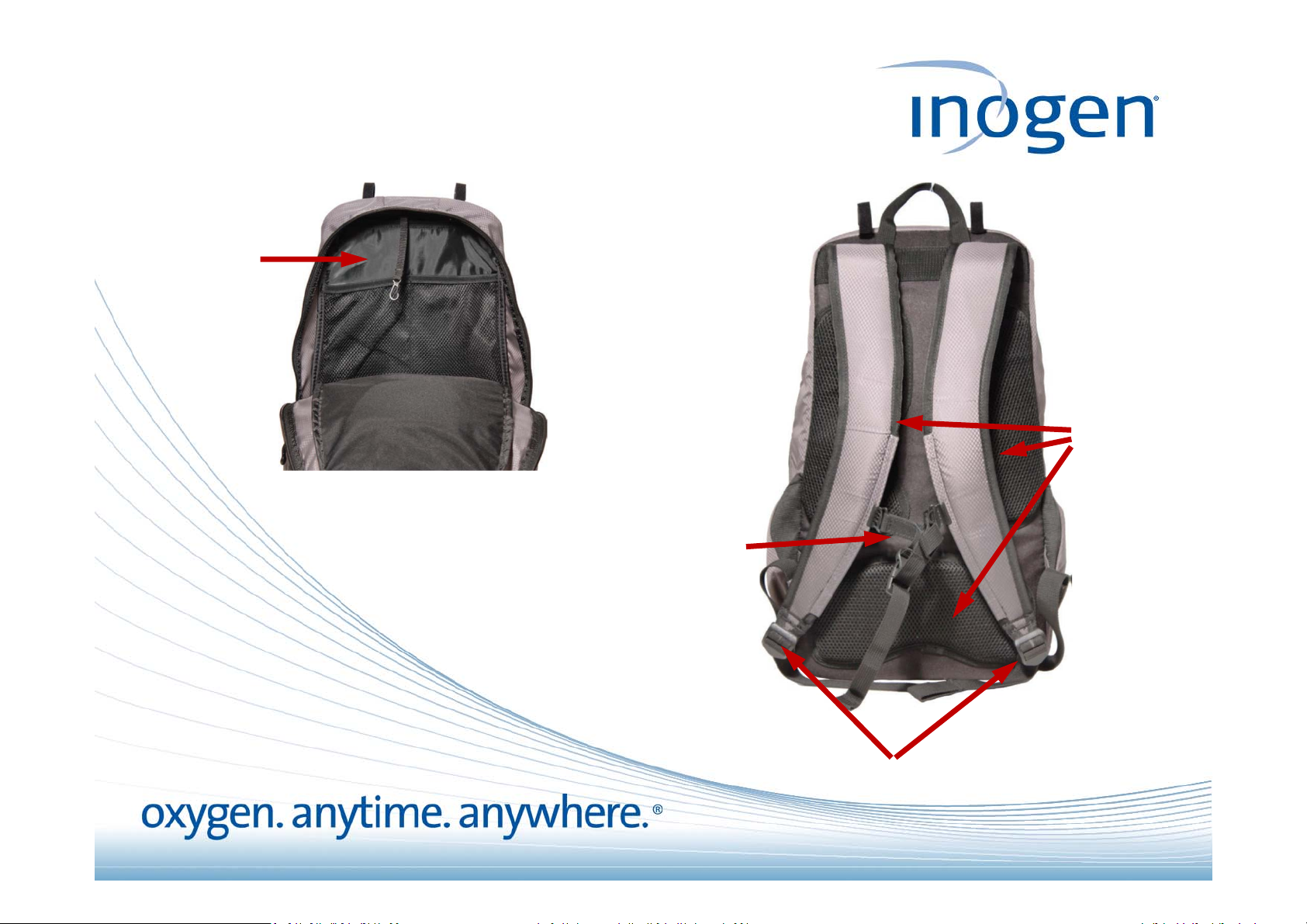

G5Backpackcontinued
Insideview;
twoback
meshpockets,
largeinside
pocketand
smallhookfor
keys
Adjustableand
removablechest
strap7”to16”
Bucklesforadjusting
straps26”to58”
Paddedfor
comfort

OptionalAccessory
ExternalBatteryCharger
Model#BA‐503
Whenthebatteryisinthecorrectposition,asolid
redlightwillindicatethatthebatteryischarging.
Whenthegreenlightilluminates,thebatteryis
fullycharged.
