Insignia NS-32D20SNA14 User manual

CABLE
QUICK
SETUP GUIDE
32" LED TV
NS-32D20SNA14
Included accessories
Remote control
and two AAA batteries
TV stand
Which cables do you have?
Your TV has several dierent jacks for connecting devices. For the
best video quality, use the best available connection. Use the cables
that came with your devices.
Note: You can use the HDMI2/DVI jack to connect a DVI device to your TV. Attach an
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device’s jack. See your online User Guide
HDMI (ARC, DVI).
Note: Images do not necessarily represent the exact design of your television.
Features
Front view
Back view
OVER
VIDEO QUALITY
BEST
BETTER
GOOD
GOOD
HDMI video/audio
Component video and analog audio
Composite video and analog audio
JACK TYPE CABLE CONNECTOR
Multi-purpose jacks: You can plug
any device that uses HDMI into
either HDMI jack. However, certain
devices must be connected to the
HDMI ARC or DVI jack. See the
instructions that came with your ARC
or DVI device for more information.
Using an HDMI cable (BEST)
(BETTER)
How do I connect my TV to an antenna or cable wall jack?
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as
a DVD or Blu-ray Disc player, game station, or camcorder?
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
BAttach the wall-mount bracket to your TV using the mounting holes on the
back of your TV. See the instructions that came with the wall-mount bracket
for information about how to correctly hang your TV.
A
Before using your new product, please read these instructions to prevent any damage.
M
Remote control sensor
Power indicator
NS-RC6NA-14
HOME
ASPECT
Stand column
PC / DVI
AUDIO IN VGA
VIDEO / Y PBPRANT / CABLE IN
PC INAV / COMPONENT IN
LRAUDIO
M4 (12 mm) screws
B
M4 screws (12 mm length) (7 pcs.) PC / DVI
AUDIO IN VGA
VIDEO / Y PBPRANT / CABLE IN
PC INAV / COMPONENT IN
LRAUDIO
M4 (8 mm)
Coaxial video / audio
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You’ll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Attach the stand column to your TV using the three provided M4 screws (12 mm).
CAttach the TV stand to the stand column with the four provided M4 screws (12 mm).
STOP!
Do not plug your
power cable in until
all other devices have
been connected.
C
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video
cable to the green VIDEO/Y jack on
the back of your TV.
Using component cables
- OR -
Using an AV cable (GOOD)
OUT
AUDIO/VIDEO
Video
Component
cable option
AV cable option
AUDIO/VIDEO OUT
PC / DVI
AUDIO IN VGA
VIDEO / Y PBPRANT / CABLE IN
PC INAV / COMPONENT IN
LRAUDIO
M4 (12 mm) screws
USB
USB HDMI2 / DVIHDMI1 / ARC
IN
AUDIO OUT
DIGITAL OUTPUT
(OPTICAL)
USB
USB HDMI2 / DVIHDMI1 / ARC
IN
AUDIO OUT
DIGITAL OUTPUT
(OPTICAL)
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
C
M
Y
CM
MY
CY
CMY
K
NS-32D20SNA14_13-0619_QSG_V3_EN_Final.ai 1 7/8/2013 1:43:02 PMNS-32D20SNA14_13-0619_QSG_V3_EN_Final.ai 1 7/8/2013 1:43:02 PM

V1 ENGLISH 13-0619
4

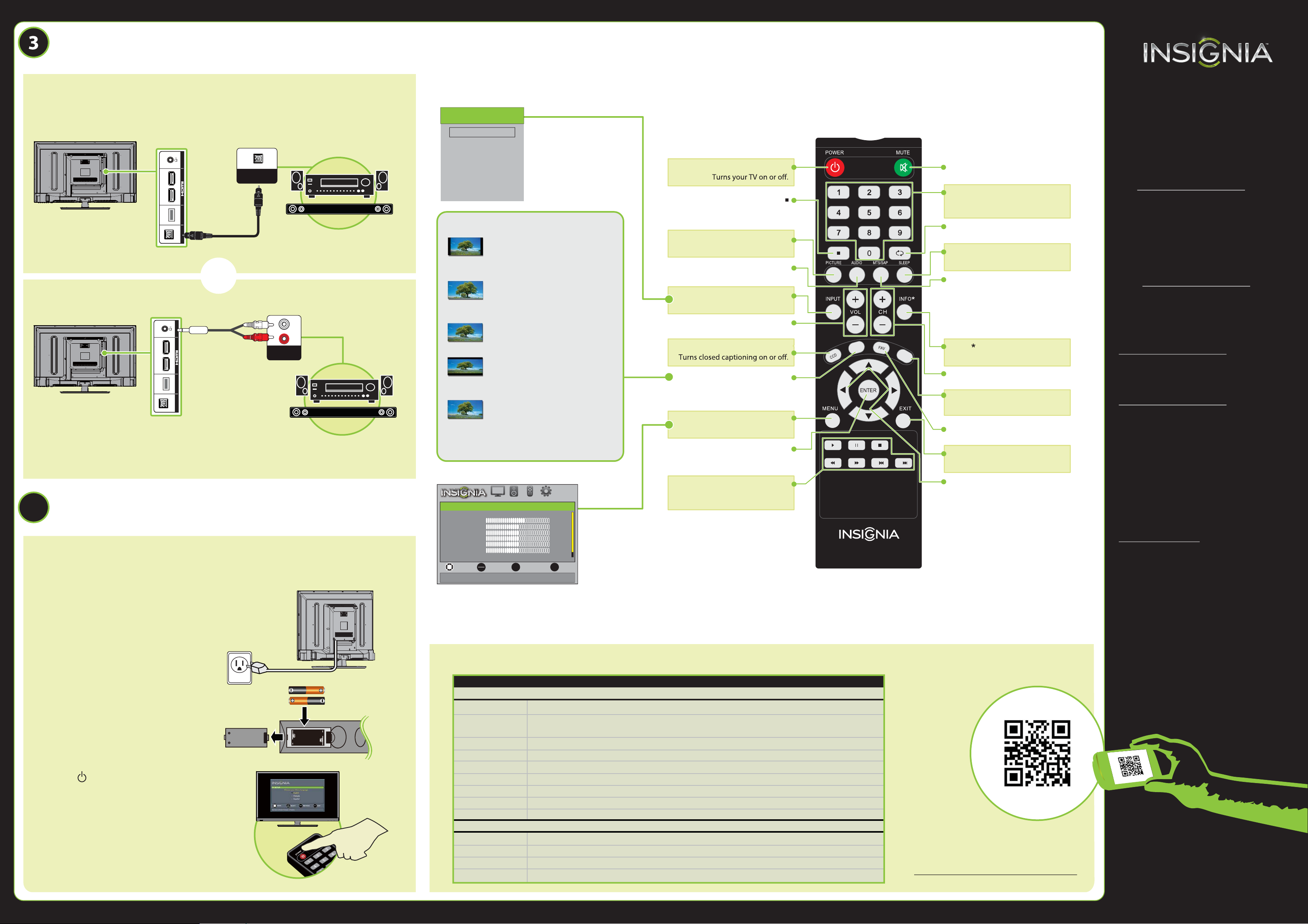

32" LED TV IQUICK SETUP GUIDE I NS-32D20SNA14
Using digital audio
Note: Refer to instructions that came
with your speakers for more information.
I already have a universal remote control. How do I make it control this TV?
Using your remote control
The best time to turn on your TV is after you have attached the TV
stand or wall-mounted your TV and connected all devices.
When your television is in place:
1Plug the AC power cord into a power outlet.
2Install the remote control batteries.
3Press (power) on your remote
control.
4Follow the on-screen instructions.
If you already have a universal remote control that you would like to program to work with your TV and don’t
want to use the included Insignia remote control, see the table for common codes.
CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
For an up-to-date list of codes for other
cable providers and universal remote brands,
scan this QR code or visit
www.insigniaproducts.com/remotecodes
TURNING ON MY TV
When can I turn on my TV?
UNIVERSAL REMOTE TV CODES
CABLE BOX, SATELLITE BOX, OR OTHER SET-TOP BOX
Cablevision 068, 069, 078, 096, 100, 164, 168, 229, 026
Charter 2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461,
507, 523, 567, 577, 586
Comcast 10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002
Cox 1326, 1463
Direct TV 10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002
Dish Network 720
Time Warner 400, 450, 461, 456, 10463, 1463, 0463
Tivo 0091
Verizon 0198, 0490
One for All 0054
Philips 0198, 0490
RCA 135
Sony 068, 069, 078, 096
UNIVERSAL REMOTE CONTROLS
NS-RC6NA-14
HOME
ASPECT
MUTE
Mutes the sound.
Numbers
Enter channel numbers and
parental control password.
RECALL
Returns to the previous channel.
SLEEP
Sets the sleep timer.
MTS/SAP
Analog TV: Cycles through mono,
stereo, and secondary audio for
analog programs.
Digital TV: Selects the audio language
from the current channel.
INFO
Opens a TV status banner.
Channel
Changes the TV channels.
HOME
Opens the on-screen menu.
FAV
Opens the Favorite Channel List.
EXIT
Closes the on-screen menu.
Arrows
Navigate in on-screen menus.
Power
Enters a digital sub-channel
number (for example 4.1).
Selects the video mode.
AUDIO
Selects the audio mode.
INPUT
Opens the INPUT SOURCE list.
Volume
Changes the volume.
CCD
ASPECT
Changes how the picture is
displayed on the screen.
MENU
Opens the on-screen menu.
ENTER
Confirms selections or changes.
INlink Controls
Control HDMI-CEC device
connected to your TV.
MOVE EXIT
PREVIOUS
SELECT
OK
ENTER
MENU EXIT
Picture Mode
Brightness
Contrast
Color
Tint
Custom
50
Sharpness
Advanced Video
Backlight
50
50
0
50
30
Adjust settings to affect picture quality.
PICTURE AUDIO CHANNELS SETTINGS
NORMAL: Original aspect ratio is preserved.
Black bars are present if content is not
widescreen (16:9).
ZOOM: Expands the image to ll the screen.
The top and bottom of the image may be
cropped.
WIDE: Displays content recorded in a
16:9 (wide-screen) aspect ratio.
CINEMA: Stretches the image at the edges,
but keeps a clear image in the center.
AUTO: Automatically adjusts the image
based on the screen size and the TV
program. Select this option if you are
uncertain which aspect ratio to choose.
Note: Auto is only available when Auto
Aspect Ratio in the CHANNELS menu is set
to On.
What are my screen-size options?
INPUT SOURCE
TV
HDMI1
HDMI2
Component/AV
VGA
USB (Photos) One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289
(U.S./Canada markets)
INSIGNIA is a registered trademark of BBY Solutions, Inc.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC,
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2013 BBY Solutions, Inc.
All Rights Reserved
1-877-467-4289
www.insigniaproducts.com
