Inspiration Pursuit Exercise Cycle User manual

OWNER’S GUIDE
Pursuit Exercise Cycle
JAN13/2010

2
Congratulations on purchasing
a fitness equipment from
Inspiration Fitness
You have chosen a high quality, safe and innovative piece of equipment as your training
partner and we are certain it will keep you motivated on the way to achieving your personal
fitness goals.
Please take the time to read this owner’s manual as it will help you to get the most out of
your new equipment.
INTRODUCTION

3
Contents
Safety Information 04
Customer Support 05
Assembly Instructions 06
Operational Instructions 10
• Quick start ................................................................. 10
• Computer instructions ....................................... 10

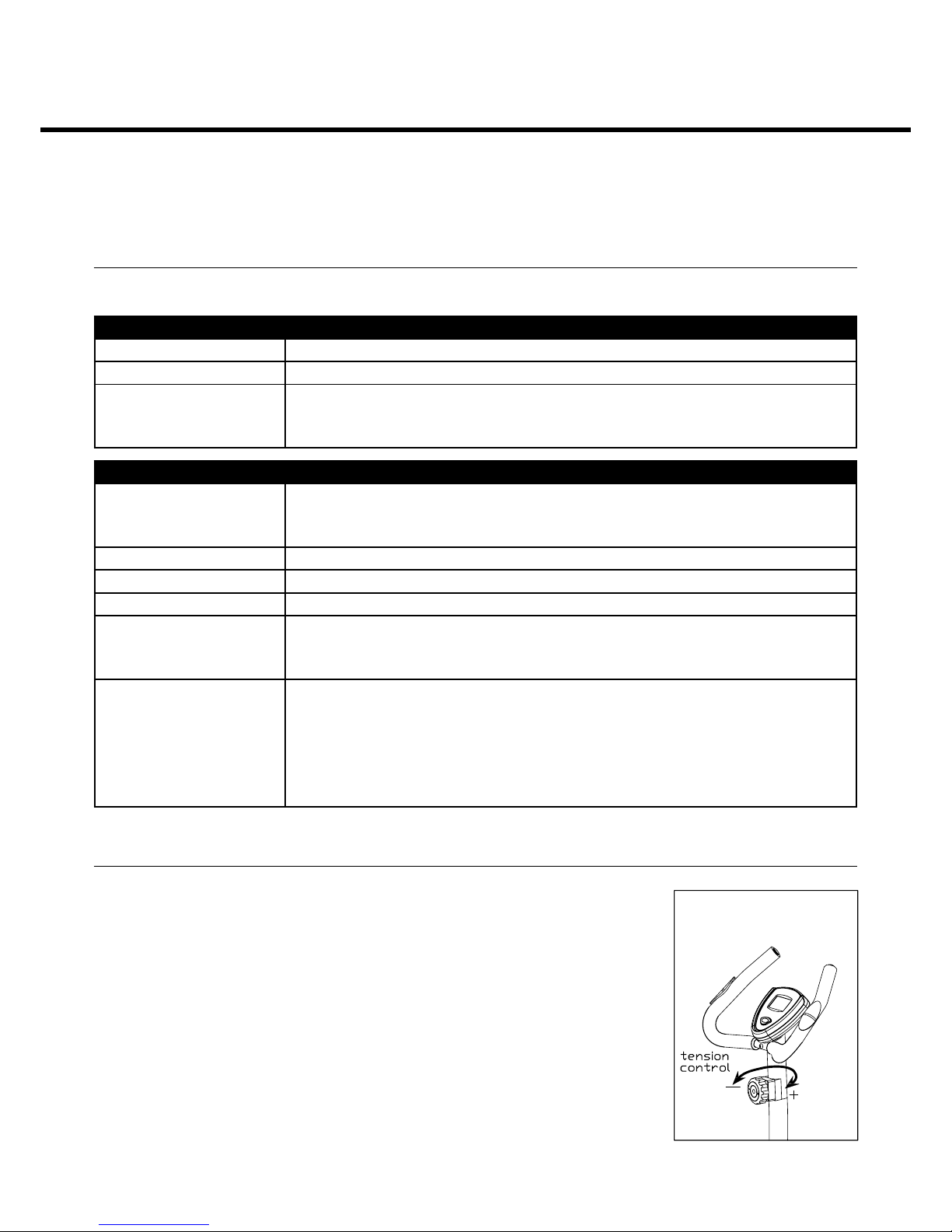

• Adjusting the resistance .................................... 10
• Adjusting the seat height ................................. 11
• Leveling your cycle ............................................... 11
• Battery replacement instructions ................. 11
Maintenance 12
• Storage ........................................................................ 12
• Cleaning ..................................................................... 12
• Maintenance ............................................................ 12
• Troubleshooting .................................................... 12
Warranty 13
Fitness Guide 14
• Starting and finishing your workout .......... 14
• Correct cycling form ............................................ 14
• How long should I exercise for ...................... 14
• Heart rate training ................................................. 14
• Calculating your target heart rate ................ 14
• Suggested stretches ............................................ 15
Exploded Drawing / Part List 16
TABLE OF CONTENTS

4
SAFETY INFORMATION
Please read this information manual before
you begin assembly. Great care has been
taken to design these instructions and
following them will help you with quicker
assembly and minimize the risk of injury.
It is important that you keep these
instructions for future reference.
This list is not exhaustive -
You are responsible for your own safety!
• Always assemble and operate the equipment on a level surface.
• Ensure the equipment is stable before use.
• Always ensure that the equipment has adequate space
on each side.
• Ensure that the seat height is adjusted correctly. You
should be stable and balanced while on the saddle.
• Adjust the seat height to ensure that you have a good
downward pedal stroke without overstretching, don’t
compromise your balance.
• Try to ensure that your back is straight while exercising,
especially for long periods.
• The safety level of this equipment can only be
maintained if it is regularly examined for wear and tear.
• Replace defective components immediately and keep the
equipment out of use until it is repaired.
• Use only the adjustment setting as described in the
instructions. Always use the correct adjustment pin /
fixing.
• Always check that any pins / fixings are tight and secure
before use and after adjustment.
• Never leave any adjustment devices projecting from the
equipment.
• Always consult your doctor before undertaking any
exercise program.
• Always wear suitable clothing and footwear. (e.g. tracksuit
/ shorts / training shoes)
• Remove all personal jewelry before exercising.
• Ensure you warm-up well before using the equipment as
this will help to prevent muscle strain.
• After eating, allow 1-2 hours before exercising as this will
help to prevent muscle strain.
• Never overload the equipment. (See maximum user
weight)
• Never use the equipment in any other manner other than
the ways explained in these instructions and any wall-
chart supplied.
• Injuries to health may result from incorrect or excessive
training.
• Parents and others in charge of children should be aware
of their responsibility, because the natural play instinct
and the fondness of experimenting of children can
lead to situations and behavior for which the training
equipment is not intended.
• If children are allowed to use the equipment, their
mental and physical development and above all their
temperament should be taken into account. They should
be controlled and instructed in the correct use of the
equipment.
• The equipment is under no circumstances suitable as a
children’s toy.
• Children should not be allowed on or around the
equipment, especially when it is not in use.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• This product is not suitable for therapeutic purposes.
This product has an integrated speed independent braking
system without a constant power mode that is governed by
magnetic resistance.
Maximum user weight
The maximum user weight of this equipment is 110kg.
Safety Standards
This equipment meets the requirements of the EU’s EMC and
Low Voltage directives (where applicable), AS4092-1993.
Therefore the equipment carries the following marks:
Protect the environment by not disposing of this
product or batteries with household waste. Check
your local authority for recycling advice and
facilities.

5
CUSTOMER SUppORT
Care & Maintenance
• Always place the equipment in a dry environment.
• Use a warm, damp cloth to keep the product clean.
• No wet cleaning of electrical components. Unplug before
any care and maintenance.
• The safety level of the equipment can be maintained
only if it is regularly examined for damage and wear. This
includes any ropes, pulleys, nuts, bolts, moving parts,
bushes, chains, wheels, bearings & connection points etc.
• Ensure that you inspect the product regularly - at least
once a week is recommended.
• Ensure that all fixings are tight before use.
• Always replace damaged / worn components with
original parts from the manufacturer.
Customer Support
Should you require any assistance regarding this product
please gather the following information and then contact us
using the details below:

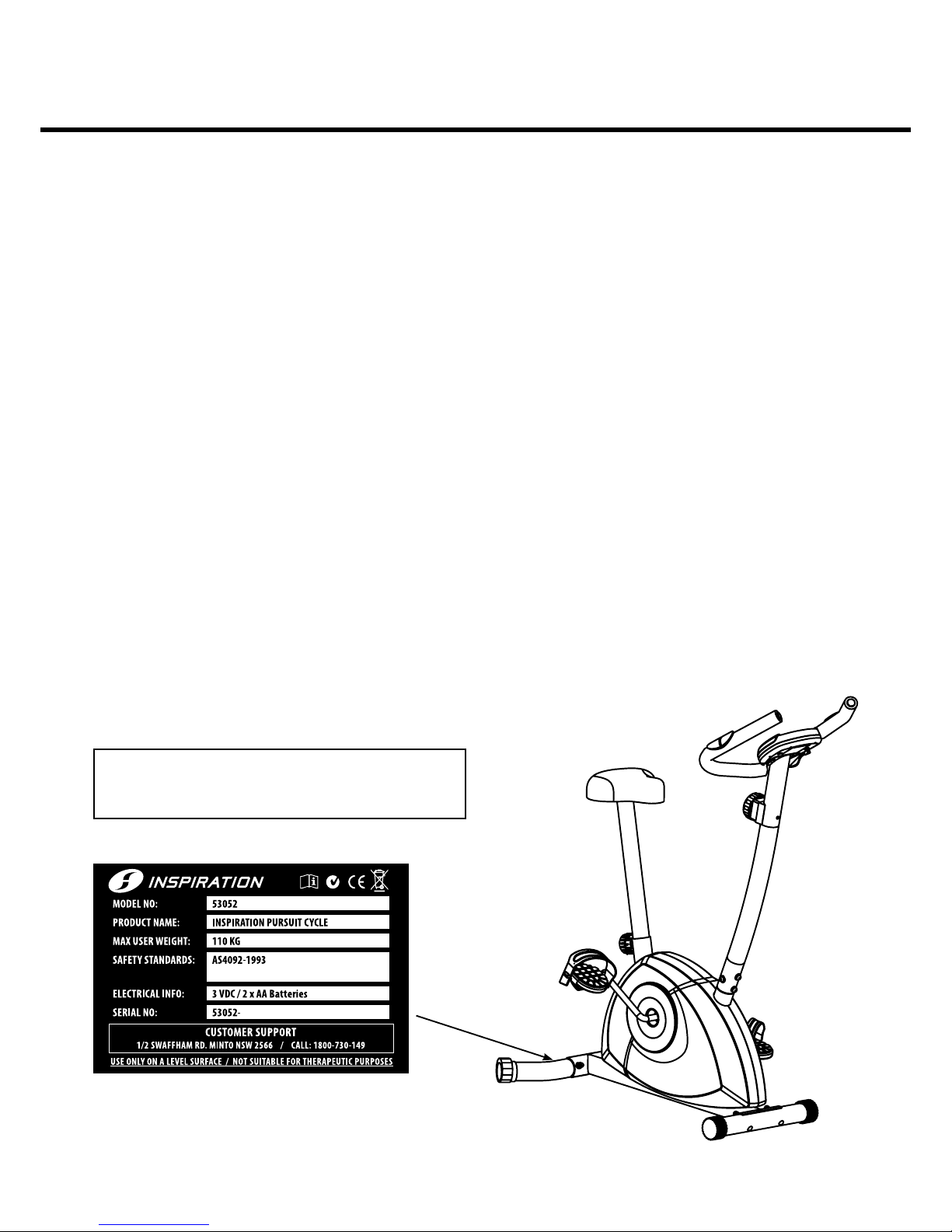

• Serial No. - This can be found on the sticker below,
located as indicated. For future reference, please write
down your serial number in the space provided below.
• Original purchase date
• Place of purchase
• Information about the place and conditions of use
• Precise description of the issue / defect
Your serial no. is:
Contact Us
ENGLAND
York Way, Daventry, Northants, England NN11 4YB
Tel: [phone]
Helpdesk Tel: [phone]
Fax: [phone]
AUSTRALIA
Unit 1, Lot 2, Swaffham Road, Minto, N.S.W. 2566 Australia
Tel: [phone]
Fax: [phone]

6
ASSEMBLY INSTRUCTIONS
If you suspect you may have some parts
missing, please contact us before going
back to your retailer. Refer to the Customer
Support section for contact details.
This equipment takes up a oor space of 90.5cm by
58.5cm and weighs 19.8kg.
Before you start
1. Prepare your work area -
It is important you assemble the product in a clean and
uncluttered space.
2. Work with a friend -
We recommend you have someone assist you with the
assembly as some of the components are quite heavy.
3. Open the carton -
Checking any warnings on the carton and make sure you
have it the right way up.
4. Unpack the carton -
Make sure you have the following parts:
Part No. 13 x 1
Saddle
Part No. 5 x 1
Console
Part No. 11 x 1
Tension knob
Part No. 2 x 1
Saddle post
Part No. 3 x 1
Front post
Part No. 29L x 1
Left pedal
Part No. 29R x 1
Right pedal
Part No. GJ-12
Spanner (10, 12, 13, 15 16, 19mm)
Part No. GJ-19
Screwdriver & allen key
Part No. 12 x 1
50mm machine screw
Part No. 10 x 1
35mm round allen head bolt
Part No. 19 x 4
Cap nut
Part No. 18 x 8
Curve washer
Part No. 9 x 2
8mm machine screw
Part No. 20 x 8
Spring washer
Part No. 21 x 4
15mm round allen head bolt
Part No. 16 x 4
65mm Carriage bolt
Part No. 4 x 1
Handle bar
Part No. 30 x 1
Hand Wheel
Part No. 15 x 1
Front stabilizer
Part No. 35 x 1
Rear stabilizer
Fixings
Tools

7
ASSEMBLY INSTRUCTIONS

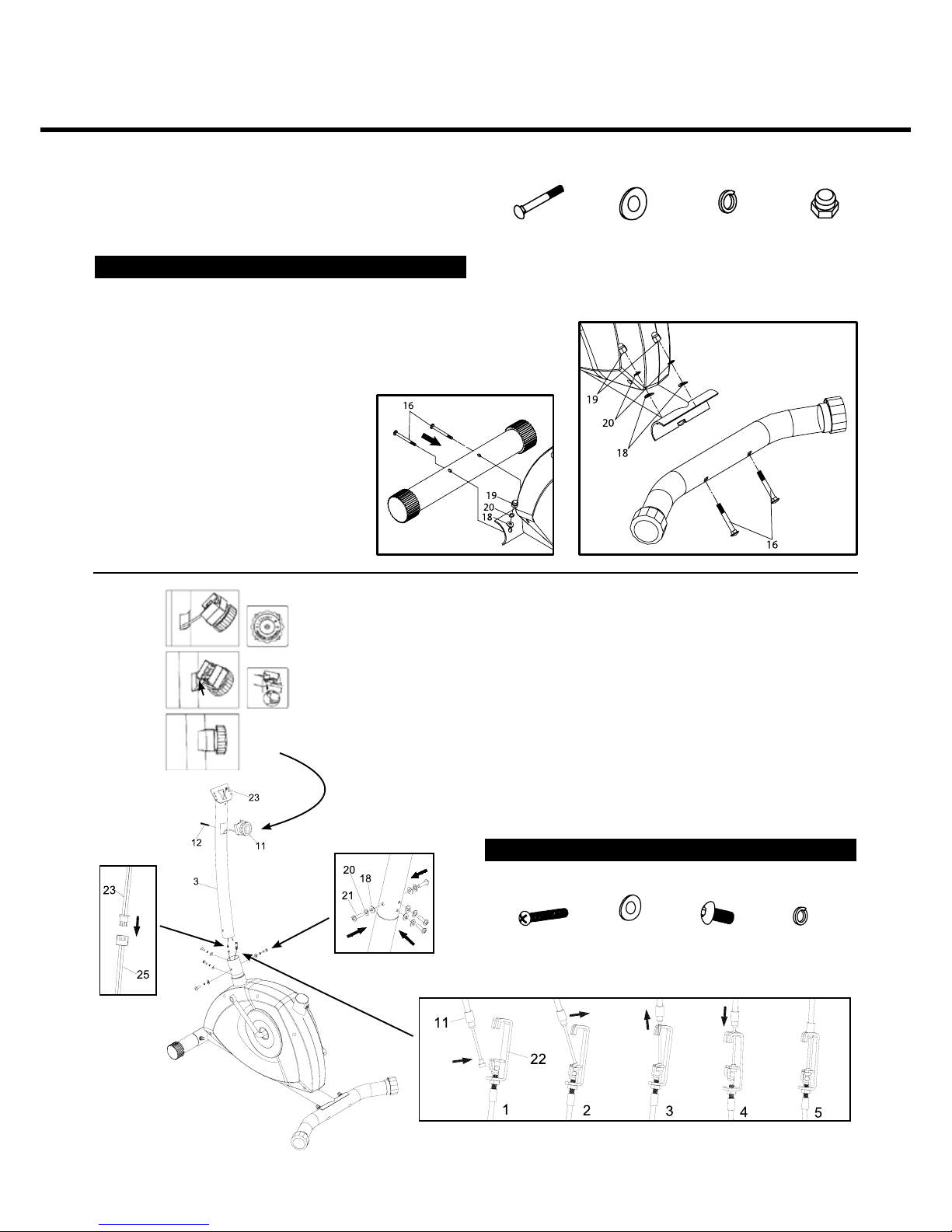

Step 1. Attach the stabilizers
1. Attach the front and rear stabilizers with the nuts, bolts
and washers as shown in the diagram.
2. Be sure to fit the parts in the same order as the diagram.
Make sure the bolts are fully tightened with the spanner.
Step 2. Attach the front post
1. Attach the tension control to the front post with the
screw. Turn the tension control to highest level to give
maximum length of cable for fitting the front post. Hook
the tension cables together as shown. (You may have to
pull firmly downwards on the upper cable to make it fit
underneath the bracket of the lower cable)
2. Connect the computer cable as shown and make sure it’s
fully connected.
3. Slide the front post tube over the front post mounting.
4. Secure in place using the bolts and washers as shown
and be sure to fit them in the same order as the diagram.
Make sure the bolts are fully tightened with the allen key.
Part No. 19 x 4
Cap nut
Part No. 18 x 4
Curve washer
Part No. 20 x 4
Spring washer
Part No. 16 x 4
65mm carriage bolt
Part No. 18 x 4
Curve washer
Part No. 12 x 1
50mm machine screw
Part No. 20 x 4
Spring washer
Part No. 21 x 4
15mm round allen head bolt
Put the cable in the opening.
NOTE: Turn tension to
highest level.
STEP A
STEP B
STEP C STEP D
The silver part of the cable can be
pushed away from the
control unit to allow it to t
inside the front post.
This is how it looks when xed in
position.

8
ASSEMBLY INSTRUCTIONS
Step 3. Attach the handlebars
1. Slide the computer wires through the hole on the
handlebar fixing bracket as shown.
2. Secure in place using bolt & screws as shown and be sure
to fit them in the same order as the diagram.
Make sure the bolts are fully tightened with the allen key.
Step 4. Attach the console
1. Connect the computer wires together as shown and
make sure it’s fully connected.
2. Secure onto the bracket using screws as shown (Screw
are located in the back of the console).
Part No. 10 x 1
35mm round allen head bolt
Part No. 9 x 2
8mm machine screw

9
ASSEMBLY INSTRUCTIONS
Step 5. Attach the seat and seat post
1. Attach the seat to the bracket of the seat post as shown.
NOTE: Nuts & washers are located on the underside
of the seat.
2. Slide the seat post into the seat post mounting tube and
secure in position with the hand wheel.
Step 6. Attach the pedals
1. Attach the straps to the pedals.
TIPS: The straps and pedals are marked L and R. Match
each strap to the corresponding pedal.
2. Attach the L pedal to the left crank arm. This pedal will
thread on anti-clockwise.
3. Attach the R pedal to the right crank arm. This pedal will
thread on clock wise.
Final Checks
Your cycle is now assembled. Please make the
following final checks before you use it for the first
time.
• Make sure all screws / bolts are tightened.
• Make sure you have positioned it on a flat, level
surface.
• Ensure batteries (2 x AA) are installed in
computer. (Batteries not included)
30
13

10
OpERATIONAL INSTRUCTIONS
Quick Start
• Simply start pedaling and way you go!
• The value of time, distance and calories will start counting upwards.
• Adjust the resistance level with the large dial control knob.
Computer Instructions
USING THE METER DESCRIPTION
POWER ON • Pedal movement or push the MODE button.
POWER OFF • Automatic shut off after four minutes of inactivity.
MODE BUTTON • Press to select display functions:
SCAN / TIME / SPEED / DISTANCE / CALORIES / HEART RATE
• Press and hold for three seconds to reset all functions to zero.
FUNCTIONS DESCRIPTION
SCAN • Automatically scans each functions every 4 seconds in the following sequence:
TIME / SPEED / DISTANCE / CALORIES / HEART RATE
• To activate, press and release MODE button until SCAN appears on the display.
TIME • Display the time for one second up to 99:59 minutes.
SPEED • Display the current speed from 0 to 999.9km per hour.
DISTANCE • Display the distance from 0 to 99.99km.
CALORIES • Display the calories consumption from 0 to 999,9 kcal.
• The calories readout is an estimate for an average user. It should only be used as a
comparison between workouts on this unit.
HEART RATE Display your heart rate in beats per minute. To display heart rate, select HEART RATE mode
and grasp the pulse sensors on the handlebars, one in each hand. The heart symbol will
begin flashing when the meter senses your heart rate. Your heart rate will be displayed
approximately five seconds after the heart icon is displayed. If you do not place your hands
correctly and 60 seconds passes without a heart rate reading, the meter will turn off the heart
rate circuit. If this occurs, press the MODE button to restart, place your hands back on the
pulse sensors correctly, and the heart rate readout will appear.
NOTE: The meter will shut off automatically after four minutes of inactivity. All function values will be kept. Push the MODE
button and hold it down for three seconds to reset all functions to zero.
Adjusting the resistance
This cycle features a speed independent braking (resistance) system. The resistance is controlled
by a magnet, which is moved closer or further away from the flywheel - the closer the magnet
is to the flywheel the higher the resistance. The magnet is controlled manually, by twisting the
knob. The resistance levels go from easy ( - ) to hard ( + ).

11
OpERATIONAL INSTRUCTIONS
Diagram 1
Diagram 2
Adjusting the seat height
1. Unscrew the hand wheel.
2. Adjust the seat up or down to your required height. To line it up correctly, make sure the
number and line is visible at the top of the seat post mounting tube.
3. Re-screw the hand wheel and make sure it is screwed tightly.
4. The basic rule of getting the seat height right is that as the pedal reaches its lowest point,
the leg is almost straight.
Do not pull the seat out too far. The maximum is indicated with a piece of tape on the seat.
Leveling your cycle
To help you level the cycle on uneven surface, 2 height adjusters are included on
the rear stabilizers. Simply twist these around to adjust the height of the cycle.
Battery replacement instructions:
1. Open the battery compartment cover (Diagram 1).
2. Remove battery by pulling the battery in direction of spring and
lift opposite end upwards (Diagram 2).
3. Insert 2 AA batteries ensuring you match the polarity markings
(+ and -) on the batteries with the indicators in the battery
compartment. Push flat end ( - ) against spring and when clear
push other end into holder.
4. Close the battery compartment.
Tips & Warnings
• Always change both batteries at the same time.
• Always use the same type of batteries.
• Never recharge Alkaline AA batteries.
• Do not try to heat, ignite, disassemble or throw AA batteries into
a fire.
• Do not leave old batteries in the console, and remove batteries
from the console if you won’t be using it for a long time.
Protect the environment by not disposing of this
product or batteries with household waste. Check your
local authority for recycling advice and facilities.
* PICTURE MAY VARY FROM ACTUAL MODEL.

12
MAINTENANCE
Storage
Keep the equipment in a dry place with as little temperature variation as possible. Try to protect from dust and always unplug
when not in use. (if applicable)
Cleaning
Use a warm, damp cloth to wipe the surfaces. Mild detergent may be used if necessary.
WARNING: Never remove the protective casing.
Maintenance
Ensure you regularly check components for wear and make sure all the nuts and bolts are tightened before each exercise
session.
Troubleshooting
If you are having problems with your heart rate reading please note that some fibres used in clothes (eg. polyester) create static
electricity that may prevent a reliable heart rate reading. Mobile phones, TV’s, microwaves and other electrical appliances that
generate an electromagnetic field may also interfere with heart rate measurement.
If you are still having problems with your equipment, please get in touch with your local distributor using the details found in
the Customer Support page.
If you have a problem with your equipment, before you do anything else please check that all the cables have been
connected correctly. Loose cables are very common and many problems can be solved by making sure the cables are
properly connected.

13
WARRANTY
This product is supplied with a standard warranty as follows:
• 12 months frame
• 12 months other parts
• 12 months labour
This product is warranted for use in a home, personal, family or household environment Please Note: Warranty details may vary
from one market area to another
Warranty Terms
Inspiration Fitness warrants that the Product you have purchased from an authorized Inspiration Fitness reseller is free from
defects in materials and workmanship. The Warranty is valid subject to normal and reasonable use in the environment as
described above, and correct assembly of the product during the warranty period. The warranty period extends to the original
purchaser only. It is not transferable to anyone who subsequently purchases the Product from you.
The warranty excludes normal wear and tear on parts. Your sales receipt, showing the date of purchase of the product, is your
proof of the date of purchase.
This warranty becomes valid only if the Product is assembled / installed according to the instructions / directions included
with the product. This warranty does not extend to any product that has been damaged or rendered defective: (a) as a result
of accident, misuse, abuse or lack of reasonable care; (b) by the use of parts not manufactured by Inspiration Fitness or sold by
Inspiration Fitness; (c) by modification of the product; (d) as a result of service by anyone else other than Inspiration Fitness or an
authorized Inspiration Fitness warranty service provider.
During the warranty period, Inspiration Fitness will at no additional charge provide replacement part(s) or repair the product (at
Inspiration Fitness’s option) if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal,
non-commercial, personal, family or household use. In repairing the product, Inspiration Fitness may replace defective parts or
at the option of Inspiration Fitness, use serviceable used parts that are equivalent to new parts in performance. All exchanged
parts and products replaced under this warranty will become the property of Inspiration Fitness. Inspiration Fitness reserves the
right to change manufacturers of any part to cover any existing warranty.
If the product must be returned, you must return the Product or defective part to Inspiration Fitness in its original container
(or equivalent) with Proof of Purchase. Any evidence of alteration, erasing or forgery of proof of purchase documents will be
cause to void this warranty. You must prepay any shipping charges and you are responsible for insuring any product or part
that is returned. Should any product submitted for warranty service be found to be ineligible, an estimate of repair cost will be
furnished and the repair will be made if requested, upon Inspiration Fitness’s receipt of payment or acceptable arrangement
of payment. Under no circumstances will returns be accepted without return authorization by our Customer Service
department.
To obtain warranty service you must provide the following information:
Name of Product, Product Code, Batch No, Date Purchased, and Nature of fault or part number required.
Neither dealer of this product nor any retail establishment selling this product has any authority to make any warranties or to
promise remedies in addition to, or inconsistent with, those stated above. This warranty does not affect your statutory rights.
Please note that warranty terms may vary from one market area to another.

14
FITNESS GUIDE
Starting And Finishing Your Workout
Begin and end each workout with a Warm Up / Down session - a few minutes of stretching to help prevent strains, pulls and
cramps.
Correct Cycling Form
• Sit on the cycle, with your feet on the pedals and inside the pedal straps.
• Ensure that the seat height is adjusted correctly - you should be stable and balanced whilst on the saddle. The basic rule
for getting the seat height right is that as the pedal reaches its lowest point, the leg is almost straight.
• Try to ensure that your back is straight whilst exercising, especially for long periods.
How Long Should I Exercise For?
That really depends on your current level of fitness. If you’re just starting out on a new exercise program, you should start
gradually and build up - do not try to do too much too quickly. 30 minutes, 3 times a week should be enough.
Don’t push yourself too hard - you should never feel exhausted during or following exercise.
Heart Rate Training
To get the most out of your new piece of fitness equipment and see the best results from your training you should exercise
at the right level of effort, and that means listening to your heart! Work out to a target heart rate means you can direct your
workout to achieve different goals:
Good health - For those wishing to improve quality of life and general well being. Your sessions will need to be done at an
intensity of between 50 - 60% of your estimated maximum heart rate, should last about 30 minutes and can be done on most
days of the week.
Weight loss - To see a significant reduction in body fat, your sessions must be a little more intense - between 60 and 70% of
your estimated maximum heart rate. These sessions can also be performed on most days of the week for up to 30 minutes.
Improving tness levels - These sessions should be performed at 70 - 80% of your estimated maximum heart rate and can also
involve bouts of interval training that would have your heart rate peaking for short times near your maximum heart rate level.
These are intense sessions and will require at least a 48 hour rest between sessions.
Calculating Your Target Heart Rate
First, you need to find your estimated maximum heart rate using the formula “220 minus your age in years”. So, if you are 35
years old your estimated maximum heart rate is:
220 - 35 = 185 beats per minute (bpm)
Next, to calculate your target heart rate, simply multiply your estimated maximum heart rate (185bpm) by the applicable
percentage. So, if your goal is better health:
185 x 60% = 111bpm
NOTE: The important issue to remember with all estimated calculations is that they are just estimates - if you don’t feel
comfortable exercising at your target then reduce it to a level you are comfortable with.
Heart rate training requires you to monitor your heart rate throughout the workout. For this we recommend using a chest strap
(if your machine has a wireless receiver) or a heart rate monitor. For more information please get in touch using the Contact Us
details.
Always consult your doctor before undertaking a new exercise regime.
If you experience nausea, dizziness or other abnormal symptoms during exercise, stop at once and consult your doctor.

15
FITNESS GUIDE
Suggested Stretches
The correct form for several basic stretches is shown at the
right. Move slowly as you stretch—never bounce.
1. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite
foot toward you and rest it against the inner thigh of your
extended leg. Reach toward your toes as far as possible.
Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Hamstrings, lower back and groin.
2. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean
forward and move your hips toward the wall. Hold for 15
counts, then relax. Repeat 3 times for each leg. To cause
further stretching of the achilles tendons, bend your back leg
as well. Stretches: Calves, achilles tendons and ankles.
3. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
4. Inner Thigh Stretch
Sit with the soles of your feet together and your knees
outward. Pull your feet toward your groin area as far as
possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles.

16
ExpLODED DRAWING

17
pART LIST
KEY PART NO. DESCRIPTION QTY
1 YKA00278s2 Main Frame (C) 1
2 YKA00279s2 Saddle Post 1
3 YKA00280s2 Front Post 1
4 YKA00281s2 Handlebar 1
5 YKF60251q22 Computer 1
6 YKF20430b5 Round Internal Top Hat End Cap 2
7 YKF30068b5 Foam Hand Grip (ID25.4MM x 480MM L) 2
8 YKF10473z1 Round Phillips Head Machine Screw (M5 x 15MM) 4
9 YKF10474z1 Round Phillips Head Machine Screw (M6 x 8MM) 2
10 YKF10475b6 Round Allen Head Bolt (M8 x 35MM) 1
11 YKF40092b1 Tension Control W/ Cable (520MM L) 1
12 YKF10476b1 Round Head Screw (M5 x 50MM L) 1
13 YKF30069q22 Saddle 1
14 YKF20431b5 Reducer Insert 1
15 YKP00234s2 Front Stabilizer 1
16 YKF10477b6 Carriage Bolt (M8 x 65MM) 4
17 YKF20432b5 Front Stabilizer External End Cap 2
18 YKF10478b6 Curve Washer (ID-8.4 x OD-19 x T-1MM) 8
19 YKF10479b6 Cap Nut (M8) 4
20 YKF10480b6 Spring Washer (ID-8) 8
21 YKF10481b6 Round Allen Head Bolt (M8 x 15MM) 4
22 YKF40093b1 Tension Cable - Lower (400MM L) 1
23 YKF60252b1 Computer Cable - Middle (850MM L) 1
24 YKF10482b6 Round Phillips Head Self Tapping Screw (M5 x 15MM) 1
25 YKF60253b1 Sensor W/ Sensor Wire (450MM L) 1
26 YKF50185b6 Crank Bearing Assembly Set
27 YKF20433q22 Chain Cover (L & R) Pair
28 YKF10483b6 Round Phillips Head Self Tapping Screw (M4 x 20MM) 5
29 YKF50186b5 Pedal W/ Strap Assembly (L&R) Pair
30 YKF10484b5 Hand Wheel Knob - Male 1
31 YKF50187b1 Magnet 1
32 YKF50188b5 Large Pulley Wheel 1
33 YKF40094b6 Pulley Ribbed Belt (V370 J5) 1
34 YKF50189b6 1 Piece Crank Arm 1
35 YKP00235s2 Rear Stabilizer 1
36 YKF20434b5 Rear Stabilizer External End Cap 2
37 YKF10485z1 Flat Allen Head Bolt (M10 x 35MM) 1
38 YKF50190s2 Jockey Wheel Bracket 1
39 YKF50191z1 Jockey Wheel Spacer 1
40 YKF10493z1 Jockey Wheel Spring (OD-11 x 60MM) 1
41 YKF50192b5 Jockey Wheel 1
42 YKF10486z1 Hex Nut (M10) 1
43 YKF10487z1 Hex Nut (M8) 1
44 YKF10488z1 Flat Washer (ID-16.5 x OD-32 x T-0.5MM) 1
45 YKF10489z1 Flat Allen Head Bolt (M8 x 20MM) 1
46 YKF10490z1 Hex Nut (3/8”) 7MM H 2
47 YKF10491z1 Hex Nut (3/8”) 4MM H 2
48 YKF50193b6 Flywheel Assembly 1
49 YKF20435b5 Round Crank Cover 2
50 YKF30070b1 Foam Piece (25MM x 25MM) 2
51 YKF50194b1 Sensor 2
52 YKF60254b1 Sensor Cable 1
53 YKF10492b6 Round Phillips Head Self Tapping Screw (M4 x 15MM L) 2
54 YKF20436b5 PVC Cable Holder 1
55 YKF70029z1 6mm Allen Key / Phillips screw driver (L-104mm) 1
56 YKF70030z1 Multi Spanner 1

18
NOTES

19
NOTES
