Inspire NS1001 User manual

Version 1.4
INSPIRE
HOME
AUTOMATION
USER MANUAL (ALL VARIANTS)

Contents
Unpacking ............................................................................................................................................. 1
Setup..................................................................................................................................................... 2
Internet Gateway .............................................................................................................................. 2
Pairing and Connecting ..................................................................................................................... 2
Registering your Room Thermostat .................................................................................................. 3
Your Thermostat ................................................................................................................................... 5
Basic Functions ................................................................................................................................. 6
Adjusting the Temperature ........................................................................................................... 6
Switching your heating on and off ................................................................................................ 6
Boost Mode (Plus & Landlord Versions)........................................................................................ 7
Program advance (Plus & Landlord Plus) ...................................................................................... 7
Menu ................................................................................................................................................ 7
Setting the clock............................................................................................................................ 8
Set Program Mode ........................................................................................................................ 8
Setting Programs........................................................................................................................... 9
Timer on........................................................................................................................................ 9
Timer Off....................................................................................................................................... 9
Your Gateway ..................................................................................................................................... 10
Status Lights.................................................................................................................................... 10
Troubleshooting................................................................................................................................ 11
Specification ....................................................................................................................................... 13

Inspire Home Automation | www.inspirehomeautomation.co.uk | Unpacking
1
Unpacking
Inside the box you will find the following
1 x Assembled Room Thermostat consisting of
1 x Room Thermostat
1 x Wall Mount
1 x Wiring Cover
1 x Internet Gateway
1 x Network Cable
1 x Power Supply
2 x AA Batteries
2 x Screws
2 x Wall Plugs

Inspire Home Automation | www.inspirehomeautomation.co.uk | Setup
2
Setup
Internet Gateway
Plug in the supplied power cable and connect to your router via the network cable.
Pairing and Connecting
This is the process by which the Room Thermostat and the Gateway are programmed to recognise
each other. Your new Room Thermostat should already be paired to your gateway at the factory, so
they should automatically recognise each other and connect.
Power up the gateway and wait until the Power Light is green. Then power up the Room Thermostat.
Within a few seconds, the connection should be established, confirmed by the Radio symbol on the
Room Thermostat and the RF Light on the Gateway switching to green.
If the gateway was switched on after the Room Thermostat, then it may take up to 10 minutes to
establish the connection. If you do not wish to wait this long, reset the Room Thermostat by pressing
and holding all four buttons for 5 seconds. Upon reset, the connection should be made within a few
seconds.
If you have received a replacement unit, an additional unit to create a Multizone setup, or they will
not connect, they will need to be paired. Switch on both units, wait for the Internet Gateway Power
light to go green, then press the Pairing Button on the back of the Gateway. The RF Link light will
begin to flash Amber.

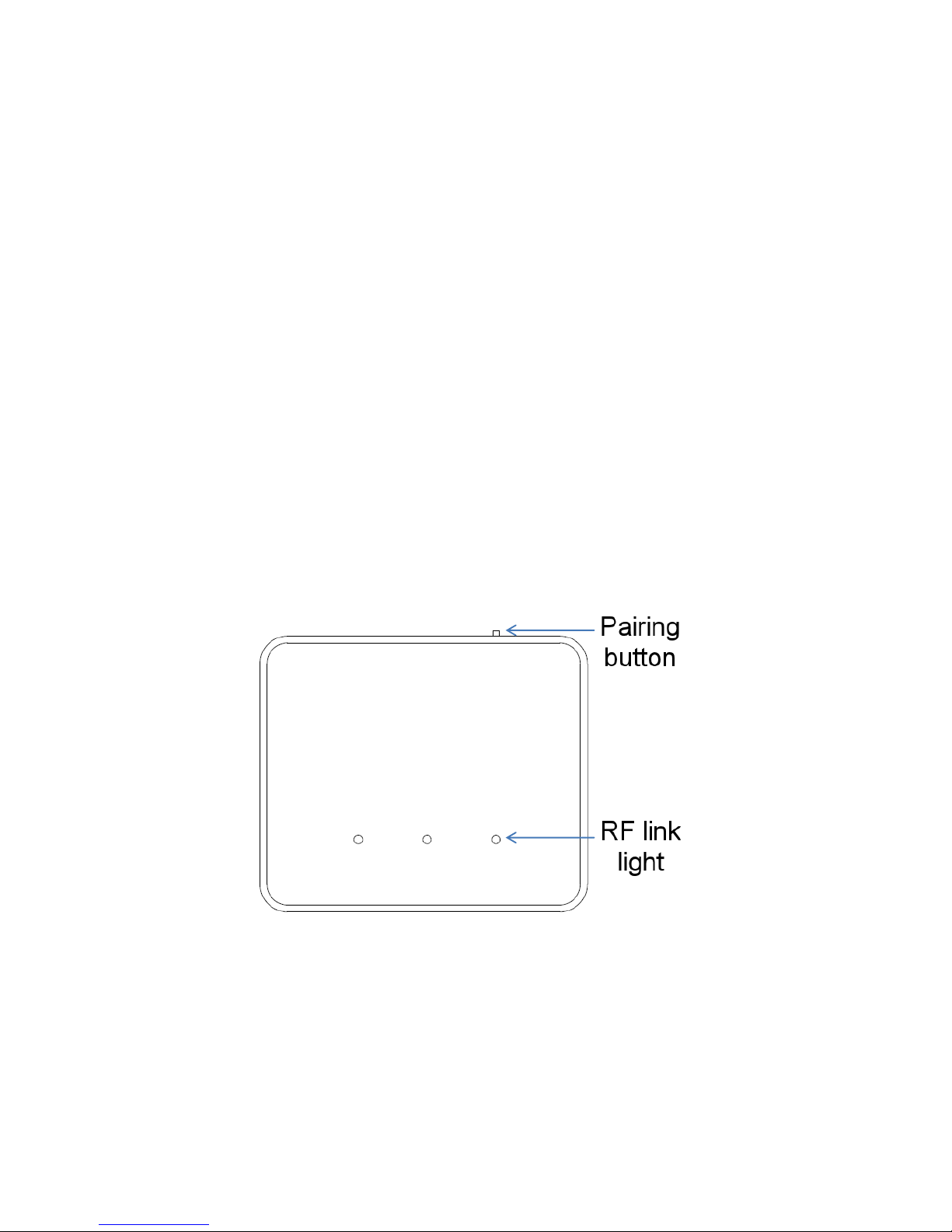

Figure 1: Gateway Box
Next press and hold 'M'and 'S'simultaneously on the Room thermostat for 5 seconds. This will make
a connection icon, located in the bottom left hand corner,flash. This icon will stay on permanently
once a connection has been established.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Setup
3
Registering your Room Thermostat
To control your room thermostat over the Internet you will first need to register on our website.
Go to https://www.inspirehomeautomation.co.uk/client/, select register and complete the
registration process.
Once you have validated your e-mail you will need to add your Room Thermostat to this account.
The Internet Gateway should have a flashing Amber middle light and both outer lights should be
green.
If the computer that you are registering from is connected to the same router as the Internet
Gateway, your new Thermostat should be automatically detected, just click ‘Auto’ and the new unit
should be registered to your account.
If the computer is not on the same network, or the auto registration does not work, it can be
manually registered by doing the following.
Press the '+' and '-' buttons on the Room Thermostat for 5 seconds. The display will show '-------',
shortly followed by your registration code.
Enter this registration code on the website, click 'Add' then within a few seconds, you will be at the
Settings page.
Note that if you have purchased a zoned system, the above procedure only needs to be done from
one Thermostat, once registered, all devices connected to your Internet Gateway should show in
your account.
If you purchased the NS1001 PLUS model or Landlord Model, you should have been emailed an
activation code to unlock the extra functionality. Click the 'Advanced' tab, then scroll down to ‘Unit
Codes’ Copy and paste your activation code here to unlock the extra features.
If you have purchased a zoned Plus/Landlord system, you should have received a code for each
Thermostat. You will need to enter one code for each Thermostat. To switch Thermostats, click the
number in the top right of webpage, then select a different unit from the drop down list.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Setup
4
If you have more than one property and wish to add additional thermostats to your account select
advanced, scroll down to the additional units section and click 'Add Device'.
You can also name your units within this section.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Thermostat
5
Your Thermostat

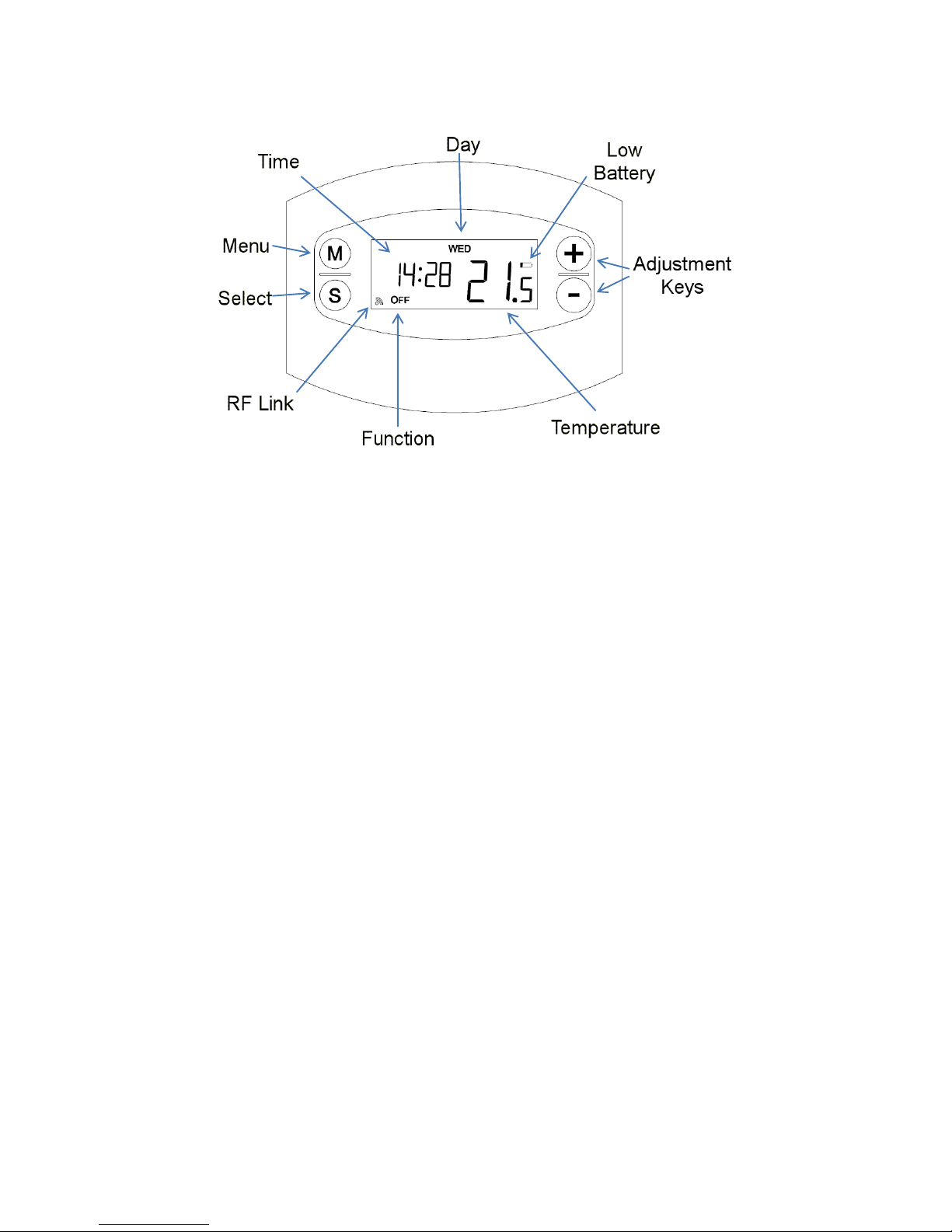

Figure 2: Room Thermostat
Day
Current Day / Program Days
Time
Current Time / Program Times
Temperature
Current room temperature / Set temperature
Current Function
The current selected function
RF Link
This icon is displayed when the Room Thermostat has a connection to the Internet Gateway.
Low Battery
If this icon displays then it is time to replace the batteries
Menu / Advance
Enter the programming menu or activate program advance (PLUS unit only)
Select / Boost
Multipurpose, changes function and cycles menu options. Activates the Boost function (PLUS unit
only)
Adjustment Keys
Multipurpose, these are used to adjust the desired temperature and program times

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Thermostat
6
Basic Functions
Adjusting the Temperature
Use the '+' and '-' buttons to set the desired room temperature.
Switching your heating on and off
Pressing the 'S' key will cycle through the following program functions:

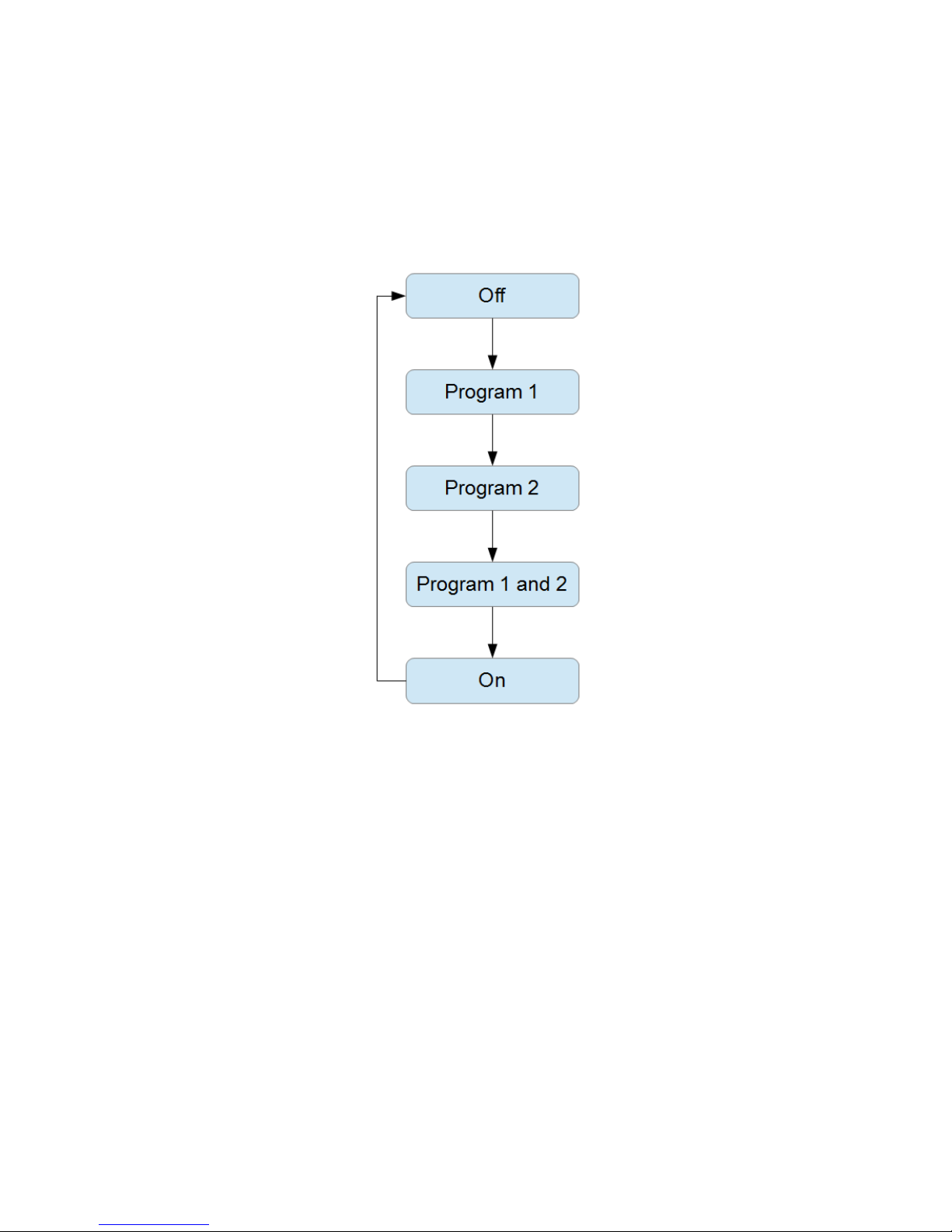

Figure 3: Functions
Off
Your heating will be switched off.
Program 1
Your heating will switch on when the clock reaches program 1 start time for the current day, and
switch off when it reaches the stop time.
Program 2
Your heating will switch on when the clock reaches program 2 start time for the current day, and
switch off when it reaches the stop time.
Program 1 and 2
Your heating will switch on when the clock reaches program 1 or 2 start time for the current day,
and switch off when it reaches the stop time.
On
Your heating will be switched on.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Thermostat
7
Boost Mode (Plus & Landlord Versions)
This is used if you would like to switch your heating on for a set period of time. This feature needs to
be enabled in the "Advanced" tab within the web client.
Once enabled, boost is entered by pressing and holding the 'S' button for 3 seconds. The ‘ON; will
flash to show that boost is currently active, and it will switch your heating on for the programmed
length of time, at the programmed Boost Temperature (If set.) After this time has expired, the
function will return to the previous state.
Program advance (Plus & Landlord Plus)
This feature is off by default. To use it, it will need enabling in the "Advanced" tab within the web
client.
If the unit is set up to use Program Timers
Program advance is a way to 'jump' to the next timer switch point. It will only have any affect if the
Thermostat is in timer mode (P1, P2, or both). If the timer is currently not active, pressing the 'M'
key will immediately start the next available timer.
Example, P2 Timer is set from 17:00 to 23:30, at 22 degrees.
You come home early from work at 16:00 and want the heating on. Pressing the 'M' key will
immediately activate timer P2 and it will then run normally and switch off at 23:30. The thermostat
will then resume normal operation.
Example 2, P2 Timer is set from 17:00 to 23:30, at 22 degrees.
It is 23:00 and you decide to go to bed earlier. Pressing the 'M' key will immediately end the current
timer program and switch the heating off. The thermostat will resume normal operation at the next
timer program.
Pressing the 'M' key a 2nd time will cancel the program advance.
If the unit is set up to use Temperature Profiling
Program advance (By pressing the ‘M’ key) is a way to 'jump' to the next Temperature in your
schedule. It will only have any affect if the Thermostat is in profile mode (P1 or P2). Pressing the 'M'
key a 2nd time will cancel the program advance and the unit will revert back to the set temperature
Menu
Note: If you have the plus variant, and program advance is enabled, you will need to hold down the
'M' key for 3 seconds to enter the menu.
The Menu button is used to set the clock and the timer programs. The easiest way to set these is via
the "My Thermostat" page located at https://www.inspirehomeautomation.co.uk/client/
If you wish to set these up on the Room Thermostat itself, follow the instructions below.
Note Temperature profiling (PLUS Models) Cannot be setup on the unit, and must be done via the
website. Entering the program menu when profiling is enabled, will only allow adjustment of the
clock.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Thermostat
8
Press the 'M' button to enter the menu, pressing 'M' again will cycle through the following options:
Figure 4: Menu
* There are several steps within mode, please see “Set Program Mode” below
To exit the menu press the 'M' and 'S' buttons simultaneously.
Setting the clock
If you have an Internet connection this should be set automatically within a few minutes of switching
on the device.
To set the clock manually Press 'M' then use the '+' and '-' keys to set the hours then press 'S', this
will take you to the minutes and then the days which are set in a similar way.
Set Program Mode
Your room thermostat has two program timers for each day. These can be set as follows.
A 5/2 day schedule where the timers can be set for the weekends and weekdays.
A 7 day schedule where the timers can be individually set for each day of the week.
To change the program mode, press the 'M' button twice and then use the '+' button to switch
between a 5/2 or 7 day schedule.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Thermostat
9
Setting Programs
To set a program press the 'M' button three times. This will then set a program depending upon the
program mode set. Pressing the 'M' button will cycle through the following options for each
scheduled day:
Figure 5: Programs
Timer on
Each timer can either switch your central heating on / off, using the current set temperature of the
Room Thermostat. Or you can assign a temperature to each Timer Program. In this case, when the
Timer switches your central heating on, it will also set the temperature of your Room Thermostat to
the programmed temperature.
Within the timer on section, use the 'S' key to cycle through the following:
Each of these settings can be adjusted by using the '+' and '-'
buttons. When the 'on' time is correct, press the 'M' button to
switch to the 'timer off' time.
To cancel a set temperature, press the '+' and '-' buttons
together and '---' will display instead of the temperature.
Timer Off
Pressing the 'S' key will cycle through hours and minutes.
These can be adjusted by using the '+' and '-' keys.
Pressing the 'M' key again will set this timer and move onto the
next one.
Figure 6: Timers

Inspire Home Automation | www.inspirehomeautomation.co.uk | Your Gateway
10
Your Gateway
Your gateway box connects your Room Thermostat to the Internet. This box should be left powered
on and connected to the Internet at all times.
Without this your Room Thermostat will still function, however you will not be able to control it
from our website or your phone.
Status Lights
There are 3 multipurpose lights on your gateway.
The Power light on the left, Internet light in the middle and RF light on the right
Off
Flashing Amber
Amber
Green
Power light
No power
Initialising
Ready
Internet light
No Connection
Unregistered Unit
Establishing
connection
Connection
established
RF light
No device paired
Pairing
Thermostat not
connected
Connection
established
Table 1: Gateway Status Lights

Inspire Home Automation | www.inspirehomeautomation.co.uk | Troubleshooting
11
Troubleshooting
The Room
Thermostat display is
blank.
Is the unit in power saving mode? (Set via the advanced tab on the website)
Pressing a key will bring the display back on for the set period of time
Unit Malfunction. Reset the unit by pressing and holding all four buttons for
5 seconds.
Batteries exhausted. Replace the batteries.
Battery polarity wrong. Replace batteries noting the correct battery
orientation (Both batteries have positive towards the top of the Room
Thermostat)
The Thermostat
Display occasionally
dims.
Incorrect batteries installed. Your Room Thermostat should only be used
with Alkaline batteries. Please note that so called “Heavy Duty” batteries
are not alkaline batteries. Also, NiMH or NiCad rechargeable batteries are
not suitable either.
The room thermostat
does not switch the
central heating
on/off.
Is the thermostat calling for heat? Ensure “ON” is displayed and press the
“+” button to make sure that the temperature set point is higher than the
current room temperature.
Battery very low. If the battery symbol is flashing on the display, the
batteries may be too low to function correctly. Replace the batteries.
Does the relay switch? Ensure the set temperature is higher than the room
temperature, then switch the function to “ON” You should hear an audible
click as the Room Thermostat switches on.
Did you hear the click? Yes –The thermostat is working correctly.
With reference to the installation manual, check the wiring is
secure underneath the wiring cover. Also if your boiler has a
programmer, ensure that the central heating is switched to “ON” If
this does not solve the problem, then the fault may lay in the wiring
or the boiler. Contact a heating engineer.
No –Possible faulty connection between the Room Thermostat and
the Wall Mount. With reference to section “Changing the batteries”
Remove the thermostat from the wall mount and carefully replace
it. Then try to switch it on again.
My room thermostat
will not pair, or
repeatedly loses
connection to the
gateway
This is usually caused by interference or distance between the two units.
The connection can be improved by trying the following.
Both units contain a radio aerial. Ensure that there are no metal
objects near the unit.
Do not place the unit on the floor.
Note that your internet router will also most likely contain a radio
transmitter (WiFi) Therefore ensure that your Gateway and
internet router are separated.
Move the Gateway closer to your Room Thermostat.
I cannot connect to
my Thermostat from
my phone / website.
Check the status lights on the gateway box. All three should be green. If the
Room Thermostat or the gateway box has only just been switched on, it can
take a few minutes after all lights go to green, before the website or mobile

Inspire Home Automation | www.inspirehomeautomation.co.uk | Troubleshooting
12
app will allow a successful login. If the lights are not all green, then this
indicates a problem.
All three lights out: No Power. Ensure power adapter is fully inserted into
the socket and the socket is switched on. Ensure the dc power plug is fully
inserted into the back of the gateway. Does the socket have power? Check
by plugging in another device.
Power light Amber: This should only happen for a short period at power
up. Wait 30 seconds and this light should now be green. If it is not, try
resetting the gateway by removing power, wait 30 seconds, then apply
power. This should now initialise correctly.
Internet Light Amber: Establishing connection with the server. This should
shortly change to green. If there is no Room Thermostat connected, the
internet light will periodically change to Amber, then back to green.
Internet Light out: No connection to the server. This is usually indicative
that the gateway does not have a valid internet connection. Check that the
network cable is securely connected between the gateway and your
internet router. Check that the router/modem is switched on and
connected to your phone line / Internet connection point. Can other
devices such as your pc connect to the internet?
Internet Light flashing Amber: This is indicative that your gateway Is not
registered with our website. This could also be caused if the Room
Thermostat was inadvertently put into registration mode. Follow the steps
in the section “Registering your Room Thermostat” above to register your
system.
RF Link light out: No pairing information. Refer to section “Pairing and
Connecting” to pair your Room Thermostat with your Gateway.
RF Link Light Amber: No connection to the Room Thermostat. Check that
the Room Thermostat is powered up, the low battery indicator is not
flashing, and that the RF Link on the Thermostat is displayed. Check the
“My Thermostat will not pair or repeatedly loses connection” above for
information on how to improve this.

Inspire Home Automation | www.inspirehomeautomation.co.uk | Specification
13
Specification
Room Thermostat
Thermostat Power Supply
2x AA batteries
Output
2 wire Volt-Free Switch
Switch Rating (Max)
240v ac, 3A.
Controllable Temperature Range
10–30C
Frost Protection
5C
Radio Frequency
2.4 GHz
Dimensions
119 x 88 x 22 mm
Gateway
Power input
5V 1A
Internet Connection
Wired Ethernet Cable
Radio Frequency
2.4 GHz
Dimensions
94 x 79 x 24 mm
