Instarobo L1 User manual

L1 Robot Vacuum Cleaner User Manual

www.instarobo.com

Safety Instructions

Product Description

Preparations

App Networking Modes

Function Description

Product Maintenance

Troubleshooting

Product Specifications

Safety Information

Contents

Safety Instructions

Precautions Warning

！

1. Only authorized technical personnel are allowed to disassemble the product. You are advised not to

disassemble the product by yourself.

2. Only the original power adapter can be used on the product. If you use a non-original power adapter, the

product may be damaged.

3. Do not touch the power cord, socket, charger, or power adapter with wet hands.

4. Do not get your body or dirt into the rollers of the product.

5. Do not move the product near cigarette butts, lighters, and other open flames.

6. Clean the product after sweeping is completed.

7. Do not bend the power cord excessively, or place heavy and sharp objects on the machine.

8. Do not use the product outdoors as it is an indoor home appliance.

9. Do not sit on the product.

10. Do not use the product in moist environments such as the bathroom.

11. Before using the product, remove all fragile items on the ground such as glass products and lamps and items

that may entangle the side brushes and suction channels such as power cords, paper, and curtains.

12. Do not place the product in a place where the product is prone to fall, such as on a table or chair.

13. Before use, carefully check whether the power adapter is properly connected to the socket. Otherwise, the

battery may be damaged.

14. During using, inform other members in the house to prevent stumbling.

15. Empty the dust box when it is full before using the product.

16. The optimal temperature for using the product is 0°C (32°F) to 40°C (104°F).

17. Do not use the product in high-temperature environments.

18. Remove the battery from the machine before scrapping it.

19. Ensure that the product is not powered on when you remove the battery.

20. Reclaim the abandoned battery.

21. Do not use the mopping function on the carpet.

1. Use only the original rechargeable battery and charging dock provided by the manufactur-

er. Do not use a battery that is not rechargeable. For more information about the battery

specifications, see the Product Specifications sheet.

2. Do not use the product in environments with open flames or fragile items.

3. Do not attach your hair, clothes, fingers, and other parts of the human body near to the

suction channels and running parts of the product.

4. Do not use the product on the wet ground or ground with water.

5. Do not use the product to absorb any objects such as stones and waste paper that may

block the suction channels of the product.

6. Do not use the product to absorb any flammable materials, such as gasoline and toner

used in printer. Do not use the product in areas with fragile items.

7. Do not use the product to absorb any burning items, such as cigarettes, matches, ashes,

and other items that may cause a fire.

8. Do not place items in suction channels. Do not use the product if the suction channels are

blocked. Regularly clean up the dust, lint, and hair in the suction channels to ensure smooth

air circulation in the suction channels.

9. Handle the power cord cautiously to avoid damage. Do not use the power cord to drag or

lift the product and its charging dock. Do not use the power cord as a handle. Do not clamp

the power cord in the door gap. Do not pull the power cord at sharp edges or corners. Do

not operate the product on the power cord, and keep the power cord away from heat

sources.

10. Do not use damaged charging dock.

11. Do not burn the product even if it is severely damaged, because the battery built in it may

cause explosion.

Before using this product, please carefully read the following safety instructions and follow all the general safety prevention

measures.

Any operation not conforming to this manual may cause damage to the product.

Keep this manual properly.

Main unit Charging dock Power adapter Brush

Dust box Water tank

Side brush x2 Instructions Manual

HEPA filter

Product Components and Accessories

Front view

* Press and hold the button for 3s to enter

the APP networking mode

* Press the button to start or pause charging

Cliff sensor

Wi-Fi button

Power button

Recharge button

Omnidirectional lens

Side brush

Driving wheel

Dust box

Laser sensor

* Press and hold the button for 3s to power

on or 6s to power off the product

* Press the button to start or pause cleaning Surface cover

Dust box button

Charging electrode

Omnidirectional wheel

Battery

Roller brush assembly

Main Unit Components and Buttons

06 EN

Filter cover

Dust box conductive shrapnel

Dust box side cover

HEPA filter

Primary filter

DC connector

Charging electrode

Signal indicator

Water inlet

Water tank main body

Mopping cloth

Dust Box, Water Tank, and Charging Dock

Dust box

Charging dockWater tank

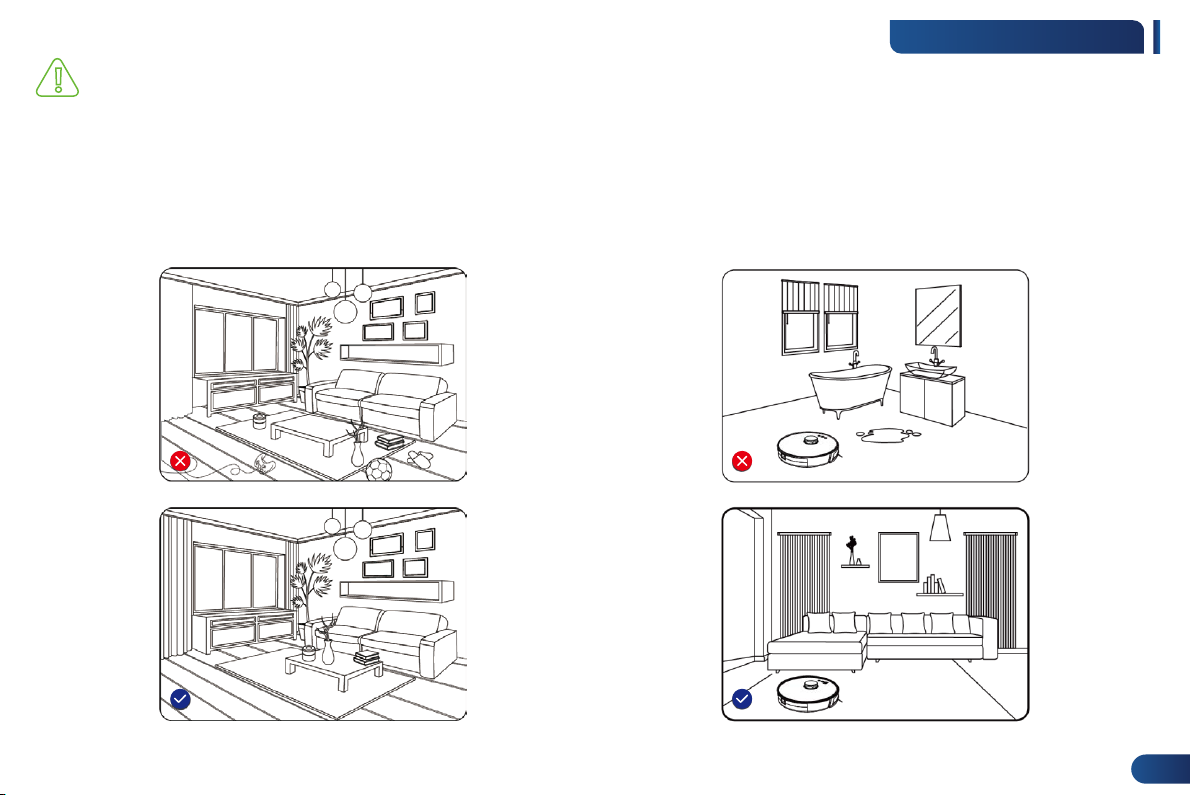

Note

1.Before you use the product, clean up the wires and sundries

scattered on the ground and remove drop-prone, fragile, valuable,

and potentially dangerous items to avoid personal injuries or

property damages in case of being entangled,jammed, dragged,

or knocked down by the main unit.

2.Avoid using the product in wading areas.Other-

wise, the fan will be damaged,affecting the perfor-

mance of the machine.

Use Environment

08 EN

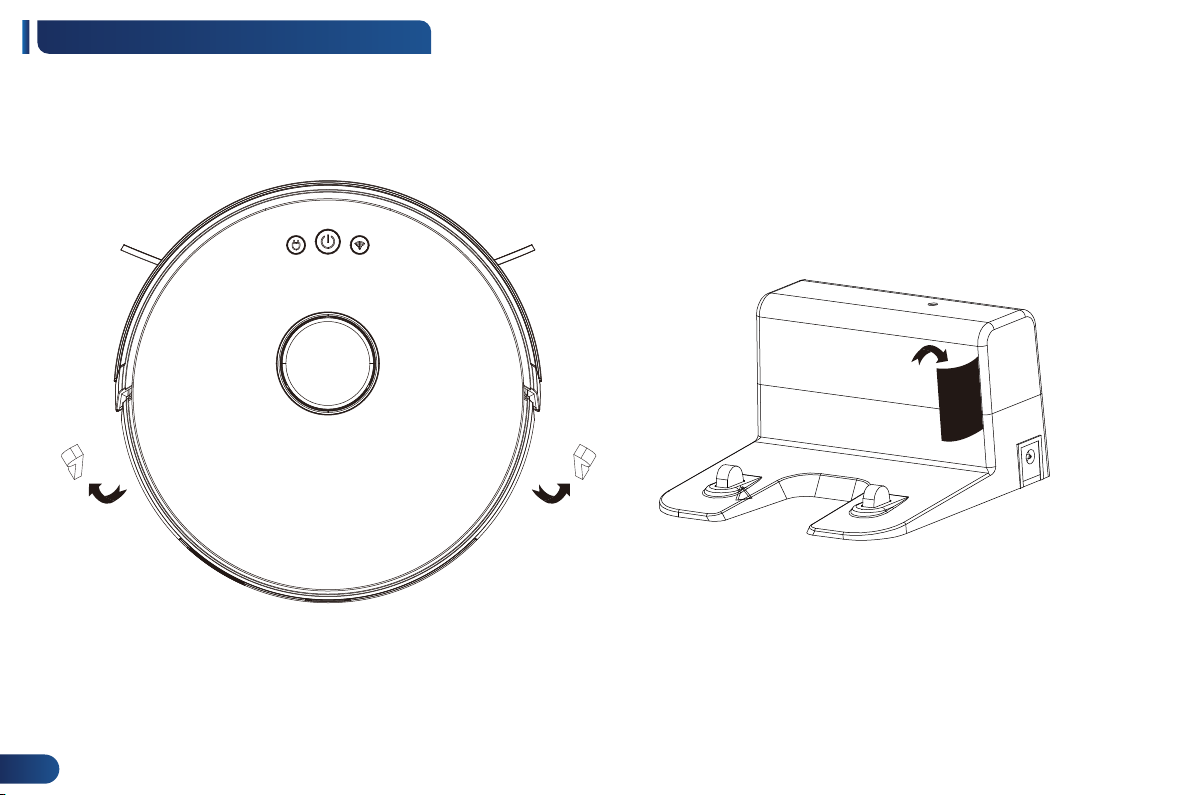

[Remove the protective film][Remove the protective strip]

Before you use the main unit, remove the protective strip from the main unit and remove the protective film

from the charging dock.

Preparations for Unpacking

Smart Life App

Tuya Smart

Scan the QR code Scan the QR code

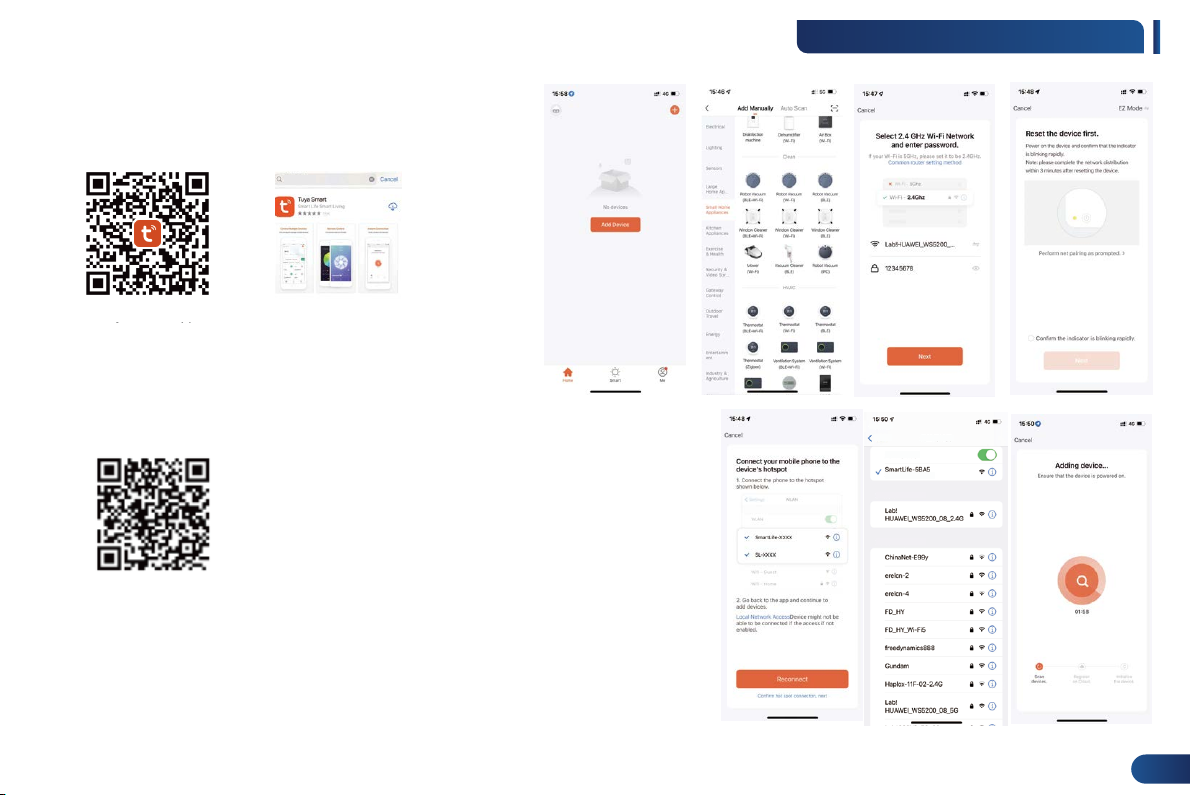

Before networking, scan the QR code below or search for

Tuya Smart in the App Store to download the app. Register

an account and log in to the Tuya Smart app. Before network

configuration, ensure that the Wi-Fi is a 2.4 GHz one.

Associate the Tuya Smart app on your mobile phone with the

robot vacuum cleaner according to the following steps.

1. Tap the plus sign (+) on the Tuya app, and then tap the

scan button to scan the QR code on the device (or in the

figure below) to add the robot vacuum cleaner.

2. Select your Wi-Fi, enter the password, and then tap Next.

3. Tap and hold the Wi-Fi connection button on the cleaning robot for 3s as

prompted by the app, and ensure that the Wi-Fi indicator is blinking slowly.

4. Tap Next, find the password-free hot spot starting with SmartLife-XXXX in the

Wi-Fi list, and tap Go to Connect.

5. After the connection is set up, the Tuya app shows the connection screen. You

can control the product after a connection success message is displayed.

App Networking Modes

Settings WLAN

WLAN

Unsecured Network

MY NETWORKS

OTHER NETWORKS

App Icons and Buttons

10 EN

Auto

The vacuum cleaner generates a map of the entire house

through sensor scanning, and automatically plans the optimal

cleaning route.

Spot cleaning

The user sets the target point on the map in the app, the vacuum

cleaner automatically navigates to the point, and cleans the

square area of 1.6m x 1.6m/5ft x 5ft centered on the point. You

can click or drag on the map to set the target point.

Selected zone cleaning

After the vacuum cleaner generates a map of the entire house,

you can select one or more zones for cleaning through the app.

Configured zone cleaning

After the vacuum cleaner generates a map of the entire house,

you can select one or more zones for cleaning through the app.

Return to docking station

When this icon is steady on, the vacuum cleaner automatically

returns to the docking station for charging. When this icon blinks,

the vacuum cleaner stops returning to the docking station.

No-go zones

Set a restricted zone for cleaning.

Partition Editing

Robotic vacuum cleaner

Main Unit Charging

11 EN

主机充电

Before you use the product, install side brushes and

confirm the marks of the side brushes. Ensure that the

left and right side brushes are installed in correct

positions.

Do not place any items 3 ft or 1 m to the left and right

and 6 ft or 2 m in the front of the charging dock.

Insert the power adapter into the socket on the wall,

and insert the DC output interface of the adapter into

the DC input interface of the charging dock.

When the charging dock is connected to the AC power, the LED

indicator on the charging dock blinks in green. The robot vacuum

cleaner needs to be charged for 6 hours.

1. Install the charging dock in a position easy

to be accessed by the robot vacuum cleaner.

Place the charging dock on a hard surface

against the wall, rather than on a carpet or

woolen blanket.

2. Keep the charging dock in the powered

state. Otherwise, the auto recharge function

does not take effect.

Place the charging dock on a hard and level surface

against the wall.

12 EN

Power on and off the machine

Start cleaning

Zone 1: Cleaned Zone 2: Cleaned

Zone 4:

To be cleaned

Zone 3:

Is being cleaned

Tap and hold the button for 3s to power on the machine. Then, the power indicator is on, indicating that the vacuum cleaner enters the

standby state. When the vacuum cleaner is in a static state, tap and hold the button for 6s to power off the machine and terminate the current

cleaning task.

Tap the button to start cleaning. Then, the vacuum cleaner dynamically plans the cleaning route according to the map generated after scanning,

and clean different zones one by one. In each zone, the vacuum cleaner first sweeps the floor along the wall, and then moves zigzag to clean the

remaining part of the zone in an orderly and efficient manner.

1. If the battery level is too low, the vacuum cleaner cannot start cleaning. Therefore, charge

the vacuum cleaner before starting it.

2. Before cleaning, tidy up all kinds of wires on the ground (including the power cord of the

charging dock). Otherwise, the vacuum cleaner may drag the wires while cleaning, which may

cause power failures of other electric appliances or damage to items or wires.

3. If the cleaning area is less than 2 square meters, the vacuum cleaner will clean the area

twice by default.

4. If the power is insufficient in the cleaning process, the main unit will automatically return to

the charging dock for charging. After the power is sufficient, the main unit will automatically

return to the interrupted point to resume cleaning (ensure that you have enabled the

resumable cleaning function).

Do not power off the machine after it finishes the task. Instead, return it to the charging dock and charge it for the next cleaning task.

The vacuum cleaner scans the cleaning zones and generates a map every time it starts operation, and it is normal if the cleaner spins around.

Use Instructions

Pause cleaning

If you need to add water to the water tank or wash the mopping cloth

while the vacuum cleaner is working, tap the button to pause. You

can tap the button to resume cleaning, or tap the button to return

the cleaner to the docking station and terminate the current cleaning

task.

In the pause state, if the vacuum cleaner is returned to the docking station for

charging, the current cleaning task is terminated.

Sleep mode

If no operation is performed over 10 minutes, the vacuum cleaner

automatically enters the sleep mode, and the power indicator blinks

every several seconds. In sleep mode, you can tap any button to wake

up the vacuum cleaner.

1.When the vacuum cleaner is being charged at the docking station, it cannot

enter the sleep mode.

2.If the sleep time exceeds 12 hours, the vacuum cleaner automatically powers off.

Faulty state

If the vacuum cleaner encounters a fault while working, the power

indicator blinks quickly in red, and a voice prompt is generated. For

details about troubleshooting methods, see "Troubleshooting".

1.In a faulty state, if no operation is performed in 10 minutes, the vacuum

cleaner automatically enters the sleep mode.

2.In a faulty state, if the vacuum cleaner is connected to the docking station

for charging, the current cleaning task is terminated.

Reset Wi-Fi connection

If your mobile phone fails to connect to the vacuum cleaner due to

reasons such as change of router settings and forgotten password,

enter the Wi-Fi network configuration mode according to the App

Networking Modes.

If the vacuum cleaner is in a wait-to-connect state for more than 2 minutes, its

Wi-Fi function is automatically disabled. To reconnect the vacuum cleaner to your

mobile phone, reset the Wi-Fi settings.

Charge the vacuum cleaner

Auto mode: After completing cleaning, the vacuum cleaner automatical-

ly returns to the docking station for charging.

Manual mode: In the pause state, you can tap the button to activate

the "Return to docking station" mode.

When the vacuum cleaner is being charged, the power indicator blinks

in breathing manner.

1.If the vacuum cleaner fails to find the docking station, it automatically returns to the

starting point.

2.In this case, you need to manually put the vacuum cleaner back to the docking station.

14 EN

1.6 m

No-

mopping

zone Virtual wall

Spot cleaning

You can specify a target point on the map using the app. Then,

the vacuum cleaner automatically plans a route to the point. If you

specify a target point in the app when the vacuum cleaner is in

the standby or pause state, the vacuum cleaner will clean the 1.6m

x 1.6m or 5ft x 5ft square zone centered on this point. After

cleaning, the vacuum cleaner will automatically return to the

starting point and stop working.

If you activate partial cleaning when the vacuum cleaner is paused, the

previous cleaning task will be terminated.

Set a restricted area or virtual wall

If the vacuum cleaner encounters a fault while working, the power indicator

blinks quickly in red, and a voice prompt is generated. For details about

troubleshooting methods, see "Troubleshooting".

1.Before using this function, you need to enable the map save mode for the vacuum cleaner

in the mobile app.

2.This function is only used to divide cleaning zones, but cannot be used to block dangerous

zones.

3.If the vacuum cleaner is moved or there are significant changes in the home environment,

the map may become invalid and the settings of the virtual wall or restricted area may be

lost.

Cleaning

zone

Use Instructions

Selected zone cleaning

You can use the mobile app to select one or more zones for cleaning. The

vacuum cleaner will clean one or more rooms based on the zone that you

select on the app map.

Schedule cleaning

You can set the schedule cleaning time in the app. The vacuum cleaner will

automatically start cleaning upon the specified time, and return to the

docking station after it completes cleaning.

Cleaning strength

You can use the mobile app to select the cleaning strength: Energy-saving,

Standard, or Turbo. The Standard cleaning mode is selected by default.

1. Before using this function, you need to enable the map save mode in the

mobile app to complete the first map generation for the vacuum cleaner.

2. After cleaning starts, the main unit may move to a place beyond the

selected zone. Make sure that you have cleared the obstacles on the

ground around the selected zone, which cannot be used for safety isolation.

Configured zone cleaning

You can use the mobile app to configure a zone for cleaning. The

vacuum cleaner will start cleaning based on the zone that you plan in

the mobile app.

DND mode

More app functions

During the Do-Not-Disturb (DND) period, the vacuum cleaner will

not automatically resume cleaning or play the voice prompt. The

power indicator dims. You can use the mobile app to disable the

DND mode, or change the time range of the DND mode.

Real-time map update

Cleaning record viewing

Robot voice changing

Robot positioning

Volume adjustment

Map management

Software update

Robot status viewing

After cleaning starts, the main unit may move to a place beyond the configured

zone. Make sure that you have cleared the obstacles on the ground around the

configured zone, which cannot be used for safety isolation.

The functions and details of the app may change slightly due

to continuous upgrade of the app. The specific functions and

details of the app are subject to the actual version.

Use Instructions

16 EN

Mopping Function

2. Add water.

1. Install the mopping cloth. 3. Install the water tank component.

4. Start mopping.

！1. After mopping is completed, empty the water tank in a timely manner

and then remove and clean the mopping cloth.

2. Do not use the mopping function on the carpet.

Main Unit Part

HEPA filter

Roller brush

Side brush

Roller brush cover

Sensor

Charging electrode

Omnidirectional wheel

Cleaning Frequency

Every week

Every month

Replacement Frequency

Every two months

Every half a year to every year

Not required

Every three to six months or upon damage

Every three to six months (or upon obvious damage of the

rubber silicon strip on the roller brush cover)

Cleaning and Maintenance

Scheduled maintenance

To achieve the best cleaning effect, clean and maintain the main unit regularly. Determine the frequency of cleaning

and maintenance according to your use habits.

Recommended cleaning and maintenance frequency:

18 EN

Press the dust box button to remove the dust box.

Flush the primary filter with water.

Wipe the dust box clean with duster cloth.

Open and empty the dust box.

！Do not flush the HEPA filter with water.

Instead, pat it to remove dust.

Open the dust box cover and take out the primary filter

and HEPA filter.

Use the cleaning brush to clean the dust box

and HEPA filter.

Do not flush the dust box with

water.

！

Cleaning Dust Box and HEPA Filter

19 EN

1. Remove the water tank component.

2. Remove the mopping cloth.

3. Empty the water tank.

4. Clean the mopping cloth.

5. Dry the mopping cloth.

6. Wipe or dry the water tank in the air.

Cleaning Dust Box and HEPA Filter

Table of contents

Other InstaRobo Vacuum Cleaner manuals

InstaRobo

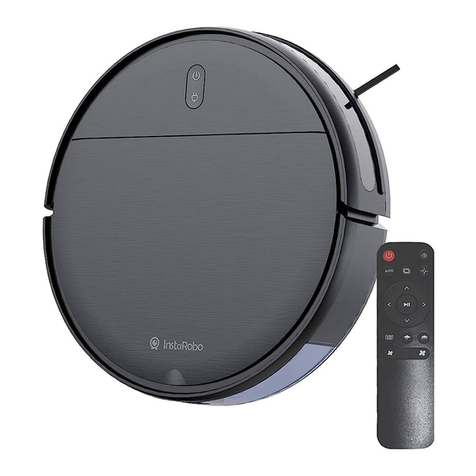

InstaRobo B1 User manual

InstaRobo

InstaRobo R1 User manual

Popular Vacuum Cleaner manuals by other brands

Kenmore

Kenmore CSV Go XL Use & care guide

Klarstein

Klarstein CLEANBUTLER 3G TURBO manual

Tornado

Tornado TIV2000 manual

Nilfisk-Advance

Nilfisk-Advance Coupe Neo user manual

Hoover

Hoover U5180 owner's manual

Klarstein

Klarstein 10007545 manual

LG V-C716HCS Service manual

Hoover

Hoover CHALLENGER user manual

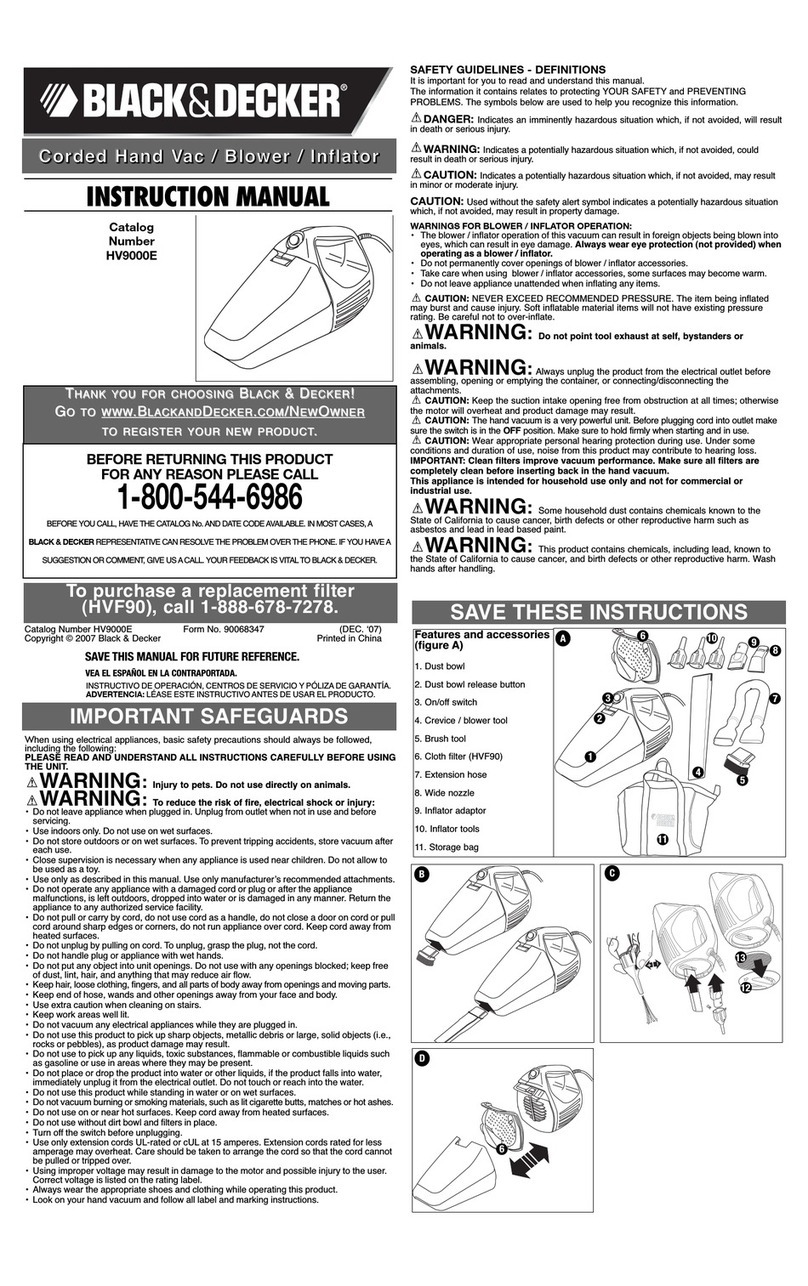

Black & Decker

Black & Decker 90068347 instruction manual

Numatic

Numatic NDD - 570A Original instructions

Bosch

Bosch GAS 55 M AFC Professional Original instructions

Ferm

Ferm VCM1007 Original instructions

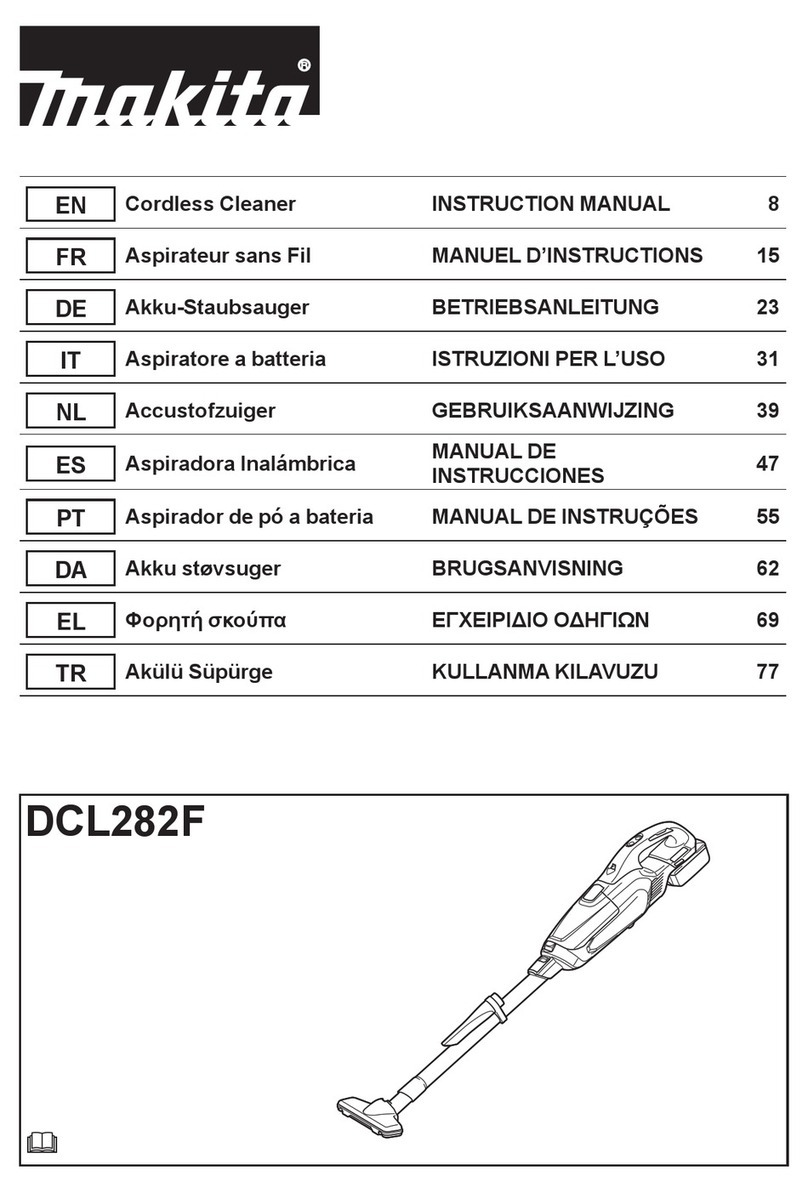

Makita

Makita DCL282F instruction manual

Workshop

Workshop WS0500WM owner's manual

deerma

deerma DX600 instructions

Hoover

Hoover Freedom FR7187 User instructions

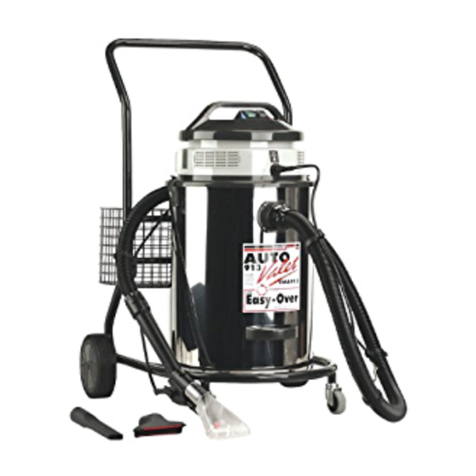

Sealey

Sealey AUTO Valet VMA 913 instructions

eta

eta Generoso 1452 Instructions for use

InstaRobo L1 User manual

Popular Vacuum Cleaner manuals by other brands
