Integrated Visual Data Technology Inc. ED3 SkidWeigh Plus Series Use and care manual

!
Installation & Calibration Manual
ED3 SkidWeigh Plus Series
Lift Truck On-board Check Weighing System with
Mobile Zebra Label Printer QLn420
ED4-Zebra V1.25
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Mobile Label Printer
(Bluetooth interface with ED3 SkidWeigh Plus)
Forklift cradle
Optional Mounting
Arm

!
General Installation Guide
This ED4-Zebra SkidWeigh Plus V1.25 Series installation & calibration guide describes how to install, calibrate, test
and use your on-board check weighing unit. Following the instructions in the ADMINISTRATION MENU guide will
enable you to get the system time set up and weighing calibration function operating quickly. In the event that you require
additional assistance, please contact customer support via e-mail at [email protected] , visit www.skidweigh.com
or contact us at the address or contact number below:
Integrated Visual Data Technology Inc.
3439 Whilabout Terrace, Oakville, ON, Canada, L6L 0A7 Phone: [phone]
Safety
Always disconnect the vehicle battery while installing SkidWeigh system or any other electronic product.
Make sure that unit, pressure transducer and any other associated cables are securely mounted and do not impede any
of the vehicle’s controls. Use care when routing the components cables. Route the cables where they will be protected.
Use commonly accepted install practices for after market industrial vehicle electronic devices.
The installation of the SkidWeigh systems should only be performed by an acknowledged lift truck dealer technician or
end user electro and hydraulic technical installer.
Here are two acceptable methods of making a wire connections:
* Soldering your connections (recommended)
* Crimp connectors ( with the use of the proper crimping tool)
Regardless of the method you choose, ensure that the connection is mechanically sound and properly insulated. Use
high quality electrical tape and shrink tubing where necessary. This product is connected directly to the vehicle’s ignition
switch, 12 to 55 VDC. There is no on-off switch on the unit.
Electro-Magnetic Compatibility
CE conformity to EC directive 89/336 (EMC) by application of harmonized standards: Interference stability EN 61000-6-2
and EN 61326-1 interference emit EN 61000-6-3, EN 61326-1 for the pressure transducer.
ED4-Zebra SkidWeigh Plus Series
Our policy is one of continuous improvement and the information in this document is subject to change without notice.
The software version is displayed on the LCD display once the power is turned on to the system.
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Overview of components
The standard ED4-Zebra SkidWeigh Plus check weighing system consist of two main components:
* Digital indicator, wiring harness, mounting bracket Option: (Zebra mobile printer QLn420 with mounting accessories)
* Hydraulic pressure transducer with 3 wires cable
* Installation & calibration manual and operator usage instruction
Operational principal
The ED4-Zebra SkidWeigh Plus series operational principal is based on the hydraulic pressure transducer mounted in
the vehicle lifting hydraulic circuit that will automatically activate the “weighing cycle / specific algorithm ” every time a
skid load is lifted just above the ground. The increase in pressure is converted in an electronic signal at the sample rate of
16000 readings which is converted into a load weight reading.
Pressure transducer installation

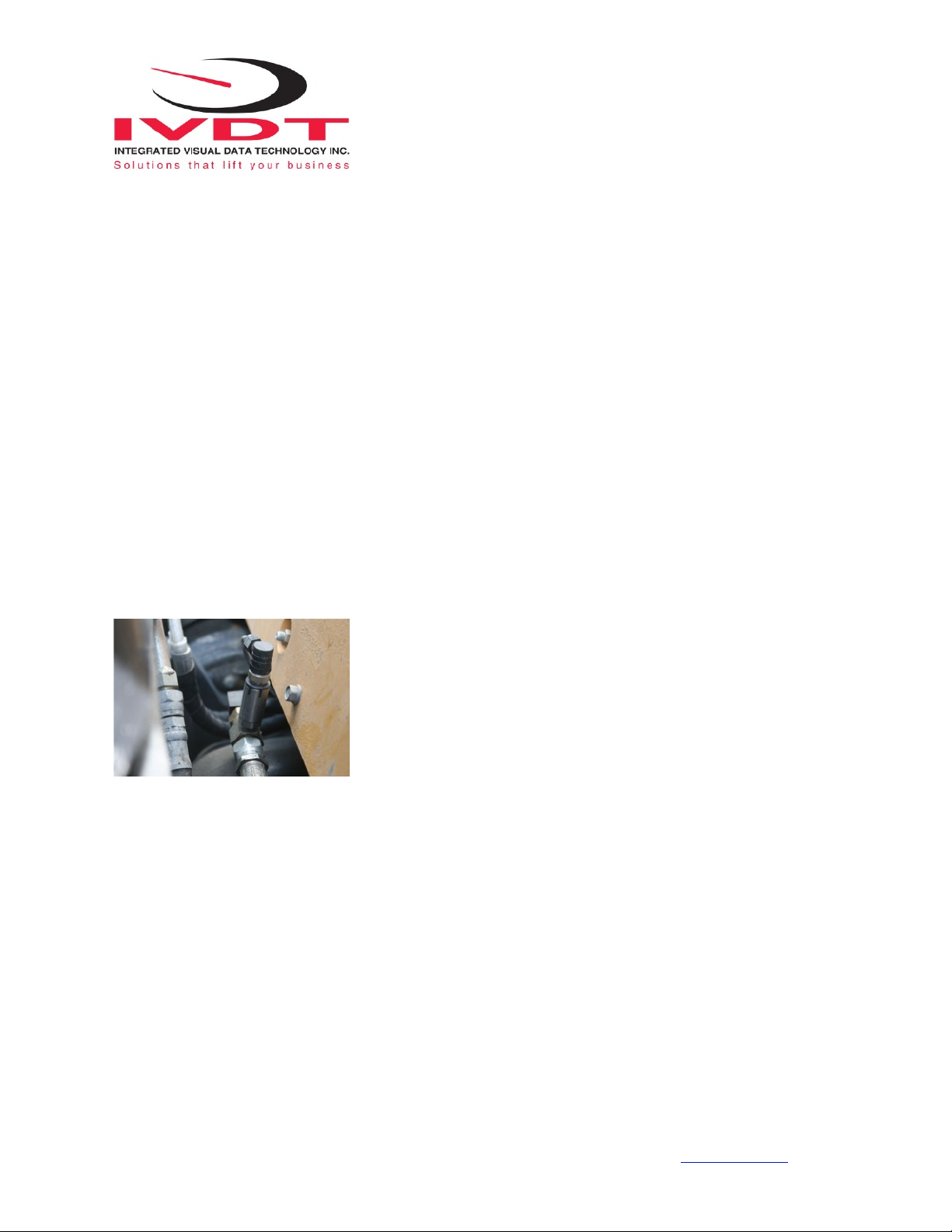

The pressure transducer must be installed in the lifting hydraulic line between the lift control valve and lift
cylinder(s). Mount a T-piece in hydraulic line. In some cases you can install the pressure transducer in the flow divider,
drilling and tapping for 1/4”-18 NPT male in spare plug (if only single or double
mast configuration) or in the body of the flow divider. Also, you can drill and
tap on any “larger elbow” that might be available in the hydraulic lifting circuit
found in vehicles with larger hoses to accommodate larger vehicle lifting
capacities.
Pressure transducer installation precautions
Before installation of the pressure transducer the hydraulic lift circuit must be
pressure free.
There are two ways to do that:
1. Place the forks on the ground in their lowest position and make the hydraulic system pressure free by tilting the mast
forward. The chain(s) should be slack.
2. Lift the forks and position them on the top of a supporting fixture. Start lowering the lifting cylinder into its lowest
position. Be sure that chain(s) are slack.
Make sure that that installed pressure transducer will not touch any moving parts or assembly of the vehicle while in
normal operation. Pressure transducer has 1/4”-18 NPT male thread. Use thread seal to ensure tight fit.
Selecting the mounting location for digital indicator
Use the mounting bracket with the anti vibration mount and fasten digital indicator on the vehicle dashboard, side railing
on the right hand side or preferably on the overhead guard. There are many examples of mounting locations that will
depend on the vehicle model. However, additional mounting items such as a flat brackets may be needed to help secure
the unit to upper right corner of the guard or side railing.
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!

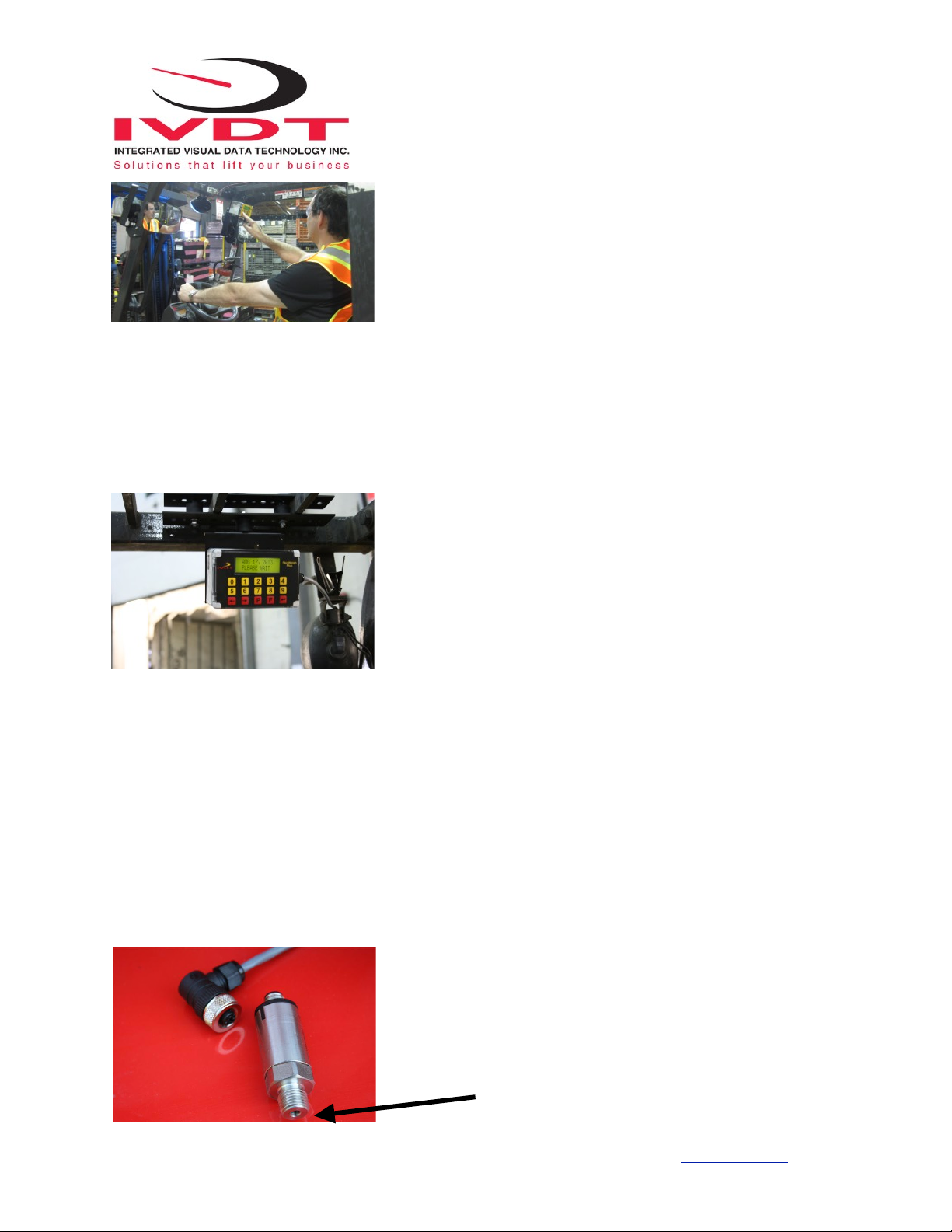

Choose the correct location and make sure that:
- Indicator is visible and within reach of the operator
- Location so that operator has a clear unobstructed view of the working
environment
Compact size
All of the SkidWeigh systems are compact, housing dimension of only 120 x 80 x 55 mm is ideal for the installations to
material handling vehicles of all kinds.
Electrical connections
All SkidWeigh RFID equipped systems operate from 12 to 55 VDC.
Digital indicator with eight wires single cable
-Orange Wire (+) Ignition switch On position
- Brown Wire (-) Battery negative
- Red Wire, connect to RED wire of the pressure transducer cable
- Black Wire, connect to BLACK wire of the pressure transducer
cable
- White Wire, connect to WHITE wire of the pressure transducer
cable
Vehicle Disable Function (Optional)
Internal relay SPDT dry contacts 1 A.
This relay will be activated and stay on once the valid operator ID# is inputed into the system.
To disable vehicle operation (connect two wires in series with seat switch, starting solenoid, etc.) either NO or NC
contacts. (In the majority of cases use BLUE and Green wires, N O contacts.
- Green Wire Common
- Yellow Wire N.C.
- Blue Wire N.O.
Pressure transducer cable
-White Wire, pressure transducer signal 0 to 2,5 V
-Black Wire, signal negative
- Red Wire, power supply + 11 VDC
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Male port 1/4”-18 NPT

!
All SkidWeigh systems are internally short circuit protected with resettable fuse. There is no need to install external
inline fuse in orange wire that is connected to the ignition switch.
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Keypad
“Enter key” ↵
F 9 Administrative
SCROLL KEYS
Print and save to USB port
Bluetooth Icon
Indicates connection status
with Zebra Printer

!
Administration Menu Instructions
With LCD display showing time /date to enter into the Administration Menu press F and number 9.
If the LCD display is showing “ENTER ID NUMBER”. Input default ID# of 111 or any other valid ID number. The LCD
display will show date/time. Press F and than number 9 and input password _________. Use left and right arrow keys
to scroll and follow the LCD instructions.
Date / Time Set Up
Use left ◀and right ▶arrow key (bottom left side of the keypad) to change from AUTO to MANUAL date/time set up.
Note: AUTO set up refers to system utilizing a wireless RF platform with automatic date /time update from IVDT Base
Station communication and programming hub.
For the applications without Base Station, select MANUAL _ set clock and follow the LCD instructions.
LCD Display
MENU
PASSWORD = _
LCD Display
<> KEY TO SCROLL
F KEY TO EXIT
LCD Display
SET CLOCK
ENTER TO SELECT
LCD Display
SET CLOCK
AUTO _
LCD Display
SET CLOCK
MANUAL _
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Press “Enter key” ↵to confirm the setting. The cursor will automatically move to the next item to be changed
( Month, Day, Year, Hours, Minutes, Seconds). On the last correction, seconds item press “Enter key” ↵to confirm
new date / time set up.
Set vehicle ID
- Maximum input number for vehicle ID# is 3 digits.
Note: For system used with RFID card reader maximum input number for vehicle ID is 5 digits.
LCD Display
Aug 28, 2010
12:20:23
LCD Display
<> KEY TO SCROLL
F KEY TO EXIT
LCD Display
SET VEHICLE ID
ENTER TO SELECT
LCD Display
ENTER VEHICLE ID
1_
LCD Display
VEHICLE ID
CONFIGURATED
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!

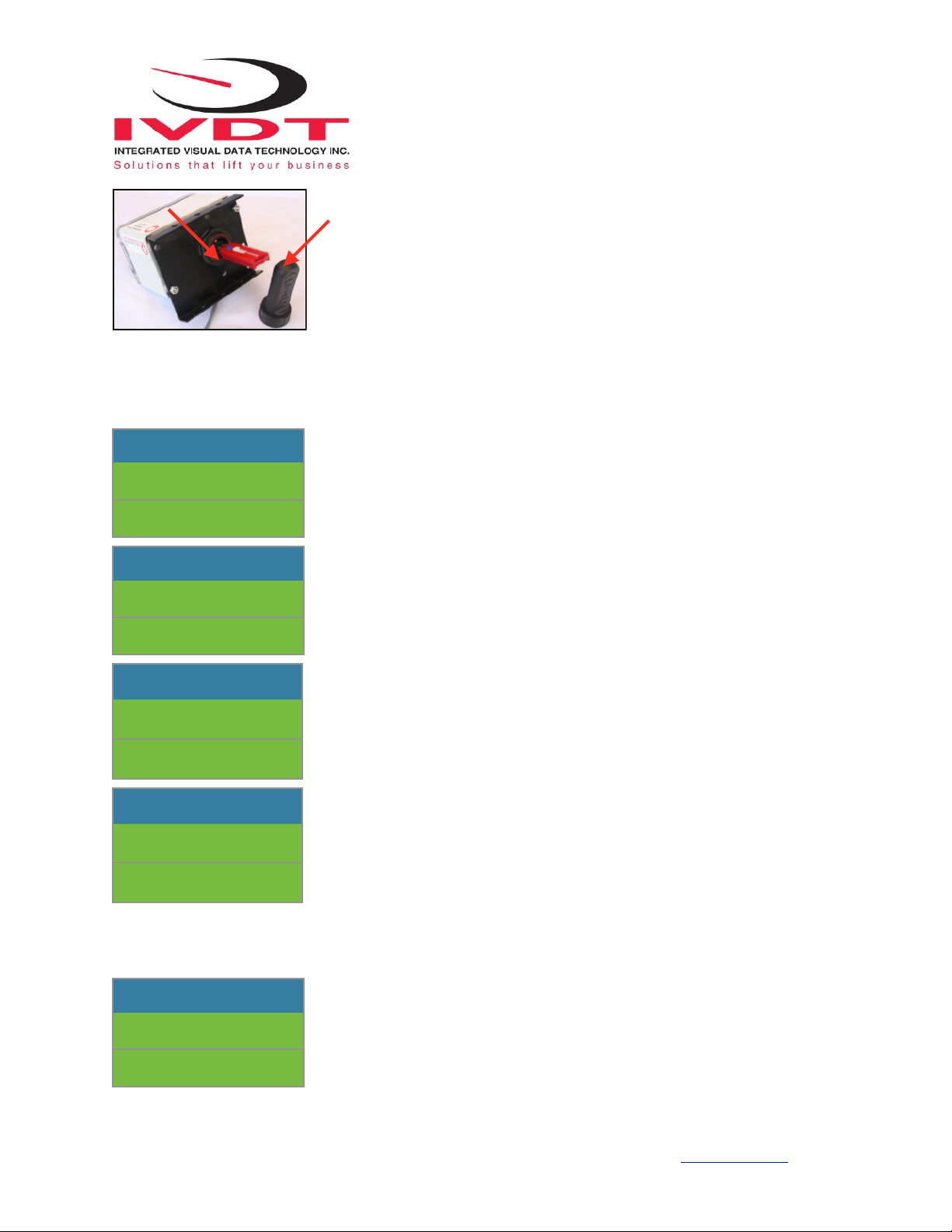

Saving data to USB memory stick (Optional)
- Insert memory stick into USB port
- With LCD display showing date /time press F and than number 9 and input
password ___________.
Follow instructions shown on the LCD display
When the system has finished uploading the data to the USB memory stick the LCD display will prompt you to erase the
SDRAM , all files contained on the ED3 SkidWeigh Plus system . Once you have made your selection Yor Nthe system
will automatically bring you back to the main screen in the supervisor menu.
LCD Display
<> KEY TO SCROLL
F KEY TO EXIT
LCD Display
SAVE TO USB
ENTER TO SELECT
LCD Display
SAVING TO USB
- - - - - - -
LCD Display
ERASE SDRAM ? N
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
USB Port Protective Cover
USB port

!
Weighing scale function calibration
The ED4-Zebra SkidWeigh Plus calibration is automatic and is done by lifting empty and loaded forks (or any other
attachment such as paper clamp) just above the ground. MAKE SURE THAT YOU HAVE A KNOWN LOAD WEIGHT
AND KEEP IT NEARBY TO COMPLETE THE CALIBRATION.
For the best results use at least minimum calibration load test weight of 30 to 50% of maximum lifting capacity of the lift
truck. Use customer floor scale or find a known skid load weight within the operational facility.
Important:
If you want the system to show load weight in pounds, use the known load weight in pounds and
enter that value accordingly. The same would apply if you want the system to show load weight in
kilograms. Use the known load weight in kilograms and enter that value into the system
accordingly.
Calibration starting point
With LCD display showing date /time, Press F and than number 9 key, password __________ and scroll to
“Calibration1” shown on LCD display and press “Enter key” ↵.
Lower the empty forks to the ground. There should be no hydraulic pressure in lift hydraulic circuit.
Follow instructions shown on the LCD display
You must activate lift control valve and lift the empty forks just above the ground the same way that you would normally
do when lifting loads. Do not slow down this lifting operational cycle, do not tilt the load, do not lift to different heights or
move vehicle. Lift empty forks just above the ground.
LCD Display
<> KEY TO SCROLL
F KEY TO EXIT
LCD Display
CALIBRATION 1
ENTER TO SELECT
LCD Display
CALIBRATION 1
LIFT EMPTY FORKS
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
After few seconds the LCD display will show
At this point you must lower the empty forks to the ground. The LCD display prompt you to input known calibration load
weight.
Pick up a known load weigh and lower the loaded forks to the ground.
(Our example of the known load weight is 2000 kg)
Input into the system the known load weight of 2000 into the LCD display and press “Enter key” ↵.
The LCD display will show
Lift loaded forks just above the ground. After few seconds the calibrated load weight value
of of 2000 will be stored in the system memory. The LCD display will prompt you to lower
“LOWER FORKS”.
LCD Display
CALIBRATION 1
LOWER FORKS
LCD Display
CALIBRATION 1
WEIGHT = ❏
LCD Display
CALIBRATION 1
WEIGHT = 2000
LCD Display
CALIBRATION 1
LIFT LOAD
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
As soon the loaded forks are lowered to the ground LCD will show data / time. System is ready to be used!
Calibration of the ED4-Zebra system weighing function is finished.
LCD Display
CALIBRATION 1
LOWER FORKS
LCD Display
CALIBRATION 1
CONFIGURATED
LCD Display
AUG 28, 2010
12:25:23
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Onboard Mobile Label Printer (Bluetooth)
General

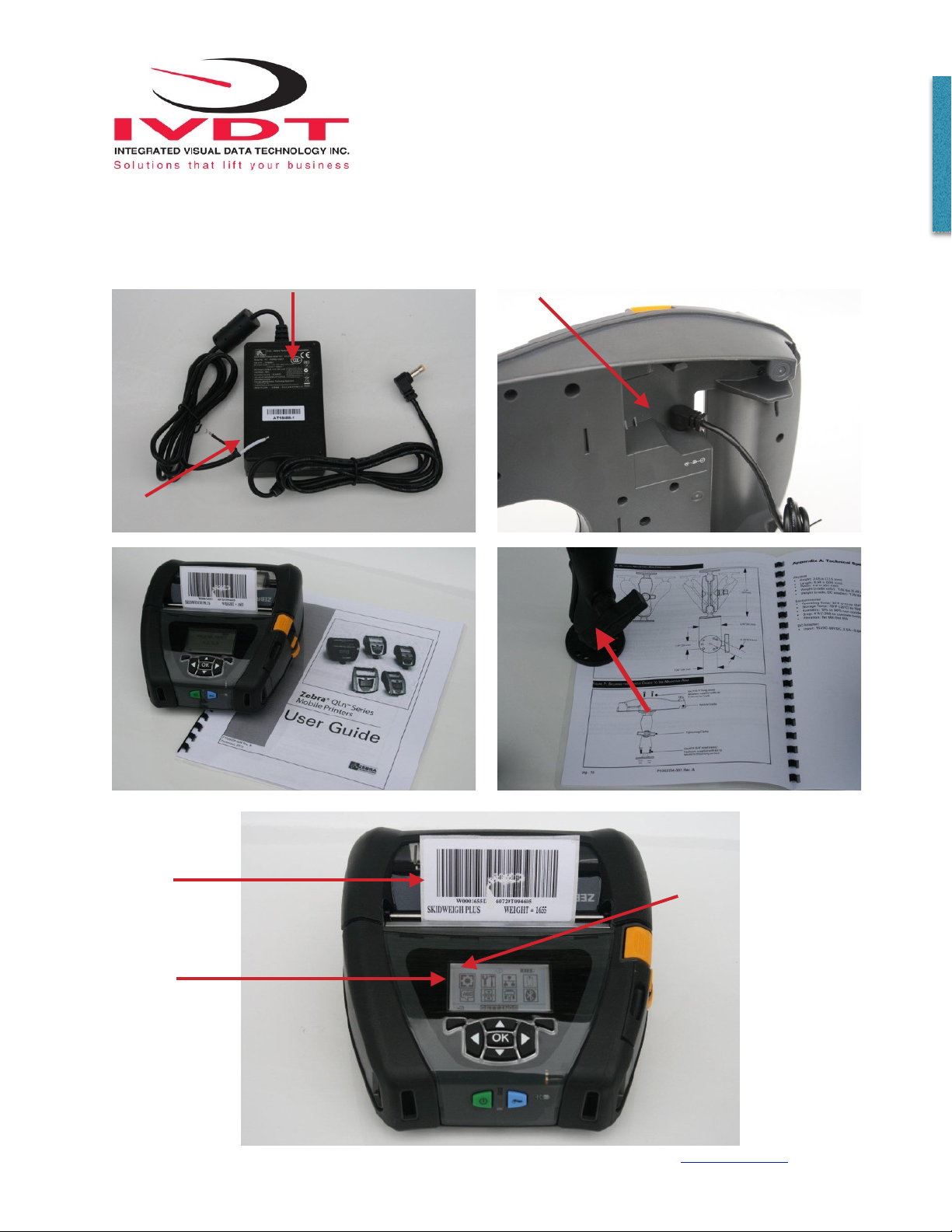

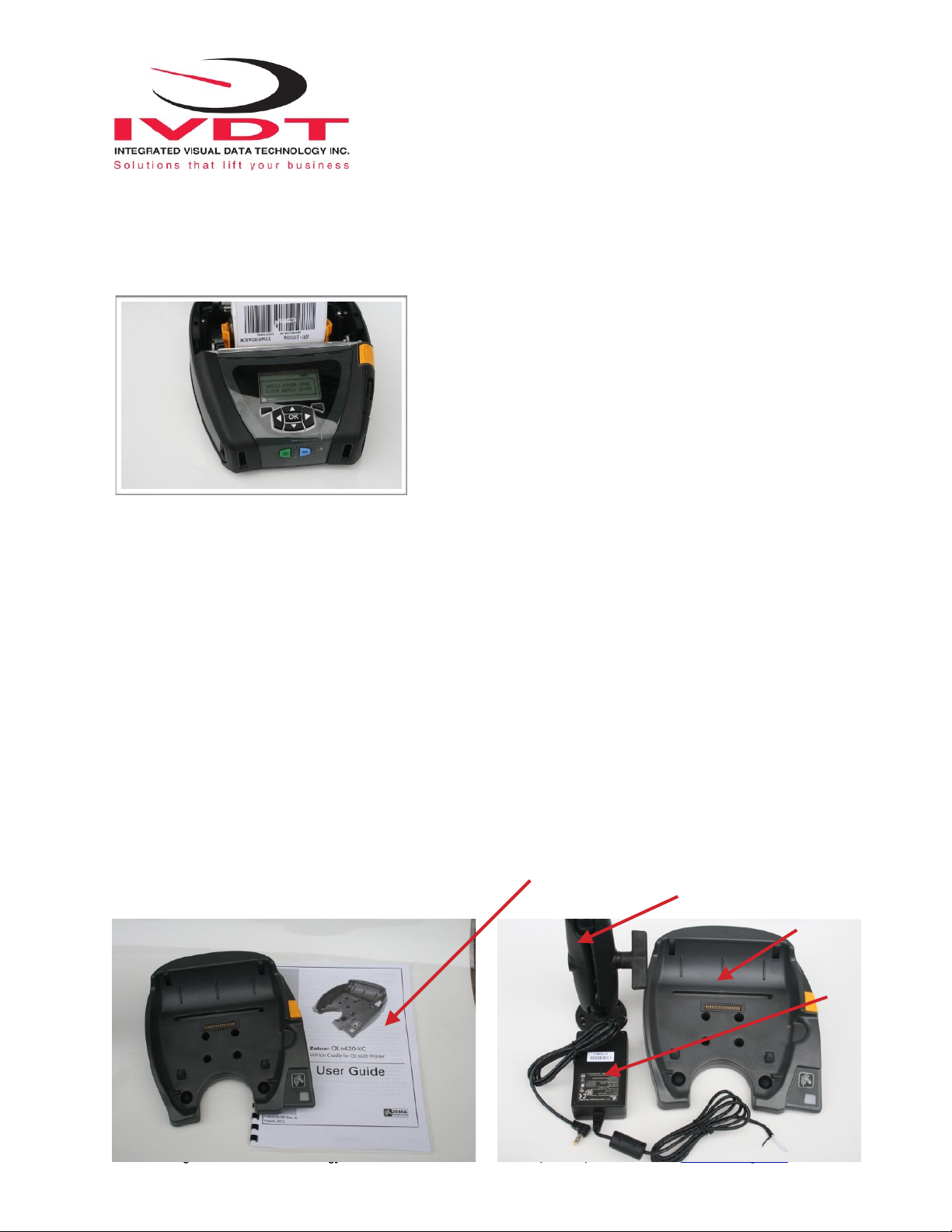

The QLn420-VC forklift cradle allows use of the Zebra QLn420 printer in a vehicle. The vehicle cradle
receives power from a DC power adapter (Zebra Part No. AK18913-003) with an output of 12 VDC. The
DC power adapter plugs into the cradle and the input is an unterminated two wires cable which connects to
the forklift power from 12 to 60 VDC.
-WHITE Wire + Ign.switch or On /OFF switch
-BLACK Wire - Battery negative
Note: The printer runs off its own battery which is monitored and charged by circuitry within the printer
1. Mechanically prepare and install QLn420-VC vehicle cradle
2. If you are installing the optional mounting arm remember the arm provides a considerable range of
movement for cradle and printer.
3. Connect the power input cable of the DC power adapter from the vehicle’s electrical system.
4. Consult Zebra QLn420-VC vehicle cradle guide, P1052234-001 Rev.A for details
Vehicle Cradle
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Note:
For user guide consult QLn420 software & documen-
tation CD supplied with every Zebra Printer kit.
-User Guide, Mobile Printer P1028026-004 Rev.A
-User Guide,Vehicle Cradle P1052234-001 Rev.A
Mounting
Power
adapter

!
Vehicle Power Supply 12 to 60 VDC
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Cradle power plug
Two wires, BLACK and
Printer User Guide P1028026-004 REVa.
Optional mounting bracket for
cradle
Barcode Label
LCD Control Panel
Type to enter text
Bluetooth Icon
