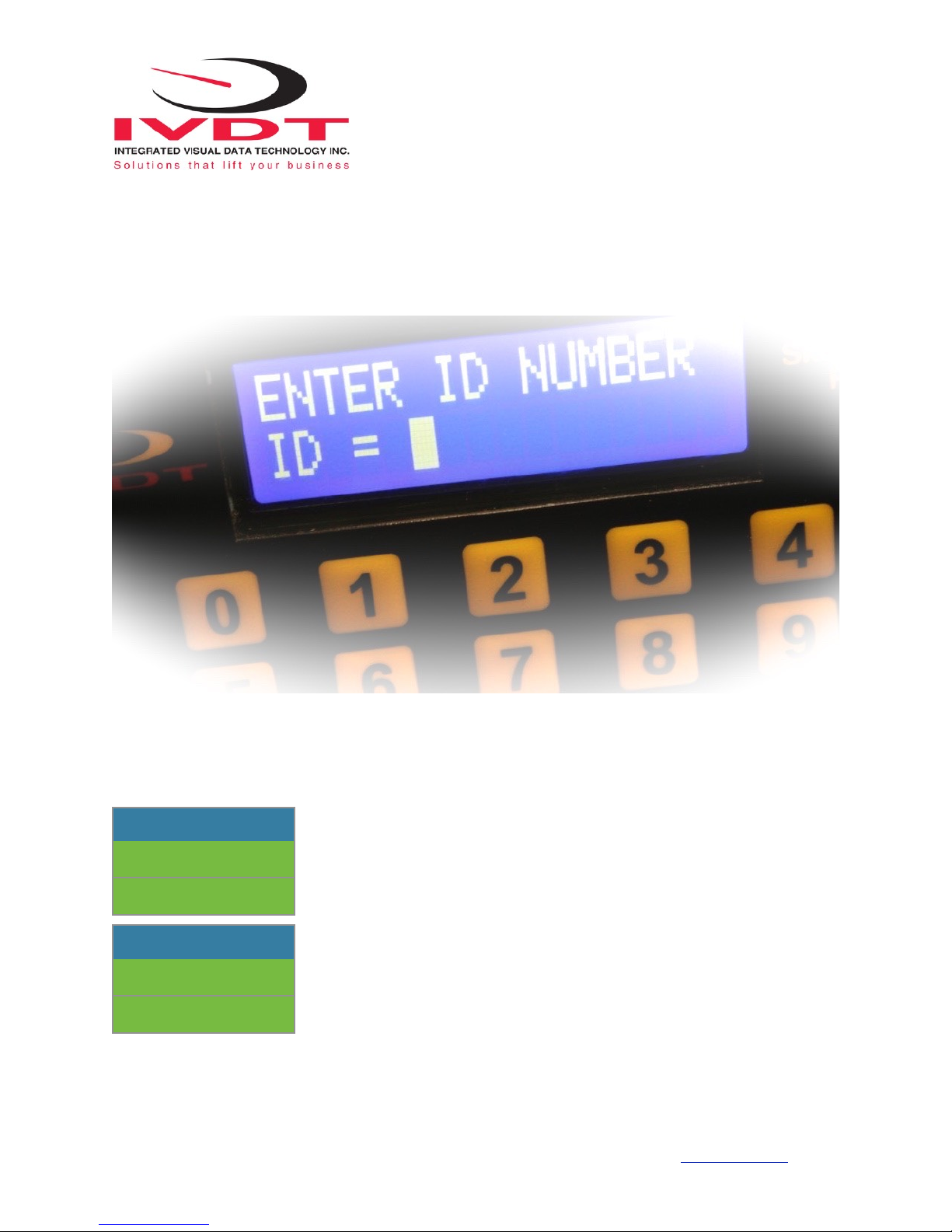

Integrated Visual Data Technology Inc. ED3-UT-IM SkidWeigh Plus Series Use and care manual

!
Installation & Calibration Manual
SkidWeigh Plus Series ED3-UT-IM
Lift Truck On-board Check Weighing, Utilization & Impact Management
Version: ED3-UT- IM V1.24
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
*Utilization factor default setting is 30
*Impact default low setting is 4.0 G
*Impact default high setting is 8.0 G
*Programmable keypad operator ID#’s.
*Valid operator ID# value is up to 3 digits (Range 1-999)
*Ultra bright continuous indicator will be activated when ignition switch is turned on.
The valid operator ID# inputed into the system will de-activate ultra bright indicator.
*USB recording of operational events

!
1.0 General Installation Guide
This ED3-UT-IM SkidWeigh Plus V1.24 Series installation & calibration guide describes how to install, calibrate, test
and use your on-board check weighing unit. Following the instructions in this guide will enable you to get your system
operating quickly and easily. In the event that you require additional assistance, please contact customer support via e-
mail at [email protected] , visit www.skidweigh.com or contact us at the address or contact number below:
Integrated Visual Data Technology Inc.
3439 Whilabout Terrace, Oakville, ON, Canada, L6L 0A7
Phone: [phone]
2.0 Safety
Always disconnect the vehicle battery while installing SkidWeigh system or any other electronic product.
Make sure that unit, pressure transducer and any other associated cables are securely mounted and do not impede any
of the vehicle’s controls. Use care when routing the components cables. Route the cables where they will be protected.
Use commonly accepted install practices for after market industrial vehicle electronic devices.
The installation of the SkidWeigh systems should only be performed by an acknowledged lift truck dealer technician or
end user electro and hydraulic technical installer.
Here are two acceptable methods of making a wire connections:
* Soldering your connections (recommended)
* Crimp connectors (with the use of the proper crimping tool)
Regardless of the method you choose, ensure that the connection is mechanically sound and properly insulated. Use
high quality electrical tape and shrink tubing where necessary.
This product is connected directly to the vehicle’s ignition switch, 12 to 55 VDC. There is no on-off switch on the unit.
3.0 Electro-Magnetic Compatibility
CE conformity to EC directive 89/336 (EMC) by application of harmonized standards: Interference stability EN 61000-6-2
and EN 61326-1 interference emit EN 61000-6-3, EN 61326-1 for the pressure transducer.
4.0 ED3-UT-IM SkidWeigh Plus Series
Our policy is one of continuous improvement and the information in this document is subject to change without notice.
Check that software version displayed on LCD is the one applicable for your application.
5.0 Overview of components
The standard ED3-UT-IM SkidWeigh Plus check weighing system consist of two main components:
* Digital indicator with ultra bright indicator, impact module, wiring harness, mounting bracket and anti-vibration mount
* Hydraulic pressure transducer with 3 wires cable
* Installation & calibration manual and operator usage instruction
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
6.0 Operational principal
The ED3-UT-IM SkidWeigh Plus check weighing operational principal is based on the hydraulic pressure transducer
mounted in the vehicle lifting hydraulic circuit that will automatically activate the “weighing cycle / specific algorithm ”
every time a skid load is lifted just above the ground. The increase in pressure is converted in an electronic signal at the
sample rate of 16000 readings which is converted into a load weight reading.
7.0 Pressure transducer installation
The pressure transducer must be installed in the lifting hydraulic line between the lift control valve and lift
cylinder(s). Mount a T-piece in hydraulic line. In some cases you can install the pressure transducer in the flow divider,
drilling and tapping for 1/4”-18 NPT male in spare plug (if only single or double mast configuration) or in the body of the
flow divider. Also, you can drill and tap on any “larger elbow” that might be available in the hydraulic lifting circuit found
in vehicles with larger hoses to accommodate larger vehicle lifting capacities.
8.0 Pressure transducer installation precautions
Before installation of the pressure transducer the hydraulic lift circuit must be pressure free.
There are two ways to do that:
1. Place the forks on the ground in their lowest position and
make the hydraulic system pressure free by tilting the mast
forward. The chain(s) should be slack.
2. Lift the forks and position them on the top of a supporting
fixture. Start lowering the lifting cylinder into its lowest position.
Be sure that chain(s) are slack.
Make sure that that installed pressure transducer will not touch
any moving parts or assembly of the vehicle while in normal
operation. Pressure transducer has 1/4”-18 NPT male thread.
Use thread seal to ensure tight fit.
9.0 Selecting the mounting location for digital indicator
Use the mounting bracket with the anti vibration mount and fasten digital indicator on the vehicle dashboard, side railing
on the right hand side or preferably on the overhead guard. There are many examples of mounting locations that will
depend on the vehicle model. However, additional mounting items such as a flat brackets may be needed to help secure
the unit to upper right corner of the guard or side railing.
Choose the correct location and make sure that:
- Indicator is visible and within reach of the operator
- Location so that operator has a clear unobstructed view of the working environment
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
10.0 Compact size
All of the SkidWeigh systems are compact, housing dimension of only 120
x 80 x 55 mm is ideal for the installations to material handling vehicles of
all kinds.
11.0 Electrical connections
All SkidWeigh systems operate from 12 to 55 VDC.
Digital indicator five wires single cable
- Orange Wire (+) Ignition switch On position
- Brown Wire (-) Battery negative
- Red Wire, connect to RED wire of the pressure transducer cable
- Black Wire, connect to BLACK wire of the pressure transducer
cable
- White Wire, connect to WHITE wire of the pressure transducer
cable
12.0 Pressure transducer cable
-White Wire, signal 0 to 2,5 V
-Black Wire, signal negative
- Red Wire, power supply + 11 VDC
13.0 Power short circuit protection
All SkidWeigh systems are internally short circuit protected with resettable fuse. There is no need to install external inline
fuse in orange wire connected to the ignition switch.
Note: Any external devices connected to the SkidWeigh system, such as non standard onboard printer might require
external fuse.
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
Male port 1/4”-18 NPT

!
14.0 “Quick test to determine if electrical connections are done right”
Note 1: SkidWeigh weighing calibration function is not done yet at this stage. This procedure is only to test if electrical
connections of the system installation into the vehicle is done properly.
After you have connected electrical power and pressure transducer cable you can “quickly” check the system operation.
- Turn On ignition switch
- Digital LCD display will be activated, showing software version and serial number
- Digital LCD display will show current date and time
- SkidWeigh Plus systems with Operator ID# function.
(Bright indicator will be activated and stay on until valid operator ID# is inputed into the system) Default value is 111.
- Input valid operator ID#
- With the LCD display showing time/data
- Lower the forks to the ground
If the loaded forks are lifted above the ground LCD digital display will show “PLEASE WAIT” and within few seconds
display will show “some” load weight . (Example: 455, not calibrated load weight at this stage)
If the above test is valid than the system electrical connections are done right. The next procedure will be to calibrate the
SkidWeigh weighing function.
15.0 Lift truck equipped with hydraulic accumulators
If the standard SkidWeigh system is installed on the lift trucks equipped with hydraulic accumulators, please contact us
to provide you with digital indicator having specific software algorithm to obtain load weight accuracy within +/-1% of
vehicle maximum lifting capacity.
LCD Display
Aug 28, 2010
12:20:23
LCD Display
PLEASE WEIGHT
WEIGHT = 455
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
16.0 SkidWeigh Plus series ED3-UT-IM V1.24
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
LCD Display
Special Functions Button
Bluetooth Icon
Keypad
Enter Key
Toggle Arrows Keys in set up menu
Select function in F 0
and F 9 menu
Print key or /and
SEND key to wireless base station
FUNCTION MODE KEY
Press F and than number 9 (Administration input)
Press F and than number 0 (Operator input)

!
17.0 Administrative Menu F 9
To enter into the Administration Menu, press F key and than number 9.
Input password 521 and follow LCD instructions.
Date / Time Set Up
Use left ◀and right ▶arrow key (bottom left side of the keypad) to change from AUTO to MANUAL date/time set up.
Note: AUTO set up refers to system utilizing a wireless RF platform with automatic date /time update from IVDT Base
Station communication and programming hub.
For the applications without Base Station, select MANUAL _ set clock and follow the LCD instructions.
LCD Display
MENU
PASSWORD = _
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
LCD Display
SET CLOCK
ENTER TO SELECT
LCD Display
SET CLOCK
AUTO _
LCD Display
SET CLOCK
MANUAL _
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Press “Enter key” ↵to confirm the setting. The cursor will automatically move to the next item to be changed
( Month, Day, Year, Hours, Minutes, Seconds). On the last correction, seconds item press “Enter key” ↵to confirm
new date / time set up.
18.0 Set vehicle ID
- Maximum input number for vehicle ID is 4 digits.
LCD Display
Aug 28, 2010
12:20:23
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
LCD Display
SET VEHICLE ID
ENTER TO SELECT
LCD Display
ENTER VEHICLE ID
1_
LCD Display
VEHICLE ID
CONFIGURATED
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
19.0 Save data to USB
The SkidWeigh Plus system will allow you to download all recorded data onto a USB
drive. Follow instructions shown on the LCD display
This function is located in Supervisor Menu to protect the integrity of the
information.
When the system has finished uploading the data to the USB memory stick the LCD display will prompt you to erase the
SDRAM , all files contained on the SKidWeigh Plus ED3-UT-IM . Once you have made your selection Yor Nthe system
will automatically bring you back to the main screen in the supervisor menu.
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
LCD Display
SAVE TO USB
ENTER TO SELECT
LCD Display
SAVING TO USB
- - - - - - -
LCD Display
ERASE SDRAM ? N
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

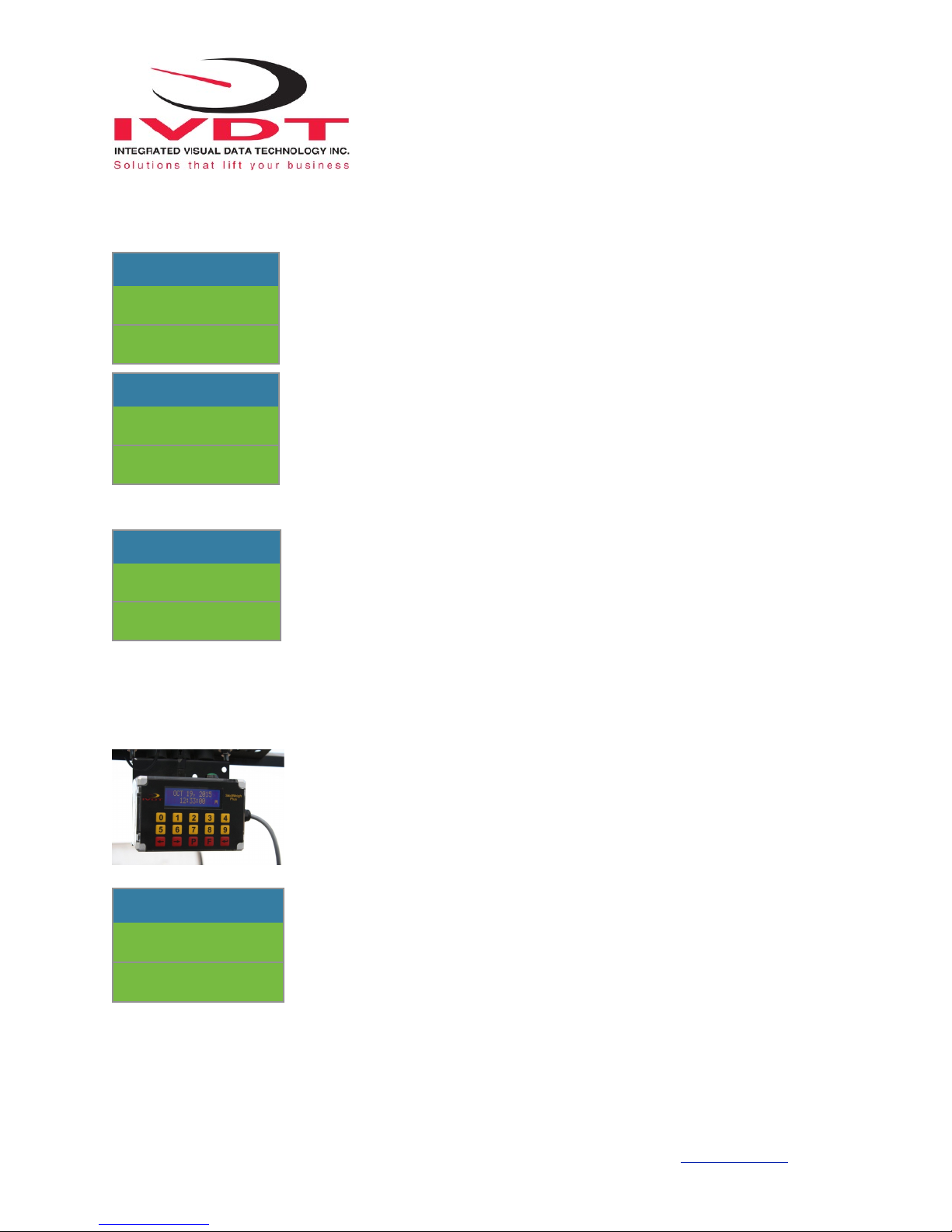

USB Port Protective Cover
USB port

!
20.0 Weighing scale function calibration
The ED3-UT-IM SkidWeigh Plus calibration is automatic and is done by lifting empty and loaded forks (or any other
attachment such as paper clamp) just above the ground.
MAKE SURE THAT YOU HAVE A KNOWN LOAD WEIGHT AND KEEP IT NEARBY TO COMPLETE THE CALIBRATION.
For the best results use at least minimum calibration load test weight of 30 to 50% of maximum lifting capacity of the lift
truck. Use customer floor scale or find a known skid load weight within the operational facility.
Important:
If you want the system to show load weight in pounds, use the known load weight in pounds and
enter that value accordingly. The same would apply if you want the system to show load weight in
kilograms. Use the known load weight in kilograms and enter that value into the system
accordingly.
Calibration starting point
To enter into the Administration Menu, press F key and than number 9.
Input password 521 and follow LCD instructions. Scroll to CALIBRATION 1.
Lower the empty forks to the ground. There should be no hydraulic pressure in lift hydraulic circuit.
Follow instructions shown on the LCD display
Lift empty forks just above the ground.
You must activate lift control valve and lift the empty forks just above the ground the same way that you would normally
do when lifting loads. Do not slow down this lifting operational cycle, do not tilt the load, do not lift to different heights or
move vehicle. Lift empty forks just above the ground .
LCD Display
< KEY TO SCROLL
F KEY TO EXIT
LCD Display
CALIBRATION 1
ENTER TO SELECT
LCD Display
CALIBRATION 1
LIFT EMPTY FORKS
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
After few seconds the LCD display will show
At this point you must lower the empty forks to the ground. The LCD display prompt you to input known calibration load
weight.
Pick up a known load weigh and lower the loaded forks to the ground.
(Our example of the known load weight is 2000 kg)
Input into the system the known load weight of 2000 into the LCD display and press “Enter key” ↵.
The LCD display will show
Lift loaded forks just above the ground. After few seconds the calibrated load weight value of
2000 will be stored in the system memory. The LCD display will prompt you to lower
“LOWER FORKS”.
LCD Display
CALIBRATION 1
LOWER FORKS
LCD Display
CALIBRATION 1
WEIGHT = ❏
LCD Display
CALIBRATION 1
WEIGHT = 2000
LCD Display
CALIBRATION 1
LIFT LOAD
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
As soon the loaded forks are lowered to the ground LCD will show Data / Time. System is ready to be used!
Note: System with optional overload warning function (Additional step)
As soon as the loaded forks are lowered to the ground the LCD will prompt you to input the overload value for your
vehicle operational application.
Input the overload value (as of example 5500 ) and press “Enter key” ↵.
Calibration of the ED3-UT-IM system weighing function is finished.
LCD Display
CALIBRATION 1
LOWER FORKS
LCD Display
CALIBRATION 1
CONFIGURATED
LCD Display
AUG 28, 2010
12:25:23
LCD Display
CALIBRATION 1
OVERLOAD = _
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
21.0 Supervisor Menu F 9 (Set Impacts)
To enter into the Supervisor Menu, press F key and than number 9 key.
Input password 521 and follow LCD instructions in SET IMPACTS menu.
Follow instructions shown on the LCD display!
LCD Display
MENU
PASSWORD = _
LCD Display
SET IMPACTS
ENTER TO SELECT
LCD Display
ENTER LOW IMPACT
4.0 G _
LCD Display
ENTER HI IMPACT
8.0 G _
LCD Display
ENTER HI IMPACT
8.0 G _
LCD Display
ENTER HI IMPACT
CONTINUOUS ? Y
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
22.0 Lift Truck Operator Menu F 0
The SkidWeigh Plus system allows lift truck operator to pair Bluetooth additional devices such as onboard
printers or barcode scanners, set TARE, parts count. Follow instructions shown on the LCD display
To enter into the lift truck operator menu, press F key and than press 0 key.
Note: Use left ◀and right ▶arrow key (bottom left side of the keypad) to choose MANUAL, INQUIRY or AUTO.
LCD Display
ENTER HI IMPACT
CONTINUOUS ? Y
LCD Display
IMPACT
CONFIGURATED
LCD Display
Aug 28, 2010
12:20:23
LCD Display
BLUETOOTH
ENTER TO SELECT
LCD Display
BLUETOOTH MODE
INQUIRY _
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Quick Operator Reference / Usage Guide
- Turn ignition switch
- Input an operator ID# and press “Enter key” ↵if applicable.
-Insert the forks into the pallet or under the product to be weighed.
-Lower the forks to the ground.
LCD Display
ENTER ID NUMBER
ID = _
LCD Display
Aug 11, 2011
11:19:38
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
- LCD display must show date and time in order to initiate weighing function.
Activate lift control valve and lift loaded forks just above the ground.
Do not manipulate the tilt, side shift or move the vehicle.
LCD will display “PLEASE WAIT” and after few seconds a load weight will be shown
Example: Lifted load weight of 1200
This load weight will be shown on LCD display until next time the
forks are lowered to ground.
Note: When vehicle in motion the LCD might show some random load weight. This is due to the hydraulic spikes and
this does not represents any actual load weight value. To initiate the “weighing cycle” you must lower the loaded
forks to the ground and lift loaded forks just above the ground.
LCD Display
Aug 11, 2011
11:19:38
LCD Display
Aug 11, 2011
PLEASE WAIT
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
Accumulative Load Weight Total
To add loads weight press “Enter key” ↵after each load weight is shown on LCD display.
When “Enter key” ↵is pressed LCD display will show a load weight of the first load and total
load weight.
After each new load weight shown on LCD display and pressing “Enter key” ↵system will be updated
showing the latest current load weight total, number of loads and total load weight of all loads.
To reset current individual load weight or totalizing session press “P” key and session will be RESET.
Note: If the onboard printer is connected to the system by pressing “P” key after individual or total load
weight you will get a printout ticket. If the system is utilizing RF communication the weighing data will be
send to base station.
LCD Display
Aug 11, 2011
WEIGHT = 1200
LCD Display
WEIGHT#1 = 1200
TOTAL = 1200
LCD Display
Aug 11, 2011
WEIGHT = 1200
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
23.0 TARE Function Input
To set up TARE value into the system press F key and than 0 key.
Scroll to get to the TARE value set up.
To reset or change TARE value press F 0 key and set to 0 to reset current TARE value or input new
TARE value and press “Enter key” ↵.
LCD Display
<> KEY to SCROLL
F KEY TO EXIT
LCD Display
TARE
ENTER TO SELECT
LCD Display
TARE ADJUSTMENT
TR = 00 Select
LCD Display
TARE
CONFIGURATED
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com

!
LCD display showing load weight with TARE function mode
All of the following load weight measurements will be displayed with TARE sign shown on LCD display.
Important: To reset TARE you must press “F” key , input number 0 and press “Enter key” ↵.
If the current value is 500 as of example, than input 0 value and “Enter key” ↵.
TARE will be reset to zero and all LCD display load value will be showing actual load weight.
LCD Display
Aug 11, 2011
TARE = 1250
LCD Display
<> KEY TO SCROLL
F KEY TO EXIT
LCD Display
TARE
ENTER TO SELECT
LCD Display
TARE ADJUSTMENT
TR = 500 Select
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com
