Intel BOXD845GLVAL - 845GL CEL/P4 400MHZ FSB UATX User manual

February 2003
Order Number: C30525-001
The Intel®Desktop Board D845GLVA may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current
characterized errata are documented in the Intel Desktop Board D845GLVA Specification Update.
Intel®Desktop Board
D845GLVA
Technical Product Specification

Revision History
Revision Revision History Date
-001 First release of the Intel®Desktop Board D845GLVA Technical Product
Specification.
February 2003
This product specification applies to only standard Intel®Desktop Board D845GLVA with BIOS
identifier VA84510A.86A.
Changes to this specification will be published in the Intel Desktop Board D845GLVA
Specification Update before being incorporated into a revision of this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. EXCEPT AS
PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY
WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE
OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER INTELLECTUAL
PROPERTY RIGHT.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights
that relate to the presented subject matter. The furnishing of documents and other materials and information does not
provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other
intellectual property rights.
Intel products are not intended for use in medical, life saving, or life sustaining applications or for any other application in
which the failure of the Intel product could create a situation where personal injury or death may occur.
Intel may make changes to specifications, product descriptions, and plans at any time, without notice.
The Intel®Desktop Board D845GLVA may contain design defects or errors known as errata that may cause the product to
deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be
obtained from:
Intel Corporation
P.O. Box 5937
Denver, CO 80217-9808
or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777,
Germany 44-0-1793-421-333, other countries 708-296-9333.
Intel, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries in the United States and other
countries.
†Other names and brands may be claimed as the property of others.
Copyright 2003, Intel Corporation. All rights reserved.

iii
Preface
This Technical Product Specification (TPS) specifies the board layout, components, connectors,
power and environmental requirements, and the BIOS for the Intel Desktop Board D845GLVA. It
describes the standard product and available manufacturing options.
Intended Audience
The TPS is intended to provide detailed, technical information about the Desktop Board
D845GLVA and their components to the vendors, system integrators, and other engineers and
technicians who need this level of information. It is specifically not intended for general audiences.
What This Document Contains
Chapter Description
1 A description of the hardware used on the Desktop Board D845GLVA
2 A map of the resources of the Desktop Board
3 The features supported by the BIOS Setup program
4 The contents of the BIOS Setup program’s menus and submenus
5 A description of the BIOS error messages, beep codes, and POST codes
Typographical Conventions
This section contains information about the conventions used in this specification. Not all of these
symbols and abbreviations appear in all specifications of this type.
Notes, Cautions, and Warnings
✏ NOTE
Notes call attention to important information.
 INTEGRATOR’S NOTES
Integrator’s notes are used to call attention to information that may be useful to system
integrators.
CAUTION
Cautions are included to help you avoid damaging hardware or losing data.

Intel Desktop Board D845GLVA Technical Product Specification
iv
WARNING
Warnings indicate conditions, which if not observed, can cause personal injury.
Other Common Notation
# Used after a signal name to identify an active-low signal (such as USBP0#)
(NxnX) When used in the description of a component, N indicates component type, xn are the relative
coordinates of its location on the Desktop Board D845GLVA, and X is the instance of the
particular part at that general location. For example, J5J1 is a connector, located at 5J. It is
the first connector in the 5J area.
GB Gigabyte (1,073,741,824 bytes)
GB/sec Gigabytes per second
KB Kilobyte (1024 bytes)
Kbit Kilobit (1024 bits)
kbits/sec 1000 bits per second
MB Megabyte (1,048,576 bytes)
MB/sec Megabytes per second
Mbit Megabit (1,048,576 bits)
Mbit/sec Megabits per second
xxh An address or data value ending with a lowercase h indicates a hexadecimal value.
x.x V Volts. Voltages are DC unless otherwise specified.
†This symbol is used to indicate third-party brands and names that are the property of their
respective owners.

v
Contents
1 Product Description
1.1 Overview.....................................................................................................................12
1.1.1 Feature Summary.........................................................................................12
1.1.2 Manufacturing Options..................................................................................13

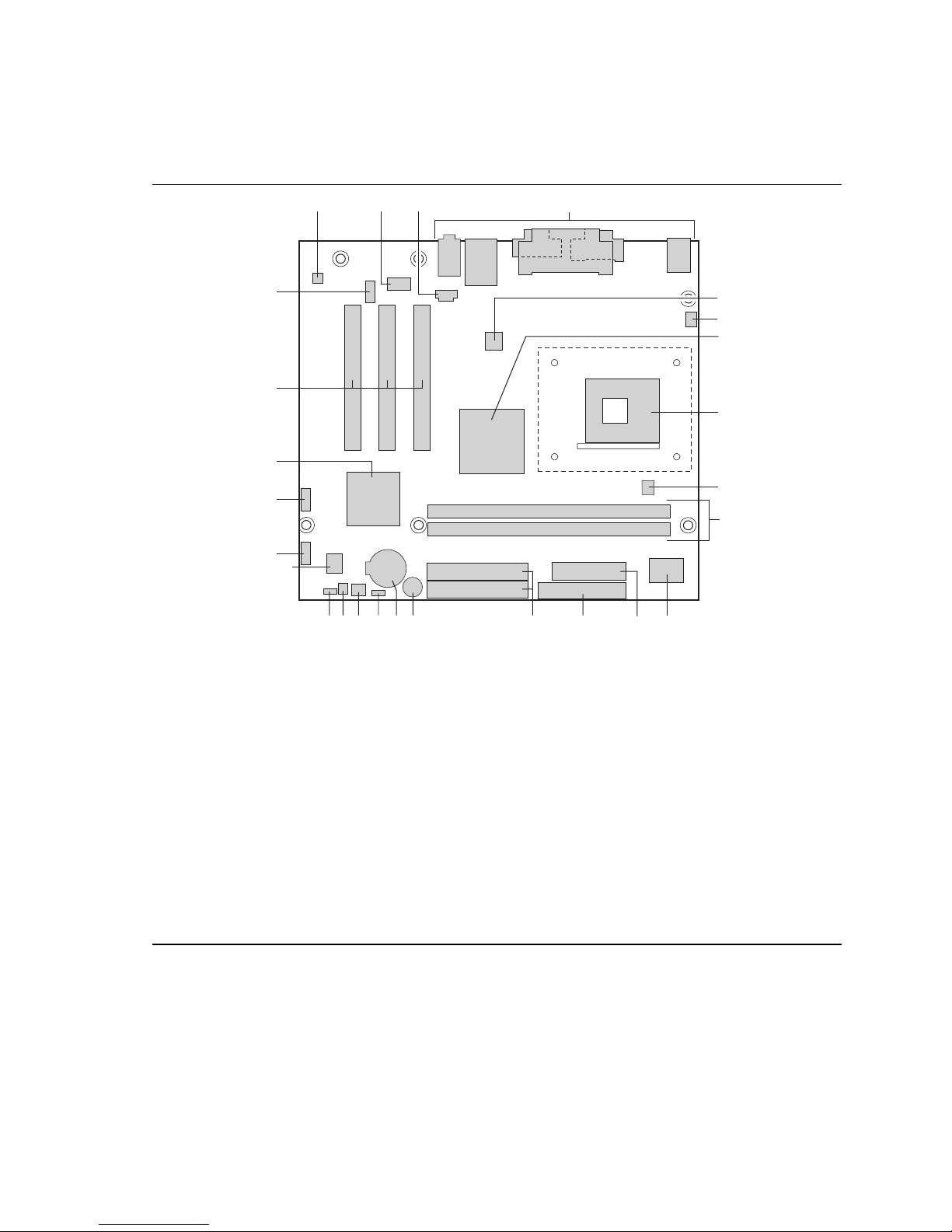

1.1.3 Board Layout ................................................................................................14

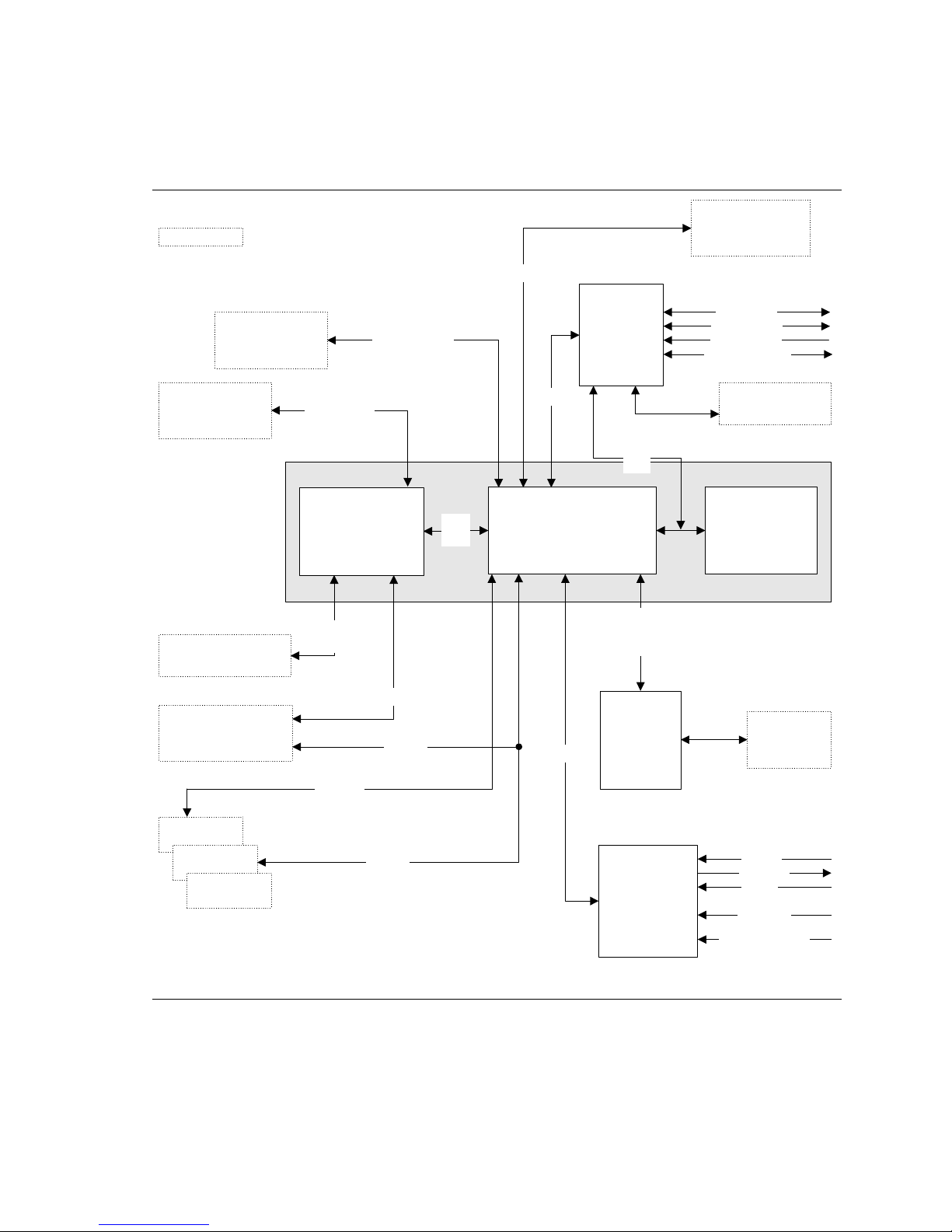

1.2 Block Diagram.............................................................................................................15
1.3 Online Support ............................................................................................................16
1.4 Operating System Support ..........................................................................................16
1.5 Design Specifications..................................................................................................17
1.6 Processor....................................................................................................................20
1.7 System Memory ..........................................................................................................21
1.8 Intel®845GL Chipset ..................................................................................................23
1.8.1 Intel®Extreme Graphics Controller ...............................................................23
1.8.2 USB..............................................................................................................28
1.8.3 IDE Interfaces...............................................................................................28
1.8.4 Real-Time Clock, CMOS SRAM, and Battery ...............................................29
1.9 I/O Controller ..............................................................................................................30
1.9.1 Serial Port.....................................................................................................30
1.9.2 Parallel Port..................................................................................................30
1.9.3 Diskette Drive Controller...............................................................................30
1.9.4 Keyboard and Mouse Interface.....................................................................30
1.10 Audio Subsystem ........................................................................................................31
1.10.1 Audio Connectors .........................................................................................31
1.10.2 Audio Subsystem Software...........................................................................32
1.11 LAN Subsystem (Optional)..........................................................................................32
1.11.1 Intel®82562ET Platform LAN Connect Device .............................................32
1.11.2 RJ-45 LAN Connector with Integrated LEDs.................................................32
1.11.3 LAN Subsystem Software.............................................................................33
1.12 Hardware Management Subsystem ............................................................................33
1.12.1 Hardware Monitoring ASIC (Optional)...........................................................33
1.12.2 Fan Monitoring..............................................................................................33
1.12.3 Chassis Intrusion and Detection ...................................................................34
1.13 Power Management ....................................................................................................34
1.13.1 ACPI.............................................................................................................35
1.13.2 Hardware Support.........................................................................................37
2 Technical Reference
2.1 Introduction .................................................................................................................41
2.2 Memory Map...............................................................................................................41
2.3 Fixed I/O Map .............................................................................................................42
2.4 DMA Channels............................................................................................................43
2.5 PCI Configuration Space Map.....................................................................................43
2.6 Interrupts.....................................................................................................................44
2.7 PCI Interrupt Routing Map ..........................................................................................45
2.8 Connectors .................................................................................................................47

Intel Desktop Board D845GLVA Technical Product Specification
vi
2.8.1 Back Panel Connectors ................................................................................48
2.8.2 Internal I/O Connectors.................................................................................49
2.8.3 External I/O Connectors ...............................................................................54
2.9 Jumper Blocks ............................................................................................................58
2.9.1 Front Panel Audio Connector/Jumper Block .................................................58
2.9.2 BIOS Setup Configuration Jumper Block ......................................................59
2.10 Mechanical Considerations .........................................................................................60
2.10.1 I/O Shield......................................................................................................61
2.11 Electrical Considerations.............................................................................................62
2.11.1 Power Consumption .....................................................................................62
2.11.2 Add-in Board Considerations ........................................................................62
2.11.3 Standby Current Requirements ....................................................................63
2.11.4 Fan Connector Current Capability.................................................................64
2.11.5 Power Supply Considerations.......................................................................64
2.12 Thermal Considerations ..............................................................................................65
2.13 Reliability ....................................................................................................................67
2.14 Environmental .............................................................................................................67
2.15 Regulatory Compliance...............................................................................................68
2.15.1 Safety Regulations........................................................................................68
2.15.2 EMC Regulations..........................................................................................68
2.15.3 European Union Declaration of Conformity Statement..................................69
2.15.4 Product Ecology Statements.........................................................................70
2.15.5 Product Certification Markings (Board Level)................................................71
3 Overview of BIOS Features
3.1 Introduction .................................................................................................................73
3.2 BIOS Flash Memory Organization...............................................................................74
3.3 Resource Configuration ..............................................................................................74
3.3.1 PCI Autoconfiguration...................................................................................74
3.3.2 PCI IDE Support ...........................................................................................74
3.4 System Management BIOS (SMBIOS)........................................................................74
3.5 Legacy USB Support...................................................................................................75
3.6 BIOS Updates .............................................................................................................76
3.6.1 Language Support ........................................................................................76
3.6.2 Custom Splash Screen.................................................................................76
3.7 Recovering BIOS Data................................................................................................77
3.8 Boot Options ...............................................................................................................78
3.8.1 CD-ROM Boot ..............................................................................................78
3.8.2 Network Boot ................................................................................................78
3.8.3 Booting Without Attached Devices................................................................78
3.8.4 Changing the Default Boot Device During POST ..........................................78
3.9 Fast Booting Systems with Intel®Rapid BIOS Boot ....................................................79
3.9.1 Peripheral Selection and Configuration.........................................................79
3.9.2 Intel Rapid BIOS Boot...................................................................................79
3.10 BIOS Security Features ..............................................................................................80
4 BIOS Setup Program
4.1 Introduction .................................................................................................................81
4.2 Maintenance Menu......................................................................................................82

Contents
vii
4.3 Main Menu ..................................................................................................................83
4.4 Advanced Menu ..........................................................................................................84
4.4.1 PCI Configuration Submenu .........................................................................85
4.4.2 Boot Configuration Submenu........................................................................86
4.4.3 Peripheral Configuration Submenu ...............................................................87
4.4.4 IDE Configuration Submenu .........................................................................89
4.4.5 Diskette Configuration Submenu ..................................................................92
4.4.6 Event Log Configuration Submenu ...............................................................93
4.4.7 Video Configuration Submenu ......................................................................94
4.4.8 USB Configuration Submenu........................................................................95
4.4.9 Chipset Configuration Submenu ...................................................................96
4.5 Security Menu.............................................................................................................98
4.6 Power Menu................................................................................................................99
4.6.1 ACPI Submenu.............................................................................................99
4.7 Boot Menu.................................................................................................................100
4.7.1 Boot Device Priority Submenu ....................................................................101
4.7.2 Hard Disk Drives Submenu ........................................................................102
4.7.3 Removable Devices Submenu....................................................................102
4.7.4 ATAPI CD-ROM Drives Submenu ..............................................................103
4.8 Exit Menu..................................................................................................................104
5 Error Messages and Beep Codes
5.1 BIOS Error Messages ...............................................................................................105
5.2 Port 80h POST Codes ..............................................................................................107
5.3 Bus Initialization Checkpoints ...................................................................................111
5.4 Speaker ...................................................................................................................112
5.5 BIOS Beep Codes.....................................................................................................112
Figures
1. Desktop Board D845GLVA Components ....................................................................14
2. Block Diagram.............................................................................................................15
3. Location of the Standby Power Indicator LED on the D845GLVA Board .....................40
4. Back Panel Connectors...............................................................................................48
5. Audio, Power, and Hardware Control Connectors .......................................................50
6. Add-in Board and Peripheral Interface Connectors .....................................................53
7. External I/O Connectors..............................................................................................54
8. Connection Diagram for Front Panel Connector..........................................................55
9. Connection Diagram for Front Panel USB Connector .................................................57
10. Location of the Jumper Blocks ....................................................................................58
11. Desktop Board Dimensions.........................................................................................60
12. I/O Shield Dimensions.................................................................................................61
13. Localized High Temperature Zones ............................................................................66

Intel Desktop Board D845GLVA Technical Product Specification
viii
Tables
1. Feature Summary .......................................................................................................12
2. Manufacturing Options ................................................................................................13
3. Specifications..............................................................................................................17
4. Supported Processors.................................................................................................20
5. Supported DDR DIMM Configurations ........................................................................22
6. Direct Draw Supported Modes ....................................................................................24
7. Video BIOS Video Modes Supported for Analog CRTs ...............................................25
8. Supported Configuration Modes..................................................................................26
9. Details of bpp Configuration Modes ............................................................................27
10. LAN Connector LED States.........................................................................................33
11. Effects of Pressing the Power Switch..........................................................................35
12. Power States and Targeted System Power.................................................................36
13. Wake-up Devices and Events .....................................................................................37
14. Fan Connector Function/Operation .............................................................................38
15. System Memory Map ..................................................................................................41
16. I/O Map.......................................................................................................................42
17. DMA Channels............................................................................................................43
18. PCI Configuration Space Map.....................................................................................43
19. Interrupts.....................................................................................................................44
20. PCI Interrupt Routing Map ..........................................................................................46
21. Front Panel Audio Connector ......................................................................................51
22. Auxiliary Line Input Connector (Optional) ....................................................................51
23. ATAPI CD-ROM Connector.........................................................................................51
24. ATX12V Power Connector ..........................................................................................51
25. Rear Chassis Fan Connector ......................................................................................52
26. Processor Fan Connector ...........................................................................................52
27. Main Power Connector................................................................................................52
28. Front Chassis Fan Connector .....................................................................................52
29. Chassis Intrusion Connector .......................................................................................52
30. Front Panel Connector ................................................................................................55
31. States for a One-Color Power LED .............................................................................56
32. States for a Two-Color Power LED .............................................................................56
33. Auxiliary Front Panel Power/Sleep/Message-Waiting LED Connector ........................56
34. Front Panel USB Connector........................................................................................57
35. Front Panel Audio Connector/Jumper Block................................................................59
36. BIOS Setup Configuration Jumper Settings ................................................................59
37. Power Usage ..............................................................................................................62
38. Standby Current Requirements ...................................................................................63
39. Fan Connector Current Capability...............................................................................64
40. Thermal Considerations for Components ....................................................................66
41. Desktop Board D845GLVA Environmental Specifications ...........................................67
42. Safety Regulations ......................................................................................................68
43. EMC Regulations ........................................................................................................68
44. Boot Device Menu Options..........................................................................................78
45. Supervisor and User Password Functions ..................................................................80
46. BIOS Setup Program Menu Bar ..................................................................................81
47. BIOS Setup Program Function Keys ...........................................................................82
48. Maintenance Menu......................................................................................................82

Contents
ix
49. Main Menu ..................................................................................................................83
50. Advanced Menu ..........................................................................................................84
51. PCI Configuration Submenu........................................................................................85
52. Boot Configuration Submenu ......................................................................................86
53. Peripheral Configuration Submenu .............................................................................87
54. IDE Configuration Submenu........................................................................................89
55. Primary/Secondary IDE Master/Slave Submenus .......................................................90
56. Diskette Configuration Submenu.................................................................................92
57. Event Log Configuration Submenu..............................................................................93
58. Video Configuration Submenu.....................................................................................94
59. USB Configuration Submenu ......................................................................................95
60. Chipset Configuration Submenu..................................................................................96
61. Security Menu.............................................................................................................98
62. Power Menu................................................................................................................99
63. ACPI Submenu ...........................................................................................................99
64. Boot Menu.................................................................................................................100
65. Boot Device Priority Submenu ..................................................................................101
66. Hard Disk Drives Submenu.......................................................................................102
67. Removable Devices Submenu ..................................................................................102
68. ATAPI CD-ROM Drives Submenu.............................................................................103
69. Exit Menu..................................................................................................................104
70. BIOS Error Messages ...............................................................................................105
71. Uncompressed INIT Code Checkpoints ....................................................................107
72. Boot Block Recovery Code Checkpoints...................................................................107
73. Runtime Code Uncompressed in F000 Shadow RAM ...............................................108
74. Bus Initialization Checkpoints ...................................................................................111
75. Upper Nibble High Byte Functions ............................................................................111
76. Lower Nibble High Byte Functions ............................................................................112
77. Beep Codes ..............................................................................................................113

Intel Desktop Board D845GLVA Technical Product Specification
x

11
1 Product Description
What This Chapter Contains
1.1 Overview.....................................................................................................................12
1.2 Block Diagram.............................................................................................................15
1.3 Online Support ............................................................................................................16
1.4 Operating System Support ..........................................................................................16
1.5 Design Specifications..................................................................................................17
1.6 Processor....................................................................................................................20
1.7 System Memory ..........................................................................................................21
1.8 Intel®845GL Chipset ..................................................................................................23
1.9 I/O Controller ..............................................................................................................30
1.10 Audio Subsystem ........................................................................................................31
1.11 LAN Subsystem (Optional)..........................................................................................32
1.12 Hardware Management Subsystem ............................................................................33
1.13 Power Management ....................................................................................................34

Intel Desktop Board D845GLVA Technical Product Specification
12
1.1 Overview
1.1.1 Feature Summary
Table 1 summarizes the major features of the Intel®Desktop Board D845GLVA.
Table 1. Feature Summary
Form Factor microATX (9.20 inches by 8.20 inches)
Processor • Support for an Intel®Pentium®4 processor in an mPGA478 socket with a
400 MHz system bus
• Support for an Intel®Celeron®processor in an mPGA478 socket with a 400 MHz
system bus
Memory • Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for single-sided or double-sided DIMMs (DDR266/200)
• Support for up to 2 GB system memory
NOTE: The Desktop Board D845GLVA has been designed to support DIMMs based
on 512 Mbit technology for a maximum onboard capacity of up to 2 GB, but
this technology has not been validated (currently validated up to 1.0 GB) on
this board. Please refer to the following Intel web site.
http://developer.intel.com/design/motherbd/va/va_mem.htm
Chipset Intel®845GL Chipset, consisting of:
• Intel®82845GL Graphics and Memory Controller Hub (GMCH)
• Intel®82801DB I/O Controller Hub (ICH4)
• 4 Mbit Firmware Hub (FWH)
Video Intel®Extreme Graphics controller
Audio Audio subsystem for AC ‘97 processing using the SigmaTel STAC9750 codec
I/O Control LPC Bus I/O controller (SMSC LPC47M172 or National Semiconductor PC87372)
USB Support for USB 2.0 devices
Peripheral
Interfaces
• Up to four USB ports
• One serial port
• One parallel port
• Two IDE interfaces with UDMA 33, ATA-66/100 support
• One diskette drive interface
• PS/2†keyboard and mouse ports
• Two fan connectors
Expansion
Capabilities
Three PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
BIOS • Intel/AMI BIOS (resident in the 4 Mbit FWH)
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,
and SMBIOS
Instantly Available
PC Technology
• Support for PCI Local Bus Specification Revision 2.2
• Suspend to RAM support
• Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports

Product Description
13
1.1.2 Manufacturing Options
Table 2 describes the manufacturing options on the Desktop Board D845GLVA. Not every
manufacturing option is available in all marketing channels. Please contact your Intel
representative to determine which manufacturing options are available to you.
Table 2. Manufacturing Options
LAN Intel®82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device
Auxiliary Line Input
Connector
An ATAPI-style connector for audio line input
Hardware Monitor
Subsystem
• Two fan sense inputs used to monitor fan activity
• Chassis intrusion detection
For information about Refer to
The board’s compliance level with ACPI, Plug and Play, and SMBIOS Section 1.5, page 17
Available configurations for the Desktop Board D845GLVA Section 1.3, page 16

Intel Desktop Board D845GLVA Technical Product Specification
14
1.1.3 Board Layout
Figure 1 shows the location of the major components on the Desktop Board D845GLVA.
OM1587
2
D
AB C
F
H
J
I
G
E
SKMLOPQRNT
V
W
Z
X
Y
U
A Audio codec N IDE connectors
B Intel 82562ET 10/100 Mbit/sec (PLC) device
(optional)
O Speaker
C ATAPI CD-ROM connector P Battery
D Back panel connectors Q Auxiliary front panel power LED connector
E +12V power connector (ATX12V) R Front chassis fan connector
F Rear chassis fan connector S Chassis intrusion connector
G Intel 82845GL GMCH T BIOS Setup configuration jumper block
H mPGA478 processor socket U 4 Mbit Firmware Hub (FWH)
I Processor fan connector V Front panel connector
J DIMM sockets W Front panel USB connector
K I/O Controller X Intel 82801DB I/O Controller Hub (ICH4)
L Power connector Y PCI bus add-in card connectors
M Diskette drive connector Z Front panel audio connector
Figure 1. Desktop Board D845GLVA Components

Product Description
15
1.2 Block Diagram
Figure 2 is a block diagram of the major functional areas of the board.
Intel 845GL Chipset
Intel 82801DB
I/O Controller Hub
(ICH4)
Intel 82845GL
Graphics and
Memory Controller
Hub (GMCH)
4Mbit
Firmware Hub
(FWH)
AHA
Bus
System Bus
(400 MHz)
mPGA478
Processor Socket
Primary/
Secondary IDE
Diskette Drive
Connector
LPC Bus
I/O
Controller PS/2 Keyboard
PS/2 Mouse
Parallel Port
Serial Port
UDMA 33 and
ATA-66/100
LPC
Bus
OM15882
STAC9750
Audio Codec
Auxiliary Line In
(Optional)
Mic In
Line Out
CD-ROM
Line In
LAN
Connector
(Optional)
Physical
Layer
Interface
(Optional)
DIMM Banks (2)
= connector or socket
PCI Bus
SMBus
AC Link
Back Panel /
Front Panel
USB Ports
USB
VGA Port
Display
Interface
Memory Bus
PCI Slot 1
PCI Slot 2
PCISlot3
SMBus
SMBus
CSMA/CD
Unit
Interface
Figure 2. Block Diagram

Intel Desktop Board D845GLVA Technical Product Specification
16
1.3 Online Support
To find information about… Visit this World Wide Web site:
Intel Desktop Board D845GLVA under
“Desktop Board Products” or “Desktop
Board Support”
http://www.intel.com/design/motherbd
http://support.intel.com/support/motherboards/desktop
Available configurations for the Desktop
Board D845GLVA
http://developer.intel.com/design/motherbd/va/va_available.htm
Processor data sheets http://www.intel.com/design/litcentr
ICH4 addressing http://developer.intel.com/design/chipsets/datashts
Custom splash screens http://intel.com/design/motherbd/gen_indx.htm
Audio software and utilities http://www.intel.com/design/motherbd
LAN software and drivers http://www.intel.com/design/motherbd
1.4 Operating System Support
The Desktop Board D845GLVA supports drivers for all of the onboard hardware and subsystems
under the following operating systems:
• Windows†XP
• Windows ME
• Windows 2000
• Windows NT†4.0
• Microsoft Windows 98 SE
For information about Refer to
Supported drivers Section 1.3
✏ NOTE
Third party vendors may offer other drivers.

Product Description
17
1.5 Design Specifications
Table 3 lists the specifications applicable to the Desktop Board D845GLVA.
Table 3. Specifications
Reference
Name
Specification
Title
Version, Revision Date,
and Ownership
The information is
available from…
AC ’97 Audio Codec ’97 Revision 2.2,
September 2000,
Intel Corporation.
ftp://download.intel.com/ial/
scalableplatforms/
ac97r22.pdf
ACPI Advanced Configuration and
Power Interface
Specification
Version 1.0b,
July 01, 1998,
Intel Corporation,
Microsoft Corporation,
and Toshiba Corporation.
http://www.acpi.info/spec.htm
AMI BIOS AMIBIOS Desktop Core 8.0 AMIBIOS 8.0,
2001,
American Megatrends, Inc.
http://www.ami.com/support/
doc/amibios8.pdf
ATA/
ATAPI-5
Information Technology-AT
Attachment with Packet
Interface - 5 (ATA/ATAPI-5)
Revision 3,
February 29, 2000,
Contact: T13 Chair,
Seagate Technology.
http://www.t13.org
ATX ATX Specification Version 2.03,
December 1998,
Intel Corporation.
http://www.formfactors.org/
developer/specs/atx/
atxspecs.htm
ATX12V ATX/ATX12V Power Supply
Design Guide
Version 1.2,
August 2000,
Intel Corporation.
http://www.formfactors.org/
developer/specs/atx/
atxspecs.htm
BIS Boot Integrity Services (BIS)
Application Programming
Interface (API)
Version 1.0,
August 4, 1999,
Intel Corporation.
http://www.intel.com/labs/
manage/wfm/wfmspecs.htm
Double Data Rate (DDR)
SDRAM Specification
Version 1.0,
June 2000,
JEDEC Solid State
Technology Association.
http://www.jedec.org/
Design Specification for a
184 Pin DDR Unbuffered
DIMM
Revision 1.0,
October 2001,
JEDEC Solid State
Technology Association.
http://www.jedec.org/
DDR
SDRAM
Intel®JEDEC DDR 200/266
Unbuffered DIMM
Specification Addendum
Revision 0.9,
September 27, 2001,
Intel Corporation.
http://developer.intel.com/
technology/memory/
index.htm
continued

Intel Desktop Board D845GLVA Technical Product Specification
18
Table 3. Specifications (continued)
Reference
Name
Specification
Title
Version, Revision Date and
Ownership
The information is
available from…
EHCI Enhanced Host
Controller Interface
Specification for
Universal Serial Bus
Revision 1.0,
March 12, 2002,
Intel Corporation.
http://developer.intel.com/
technology/usb/download/
ehci-r10.pdf
EPP IEEE Std 1284.1-1997
(Enhanced Parallel Port)
Version 1.7,
1997,
Institute of Electrical and
Electronic Engineers.
http://standards.ieee.org/
reading/ieee/std_public/
description/busarch/
1284.1-1997_desc.html
El Torito Bootable CD-ROM
Format Specification
Version 1.0,
January 25, 1995,
Phoenix Technologies Limited
and International Business
Machines Corporation.
http://www.phoenix.com/
PlatSS/products/specs.html
Front Panel Front Panel I/O
Connectivity Design
Guide
Version 1.0,
October 2000,
Intel Corporation.
http://www.formfactors.org/
formfactors/
front_panel_io.htm
LPC Low Pin Count Interface
Specification
Revision 1.0,
September 29, 1997,
Intel Corporation.
http://www.intel.com/
design/chipsets/industry/
lpc.htm
MicroATX microATX Motherboard
Interface Specification
Version 1.0,
December 1997,
Intel Corporation.
http://www.formfactors.org/
developer/specs/microatx/
microatxspecs.htm
PCI PCI Local Bus
Specification
Revision 2.2,
December 18, 1998,
PCI Special Interest Group.
http://www.pcisig.com/
specifications
PCI Bus Power
Management Interface
Specification
Revision 1.1,
December 18, 1998,
PCI Special Interest Group.
http://www.pcisig.com/
specifications
Plug and
Play
Plug and Play BIOS
Specification
Version 1.0a,
May 5, 1994,
Compaq Computer Corporation,
Phoenix Technologies Limited,
and Intel Corporation.
http://www.microsoft.com/
hwdev/tech/PnP/
default.asp
PXE Preboot Execution
Environment
Version 2.1,
September 20, 1999,
Intel Corporation.
ftp://download.intel.com/ial/
wfm/pxespec.pdf
SFX SFX/SFX12V Power
Supply Design Guide
Version 2.0,
May 2001,
Intel Corporation.
http://www.formfactors.org/
developer/specs/sfx/
sfx12v.pdf
continued

Product Description
19
Table 3. Specifications (continued)
Reference
Name
Specification
Title
Version, Revision Date
and Ownership
The information is
available from…
SMBIOS System Management
BIOS
Version 2.3.1,
March 16, 1999,
American Megatrends
Incorporated,
Award Software International
Incorporated,
Compaq Computer Corporation,
Dell Computer Corporation,
Hewlett-Packard Company,
Intel Corporation,
International Business Machines
Corporation,
Phoenix Technologies Limited,
and SystemSoft Corporation.
http://www.dmtf.org/
download/standards/
DSP0119.pdf
UHCI Universal Host Controller
Interface Design Guide
Revision 1.1,
March 1996,
Intel Corporation.
http://www.usb.org/
developers/docs.html
USB Universal Serial Bus
Specification
Revision 2.0,
April 27, 2000,
Compaq Computer Corporation,
Hewlett-Packard Company,
Lucent Technologies Inc.,
Intel Corporation,
Microsoft Corporation,
NEC Corporation, and
Koninklijke Philips Electronics
N.V.
http://www.usb.org/
developers/docs.html
WfM Wired for Management
Baseline
Version 2.0,
December 18, 1998,
Intel Corporation.
http://www.intel.com/labs/
manage/wfm/
wfmspecs.htm

Intel Desktop Board D845GLVA Technical Product Specification
20
1.6 Processor
CAUTION
Use only the processors listed below. Use of unsupported processors can damage the board, the
processor, and the power supply. See Intel’s World Wide Web site for the most up-to-date list of
supported processors for this board.
The board provides an mPGA478 processor socket. Table 4 lists the supported processors. All
supported onboard memory can be cached. See the processor’s data sheet for cachability limits.
Table 4. Supported Processors
Processor Family Designation System Bus Frequency L2 Cache Size
Pentium®4 processor 2.60, 2.50, 2.40, 2.20, 2A,
1.80A, and 1.60A GHz
400 MHz 512 KB
Pentium 4 processor 2, 1.90, 1.80, 1.70, 1.60,
1.50, and 1.40 GHz
400 MHz 256 KB
Celeron®processor 2.2, 2.1, 2.0, 1.80, and
1.70 GHz
400 MHz 128 KB
 INTEGRATOR’S NOTES
• Use only ATX12V- or SFX12V-compliant power supplies with the board. ATX12V and
SFX12V power supplies have an additional power lead that provides required supplemental
power for the processor. Always connect the 20-pin and 4-pin leads of ATX12V and SFX12V
power supplies to the corresponding connectors, otherwise the board will not boot.
• Do not use a standard ATX power supply. The board will not boot with a standard ATX
power supply.
For information about Refer to
Processor support Section 1.3, page 16
Power supply connectors Section 2.8.2.2, page 50
