Intel SBC-776 User manual

SBC-776
Full-sizedIntelFC-370PentiumIIICPU
CardwithIntel815Echipset,Dual LAN,
Audio,SCSI,LCD &4USB.

CopyrightNotice
This document is copyrighted, 2001. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
The material is this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
PartNo. 2047776000 SBC-776 1st. Edition
Printed in Taiwan May., 2001

Acknowledgments
All other product names or trademarks are properties of their
respective owners.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium III are trademarks of Intel Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.RTL is
atrademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.

AMessagetotheCustomer
AAEONCustomerServices
Each and every AAEON product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new AAEON equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name AAEON has
come to be known.
Your satisfaction is our primary concern. Here is a guide to
AAEON's customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your AAEON products. In fact, most problems
reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from AAEON
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installa-
tion and operation of any of our products.

Product Warranty
AAEON warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
two years from the date of shipment.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel autho-
rized by AAEON, or which have been subject to misuse, abuse,
accident or improper installation. AAEON assumes no liability
under the terms of this warranty as a consequence of such events.
Because of AAEON's high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If an AAEON product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU type and speed, AAEON products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair
and Replacement Order Card and a photocopy proof of pur-
chase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.

• 1floppy disk drive interfacecable (34-pin, pitch 2.0mm)
• 1IDEharddiskdrivecable (40-pin, pitch 2.54mm)
• 1parallelport (26-25-pin, pitch 2.0mm) and serial port (10-9pin,
pitch2.0mm)adapterkit.
• 1 bag of screws and miscellaneous parts
If any of these items are missing or damaged, contact your distribu-
tor or sales representative immediately.
Packinglist
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1SBC-776Half-sizeSingleBoardComputerCard
• 1Quick Installation Guide
• 1 Support CD contains the followings:
-- User's Manual (this manual in PDF file)
-- Ethernet driver and utilities
--VGA driver and utilities
-- Audio driver and utilities

http://www.aaeon.com
Notice
DearCustomer,
Thank you for purchasing the SBC-776 board. This user's
manual is designed to help you to get the most out of the SBC-776,
please read it thoroughly before you install and use the board. The
product that you have purchased comes with an two-year limited
warranty, but AAEON will not be responsible for misuse of the
product. Therefore, we strongly urge you to first read the manual
before using the product.
To receive the latest version of the user manual, please visit our
Web site at:
Http:\\WWW.AAEON.COM

Contents
Chapter 1: General Information.........................................1
Introduction.......................................................2
Features.................................................................................... 3
Specifications ........................................................................... 4
Board layout ............................................................................. 7
Boarddimensions ..................................................................... 8
Chapter2: Installation ..........................................................9
Safety Precautions...........................................................10
Removing the CPU..................................................10
Installing the CPU............................................................... 11
Installing SDRAM...................................................12
Jumpers..............................................................13
Connectors ..............................................................................14

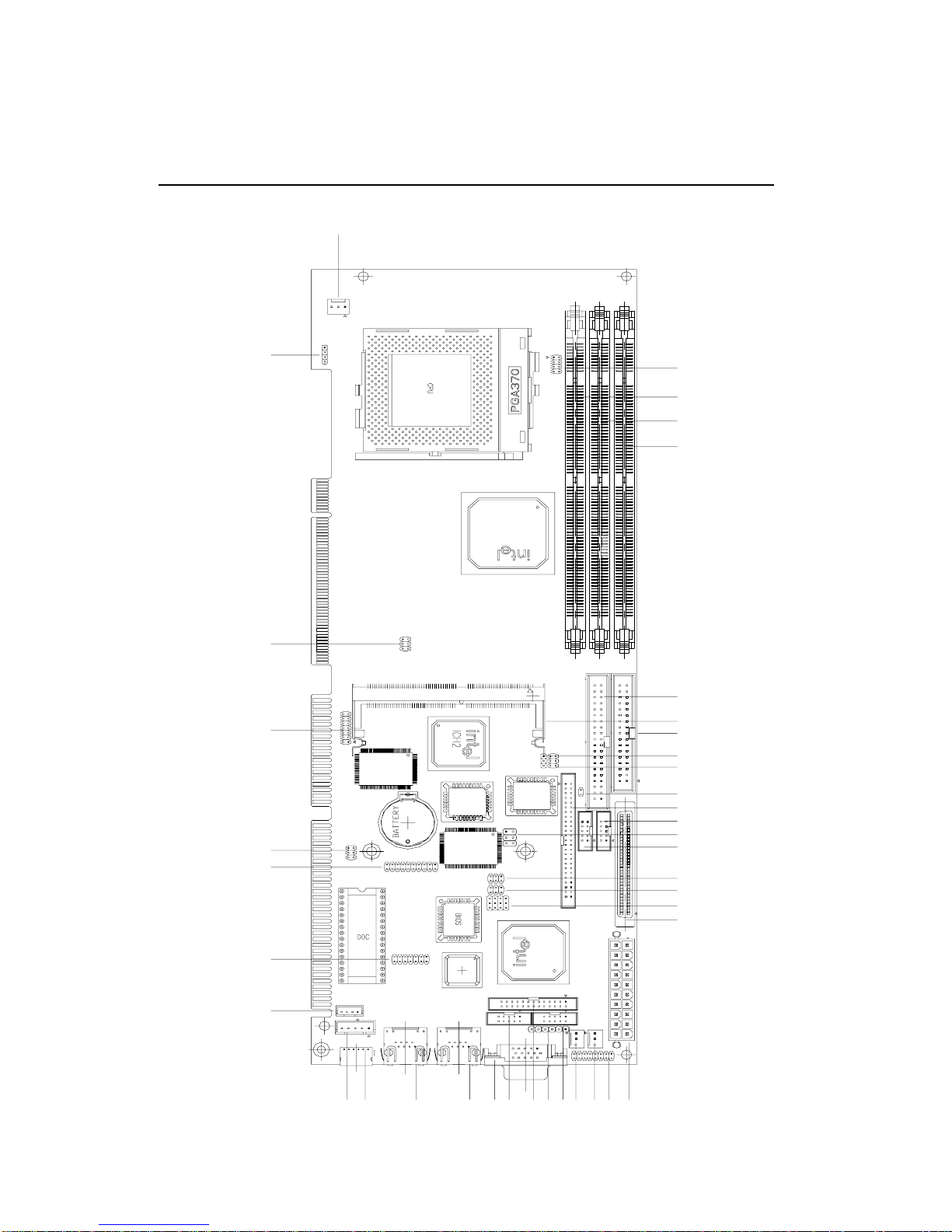

Locating Jumpers and Connectors............................................15

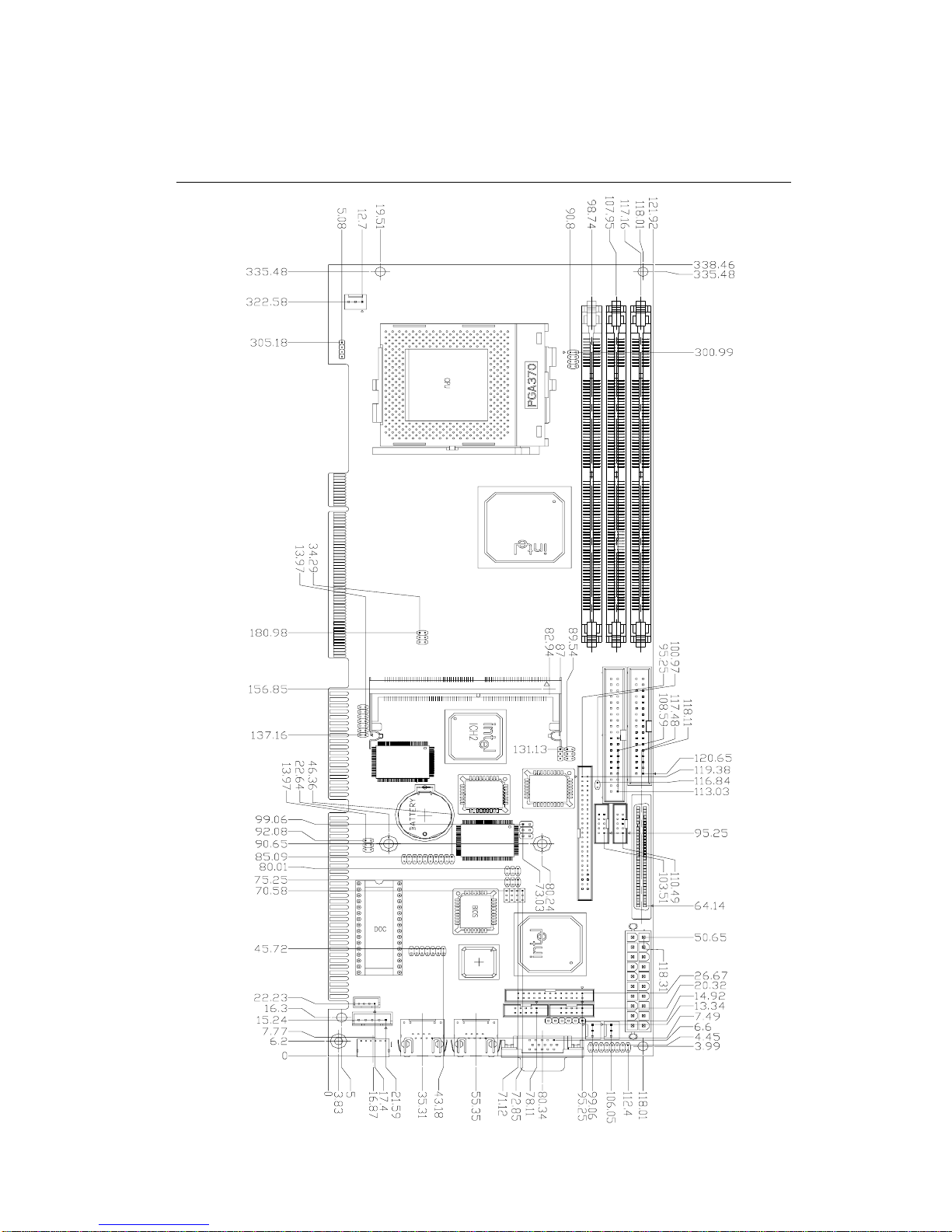

Mechanical Drawing................................................17
VGA or AGP VGA Header Select (JP1).................................19
Clear CMOS (JP2) .................................................................19
Watchdog Timer (JP3) ............................................................20
COM2 RS-232/422/485 Setting (JP4)......................................21
DiskOnChip Address Select (JP5).................................... ..22
Function Select Header (JP6) .................................................24
CPU/DIMM Speed Select Header (JP7) ...............................25
LCD Panel's Voltage Setting (JP8) ....................................... 27
COM2 RS-232/422/485 Setting (JP4).....................................28
LCD or VGA Enable Header (JP10) .....................................29
VGA Connector (CN6)...........................................................29
IDE Hard Drive Connector (CN7) .........................................30
USB Connector (CN9, CN10)...............................31
Audio Connector (CN11) ........................................................32
Floppy Drive Connector (CN12).........................................33
PS/2 Keyboard and Mouse Connector(CN13) .......................33
Parallel Port Connector (CN14)..............................................34

COM1 & COM2 Serial Port (CN15, CN16)..........................35
SCSI Connector (CN21) .........................................................36
100Base-Tx Fast Ethernet Connector (CN22, CN20)............37
ATX Power Connector (CN23)..............................38
Speaker/BuzzerConnector (CN24)..........................38
Fan Power Connector (CN25, CN26, CN27)...........................39
LCD Backlight Power Connector (CN28)...............40
TFT LCD Panel Connector (CN29)......................40
PS/2 Keyboard Header (CN31)............................41
PS/2 Mouse Header (CN32)................................41
Chapter 3: Award BIOS Setup...........................................42
Starting setup..................................................................43
Setup keys.......................................................................44
Getting help ......................................................................... 45
Main setup menu .....................................................................46
Standard CMOS setup ............................................................48
Advanced BIOS features........................................................53
Advanced CHIPSET features ................................................58
Integrated Peripherals...............................................61
Power management setup.......................................................67
PNP/PCI congfiguration setup................................................72
PC Health Status......................................................74
Frequency/Voltage Control........................................75
Load Fail-Safe Defaults............................................76
Load Optimized Defaults..........................................77
Set Supervisor Password.......................................78
Set User Password...............................................79
Save and Exit Setup............................................80
Exit & Save......................................................81

Chapter 4: Drivers and Utilities .......................................82
Installing Drivers Attention Notice....................................83
Software Installation Utilities........................................85
Intel 82562ET LAN Driver............................................86
Advansys 38C0800 SCSI Driver............................................89
Intel 82559ER LAN Driver...........................................91
VGA Driver...............................................................93
Ultra ATA Storage Driver................................................94
Audio Driver............................................................95

Chapter 1 General Information 1
1
General
Information
This chapter gives background
information of the mainboard.
Sections Include:
• Board Specifications
• Layout and Dimensions
CHAPTER

2SBC-776 User Manual
Introduction
TheSBC-776 is an all-in-one Single BoardComputer(SBC) capable
of handling the Intel Celeron 300~766MHz (with system bus
frequenciesof 66MHz) and Pentium III500~850 MHz (with system
busfrequenciesof 100MHz). Reliability, performance,flexibilityare
essential qualities for SBC's and SBC-776 offers all of these.
Onboard is the versatile Intel 815E chipset, controlling LAN, LCD,
and AUDIO. The VGA has a display memory size of 4 MB, with
resolutions up to 1024 x 768 at 256K. Ethernet connections can be
easily carried out through two RJ-45 connectors.
Thisfull-sized SBC supports M-SystemsDiskOnChip 2000 family
of flash disk products that are small, plug and play, solid state disks
in a standard 32-pin DIP package with capabilities ranging from
8MB to 288MB. There are also three 168-pin DIMM sockets
providing a maximum of 512MB. A compact flash connector is
provided on the solder side of the board.
The additional Advansys ASC38C0800, Ultra II Wide SCSI coordi-
nates up to 15 devices that are simultaneously connected to your
mainboard. Connection with the onboard chipset is made through
a 68-pin SCSI connector.
SBC-776 supports two IDE devices, two floppy disks, four USB
ports, two serial ports that can be configured as COM1, COM2,
COM3 and COM4. The single bidirectional parallel port can
support SPP, ECP and EPP modes. The standard ATX power
connector enables this full-sized SBC to be operated without any
backplane if necessary.

Chapter 1 General Information 3
Features
• SupportsIntel Celeron /Pentium IIIFC-370 CPUs
• High Speed AGP 2X for VGA function onboard
(Intel 815E built in)
• Two 10/100 Base-T FastEthernet (Intel 815 E builtinand Intel 82559ER)
• Supports H/W status monitoring
• Integrated AC-97 2.1 SoundBlaster compatible PCI 3D Audio
• Onboard Intel 815E controller supports 18/36-bit TFT panel
• Supports Compact Flash Memory
• Four USB ports onboard
• Two COM ports onboard
• Ultra II Wide SCSI interface onboard
• Supports DiskOnChip

4SBC-776 User Manual
Standard LPX-size SBC functions
•CPU:FC-370 PentiumIII(Coppermine),Celeron,andcompatible CPUs
(With system bus frequencies of 66/100/133MHz).
• CPUsocket: Intel Socket 370
•Businterface: PICMGCompliant
•BIOS:Award4 MB Flash BIOS
•Chipset:Intel815E
• I/Ochipset: Winbond W83627HF. Fully 16-bit I/O decoded
•ISAbusinterface: WinbondW83626 LPCtoISAbridge Full ISA bus
function except master mode support
• Memory : Onboard three 168 pins DIMM socket supports up to
512Mbytes SDRAM (PC-133 SDRAM supported).
• EnhancedIDE:Supports two IDE channel. Support Ultra DMA/100
mode with data transfer rate of 100MB/sec.
• FDDinterface: Supports two floppy disk drives, 5.25" (360KB and
1.2MB) and/or 3.5" (720KB,1.44MB,and2.88MB).
• Parallelport: One bi-directional parallel ports. Supports SPP, ECP, and
EPP modes.
• Serialport: OneRS-232 and one RS-232/422/485 serial port. Ports canbe
configuredas COM1, COM2, COM3, COM4,or disabled individually
and of which one and be configured as RS-232/422/485 (COM2).
(16C550 equivalent).
• KB/Mouseconnector : 6-pin mini-DIN connector supports PC/AT
keyboard and PS/2 mouse and wake on KBD function.
• USB connectors: 10-pin onboard connector supports four USB ports.
• Battery: Lithium battery for data retention
• Watchdogtimer: Can generate a system reset, IRQ15,or NMI.
Software selectable time-out interval (1 sec. ~ 255 min., 1 sec./step or
1 min./step)
• DMA:7 DMA channels (8237 equivalent)
Specifications

Chapter 1 General Information 5
•Interrupt: 15interruptlevels (8259 equivalent)
•Powermanagement: Supports ATX power supply. I/O peripheral
support power saving and doze/standby/suspend modes. APM 1.2
compliant.
• H/Wstatusmonitoring:Embedded in W83267HF supports power,
supply voltages, and temperature monitoring.
Flat Panel/CRT Interface
•Chipset: embedded In Intel 815E
•ChipsetoutputVGAsignal: AGP4X
•Displaymemory:Sharesystemmemory 4MB SDRAM (Max)
• Displaytype: Supports non-interlaced CRT and up to 18/36 bit LCD(TFT,
LCD, only). Can display both CRT and Flat Panel simultaneously.
•Resolution: Upto1024x 768 @ 256 K colors
Audio Interface
•Chipset:Intel815E
•Audiointerface: One 14 pinheader(2.00mm)
• Codec: ALC200
Ethernet Interface
•Chipset: Intel 815E embeddedinICH2andIntel82559ER
•Ethernetinterface : 82559ER does not support WOL and AOL
82562ET support WOL and do not support AOL
82562EMsupportWOLandAOL. 776offers82559ERand82562ETon
board.
Compact Flash socket onboard
• Compact flash connector onboard support type 2 CFD

6SBC-776 User Manual
Ultra Wide II SCSI Interface
•Chipset: AdvanSysASC38C0800
•Connector:68-pin internal
•Termination: Auto termination
SSD Interface
• One 32-pin DIP socket supports M-Systems DiskOnChip 2000 series
Mechanical and environmental
•Powersupplyvoltage: ATX power supply
•Operatingtemperature:32to140o F (0 to 60oC)
•Boardsize:13.3"(L)x4.8"(W)(338mmx122mm)
•Weight:1.2 lb. (0.3Kg)

Chapter 1 General Information 7
Board Layout
W
W83977F-A
CN26
CN33
CN11
CN32
CN34 CN15
JP6
CN25 CN27 CN23 CN14 CN16 CN6 CN20
JP9
CN21
JP4
JP3
CN10
CN30
CN9
CN29
CN28
JP8
JP2
CN12
CN5
CN7
CN22 CN13 CN31
JP5
JP1
JP10
JP7
CN4
CN3
CN2
CN24
inbond

8SBC-776 User Manual
Board Dimensions
W
W83977F-A
inbond

SBC-776 Chapter 2 9
2
Installation
This chapter describes how to set up the
main board hardware, including instruc-
tions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation proce-
dure.
CHAPTER

SBC-776
10 SBC-776 Manual BC-599/596
Safetyprecautions
Warning! Alwayscompletely disconnectthepower cordfrom
yourchassis wheneveryouare workingon it.Do
notmake connectionswhile thepoweris on
becausesensitiveelectroniccomponentscanbe
damagedby thesuddenrush ofpower.Only
experiencedelectronicspersonnelshouldopenthe
PCchassis.
Caution! Always ground yourself to remove any static charge
before touching the CPU card. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface
or in a static-shielded bag when they are not in the
chassis.
RemovingtheCPU
TheSBC-776 all-in-one CPU modulesupports most Pentium III/
Celeron or 586 CPUs. The system's performance depends on the
CPU you choose. You can install or upgrade the CPU in the board's
PGA socket by following the procedures outlined below. If your
system has an existing CPU, you need to remove it before installing
thenew CPU.
Removing a CPU
1. Disconnect power from the chassis, and unplug all connections
to the CPU card. Then, remove the CPU card from the chassis
by following the instructions in the user's manual for your
chassis.
2. Lift the CPU out of the PGA socket. The old chip may be
difficult to remove. You may find spray chip lubricant, designed
for pin-grid-array (PGA) devices, and a chip puller helpful.
These are available at electronics hobbyists' supply stores.
