Intelix AvoCat Series User manual

Specifications
Specifications subject to change without notice.
Maximum Distance* 2,500 feet
Output Impedance 600 ohms, balanced
Bandwidth 20 Hz to 20 kHz
Isolation 500 V
Nominal Output Level 0 dBu - (+16 dBu pk)
Common Mode Rejection Greater than 50 dB
Power 24 VAC; system is powered on the receive end
Power Connector DIN connector on receive balun
Unshielded Twisted Pair Maximum capacitance: 20 pf/foot
Cabling Specifications Impedance: 100 ohms @ 1 MHz
(24 gauge or lower solid Attenuation: 6.6 dB/1000 ft. @ 1 MHz
copper) Cat 5, Cat 5e, Cat 6, Cat 7 compatible
Audio Connectors Receive unit: one (1) 3-pin screw terminal to one (1) RJ45
Send unit: one (1) female XLR to one (1) RJ45
Phantom Power 24V
System Gain 0 to 60 dB
RJ45 Pinout Audio: 1 & 2, pair 2
Power: 4 & 5, pair 1
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Enclosure Black plastic
Dimensions Receive unit: 4.3” x 2.5” x 1.0”
Send unit: 4.0” x 1.4” x 1.7”
Shipping Weight 2.0 lbs (3.2 oz.)
Ordering Information AVO-MIC-WP-F: includes send balun, receive balun, and power
supply
Warranty 2 years
*Distances and audio quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix
specifications are based on straight-through cabling with standard-grade Cat 5.
Intelix AVO-MIC-WP-F Microphone Balun Set
Installation ManualInstallation Manual
Installation ManualInstallation Manual
Installation Manual
The Intelix AVO-MIC-WP-F microphone balun set transmits a preamplified microphone
signal and phantom power up to 2,500 feet over standard structured cabling, such as
Cat 5. The AVO-MIC-WP-F balun set includes a decora-style wallplate send balun,
rack-mountable receive balun, and a power supply; the set is powered on the receive end.
The AVO-MIC-WP-F balun set is ideal for corporate A/V, churches, schools, auditoriums,
and almost any other situation involving microphone level audio signal distribution.
The Intelix AvoCat Series of baluns is the ideal solution for sending audio and video over
structured cabling. When signal quality matters, choose Intelix.
AvoCat
Series
To install an AVO-MIC-WP-F balun, perform the following steps:
1. Identify the pin configuration of the baluns. Two (2) twisted pairs are required:
one for audio and one for power. The pin configuration follows the EIA/TIA
568A/B standard. Please ensure that wiring is straight-through.
2. Connect the AVO-MIC-WP-F send balun to the audio output of the audio source
using an audio cable.
3. Connect the AVO-MIC-WP-F receive balun to the audio input of the audio
destination using an audio cable.
4. Complete the connection between the two baluns using standard twisted pair
cable, such as Cat 5. Verify the Cat 5 is terminated with RJ45 connectors on both
ends which conform to the EIA/TIA 568A or 568A crimp standards. Ensure that
there are no split pairs or taps.
5. Connect the included power supply to the wallplate send balun.
6. Power-on the audio equipment.
7. On the receive balun, EQ the balun pair by selecting the overal distance of the
system. Set the EQ switch to either less than or equal to 1,500 feet or greater than
1,500 feet.
8. On the send balun, select whether phantom power is engaged or not (phantom
power is on when the switch is down). Then adjust the overall system gain
between 0 and 60 dB.
Installation
Caution: Do not attempt to open the balun housing. There are no user-serviceable parts
inside the AVO-MIC-WP-F. Opening the unit will void your warranty.
Caution: Do not mount the balun over equipment ventilation openings. Covering the
openings may cause the equipment to overheat.
Caution: Do not connect the balun to a telecommunication outlet wired to
unrelated equipment. Making such a connection may damage the
equipment and/or balun. Please ensure all wiring is “straight-through.”
Contact Information
Intelix
2222 Pleasant View Road
Middleton, WI 53562
Toll-free: 866-4-MATMIX
Phone: 608-831-0880
Fax: 608-831-1833
www.intelix.com
[email protected]
AVO-MIC-WP-F
Troubleshooting
If your equipment malfunctions with AVO-MIC-WP-F baluns in place, follow the trouble-
shooting procedures below:
1. Perform diagnostics on your audio equipment by following the manufacturer’s
instructions.
2. Check all the connections and the structured cabling system. Verify the RJ45 crimp
pattern conforms to either EIA/TIA 568A or 568B standards.
3. Check the pin configuration on the structured cable.
4. The maximum operational distances over which the AVO-MIC-WP-F can be
transmitted is dependant on the equipment used and cable. Ensure that the
maximum recommended operational distances have not been exceeded.
5. Check that only twisted pair patch cords are being used.
6. Replace the AVO-MIC-WP-F balun with another AVO-MIC-WP-F that is known
to be working.
7. If you still cannot diagnose the problem, contact Intelix for support.
Frequently Asked Questions
How do I expose the individual pairs in Cat 5 cabling?
There is no single method when exposing the four individual pairs in twisted pair cabling,
such as Cat 5 and Cat 6; however, it does help to have a cable stripping tool designed to strip
the cable jacket/insulation.
Begin by stripping back the cable’s outer jacket/insulation about an inch (or more depending
on whether multiple baluns will be connected to the pairs of a single cable) so that the
internal wires are exposed. Be careful not to cut the internal wires when stripping the insula-
tion/jacket. Eight twisted wires and a string should now be visible; the string is unnecessary
and may be removed. These eight wires, which when combined form four pairs, connect
directly to the baluns. Typical protocol pairs similar colors; the important thing is to verify the
same color-coded pairs are used on each end.
How do I crimp an unshielded RJ45 connector onto Cat 5?
Crimping an RJ45 connector onto Cat 5 is a fairly straight forward task, assuming you have
the proper tools. Keep in mind that baluns require either the EIA/TIA 568A or 568B crimp
pattern, which are the industry standards for networking.
1. First, strip a portion of the insulation about 3/4" to expose the four twisted pairs.
2. Next, untwist the wires and fan them out so that they match either EIA/TIA 568A or
568B pattern.
3. Evenly trim the wires to about 1/2". Most RJ45 crimp tools feature a built-in wire
trimmer.
4. Insert the trimmed wires into the RJ45 connector so that each wire is in its individual
slot. Verify each wire is completely inserted.
5. Finally, insert the RJ45 connector into the crimp tool and squeeze firmly.
6. Repeat the above steps on the other end of the Cat 5 cable and verify pinout is
identical on each end.
System Drawing: A podium microphone is routed to a remote receiver via an
Intelix AVO-MIC-WP-F balun set. The baluns transmit the signal over 2,500 feet of
standard Cat 5 cabling. The system is powered on the receive end.

This manual suits for next models

1

Popular Microphone manuals by other brands

Audio Technica AT2050 Feature overview

Audio Technica

Audio Technica AT2050 Feature overview

GADGETMONSTER VLOGGING BUG KIT manual

GADGETMONSTER

GADGETMONSTER VLOGGING BUG KIT manual

Hayner-Seek J10 Specification and operating instructions

Hayner-Seek

Hayner-Seek J10 Specification and operating instructions

AKG C4500 BC User instructions

AKG

AKG C4500 BC User instructions

Chiayo GMW-216 Operation manual

Chiayo

Chiayo GMW-216 Operation manual

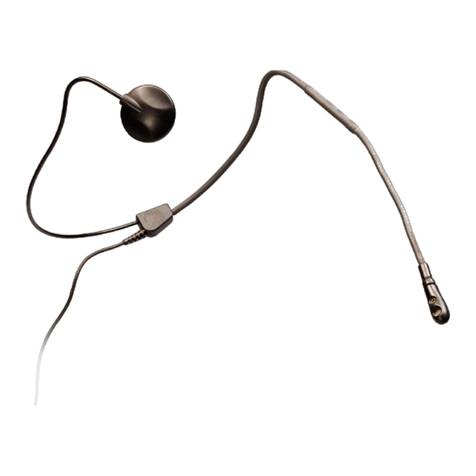

Superlux E 105 user guide

Superlux

Superlux E 105 user guide

Mark IV Electro-Voice 903E user guide

Mark IV

Mark IV Electro-Voice 903E user guide

Samson Q2 Specification sheet

Samson

Samson Q2 Specification sheet

Electro-Voice US621L quick start guide

Electro-Voice

Electro-Voice US621L quick start guide

Audio Technica ES915 Installation and operation

Audio Technica

Audio Technica ES915 Installation and operation

Audio Technica ATR2100x-USB quick start guide

Audio Technica

Audio Technica ATR2100x-USB quick start guide

Paso Sound Products B701-MG Instructions for use

Paso Sound Products

Paso Sound Products B701-MG Instructions for use

Altronic D 0986 operating instructions

Altronic

Altronic D 0986 operating instructions

Shure SM11 user guide

Shure

Shure SM11 user guide

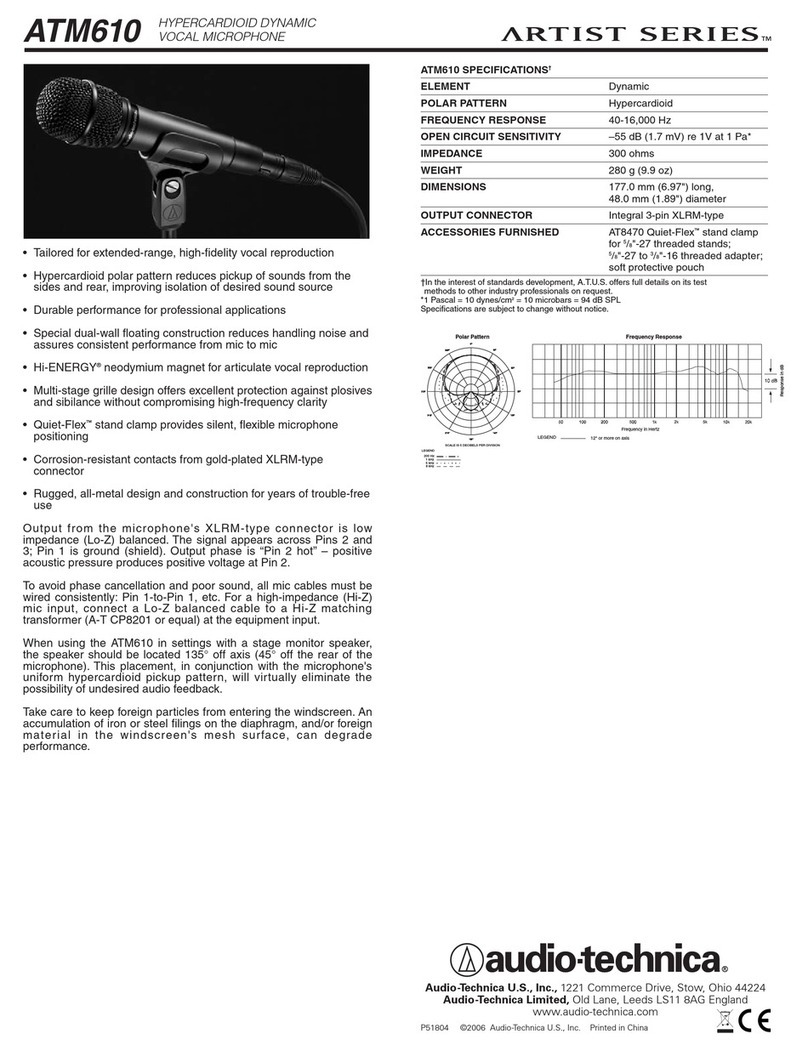

Audio Technica ATM610 Specifications
