Shure SM11 User manual

Model SM11 User Guide
Dynamic Lavalier Microphone
©2005, Shure Incorporated
27C3077 (Rev. 12)
Printed in U.S.A.
GENERAL
The Shure Model SM11 is a miniature dynamic lavalier
microphone designed for use in television broadcasting (on
camera), for sound reinforcement, in certain radio and motion
picture applications, and similar uses where a small,
professional-quality, microphone is required. The SM11 has an
omnidirectional pickup pattern, and its frequency response is
optimized for lavalier use. The microphone is supplied with a tie
clasp assembly, tie tack assembly, connector belt clip, and
zippered carrying/storage bag. An optional kit for mounting the
SM11 on various musical instruments is available as Shure Model
RK279.
Features
• Frequency response optimized for lavalier use. Acoustically
matches most stand- or desk-mounted microphones
• Small and lightweight for unobtrusive, virtually unseen operation
• Smooth exterior and recessed grille screen minimize clothing
noise
• Rugged aluminum case construction
• Extremely flexible long-life cable
• Two mounting options–tie clasp or tie tack
• Convenient, secure belt clip attaches connector to belt or clothing
SPECIFICATIONS
Type
Dynamic
Frequency Response
50 to 15,000 Hz (see Figure 1)
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Omnidirectional
Impedance
Microphone rating impedance is 150 ohms (200 ohms actual)
for connection to microphone inputs rated at 19 to 300 ohms
Output Level (at 1,000 Hz)
Open Circuit Voltage.......... -64 dBV/Pa (0.60 mV)
(1 Pa = 94 dB SPL)
Polarity
Positive pressure on diaphragm produces positive voltage on
pin 2 with respect to pin 3
Hum Pickup
35 dB equivalent SPL in a 1 millioersted field
Cable
Non-detachable, 1.2 m (48 in.), two-conductor, shielded,
plastic-covered
Connector
Professional three-pin audio (XLR).
Case
Aluminum with gray enamel finish
Dimensions
See Figure 2
OVERALL DIMENSIONS
FIGURE 2
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
ÑÑÑÑÑÑÑÑÑÑÑ
ÑÑÑÑÑÑÑÑÑÑÑ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
14.29 mm
(
9
/
16
in.)
38.1 mm
(1
1
/
2
in.)
CABLE:
1219 mm
(48 in.) 83.5 mm
(3
9
/
32
in.)

Net Weight
7.9 grams (0.28 oz), less cable and connector
CERTIFICATION
Eligible to bear CE Marking. Conforms to European EMC Direc-
tive 89/336/EEC. Meets applicable tests and performance criteria
in European Standard EN55103 (1996) parts 1 and 2, for residen-
tial (E1) and light industrial (E2) environments.

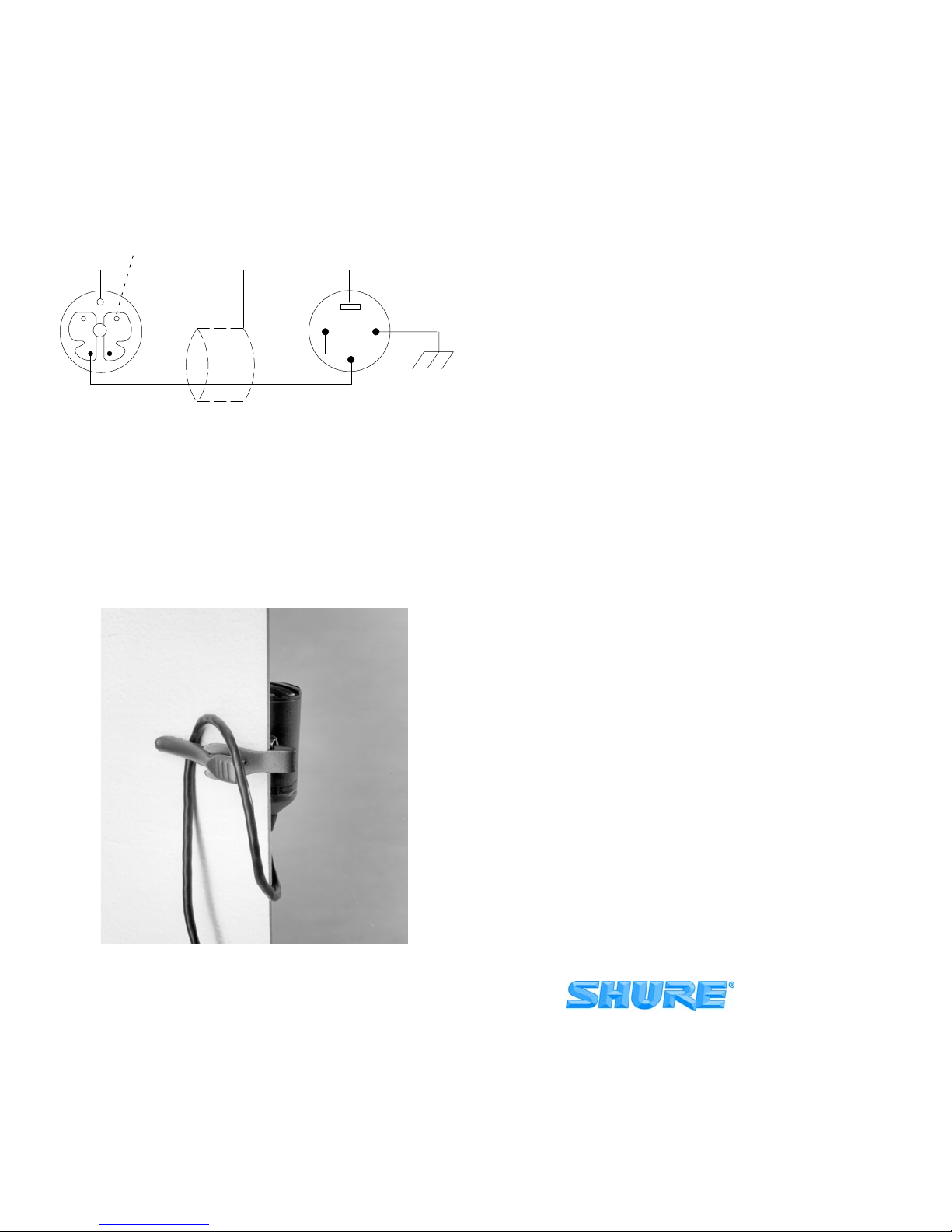

INTERNAL CONNECTIONS
FIGURE 3
INSTALLATION
Tie Clasp Assembly
Insert the SM11 in the tie clasp and anchor the cable as shown
in Figure 4. Affix the clasp to a tie, shirt, or blouse. Note that the
microphone can be swiveled 360°in its holder for left, right, or ver-
tical (“pen clip”) use.
CABLE ANCHORING
FIGURE 4
Tie Tack Assembly
Remove the clutch from the tie tack assembly and insert the tie
tack holder in the tie (or through the tie and shirt if desired). Affix
the clutch to the pin of the tie tack holder. Insert the SM11 in the tie
tack holder.
Connector and Belt Clip
With the SM11 installed in one of the assemblies described
above, insert the connector in the connector belt clip and fasten the
belt clip to the user's belt, waistband or other clothing. Excess mi-
crophone cable can be inserted in the user's pocket or tucked into
the waistband.
ARCHITECTS' SPECIFICATIONS
The microphone shall be a moving–coil (dynamic) type with a
frequency response of 50 to 15,000 Hz. The microphone shall
have an omnidirectional polar characteristic. The microphone shall
be low impedance with a rated impedance of 150 ohms for connec-
tion to microphone inputs rated at 19 to 300 ohms. The microphone
output shall be –64 dB where 0 dB = 1 milliwatt per 10 microbars.
The microphone shall be a lavalier type, and shall be provided
with a 1.2m (48 in.) non–detachable, two–conductor, shielded ca-
ble with a professional, three–pin audio connector designed to
mate with Cannon XL series, Switchcraft A3 (Q.G.) series or equiv-
alent connectors. The microphone shall also be provided with a tie
clasp assembly, tie tack assembly, connector belt clip, and carry-
ing/storage bag.
The overall dimensions of the microphone shall be 33.5 mm
(1 – 5/16 in.) in length and 14.7 mm (9/16 in.) in diameter.
The microphone shall be the Shure Model SM11 or equivalent.
ACCESSORIES AND REPLACEMENT PARTS
The following furnished accessories and replacement parts can
be ordered through your Authorized Shure Professional Products
Dealer or from Shure Incorporated.
Tie Clasp Assembly .................................................RK203TC
Tie Tack Assembly..................................................... 90A2384
Connector Belt Clip................................................. RK200BC
Carrying/Storage Bag ................................................... 26A13
Cartridge........................................................................... R99
Cable .................................................................................C91
Instrument Mounting Kit................................................ RK279
For additional service or parts information, please contact
Shure's Service Department at 1-800-516-2525. Outside the Unit-
ed States, please contact your authorized Shure Service Center.
SHIELD
RED
BLACK
CARTRIDGE CONNECTOR
RED CODED TERMINAL
YELLOW
1
3
2
