Inter-m IP-1015CS User manual

Operation
Manual
IP-1015CS NETWORK CEILING SPEAKER

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of elec-
tric shock to persons.
This symbol is intended to alert the user to the presence of im-
portant operation and maintenance (servicing) instructions in
the literature accompanying the appliance.
Caution: These servicing instructions are for use by qualified service person-
nel only. To reduce the risk of electric shock, do not any perform
any servicing other than that contained in the operating instructions
unless you are qualified to do so.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette fiche
polarisée avec un prolongateur, une prise de courant on une
autre sortie de courant, sauf si les lames peuvent étre insérées
à fond sans en laisser aucune partie à découvert.
Warning
*Do not install this equipment in a confined space such as a book case or
similar unit.
*The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such vases, shall be placed on the apparatus.
*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE
FOLLOWING-WATER AND MOISTURE: Unit should not be used near
water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc). Care should be taken so than
objects do not fall and liquids are not spilled into the enclosure through
openings.”
*The wired LAN hub providing power over the Ethernet (PoE) in accordance
with IEEE 802.3.af and IEEE 802.3.at shall be a UL Listed device with the
output evaluated as a Limited Power Source as defined in UL60950-1 or
PS2 as defined in UL62368-1.
NOTE : This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a com-
mercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in ac-
cordance with the instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
* It can be heated up if you use this product in closed box or ill-ventilated place.

Contents
Welcome .............................................................................4
Unpacking ...........................................................................4
Installation
Environment.........................................................................5
Important Safety Instructions ...............................................5
Features ..............................................................................7
Contents and Accessories ..................................................7
Part Names and Function ...................................................8
Specification......................................................................10
Installation Guide ..............................................................12
Service
Procedures ........................................................................13
Schematic ..........................................................................13
Parts List............................................................................13
Warranty ...............................................................................13

4
IP-1015CS(NETWORK CEILING SPEAKER)
4
Unpacking
Please take a few minutes to read this manual to famil-
iarize yourself with important information regarding in-
stallation, product features, and operation.
As with most electronic devices, ORIGINAL PACKAG-
ING (OR EQUAL) IS REQUIRED in the unlikely event
that the product needs to be returned for servicing.
Welcome
A personal welcome to you from the management
and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to
providing excellent products with inherently good
value, and we are delighted you have purchased
one of our products.
We sincerely trust this product will provide years
of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make
things right.
Welcome to Inter-M, and thank you for becoming
part of our worldwide extended family!

5
IP-1015CS(NETWORK CEILING SPEAKER)
5
Installation
Environment
Never place this product in an environment which could alter
its performance or reduce its service life. Such environments
usually include high levels of heat, dust, moisture, and vibra-
tion.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or ground-
ing-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for re-
placement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the man-
ufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when un-
used for long periods of time.
S3125A

6
IP-1015CS(NETWORK CEILING SPEAKER)
6
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power
Supply Unit marked “Class 2” or “LPS” or “PS2” and rated
from PoE (44-57 Vdc), 12.95 W or PoE+ (50-57 Vdc), 25.5 W.
16. To prevent injury, this apparatus must be securely attached
to the Wall/ceiling in accordance with the installation in-
structions.
- AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND VIBRATION
Keep the unit away from locations where it is likely to be ex-
posed to high temperatures or humidity-such as near radia-
tors, stoves, etc. Also avoid locations which are subject to
excessive dust accumulation, or to vibration that could cause
mechanical damage.
- AVOID PHYSICAL SHOCKS
Strong physical shocks to the unit may cause damage. Handle
the unit with care.
- DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR
MODIFICATIONS YOURSELF
This product contains no user-serviceable parts. Refer all
maintenance to qualified Inter-M service personnel. Opening
the case and/or tampering with internal circuitry voids the war-
ranty.
- ALWAYS POWER OFF BEFORE MAKING CONNECTIONS
Always turn the AC mains OFF before connecting or discon-
necting cables. This is important to prevent damage to the unit
itself as well as other connected equipment.
- HANDLE CABLES CAREFULLY
Always plug and unplug cables (including the AC mains power
cord) by gripping the connector, not the cord.
- CLEAN WITH A SOFT DRY CLOTH
Never use solvents such as benzine or paint thinner to clean
the unit. Wipe clean with a soft, dry cloth.

7
IP-1015CS(NETWORK CEILING SPEAKER)
7
Features
■
■All-in-one speaker system
■
■2 Way 8″UNIT
■
■Embedded Class-D Amplifier
■
■Supports PoE+ (IEEE 802.3at Type2 class4)
■
■WAV,MP3 file playback
■
■Audio Line Output
■
■Contact Input/Output
■
■10/100 Base-T ethernet (Default IP : 192.168.1.99)
■
■Micro SD card slot
■
■VoIP, BGM, Scheduler, TTS
■
■Internal User Memory 1GB
1. IP-1015CS : 1EA
2. Operation Manual: 1EA
3. 3.5mm 3P Euro Block : 1EA
4. 3.5mm 4P Euro Block : 1EA
Contents and Accessories

8
IP-1015CS(NETWORK CEILING SPEAKER)
8
1 2 3 45
76 8

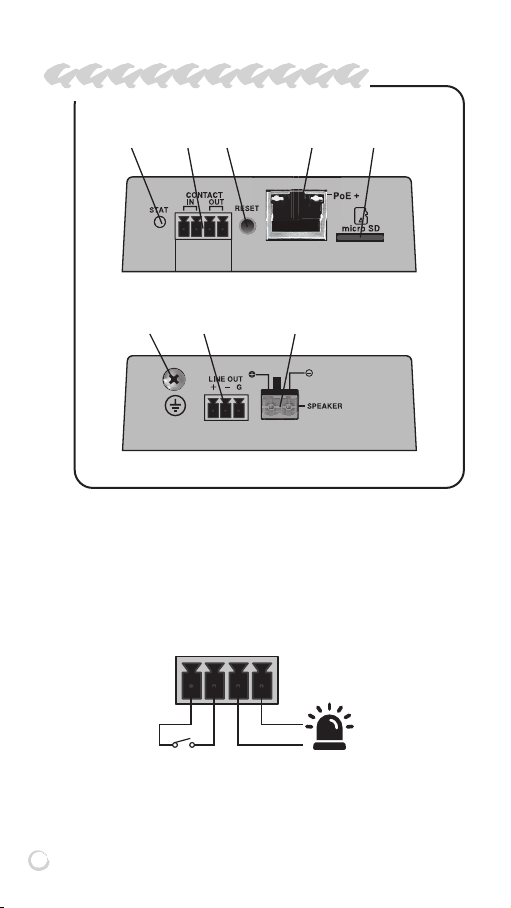

Part Names and Function
1. STATUS LED
In normal operation, the green LED flashes every 0.5 seconds.
2. Contact closure I/O terminal
CONTACT IN: Input for contact closure (Dry contact)
CONTACT OUT: Output for contact closure
(N.O : Normally Open, Dry contact)
GND SIG

9
IP-1015CS(NETWORK CEILING SPEAKER)
9
3. Factory reset switch
This switch initializes the device settings.
When pressed for more than 20 seconds, the STATUS LED
blinks quickly.
Do not remove the power until normal operation (blinks 0.5
seconds).
4. Ethernet port (RJ-45, PoE)
Connect a PoE (Power over Ethernet) switch
Default IP address: 192.168.1.99 (Static)
The recommended Lan cable is 0.15/m cable within 100m
when PoE is used and 0.1/m cable within 100m when
PoE+ is used. The total DC resistance of the Lan cable is
15or less when PoE is used and 10or less when PoE+
is used.
5. Micro SD card slot
Insert a Micro SD card to this slot
6. Ground terminal
This is the terminal used to ground the equipment.
It is highly recommended to make the ground connection as
short as possible.
7. Line Output terminal (3p Euro Block)
Balanced audio output
8. SPEAKER (8Ω) terminal
Connect a speaker to this terminal. Refer to the diagram below
for the connection.
The rated speaker impedance is 8. The speaker which has
less than 8impedance may cause malfunction or damage.

10
IP-1015CS(NETWORK CEILING SPEAKER)
Specification
IP-1015CS
TYPE 2Way 8” Network Ceiling Speaker
Driver
LF 8", V/C : 25.4mm / 8
HF 2", V/C : 13.28mm / 8
Maximum SPL [Cont]
96dB
(PoE 802.3af)
100dB
(PoE+ 802.3at)
Frequency Range 120Hz~20kHz
Nominal
Dispersion
(HxV)
1kHz 90°
4kHz 60°
Enclosure Material : ABS
Amplifier
Rated output power
(8,1kHz sine wave)
3.7W
(PoE 802.3af)
10W
(PoE+ 802.3at)
Mic
Embedded mic
50Hz ~ 16kHz
Line output
Maximum audio output +6dBV ± 3dB
Frequency response 20Hz - 20kHz (+1/-3dB)
THD+N
(20Hz HPF, AES17 LPF) Less than 0.1%
S/N(20Hz HPF,
AES17 LPF, A-WTD) Better than 91dB

11
IP-1015CS(NETWORK CEILING SPEAKER)
IP-1015CS
Contact I/O
Contact Input (1CH) Dry contact
Contact Output (1CH) Dry contact (N.O : Normally Open)
Storage Micro SD Max 32GB
Network
Ethernet 10/100 BASE-TX PoE
General
Power PoE (IEEE 802.3af, IEEE 802.3at)
Connectors Ethernet Jack (RJ-45)
Operating temperature -20~ +50
Power consumption
PoE (IEEE 802.3af) : 44~57 VDC,
Max 12.95W
PoE+ (IEEE 802.3at): 50~57 VDC,
Max 25.5W
Weight (Set) 1.8kg/3.97lb
Dimensions (Set) Φ264(W) x 144(H)mm
10.4(W) x 5.7(H)in
* Design and specification are subject to be changed for the improvement
of product quality without pre notice.

12
IP-1015CS(NETWORK CEILING SPEAKER)
Installation Guide

13
IP-1015CS(NETWORK CEILING SPEAKER)
Service
Procedures
Ensure the problem is not related to operator error, or ex-
ternal system devices, Once it is certain that the problem
is related to the product contact your warranty provider as
described in the warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty
provider.
Parts List
A Parts List is available by contacting your warranty
provider.
Warranty
Warranty terms and conditions vary by country and may not
be the same for all products. Terms and conditions of war-
ranty for a given product may be determined first by locating
the appropriate country which the product was purchased
in, then by locating the product type.
To obtain specific warranty information and available serv-
ice locations contact Inter-M directly or the authorized Inter-
M Distributor for your specific country or region.

NOTE

NOTE

MADE IN KOREA
April 2023 152461
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
INTER-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
