InterTest XtendaCam HD Air User manual
XtendaCam®HD Air
Instruction Manual
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
XtendaCam®HD Air Manual
Page 2of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
Table of Contents
Contact Information.................................................................................................................................2
Introduction:..............................................................................................................................................3
Cautions and warnings........................................................................................................................... 3
Safety Precautions ..............................................................................................................................3
Operational, General Safety Considerations and Precautions ....................................................3
Cautionary Symbols and Symbol Terminology............................................................................... 3
Warnings............................................................................................................................................... 4
Care & Maintenance ...........................................................................................................................4
Disclaimers ...........................................................................................................................................4
Warranty ...................................................................................................................................................4
Copyrights and Rights of Portrait..........................................................................................................5
Registered Trademark Information.......................................................................................................5
System Components .............................................................................................................................. 5
System Setup...........................................................................................................................................7
Connecting to a Wi-Fi Device................................................................................................................8
System Operation................................................................................................................................ 8
Table of Figures.....................................................................................................................................12
Care & Maintenance.............................................................................................................................13
Overall System...................................................................................................................................13
Trouble Shooting...................................................................................................................................13
Returns for Repair or Service..........................................................................................................13
Return Evaluation Procedure ..........................................................................................................13
Parts and Accessories..........................................................................................................................15
Notes .......................................................................................................................................................16
Contact Information
Corporate Headquarters InterTest, Inc.
303 Route 94
Columbia, NJ 07832 USA
Telephone (USA and Canada): 800-535-3626
Telephone (Outside the USA and Canada): +1 908 496 8008
Facsimile: 908-496-8004
www.intertest.com
General Information via Email [email protected]
InterTest, Inc. © 2023 All rights reserved.
XtendaCam®HD Air Manual
Page 3of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
Introduction:
Congratulations on your investment in the XtendaCam®HD Air System. designed specifically for
viewing, illuminating, and recording inaccessible areas in a matter of minutes. The new slender,
lightweight version of the XtendaCam®HD, boasts a High Definition, 1080p30 camera with a 10x
optical zoom lens, in a waterproof housing attached to a motorized tilting mechanism allowing the user
to change the vertical orientation of the camera in a 320-degree range.
The camera system offers an integrated 10x zoom lens with quick auto-focus to capture out of the
way areas safely. Auxiliary lighting is provided by a pair of LED lights that reaches targets up to 20-feet
away. Tilt, zoom, and lighting functions are controlled by removable joystick assembly wirelessly on
the XtendaCam® HD Air poles.
The telescoping XtendaCam®HD Air, is ideal for capturing high quality video/images in difficult to
reach applications, such as Snubber Inspection, bridge structure inspections, transportation
inspections, viewing inaccessible cavities, and viewing over walls, roofs, and around corners. This
system was designed for but not limited to Highways and Bridge Structures, Security/Surveillance,
Law Enforcement, Military, Mines, Refineries and Power Generation Facilities.
Cautions and warnings.
Safety Precautions
This manual covers the XtendaCam®HD Air System, its functions, and use. To ensure safe operation
read this manual before operating the equipment. By doing so, you will become familiar with the
equipment’s capabilities and better understand its functions. Save manual for future reference.
Follow all warnings and instructions in the manual and marked on the equipment.
Operational, General Safety Considerations and Precautions
Always observe the guidelines and precautions that follow.
There are no user-serviceable parts inside the controller. Refer all service to InterTest
Customer Service and Support Group.
IMPORTANT: To ensure operator safety, read and understand this manual before using
the system.
To avoid injury, read and understand the associated documentation of support
components prior to operation. Direct any questions about equipment operation to
InterTest Customer Service and Support Group at 908-496-8008 or via email to
Cautionary Symbols and Symbol Terminology
Table A describes the various symbols that are used in this manual and mounted on the equipment.
The severity level of a potential hazard varies. Refer to for hazard level descriptions.
Table A — Manual and Equipment Safety Symbols
Symbols
Definitions
XtendaCam®HD Air Manual
Page 4of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
WARNING/CAUTION: Risk of electric shock.
WARNING/CAUTION: Refer to instruction manual.
WARNING/CAUTION: Avoid exposure to water and liquids.
WARNING/CAUTION: Avoid eye and skin exposure to UVA Light.
Warnings
Stop operation immediately when any abnormality or defect occurs. Use during an abnormal
condition; such as emitting smoke, burning odors, after damage from dropping, invasion of foreign
objects, etc. may cause fire and/or electrical shock. Contact InterTest Inc for service.
Care & Maintenance
Do not use in proximity to energized electrical equipment
Only use the specified battery.
The system is splashproof but not waterproof. Exercise. caution & do not submerge
Some surfaces may be warm to the touch. Use caution when handling.
Do not tilt the camera head down/forward beyond 90⁰. Internal damage will result .
Disclaimers
InterTest Inc. disclaims any responsibility and shall be held harmless for any damages or losses
uncured by the user with the use of this product. Including the following:
1. Fire, earthquake or any other Act of God. Acts by third parties; misuse by the user, whether
intentional or accidental; use under conditions outside of noted operating range.
2. Malfunction or non-function resulting in indirect, additional or consequential damage including
but not limited to loss of expected income and suspension of business activities.
3. Use not in compliance with this manual’s instructions.
4. Malfunctions resulting from misconnection.
5. Unauthorized repairs or modifications.
6. Notwithstanding the foregoing, InterTest’s liabilities shall not exceed the purchase price of the
product.
Warranty
InterTest, Inc. guarantees products manufactured by InterTest, Inc. to be free from defects in materials
and workmanship for a period of one (1) year, from the date of original purchase. All other products not
manufactured by InterTest, Inc. will carry the OEM’s limited warranty, which will be passed to the
purchaser through and supported by InterTest, Inc. InterTest, Inc.’s obligation under this limited
XtendaCam®HD Air Manual
Page 5of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
warranty shall be confined to the repair or exchange of any part, or parts thereof, that prove defective
under normal use and service for which the product was intended or designed.
This limited warranty covers products that upon our examination are deemed to be defective.
This limited warranty is in lieu of all other warranties, express or implied, including the warranties of
merchantability and fitness for use. We neither assume, nor authorize any other person to assume for
us, any other liabilities in connection with the sale of InterTest, Inc. equipment. This warranty does not
apply to any equipment that has been subject to accident, negligence, alteration, abuse, unauthorized
repair, improper storage, or other misuse.
This limited warranty applies only to the original purchaser and cannot be assigned or transferred to
any third party without express written consent from InterTest, Inc.
This limited warranty does not apply to consumable items, expendable items or normal wear and tear,
nor does it apply to failure due to radiation, overheating and / or below freezing temperatures. .
InterTest, Inc. assumes no responsibility, either expressed or implied, regarding the improper usage of
this equipment or interpretation of test data derived from the use of this equipment. InterTest, Inc.’s
responsibility and obligations, in all cases, are limited strictly to the repair and/or replacement costs
outlined above.
The laws of the State of New Jersey shall govern this warranty.
Note: In the event the equipment cannot be returned to InterTest, Inc. The customer agrees to pay all
travel and living expenses incurred to have an InterTest, Inc. representative evaluate, assess or affect
a warranty repair in the field.
Copyrights and Rights of Portrait
There may be a conflict with the Copyright Law and other laws when a customer uses, displays,
distributes or exhibits an image picked up by a television camera without permission from the copyright
holder. Please also note that transfer of an image or file covered by copyright is restricted to use with
the scope permitted by the Copyright Law.
Registered Trademark Information
InterTest® is a registered trademark of InterTest, Inc.
iShot®is a registered trademark of InterTest, Inc.
iShot®Imaging™ is a trademark of InterTest, Inc.
XtendaCam®is a registered trademark of InterTest, Inc.
IMPORTANT: If you are in possession of a printed or electronic version of this
document, be aware that it may not be the current revision. To ensure that you are using
the most up-to-date revision of this document, contact the InterTest Customer Service
and Support Group or reference the downloads portal under this product on
www.intertest.com.
System Components
XtendaCam®HD Air Manual
Page 6of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
A. Camera
B. Battery, 2 ea.
C. Optional Tablet
D. Optional Pole Clamp for Tablet
E. Joystick Assembly
F. Expandable Pole
G. Support Foot
Figure 1
XtendaCam HD AIR Assy.
XtendaCam®HD Air Manual
Page 7of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
System Setup
1) Install “Holly View” App from the Apple®Store or Google®Play on a Wi-Fi Capable device see
Figure 2 App Store
a. This step will only be required once for each Wi-Fi Capable device
2) Install the batteries & power on the system. See Figure 3 System Power On/Off and Layout
NOTE: The Handset/Joystick is paired with the Camera Head at the factory
Figure 2 App Store / Google Play
Figure 3 System Power On/Off and Layout
XtendaCam®HD Air Manual
Page 8of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023

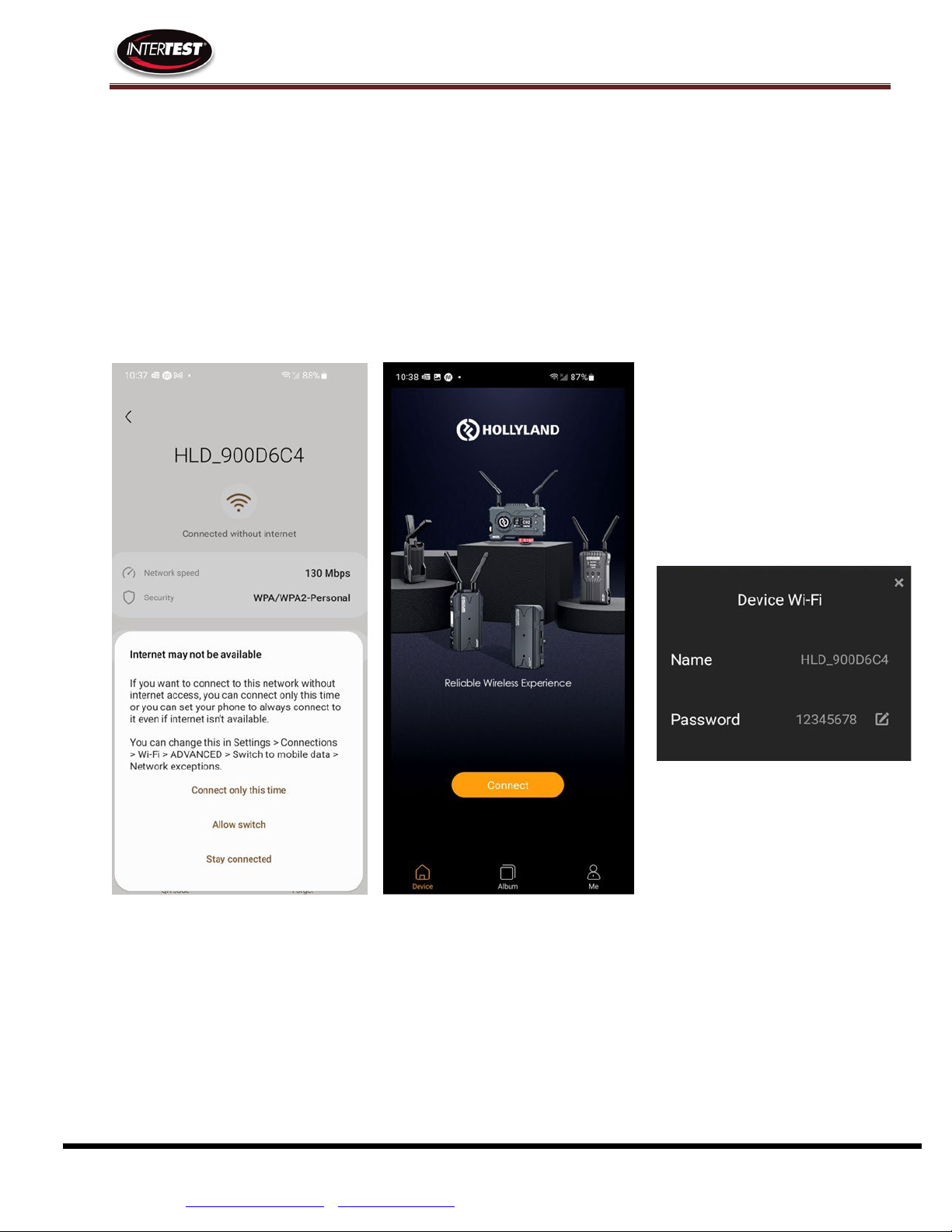

Connecting to a Wi-Fi Device
3) Open the “Settings / Connections” menu on the device that will be used to view the video
Reference Figure 4 Wi-Fi/Camera Connection
4) Under Wi-Fi Connections, search for “HLD_900D6C4”
a. “Internet May Not Be Available” will display. This is OK.
b. Select “Only This Time”
i. This is recommended for any device that will also be used on other Wi-Fi
networks
5) Open the Hollyland App.
6) Select Connect
7) Default password is 12345678
a. Note: Password can be changed
Figure 4 Wi-Fi/Camera Connection
System Operation
1) Install the batteries & Power ON the Joystick & Camera head
2) Follow the steps for connecting a Wi-Fi device.
3) “Press the “Connect” icon
4) The main screen will appear
XtendaCam®HD Air Manual
Page 9of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
See Figure 5 Main Screen Menu 1, Figure 6 Main Screen Menu 2 and Figure 7 Menu
Function(s) and Descriptions Table
5) The “Yellow” light button turns on the LED lights.
a. Each press of the button increases intensity. Repeated button presses will cycle
through the settings until the light turns off.
Figure 5 Main Screen Menu 1
XtendaCam®HD Air Manual
Page 11 of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
Item Description Notes
1Returns to Connect Menu
2Wi-Fi Strength Meter
3Menu O N/ Off Lock
When the Lock is closed, menu along the bottom of the screen will
not activate. Click to unlock
4Wi-Fi Password / N etwork Name
5Still Image Capture
6Video Record Click to Activate, Click to stop
7Last Captured Image
8Tools Menu On/ O ff
9Next / PreviousPage Menu
10 Magnify Screen
Opens a box on the screen that be be moved around to magnify
that section of the video
11 False Color
Change to the corresponding color according to the brightness
value of the element of the image
12 3D LUT N o t Used
13 Flip Flip Image
14 Anamorphic
15 Sharpness N o t Used
16 Next / PreviousPage Menu
17 Next / PreviousPage Menu
18 Waveform
Display the distribution of brightness or black and white
information in the image in the horizontal direction, press and drag
the waveform to change the display position of the waveform
19 Histogram
Displays the ratio of brightness or black and white information in
the image, press and drag the histogram to change the display
position of the histogram
20 Vectorscope
Displays the degree of saturation of each color in the image, press
and drag the vector map to change the display position of the
vector map
21 Focus N o t Used
22 Zeb ra The area in the image that exceeds the set exposure level
23 Overlay
24 Next / PreviousPage Menu
Figure 7 Menu Function(s) and Descriptions Table
XtendaCam®HD Air Manual
Page 12 of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
10X
Tilt Range +90 °to -45°
Image Sensor 1/ 2.8” Exmor CMOS image sensor
Effective Pixels 2.38 million pixels
Output Format 1080p30
Sync Systems Internal
Aspect Ratio 16:09
Video Output 12Mbs, H.264 (WiFi)
Practical f-value 5.1 - 51mm
Horizontal Angle 54.0°(W)~4.9°(T)
Vertical Angle 31.0°(W)~4.0°(T)
Optical Zoom Ratio 1x-10x
Focus Control Mode Auto
Exposure Auto
Battery Life 2 Hours
Figure 8 Specifications 10X
30X
Tilt Range +90 °to -45°
Image Sensor 1/ 2.8” Exmor CMOS image sensor
Effective Pixels 2.13 million pixels
Output Format 1080p30
Sync Systems Internal
Aspect Ratio 16:09
Video Output 12Mbs, H.264 (WiFi)
Practical f-value 4.3-129mm
Horizontal Angle 63.7°(W)~2.3°(T)
Optical Zoom Ratio 1x-30x
Focus Control Mode Auto
Exposure Auto
Battery Life 2 Hours
Figure 9 Specifications 30X
Table of Figures
Figure 1 Xtenda-CAM Assy...................................................................................................................6
XtendaCam®HD Air Manual
Page 13 of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
Figure 2 App Store / Google Play..........................................................................................................7
Figure 3 System Power On/Off and Layout ...........................................................................................7
Figure 4 Wi-Fi/Camera Connection.......................................................................................................8
Figure 5 Main Screen Menu 1 ...............................................................................................................9
Figure 6 Main Screen Menu 2 .............................................................................................................10
Figure 7 Menu Function(s) and Descriptions Table .............................................................................11
Figure 8 Specifications 10x .................................................................................................................12
Figure 9 Specifications 30x .................................................................................................................12
Figure 10 10x Camera System Part Numbers.....................................................................................15
Figure 11 30x Camera System Part Numbers.....................................................................................15
Care & Maintenance
Overall System
•Do not expose to moisture or direct sunlight.
•Do not operate near intense electromagnetic fields.
Trouble Shooting
•Ensure the batteries are charged & the power switch is illuminated.
•Ensure you are using paired joystick & camera assemblies
•Ensure you are connected to the proper WiFi.
Returns for Repair or Service
In the event the product needs repair, send it to the Service Department at the main office in
Columbia, NJ. An RMA (Return Material Authorization Number) must be issued prior to the unit being
returned. Call InterTest, Inc. at (908) 294-8008 to obtain an RMA Number from customer service.
Shipments returned without an RMA will have an administrative fee applied to the transaction.
Provide the product number, serial number and a brief description of the problem or damage when
obtaining an RMA number
Return Evaluation Procedure
Once a return is received by InterTest, Inc. it will be evaluated. The fee for any repair evaluation not
sent in under warranty is $55 (USD credited against cost of repair). This cost is in addition to any other
charges required. Prior to any repairs being completed, a repair evaluation will be issued and payment
arranged. Payment via credit card is preferred and will expedite the repair process.
Once payment is arranged, the authorization to repair the product is given. Completed repairs will ship
back to the customer using the pre-arranged shipping methods.
XtendaCam®HD Air Manual
Page 15 of 16
InterTest, Inc. 303 Route 94 Columbia, NJ 07832
+1 908 496-8008 • service@intertest.com • www.intertest.com Jul 2023
Parts and Accessories
DWG # 1697000 10X
Part N umb e r Description QTY
EM19700 XTEN DACAM HD, 10X ZO O M SYS 1
Includes
EM63889 M12 Lithium Ion 12V Battery ch 1
EM1697004 KZ10 HEAD CASE 1
EM1697001 XTENDACAM HD, 10X ZOOM HEAD 1
EM64986 M12 12-Volt 3.0Ah Lithium-Ion Battery 4
EM65385 Apple iPad Mini 5-256GB 1
EM64971 No-Spin Pole Set Lanbao 6.7m 1
EM65384 Tablet Ipad Holder 1
EM1697009 XTENDACAM HANDLE ASSY 1
EM1697005 2022 XTENDACAM FO OT STOP ASSY 1
Figure 10 10X Camera System Part Numbers
DWG # 1697010 30X
Part N umb e r Description QTY
EM19701 XTEN DACAM HD, 30X ZO O M SYS 1
Includes
EM63889 M12 Lithium Ion 12V Battery ch 1
EM1697012 EV7520 HEAD CASE 1
EM1697010 XTENDACAM HD, 30X ZOOM HEAD 1
EM64986 M12 12-Volt 3.0Ah Lithium-Ion Battery 4
EM65385 Apple iPad Mini 5-256GB 1
EM64971 No-Spin Pole Set Lanbao 6.7m 1
EM65384 Tablet Ipad Holder 1
EM1697009 XTENDACAM HANDLE ASSY 1
EM1697005 2022 XTENDACAM FO OT STOP ASSY 1
Figure 11 30X Camera System Part Numbers
This manual suits for next models
1
Table of contents
