InterTest iShot XBlock XBC-KZ30G User manual

XBC-KZ30G
Block Camera
Part No.
EM13547

2iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
2
Revision History
Date Version Contents
2017.09.01 V1.0.0 Release Document
Revision History
2019.05.20 V1.0.1 Release Document

3www.intertest.com Operating Manual
3
TABLE OF CONTENTS
----------------------------------------------------
3
FEATURES
----------------------------------------------------
4
PRECAUTION
----------------------------------------------------
5
SPECIFICATIONSS
----------------------------------------------------
6
DIMENSIONS
----------------------------------------------------
9
INTERFACE
----------------------------------------------------
10
OSD & MENU
----------------------------------------------------
20
FUNCTIONS
----------------------------------------------------
24
COMMAND LIST
----------------------------------------------------
35
TABLE OF CONTENTS
Table of Contents

4iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
Features
4
This Product is a high performance CCTV camera
with built-in 30x optical zoom and 12x digital
zoom technologies. This product can be applied to
various fields such as security camera for
surveillance (CCTV camera), data viewer, Video
presenter(VP) and speed dome camera and
industrial applications.
• This camera uses a 1/1.8”3.19M Global shutter
CMOS Image Sensor that supports HD (high
definition) to produce high-quality images.
• Using progressive scan, images with a wide
dynamic range can be obtained with the newly
developed image signal processor (Wide
Dynamic Range function, WDR).
• The camera is equipped with a bright zoom lens
with 30× optical zoom and F1.5 aperture (optical
zoom + digital zoom = 360×)
• Low-noise images can be obtained even in low-
light environments using the Noise Reduction
function(3DNR/2DNR/2DNR+3DNR)
• Video signals can be output as digital only.
Depending on register settings, you can select
from a variety of digital output methods:
1080p/60,1080p/50,1080p/30, 1080p/25,
720p/60,720p/50,720p/30, 720p/25, 1080i/50,
1080i/60
• An infrared (IR) Cut-Filter can be disengaged
from the image path for increased sensitivity in
low light environments. The ICR will
automatically engage depending on the ambient
light, allowing the camera to be effective in
day/night environment.
• A Privacy Zone Masking function (max. 8
blocks) is available.
• A Motion Detection function is available.
• A title composed of up to 21 lines can be set
for displaying on the screen. 30 characters can
be used on one line (VISCA).
• Support 256 internal zoom/focus presets.
• Digital Image Stabilizer function reduces image
blurring caused by vibration.
• Output format
LVDS/CVBS/PARALLEL
• Asynchronous Reset Function
FEATURES

5www.intertest.com Operating Manual
Precaution
5
Operation is subject to the following
conditions;
•This device may not cause harmful interference.
•This device must accept any interference
received, including interference that may cause
undesired operation.
•A regulated DC 12V 500mA power supply is
recommended for use with this camera for the
best image and the most stable operation.
An unregulated power supply can cause
damage to the camera. When unregulated
power supply is applied, product warranty will
be out of subject.
•If it is used for CVBS application. It is
recommended that the camera is used with a
monitor that has a CCTV quality 75 Ohm video
impedance level. If your monitor is switched to
high impedance then please adjust accordingly.
•Do not attempt to disassemble the camera to
gain access to the internal components. Refer
servicing to tour dealer.
•Never face the camera towards the sun or any
bright or reflective light, which may cause
smear on the image and possible damage to the
CMOS.
•Do not remove the serial sticker for the warranty
service.
•Do not drop the thing or give a strong impact to
the product.
•Avoid the place where is so dusty, humid or
soot-covered. It may cause electric shock or fire.
•Do not expose to an intense light source such as
direct sunlight or spotlight. It may damage the
CMOS.
•If the camera operates more than 24 hours, It is
recommended that you execute the lens initial
action or reset the camera.
PRECAUTION
Information may be changed without notice
This document provides technical information for the user. KT&C reserves the right to modify the information in this
document as necessary. The customer should make sure that they have the most recent manual version.
5
Operation is subject to the following
conditions;
•This device may not cause harmful interference.
•This device must accept any interference
received, including interference that may cause
undesired operation.
•A regulated DC 12V 500mA power supply is
recommended for use with this camera for the
best image and the most stable operation.
An unregulated power supply can cause
damage to the camera. When unregulated
power supply is applied, product warranty will
be out of subject.
•If it is used for CVBS application. It is
recommended that the camera is used with a
monitor that has a CCTV quality 75 Ohm video
impedance level. If your monitor is switched to
high impedance then please adjust accordingly.
•Do not attempt to disassemble the camera to
gain access to the internal components. Refer
servicing to tour dealer.
•Never face the camera towards the sun or any
bright or reflective light, which may cause
smear on the image and possible damage to the
CMOS.
•Do not remove the serial sticker for the warranty
service.
•Do not drop the thing or give a strong impact to
the product.
•Avoid the place where is so dusty, humid or
soot-covered. It may cause electric shock or fire.
•Do not expose to an intense light source such as
direct sunlight or spotlight. It may damage the
CMOS.
•If the camera operates more than 24 hours, It is
recommended that you execute the lens initial
action or reset the camera.
PRECAUTION
Information may be changed without notice
This document provides technical information for the user. KT&C reserves the right to modify the information in this
document as necessary. The customer should make sure that they have the most recent manual version.

6iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
Specications
6
Format / Model
ATC-HZ5530W-LP
Video System
Image Sensor
Effective Pixels
1/1.8”3.19M Global shutter CMOS Image Sensor
2064(H)x1544(V), Unit Cell Size(3.45µm X 3.45µm)
Output Format
LVDS/PARALLEL/CVBS : 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50
Sensor Output : FULL/CROP
Video Output : FULL/CROP
Sensor Operating System Sensor Master / Sensor Slave
Sync System
CVBS scale
LVDS mode
Internal
16:9 / 4:3 (CVBS 720H)
Single / Dual
Video Output
CVBS
LVDS/ PARALLEL
Min. illumination
Day
Night (IR-cut filter on)
S/N ratio
(Sens-up Off, AGC 28dB)
0.1 Lux @ F1.5
0.08 Lux @ F1.5
More than 52 dB
Optical Lens
Zoom Magnification
Practical f-value
Practical Horizontal-Angle
Practical Vertical Angle
Practical Diagonal Angle
F-value
X30
6.0 to 180 mm
61.2°(W) ~ 2.32°(T)
36.1°(W) ~ 1.31°(T)
68.0°(W) ~ 6.7°(T)
F1.5(W ) ~ F4.3(T)
Zoom
Maximum Zoom Ratio
Optical Zoom Ratio
Digital Zoom Ratio
Digital Pan/Tilt
Speed (Focus Tracking On)
(Focus Tracking Off)
x1 ~ x360
x1 ~ x30
x1 ~ x12
-
4.5 ~ 30 sec
4.0 sec
Focus
Control Mode
Focal Range
IR correction
Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push)/Preset
Infinity~ 1.5m(T)~0.1m(W)
Standard/IR Light/user -20~+20
Day & Night
D&N mode
Night Color
Auto / Day (Color) / Night (BW) / External-H / External-L
Off/On
White Balance Auto / ATW / Indoor / Outdoor / Push / Manual
Exposure
AE mode
Brightness (Exp.Comp)
AGC Limit
Manual Shutter
Manual AGC
Manual Iris
Sens-Up
ETC
Auto / Shutter Priority / Iris Priority/AGC Priority/Manual
0~14
0(-3dB)~255(45dB)
1/1,1/2,1/4,1/8,1/15(16),1/25(30)/1/50(60) ~ 1/10000
-3dB ~ 45dB
F1.6 ~ F32, Close
Off ~ 32fields
Spot AE, Slow AE response
SPECIFICATIONS
EM13547

7www.intertest.com Operating Manual
7
Format / Model
ATC-HZ5530W-LP
DSP functions
Digital Slow Shutter
Image Freeze
Image Reverse (E-FLIP)
Privacy Masking
Title Display
Motion Detect
D-WDR
Max. 32 fields
Off / On
Off / Horizontal(mirror) / Vertical / H+V(180° flip)
Spherical Privacy
- 8-zone
- Interlock / Non-Interlock Mask
- 14 mask color selectable, semi-transparency
- Pan(0°~360°), Tilt(+90°~-90°)
16 characters (display position selectable)
4-Zone
- Alarm output : OSD / Serial Communication
Off / Low/Middle/High
WDR Off/On, Adjustable(Level:0~29, Contrast:0~5)
BLC
HLC
AGC
Sharpness
3DNR
2DNR
Defog
Gamma
Lens Shading
Defect Detection
Digital Image Stabilizer
Picture Effect
Picture In Picture
Off / On, Area selectable
Off / On, Area selectable
Max. 45dB
Adjustable(0~15)
Off/On(0~4)
Auto/Manual(Weight High/Middle/Low)
Off / Low / Middle / High
0.40/0.45/0.50/0.55/0.60/0.70/0.80/0.90/1.00
Off /ON
Support
On /Off
OFF/NEGATIVE/GRAY MODE/REDDISH-1~4/BLUISH-1~4/GREENISH-1~4
1/4,1/9,1/16,1/25
Position Preset (zoom/focus)
Non-volatile 256 position(zoom/focus) presets.
Memory Preset
16-presets & custom preset
OSD
English
Coaxial Communication
-
-
-
-
Communication (UART)
Camera ID
Remote Control
Control Protocol
Communication Speed
0~255
RS-232 TTL +5.0V (+3.3V Compatible)
VISCA /Pelco-D/Pelco-P/HITACHI : automatically detection
2400/4800/9600(default)/19200/38400/57600/115200bps selectable
Power
Supply Voltage
Supplied Current (motor on)
Consumption (motor on)
DC 12V (+7.0V ~ +15V)
290mA(420mA )
3.5W(5.1W)
Physical
WxHxD[mm], Weight[g]
- Standard 50.00x58.80x95.80mm, 380g
Temperature& Humidity
Operating condition
Storage condition
Temperature (-10°C~50 °C / 14°F~122°F), Humidity (20% ~ 80%)
Temperature (-20°C~60 °C / -4°F~140°F), Humidity (20% ~ 95%)
EM13547

8iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
8
INTERFACE SUMMARY
Interface & Video
ATC-HZ5530W-LP
Video
Output
PARALLEL ◎
CVBS O
LVDS ◎
Interface
MMCX O
32pin Micro Coaxial
(USL00-30L-A, 0.4mm)
◎
36pinFFC
(FH12-36S-0.55H, 0.55mm) O
12pin Extermal Sync& Trigger&Strobe
(SM08B-SRSS-TB, 1.0mm) O
4pin CVBS&ADKey&12V
(SM04B-SRSS-TB, 1.0mm) O
3pin Exrernal D&N
(SM03B-SRSS-TB,1.0mm)
O
3pin RS-232TTL
(SM03B-SRSS-TB,0.1mm) O
ATC-HZ5530W-LP
EM13547
EM13547

9www.intertest.com Operating Manual
9

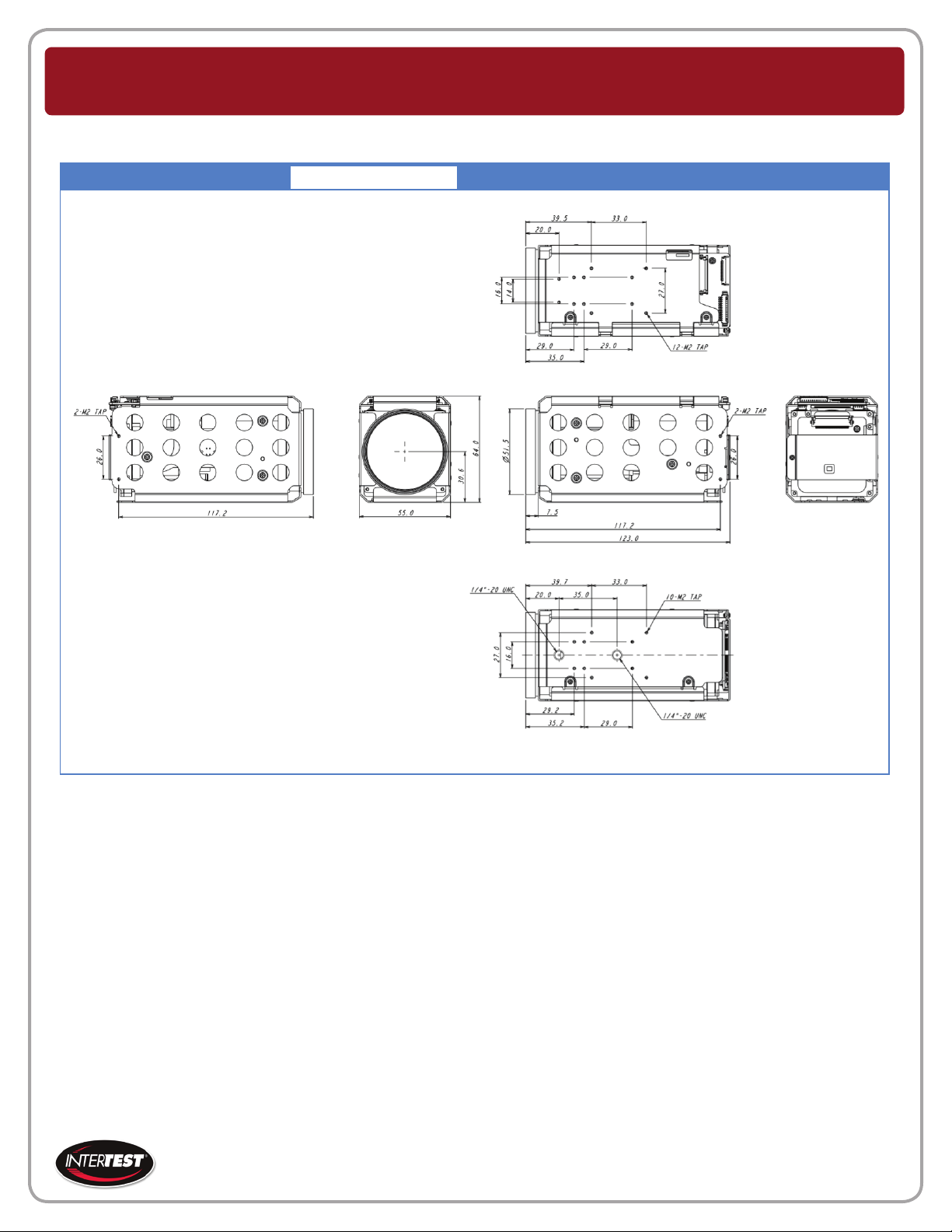

DIMENSIONS
ATC-HZ5530W-LP
DIMENSION
Dimensions
EM13547

10 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
10

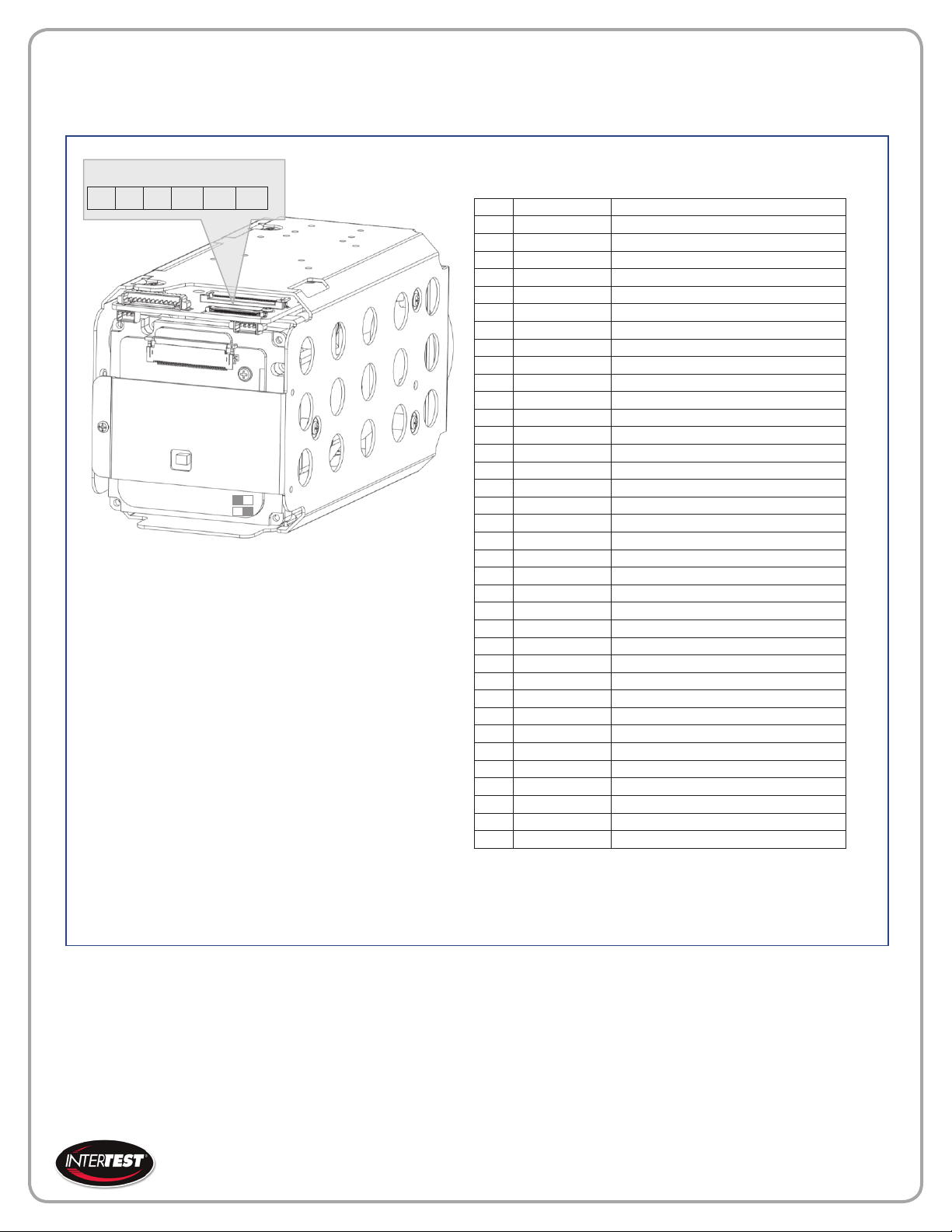

INTERFACE
ATC-HZ5530W-LP
CN303/SM03B-SRSS-TB
NO
Name
Description
1
EXT_DN
External D&N Input
2
GND
3
+3.3V
+3.3V Out (For Sensor)
CN307/SM03B-SRSS-TB
NO
Name
Description
1
UART_TX
UART_TX
2
UART_RX
UART_RX
3
GND
CN301/SM12B-SRSS-TB
NO
Name
Description
1
VS_OUT
EXT_VS Out
2
HS_OUT
EXT_HS Out
3
CLK_OUT
EXT_CLK Out
4
GND
5
VS_IN
EXT_VS In
6
HS_IN
EXT_HS In
7
CLK_IN
EXT_CLK In
8
GND
9
TRIG_COM
10
Trigger_IN
EXT_TRIG In
11
STROMBE_COM
12
STROMBE_IN
STROBE
CN302(CVBS)/SM04B-SRSS-TB
NO
Name
Description
1
+12V_IN
+12V In
2
GND
3
CVBS_OUT
CVBS Out
4
AD_KEY
AD_KEY
CN301
1
2
…
11
12
CN307
3
2
1
J303
1
2
…
31
32
CN302
4
3
2
1
SW101
1
2
J303 (LVSDS)/USL00-30L-C
NO
Name
Description
1
TX_OUT3+
2
TX_OUT3-
3
TX_CLKOUT+
LVDS_CLK
4
TX_CLKOUT-
LVDS_CLK
5
TX_OUT2+
6
TX_OUT2-
7
TX_OUT1+
8
TX_OUT1-
9
TX_OUT0+
10
TX_OUT0-
11
GND
12
TXD
5.0V (compatible 3.3V)
13
RXD
5.0V (compatible 3.3V)
14
+12V DC
15
+12V DC
16
+12V DC
17
+12V DC
18
+12V DC
19
GND
20
GND
21
TX_OUT7+
Single out mode : open
22
TX_OUT7-
Single out mode : open
23
TX_OUT6+
Single out mode : open
24
TX_OUT6-
Single out mode : open
25
NC/CVBS
CVBS Out
26
RESET_IN
Reset:Low(GND),Normal(1.8V)
27
TX_OUT5+
Single out mode : open
28
TX_OUT5-
Single out mode : open
29
TX_OUT4+
Single out mode : open
30
TX_OUT4-
Single out mode : open
31
GND
32
GND
SW101
Sensor Mode
Switch 1
Switch 2
Sensor Master
ON
OFF
Sensor Slave
OFF
ON
CN303
3
2
1
INTERFACE
Interface

11www.intertest.com Operating Manual
11
ATC-HZ5530W-LP continued
J304
1
2
3
…
35
36
J304 (PAEALLEL)/ FH12-36S-0.55H
NO
Name
Description
1
GND
2
Y_OUT[0]
3
Y_OUT[1]
4
Y_OUT[2]
5
Y_OUT[3]
6
GND
7
Y_OUT[4]
8
Y_OUT[5]
9
Y_OUT[6]
10
Y_OUT[7]
11
GND
12
C_OUT[0]
13
C_OUT[1]
14
C_OUT[2]
15
C_OUT[3]
16
GND
17
C_OUT[4]
18
C_OUT[5]
19
C_OUT[6]
20
C_OUT[7]
21
GND
22
VSYNC
VSYNC Out
23
HSYNC
HSYNC Out
24
GND
25
DIGIAL_CLK
VCLK Out
26
GND
27
GND
28
GND
29
GND
30
GND
31
+12V_IN
32
+12V_IN
33
+12V_IN
34
GND
35
TXD
5.0V (compatible 3.3V)
36
RXD
5.0V (compatible 3.3V)

12 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
12
LVDS(single)
(5pairs / 10pin)
LVDS(double)
(5pairs / 10pin)
TXD
RXD
DC 12V
TX
Y (8bits X 2)
Cb/Cr
HD
VD
FLD
CLK
LVDS
To
TTL
Parallel
RX
THC63LVD104C (Single only)
THC63LVD1024 (Single/Double)
(THINE Electronics Inc.)
TTL
Parallel
To
LVDS
Y (8bits X 2)
Cb/Cr
HD
VD
FLD
CLK
CAMERA
HD Digital Video Sync Signal
74.125MHz
J303 (Micro Co- Axial)
KEL Co. USL00-30L-C
Recommended LVDS receiver IC
(1) Single Only : THC63LVD104C
(2) Single or Double : THC63LVD1024
Select LVDS output mode
(1) MENU
SPECIAL -> SYSTEM -> LVDS MODE : SINGLE/DUAL
(2) VISCA protocol
8x 01 04 24 74 0p 0q FF : pq=00 (single) / pq=01 (double)
(caution) If the frame rate is 25 fps / 30 fps, it works as SINGLE even if LVDS MODE is set to DUAL.
However, if the frame rate is 50 fps / 60 fps, LVDS MODE must be set to DUAL to operate as DUAL.
LVDS interface (LVDS model only)

13www.intertest.com Operating Manual
13

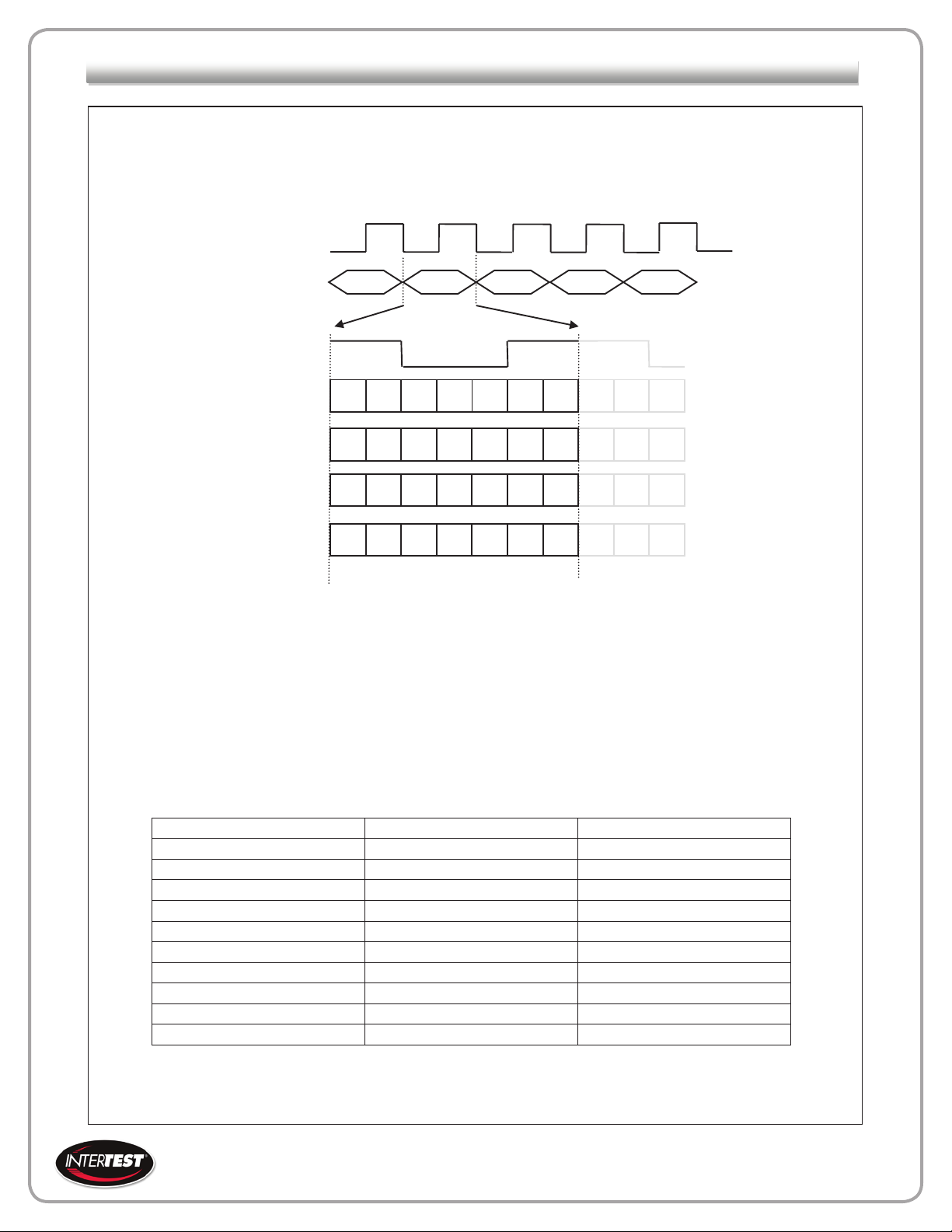

Single Mode : THC63LVD827 (THINE Electronics Inc.)
Output Format
Pixel Clock [MHz]
TCLK+ [MHz]
1080p60
148.5
148.5
1080p50
148.5
148.5
1080i60
74.25
74.25
1080i50
74.25
74.25
1080p30
74.25
74.25
1080p25
74.25
74.25
720p60
74.25
74.25
720p50
74.25
74.25
720p30
74.25
74.25
720p25
74.25
74.25
(THC63LVD827 IN)
Pixel Clock
Pixel Data
(THC63LVD827 OUT)
TCLK1 +/-
TA1 +/-
TB1 +/-
TC1 +/-
TD1 +/-
Y6 Y5 Y4Y6 Y5 Y4 Y3 Y2 Y1 Y0
000000***Y7
C6 C5 C4C6 C5 C4 C3 C2 C1 C0
00000000C6 C7
* : ignore this value
LVDS Pixel Data Format (LVDS model only)

14 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
14
Double Mode : THC63LVD827 (THINE Electronics Inc.)
Output Format
Pixel Clock [MHz]
TCLK+ [MHz]
1080p60
148.5
74.25
1080p50
148.5
74.25
1080i60
74.25
37.125
1080i50
74.25
37.125
1080p30
74.25
37.125
1080p25
74.25
37.125
720p60
74.25
37.125
720p50
74.25
37.125
720p30
74.25
37.125
720p25
74.25
37.125
(THC63LVD827 IN)
Pixel Clock
Pixel Data
(THC63LVD827 OUT)
TCLK1 +/-
TA1 +/-
1’st pixel
TB1 +/-
TC1 +/-
TD1 +/-
TA2 +/-
2’nd pixel
TB2 +/-
TC2 +/-
TD2 +/-
Y6 Y5 Y4Y6 Y5 Y4 Y3 Y2 Y1 Y0
000000***Y7
*C5 C4*C5 C4 C3 C2 C1 C0
00000000C6 C7
1’st pixel 2’nd Pixel
(Odd) (Even)
* : ignore this value
Y6 Y5 Y4Y6 Y5 Y4 Y3 Y2 Y1 Y0
000000***Y7
*C5 C4*C5 C4 C3 C2 C1 C0
00000000C6 C7

15www.intertest.com Operating Manual
15

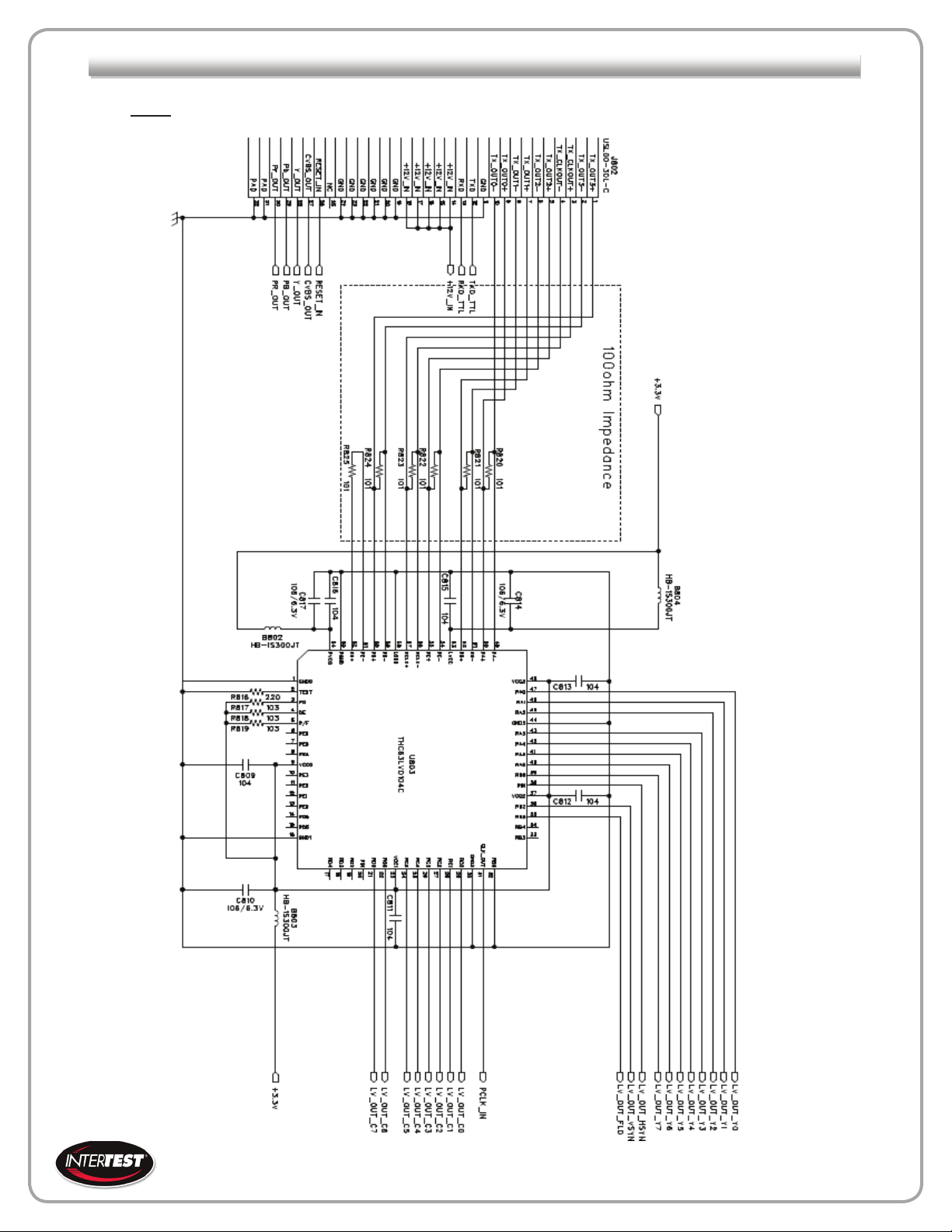

LVDS Single Output receiver circuit example / Receiver IC : THC63LVD104C
LVDS Receive Circuit Example (LVDS model only)

16 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
16
LVDS Single Output receiver circuit example / Receiver IC Pin Assign : THC63LVD104C
Pin No. Description Signal Pin No. Description Signal
1 GND0 33 RB5
2 TEST 34 RB4
3 PD 35 RB3 FLD
4 OE 36 RB2 VSYNC
5 R/F 37 VCC2
6 RE6 38 RB1 HSYNC
7 RE5 39 RB0 Y7
8 RE4 40 RA6 Y6
9 VCC0 41 RA5 Y5
10 RE3 42 RA4 Y4
11 RE2 43 RA3 Y3
12 RE1 44 GND3
13 RE0 45 RA2 Y2
14 RD6 46 RA1 Y1
15 RD5 47 RA0 Y0
16 GND1 48 VCC3
17 RD4 49 RA- TXOUT0-
18 RD3 50 RA+ TXOUT0+
19 RD2 51 RB- TXOUT1-
20 RD1 52 RB+ TXOUT1+
21 RD0 C7 53 LVCC
22 RC6 C6 54 RC- TXOUT2-
23 VCC1 55 RC+ TXOUT2+
24 RC5 C5 56 RCLK- TXCLKOUT-
25 RC4 C4 57 RCLK+ TXCLKOUT+
26 RC3 C3 58 LGND
27 RC2 C2 59 RD- TXOUT3-
28 RC1 C1 60 RD+ TXOUT3+
29 RC0 C0 61 RE-
30 GND2 62 RE+
31 CLK_OUT PCLK 63 PGND
32 RB6 64 PVCC

17www.intertest.com Operating Manual
17

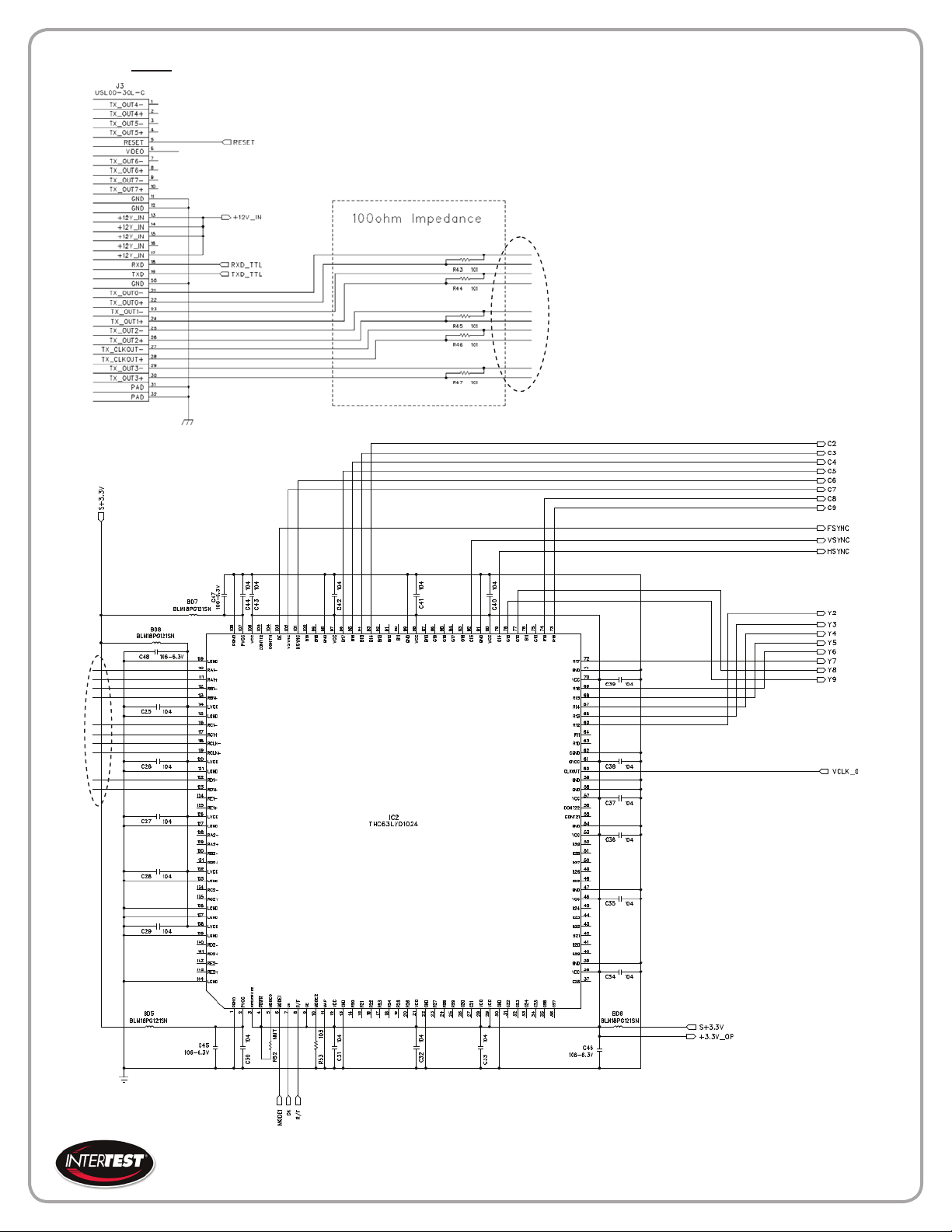

LVDS Single Output receiver circuit example / Receiver IC : THC63LVD1024
EM13921

18 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
18
LVDS Double Output receiver circuit example / Receiver IC : THC63LVD1024

19www.intertest.com Operating Manual
19
LVDS Single/Double Output receiver circuit example / Receiver IC Pin Assign : THC63LVD1024
Pin No.
Description
Signal
Pin No.
Description
Signal
Pin No.
Description
Signal
1
PGND
51
B28
101
HSYNC
C6
2
PVCC
52
B29
102
VSYNC
C7
3
RESERVED
53
VCC
103
DE
FSYNC
4
PDWN
54
GND
104
CONT11
5
MODE0
55
CONT21
105
CONT12
6
MODE1
MODE1
56
CONT22
106
VCC
7
DK
DK
57
VCC
107
PVCC
8
R/F
R/F
58
GND
108
PGND
9
OE
59
GND
109
LGND
10
MODE2
60
CLKOUT
VCLK
110
RA1-
TXOUT0-
11
MAP
61
CVCC
111
RA1+
TXOUT0+
12
VCC
62
CGND
112
RB1-
TXOUT1-
13
GND
63
R10
113
RB1+
TXOUT1+
14
R20
64
R11
114
LVCC
15
R21
65
R12
Y2
115
LGND
16
R22
66
R13
Y3
116
RC1-
TXOUT2-
17
R23
67
R14
Y4
117
RC1+
TXOUT2+
18
R24
68
R15
Y5
118
RCLK-
TXCLKOUT-
19
R25
69
R16
Y6
119
RCLK+
TXCLKOUT+
20
R26
70
VCC
120
LVCC
21
VCC
71
GND
121
LGND
22
GND
72
R17
Y7
122
RD1-
TXOUT3-
23
R27
73
R18
C9
123
RD1+
TXOUT3+
24
R28
74
R19
C8
124
RE1-
25
R29
75
G10
125
RE1+
26
G20
76
G11
126
LVCC
27
G21
77
G12
Y8
127
LGND
28
VCC
78
G13
Y9
128
RA2-
TXOUT4-
29
VCC
79
G14
HSYNC
129
RA2+
TXOUT4+
30
GND
80
VCC
130
RB2-
TXOUT5-
31
G22
81
GND
131
RB2+
TXOUT5+
32
G23
82
G15
VSYNC
132
LVCC
33
G24
83
G16
133
LGND
34
G25
84
G17
134
RC2-
TXOUT6-
35
G26
85
G18
135
RC2+
TXOUT6+
36
G27
86
G19
136
LGND
37
G28
87
B10
137
LGND
38
VCC
88
VCC
138
LVCC
39
GND
89
GND
139
LGND
40
G29
90
B11
140
RD2-
TXOUT7-
41
B20
91
B12
141
RD2+
TXOUT7+
42
B21
92
B13
142
RE2-
43
B22
93
B14
C2
143
RE2+
44
B23
94
B15
C3
144
LGND
45
B24
95
B16
C4
46
VCC
96
B17
C5
47
GND
97
VCC
48
B25
98
GND
49
B26
99
B18
50
B27
100
B19

20 iShot® Xblock® XBC-KZ30G Block Camera www.intertest.com
20
1’ST ITEM
2’ND ITEM
3’RD ITEM or DATA
4’TH ITEM or DATA
5’TH ITEM or DATA
FOCUS
AF MODE
AUTO/INTERVAL/ONE PUSH/MANUAL/PRESET
DZOOM
OFF/ON
ZOOM START
1~30
ZOOM STOP
1~360
ZOOM SPEED
0~7
FOCUS LIMIT
10CM/50CM/1M/1.5M/2M/3M/5M/10M/30M/60M/100M/200M/500M/INF
AF INTERVAL
1~255
IR CORRECT
STANDARD/IR LIGHT/USER -20~+20
PRESET MARGIN
0~255
POWER ON HOME
OFF/ON
INITIAL
RETURN
EXPOSURE
AE MODE
AUTO/SHUT.PRI/IRIS.PRI/AGC.PRI/MANUAL
SHUTTER
1/1~1/10000
IRIS
CLOSE~F1.6
AGC
0dB ~ 45dB
AGC MAX
0~255
SENS-UP MAX
OFF/X2/X4/X8/X16/X32
FLICKERLESS
OFF/AUTO
BRIGHTNESS
0~14
AE RESPONSE
0~48
INITIAL
RETURN
WHITE BALANCE
MODE
AUTO/INDOOR/OUTDOOR/ONE PUSH/ATW/MANUAL
PUSH
PRESS OK/WAIT
BLUE
0~255
RED
0~255
SPEED
0~7
OFFSET-BLUE
0~100
OFFSET-RED
0~100
SATURATION
0~20
HUE
0~20
INITIAL
RETURN
WDR/BLC
BACKLIGHT
OFF/BLC/HLC
WDR
OFF/ON
BLC SET
POSITION-X
0~46
POSITION-Y
0~32
SIZE-X
0~46
SIZE-Y
0~32
RETURN
HLC SET
POSITION-X
0~46
POSITION-Y
0~32
SIZE-X
0~46
SIZE-Y
0~32
LEVEL
0~20
BLACK MASK
OFF/ON
RETURN
WDR SET
LEVEL
0~29
CONTRAST
0~5
BREIGHT
0~19
RETURN
OSD & MENU
OSD & Menu
