InTouch KIO320P User manual

KIO320P USER MANUAL
COPYRIGHT 2020 - INTOUCH SCREENS
KIO320P - 32.0 inch Touch Screen Display Kiosk
1920 x 1080 Resolution
32.0 inch Active Area - 699 x 393 mm
16:9 Aspect Ratio
Overall Dimensions: 1531H x 551W x 374D
Product data available in DXF and 3D PDF formats
1531
489353
792
551374
22°
91 91
168
200

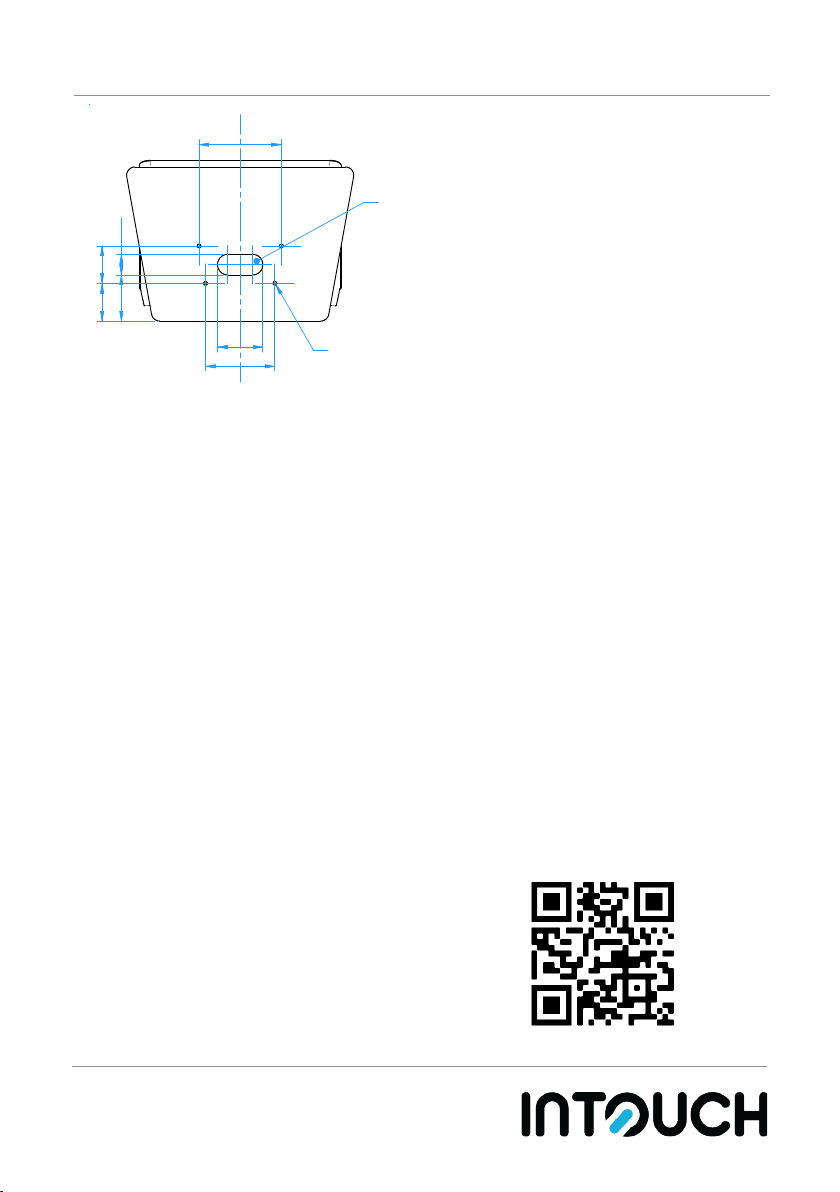

Mounting Holes to suit
8.0 mm Fasteners
50112
110
Cable access

KIO320P SPECIFICATIONS
Touch Screen INDT320
1
• 32” active viewable area
• 10-point PCAP multi-touch
• VGA & HDMI input
• 1080 x 1920 Native Resolution
• Compatible with Windows 7,
8 & 10
CABLING INFORMATION
Step 1. Connect your desired
display cable.
Step 2. Connect all USB
devices.
Step 3. Connect your PC power cable to the internal powerboard.
HDMI VGA
Touch Screen
Fan
Optional Devices
Powerboard located directly under the PC shelf
{
(VGA cable not always
provided with kiosk)
COPYRIGHT 2020 - INTOUCH SCREENS
KIO320P - 32.0 inch Touch Screen Display Kiosk
1920 x 1080 Resolution
32.0 inch Active Area - 699 x 393 mm
16:9 Aspect Ratio
Overall Dimensions: 1531H x 551W x 374D
Product data available in DXF and 3D PDF formats
1531
489353
792
551374
22°
91 91
168
200
Mounting Holes to suit
8.0 mm Fasteners
50112
110
Cable access

KIO320P - INTERNAL ACCESS
OPTIONAL ACCESORIES*
• Printer
• 2D Scanner (Barcode & QR code)
• HD Camera
• EFTPOS Terminal Mounting
• RFID / Mag. Card Reader
*Not shown in illustrations
Talk to us about your device needs! (suppor[email protected].au)
COPYRIGHT 2020 - INTOUCH SCREENS
To access the inside of the kiosk
press the release button on the
latch making sure the mechanism
has been unlocked and remove
the door as shown in the image.
To re-attach the door simply
engage the tab at the base of
the door and rotate into position
then re-secure the latch.

CLEANING INSTRUCTIONS
WARRANTY
Applicable to touch screens and kiosks:
InTouch suggests using an isopropyl alcohol spray and clean microbre cloth.
Caution: Be careful when cleaning your kiosk to avoid vinyled graphic areas so as not
to damage the artwork. DO NOT use abrasive cleaners, solvents or cloths.
For more information please visit www.intouchscreens.com.au/cleaning
FOR MORE INFORMATION
For more information please visit www.intouchscreens.com.au/warranty
Visit our Website
Telephone [phone]
suppor[email protected].au
[e-mail]
www.intouchscreens.com.au
SECURING YOUR KIOSK TO THE FLOOR (OPTIONAL)
For further information on securing your
kiosk do not hesitate to contact us on
suppor[email protected].au
