Hyundai D46 B Series User manual

User’s Guide
P/N 632 0240 518 Rev.00
MODELS :
D46**B , D55**B
D46**P , D55**P
D46**R , D55**R

2
DIGITAL SIGNAGE
Contents Major features ................................................................................................................................. 2
Safety Information ........................................................................................................................... 2
Be sure to understand...................................................................................................................... 8
Check the product list ...................................................................................................................... 9
Proper location for product installation ......................................................................................... 10
Portrait Mode................................................................................................................................. 11
Storage Method For Panel Protection............................................................................................. 11
Installing a Bracket ........................................................................................................................ 12
Title and function of each part ....................................................................................................... 13
Support timing for HDMI/DVI ........................................................................................................ 16
Support timing for Analog RGB ..................................................................................................... 17
Support timing for Component & AV ............................................................................................. 17
Adjusting OSD and explanation of its function .............................................................................. 18
Diagnosis ....................................................................................................................................... 38
Specifications................................................................................................................................. 40
* REMOTE CONTROL / RS232C COMMAND SPEC
DIGITAL SIGNAGE

2
DIGITAL SIGNAGE
Major features
Safety Information
This product has been designed to enable the user ease of use, and display information effectively and conveniently.

3
DIGITAL SIGNAGE
- Do not touch the power cord with wet hands, it may cause electric shock.
- Overloaded AC outlets and extension cables are as dangerous as the power cord being damaged, call service engineer for
replacement as it may cause electric shock or fire.
- Do not use multiple devices in a single power outlet, it may cause overheating or fire.
- Do not use or place sharp objects near the LCD surface, as this can cause damage to the screen itself.
- When cleaning the LCD screen / Surface, do not use chemical cleaning products as this can seriously damage the special
coatings on the screen. Only use water to dampen a soft cloth and lightly clear the screen.
- Over time dust deposits can build up inside the product, this can cause the product to overheat thus causing premature
malfunction or fire. Please do not attempt to clean the inside of the product yourself, please contact the local service agent.
- Do not use alcohol or strong chemical solvent such as methyl, ethyl or a Isopropyl.
- In the case of cleaning, be sure to remove the power cord and wipe with a soft dry fabric.
- Keep batteries for the remote control out of children's sight.
- Batteries should be inserted using the correct polarity (+,-).
- Use only new batteries, do not mix old & new.
- Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.
- Place unit on a stable bracket or surface.
- More than 2 people should work together when moving or installing.
- Do not hang on or jump to the product or mounting rack.
- When the product is left unused for a long time, be sure to unplug the power cord.
- In the case of damage or breakage do not attempt to self repair, please contact local service engineer.

4
DIGITAL SIGNAGE
- In case of Kiosk Model, keep installing the product on the flat location and fixing the wheels not to move itself or fall
down.
- On Kiosk Model, make sure to turn off the power before connecting cables.
- This manual contains general instructions for the display products only so refer to the provided CD-ROM manual and
the driver installation manual for the driver installation instructions for touch screen and/or touch screen itself.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
- Shall be connected to a MAINS socket outlet with a protective earthing connection.
- The disconnect device shall remain readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.

5
DIGITAL SIGNAGE
Précautions d’emploi
Ce produit est conçu et formulé, en vue d'assurer la sécurité de l'utilisateur.
L'utilisateur de ce produit peut prévenir les chocs électriques ou autres dangers, en évitant les situations suivantes:
- Ne mettez pas de choses mouillées près du produit et du cordon d'alimentation.
- Ne bloquez pas l'ouverture d'aération, ne le touchez pas avec des objets métalliques ou inflammables.
- Placez l'équipement hors d'une source de projections de graisse, de fumée, de poussière, de température élevée ou
d'humidité importante
- Vérifiez que le cordon d'alimentation et les autres cordons sont branchés correctement.
- Branchez le cordon d'alimentation correctement à fond dans la prise, pour qu'il ne bouge pas. Sinon, cela pourrait occasionner
un incendie d'origine électrique.
- Ne touchez pas le cordon d'alimentation avec des mains humides. Vous risqueriez une électrocution.
- Une multiprise surchargée ou une prise d'alimentation mal enfichée sont dangereuses ainsi qu'un cordon d'alimentation
détérioré ou coupé.
- Dans un de ces cas faites intervenir un technicien qualifié afin de remettre l'installation en conformité afin d'éviter les risques
d'accident et d'incendie.
- Ne connectez pas plusieurs appareils sur une même prise secteur. Cela pourrait occasionner un incendie en raison d'une
surchauffe.
- N'utilisez pas d'outils ou d'objets pointus (comme des épingles ou des crayons) près de l'équipement. Cela pourrait rayer la
surface du LCD.
- La surface du LCD est très fragile, et sensible au produit chimique. N'employez pas le solvant chimique, comme le benzène par
exemple, sur l'équipement, sinon cela pourrait endommager gravement la surface du LCD.
- Nettoyez la légèrement avec un tissu doux.
- Renseignez-vous une fois par an au Centre de Service ou à l'Assistance à la clientèle, sur le nettoyage de l'intérieur du produit.
S'il y a des poussières accumulé à l'intérieur du produit, en le laissant assez longtemps sans nettoyage, cela peut causer un
incendie, ou une panne.
- N'employez pas l'alcool (méthylique, éthylique, ou isopropylique) et de solvant chimique fort.
- Débranchez toujours le cordon d'allimentation avant de nettoyer l'équipement. Nettoyez avec un tissu sec et doux.
- Assurez-vous de conserver les piles de la télécommande hors de portée des enfants.

6
DIGITAL SIGNAGE
- Respectez les polarités (+/-) lors du remplacement des piles.
- Vérifiez les dimensions exactes des piles lors du changement des piles. Ne mélangez pas des piles neuves et des piles usagées.
- Installez le produit sur un socle stable afin d’éviter qu’il ne bouge ou chute.
- Plus de deux personnes sont requises pour déplacer ou installer cet appareil.
- Veillez à ce que les enfants ne montent pas ou ne s’accrochent pas à l’appareil ou au socle.
- ébranchez le cordon d’alimentation lors des périodes d’inutilisation prolongées de l’appareil.
- Si le prouit est tombé ou si le boîtier est endommagé, etteignez le et débranchez le cordon d’alimentation, et confiez
la réparation au Centre de Services.
- Pour le Totem, installer le produit verticalement et bloquer les roues pour ne pas qu’il se déplace.
- Pour le Totem, vérifier de couper l’alimentation avant de brancher les câbles.
- Ce manuel contient des instructions générales relatives aux produits d’affichage uniquement. Par conséquent
reportez- vous au manuel sur CD-ROM et au manuel d’installation du pilote pour les instructions relatives à
l’installation du pilote de l’écran tactile, et /ou de l’écran tactile lui-même.
- Protéger l’appareil contre les projections d’eau ou les éclaboussures et ne placer aucun objet contenant du liquide,
tel qu’un vase au dessus de l’appareil.
- Il doit être raccordé à une prise SECTEUR dotée d’une protection par mise à la terre.
- Lorsqu’il est débranché, la prise de cet appareil doit rester facilement accessible.
- La sortie prise doit être installée à proximité de l’équipement et doit rester accessible en permanence.
- Utilisez uniquement un chariot, un support, un trépied, une équerre ou
une table spécifié par le fabricant ou vendu avec l’appareil.
Si un chariot est utilisé, déplacez avec précaution l’ensemble
chariot/appareil afin d’éviter toute chute de l’appareil pouvant entraîner
des blessures aux personnes situées à proximité.

7
DIGITAL SIGNAGE
WARNING
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USE BATTERIES ACCORDINGTO THE INSTRUCTIONS
ATTENTION
IL Y A RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT.
METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS
pour le MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, le socle de prise de courant doit être installé à proximité du matériel et doit être
aisément accessible.
WARNING
Hazardous moving parts
Keep away from moving fan blades
AVERTISSEMENT
Pièces mobiles dangereuses
Se tenir éloigné des pales de ventilateurs mobiles

8
DIGITAL SIGNAGE
Image quality of the product
CAUSE
Due to the nature of LCD's property, Afterimage can occur. Afterimage appears when identical frames / images
are displayed continuasly. If displayed for prolonged periods of time this can become permanent.
PREVENTION
When you display a freeze frame for a long time, lower the brightness and contrast (Brightness, 70/ Contrast,
80). Also it can be decreased by using Pixelshift function.
COUNTERMEASURES
Temporary afterimage can be alleviated by displaying white or moving frame about 10 hours.(But, permanent
afterimage cannot be disappeared according to the property of LCD) This method is used to remove temporary
afterimage that may occur after displaying a still frame for a certain time.
It can take several minutes or hours to remove afterimage according to the severity. In the case that your
cannot avoid displaying identical still image continuously, you can prevent it by displaying moving image
for 2 or 3 minutes in every hour.As the brightness of still image and time of display are the cause of afterimage,
you are recommended to lower the brightness in that case.
!
Above problem shall not be covered by warranty.
Be sure to understand

9
DIGITAL SIGNAGE
Check the product list
Please check the following components provided with the product after you open the box.
Remote control Audio cable (Option) DP cable (Option)
Power Cord HDMI cable HDMI to DVI Cable (Option)
CD Manual &Sheet D-SUB Cable RS232C Cable
!
please check the following components provided with the product after you open
the box and contact the dealer if any missing.
* The contents may vary depending on models and sometimes the contents may be attached on the product.

10
DIGITAL SIGNAGE
Proper location for product
installation
1. Locate the product at least 30cm away from the electric appliance or heating product.
2. The product must be placed at least 10cm away from the wall and ground.
3. Keep the product out of direct ray of light and locate screen not to be reflected by the sunlight.
4. Make sure the mounting rack firmly tightened before installation.
5. Use an authorized wall mount and contact the local dealer or qualified personnel.
!
Please take extra care during installation, it is possible to cause damage if the unit is handled badly or knocked.
Use the screws and wall mounts that meet the VESA standard.Any damages or injuries by misuse or using an
improper accessory are not covered by the warranty.
Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a closet) or on a carpet or
cushion. If there is no other option but to mount the product on the wall, make sure that sufficient ventilation is
provided before installation.
- Failure to do so may result in a fire due to the increase in the internal temperature.
10 cm
10 cm
10 cm
Wall
10 cm
10 cm 10 cm
Wall
Display
Display

11
DIGITAL SIGNAGE
Portrait Mode
Storage Method For Panel
Protection
- Only on some models.
- When installing in portrait mode, rotate the monitor clockwise
Panel
Panel
Panel
If the product needs to be set upright,
hold both sides of the product, and tilt
backward carefully for. Do not let the
panel not to touch the floor.
When laying down the product, lay a
cushion on a flat floor. Put the product
on it with the panel of the product
facing down.
If there is not a cushion available, ensure
the floor is clean and then lay the product
down carefully with the panel facing either
upward or downward.At this time, be
careful for objects not to fall on the panel.

12
DIGITAL SIGNAGE
Installing a Bracket
- The contents may vary depending on models
Bracket Vertical
Bracket Corner
Bracket Horizontal
H
C
C
C
C
H
B
B
B
H

13
DIGITAL SIGNAGE
Title and function of each part
1
Power button ; to turn the power on or off.
2
Input selection button : to select other connected device.
3
Menu button : to display menu or exit from the menu.
4
Select button.
5
To move down in OSD menu.
6
To move up in OSD menu.
7
To move left and control the volume down in OSD menu.
8
To move right and control the volume up OSD menu.
Buttom
or
Right Side
POWER SOURCE MENU SELECT
VOL
1 2 3 4 5 6 7 8
✔The locations of OSD board and remote control receiving sensor may vary depending on models.

14
DIGITAL SIGNAGE

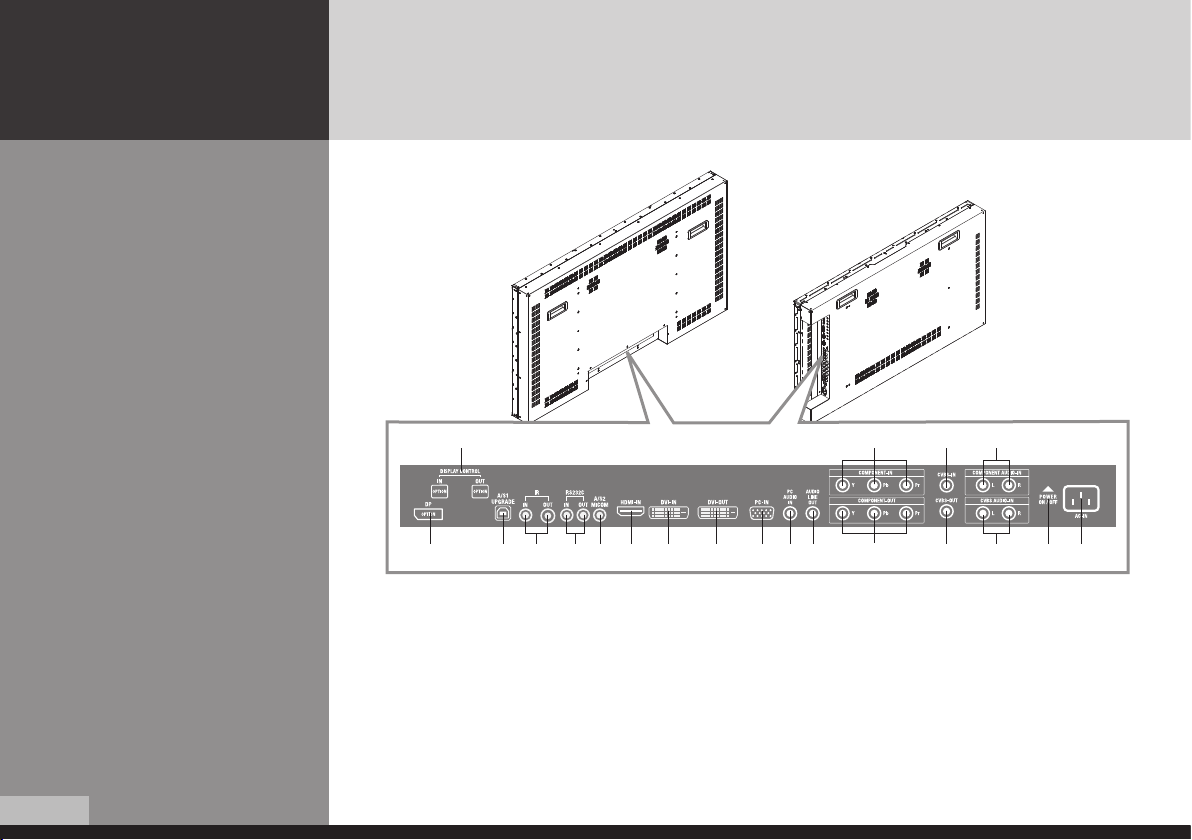

Terminal panel
314 5
2
6 7 8 9 0 ! $@
#
^
%
* ( )
&
1DisplayPort (Option)
At the end of the model name “P” is the
DisplayPort default.
2Display Control-IN/OUT (Option)
3 6UPGRADE Port :
This port is used for upgrade service and not
for general users.
4IR-IN/OUT
5RS232C-IN/OUT
7HDMI IN
8DVI IN
9DVI OUT
0PC D-SUB IN
!PC AUDIO-IN
@AUDIO LINE-OUT
#COMPONENT-IN
$COMPONENT-OUT
%CVBS-IN
^CVBS-OUT
&COMPONENT AUDIO-IN
*CVBS AUDIO-IN
(AC POWER SWITCH
)AC-IN

15
DIGITAL SIGNAGE
Remote control
1
To turn the power on or off.
2
Move up in OSD menu.
3
To move left or control the volume down in OSD menu.
4
To move right or control the volume up in OSD menu.
5
To move down in OSD menu.
6
[ENTER] Select in OSD menu.
7
Display the OSD menu.
8
Close the OSD menu.
9
Display the menu of signal source and choose it.
0
Temporary sound switch off.
[TIP] If it doesn’t need to control display by a remote-controller, press button of remote-controller in order following.
MENU → SOURCE → EXIT → ▼ → ENTER(↵)
* Press button once again in order above so that original condition is returned.











16
DIGITAL SIGNAGE
Support timing for HDMI/
DVI
NO Resolution Horizontal frequency
(KHz)
Vertical frequency
(Hz)
1480p 640 x 480p 60
2576p 720 x 576p 50
3720p 1280 x 720p 50 / 60
41080i 1920 x 1080i 50 / 60
5640 x 480 31.47 59.94
6800 x 600 37.88 60.32
71024 x 768 48.36 60
81360 x 768 47.70 60
91280 x 1024 63.98 60
10 1920 x 1080 67.50 60
11 1080p 1920 x 1080p 60

17
DIGITAL SIGNAGE
Support timing for Analog
RGB
Support timing for
Component & AV
NO Resolution Horizontal frequency
(KHz)
Vertical frequency
(Hz)
1640 x 480 31.47 59.94
2800 x 600 37.88 60.32
31024 x 768 48.36 60.00
41360 x 768 47.71 60.00
51280 x 1024 63.98 60.00
61920 x 1080 67.50 60.00
NO Resolution Horizontal frequency
(KHz)
Vertical frequency
(Hz)
1 480i 640 x 480i 59.94 / 60
2 480p 640 x 480p 59.94 / 60
720 x 480p 59.94 / 60
3 576p 720 x 576p 50
4 720p 1280 x 720p 59.94 / 60 / 50
5 1080i 1920 x 1080i 59.94 / 60 / 50
*6 1080p 1920 x 1080p 60 / 50

18
DIGITAL SIGNAGE
Adjusting OSD and explanation
of its function
How to Select the Picture Mode
✔Menu of PC doesn’t appear on OSD when user uses HDMI and DVI signal.
Users can automatically adjust the picture mode according to the input mode.
Picture Mode : Custom
Custom

High
Colour Tone

Middle
Size : Low
PC

U Select  Enter  Menu
1. Press Menu button.
Menu items appear on the screen.
2. Press ↲ button to select “Picture” Icon. “Picture mode” is highlighted.
3. Press ▶ or ↲ buttons to select “Picture mode”.
4. The menu changes in the following order.
Custom -> High -> Middle -> Low
5. Press EXIT button to escape OSD MENU or press MENU button to return to
the previous menu.

19
DIGITAL SIGNAGE
How to Set the Desired Picture Users can manually adjust their desired picture
1. Press Menu button.
Menu items appear on the screen.
2. Press ↲ button to select "Picture" Icon.
"Picture mode" is highlighted.
3. Press ▲ / ▼ buttons to move to "Custom" and press ▶or ↲ buttons
to select "Custom".
4. Select required option by pressing the ▲ / ▼ or ↲ button, then Press◀
/ ▶ button to adjust.
5. Press EXIT button to escape OSD MENU or press MENU button to return to
the previous menu.
- Brightness : Adjust the brightness of the entire picture.
- Contrast : Adjust the brightness and darkness of the object and backgrounds.
Custom
Brightness :70
Contrast : 80
U Move  Adjust  Menu
