INVENTEK SYSTEMS
ISM4343-WBM-L151-EVB
Evaluation Board
EVB User’s Manual
802.11 b/g/n + 4.2 BT/BLE + Cortex M4

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 2
Table of Contents
1PART NUMBER DETAIL DESCRIPTION.......................................................................... 3
1.1 Ordering Information...................................................................................................... 3
2OVERVIEW........................................................................................................................... 3
3FEATURES ............................................................................................................................ 4
3.1 Limitations...................................................................................................................... 5
4COMPLEMENTARY DOCUMENTATION ........................................................................ 6
4.1 EVB................................................................................................................................. 6
5BLOCK DIAGRAM............................................................................................................... 6
6INTRODUCTION .................................................................................................................. 7
6.1 Applications.................................................................................................................... 7
7FEATURES ............................................................................................................................ 8
7.1 Feature List ..................................................................................................................... 8
7.2 EVB Hardware layout and configuration ....................................................................... 9
7.3 Top View ...................................................................................................................... 10
7.4 Bottom View................................................................................................................. 11
8Power Supply........................................................................................................................ 12
8.1 The ISM4343-WBM-L151-EVB is designed to be powered by a 5 V DC power
supply.12
8.2 Reset Source.................................................................................................................. 12
8.3 Audio............................................................................................................................. 12
8.4 UART............................................................................................................................ 13
8.5 Timer............................................................................................................................. 13

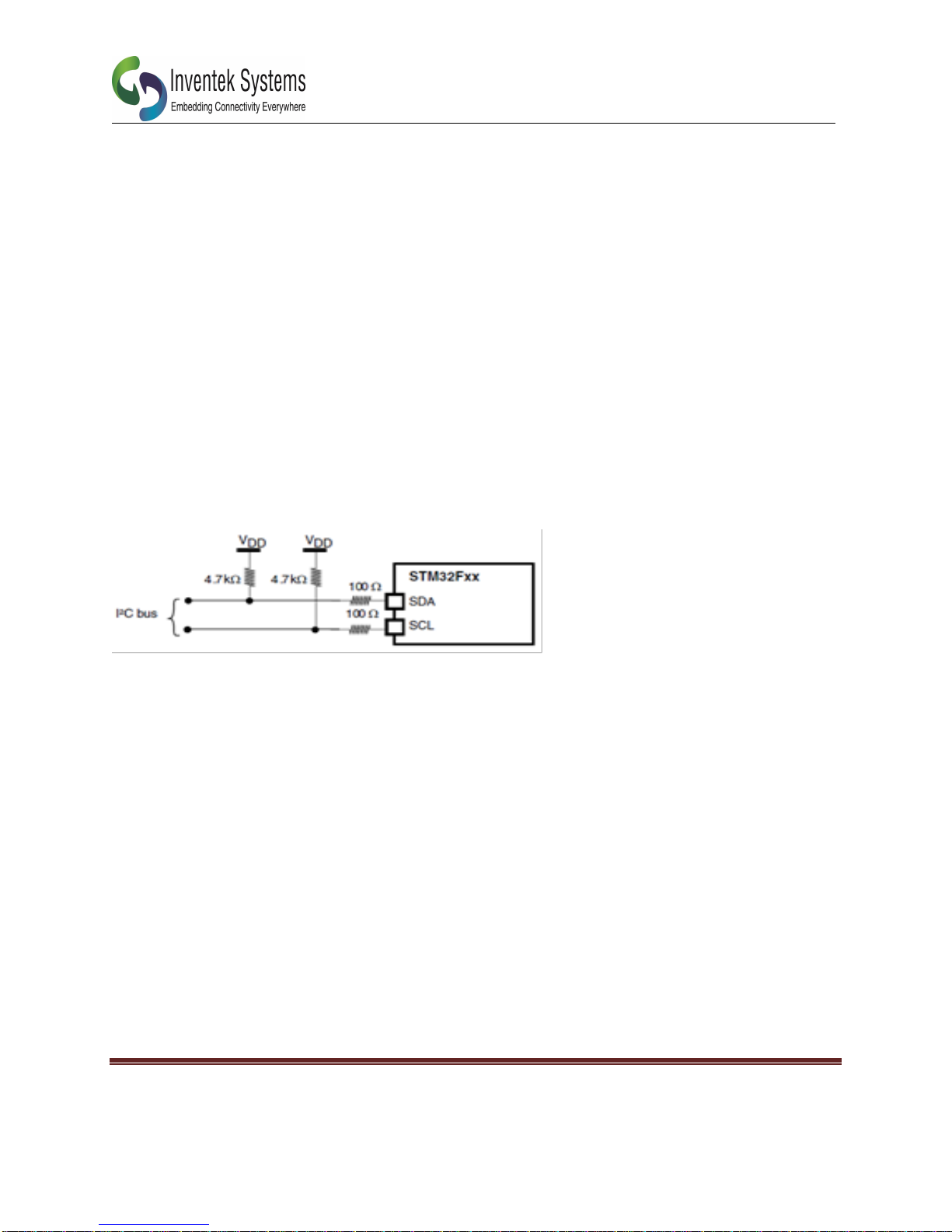

8.6 I2C................................................................................................................................. 13
8.7 ADC.............................................................................................................................. 13
8.8 I2S................................................................................................................................. 13
8.9 SPI................................................................................................................................. 13
8.10 Quad SPI....................................................................................................................... 14
8.11 BT GPIO....................................................................................................................... 14
9Connectors ............................................................................................................................ 14

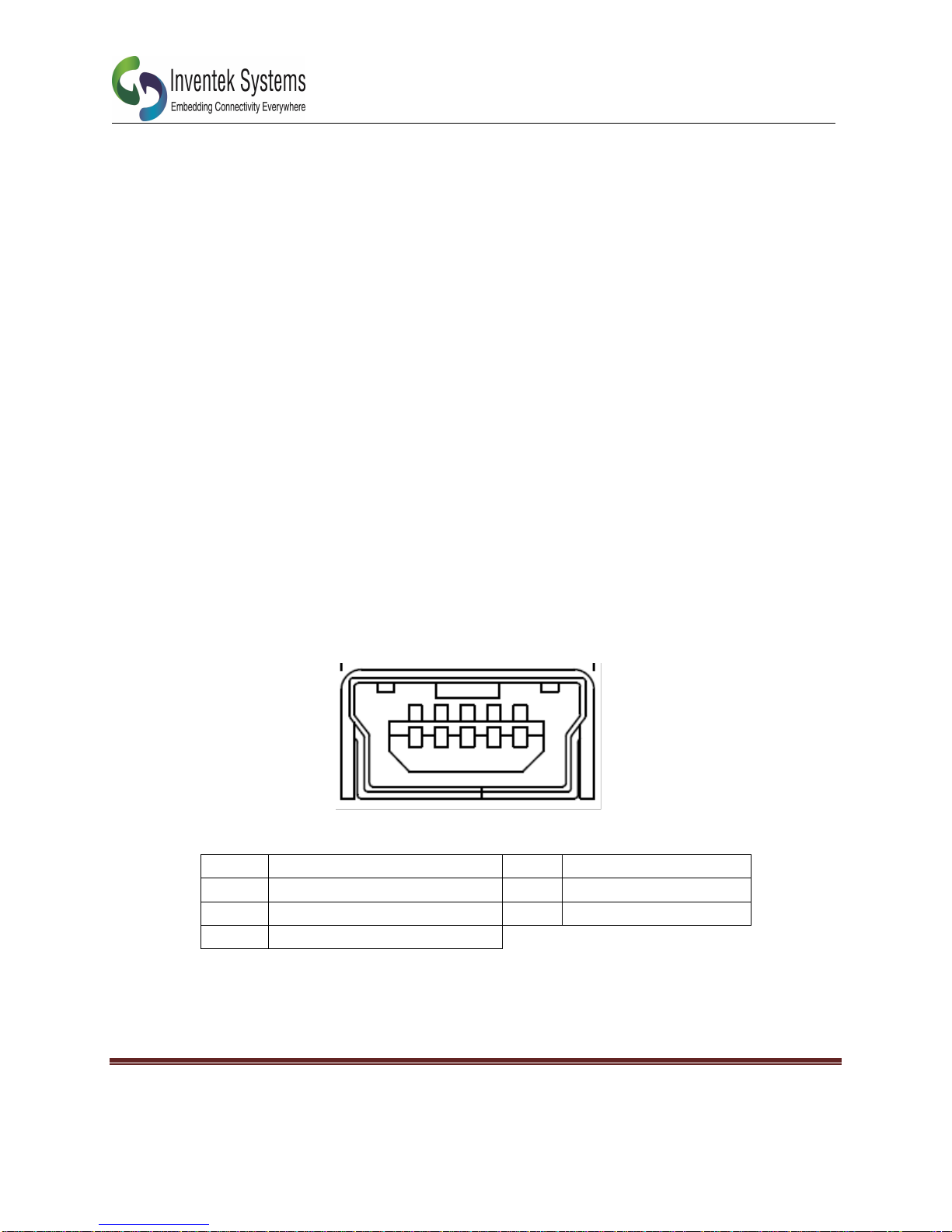

9.1 Power Supply Connector (Micro USB: P1).................................................................. 14
9.2 Boot0 Configure PIN Header (JP7).............................................................................. 15
9.3 Boot1 Configure PIN Header (JP9).............................................................................. 15
9.4 Power source................................................................................................................. 15
9.5 Function PIN Header .................................................................................................... 16
9.6 BT PCM interface PIN Header..................................................................................... 18
10 Schematic.............................................................................................................................. 19

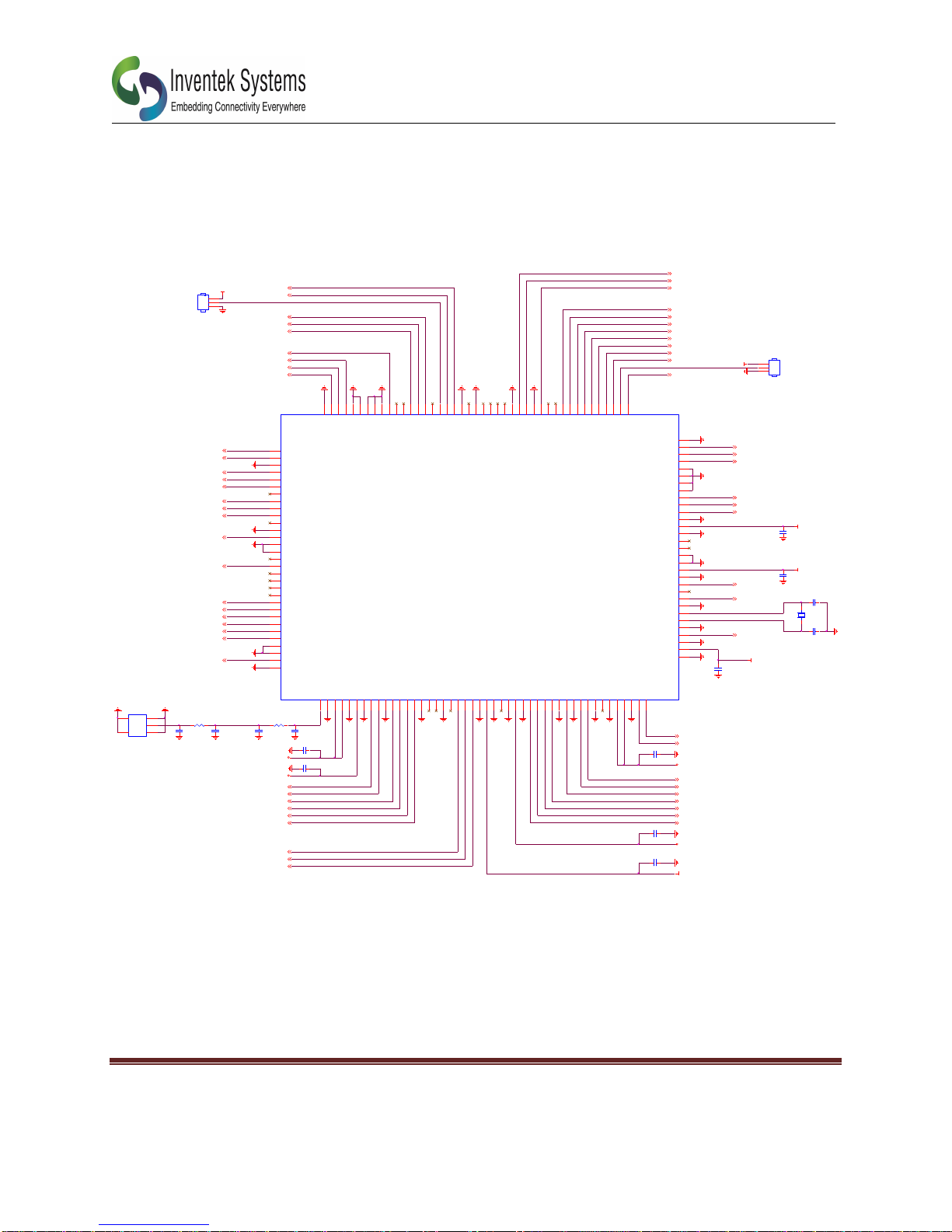

10.1 ISM4343-M4G-L151 Application schematic ................................................................. 19

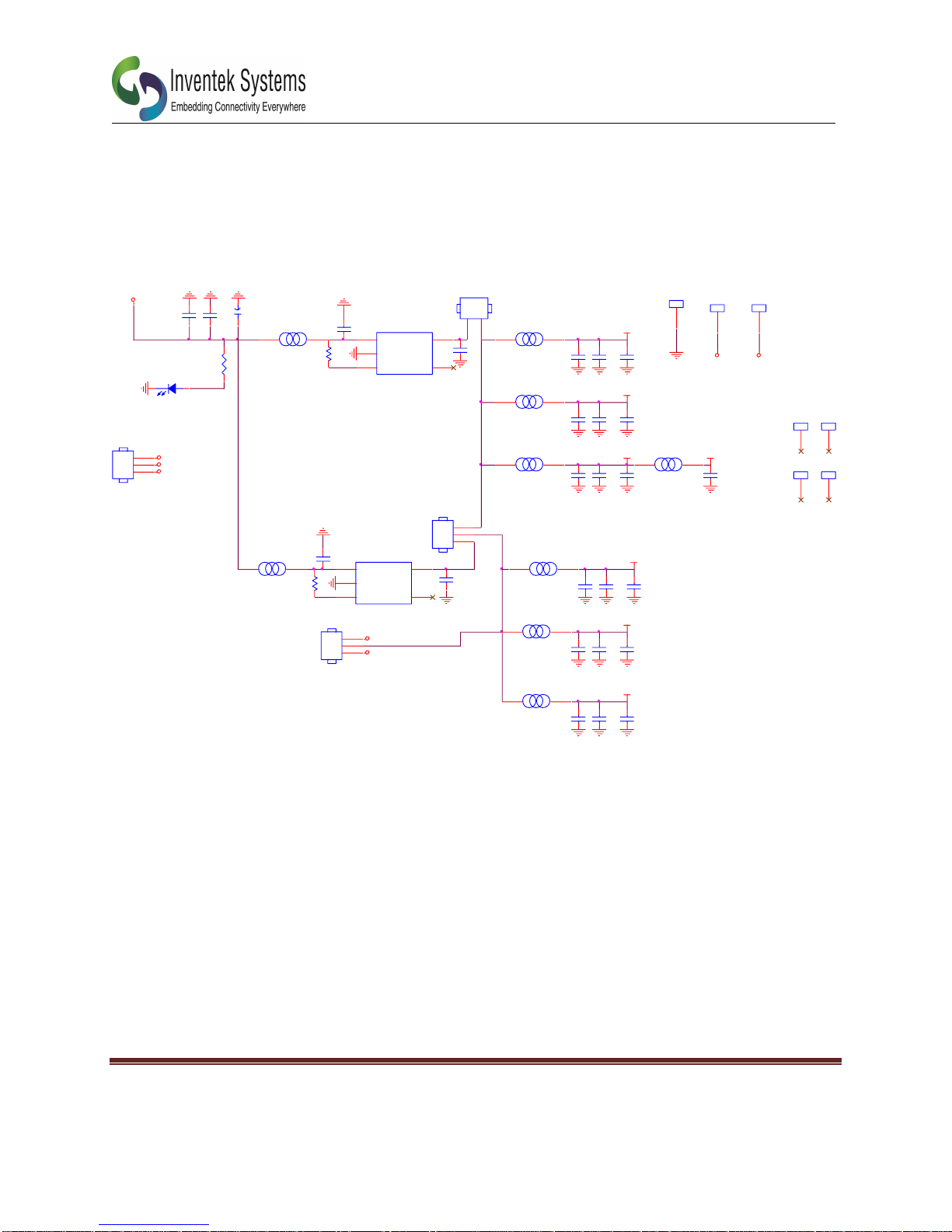

10.2 Schematic for Power..................................................................................................... 20
10.3 Schematic for USB to URAT, JTAG,& MCU Make Up ............................................. 21
10.4 Comparing eS-WiFi pinouts on our standard pinouts .................................................. 21
11 REVISION CONTROL........................................................................................................ 23
12 CONTACT INFORMATION............................................................................................... 23

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 3
1 PART NUMBER DETAIL DESCRIPTION
1.1 Ordering Information
Device
Description
Ordering Number
ISM4343-WBM-L151-EVB
2.4 Wi-Fi + BT/BLE +
Cortex M4 EVB
ISM4343-WBM-L151-EVB
2 OVERVIEW
The Inventek ISM4343-WBM-L151-EVB is a single-band IEEE 802.11n-compliant
MAC/PHY, BT 4.1 radio and ST Micro STM32F412 MCU Evaluation Board platform.
Channel bandwidth of 20MHz is supported for IEEE 802.11n traffic. 2.4GHz internal
power amplifiers and a Power Management Unit (PMU), with one switching regulator.
The ISM4343-WBM-L151-EVB integrates clock, Wi-Fi/BT and front end into the smallest
form factor LGA Module. The ISM4343-WBM-L151-EVB IEEE 802.11 b/g/n enables
wireless connectivity to the simplest existing sensor products with minimal engineering
effort. ISM4343-WBM-L151-EVB reduces development time, lowers manufacturing costs,
saves board space, simplifies certification compliance, and minimizes customer RF
expertise required during development of target applications.
The ISM4343-WBM-L151-EVB provides the highest level of integration for a wireless
system, with integrated single band Wi-Fi and BT/BLE based on Cypress’ IEEE802.11
b/g/n single-stream and BT/BLE 4.1 with support for antenna diversity and provisions for
supporting future specifications. The ISM4343-WBM-L151-EVB also supports BT 4.2LE
Secure Connection via the Cypress stack. Integrated power amplifiers, LNAs and T/R
switches for the 2.4 GHz WLAN band, are also included, greatly reducing the external
part count, PCB footprint, and cost of the solution.
The ISM4343-WBM-L151-EVB small form-factor solution also minimizes external
components to drive down cost for mass volumes and allows for handheld device flexibility in
size, form and function. Comprehensive power management circuitry and software ensure
the system can meet the needs of high mobile devices that require minimal power
consumption and reliable operations.

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 4
The ISM4343-WBM-L151-EVB module includes an ST Micro STM32F412 Cortex M4
MCU. SPI and UART interfaces enable easy connection to an embedded design. The
ISM4343-WBM-L151-EVB module requires no operating system. The ISM4343-WBM-
L151-EVB module also fully supports Cypress’ WICED Platform SDK.
The ISM4343-WBM-L151-EVB is compatible with the Bluetooth Low Energy operating
mode, which provides a dramatic reduction in the power consumption of the Bluetooth
radio and baseband. The primary application for this mode is to provide support for low
data rate devices, such as sensors and remote controls.
The ISM4343-WBM-L151-EVB implements the highly sophisticated Enhanced
Collaborative Coexistence algorithms and hardware mechanisms, allowing for an
extremely collaborative Bluetooth coexistence scheme along with coexistence support
for external radios such as cellular and LTE, GPS, and Ultra-Wideband. An
independent, high-speed UART is provided for the Bluetooth host interface.
3 FEATURES
The ISM4343-WBM-L151-EVB supports the following WLAN, Bluetooth & MCU
functions:
•STM32 ARM 32-bit CortexTM-M4 with a frequency up to 100 MHz
o1 Mbyte of MCU internal Flash
o256KB of SRAM
oSPI, Quad SPI (support Dual mode), USART, PCM
oADC, I2C, I2S, GPIO, Timers
oJTAG
•Single-band 2.4 GHz b/g/n, 802.11b, 802.11g, 802.11n (single stream)
oIEEE 802.11b 1 –11 Mbps
oIEEE 802.11g 6 –54 Mbps
oIEEE 802.11n (2.4 GHz) 7.2 –150Mbps
•Support BT COEX
•Cypress WICED Fully compatible
•IEEE 802.11b/g/n single-band radio with internal Power Amplifiers, LNAs and T/R
switches
•Hardware Encryption WEP, WPA/WPA2
•Modulation Modes include:
oWiFi: CCK and OFDM with BPSK, QPSK, 16 QAM, 64QAM, 256QAM
oBT: Dual-mode classic Bluetooth and Classic Low Energy operation
•Concurrent Bluetooth and WLAN operation
•Single antenna support

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 5
•Supports a single 2.4 GHz antenna shared between WLAN and Bluetooth
•BT host digital interface (can be used concurrently with above interface):
oUART (up to 4 Mbps)
•Bluetooth v4.1 with integrated Class 1 PA
•Bluetooth 2.1+EDR, Bluetooth 3.0, Bluetooth 4.1 (Bluetooth Low Energy)
•Bluetooth v4.2LE Secure Connection via the Cypress BSA stack.
•ECI –enhanced coexistence support, ability to coordinate BT SCO transmissions
around WLAN receives
•I²S/PCM for BT audio
•HCI high-speed UART (H4, H4 +, H5) transport support
•Bluetooth low power inquiry and page scan
•Bluetooth Low Energy (BLE) support
The BBC supports all Bluetooth 4.0 features, with the following benefits:
•Dual-mode classic Bluetooth and classic Low Energy (BT and BLE) operation.
•Low Energy Physical Layer
•Low Energy Link Layer
•Enhancements to HCI for Low Energy
•Low Energy Direct Test mode
•AES encryption
3.1 Limitations
Inventek Systems products are not authorized for use in safety-critical applications
(such as life support) where a failure of the Inventek Systems product would
reasonably be expected to cause severe personal injury or death.

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 6
4 COMPLEMENTARY DOCUMENTATION
4.1 EVB
➢Evaluation Board
oEvaluation Board Specification
oEVB User’s Guide
oDesign Guidelines
5 BLOCK DIAGRAM

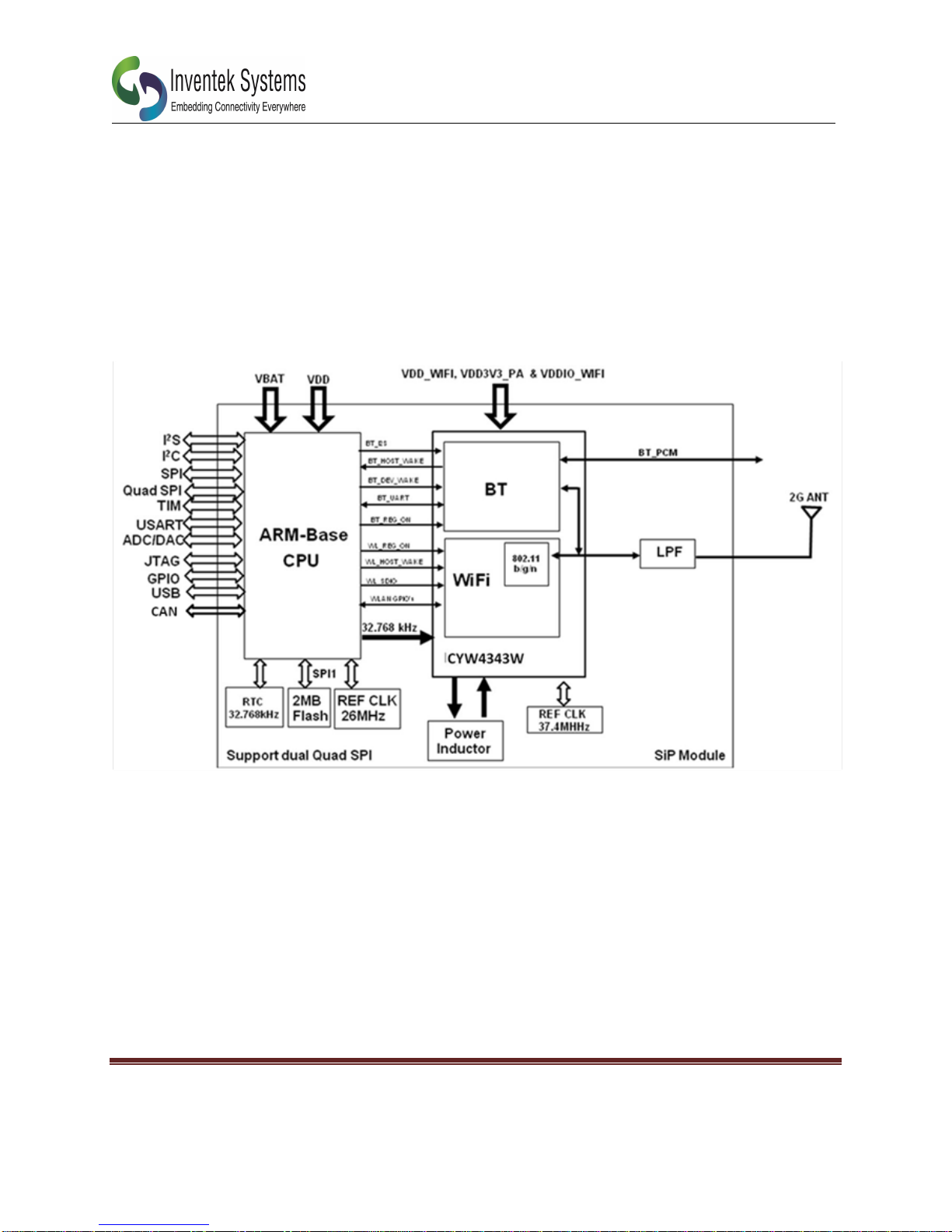

Figure 1: ISM4343-WBM-L151 Module Block Diagram
•ADC: Analog to Digital Converter
•I2C: Intelligent Interface Controller
•SPI: Serial Peripheral Interface
•Quad SPI: Quad Serial Peripheral Interface
•USART: Universal Synchronous/Asynchronous Receiver Transmitters
•TIM: Timers
•I2S: Inter-integrated Sound
•CAN: Controller Area Network

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 7
Figure 2: ISM4343-WBM-L151-EVB
6 INTRODUCTION
6.1 Applications
Applications developed using the ISM4343-WBM-L151-EVB and WICED SDK are
downloaded via USB (or optionally via USB-JTAG J-Link) to the ISM4343-WBM-L151 on
the ISM4343-WBM-L151-EVB.

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 8
7 FEATURES
7.1 Feature List
The ISM4343-WBM-L151-EVB provides a platform for the design and development of
applications the run on a ISM4343-WBM-L151.
Feature
Detail
ISM4343-WBM-L151
The ISM4343-WBM-L151 includes and STM32F412 host microprocessor, and
Cypress WiFi/BT Chip
-STM32F412:
ARM-based 32-bit 100MHz, Flash memory up to 512kbyte, Up to 128 Kbytes
of system SRAM.
-Cypress WiFI /BT Chip”
Single chip IEEE802.11 b/g/n, Bluetooth 4.1 + HS
ISM4343-WBM-L151-
EVB
The is a complete WiFi / BT and networking solution and includes ISM4343-WBM-
L151 Module, RF SMA connector and power supply
Program & Debug
Interface
Applications are downloaded to the STM32F412 host and debugged using either
USB-JTAG interface or a J-Link JTAG interface
USB-Serial UART
Interface
A UART on the STM32 host microprocessor connects to the EVB USB-serial
interface to enable serial communications with a PC terminal application
Expansion Header
The expansion header facilitates custom sensor interfaces and expansion boards
Reset Switch
Enable manual reset of the MCU
Power Supply
The EVB may be powered directly from the USB interface or from an external +5V
power supply.

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 9
7.2 EVB Hardware layout and configuration
Figure 4: ISM4343-WBM-L151-EVB Block Diagram

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 10
7.3 Top View

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 11

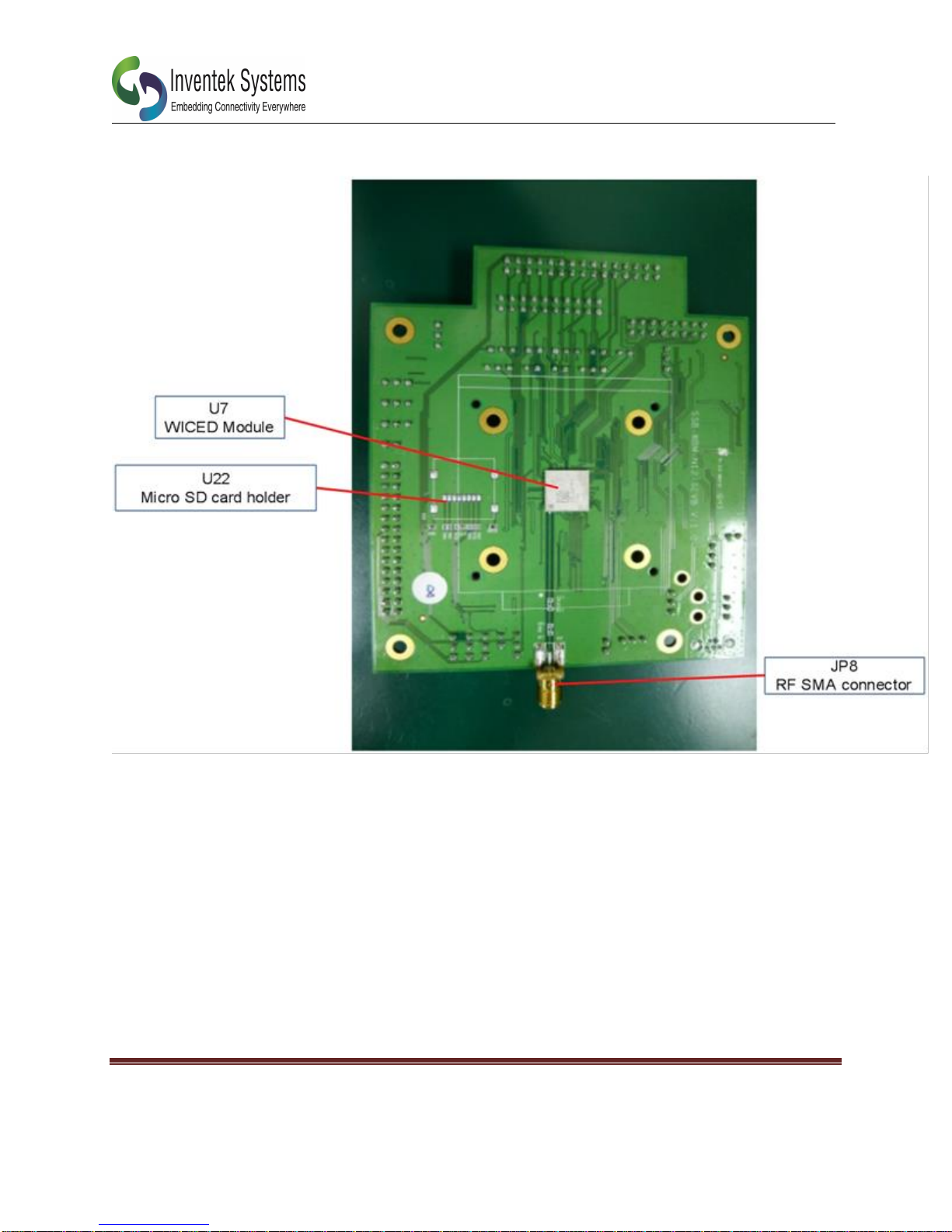

7.4 Bottom View

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 12
8 Power Supply
8.1 The ISM4343-WBM-L151-EVB is designed to be powered by a 5 V
DC power supply.
•5 V External power source hole on the board.*(1)
•5 V DC power with 500mA limitation from P1, the USB Micro-AB connecter
*(1) Set the jumper form pin 1-2 of JP29 to pin 2-3 of JP29 when using 5V external power
source on the ISM4343-WBM-L151-EVB. Also need connection JP27 and JP28 (Pin1 & Pin2)
Boot Option
The ISM4343-WBM-L151-EVB is able to boot from:
•Embedded user Flash.
•System memory with boot loader for ISP
•Embedded SRAM for debugging
The boot option is configured by Hardware setting for BOOT0 (JP7) and BOOT1 (JP9).
BOOT 0
BOOT 1
Boot source
0
0 or 1
ISM4343-WBM-L151 boots from User Flash (Default setting)
1
1
ISM4343-WBM-L151 boots from Embedded SRAM
1
0
ISM4343-WBM-L151 boots from System Memory
BOOT related configure
8.2 Reset Source
The reset signal of the ISM4343-WBM-L151-EVB is low active and the reset source includes:
•Reset button SW1.
•Debugging tools from JTAG connector J1.
8.3 Audio
The ISM4343-WBM-L151-EVB enables stereo audio play and microphone recording by an
external headset. An audio DAC IC is connected to both an I2S2 port and a DAC channel while
a microphone amplifier is connected to the ADC of the ISM4343-WBM-L151. The DAC IC can
be configured via I2C1.
1) Prefer usage of embedded ST-LINK/V2 to external tool connected on J1.
2) Configure MICRO_I2S2_SD GPIO in low speed (2 MHz or 10 MHz).

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 13
8.4 UART
The ISM4343-WBM-L151-EVB enables two channels of USART communication. One channel
(USART1) connects to R20, R23 & U3 (USB to UART IC), and Header J12 (Pin21, Pin23,
Pin25 & Pin27). Second Channel connects to header J12 (Pin20 & Pin24).
* The second channel USART overlaps to I2S function.
8.5 Timer
The ISM4343-WBM-L151-EVB enables TIMER control signal and connects to header J11.
8.6 I2C
The ISM4343-WBM-L151-EVB enables two channels of I2C function. One channel connects to
J12 (Pin2 & Pin4). Another channel connects to J12 (pin8 & Pin10).
•I2C signal traces need to be pull high.
8.7 ADC
The ISM4343-WBM-L151-EVB enables three channels of ADC signal. There are connecting to
J12 (Pin28 ~ Pin30).
8.8 I2S
The ISM4343-WBM-L151-EVB enables I2S function. The function is connecting to J12 (Pin14,
Pin16, Pin18, & Pin20).
* The I2S is overlap to USART6 function.
8.9 SPI
The ISM4343-WBM-L151-EVB enables two channels of SPI function. The First channel
connects to J12 ((Pin1, Pin13, Pin5, & Pin7). The Second channel connects to J12 (Pin11, Pin13,
Pin15, & Pin17).
* SPI1 is connected internally to Flash.

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 14
8.10 Quad SPI
The ISM4343-WBM-L151-EVB enables two channels of QUAD SPI function. The First channel
connects to J11 ((Pin1, Pin4, Pin5, Pin14, & pin24). The Second channel connects to J11 (Pin6,
Pin7, Pin12, Pin17, & Pin25).
8.11 BT GPIO
The BT GPIO function is connected to J20 (Pin1, Pin2, & Pin3).
9 Connectors
9.1 Power Supply Connector (Micro USB: P1)
The ISM4343-WBM-L151-EVB can be powered from 5V DC power supply via the external
Mini USB connector (P1) or external power supply hole.
- Micro USB Connector (P1)
Front view
Pin
Description
Pin
Description
1
VBUS (5V)
4
NC
2
D- (connect to U1 pin 7)
5
GND
3
D+(connect to U1 pin 8)

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 15
9.2 Boot0 Configure PIN Header (JP7)
Pin
Description
1
VDD_3V3
2
Boot0
3
GND
9.3 Boot1 Configure PIN Header (JP9)
Pin
Description
1
GND
2
Boot0
3
VDD_3V3
9.4 Power source
(JP29)
Pin
Description
1
VDD_5V-USB
2
5V to SiP
3
EXT_5V

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 16
9.5 Function PIN Header
The ISM4343-WBM-L151-EVB enables I2S, I2C, SPI, USART, TIM, ADC, GPIO function
J11
Pin
Description
Pin
Description
1
QUADSPI_BK1_IO1 (PF9)
2
MCIRO_GPIO_0 (PE3)
3
MCIRO_GPIO_3 (PB15)
4
QUADSPI_BK1_IO0 (PF8)
5
QUADSPI_BK1_IO2 (PF7)
6
QUADSPI_BK2_IO3 (PC5)
7
QUADSPI_BK2_IO0 (PE7)
8
QUADSPI_CLK (PB1)
9
VDD_USB
10
MCIRO_GPIO_16 (PE15)
11
MCIRO_GPIO_25 (PD10)
12
QUADSPI_BK2_IO1 (PE8)
13
MCIRO_GPIO_27 (PD8)
14
QUADSPI_BK1_NCS (PG6)
15
MCIRO_GPIO_28 (PB8)
16
MCIRO_GPIO_26 (PD1)
17
QUADSPI_BK2_NCS (PC11)
18
MCIRO_GPIO_30 (PE0)
19
MCIRO_GPIO_33 (PB13)
20
MCIRO_GPIO_32 (PB12)
21
MCIRO_GPIO_5 (PB0)
22
MCIRO_GPIO_34 (PB14)
23
PC13
24
QUADSPI_BK1_IO3 (PF6)
25
QUADSPI_BK2_IO2 (PC4)
26
NC
27
NC
28
NC
29
GND
30
GND
J12
Pin
Description
Pin
Description
1
MICRO_SPI1_NSS (PA4)
2
I2C2_SDA (PB10)
3
MICRO_SPI1_MISO (PA6)
4
I2C2_SCL (PB11)
5
MICRO_SPI1_SCK (PA5)
6
GND
7
MICRO_SPI1_MOSI (PA7)
8
I2C1_SDA (PB7)
9
GND
10
I2C1_SCL (PB6)
11
SPI4_SCK (PE12)
12
GND
13
SPI4_MOSI (PE14)
14
I2S2_SD (PC3)
15
SPI4_NSS (PE11)
16
I2S2_WS (PB9)

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 17
17
SPI4_MISO (PE13)
18
MICRO_I2S_DI (PE5)
19
GND
20
USART6_RX_I2S2_CK (PC7)
21
MICRO_UART1_RX (PA10)
22
GND
23
MICRO_UART1_RTS (PA12)
24
USART6_TX_I2S2_MCK(PC6)
25
MICRO_UART1_TX (PA9)
26
GND
27
MICRO_UART1_CTS (PA11)
28
MICRO_ADC_IN1 (PA1)
29
MICRO_ADC_IN3 (PA3)
30
MICRO_ADC_IN2 (PA2)
Trace debugging (JTAG) connector J1
Pin
Description
Pin
Description
1
VDD_3V3
2
VDD_3V3
3
MICRO_JTAG_TRSTN (PB4)
4
GND
5
MICRO_JTAG_TDI (PA15)
6
GND
7
MICRO_JTAG_TMS (PA13)
8
GND
9
MICRO_JTAG_TCK (PA14)
10
GND
11
RTCK
12
GND
13
MICRO_JTAG_TDO (PB3)
14
GND
15
MICRO_RST_N
16
GND
17
DBGRQ
18
GND
19
DBGACK
20
GND
RTCK can choose pull high or low (Default is setting pull low).
- JP14 -JP20
Pin
Description
1
MICRO_WKUP
2
GND
3
MICRO_RST_N

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 18
-J23 -J24
Pin
Description
1
SPI4_NSS
2
SPI_NSS
3
MICRO_SPI_NSS
-J25 -J26
Pin
Description
1
MICRO_SPI_SCK
2
SPI_SCK
3
SPI4_SCK
9.6 BT PCM interface PIN Header
- JP12 -JP10
Pin
Description
1
BT_PCM_OUT
2
BT_PCM_SYNC
Pin
Description
1
BT_GPIO_3
2
BT_GPIO_4
3
BT_GPIO_5
Pin
Description
1
SPI4_MISO
2
SPI_MISO
3
MICRO_SPI_MISO
Pin
Description
1
MICRO_SPI_MOSI
2
SPI_MOSI
3
SPI4_MOSI
Pin
Description
1
BT_PCM_IN
2
GND
3
BT_PCM_CLK

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 19
10 Schematic
10.1ISM4343-M4G-L151 Application schematic
VBAT
VDD_3V3
QUADSPI_BK1_IO3 1
JP8
SMA
11
22
33
4
4
5
5
VDD_3V3
C61 2.2uF
C48
DNI
R92
10pF C49
DNI
C76
DNI
R103
10pF C77
DNI
JP7
header3
1
2
3
VDD_3V3
Y1
DNI C47
DNI
C46 DNI
C45
2.2uF
C44
2.2uF
C57 2.2uF
BT_GPIO_51
BT_GPIO_41
BT_GPIO_31
C58
2.2uF
JP9
header3
1
2
3
VDD_3V3
USART1_TX 1
USART1_CTS 1
USART1_RTS 1
USART1_RX 1
BT_PCM_OUT1
BT_PCM_IN1
BT_PCM_SYNC1
BT_PCM_CLK 1
MICRO_GPIO_261,2
QUADSPI_BK1_NCS1
VDD_USB 1
MICRO_GPIO_01
QUADSPI_BK2_MCS1
MICRO_GPIO_301
MICRO_GPIO_161
C59
2.2uF
VDD_3V3
VDD_3V3
QUADSPI_CLK1
MICRO_GPIO_51
BT_HOST_WAKE 1
QUADSPI_BK1_IO2 1
MICRO_GPIO_281
MICRO_GPIO_31
MICRO_GPIO_341
USART6_RX_I2S2_CK 1
USART6_TX_I2S2_MCK 1
QUADSPI_BK1_IO1 1
QUADSPI_BK1_IO01
MICRO_GPIO_32 1
MICRO_GPIO_33 1
I2S2_SD 1
I2S2_WS1
VDD3V3_WiFi_IO
VDD3V3_PA
MICRO_RST_N1
VDD_3V3_WIFI_IN
I2C1_SCL1
I2C2_SDA 1
I2C2_SCL 1
I2C1_SDA1
MICRO_I2S_DI1 QUADSPI_BK2_IO1 1
QUADSPI_BK2_IO0 1
SPI4_MOSI1,2
SPI4_MISO1,2
SPI4_SCK1,2
SPI4_NSS1,2
MICRO_GPIO_27 1
MICRO_GPIO_25 1
MICRO_JTAG_TMS 1
MICRO_JTAG_TRSTN 1
MICRO_JTAG_TDO 1
MICRO_JTAG_TDI 1
MICRO_JTAG_TCK 1
MICRO_WKUP1
MICRO_SPI_NSS 1,2
MICRO_ADC_IN31
MICRO_ADC_IN21
MICRO_ADC_IN11
MICRO_SPI_MOSI1,2
MICRO_SPI_MISO 1,2
MICRO_SPI_SCK 1,2
QUADSPI_BK2_IO3 1
QUADSPI_BK2_IO21
PC131
C50 2.2uF
C52 2.2uF
RF_SW_CTRL1
U7
Module Pin Out
VDD3V3_WiFi
42
MCIRO_SPI2_NSS 84
GND 51
NC2
17
I2S2_WS
143
MICRO_I2S_DI 111
NC18 110
GND
27
I2C1_SCL 102
I2C1_SDA 103
GND
34
VDD3V3_WiFi_IO
28
SPI4_MOSI
14
NC24
139
MICRO_GPIO_27 86
NC3
19
MICRO_GPIO_25 87
NC25
140
NC9 88
BOOT0 104 BOOT1 79
I2S2_SD 69
USART6_RX_I2S2_CK 93
USART6_TX_I2S2_MCK 92
NC15 100
ANT
1
MCIRO_SPI2_SCK 85
NC11 95
SPI4_NSS
11
SPI4_SCK
12
VDD3V3_WiFi
43
I2C2_SDA 83
NC5
40
NC6 56
GND
7
I2C2_SCL 82
SPI4_MISO
13
GND
41
NC23
138
GND 49
GND 47
NC13 97
OSC32_IN 52
GND 54
OSC32_OUT 53
VDD3V3_PA
3
NC8 63
GND
23
VDD3V3_PA
4
QUADSPI_BK2_IO1 81 QUADSPI_BK2_IO0 80
MICRO_SPI2_MISO
21
MICRO_GPIO_28
142
MICRO_SPI_MISO 76
MICRO_WKUP 119
MICRP_GPIO_30 108
NC17 109 NC16 105
GND
15
RF_SW_CTRL
126
NC7 62
NC20
127
GND
29
QUADSPI_BK1_IO3 50
GND
18
NC12 96
MICRO_SPI2_MOSI
22
NC14 98
GND
2
GND 72
NC1
16
NC26
141
USART1_CTS
32
USART1_TX
30
MICRO_RST_N 117
MICRO_ADC_IN1
150
MICRO_SPI_NSS 74
VDD_3V3_3
24
VBAT 59
USART1_RX
31
MICRO_SPI_SCK 75
MICRO_JTAG_TMS
35
NC21
131
MICRO_GPIO_26
137
NC4
26
QUADSPI_BK1_NCS
133
VDD_USB 90
GND 91
NC10 89
VDD_3V3 65
MICRO_ADC_IN2
121
MICRO_ADC_IN3
122
QUADSPI_BK1_IO0 118
QUADSPI_BK2_IO2
124
USART1_RTS
33
BT_PCM_OUT
145
BT_PCM_IN
146
BT_PCM_SYNC
144
BT_PCM_CLK 55
MICRO_SPI_MOSI
8
MICRO_JTAG_TRSTN
46 MICRO_JTAG_TDO 45
MICRO_JTAG_TCK
37
MICRO_JTAG_TDI
38
NC22
136
MICRO_GPIO_5
125
QUADSPI_CLK
9
BT_HOST_WAKE 57
MICRO_GPIO_16
128
QUADSPI_BK2_IO3 78
MICRO_GPIO_0 106
QUADSPI_BK2_NCS 107
GND 64
QUADSPI_BK1_IO2 68
QUADSPI_BK1_IO1 67
VDD_3V3_2 48
GND 60
PC13
147
GND
132
GND 94
GND 73
GND 58
GND
25
BT_GPIO_5
130 BT_GPIO_4
129
BT_GPIO_3
20
GND 113
GND
123
GND
10
GND
5
GND
135
VDD_3V3_5
6
GND 61
GND
134
GND
148
GND
149
GND 71
GND
151
GND 77
GND
36
GND
44
GND 99
GND
39
GND 101 GND 114 GND 115 GND 116
GND 66
GND 120
GND 70
GND 112

ISM4343-WBM-L151-EVB Specification
DOC-DS-20077-2
Confidential Inventek Systems
Page 20
10.2 Schematic for Power
C25
10uF
HOLE1
1
C29
10uF
HOLE2
1
HOLE3
1
U6
XC6222B331MR-G
VDD
1
GND
2
CE
3NC 4
Vout 5
HOLE4
1
D2
LED/0603
FB4
MMZ1608B301C
1 2
R87
680
C24
33NF
12
EXT_5V
1
C22
10uF
GND1
1
C23
2.2uF
R86
0R EXT_5V
C36
4.7uF
C35
DNI
C34
DNI
FB7
MMZ1608B301C
1 2
C32
DNI
C33
4.7uF
FB6
MMZ1608B301C
1 2
C31
DNI
VBAT
VDD_3V3
FB8
MMZ1608B301C
1 2 C39
4.7uF
C38
DNI
C37
DNI
FTDI_3V3
JP27
header3
1 2
JP28header3
1
2
3
JP29header3
1
2
3VDD_5V-USB
EXT_5V
5V
5V
C68
10uF
C69
10uF
U8
XC6222B331MR-G
VDD
1
GND
2
CE
3NC 4
Vout 5
FB13
MMZ1608B301C
1 2
R93 0R
FB5
MMZ1608B301C
1 2
C26
DNI
C27
DNI
C28
4.7uF
VDD_3V3_WIFI_IN
FB9
MMZ1608B301C
1 2
C62
DNI
C63
DNI
C64
4.7uF
VDD3V3_PA
VDD_3V3_Flash
FB10
MMZ1608B301C
1 2
C65
DNI
C66
DNI
C67
4.7uF
VDD3V3_WiFi_IO
VCC33_SDIO
WIFI_EXT_voltage
FB15
MMZ1608B301C
1 2
JP34
header3
1
2
3
C74
4.7uF
WIFI_EXT_voltage
1
WIFI_EXT_voltage
