INVENTOR GLX06123 User manual

1
TOP LOAD
MODEL:
GLX06123
WASHING MACHINE
• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
ENGLISH | ΕΛΛΗΝΙΚΑ

3
CONTENTS
SAFETY INSTRUCTIONS
■Safety Instructions .................................................................. 4
INSTALLATION
■Product Description................................................................ 9
■Installation ............................................................................. 10
OPERATIONS
■Quick Start . ............................................................................ 13
■Before Each Washing ...........................................................14
■Detergent Dispenser ............................................................15
■Control Panel . ....................................................................... 16
■Option..................................................................................... 17
■Other Functions ....................................................................18

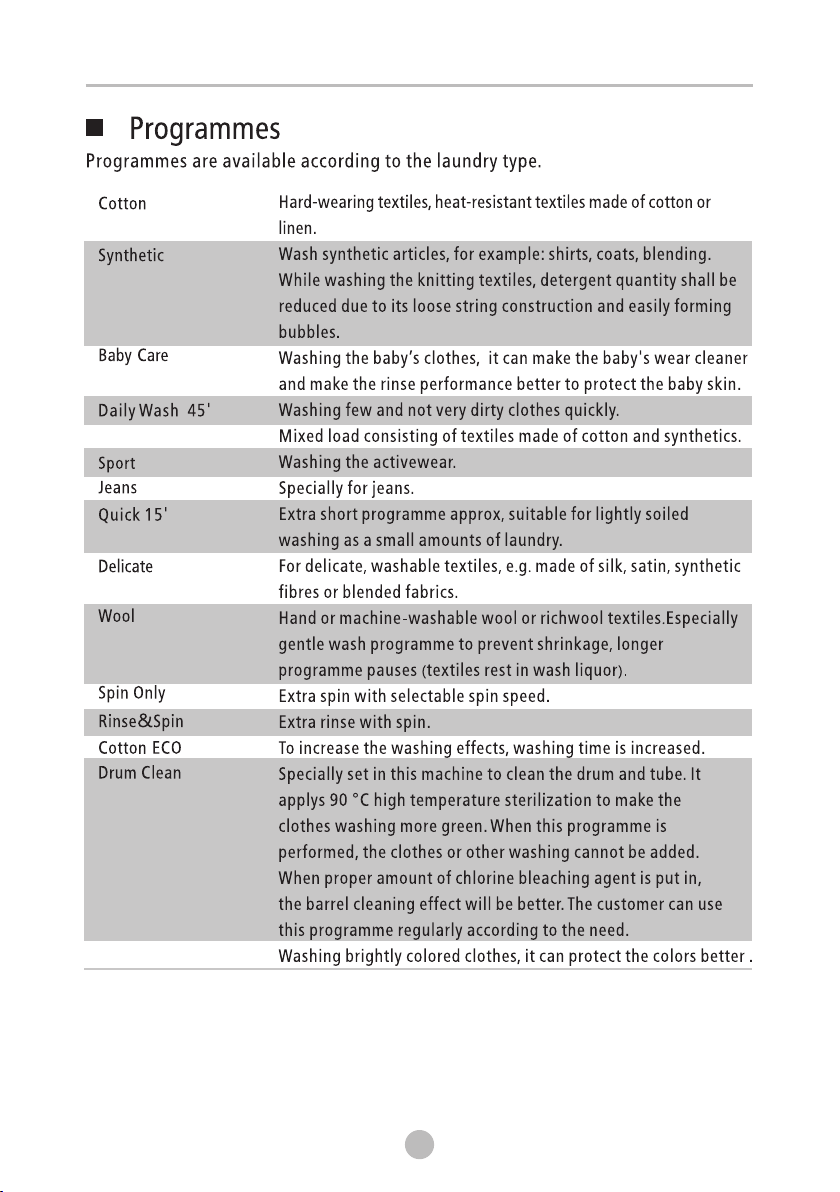

■Programmes. ......................................................................... 20
■Washing Programmes Table ...............................................21
MAINTENANCES
■Cleaning And Care ................................................................ 22
■Trouble Shooting...................................................................25
■Technical Specications ....................................................... 27
■Product Fiches ....................................................................... 28
Activate your Warranty..................................................30

4
Electric shock!

5
Electric shock!

6
4
• Plug must be accessible after installation.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of explosion!
•
•
Do not wash ordry articles that have been cleaned in,washed
in,soaked in,or dabbed with combustible or explosive
substances( such as wax, oil,paint,gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
•It is not intended for build in usage
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive or
caustic gases.
• The washing machine with single inlet valve only can be
connected to the cold water supply.The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Installing the product!
Caution!
SAFETY INSTRUCTIONS

7
4
• Plug must be accessible after installation.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in,washed
in,soaked in,or dabbed with combustible or explosive
substances( such as wax, oil,paint,gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
•It is not intended for build in usage
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive or
caustic gases.
• The washing machine with single inlet valve only can be
connected to the cold water supply.The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Installing the product!
Caution!
SAFETY INSTRUCTIONS
Your product is only for home use and is only designed for the
textiles suitable for machine washing.
Do not climb up and sit on top cover of the machine.
Do not lean against machine door.
Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by a
specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machinecarefully.Neverholdeachprotruded part
on the machine while lifting.Machine door can not be used
as the handle during the conveyance.
4.This appliance is heavy.Transport with care.
Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are put in
or distributed well.
It is forbidden to wash carpets.
Prior to the initial wash, please operate this unit for one full
cycle, empty.
Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. shall not be used as detergents.
Please only select the detergents suitable for machine washing,
especially for drum.

8
Make sure that all pockets are emptied. Sharp and rigid items
such as coins, brooches, nails, screws or stones etc. may cause
serious damages to this machine.
Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
Be careful of burning when the product drains hot washing
water.
Never refill the water by hand during washing.
After the program is completed, please wait for two minutes to
open the door.

9
Make sure that all pockets are emptied. Sharp and rigid items
such as coins, brooches, nails, screws or stones etc. may cause
serious damages to this machine.
Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
Be careful of burning when the product drains hot washing
water.
Never refill the water by hand during washing.
After the program is completed, please wait for two minutes to
open the door.

10
• Stability is very important to prevent the product from
possible slight displacement.
• Be certain the product is not standing on the power
cord.

11

12

13
10
11
1.Before Washing
The word "END" will appear on the display
Open tap
Close
machine door
Plug in
Adddetergent
Quick Start
3.AfterWashing
• Detergent need to be added
in "case I “after selecting
pre-washing for machines
with this function.
• Make sure that the drum flaps
are properly lock ed.
• All metal hooks must be
properly hooked inside the rear
door flap.
1 2 3
5
2.Washing
Select Programme Select function or
default
Start up
1 2 3
Note!
Note!
Caution!
OPERATIONS
4
Close
drum door
• Check the roller before each laundry ,it must roll smoothly .
• If default is selected,
step 2 can be skipped
• The function button line
chart is for reference only,
please refer to real product
as standard.
• Before usage, be certain this unit is installed properly.
• Prior to the initial wash, please operate this unit for one full cycle, empty.

14
• Washing a single garment can cause a load imbalance and may result on a warning beep from
the washing machine. It is advised to add one or more extra clothes to ensure a smooth
drainage.
• Do not wash any clothes that have come in contact with kerosene, gasoline, alcohol or other
ammable substances.
• When washing a single piece of clothing, it may cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t wash clothes that have come in contact with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be 0-40°C. If used under 0°C, the inlet valve
and draining system may be damaged. If the machine is placed under condition of 0°C or
less, then it should be transferred to normal ambient temperature to ensure the water supply
hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-
foaming or less-foaming detergent suitable for machine washing properly.

15
• Washing a single garment can cause a load imbalance and may result on a warning beep from
the washing machine. It is advised to add one or more extra clothes to ensure a smooth
drainage.
• Do not wash any clothes that have come in contact with kerosene, gasoline, alcohol or other
ammable substances.
• When washing a single piece of clothing, it may cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t wash clothes that have come in contact with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be 0-40°C. If used under 0°C, the inlet valve
and draining system may be damaged. If the machine is placed under condition of 0°C or
less, then it should be transferred to normal ambient temperature to ensure the water supply
hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-
foaming or less-foaming detergent suitable for machine washing properly.
Mixed
Colour
• When using abrasive detergents or softeners, prior to placing them in the appropriate sections
of the drawer, it is recommended to dissolve in water, thus avoiding the risk of possible
blockage of the detergent drawer or a possible water overow.
• Choose the right type of detergent for the various washing temperatures to get optimal results
with less water and energy consumption.

16
90°
60°
40°
20°
1.200
1.000
800
600
9H
6H
3H
3’’
3’’3’’
90°
60°
40°
20°
1.200
1.000
800
600
9H
6H
3H
OPERATIONS
Cotton
Synthetic
Mixed
Jeans
Sport
Colour
Baby Care
Favourite
Drum Clean
Cotton ECO
Quick 15'
Daily Wash 45'
Delicate
Wool
Rinse & Spin
Drain

17
90°
60°
40°
20°
1.200
1.000
800
600
9H
6H
3H
3’’
3’’3’’
90°
60°
40°
20°
1.200
1.000
800
600
9H
6H
3H
OPERATIONS
Cotton
Synthetic
Mixed
Jeans
Sport
Colour
Baby Care
Favourite
Drum Clean
Cotton ECO
Quick 15'
Daily Wash 45'
Delicate
Wool
Rinse & Spin
Drain
OPERATIONS
• In the event of a power failure and while your device is operating, the selected setting /
program is saved in smart memory. Once the power has been restored, the program will
continue from the point where it stopped.
Programme ΙΙΙ Programme ΙΙΙ
Delay Extra Rinse Pre wash Delay Extra Rinse Pre wash
Cotton    Spin Only 
Synthetic    Rinse & Spin 
Mixed    Wool  
Jeans    Delicate  
Sport    Daily Wash 45'   
Colour   Quick 15' 
Baby Care    Cotton Eco 
Drum Clean 
 Means Optional

18
OPERATIONS
Programme Default Speed
(rpm)
Programme Default Speed
(rpm)
1200 1300 1200 1300
Cotton 1200 1300 Spin Only 800 1000
Synthetic 1200 1300 Rinse & Spin 800 1000
Mixed 800 1000 Wool 600 600
Jeans 800 800 Delicate 600 600
Sport 800 800 Daily Wash 45' 800 800
Colour 1000 1000 Quick 15' 800 800
Baby Care 800 800 Cotton Eco 800 800
Drum Clean - -

19
OPERATIONS
OPERATIONS
• Once the Child lock Function is active the buzzer will beep 3 times, when any buttons
are pressed.
• Press simultaneously the two buttons to deactivate this feature
• Child lock will inactivate all buttons besides the Power Button
• In the event of a power break, the Child Lock will be deactivated.
Favourite

20
OPERATIONS
Mixed
Colour
