Invicta Onsen User manual

PAGE2
INVICTA ONSENINSTALLATIONANDUSERMANUAL
1. TECHNICAL DATA
WEIGHT AND DIMENSIONS:
Dimensions Firebox W500 x H1048 x D518mm
Firebox weight 126kg
Flue kit Standard 6”/8”/10”
DETERMINED UNDER TEST CONDITIONS:
Nominal thermal output 6kW
Efficiency (Australian Test) 61%
Emissions (Australian Test) 0.6g/kg
6 / 8” FLUE
500
1048
385
309

PAGE3
INVICTA ONSENINSTALLATIONANDUSERMANUAL
2. PRE-INSTALLATION
Congratulations on your purchase of the Onsen. This appliance should be installed and checked by a qualified
professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or
concerns please contact Oblica on 03 9416 0400.
The installation process is outlined below:
– Determine position of firebox and flue carefully observing the clearances described within this section
– Install the external flue
– Install the internal flue and engage the firebox
– Ensure the floor has adequate protection
CAUTION:
Using components or parts other than those provided by the manufacturer or modifying the specification of
components may result in inferior or unsafe operation. If such action is necessary, consult the manufacturer in the
first instance.
WARNING:
• The appliance and flue-system must be installed in accordance with AS/NZS 2918 and the
relevant building code or codes.
• Any modification of the appliance that has not been approved in writing by the testing authority
will be in breach of the approval granted for compliance with AS/NZS 4013.
• Once the flue has been installed and approved by a professional installer, the flue must not be
modified in any way.
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE4
INVICTA ONSENINSTALLATIONANDUSERMANUAL

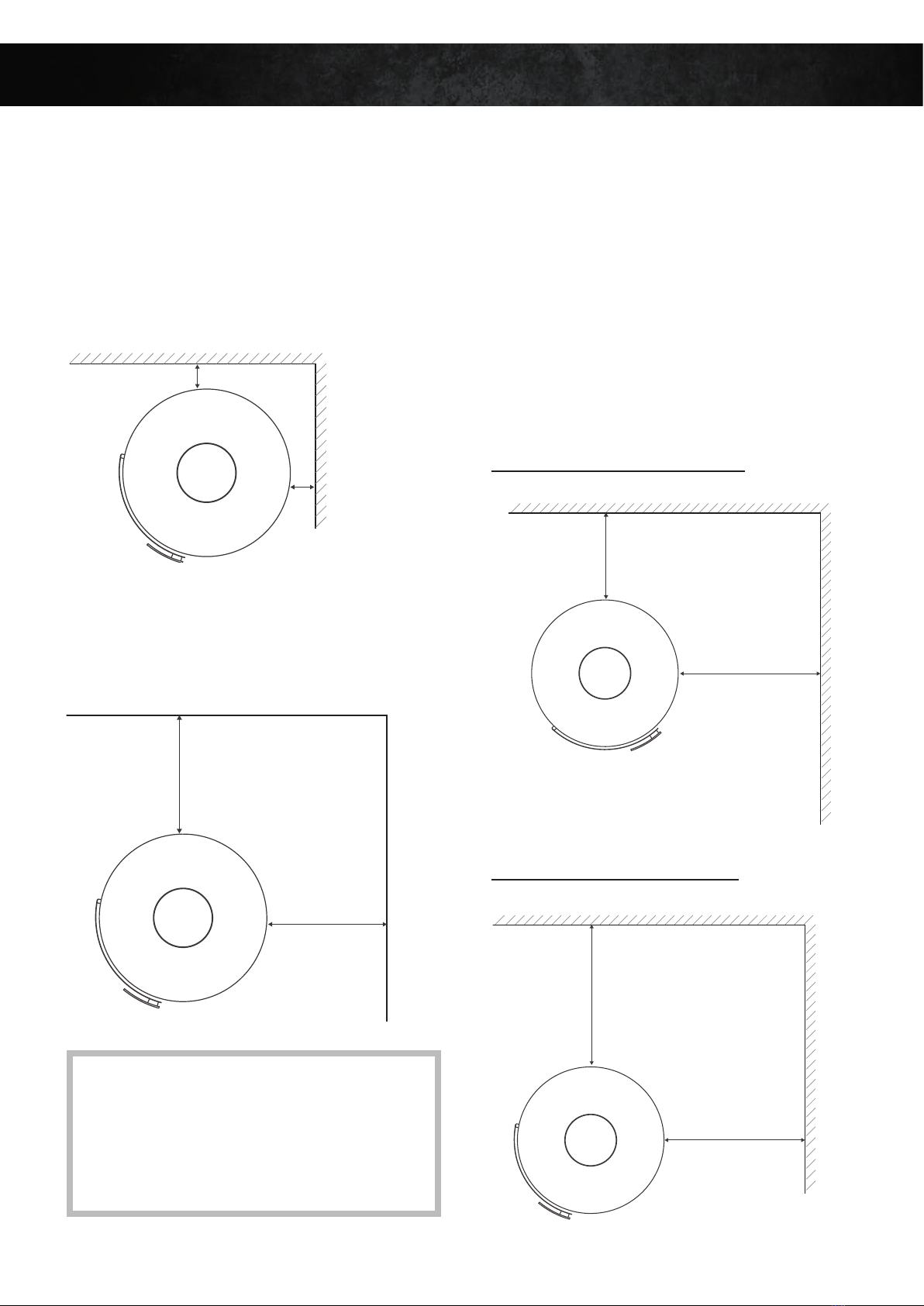

MINIMUM CLEARANCE – INTERNAL
2.1 Clearance from non-combustible surfaces
(eg masonry)
100mm minimum clearance is required from fully
non-combustible surfaces.
100
100
Non Combustible
Non Combustible
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
350mm
350mm
Combustible
Combustible
550mm
1150mm
Combustible
Combustible
850mm
850mm
2.2 Clearance from glass
350mm minimum clearance is required from normal
non-combustible glass.
2.3 Clearance from combustible surfaces
(eg timber joist & concrete)
Clearances may be reduced with the application of
heat shielding to walls in accordance to the
Australian Building Code.
For information on heat shielding please contact our
office on 03 9416 0400 or email [email protected].
IMPORTANT:
Frames must also be considered. Timber window
frames must be treated as combustible surfaces
(see 2.3). Aluminium frames can be treated as
non-combustible surfaces (see 2.2).
2. PRE-INSTALLATION (CONTINUED)
100
100
Non Combustible
Non Combustible
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
350mm
350mm
Combustible
Combustible
550mm
1150mm
Combustible
Combustible
850mm
850mm
100
100
Non Combustible
Non Combustible
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
350mm
350mm
Combustible
Combustible
550mm
1150mm
Combustible
Combustible
850mm
850mm
100
100
Non Combustible
Non Combustible
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
350mm
350mm
Combustible
Combustible
550mm
1150mm
Combustible
Combustible
850mm
850mm
Configuration 1 – Parallel installation
Configuration 2 – Corner installation
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE5
INVICTA ONSENINSTALLATIONANDUSERMANUAL
MINIMUM CLEARANCE – INTERNAL
2.4 Timber stud wall lined with 30mm
silicate board
Silicate board 30mm thick and installed directly on
combustible wall. The sheet must be fixed with the
2000mm length fixed centrally behind the appliance
and must extend to a height of 1200mm above
the hearth.
2. PRE-INSTALLATION (CONTINUED)
Combustible
Combustible
2000mm
200mm
200mm
Configuration 3 – With Silicate board 30mm thick
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE6
INVICTA ONSENINSTALLATIONANDUSERMANUAL
3. INSTALLATION

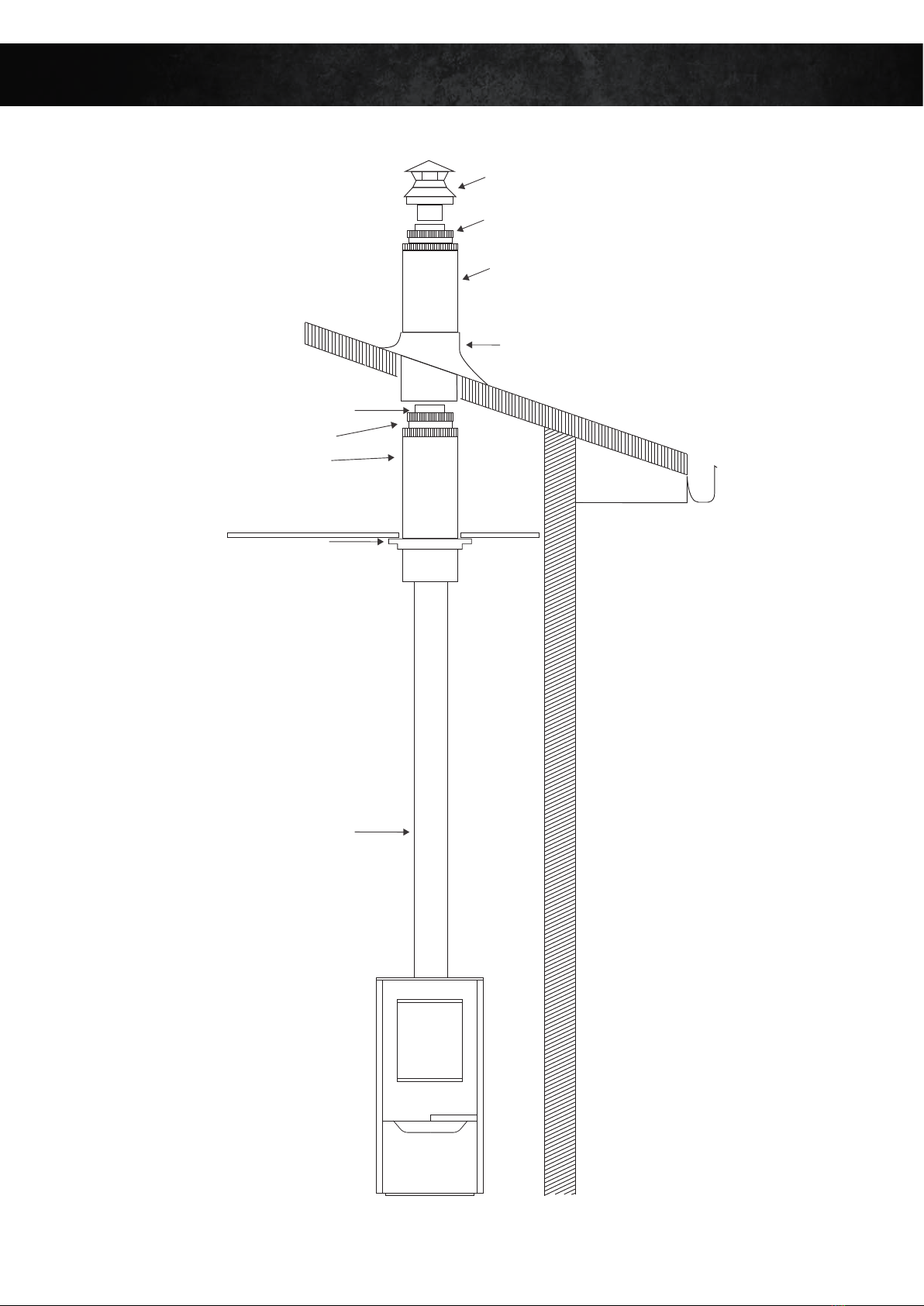

3.1 Typical flue kit installation
Cowl (Chinaman Hat)
8” Outer Case
10” Outer Case
8” Outer Case
10” Outer Case
6” Active Flue
6” Active Flue
CEILING RING
RUBBER
DEKTITE FLASHING
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE7
INVICTA ONSENINSTALLATIONANDUSERMANUAL
3. INSTALLATION (CONTINUED)

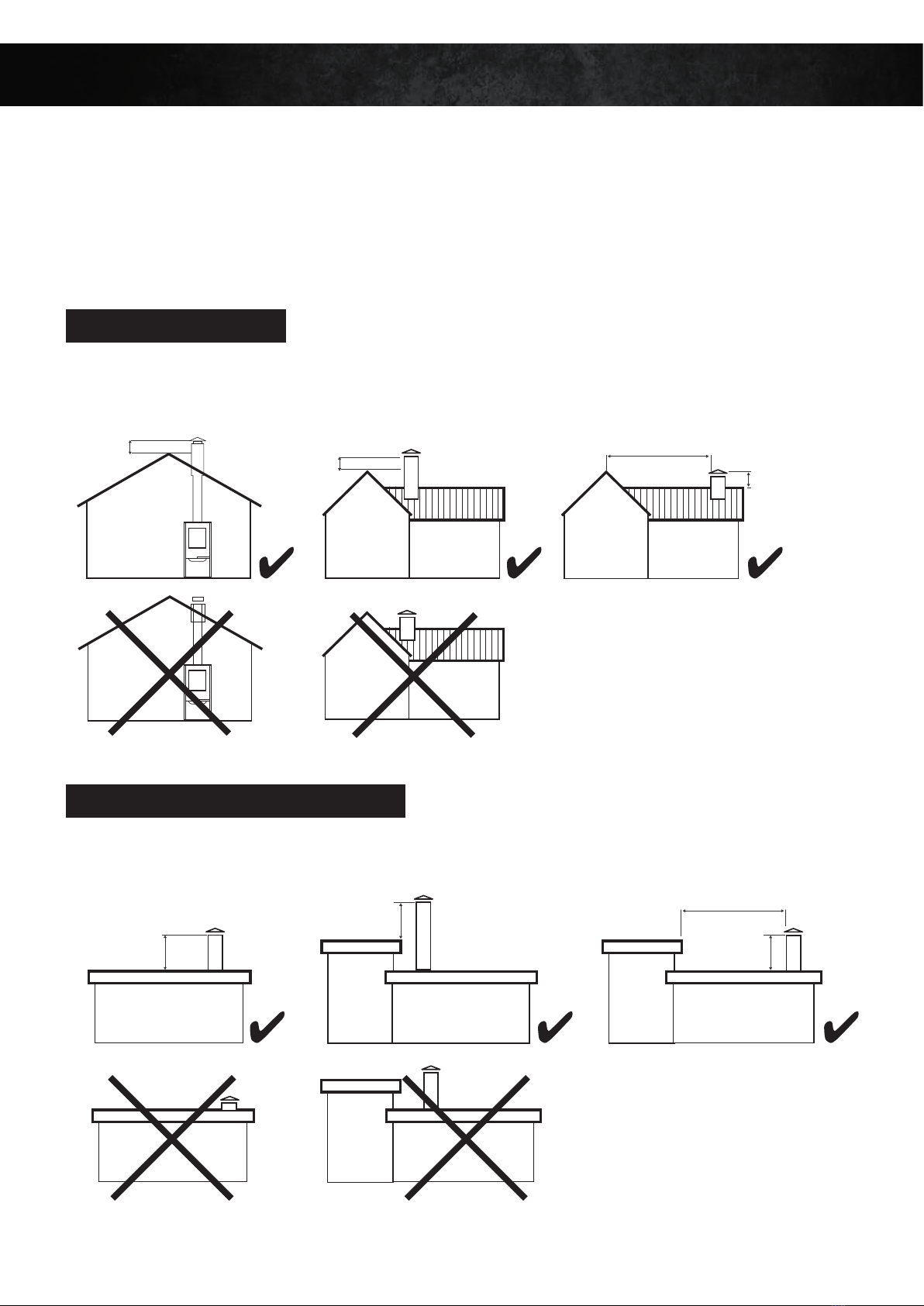

3.2 Installing the external flue
1. Place the connection piece inside the suspension bracket. This will join the single skin flue below the
bracket and the triple skin flue above the bracket which have different diameters.
2. Ensure the triple skin flue is installed as per Australian standards (see diagrams below).
The top of the flue must be 400mm higher than the highest point of the roof. Alternatively, there must be a
minimum distance of 3 meters from any higher section of roof.
> 40 cm
–>40 cm
–> 40 cm
–
> 8 m
–
> 120 cm
–
> 8 m
–
> 120 cm
–
> 120 cm
–
> 40 cm
–> 40 cm
–> 40 cm
–
> 8 m
–
> 120 cm
–
> 8 m
–
> 120 cm
–
> 120 cm
–
The top of the flue must be 1200mm above the roofline. Alternatively, there must be a minimum distance of
3 meters from any higher section of roof.
PITCHED ROOF INSTALLATION
FLAT ROOF INSTALLATION (LESS THAN 5˚ PITCH)
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE8
INVICTA ONSENINSTALLATIONANDUSERMANUAL

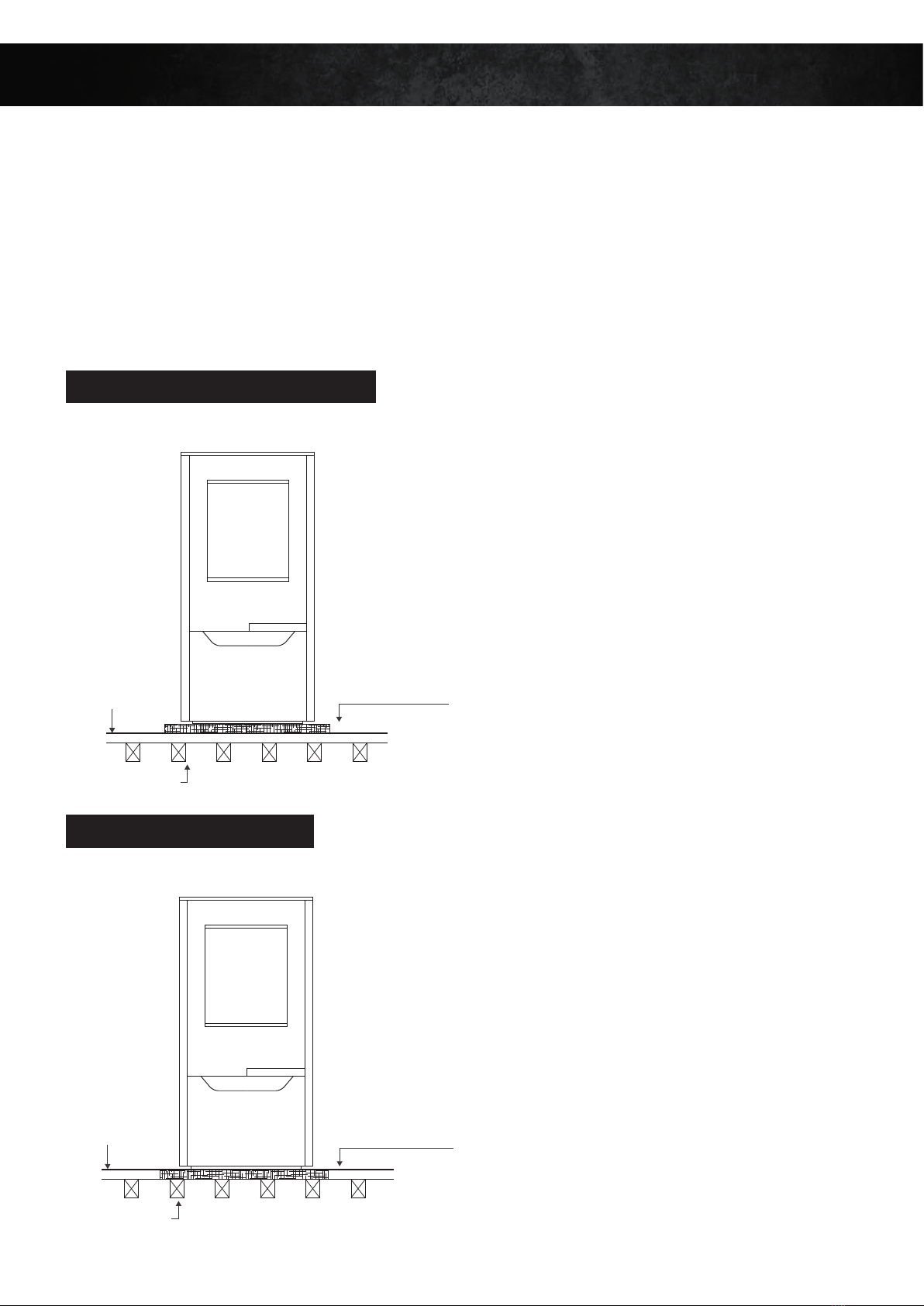

3.3 Protecting the floor
• Any combustible floor beneath a fireplace must have a floor protector that extends minimum 300mm at the front.
• If installed directly on combustible material, the floor protector must be made of a minimum 6mm thick cement sheet.
Non-combustible finishes can be applied to the floor protector (tiles, steel sheet, light concrete, etc).
• If the combustible floor is installed on concrete, you can replace the combustible material with non-combustible
material laid directly onto the concrete.
200mm
300mm
Combustible floor
(eg: Timber)
Floor protector
200mm
825mm
705mm
Joist
Insulative board (8mm)
+ non combustible finish
Non combustible finish
(eg.tiles)
Concrete
Combustible
floor (eg. timber)
Joist
Insulative board (8mm)
+ non combustible finish
Combustible
floor (eg. timber)
Combustible
floor (eg. timber)
FLOOR PROTECTOR LAID ON TIMBER FLOOR
3. INSTALLATION (CONTINUED)
200mm
300mm
Combustible floor
(eg: Timber)
Floor protector
200mm
825mm
705mm
Joist
Insulative board (8mm)
+ non combustible finish Non combustible finish
(eg.tiles)
Concrete
Combustible
floor (eg. timber)
Joist
Insulative board (8mm)
+ non combustible finish
Combustible
floor (eg. timber)
Combustible
floor (eg. timber)
FLOOR PROTECTOR LAID ON JOIST
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE9
INVICTA ONSENINSTALLATIONANDUSERMANUAL
200mm
300mm
Combustible floor
(eg: Timber)
Floor protector
200mm
825mm
705mm
Joist
Insulative board (8mm)
+ non combustible finish
Non combustible finish
(eg.tiles)
Concrete
Combustible
floor (eg. timber)
Joist
Insulative board (8mm)
+ non combustible finish
Combustible
floor (eg. timber)
Combustible
floor (eg. timber)
200mm
300mm
Combustible floor
(eg: Timber)
Floor protector
200mm
825mm
705mm
Joist
Insulative board (8mm)
+ non combustible finish Non combustible finish
(eg.tiles)
Concrete
Combustible
floor (eg. timber)
Joist
Insulative board (8mm)
+ non combustible finish
Combustible
floor (eg. timber)
Combustible
floor (eg. timber)
FLOOR PROTECTOR LAID ON CONCRETE
3. INSTALLATION (CONTINUED)
TOP VIEW
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE10
INVICTA ONSENINSTALLATIONANDUSERMANUAL
4. OPERATION
4.1 What you should burn
• Untreated, air dried hardwood
• Split logs with a humidity content of less than 20%
4.2 Do not burn
• Trash
• Painted plastic
• Coated or preservative treated wood
• Waste or black coal
• Inflammable liquids
• Fire gels
• Moist wood with a residual humidity content of more than 20% (this may cause soothing of the chimney).
WARNING:
• Do not use flammable liquids or aerosols to start or rekindle the fire.
• Do not use flammable liquids or aerosols in the vicinity of the fireplace when operating.
• Do not store fuel within prescribed installation clearance distances.
• The use of some types of preservative-treated woods as a fuel can be hazardous.
IMPORTANT:
• Misuse may lead to unhealthy and environmentally harmful emissions and will void any warranty or guarantee.
• The maximum load capacity for the Onsen is 10kg of wood.
• Burning only seasoned hardwood helps to protect the environment and lower emissions.
For details of a wood supplier in your area please call our office on 03 9416 0400 or email [email protected].
INVICTA ELTONINSTALLATIONANDUSERMANUAL

PAGE11
INVICTA ONSENINSTALLATIONANDUSERMANUAL
5. TESTING
TEST REPORT NO ASFT18079
TESTING LABORATORY: Australian Solid Fuel Testing
MANUFACTURER: Invicta
MODEL: Onsen fireplace
WORK REQUESTED: Assessment of appliance to AS/NZS 4012:2014
for determination of Power Output and Efficiency
and AS/NZS 4013:2014 for Flue Gas Emission
using hardwood fuel.
ISSUE DATE: 14/09/2018
INVESTIGATING OFFICER: Steve Marland
RESULTS: The appliance particulate emission factor established
in testing is 0.6g/kg of dry wood, within the maximum
specification of 2.5g/kg of dry wood and an average
efficiency of 61%.
CONCLUSION: This appliance does comply with the requirements
of AS/NZS 4013:2014 for the configuration tested.
