Invicta pharos User manual

PHAROS:
MODEL SPECIFICATIONS
1. TECHNICAL DATA 2
2. PRE-INSTALLATION 3
3. INSTALLATION 5
4. OPERATION 9
5. TESTING 10
Keep for future use

PAGE 2
OBLICA | PHAROS INSTALLATION AND USER MANUAL

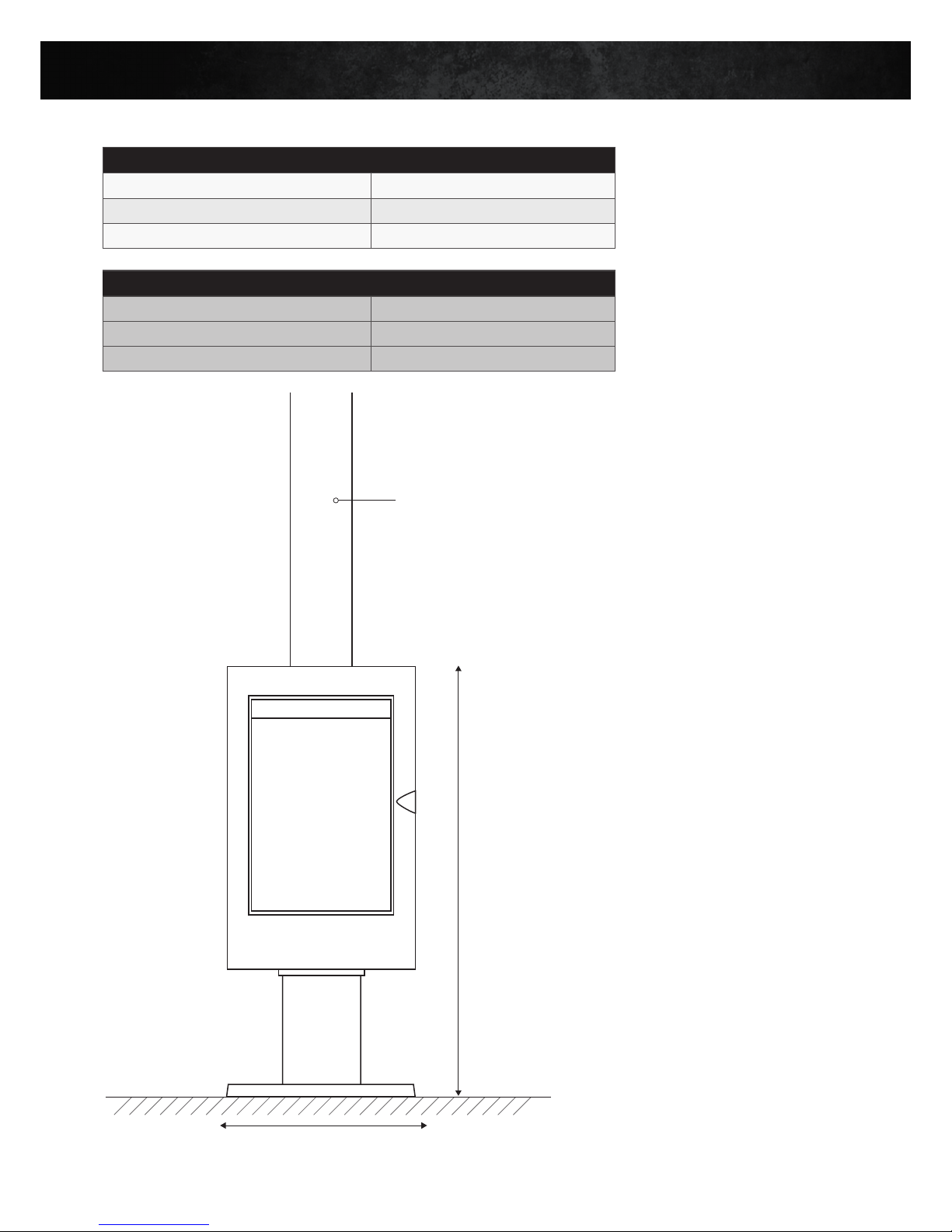

1. TECHNICAL DATA
WEIGHT AND DIMENSIONS:
Dimensions Firebox W531 x H1250 x D530mm
Firebox weight 167kg
Flue kit Standard 7”/9”/11”
DETERMINED UNDER TEST CONDITIONS:
Nominal thermal output 9kW
Efficiency (Australian Test) 60%
Emissions (Australian Test) 1.2g/kg
7 / 9” FLUE
531
1250

PAGE 3
OBLICA | PHAROS INSTALLATION AND USER MANUAL
2. PRE-INSTALLATION
Congratulations on your purchase of the Pharos. This appliance should be installed and checked by a qualified
professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or
concerns please contact Oblica on 03 9416 0400.
The installation process is outlined below:
– Determine position of firebox and flue carefully observing the clearances described within this section
– Install the external flue
– Install the internal flue and engage the firebox
– Ensure the floor has adequate protection
CAUTION:
Using components or parts other than those provided by the manufacturer or modifying the specification of
components may result in inferior or unsafe operation. If such action is necessary, consult the manufacturer in the
first instance.
WARNING:
• The appliance and flue-system must be installed in accordance with AS/NZS 2918 and the
relevant building code or codes.
• Any modification of the appliance that has not been approved in writing by the testing authority
will be in breach of the approval granted for compliance with AS/NZS 4013.
• Once the flue has been installed and approved by a professional installer, the flue must not be
modified in any way.

PAGE 4
OBLICA | PHAROS INSTALLATION AND USER MANUAL
MINIMUM CLEARANCE – INTERNAL
2.1 Clearance from non-combustible surfaces
(eg masonry)
100mm minimum clearance is required from fully
non-combustible surfaces.
100
100
Non Combustible
Non Combustible
2.2 Clearance from glass
400mm minimum clearance is required from normal
non-combustible glass.
2.3 Clearance from combustible surfaces
(eg timber joist & concrete)
Clearances may be reduced with the application of
heat shielding to walls in accordance to the
Australian Building Code.
For information on heat shielding please contact our
office on 03 9416 0400 or email [email protected].
IMPORTANT:
Frames must also be considered. Timber window
frames must be treated as combustible surfaces
(see 2.3). Aluminium frames can be treated as
non-combustible surfaces (see 2.2).
2. PRE-INSTALLATION (CONTINUED)
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
400mm
400mm
625mm
Combustible
Combustible
625mm
Combustible
Combustible
750mm
750mm
Configuration 1 – Parallel installation
Configuration 2 – Corner installation

PAGE 5
OBLICA | PHAROS INSTALLATION AND USER MANUAL
3. INSTALLATION

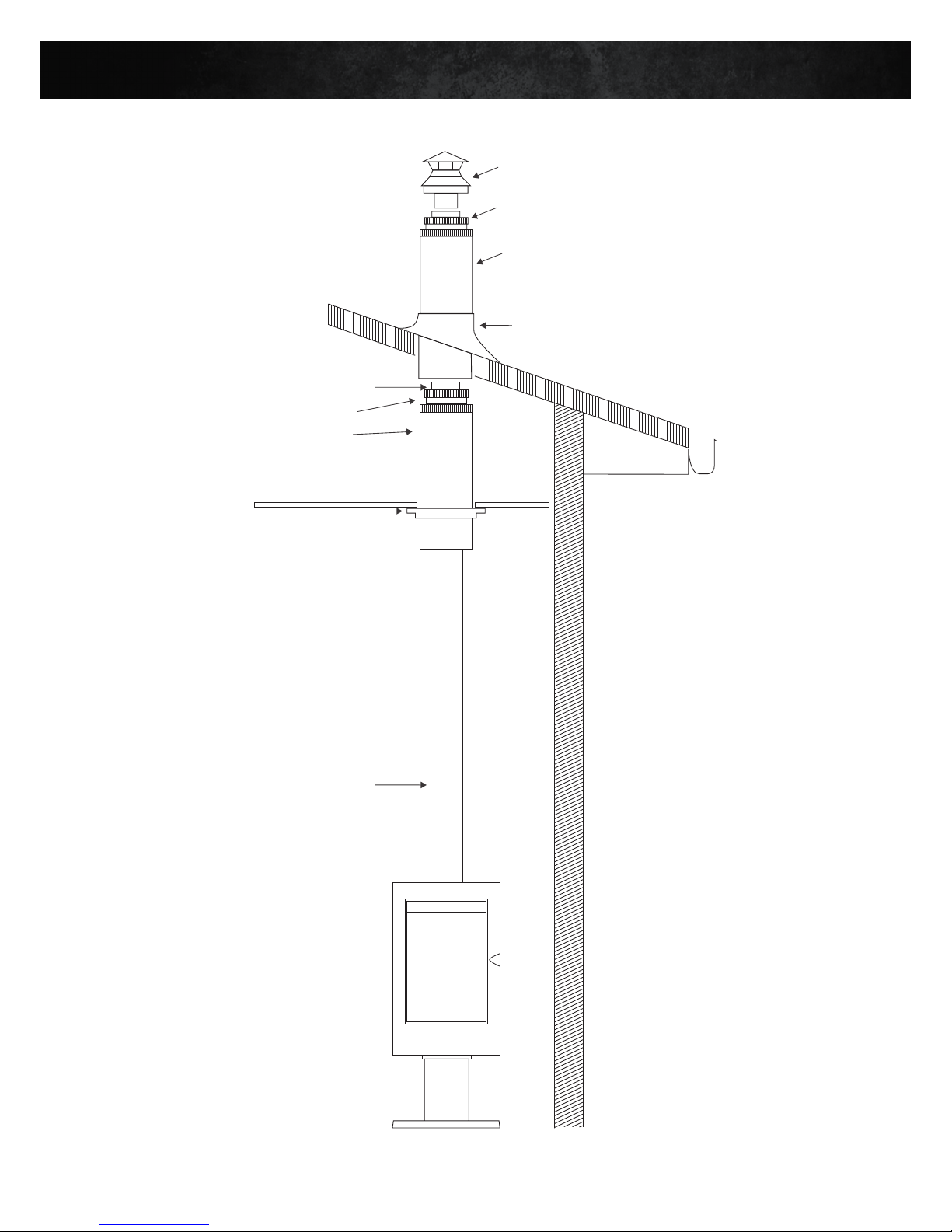

3.1 Typical flue kit installation
Cowl (Chinaman Hat)
9” Outer Case
11” Outer Case
9” Outer Case
11” Outer Case
7” Active Flue
7 / 9” Flue
CEILING RING
RUBBER
DEKTITE FLASHING

PAGE 6
OBLICA | PHAROS INSTALLATION AND USER MANUAL
3. INSTALLATION (CONTINUED)
3.2 Installing the external flue
1. Place the connection piece inside the suspension bracket. This will join the single skin flue below the
bracket and the triple skin flue above the bracket which have different diameters.
2. Ensure the triple skin flue is installed as per Australian standards (see diagrams below).
The top of the flue must be 400mm higher than the highest point of the roof. Alternatively, there must be a
minimum distance of 3 meters from any higher section of roof.
> 40 cm
–> 40 cm
–> 40 cm
–
> 3 m
–
> 120 cm
–
> 3 m
–
> 120 cm
–
> 120 cm
–
The top of the flue must be 1200mm above the roofline. Alternatively, there must be a minimum distance of
3 meters from any higher section of roof.
PITCHED ROOF INSTALLATION
FLAT ROOF INSTALLATION (LESS THAN 5˚PITCH)

PAGE 7
OBLICA | PHAROS INSTALLATION AND USER MANUAL
3.3 Protecting the floor
• Any combustible floor beneath a fireplace must have a floor protector that extends minimum 300mm at the front.
• If installed directly on combustible material, the floor protector must be made of a minimum 6mm thick cement sheet.
Non-combustible finishes can be applied to the floor protector (tiles, steel sheet, light concrete, etc).
• If the combustible floor is installed on concrete, you can replace the combustible material with non-combustible
material laid directly onto the concrete.
Joist
Insulative board (6mm)
+ non combustible finish
Combustible
floor (eg. timber)
FLOOR PROTECTOR LAID ON TIMBER FLOOR
3. INSTALLATION (CONTINUED)
Joist
Insulative board (6mm)
+ non combustible finish
Combustible
floor (eg. timber)
FLOOR PROTECTOR LAID ON JOIST

PAGE 8
OBLICA | PHAROS INSTALLATION AND USER MANUAL
Non combustible finish
(eg.tiles)
Concrete
Combustible
floor (eg. timber)
300mm
730mm
810mm
Combustible floor
(eg: Timber)
Floor protector
FLOOR PROTECTOR LAID ON CONCRETE
3. INSTALLATION (CONTINUED)
TOP VIEW

PAGE 9
OBLICA | PHAROS INSTALLATION AND USER MANUAL
4. OPERATION
4.1 What you should burn
• Untreated, air dried hardwood
• Split logs with a humidity content of less than 20%
4.2 Do not burn
• Trash
• Painted plastic
• Coated or preservative treated wood
• Waste or black coal
• Inflammable liquids
• Fire gels
• Moist wood with a residual humidity content of more than 20% (this may cause soothing of the chimney).
WARNING:
• Do not use flammable liquids or aerosols to start or rekindle the fire.
• Do not use flammable liquids or aerosols in the vicinity of the fireplace when operating.
• Do not store fuel within prescribed installation clearance distances.
• The use of some types of preservative-treated woods as a fuel can be hazardous.
IMPORTANT:
• Misuse may lead to unhealthy and environmentally harmful emissions and will void any warranty or guarantee.
• The maximum load capacity for the Pharos is 10kg of wood.
• Burning only seasoned hardwood helps to protect the environment and lower emissions.
For details of a wood supplier in your area please call our office on 03 9416 0400 or email [email protected].

PAGE 10
OBLICA | PHAROS INSTALLATION AND USER MANUAL
5. TESTING
TEST REPORT NO HCMG/15/041
TESTING LABORATORY: HRL Technology
MANUFACTURER: Invicta
MODEL: Pharos fireplace
WORK REQUESTED: Assessment of appliance to AS/NZS 4012:2014
for determination of Power Output and Efficiency
and AS/NZS 4013:2014 for Flue Gas Emission
using hardwood fuel.
ISSUE DATE: 23/07/2015
INVESTIGATING OFFICER: Steve Marland
RESULTS: The Pharos solid fuel burning appliance produced an
appliance particulate emissions factor of 1.2g/kg and an
average efficiency of 60% for all burn rates, using
hardwood that complies to AS/NZS 4014.1, when tested
according to joint AS/NZS 4012, AS/NZS 4013 (2014).
CONCLUSION: The Pharos solid fuel burning appliance complies with the
requirement of a combined efficiency of not less than 55%
and a particulate emissions factor of not greater than
2.5g/kg of hardwood that complies to AS/NZS 4014.1 in
AS/NZS 4013 (2014).
