Hearth and Home Technologies 350TRSI-AUF User manual

1
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Models:
350TRSI-AUF
350TRSILP-AUF
Owner’s Manual
Installation and Operation
•DO NOT USE OR STORE FLAMMABLE
MATERIALS NEAR THIS APPLIANCE.
•DO NOT SPRAY AEROSOLS IN THE VICIN-
ITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
• What to do if you smell gas
-DO NOT try to light any appliance.
-DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE.
• Keep clothing, furniture, draperies and other flammable
materials away.
SAI Global
Ref No GSCS20162
AS4553:2008
This is a room sealed appliance and no other ventilation is
required than what is provided.
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
an d ma in te na nc e
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
24
A. Approved Pipe
This appliance is approved for use with Hearth & Home
Technologies DVP and SLP venting systems. Refer to
Section 16.B for vent component information.
DO NOT mix pipe, fittings or joining methods from differ-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
WARNING! Risk of Fire or Asphyxiation. This appli-
ance requires a separate vent. DO NOT vent to a pipe
serving a separate solid fuel burning appliance.

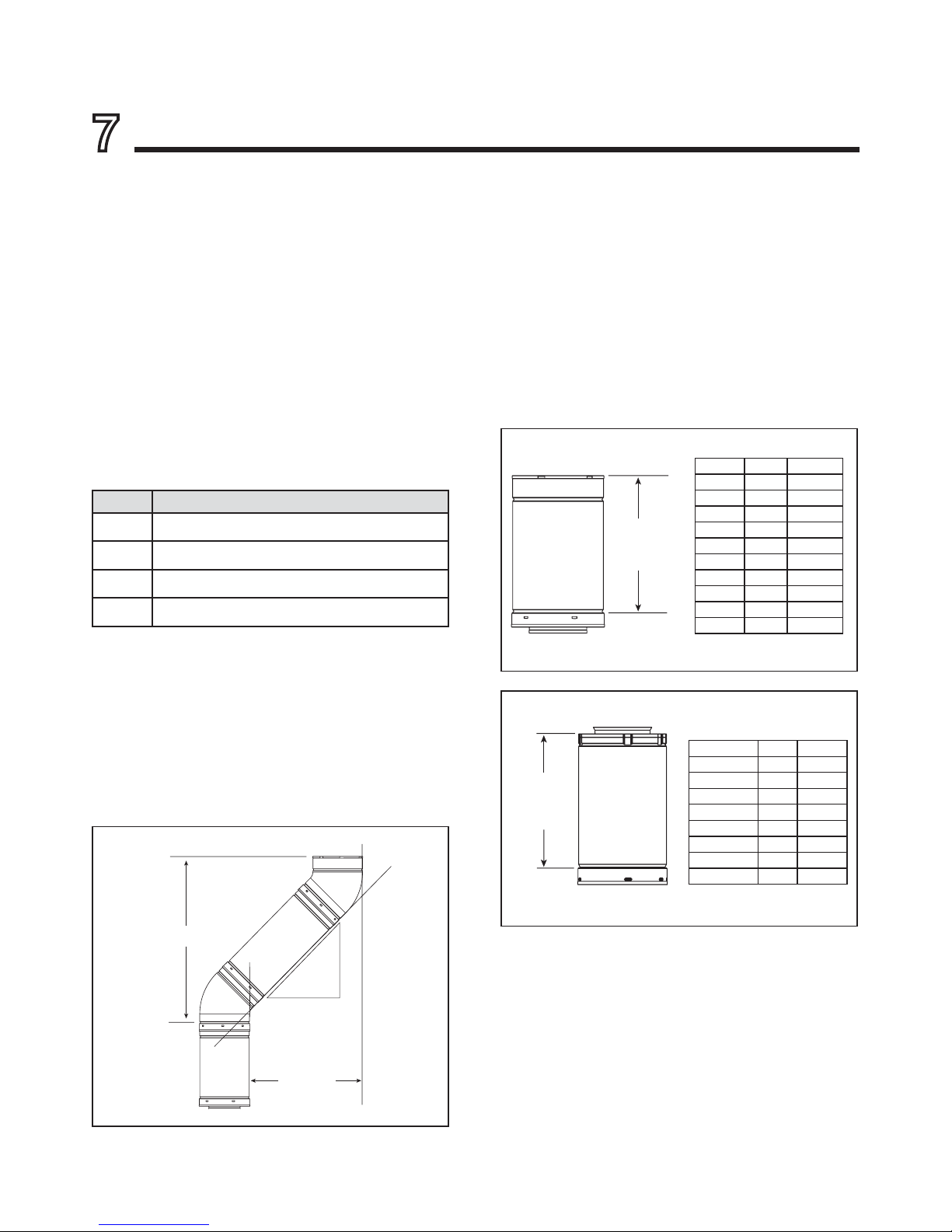

7Vent Information and Diagrams
C. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect (see
Figure 7.1).
Two 45º elbows may be used in place of one 90º elbow. On
45º runs, one foot of diagonal is equal to 216 mm horizontal
run and 216 mm vertical run. A length of straight pipe is
allowed between two 45º elbows (see Figure 7.1).
Figure 7.1
B. Vent Table Key
The abbreviations listed in this vent table key are used in
the vent diagrams.
D. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards.
• Pipe measurements are shown using the effective length
of pipe (see Figure 7.2 and 7.3).
• Measurements are made from the appliance outer wrap,
not from the standoffs.
• Horizontal terminations are measured to the outside
mounting surface (flange of termination cap).
• Vertical terminations are measured to bottom of
termination cap.
• Horizontal pipe installed level with no rise.
Symbol Description
V1First section (closest to appliance) of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Subsequent sections of horizontal length
Horizontal
Vertical
8-1/2 in.
(216 mm)
8-1/2 in. (216 mm)
12 in.
(305 mm)
E. Vent Diagrams
General Rules:
• When penetrating a combustible wall, a wall shield
firestop must be installed.
• When penetrating a combustible ceiling, a ceiling firestop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
Figure 7.2 DVP Pipe Effective Length
Figure 7.3 SLP Pipe Effective Length
Effective Height/Length
Pipe inches mm
DVP4 4 102
DVP6 6 152
DVP12 12 305
DVP24 24 610
DVP36 36 914
DVP48 48 1219
DVP6A 3 - 6 76 - 152
DVP12A 3 - 12 76 - 305
DVP12MI 3 - 12 76 - 305
DVP24MI 3 - 24 76 - 610
Effective
Height/
Length
Effective
Height/
Length
Effective Height/Length
Pipe inches mm
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305

25
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10

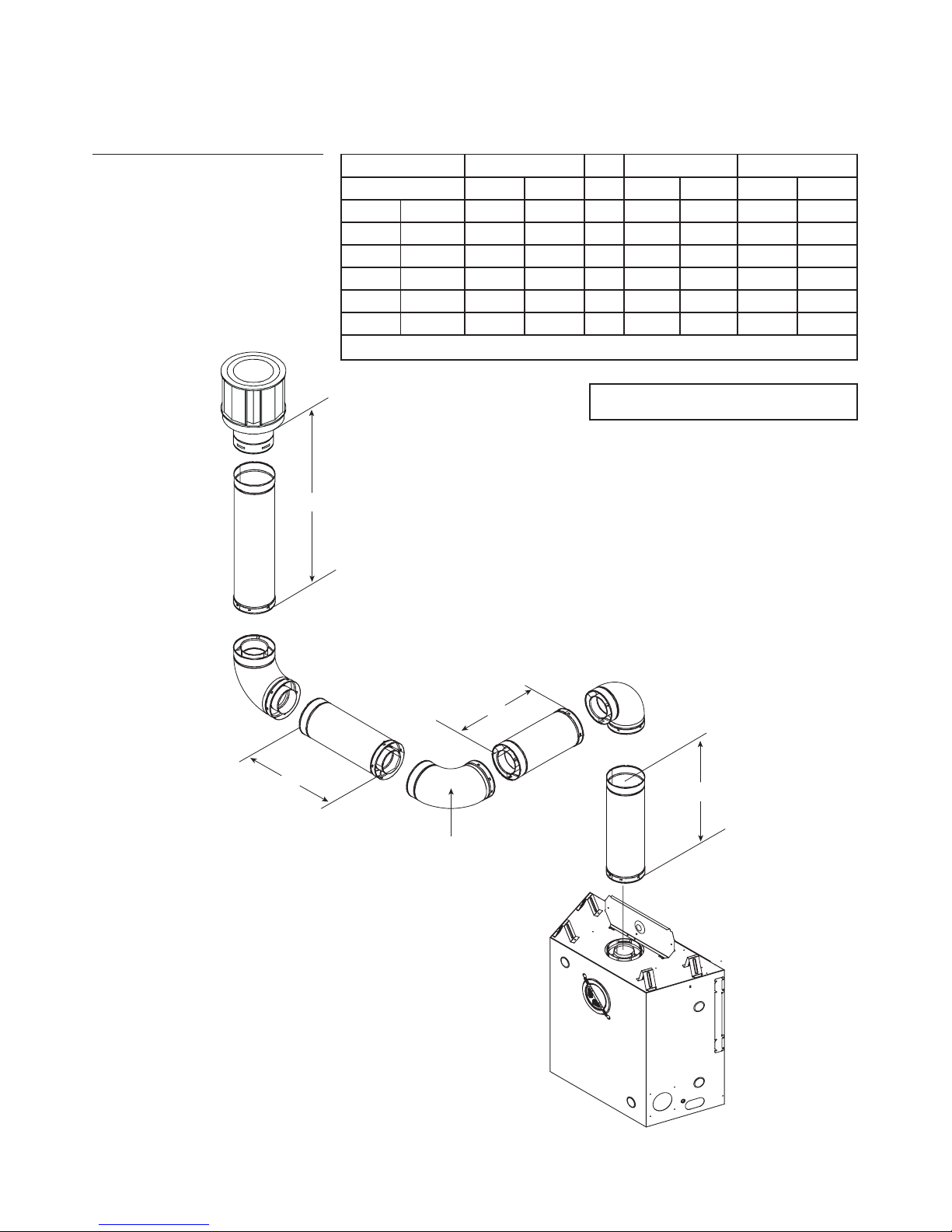

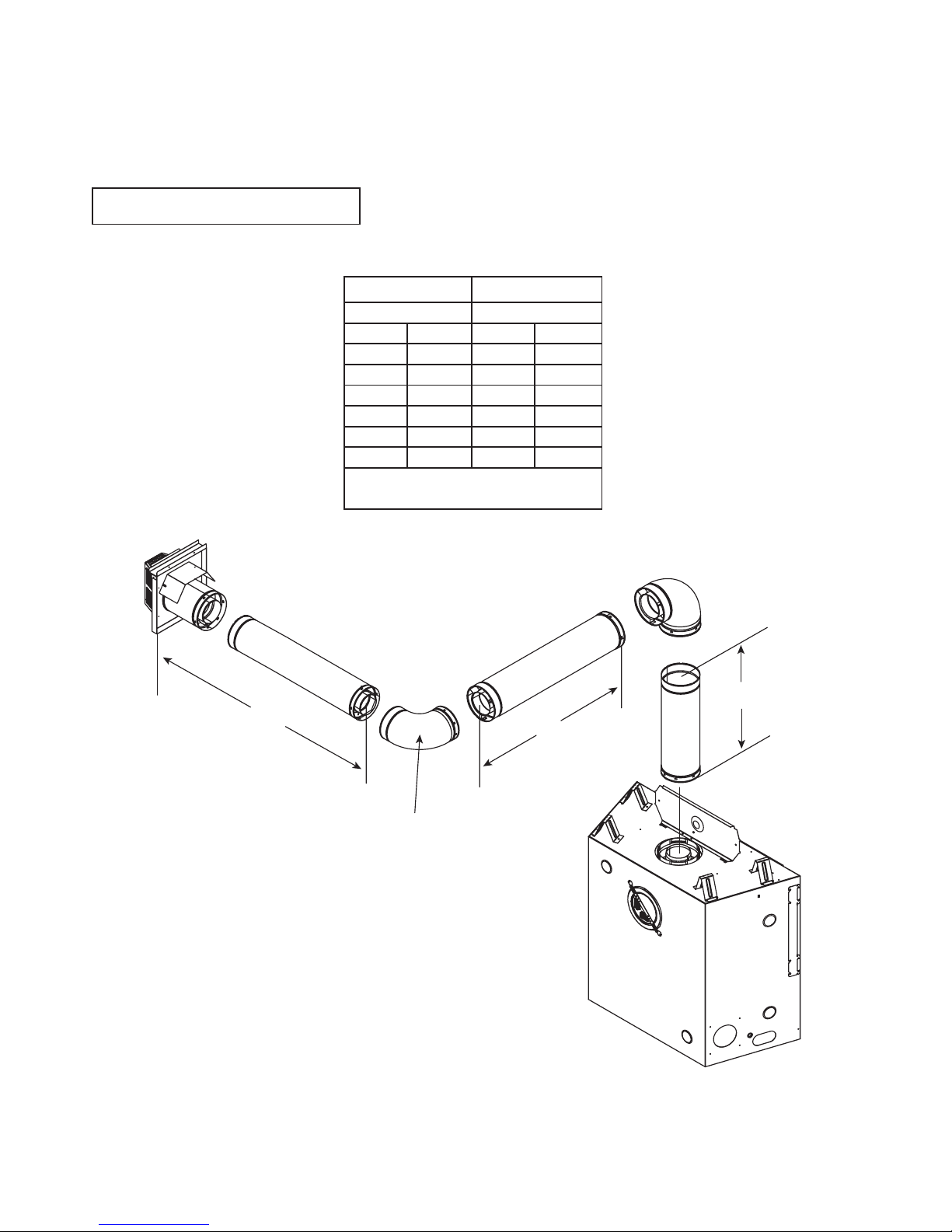

Figure 7.4
Top Vent - Horizontal Termination
Note: A 152 mm section of straight flue must
be attached to the heater before a 90° elbow.
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles
between ceiling firestops.
• ALWAYS maintain specified clearances around
venting and firestop systems.
• Install wall shield and ceiling firestops as speci-
fied.
Failure to keep insulation or other material away
from vent pipe may cause fire.
WARNING
Example: DVP pipe 3 ft. min. vertical = 11 ft. max. horizontal
SLP pipe 7 ft. min. vertical = 11 ft. max. horizontal
V1Minimum H1Maximum
Elbow only NOT ALLOWED
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.22 m
3 ft. 914 mm 8 ft. 2.44 m
4 ft. 1.22 m 10 ft. 3.05 m
5 ft. 1.52 m 16 ft. 4.88 m
V1+ H1= 30 ft. (9.14 m) Maximum
H1
V1
USE SLP SERIES COMPONENTS ONLY

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
26
Top Vent - Horizontal Termination - (continued)
Figure 7.5
Two Elbows
V1Minimum H1+ H2Maximum
Elbow only Not allowed
6 in. 152 mm 1 ft. 305 mm
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.22 m
3 ft. 914 mm 6 ft. 1.83 m
4 ft. 1.22 m 8 ft. 2.44 m
5 ft. 1.52 m 10 ft. 3.05 m
30 ft. 9.14 m 10 ft. 3.05 m
V1+ H1+ H2= 30 ft. (9.14 m) Maximum
H1+ H2= 10 ft. (3.05 m) Maximum
INSTALLED
HORIZONTALLY
H1
H2
V1
Note: A 152 mm section of straight flue must
be attached to the heater before a 90° elbow.
USE SLP SERIES COMPONENTS ONLY

27
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Top Vent - Horizontal Termination - (continued)

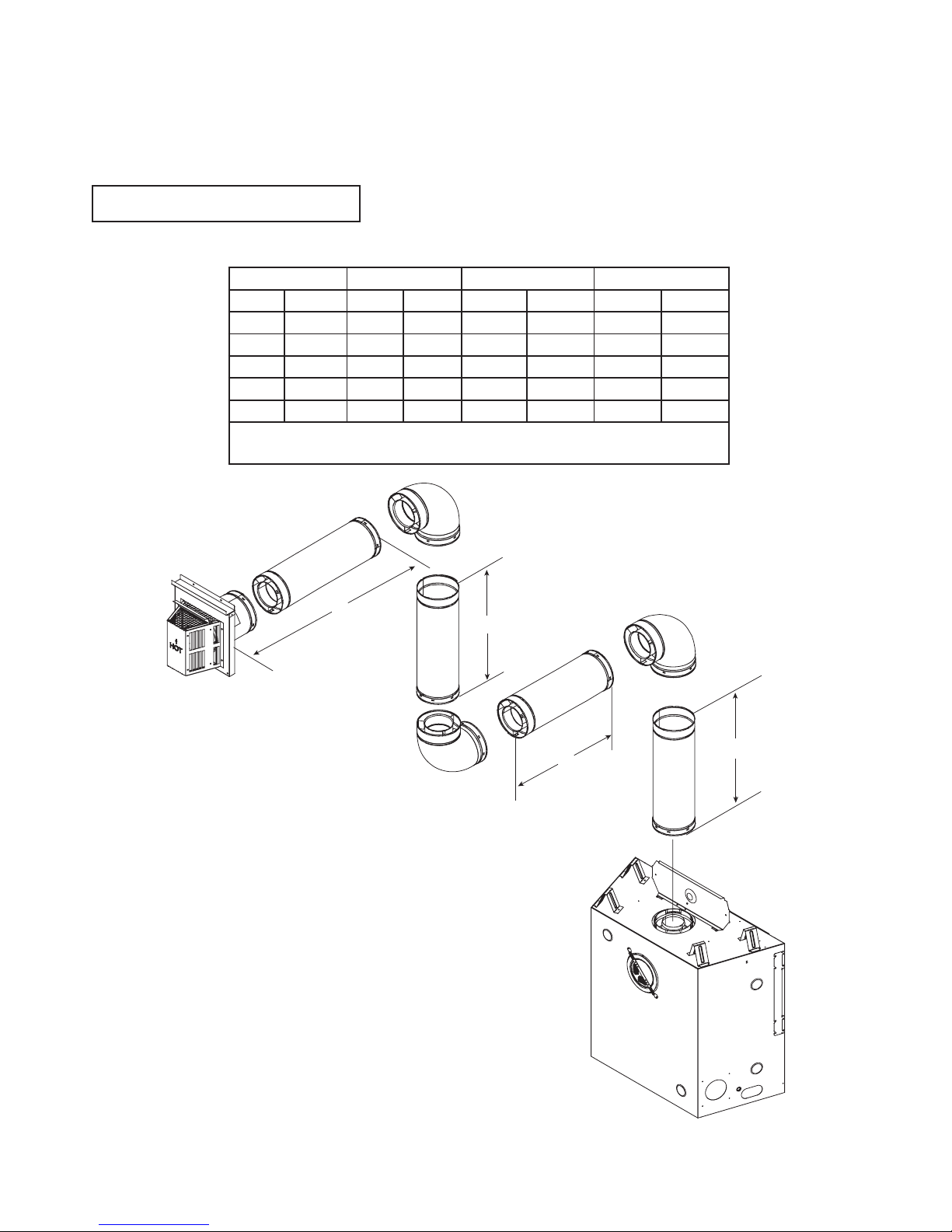

Figure 7.6
Three Elbows
V1Min. H1Max. V2Min. H2Max.
6 in. 152 mm 1 ft. 305 mm 1 ft. 305 mm 1 ft. 305 mm
1 ft. 305 mm 2 ft. 610 mm 2 ft. 610 mm 2 ft. 610 mm
2 ft. 610 mm 2 ft. 610 mm 3 ft. 914 mm 4 ft. 1.22 m
3 ft. 914 mm 3 ft. 914 mm 4 ft. 1.22 m 6 ft. 1.83 m
4 ft. 1.22 m 4 ft. 1.22 m 5 ft. 1.52 m 8 ft. 2.44 m*
5 ft. 1.52 m 6 ft.* 1.83 m 6 ft. 1.83 m 12 ft. 3.66 m
*H1= 6 ft. (1.83 m) Maximum *H1+ H2= 12 ft. (3.66 m) Maximum
V1+ V2= 32 ft. (9.75 m) Maximum V1+ V2+ H1+ H2= 36 ft. (10.97 m) Maximum
H2
H1
V2
V1
Note: A 152 mm section of straight flue must
be attached to the heater before a 90° elbow.
USE SLP SERIES COMPONENTS ONLY

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
28

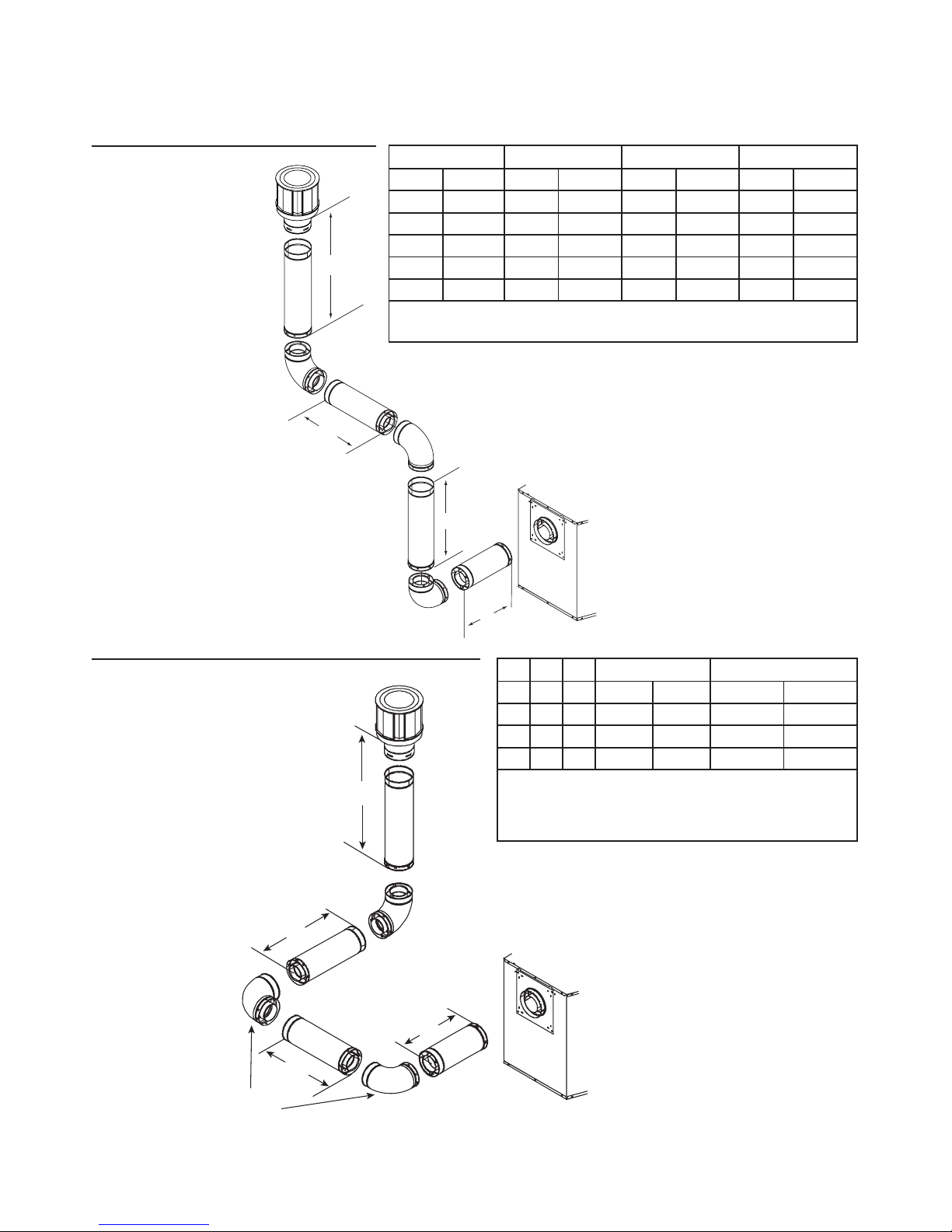

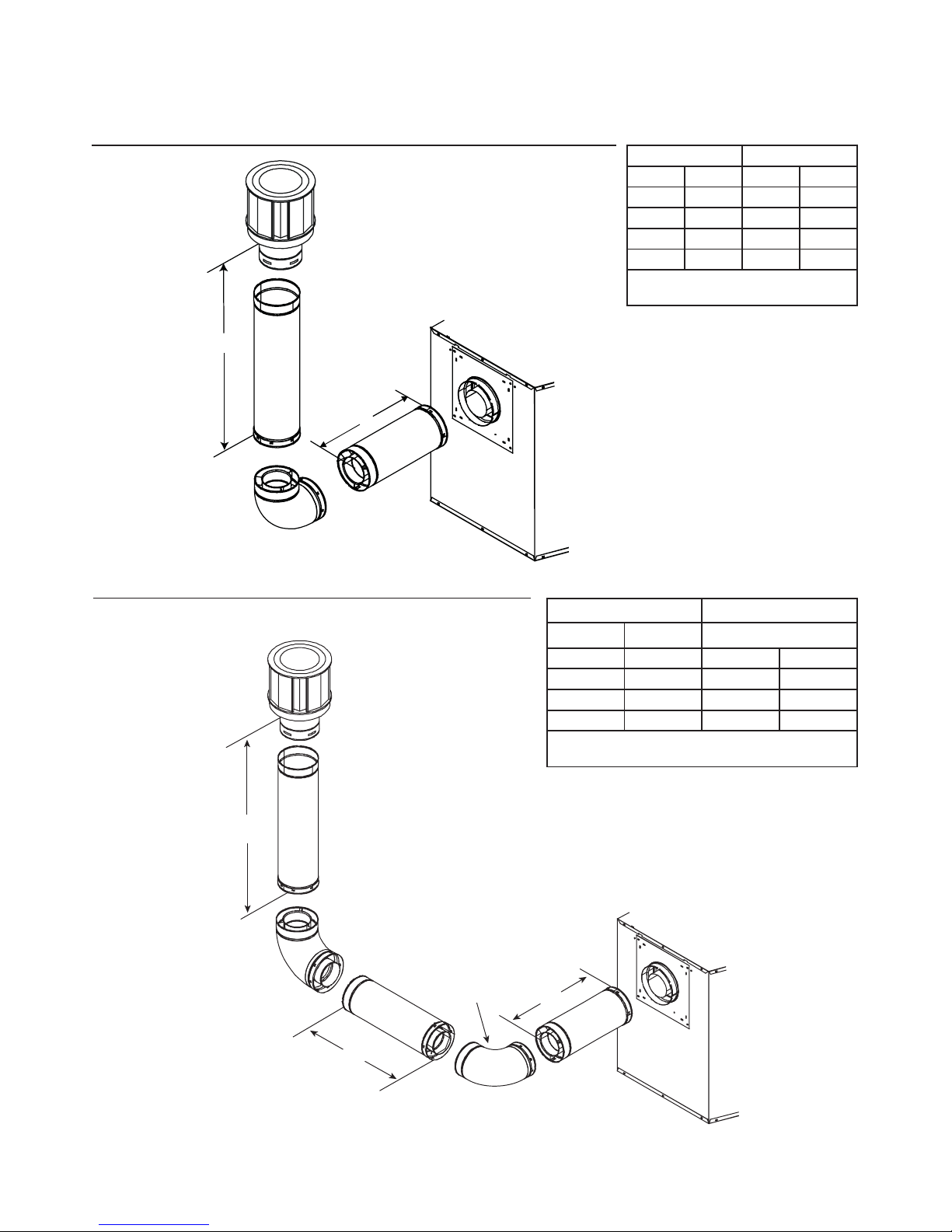

Top Vent - Vertical Termination
This model is approved to use DVP or SLP Series flue
pipe components. A DVP-TVHW or SLP-TVHW vertical
Termination Cap must be used to terminate flue systems
in a vertical position.
Approved flue system components are labeled for identifi-
cation. NO OTHER FLUE SYSTEMS OR COMPONENTS
MAY BE USED. Detailed installation instructions are in-
cluded with each flue termination kit and should be used
in conjunction with this manual.
WARNING! Risk of Fire! This gas appliance and flue
assembly must be flued directly to the outside and must
never be attached to a chimney serving a separate solid
fuel burning appliance. Each gas appliance must use a
separate flue system-common flue systems are prohibited.
CAUTION! Risk of Fire! Under no condition should com-
bustible material be closer than 3 inches (2-1/2 inches at
wall firestops) from the top of the 8 inch pipe or 1 inch to
the sides and the bottom for horizontal sections of this
flue system. Vertical sections of this system require a
minimum of 1 inch clearance to combustible materials all
around the 8 inch pipe.
For alternative installations, other than depicted, contact
your dealer for further information.
MODEL FLUE TERMINATION APPROVALS
350TRSI-AUF
350TRSILP-AUF SLP-TVHW, DVP-TVHW

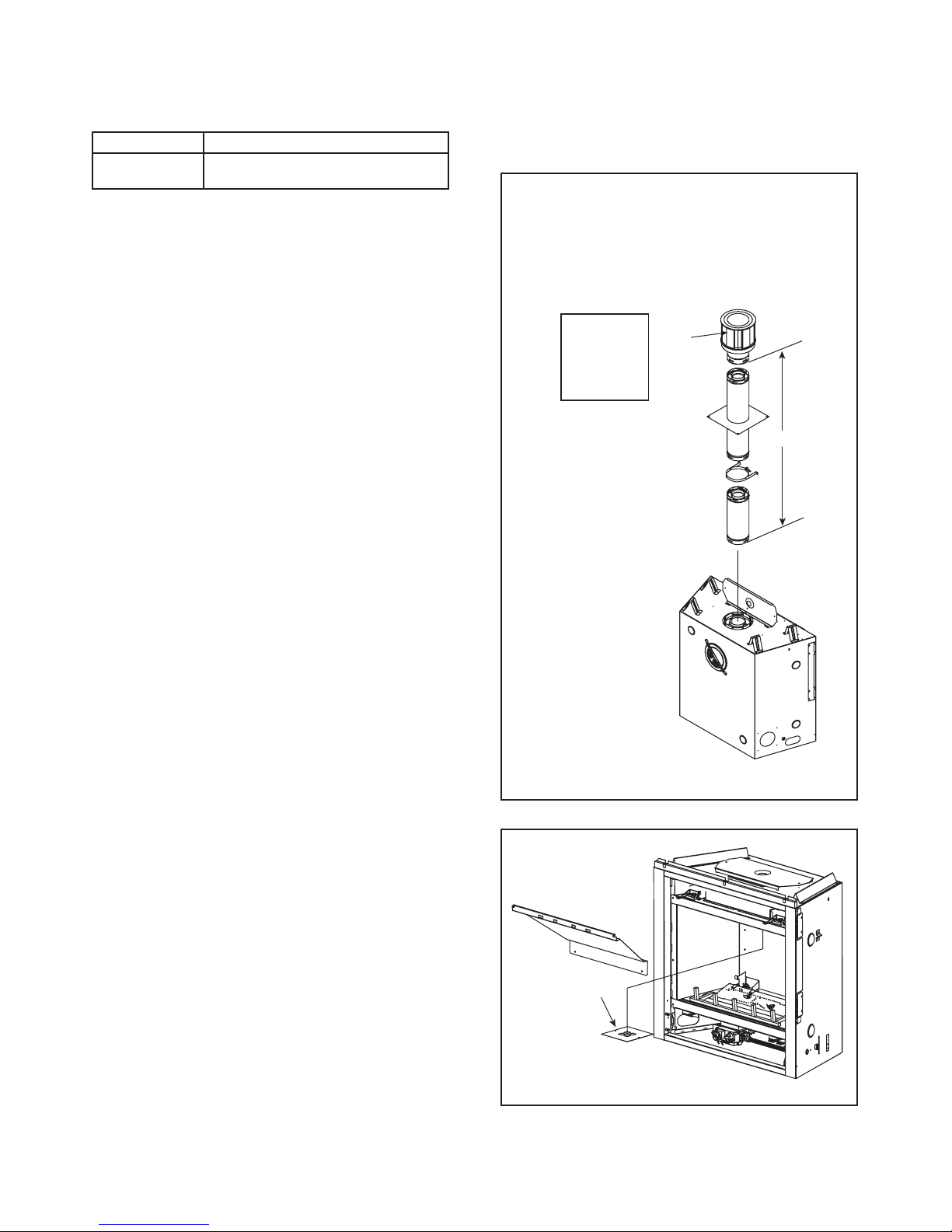

Figure 7.8
Figure 7.7
V
MAX. RUN
36 FT.
(10.97 m)
Straight Up Vertical Flue System
Figure 7.7 shows straight up vertical flue system approved
for use on this model.
If the heater installation requires a vertical flue
exceeding 4.5 m above the unit with no hori-
zontal flue or elbows a vertical flue restrictor
must be installed (see Figure 7.7).
CAP
V1
RESTRICTOR
PLATE

29
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Figure 7.9 Flue Components and Terminations
MODEL
350TRSI-AUF
350TRSILP-AUF
FLUE TERMINATION APPROVALS
DVP-TRAP2 HORIZONTAL TERMINATION CAP
DVP-FBHT HORIZONTAL TERMINATION CAP
DVP-TVHW VERTICAL TERMINATION CAP
Flue System Approvals And Installations
These models have flue starting collars on both the top
and the back of the unit. Depending upon the installation,
decide which ONE set of starting collars will be used to at-
tach the flue system. The starting collar sealing cap must
remain on the starting collar NOT used.
These models use DVP and SLP series direct flue com-
ponents when using the TOP flue collars and DVP-series
direct flue components when using the REAR flue collars.
Approved flue system components are labeled for identi-
fication. NO OTHER FLUEING SYSTEMS OR COMPO-
NENTS MAY BE USED. Detailed installation instructions
are included with each flue termination kit and should be
used in conjunction with this manual. Figure 7.9 shows
flue system components and terminations.
Identifying Flue Components
The flue systems installed on this gas heater may include
one, two, or three 90° elbow assemblies. The relationships
of vertical rise to horizontal run in flue configurations using
90° elbows MUST BE strictly adhered to. The rise to run
relationships are shown in the flueing drawings and tables
on the next few pages.
WARNING! Risk of Fire! This gas appliance and flue as-
sembly must flue directly to the outside and must never
be attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance must use a sepa-
rate flue system-common flue systems are prohibited.
CAUTION! Risk of Fire! Under no condition should com-
bustible material be closer than 76 mm at wall fire-stops
from the top of the pipe or 25 mm to the sides and the
bottom for horizontal sections of this flue system. Verti-
cal sections of this system require a minimum of 25 mm
clearance to combustible materials all around the pipe.
For alternative installations, other than depicted, contact
your dealer for further information.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
SLP-TVHW
SLP-TRAP2
SLP SERIES
DVP-TRAP2
DVP-TVHW
Flue system termination kits
DVP-FBHT

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
30
Figure 7.10
Two Elbows
V1H1Maximum V2V1+ V2Min.
Elbow only Not allowed * * *
6 in. 152 mm 2 ft. 610 mm * * *
1 ft. 305 mm 4 ft. 1.21 m * * *
2 ft. 610 mm 6 ft. 1.83 m * * *
3 ft. 914 mm 8 ft. 2.44 m * * *
4 ft. 1.22 m 12 ft. 3.66 m * * *
5 ft. 1.52 m 16 ft. 4.88 m * * *
V1+ V2+ H1= 36 ft. (10.97 m) Maximum
*No specific restrictions on this value EXCEPT
V1+ V2cannot exceed 32 ft. (9.75 m)
H1
V1
V2
Top Vent - Vertical Termination - (continued)
Note: A 152 mm section of straight flue must
be attached to the heater before a 90° elbow.
USE SLP SERIES COMPONENTS ONLY

31
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Figure 7.11
Top Vent - Vertical Termination - (continued)
Three Elbows V1H1+ H2V2V1+ V2Minimum H1+ H2Maximum
Elbow only 1 ft. 305 mm * * * 1 ft. 305 mm
6 in. 152 mm 2 ft. 610 mm * * * 2 ft. 610 mm
1 ft. 305 mm 2 ft. 610 mm * * * 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.22 m * * * 4 ft. 1.22 m
3 ft. 914 mm 6 ft. 1.83 m * * * 6 ft. 1.83 m
4 ft. 1.22 m 8 ft. 2.44 m * * * 8 ft. 2.44 m
5 ft. 1.52 m 12 ft. 3.66 m * * * 12 ft. 3.66 m
H1+ H2= 12 ft. (3.66 m) Maximum V1+ V2+ H1+ H2= 32 ft. (9.75 m) Maximum
INSTALLED
HORIZONTALLY
H1
H2V1
V2
Note: A 152 mm section of straight flue must
be attached to the heater before a 90° elbow.
USE SLP SERIES COMPONENTS ONLY

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
32
Rear Vent - Horizontal Termination
Figure 7.13
No Elbow
One 45º Elbow
H1
H1Minimum H1Maximum
6-1/2 in. (165 mm) 18 in. (457 mm)
Do not use a 45º elbow in corner installations.
Use two 90º elbows instead.
Figure 7.12
H
USE DVP SERIES COMPONENTS ONLY
USE DVP SERIES COMPONENTS ONLY

33
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Rear Vent - Horizontal Termination - (continued)
Two Elbows
Figure 7.14
Figure 7.15
Three Elbows
USE DVP SERIES COMPONENTS ONLY
USE DVP SERIES COMPONENTS ONLY
H1
H2V1
INSTALLED
HORIZONTALLY
H3
H1
H2
V1
H1Maximum V1Minimum H2H1+ H2Maximum
6 in. 152 mm Back to Back
90º Elbows 6 in. 152 mm 1 ft. 305 mm
6 in. 152 mm 6 in. 152 mm 1 ft. 305 mm 1-1/2 ft. 457 mm
1 ft. 305 mm 1 ft. 305 mm 1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 2 ft. 610 mm 2 ft. 610 mm 4 ft. 1.22 m
3 ft. 914 mm 3 ft. 914 mm 4 ft. 1.22 m 8 ft. 2.44 m
4 ft. 1.22 m 4 ft. 1.22 m 6 ft. 1.83 m 10 ft. 3.05 m
V1+ H1+ H2= 30 ft. (9.14 m) Maximum H1= 4 ft. (1.22 m) Maximum
*H1+ H2= 10 ft. (3.05 m) Maximum
H1Maximum V1Minimum H2+ H3H1+ H2+ H3Max.
0 ft. 0 mm Back to Back
90º Elbows 1 ft. 305 mm 1 ft. 305 mm
6 in. 152 mm 6 in. 152 mm 1 ft. 305 mm 1-1/2 ft. 457 mm
1 ft. 305 mm 1 ft. 305 mm 1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 2 ft. 610 mm 2 ft. 610 mm 4 ft. 1.22 m
3 ft. 914 mm 3 ft. 914 mm 5 ft. 1.52 m 8 ft. 2.44 m
4 ft. 1.22 m 4 ft. 1.22 m 6 ft. 1.83 m 10 ft. 3.05 m
V1+ H1+ H2+ H3= 30 ft. (9.14 m) Maximum H1= 4 ft. (1.22 m) Maximum
H1+ H2+ H3= 10 ft. (3.05 m) Maximum

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
34
Rear Vent - Vertical Termination
One Elbow
Figure 7.16
Two Elbows
Figure 7.17
V1
H1
INSTALLED
HORIZONTALLY H1
H2
V1
USE DVP SERIES COMPONENTS ONLY
USE DVP SERIES COMPONENTS ONLY
V1Minimum H1Maximum
1 ft. 305 mm 3 ft. 914 mm
2 ft. 610 mm 6 ft. 1.83 m
3 ft. 914 mm 8 ft. 2.44 m
4 ft. 1.22 m 11 ft. 3.35 m
5 ft. 1.52 m 12 ft. 3.66 m
V1+ H1= 36 ft. (10.97 m) Maximum
H1= 12 ft. (3.66 m) Maximum
V1Minimum H1+ H2Maximum
2 ft. 610 mm Back to Back 90º Elbows
1 ft. 310 mm 3 ft. 915 mm
2 ft. 610 mm 4 ft. 1.22 m
3 ft. 914 mm 8 ft. 2.44 m
4 ft. 1.22 m 10 ft. 3.05 m
V1+ H1= 32 ft. (9.75 m) Maximum
H1+ H2= 9 ft. (2.74 m) Maximum

35
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
Rear Vent - Vertical Termination - (continued)
Three Elbows
Figure 7.17
Three Elbows
Figure 7.18 INSTALLED
HORIZONTALLY
H3
H1
H2
V1
V2
V1
H2
H1
USE DVP SERIES COMPONENTS ONLY
USE DVP SERIES COMPONENTS ONLY
H1H2H3V1Minimum H1+ H2+ H3Maximum
* * * 8 ft. 2.44 m 6 ft. 1.83 m
* * * 9 ft. 2.74 m 7 ft. 2.13 m
* * * 10 ft. 3.05 m 8 ft. 2.44 m
* * * 10 ft. 3.05 m 8 ft. 2.44 m
V1+ H1+ H2+ H3= 32 ft. (9.75 m) Maximum
*No specific restrictions on this value EXCEPT
V1+ H1+ H2+ H3cannot exceed 32 ft. (9.75 m) Maximum
H1+ H2+ H3= 8 ft. (2.44 m) Maximum
H1Maximum V1Minimum H2H1+ H2Maximum
6 in. 152 mm 6 in. 152 mm 6 in. 152 mm 1 ft. 305 mm
1 ft. 305 mm 1 ft. 305 mm 1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 2 ft. 610 mm 3 ft. 914 mm 4 ft. 1.22 m
3 ft. 914 mm 3 ft. 914 mm 6 ft. 1.83 m 7 ft. 2.13 m
4 ft. 1.22 m 4 ft. 1.22 m 8 ft. 2.44 m 9 ft. 2.74 m
5 ft. 1.52 m 5 ft. 1.52 m 8 ft. 2.44 m 12 ft. 3.66 m
H1= 5 ft. (1.52 m) Max. V1+ V2+ H1+ H2= 36 ft. (10.97 m) Max.
H1+ H2= 12 ft. (3.66 m) Max.

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
36
A. Pipe Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance to
vent. DO NOT pack insulation or other combustibles:
• Between ceiling firestops
• Between wall shield firestops
• Around vent system
Failure to keep insulation or other material away from
vent pipe may cause over heating and fire.
8Vent Clearances and Framing
Figure 8.2 Wall Penetration
* Shows center of vent framing hole for top or rear venting. The center of the
hole is one 25.4 mm above the center of the horizontal vent pipe.
Figure 8.1 Horizontal Venting Clearances To Combustible
Materials
B. Wall Penetration Framing
Combustible Wall Penetration
Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield firestop(s). The wall shield
firestop maintains minimum clearances and prevents cold
air infiltration.
• The opening must be framed on all four sides using the
same size framing materials as those used in the wall
construction.
• DVP pipe - A wall shield firestop is required on one side
only on interior walls. If your local inspector requires a
wall shield firestop on both sides, then both wall shield
firestops must have a heat shield (refer to Section
16.B.) attached to them.
• SLP pipe - A wall shield firestop must be placed on each
side of an interior wall. A minimum 1-1/2 inch (38 mm)
overlap of attached heat shields must be maintained.
• See Section 10.H. for information for regarding the in-
stallation of a horizontal termination cap.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by noncom-
bustible materials such as concrete, a hole with diameter
one inch greater than the pipe is acceptable.
Whenever a non-combustible wall is penetrated, the wall
shield firestop is only required on one side and no heat
shield is necessary.
* When using SLP or SL-D pipe, minimum clearances from the vent pipe to combus-
tible materials at inside wall firestops are: Top: 2-1/2 in. (64 mm)
Bottom: 1/2 in. (13 mm)
Sides: 1 in. (25 mm)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm).
•DVP heat shield - designed to be used on a wall 4 in. to 7-1/4 in. (102 mm to 184
mm) thick.
• If wall thickness is less than 4 in. the existing heat shields must be field trimmed. If
wall thickness is greater than 7-1/4 in. a DVP-HSM-B will be required.
•SLP heat shield - designed to be used on a wall 4-3/8 in. to 7-5/8 in. (111 mm to
194 mm thick).
• If wall thickness is less than 4-3/8 the existing heat shields must be field trimmed.
If wall thickness is greater than 7-5/8 in. a DVP-HSM-B will be required.
(DVP-SLP Pipe Shown)
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance
1 in. (25 mm)
clearance around
vertical sections
A* B* C D
350TRSI-AUF
350TRSILP-AUF
in. 39-3/4 22-3/8 38-3/4 21-3/8
mm 1010 568 984 541
C
D
A* B*
10 in.
10 in. 10 in.
12 in.

37
Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
C. Install the Ceiling Firestop
A ceiling firestop MUST be used between
floors and attics.
•DVP pipe only - Frame an opening 10 in.
by 10 in. (254 mm by 254 mm) whenever
the vent penetrates a ceiling/floor (see
Figure 8.3).
•SLP pipe only - Frame opening 9 in. x 9
in. (229 mm x 229 mm) whenever the vent
penetrates a ceiling/floor (see Figure 8.3).
• Frame the area with the same sized lumber
as used in ceiling/floor joist.
• The ceiling firestop may be installed above or
below the ceiling joists when installed with a
attic insulation shield. It must be under joists
between floors that are not insulated. Refer
to Figure 8.4.
• Secure with three fasteners on each side.
WARNING! Risk of Fire! DO NOT pack insu-
lation around the vent. Insulation must be kept
back from the pipe to prevent overheating.

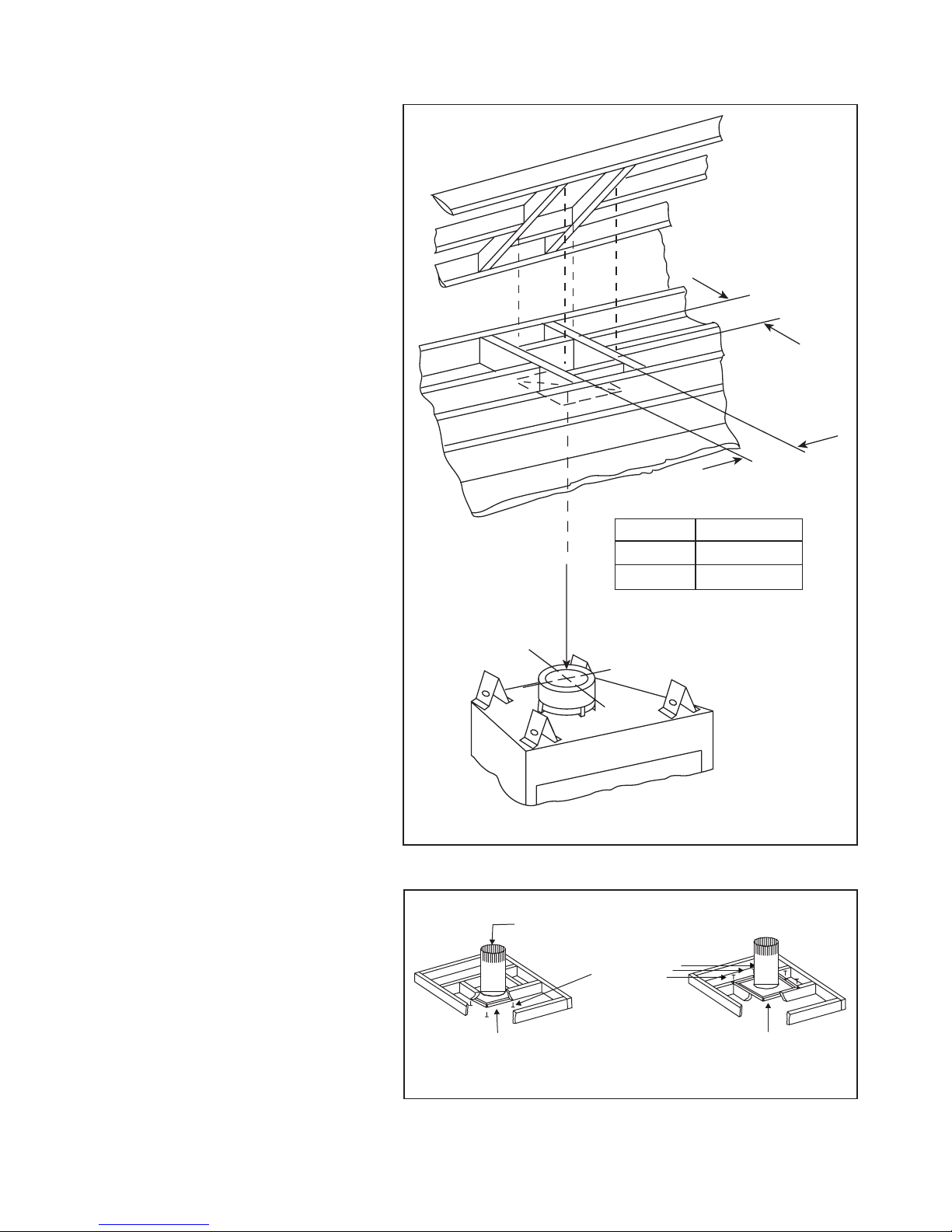

Figure 8.3 Installing Ceiling Firestop
Figure 8.4 Installing the Attic Shield
3 FASTENERS
PER SIDE
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING
CEILING FIRESTOP
INSTALLED ABOVE CEILING
ATTIC ABOVE
A
PIPE
DVP
SLP
A
10 in. (254 mm)
9 in. (229 mm)
A

Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. B • 8/10
38
D. Install Attic Insulation Shield
WARNING! Fire Risk. DO NOT allow loose materials or
insulation to touch vent. Hearth & Home Technologies
Inc. requires the use of an attic shield.
The National Fuel Gas Code ANSI Z223.1 and NFPA 54
requires an attic shield constructed of 26 gauge minimum
metal that extends at least 2 in. (51 mm) above insulation.
Attic shields must meet specified clearance and be se-
cured in place.
Flat Ceiling Installation
• Remove one shield from box.
NOTICE: Cut previously installed batt insulation to make
room for the attic insulation shield.
• Wrap shield around pipe if pipe is already installed in
area to be insulated.
• Match the three holes in each side and fasten with three
screws to form a tube.
• Bend three tabs on the bottom of the shield outward to
allow attachment to the ceiling firestop.
• Bend the remaining bottom tabs inward 90º to maintain
the air space between the pipe and the shield. Set the
shield on the ceiling firestop and attach to the firestop.
• Bend all tabs inward 90º around the top of the shield.
These tabs must be used to prevent blown insulation
from getting between the shield and vent pipe, and to
maintain air space clearance.
Figure 8.5 Attic Insulation Shield
Figure 8.6 Heat Zone Knockout
E. Installing the Optional Heat-Zone-240V Kit
• Remove the knockout from the fireplace and discard it
(see Figure 8.6).
• Center the duct collar around the exposed hole and
attach it to the fireplace with 3 screws. Note: Do this
BEFORE final positioning of fireplace.
• Determine the location for the air register/fan housing
assembly.
Reference the Heat-Zone-240V Kit instructions for the
remaining installation steps.
Vaulted Ceiling Installation
• Remove one shield from box.
NOTICE: Cut previously installed batt insulation to make
room for the attic insulation shield.
• Cut the attic insulation shield (if application is for vaulted
ceiling) to fit your ceiling pitch. Snip cut edge to recreate
1 in. bend tabs all the way around the bottom.
• Wrap shield around pipe if pipe is already installed in
area to be insulated.
• Match the three holes in each side and fasten with three
screws to form a tube.
• Bend three tabs on the bottom of the shield outward to
allow attachment to the ceiling firestop.
• Bend the remaining bottom tabs inward 90º to maintain
the air space between the pipe and the shield. Set the
shield on the ceiling firestop and attach to the firestop.
• Bend all tabs inward 90º around the top of the shield.
These tabs must be used to prevent blown insulation
from getting between the shield and vent pipe, and to
maintain air space clearance.
BEND ALL TABS INWARD 90°
TO MAINTAIN CLEARANCE
AND PREVENT INSULATION
FROM FALLING INSIDE
INSERT 3
SCREWS
BEND 3 TABS
OUTWARD TO
FASTEN TO CEILING
FIRESTOP-BEND
REMAINING TABS
INWARD 90 DEGREES
TO MAINTAIN
CLEARANCE
HEAT-ZONE-GAS
ATTACHES HERE
